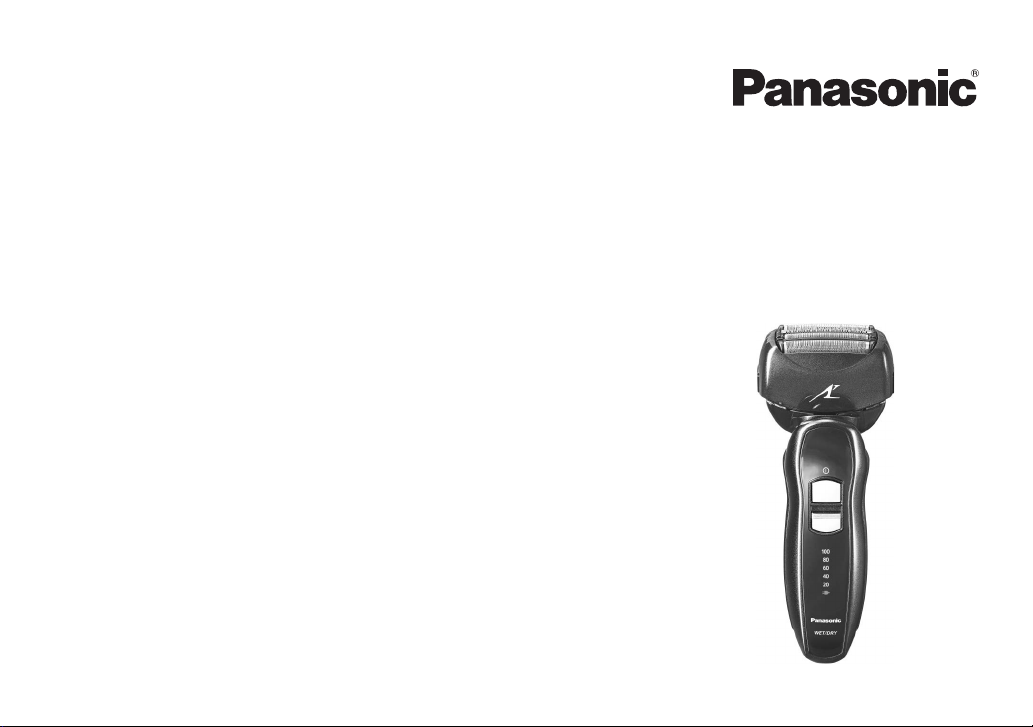

Panasonic ES-LA63A User manual

Operating Instructions
(Household use) Rechargeable Shaver
Model No. ES‑LA63A
English��������������������������������������������� 3
Español������������������������������������������ 21

2

3
English
Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use�
Operating Instructions
(Household use) Rechargeable Shaver
Model No. ES‑LA63A
Contents
Safety precautions..................... 5
Important information �����������������������10
Parts identication ����������������������������11
Preparation�����������������������������������������12
How to use �����������������������������������������13
Cleaning the shaver ��������������������������14
Replacing the system outer foil and
the inner blades���������������������������������15
FAQ �����������������������������������������������������16
Troubleshooting ��������������������������������17
Battery life������������������������������������������18
Removing the built-in rechargeable
battery�������������������������������������������������18
Specications ������������������������������������19

4
English
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic
precautions are required to always be followed,
including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric
shock:
1. Do not reach for an appliance that has fallen
into water. Unplug immediately.
2. Do not place or store appliance where it can fall
or be pulled into a tub or sink. Do not place in
or drop into water or other liquid.
3. Except when charging, always unplug this
appliance from the electrical outlet immediately
after using.
4. Unplug this appliance before cleaning.
WARNING
To reduce the risk of burns, re,
electric shock, or injury to persons:
1. Close supervision is required when this appliance
is used by, on, or near children or invalids.
2. Use this appliance only for its intended use as
described in this manual. Do not use attachments
not recommended by the manufacturer.
3. Never operate this appliance when it has a
damaged cord or plug, when it is not working
properly, after it has been dropped or damaged,
or after it has been dropped into water. Return
the appliance to a service center for
examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors or operate where aerosol
(spray) products are being used or where
oxygen is being administered.
7. Do not use this appliance with damaged
shaving blades and/or foil, as it has the
potential to result in facial injury.
8.Alwaysattachplugtoappliancerst,thento
outlet. To disconnect, turn all controls to “off”
then remove plug from outlet.
SAVE THESE INSTRUCTIONS

5
English
Safety precautions
Make sure to follow these instructions
To prevent accidents, injuries or damage to property,
please follow the instructions below.
■The following chart indicates the degree of
damage caused by improper operation�
DANGER Indicates a potential hazard that
will result in serious injury or death.
WARNING
Indicates potential hazard that could
result in serious injury or death.
CAUTION
Indicates potential hazard that
could result in minor injury or
property damage.
■ The symbols are classied and explained as
follows�
This symbol indicates prohibition.
This symbol indicates requirement that must be
followed.
WARNING
►This product
This product has a built-in rechargeable
battery. Do not throw into re, apply heat, or
charge, use, or leave in a high temperature
environment�
‑ Doing so may cause overheating, ignition, or
explosion.
Do not modify or repair�
‑ Doingsomaycausere,electricshock,or
injury.
Contact an authorized service center for repair
(replacement of battery etc).
Never disassemble except when disposing of
the product�
‑
Doingsomaycausere,electricshock,orinjury.

6
English
WARNING
►In case of an abnormality or malfunction
Immediately stop using and remove the adaptor
if there is an abnormality or malfunction�
‑ Failuretodosomaycausere,electricshock,
or injury.
<Abnormality or malfunction cases>
•The main unit, adaptor or cord is deformed
or abnormally hot�
•The main unit, adaptor or cord smells of
burning�
•There is an abnormal sound during use or
charging of the main unit, adaptor or cord�
‑ Immediately request inspection or repair at an
authorized service center.
►Power supply
Do not connect or disconnect the adaptor to
a household outlet with a wet hand�
‑ Doing so may cause electric shock or injury.
Do not immerse the AC adaptor in water or
wash with water�
Do not place the AC adaptor over or near
water lled sink or bathtub.
Never use the appliance if the AC adaptor is
damaged or if the power plug ts loosely in a
household outlet�
Do not damage the cord or the power plug�
•Do not deface, modify, forcefully bend or
pull the cord or the power plug� Also, do
not place anything heavy on, twist or pinch
the cord�
‑ Doingsomaycauseelectricshockorredue
to a short circuit.
Do not use in a way that would exceed the
rating of the household outlet or the wiring�
‑ Exceeding the rating by connecting too many
plugstoonehouseholdoutletmaycausere
due to overheating.
Do not use anything other than the supplied
AC adaptor for any purpose�
Also, do not use any other product with the
supplied AC adaptor� (See page 11�)
‑ Doingsomaycauseburnorreduetoashort
circuit.
Always ensure the appliance is operated on
an electric power source that matches the
rated voltage as indicated on the AC adaptor�
Fully insert the adaptor�
‑
Failuretodosomaycausereorelectricshock.

7
English
WARNING
Disconnect the AC adaptor when cleaning the
main body with water�
‑
Failure to do so may cause electric shock or injury.
Regularly clean the power plug and the
appliance plug to prevent dust from
accumulating�
‑ Failuretodosomaycausereduetoinsulation
failure caused by humidity.
►Preventing accidents
Do not place within reach of children or
infants� Do not let them use it�
‑ Putting parts or accessories in the mouth may
cause an accident or injury.
If oil is consumed accidentally, do not induce
vomiting, drink a large amount of water and
contact a physician�
If oil comes into contact with eyes, wash
immediately and thoroughly with running
water and contact a physician�
‑ Failure to follow these instructions may result in
physical problems.
►Note the following precautions
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety�
Children should be supervised to ensure that
they do not play with the appliance�
‑ Failure to do so may cause an accident or
injury.
The supply cord cannot be replaced� If the
cord is damaged, the AC adaptor should be
scrapped�
‑ Failure to do so may cause an accident or
injury.
CAUTION
►Protecting the skin
Do not use excessive pressure to apply the
system outer foil to your lip or other part of
your face�
Do not apply the system outer foil directly to
blemishes or injured skin�
Do not touch the blade section (metallic
section) of the inner blade�
‑ Doing so may cause injury to skin or hand.

8
English
CAUTION
Do not forcefully press the system outer foil�
Also, do not touch the system outer foil with
ngers or nails when in use.
Do not use this product for hair on head or
any other part of the body�
‑ Doing so may cause injury to skin or reduce the
life of the system outer foil.
Check the system outer foil for cracks or
deformations before use�
‑ Failure to do so may cause injury to the skin.
Be sure to place the protective cap on the
shaver when carrying around or storing�
‑ Failure to do so may cause injury to skin or
reduce the life of the system outer foil.
►Note the following precautions
Do not wrap the cord around the adaptor
when storing�
‑ Doing so may cause the wire in the cord to
breakwiththeload,andmaycauseredueto
a short circuit.
Do not allow metal objects or trash to adhere
to the power plug or the appliance plug�
‑ Doingsomaycauseelectricshockorredue
to a short circuit.
Do not disconnect the adaptor or the
appliance plug by holding onto the cord�
‑ Doing so may cause electric shock or injury.
Do not share your shaver with your family or
other people�
‑ Doingsomayresultininfectionorinammation.
Do not drop or hit against other objects�
‑ Doing so may cause injury.
Disconnect the adaptor from the household
outlet when not charging�
‑ Failuretodosomaycauseelectricshockorre
due to electrical leakage resulting from
insulation deterioration.

9
English
Handling of the removed battery when
disposing
DANGER
•The rechargeable battery is exclusively for
use with this appliance� Do not use the
battery with other products�
•Do not charge the battery after it has been
removed from the product�
•Do not throw into re or apply heat.
•Do not hit, disassemble, modify, or puncture
with a nail�
•Do not let the positive and negative
terminals of the battery get in contact with
each other through metallic objects�
•Do not carry or store the battery together
with metallic jewellery such as necklaces
and hairpins�
•Do not use or leave the battery where it will
be exposed to high temperatures, such as
under direct sunlight or near other sources
of heat�
•Never peel off the tube�
‑ Doing so may cause overheating, ignition, or
explosion.
WARNING
After removing the rechargeable battery, do
not keep it within reach of children and infants�
‑ The battery will harm the body if accidentally
swallowed.
If this happens, consult a physician immediately.
If the battery uid leaks out and comes in
contact with the eyes, do not rub the eyes,
and thoroughly rinse with clean water, such
as tap water�
‑ Failure to do so may cause eye injury.
Consult a physician immediately.
CAUTION
If the battery uid leaks out and comes in
contact with the skin or clothes, rinse off with
clean water, such as tap water�
‑ Failuretodosomaycauseinammation.

10
English
Important information
• This WET/DRY shaver can be used for wet shaving
using shaving lather or for dry shaving. You can use
this watertight shaver in the shower and clean with
water. The following symbol means suitable for use in
a bath or shower.
• Treat yourself to wet lather shaves for at least three
weeks and notice the difference. Your Panasonic
WET/DRY shaver requires a little time to get used to
because your skin and beard need about a month to
adjust to any new shaving method.
• Do not bring the system outer foil into contact with
hard objects.
Doing so may damage the blades as they are very
thin and deform easily.
• Do not dry the main unit with a dryer or a fan heater.
Doing so may cause malfunction or deformation of the
parts.
• Do not leave the shaver exposed to direct sunlight
with the foil frame detached.
Doing so may deteriorate the waterproof rubber and
degrade waterproof function, which may cause to
malfunction.
• Store the shaver in a place with low humidity after
use.
Failure to do so may cause malfunction due to
condensation or rust.
• Keep both the inner blades inserted. If only one of the
inner blades is inserted, the shaver may be damaged.
• If you clean the shaver with water, do not use salt
water or hot water. Do not soak the shaver in water for
a long period of time.
• Thefollowingsymbolindicatesthataspecic
detachable power supply unit is required for
connecting the electrical appliance to the supply
mains. The type reference of power supply unit is
marked near the symbol.
• Charge the appliance correctly according to these
Operating Instructions. (See page 12 “Charging the
shaver”.)
• This appliance contains battery that is only
replaceable by skilled persons. Please contact an
authorized service center for the details of repair.

11
English
Parts identication













a
b

Front Back








AMain body
1Protective cap
2System outer foil
3Foil frame release
buttons
Thumb rest
Power switch
Switch lock button
Lamp display
a. Battery capacity
lamp
b. Charge status
lamp ( )
Appliance socket
System outer foil
release buttons
Foil frame
Outer foil section
Inner blades
Trimmer
Trimmer handle
BAC adaptor (RE7-87)
Adaptor
Power plug
Cord
Appliance plug
Accessories
CCleaning brush
DOil
ESoft case
►Unlocking the power switch
Slide the switch lock button downwards
when operating the power switch to shave,
clean with water, lubricate, etc.
►Locking the power switch
Slide the switch lock button upwards when
carrying or not using.
• You cannot turn off the shaver when locking the
power switch with the shaver turned on.

12
English
Preparation
Charging the shaver
• Turn the shaver off.
• Wipe off any water droplets on the appliance socket.
1 Insert the appliance plug
into the shaver�
2 Plug the adaptor into a
household outlet�
• Check that the charge status
lamp ( ) is glowing.
• Charging is completed after
approx. 1 hour.
• If the shape of the plug does not
tthepoweroutlet,usean
attachment plug adaptor of the
properconguration.
3 Disconnect the adaptor after
charging is completed�
1
2
Note
You cannot operate the shaver while charging.
While charging After charging is
completed
glows.
The number of the battery
capacity lamp will increase
as charging progresses.
All the battery capacity
lamp and will glow and
then turn off after
5 seconds.
Notes
• Whenchargingtheshaverforthersttimeorwhenit
has not been in use for more than 6 months, the
charging time may change or the charge status lamp
() may not glow for a few minutes. It will eventually
glow if kept connected.
• Recommended ambient temperature for charging is
10 °C – 35 °C (50 °F – 95 °F). It may take longer to
charge, or the charge status lamp ( ) will blink
quickly and the battery may fail to charge properly in
extremely high or low temperatures.
• The shaver can be used for approximately 2 weeks
with a full charge.
(Based on one 3‑minute dry‑shave usages per day in
an ambient temperature range of 20 °C – 30 °C
(68 °F – 86 °F).)
The number of usable days varies depending on the
following conditions.
‑ Beard thickness
‑ Pressure applied to the skin

13
English
‑ Usage frequency of the sonic vibration cleaning mode
• If there is noise from the radio or other sources while
using or charging the appliance, move to a different
location to use the appliance.
How to use
Shaving beard
1 Slide the switch lock button
downwards�
2
Press the power switch and shave�
Tips for better shaving
Apply the whole system outer foil
perpendicularly against the skin and
shave by slowly gliding the shaver over
the face against the grain of the beard.
• The beard under the chin and
around the throat can be shaved
better by stretching the skin so the
beard will stand.
• To prevent damaging the system
outer foil, do not shave with only a
part of the system outer foil.
3 Press the power switch when nished.
While using After use
The remaining battery
capacity are shown and
then turn off after
5 seconds.
• Approximate amount of
battery capacity is
displayed as 20 ‑ 100.
The remaining battery
capacity blink and then
turn off after 5 seconds.
When the battery capacity is low
“20” blinks when operating the shaver.
• You can shave 2 to 3 times after “20” blinks.
(This will differ depending on usage.)
Notes
• The appliance may not operate in an ambient
temperature lower than approximately 5 °C (41 °F).
• Topreventerroneousoperation,placeyourngerson
the thumb rest while using the shaver.
• The sonic vibration cleaning mode is activated when
the power switch is pressed for more than 2 seconds
while the shaver is not operating. (See page 14.)
You cannot shave in this mode.

14
English
►Switching the shaver head
You can change the pivot action.
FREE
The shaver head is moved to prevent
missed spots.
LOCK
FREE
LOCK
You can lock the shaver head.
►Using the trimmer
1.Slide the trimmer handle up to the
“” position so that the trimmer
stands upright.
2.Press the power switch and use.
FREE
LOCK
Tips for better usage
Apply the trimmer edge perpendicular to skin gently
and move downward slowly.
Trimming sideburns Pre‑shave of long beards
Cleaning the shaver
We recommend cleaning the shaver after each use.
Cleaning with water
• Turn the shaver off and disconnect the AC adaptor.
1
Apply some hand soap and some
water to the system outer foil�
2 Press the power switch for
more than 2 seconds to
activate the sonic vibration
cleaning mode�
• Splashing of foam is suppressed.
• The battery capacity lamps blink
in order.
• After about 20 seconds, it will be automatically
turned off, or you can turn it off by pressing the
power switch.
3 Remove the outer foil
section and clean with
running water�
• See page 15 for removing
the outer foil section.
• Splashing is reduced by rinsing the shaver in sonic
vibration cleaning mode.
• After rinsing with water, shake the shaver up and
down for a few times to remove excess moisture and
then wipe off any drops of water with a dry cloth.

15
English
4 Dry the outer foil section, the
shaver, and the trimmer
completely�
• Allow the shaver to dry in the
shade, avoid direct sunlight.
5 Lubricate the shaver�
It will keep the movement of
the blade smooth and
maintain a comfort shave.
1.Apply one drop of oil to
each of the system outer
foils.
2.Raise the trimmer and apply a drop of oil.
3.Switch the shaver on, and run it for approximately
5 seconds.
4.Switch off the shaver, and wipe off any excess oil
from the system outer foil with a soft cloth.
Notes
• Be careful not to hit the main body on the sink or any
other object while draining the water. Failure to do so
may cause malfunction.
• Do not wipe with thinners, benzine, alcohol etc.
Doing so may cause malfunction, or cracking or
discoloration of the parts.
Wipe with diluted soapy water.
• Do not use any kitchen or bathroom detergents other
than hand soap.
Doing so may cause malfunction.
Cleaning with the brush
►Cleaning with the long brush
Clean the foil frame, system
outer foil, the main body
and the trimmer using the
long brush.
►Cleaning with the short brush
• Clean the inner blades using
the short brush by moving it in
direction as illustrated.
• Do not move the short brush
perpendicularly against the
blades as it will damage the inner
blades and affect their sharpness.
Replacing the system outer foil and
the inner blades
system outer foil once every year
inner blades once every two years
►Removing the outer foil section
Press the foil frame release buttons and lift
the outer foil section upwards.

16
English
►Attaching the outer foil section
After turning the foil frame mark ( ) to the
front, securely attach the outer foil section to
the shaver until it clicks.
►Replacing the system outer foil
1.Press the system outer foil release
buttons and pull down the system
outer foil.
• Do not press the system outer foil
release buttons with excessive force.
Doing so may bend the system outer foil, preventing
complete attachment to the foil frame.
2.
Align the foil frame mark ( ) and the system outer foil
mark ( ) and securely attach together until it clicks.
►Replacing the inner blades
1.Remove the inner blades one at a time.
2.Insert the inner blades one at a time.
Note
Do not throw away the foil frame.
►Replacement parts
Replacement parts are available at your dealer or
Service Center.
Replacement parts
for ES‑LA63A
System outer foil
and inner blades WES9025
System outer foil WES9165
Inner blades WES9068
FAQ
Question Answer
Will the battery
deteriorate if not used
for an extended
period of time?
The battery will deteriorate if
not used for over 6 months,
so make sure to perform a
full charge at least once
every 6 months.
Can I charge the
shaver after every
use?
The battery used is a
lithium‑ion, so charging after
every use will have no effect
on battery life.
Why should the
adaptor be
disconnected after
charge?
Charging the battery for more
than 1 hour will not affect
battery performance, but
disconnect the adaptor for
safety and to save energy.
What is the
constituent of the
dedicated oil?
Constituent of the oil is
liquidparafn.

17
English
Troubleshooting
Perform the following actions.
If the problems still cannot be solved, contact the
store where you purchased the unit or a service
center authorized by Panasonic for repair.
Problem Action
The power switch
does not turn ON.
Unlock the switch lock. (See
page 11.)
Operating time is
short even after a full
charge.
Although the shaver can be
used for about 2 weeks after
a full charge (assuming
dry‑shave usages for 3
minutes per day), the usable
number of days might be
lower depending on how the
shaver is used (for example,
when used for wet shaving).
Apply oil.
This can be improved by
cleaning every time after
shaving.
When the number of
operations per charge starts
to decrease, the battery is
nearing the end of its life.
Problem Action
Shaver does not
operate even after
charging.
Use the appliance in an
ambient temperature
approximately 5 °C (41 °F)
or higher.
The battery has reached the
end of its life.
The shaver will not operate
with the AC adaptor
connected. Please use the
shaver after it has been
sufcientlychargedandthe
AC adaptor disconnected.
Makes a loud sound.
Apply oil.
The blades will not move
smoothly when there is no
oil on the blades, requiring
more power.
The shaver makes a high‑
pitched sound due to the
linear motor drive. This does
not indicate a problem.
Conrmthatthebladesare
properly attached.
Clean the system outer foil
with the brush. (See
page 15.)

18
English
Problem Action
The odor is getting
stronger.
This can be improved by
cleaning every time after
shaving.
Shavingsyoutinall
directions.
This can be improved by
cleaning every time after
shaving.
Clean the inner blades with
the brush when shavings are
adhering to the inner blades.
System outer foil gets
hot.
Apply oil.
Replace the system outer
foil if it is damaged or
deformed.
(See page 15.)
You do not get as
close a shave as
before.
This can be improved by
cleaning every time after
shaving.
Replace the system outer
foil and/or inner blades.
Expected life of system
outer foil and inner blades:
System outer foil:
Approximately 1 year
Inner blades:
Approximately 2 years
Apply oil.
Battery life
The life of the battery is 3 years. The battery in this
shaver is not intended to be replaced by consumers.
Removing the built-in rechargeable
battery
ATTENTION:
A lithium ion battery that is recyclable powers the
product you have purchased. Please call
1‑800‑8‑BATTERY for information on how to recycle
this battery.
Remove the built-in rechargeable battery before
disposing of the shaver�
The battery is to be disposed of safely.
Thisguremustonlybeusedwhendisposingofthe
shaver, and must not be used to repair it. If you
dismantle the shaver yourself, it will no longer be
waterproof, which may cause it to malfunction.
• Remove the shaver from the AC adaptor.
• Press the power switch to turn on the power and then
keep the power on until the battery is completely
discharged.

19
English
• Perform steps 1to and lift the battery, and then
remove it.
• Take care not to short circuit the positive and negative
terminals of the removed battery, and insulate the
terminals by applying tape to them.




Specications
Power source
See the name plate on the AC
adaptor.
(Automatic voltage conversion)
Motor voltage 3.6 V
Charging time Approx. 1 hour
This product is intended for household use only.
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FCC Caution: To assure continued compliance, install
and use in accordance with provided instructions. Any
changesormodicationsnotexpresslyapprovedby
the party responsible for compliance could void the
user’s authority to operate this equipment.

20
English
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Personal Care & Beauty Care Products
FOR USA ONLY
30-Day Quality
Satisfaction Guarantee
IfyouaredissatisedwithanyPanasonicPersonal
Care & Beauty Care Products for any reason, simply
return it to the place of purchase with a dated proof of
purchase, in the original packaging, with all
accessories, parts and instructions, within 30 days of
the date of purchase, for a full refund, or call
Panasonic at 1‑800‑338‑0552.
Abuse or misapplication of this product voids the
guarantee.
PRODUCT REGISTRATION
(U.S. customers only)
Go to www.panasonic.com/register and register your
productnowtoreceivethesebenets:
Safety Notication
We contact our customers in case of recall
Owner Verication
Proof of purchase in case of product theft or loss
Efcient Warranty Service
In case there is a problem with your product
Special Offers and Promotions from Panasonic
FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED
A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY
PURCHASE HOT LINE AT 1-800-332-5368�
