Panasonic ES-RT36 User manual

Operating Instructions
(Household) AC/Rechargeable Shaver
Model No. ES‑RT36
English��������������������������������������������� 3
中文������������������������������������������������ 15
한글������������������������������������������������ 25
�������������������������������������������������� 37

2

3
English
Operating Instructions
(Household) AC/Rechargeable Shaver
Model No. ES‑RT36
Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use.
Safety precautions..................... 4
Intendeduse����������������������������������������7
Partsidentication������������������������������8
Chargingtheshaver����������������������������8
Usingtheshaver����������������������������������9
Cleaningtheshaver��������������������������10
Troubleshooting��������������������������������12
Batterylife������������������������������������������13
Removingthebuilt-inrechargeable
battery�������������������������������������������������13
Specications������������������������������������14
Contents

4
English
Safety precautions
To reduce the risk of injury, loss of life, electric shock, fire, and
damage to property, always observe the following safety precautions.
Explanation of symbols
The following symbols are used to classify and describe the level
of hazard, injury, and property damage caused when the
denotation is disregarded and improper use is performed.
DANGER Denotes a potential
hazard that will result in
serious injury or death.
WARNING Denotes a potential
hazard that could result
in serious injury or death.
CAUTION
Denotes a hazard that
could result in minor injury.
The following symbols are used to classify and describe the type
of instructions to be observed.
This symbol is used to alert users to a specific operating
procedure that must not be performed.
This symbol is used to alert users to a specific operating
procedure that must be followed in order to operate the
unit safely.
WARNING
This shaver has a built-in rechargeable battery. Do
not throw into fire, apply heat, or charge, use, or
leave in a high temperature environment.
-Doing so may cause overheating, ignition, or explosion.
Do not connect or disconnect the adaptor to a
household outlet with a wet hand.
-Doing so may cause electric shock or injury.
Do not immerse the AC adaptor in water or wash
with water.
-Doing so may cause electric shock or fire due to a short
circuit.
Do not place the AC adaptor over or near water
filled sink or bathtub.
-Doing so may cause electric shock or fire due to a short
circuit.
Never disassemble except when disposing of the
product.
-Doing so may cause fire, electric shock, or injury.
Do not use anything other than the supplied AC
adaptor. Also, do not charge any other product with
the supplied AC adaptor.
-Doing so may cause burn or fire due to a short circuit.
Do not modify or repair.
-Doing so may cause fire, electric shock, or injury.
Contact an authorized service center for repair (battery
change etc).

5
English
WARNING
Do not store within reach of children or infants. Do
not let them use it.
-Putting the inner blades and/or the cleaning brush in the
mouth may cause accidents and injury.
Never use the appliance if the AC adaptor is
damaged or if the power plug fits loosely in a
household outlet.
-Doing so may cause electric shock or fire due to a short
circuit.
Do not damage, modify, or forcibly bend, pull, or
twist the cord.
Also, do not place anything heavy on or pinch the
cord.
-Doing so may cause electric shock or fire due to a short
circuit.
Do not use in a way exceeding the rating of the
household outlet or the wiring.
-Exceeding the rating by connecting too many plugs to one
household outlet may cause fire due to overheating.
Do not shave with soap or clean it with water when
operating with the AC adaptor.
-Doing so may cause electric shock or fire due to a short
circuit.
Always unplug the AC adaptor from a household
outlet when cleaning.
-Failure to do so may cause electric shock or injury.
Always ensure the appliance is operated on an
electric power source matched to the rated voltage
indicated on the AC adaptor.
Fully insert the power plug.
-Failure to do so may cause fire or electric shock.
Regularly clean the power plug and the appliance
plug to prevent dust from accumulating.
-Failure to do so may cause fire due to insulation failure
caused by humidity.
Disconnect the adaptor and wipe with a dry cloth.
Immediately stop using and remove the adaptor if
there is an abnormality or malfunction.
-Using it in such conditions may cause fire, electric shock,
or injury.
<Abnormality or malfunction cases>
•The main unit, adaptor or cord is deformed or
abnormally hot.
•The main unit, adaptor or cord smells of burning.
•There is abnormal sound during use or charging of
the main unit, adaptor or cord.
-Immediately request inspection or repair at an authorized
service center.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
-Failure to do so may cause an accident or injury.

6
English
WARNING
The supply cord cannot be replaced. If the cord is
damaged, the AC adaptor should be scrapped.
-Failure to do so may cause an accident or injury.
CAUTION
Do not allow pins or trash to adhere to the power
plug or the appliance plug.
-Doing so may cause electric shock or fire due to a short
circuit.
Do not use excessive pressure to apply the system
outer foil to your lip or other part of your face. Do
not apply the system outer foil directly to blemishes
or injured skin.
-Doing so may cause injury to the skin.
Do not forcefully press the system outer foil. Also,
do not touch the system outer foil with fingers or
nails when in use.
-Doing so may cause injury to skin or reduce the life of the
system outer foil.
Do not touch the blade section (metallic section) of
the inner blade.
-Doing so may cause injury to your hands.
Do not use this product for hair on head or any
other part of the body.
-Doing so may cause injury to skin or reduce the life of the
system outer foil.
Do not share your shaver with your family or other
people.
-Doing so may result in infection or inflammation.
Do not drop or subject to shock.
-Doing so may cause injury.
Do not wrap the cord around the adaptor when storing.
-Doing so may cause the wire in the cord to break with the
load, and may cause fire due to a short circuit.
Disconnect the adaptor from the household outlet
when not using.
-Failure to do so may cause electric shock or fire due to
electrical leakage resulting from insulation deterioration.
Check the system outer foil for cracks or
deformations before use.
-Failure to do so may cause injury to the skin.
Be sure to place the protective cap on the shaver
when carrying around or storing.
-Failure to do so may cause injury to skin or reduce the life
of the system outer foil.
Disconnect the adaptor or the appliance plug by
holding onto the adaptor or the appliance plug
instead of the cord.
-Failure to do so may cause electric shock or injury.

7
English
►Disposing of the rechargeable battery
DANGER
The rechargeable battery is exclusively for use with
this shaver. Do not use the battery with other products.
Do not charge the battery after it has been removed
from the product.
•Do not throw into fire or apply heat.
•Do not hit, disassemble, modify, or puncture with a
nail.
•Do not let the positive and negative terminals of
the battery get in contact with each other through
metallic objects.
•Do not carry or store the battery together with
metallic jewelry such as necklaces and hairpins.
•Do not charge, use, or leave the battery where it
will be exposed to high temperatures, such as
under direct sunlight or near other sources of heat.
•Never peel off the tube.
-Doing so may cause overheating, ignition, or explosion.
WARNING
After removing the rechargeable battery, do not
keep it within reach of children and infants.
-The battery will harm the body if accidentally swallowed.
If this happens, consult a physician immediately.
If the battery fluid leaks out, take the following procedures.
Do not touch the battery with your bare hands.
-The battery fluid may cause blindness if it comes in
contact with your eyes.
Do not rub your eyes. Wash immediately with clean water
and consult a physician.
-The battery fluid may cause inflammation or injury if it
comes in contact with the skin or clothes.
Wash it off thoroughly with clean water and consult a
physician.
Intended use
•Keep both the inner blades inserted. If only one of the inner
blades is inserted, the shaver may be damaged.
•If you clean the shaver with water, do not use salt water or hot
water. Do not soak the shaver in water for a long period of time.
•Clean the housing only with a soft cloth slightly dampened with
tap water or soapy tap water. Do not use thinner, benzine,
alcohol or other chemicals.
•Store the shaver in a place with low humidity after use.
•Do not store the shaver where it will be exposed to direct sunlight
or other heat sources.

8
English
B AC adaptor (RE7-59)
(The shape of the AC
adaptor differs depending
on the area.)
@ Adaptor
A Power plug
B Cord
C Appliance plug
Accessory
C Cleaning brush
Charging the shaver
1
1Insert the appliance plug into
the shaver.
•Turn the shaver off before inserting.
2
2Plug in the adaptor into a
household outlet.
•Wipe off any water droplets on the
appliance socket. 1
2
3
3Disconnect the adaptor after charging is
completed.
•Charging is completed after approx. 1 hour.
The charging time may differ with the charging capacity.
•Charging the battery for more than 1 hour will not affect
battery performance.
•Top‑up charging will not cause reductions in battery
performance.
Parts identification





















Front Back
A Main body
1 Protective cap
2 System outer foil
3 Foil frame
4 Foil frame release buttons
5 Finger rest
6 Power switch
7 Battery capacity lamp
8 Charge status lamp ( )
9 Appliance socket
: Outer foil section
; System outer foil release
buttons
< Inner blades
= Trimmer
> Trimmer handle
? Lock release button

9
English
While charging After charging is completed
The charge status lamp ( )
glows.
The charge status lamp ( )
turns off.
Abnormal charging
The charge status lamp ( ) blinks twice every second.
•Recommended ambient temperature for charging is 10 – 35 °C.
It may take longer to charge or the battery may fail to charge
properly in extremely high or low temperatures.
Charge the shaver within the recommended ambient temperature
range.
•When charging the shaver for the first time or when it has not
been in use for more than 6 months, the charging time may
change or the charge status lamp ( ) may not glow for a few
minutes. It will eventually glow if kept connected.
Using the shaver
1
1Press the power switch.
2
2Hold the shaver as illustrated
and shave.
•Start shaving by applying gentle
pressure to your face. Stretch your
skin with your free hand and move the
shaver back and forth in the direction
of your beard. You may gently increase
the amount of pressure as your skin
becomes accustomed to this shaver.
Applying excessive pressure does not
provide a closer shave.
►Cord shaving
If you insert the appliance plug to the shaver and plug in the
adaptor into a household outlet, you can use it even if the battery
capacity is low.
•If the shaver does not work, continue charging it for approx.
1 minute.
•The battery will be discharged even when using the shaver with
the AC adaptor.

10
English
Using the trimmer
►Trimming sideburns
Slide the trimmer handle up. Turn the
shaver on and place at a right angle to
your skin and move downwards to trim
your sideburns.
•Press and hold the lock release button
and slide the trimmer handle down to
lower the trimmer.
►Pre-shave
The trimmer can be used
for a pre‑shave of long
beards.
Notes
•Do not place your fingers on the power switch while using the
shaver. This may cause the shaver to turn off. Place your
fingers on the finger rest while using the shaver.
•We recommend using the shaver in an ambient temperature
range of 5 – 35 °C. If used outside this range, the appliance
may stop operating.
Reading lamps when using
During use When the battery capacity is
low
All lamps disappear while using.
The battery capacity lamp
blinks for 5 seconds when the
power switch is pressed.
•You can shave 2 to 3 times after the battery capacity lamp blinks.
(This will differ depending on usage.)
•A full charge will supply enough power for approx. 18 shaves of 3
minutes each. (This will differ depending on usage.)
Cleaning the shaver
1. Disconnect the cord from the shaver.
2. Apply some hand soap and some water to the system outer foil.
3. Turn the shaver on.
4. Turn off the shaver after 10 to 20
seconds.

11
English
5. Remove the outer foil section.
6. Clean the shaver, the outer foil section,
and the trimmer with running water.
7. Wipe off any drops of water with a dry cloth.
8. Dry the outer foil section, the shaver,
and the trimmer completely.
9. Attach the outer foil section to the shaver.
The mark on the left means suitable for cleaning
under an open water tap.
Warning
Disconnect the cord from the shaver before cleaning it in
water to prevent electric shock.
Cleaning with the brush
►Cleaning with the long brush
Clean the system outer
foil (a), the shaver body
(b) and the trimmer (c)
using the long brush.
  
►Cleaning with the short brush
Clean the inner blades using the short brush by
moving it in direction (A).
•Do not move the short brush in direction (B) as
it will damage the inner blades and affect their
sharpness.
•Do not use the short brush to clean the system
outer foil.
(A)
(B)

12
English
Replacing the system outer foil and the inner blades
system outer foil once every year
inner blades once every two years
►Removing the outer foil section
Press the foil frame release buttons and lift the
outer foil section upwards.
►Attaching the outer foil section
Securely attach the outer foil section to the shaver
until it clicks.
►Replacing the system outer foil
1. Press the system outer foil release buttons
and pull down the system outer foil.
2. Insert the system outer foil until it clicks.
•Always attach the system outer foil in
proper direction.
•Always insert the system outer foil to the
foil frame when attaching to the shaver.
►Replacing the inner blades
1. Remove the inner blades one at a time.
•Do not touch the edges (metal parts) of the inner
blades to prevent injury to your hand.
2. Insert the inner blades one at a time until they click.
►Replacement parts
Replacement parts are available at your dealer or Service Center.
Replacement parts for
ES‑RT36
System outer foil WES9087
Inner blades WES9068
Troubleshooting
Problem Action
Shavings fly all over.
This can be improved by cleaning
every time after shaving.
Clean the inner blades with the
brush.
System outer foil gets hot.
Replace the system outer foil if it
is damaged or deformed.
(See this page.)
Operating time is short
even after charging.
When the number of operations
per charge starts to decrease, the
battery is nearing the end of its life.
Makes a loud sound.
Confirm that the blades are
properly attached.
Clean the system outer foil with
the brush.
The odor is getting
stronger.
This can be improved by cleaning
every time after shaving.

13
English
Problem Action
You do not get as close a
shave as before.
This can be improved by cleaning
every time after shaving.
Replace the system outer foil and/
or inner blades.
Expected life of system outer foil
and inner blades:
System outer foil:
Approximately 1 year
Inner blades:
Approximately 2 years
Shaver stopped functioning.
Recommended ambient
temperature for operation is
5 – 35 °C. The shaver may stop
functioning when out of
recommended ambient
temperature range.
The battery has reached the end
of its life.
If the problems still cannot be solved, contact the store where you
purchased the unit or a service center authorized by Panasonic for
repair.
Battery life
The life of the battery is 3 years. The battery in this shaver is not
intended to be replaced by consumers. Have the battery replaced
by an authorized service center.
Removing the built-in rechargeable battery
Remove the built-in rechargeable battery before disposing of
the shaver.
Please make sure that the battery is disposed of at an officially
designated location if there is one.
This figure must only be used when disposing of the shaver, and
must not be used to repair it. If you dismantle the shaver yourself,
it will no longer be waterproof, which may cause it to malfunction.
•Remove the shaver from the AC adaptor.
•Press the power switch to turn on the power and then keep the
power on until the battery is completely discharged.
•Perform steps 1 to 5 and lift the battery, and then remove it.
•Please take care not to short‑circuit the battery.





For environmental protection and recycling of materials
This shaver contains a Lithium‑ion battery.
Please make sure that the battery is disposed of at an officially
assigned location, if there is one in your country.

14
English
Specifications
Power source See the name plate on the AC adaptor.
(Automatic voltage conversion)
Motor voltage 3.6 V
Charging time Approx. 1 hour
This product is intended for household use only.

15
 中文
使用說明書
（家用）交流•充電式刮鬍刀
型號ES‑RT36

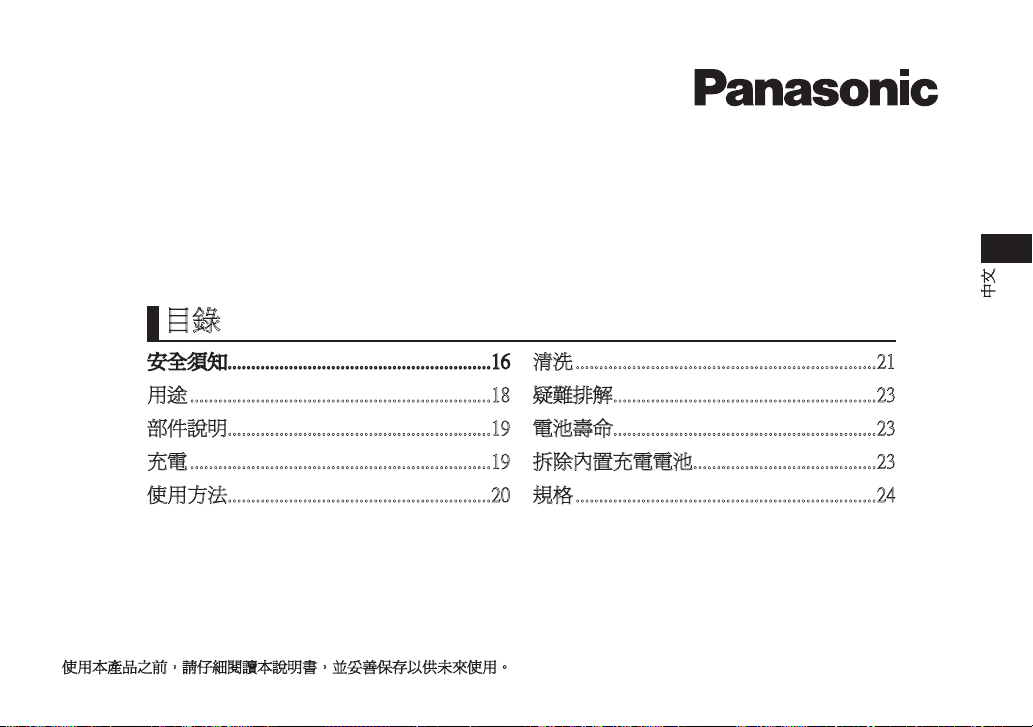

感謝您購買本 Panasonic 產品。
使用本產品之前，請仔細閱讀本說明書，並妥善保存以供未來使用。
安全須知........................................................16
用途................................................................18
部件說明........................................................19
充電................................................................19
使用方法........................................................20
清洗................................................................21
疑難排解........................................................23
電池壽命........................................................23
拆除內置充電電池.......................................23
規格................................................................24
目錄

16
中文
安全須知
為減低受傷，死亡、觸電、火災及財物損失的風險，請務必遵照以
下安全預防措施。
符號說明
以下符號用於為危險、傷害及財物損失的級別分類和作出解釋。若
不理會此等符號，不當使用本產品就可能會導致所述的危險、人身
傷害及財物損失。
危險 表示潛在的危險會導致嚴重受傷或致命。
警告
表示潛在的危險可能會導致嚴重受傷或致命。
注意 表示危險可導致輕微受傷。
以下符號用於分類和解釋必須留意的指示類型。
此符號用於提示用戶，不得執行某項特定的操作程序。
此符號用於提示用戶，必須遵從某項特定的操作程序，藉
以安全操作本產品。
警告
本刮鬍刀內建充電電池。請勿丟入火中、接觸熱源或在
高溫的環境中充電、使用，或留置在高溫的環境中。
-否則可導致過熱、燃燒或爆炸。
切勿在手濕時將轉接器插入家用電源插座或從插座中拔除。
-否則可導致觸電或受傷。
切勿將電源供應器浸在水中或用水洗滌。
-否則可能會因短路而導致觸電或火警。
請勿將電源供應器放在有水的水池或浴缸上方或附近。
-否則可能會因短路而導致觸電或火警。
切勿拆卸本產品，棄置時除外。
-否則可能導致火警、觸電或受傷。
切勿使用非隨附的電源供應器。此外，切勿使用隨產品
附上的電源供應器為任何其他產品充電。
-否則可能會因短路而導致灼傷或火警。
切勿改裝或自行維修產品。
-否則可能導致火警、觸電或受傷。
請聯絡 Panasonic 直屬服務站進行維修（更換電池等）。
切勿將產品存放於兒童或幼童可觸摸的地方。請勿讓兒
童或幼童使用。
-將內層刀片、清潔毛刷放入口中可能會導致意外和受傷。
如電源供應器損壞，或電源插頭未緊接家用電源插座上，
切勿使用本產品。
-否則可能會因短路而導致觸電或火警。
切勿損壞、改裝或用力弄彎、拉址或纏繞電源線。
此外，切勿將重物放在電源線上或夾緊電源線。
-否則可能會因短路而導致觸電或火警。

17
 中文
警告
切勿以超出家用電源插座或配線額定值的方式使用產品。
-將太多插頭插至同一插座上，以致超出額定值，可能會因
過熱而導致火警。
請勿使用肥皂來刮鬍子，或在以電源供應器操作時用水
清洗。
-否則可能會因短路而導致觸電或火警。
清潔產品時，必須從家用電源插座拔出電源供應器。
-否則可導致觸電或受傷。
請務必使用與電源供應器上標示之額定電壓相符的電源
進行操作。
必須完全插入電源插頭。
-否則可導致火警或觸電。
應定期清潔電源插頭和電器插頭，以防止灰塵堆積。
-否則濕氣可令絕緣失效，導致火警。
拔除轉接器並用乾布抹拭。
若產品出現異常或故障情況，請立即停止使用產品及拔
除轉接器。
-否則可導致火警、觸電或受傷。
< 異常或故障情況 >

•主機、變壓器或電源線變形或異常灼熱。

•主機、變壓器或電源線出現燒焦氣味。

•主機、變壓器或電源線在使用或充電時出現異常聲響。
-
請立即將產品帶往 Panasonic 直屬服務站，以要求檢查或維修。
患有體能、感官或智力減退，或缺乏經歷和知識之人士
（含小孩），在無人監護或未獲告知如何使用的情況下不
得使用本產品。請勿讓小孩使用本產品。
-否則可能導致意外或受傷。
請勿自行換電源線，電源線一但損壞應當廢棄本電源供
應器，勿再使用。
-否則可能導致意外或受傷。
注意
勿讓別針或垃圾沾附在電源插頭或電器插頭上。
-否則可能會因短路而導致觸電或火警。
請勿施加過大力量，將外層網面加壓在嘴唇或臉上及其他
部位。請勿在痘疤或受傷的皮膚上，直接使用外層網面。
-否則可能導致皮膚受傷。
切勿用力壓下外層網面。此外，使用時，切勿用手指或
指甲觸碰外層網面。
-否則可能導致皮膚受傷或縮短外層網面的壽命。
切勿接觸內層刀片的刀片（金屬）部分。
-否則可導致手部受傷。
切勿將本產品運用在頭髮或身體任何其他部位的毛髮上。
-否則可能導致皮膚受傷或縮短外層網面的壽命。
請勿與家人或其他人共用刮鬍刀。
-共用刮鬍刀可能會導致感染或發炎。
切勿掉下產品或使其受到撞擊。
-否則可導致受傷。
存放時，勿將電源線捲繞在轉接器上。
-否則可令電源線內的纏線因受壓而斷裂，並可因短路而導
致火警。
不使用時，應從家用電源插座拔出轉接器。
-否則可因絕緣劣化造成漏電，導致觸電或火警。
使用前，請檢查外層網面是否有破裂或變形。
-否則可能導致皮膚受傷。

18
中文
注意
攜帶或存放時，務必將刮鬍刀放入保護蓋中。
-否則可能導致皮膚受傷或縮短外層網面的壽命。
拔出轉接器或電器插頭時，應握住轉接器或電器插頭，
而非電源線。
-否則可導致觸電或受傷。

►充電電池處置
危險
本充電電池僅能用於搭配此刮鬍刀使用。請勿將本電池
搭配其他產品使用。
將電池從產品拆除後，請勿進行充電。

•請勿丟入火中或加熱。

•請勿撞擊、拆解、改裝或以指甲穿刺。

•請勿讓電池的正極和負極端子透過金屬物質相互接觸。

•請勿將電池與金屬飾品，如項鍊及髮夾等一起攜帶或存放。

•電池之充電、使用或置放都不可接觸高溫，如陽光直射
處或靠近熱源處。

•請勿剝下電池直流管。
-否則可導致過熱、燃燒或爆炸。
警告
拆除充電電池後，切勿放在孩童或嬰兒可取得的地方。
-若意外吞下電池，會傷害身體。
若發生此狀況，請立即就醫。
若電池漏液，請採取下列程序。切勿以裸露的雙手觸碰
電池。
-電池液若接觸眼睛，可能會導致失明。
切勿搓揉眼睛。請立即以清水清洗並就醫。
-電池液若接觸到皮膚或衣物，可能會導致發炎或受傷。
請徹底以清水清洗並就醫。
用途

•將內層刀片保持在原有位置。如只有一塊內層刀片，刮鬍刀可能
已經受損。

•如您以水清洗刮鬍刀，請勿使用鹽水或熱水。切勿將刮鬍刀長時
間浸泡於水中。

•請以自來水或肥皂水稍微浸濕的軟布來清潔外殼。切勿使用稀釋
劑、揮發油、酒精或其他化學品。

•使用後將刮鬍刀收納在低濕度的地方。

•請勿將刮鬍刀收納在陽光直接照射或其他熱源直接接觸的地方。

19
 中文
部件說明





















正面 背面
A主體
1保護蓋
2外層網面
3網層
4網層拆除按鈕
5手握位置
6電源開關
7電池電量指示燈
8充電狀態指示燈( )
9充電座
:外層網面部分
;拆除外層網面的按鈕
<內層刀片
=修剪器
>修剪器推桿
?鎖定釋放鍵
B電源供應器(RE7‑59)
（電源供應器的形狀依地區而
異。）
@轉接器
A電源插頭
B電源線
C電器插頭
配件
C清潔毛刷
充電
1
1將電器插頭插入刮鬍刀。

•充電前請將刮鬍刀電源關閉。
2
2將轉接器插入家用插座。

•擦去充電插座上的水滴。
1
2
3
3充電完成後，請拔下轉接器。

•充電約 1 小時後完成。
充電時間可能有異，視充電容量而定。

•對電池充電 1 小時以上，並不會影響電池效能。

•補充充電不會降低電池性能。

20
中文
使用方法
1
1按下電源開關。
2
2如圖所示握住刮鬍刀並刮鬍子。

•將刮鬍刀輕輕按壓在您的臉上。以另一
隻手按著皮膚，並以刮鬍刀來回刮鬍。
當您習慣了這力道後，可慢慢加壓。過
度加壓未必可刮得更徹底。

►插電刮鬍
即使電池電量低的時候，您仍可將電源線插頭接上刮鬍刀，然後插
上家居插座來操作。

•如未能操作刮鬍刀，請繼續充電約一分鐘。

•即使連接電源供應器使用刮鬍刀，電池也會放電。
使用修剪器

►修剪鬢毛
將修剪器推桿推起。開啟刮鬍刀，並放於
與皮膚成直角的位置，向下推動即可修剪
鬢角。

•按住開鎖鈕，並將修剪器推桿向下滑至修
剪器。
充電時 充電完成後
充電狀態指示燈 ( ) 亮起。 充電狀態指示燈 ( ) 熄滅。
非正常充電期間
充電狀態指示燈 ( ) 每秒閃爍兩次。

•建議的充電環境溫度為 10–35℃。在溫度極高或極低的情況下對
電池充電，可能需要較長的時間，或是電池可能無法正確充電。
在建議的周遭環境溫度範圍內將刮鬍刀充電。

•刮鬍刀第一次充電時或未使用超過 6 個月，充電時間可能有異或
充電狀態指示燈 ( ) 可能有幾分鐘不會亮起。如繼續保持連結，
最後會亮起。
