Panasonic ES8026-E2 User manual

ORDERNO. SD0203E40C2
Wet/DryRechargeableShaver
ES8026-E2
SPECIFICATIONS
SPECIFICATIONS
Power source AC100-240V, 50-60Hz
(Automaticvoltageconversion)
Power consumption 90mA
Motorvoltage 2.4V DC
Charging time 1-hour
Shaves per charge 14 times (3minutes shave)
Measurement (H) 14.0X (W) 6.0X (D) 3.5cm
Weight 230g, 0.51lbs
Suppliedaccessory Soft case
2002 Matsushita ElectricWorks Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.

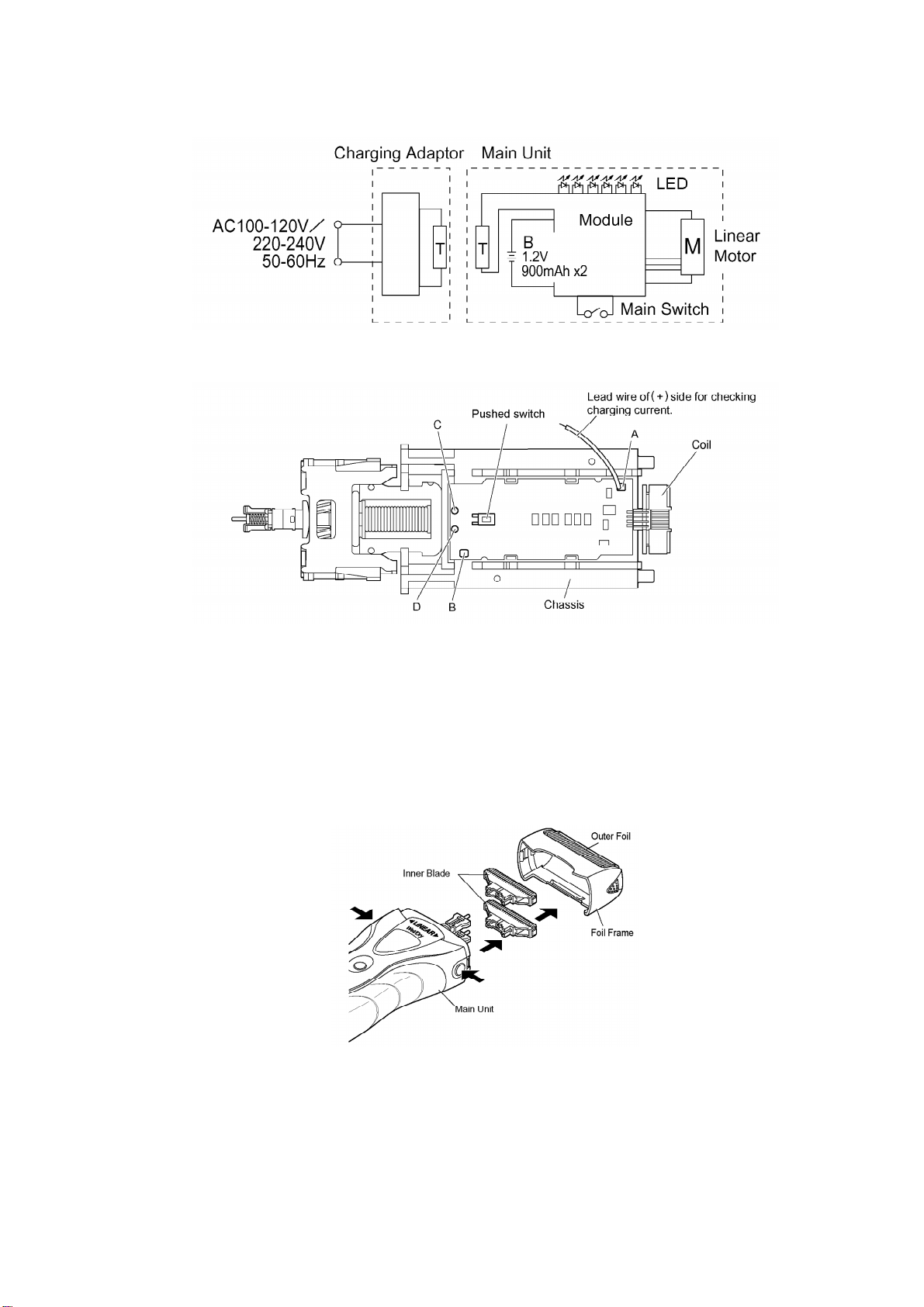

1. SCHEMATIC DIAGRAM
1

2. WIRING CONNECTION DIAGRAM
3. DISASSEMBLY INSTRUCTIONS
Followthe procedure belowtodisassemble the mainunit.
1. Remove the cap, the outer foil with foil frame and the inner blades.
2. Unhook the right and left side of hooks at upside using aflat
screwdriver with aposition 8mm sliding above. Then slightly
2

move the trimmer until position marking , and unhook the
lower side of hooks.
To remove the trimmer driving bars, press bar outward.
3. Loosen twoscrewsand the retaining plate. Take out the
waterproof rubber and the blade mounting base.
4. Loosen twoscrewson the bottom.
3

5. Take out the actuator from housing. Donot push the switch
button when removing or inserting the actuator. Itmaycause the
break of the pushed switch.
4. CAUTION IN ASSEMBLY
NOTE: Whenreassembling, replace the newwaterproof rubber.

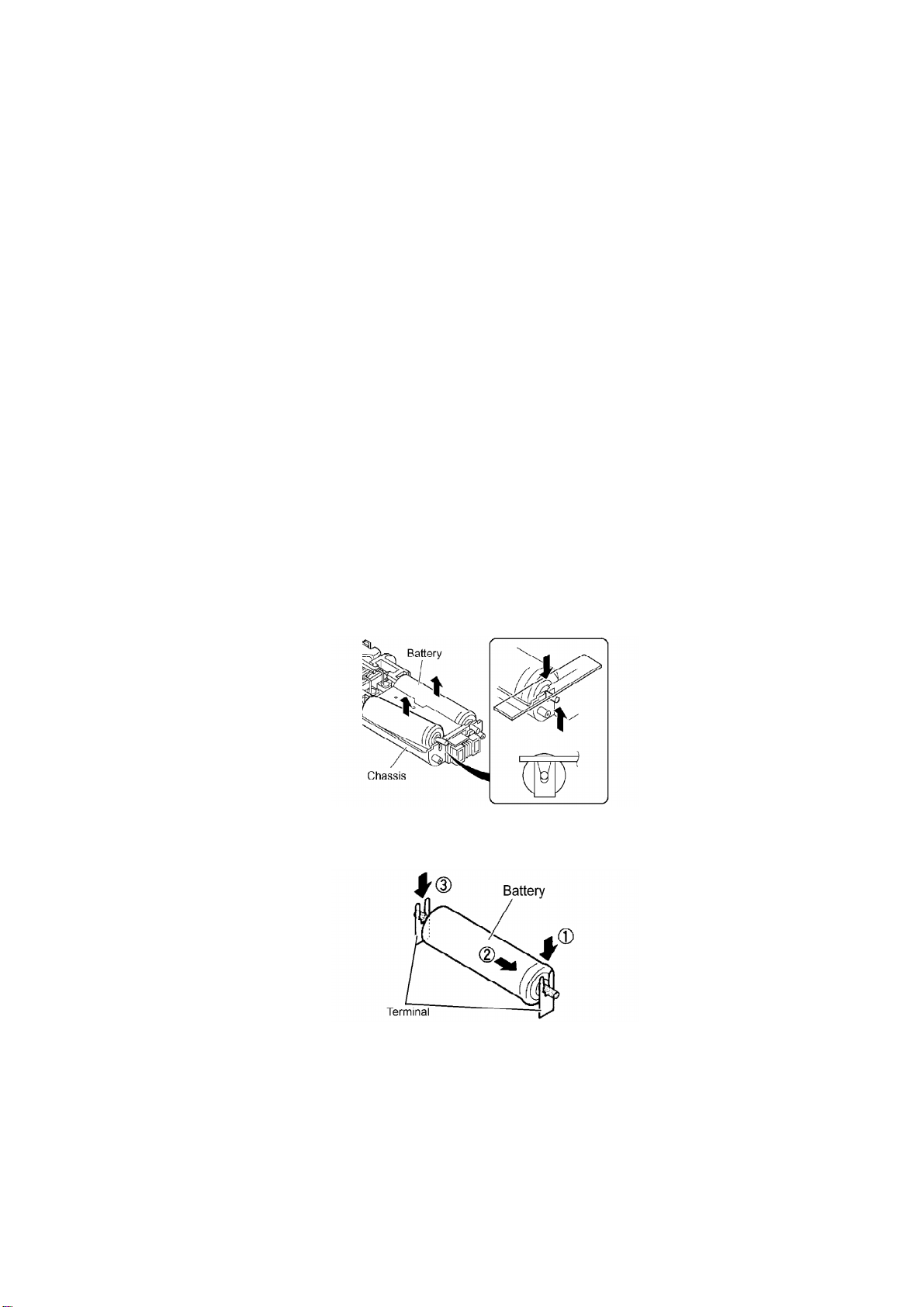

4.1. Battery
4.1.1. Replacement
To remove battery, fix the top of batteryterminal witha flat plate and lifting up the batterypin.
4.1.2. Attachment
Followthe procedure toprevent the deformation of batteryterminal.
4

1. Install (+)terminal of batterypininto the terminal.
2. Firmlyset the batterysliding the direction of arrow.
3. Attach (-) terminal of battery.

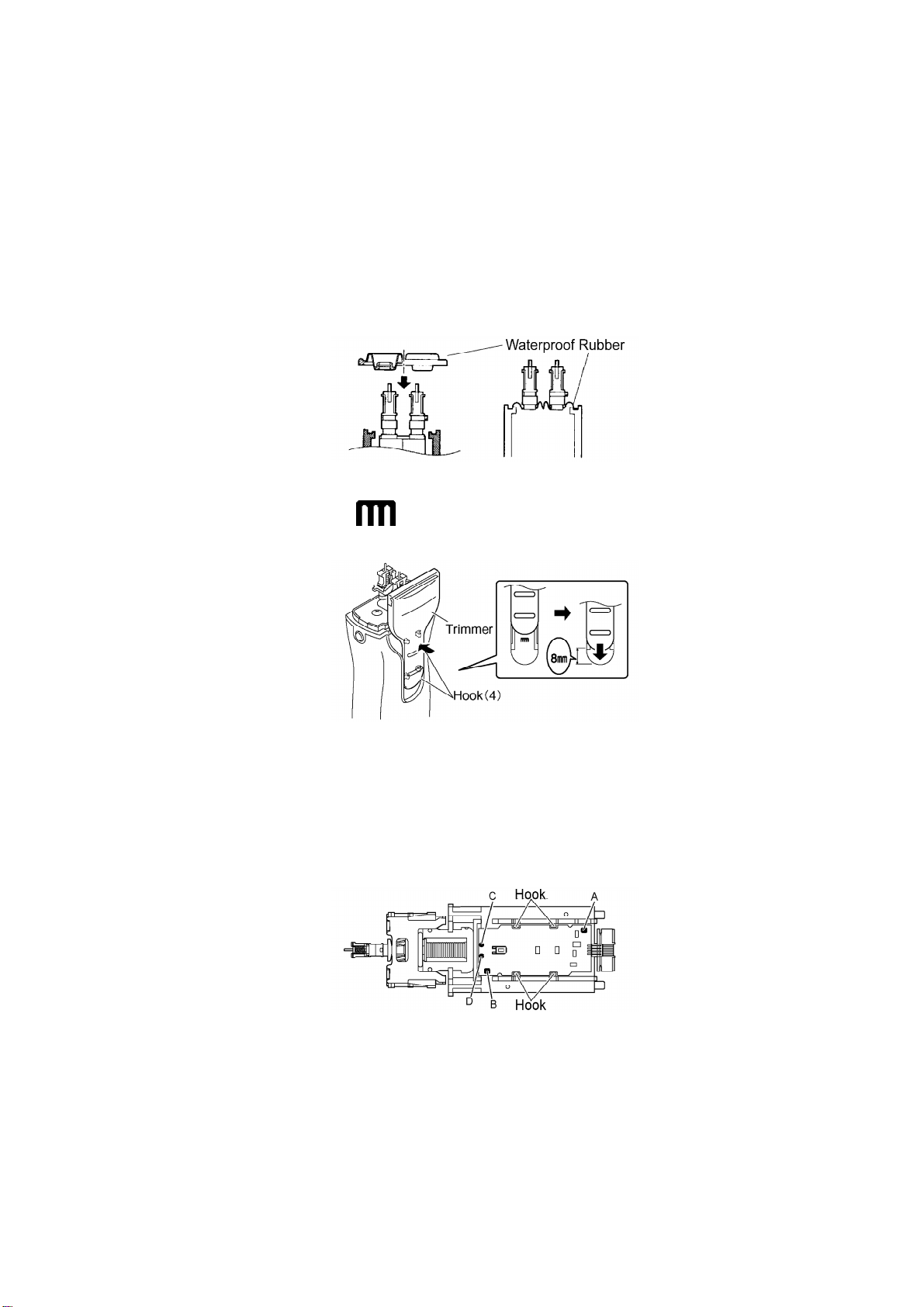

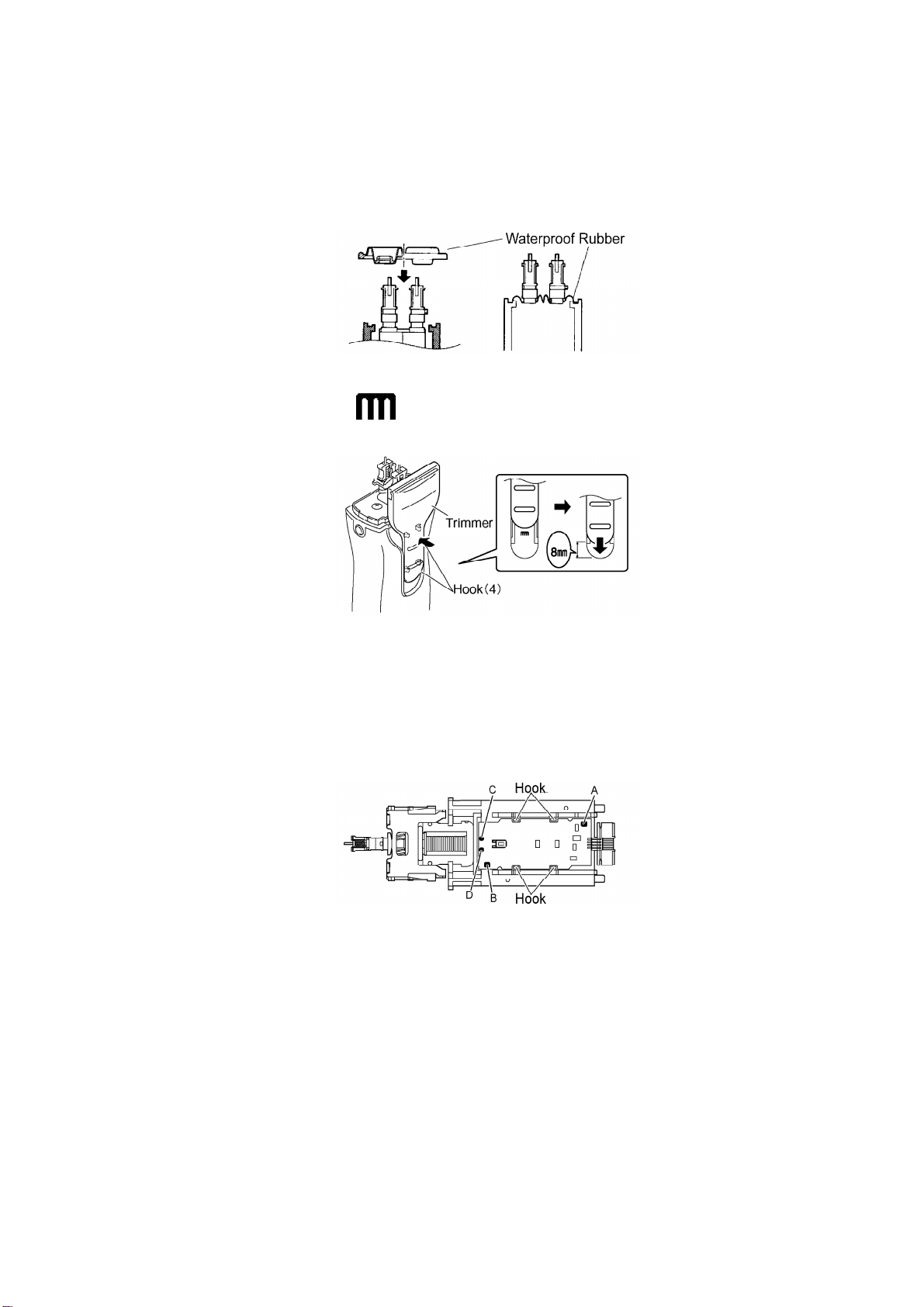

4.2. Waterproof Rubber
The waterproof rubbermust be fittedthe right wayaround. Install as showninfigure by
inserting firmlytothe set position.
4.3. Trimmer
Set a position where marking and hook lowerside of twohooks. Witha position 8mm
sliding down, hook right and left side of hooks at upside.
4.4. Module
Module is solderedwithconnection terminal of chassis.
Followthe stepbelowtoremove the module.
1. Unsolder four points A, B, C, and D.
2. Remove the modulefrom four hooks with chassis.
5. TROUBLESHOOTING GUIDE
(RefertoWIRING CONNECTION DIAGRAM)
5

< TROUBLE > < CHECK. > <
REMEDY
Motordoes not rotate. <CHECK CHARGING ADAPTOR.>
Does not charge. Connect toratedvoltage withthe normal main
unit set ontothe NOReplace
charging
Functions fora
moment and adaptor. adaptor.
stops. Check if the charging lampof mainunit is lit.
OK
<CHECK RECHARGEABLE BATTERIES.> NOReplace
both
recharge-
Okayif the voltage of rechargeable batteries is
more thanapproxi- able
batteries
the
mately1.2V DC between(+) and (-) terminals. same
time.
(Replace tworechargeable batteries at the same
time eventhough
one batteryis defective due toseries connection.)
OK
<CHECK MODULE.> NOCheck
the
soldering
Insert the actuatorintothe housing, and connect
toratedvoltage points
from
D.
withthe normal adaptor. It is OK, if LED of main
unit is flashing.
OK
Replace
module.
NO
OK Replace
linear
motor.
<CHECK MODULE.> OKGotothe
step,
"Check
Whenswitching ON and OFF, it is OK if LED is
flashing and the charging
current".
motorrotates.
NO
<CHECK MODULE.> OK Replace
linear
motor.
Check the soldering condition at eachparts from
A toD.
NO
Replace
module.
NO
6

Resolder.

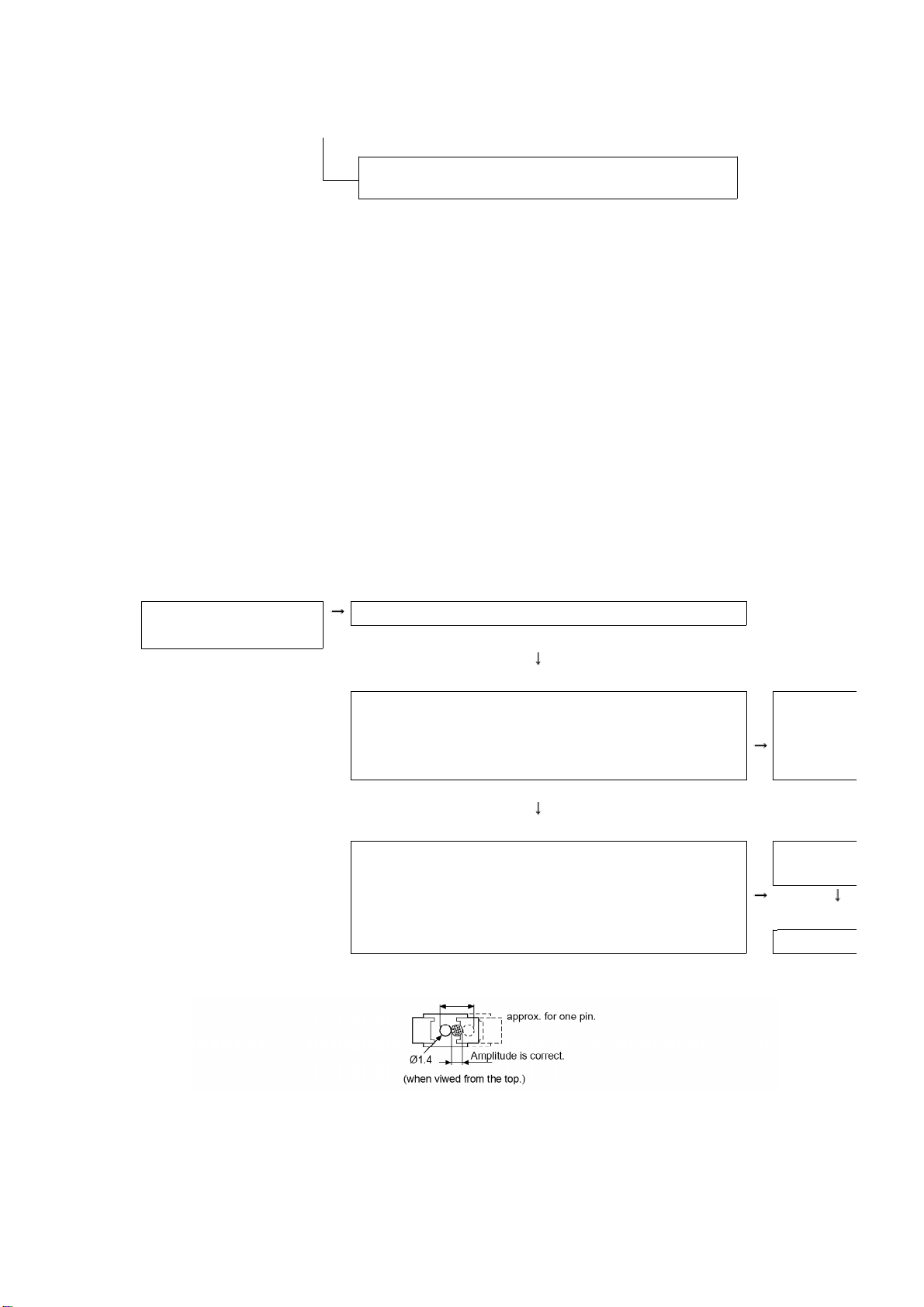

6. TROUBLESHOOTING GUIDE
(RefertoWIRING CONNECTION DIAGRAM)
< TROUBLE > < CHECK.> <
REMEDY
Noise is too loud. Oiling a drop forthe outerfoil.
Amplitude is too large. NO
<CHECK TRIMMER DRIVING BARS.> NO Replace
the
trimmer
Check if there is anydeformation withtrimmer
driving barA and B. driving
bar.
OK
<CHECK DRIVING HEAD AMPLITUDE.> NO Replace
linear
motor.
Turnthe switchON, and measure the amplitude
using a pinof
NO
drivinhead. (See the figure shownbelow.) Replace
module.
7

Amplitude is too
small. <CHECK DRIVING HEAD AMPLITUDE.> NO Replace
linear
motor.
Does not sharp
enough. Turnthe switchON, and measure the amplitude using a pinof (onlythe
case
the
drivinhead. (See the figure as shownabove.) amplitude
is
clear-
ance (
2.8mm
full
wideth.))
NO
Replace
module.
Does not function, but <CHECK MODULE.> NO Replace
module.
LED flashes. Take out the right battery. (Viewedfromthe front.)
Connect lead
NO
wire withchassis and (-) terminal of battery. Check
charging current Replace
linear
motor.
betweenleadwire comes frommodule side (stated
on WIRING CON-
NECTION DIAGRAM) and (+) terminal of battery
setting on the normal
adaptor. Okayif it is more than600mA when
connecting torated
voltage.
NOTE: The charging current fluctuates depending on the space betweencharging adaptorand
the coil. / Please followthe procedure below.
1. Put the coil and the bottom part of housing close together.
2. Put the bottom part of housing and the charging adaptor close
together.
3. Measure the charging currents between (+)terminal of batteryand
lead wire comes from moduleside.
8

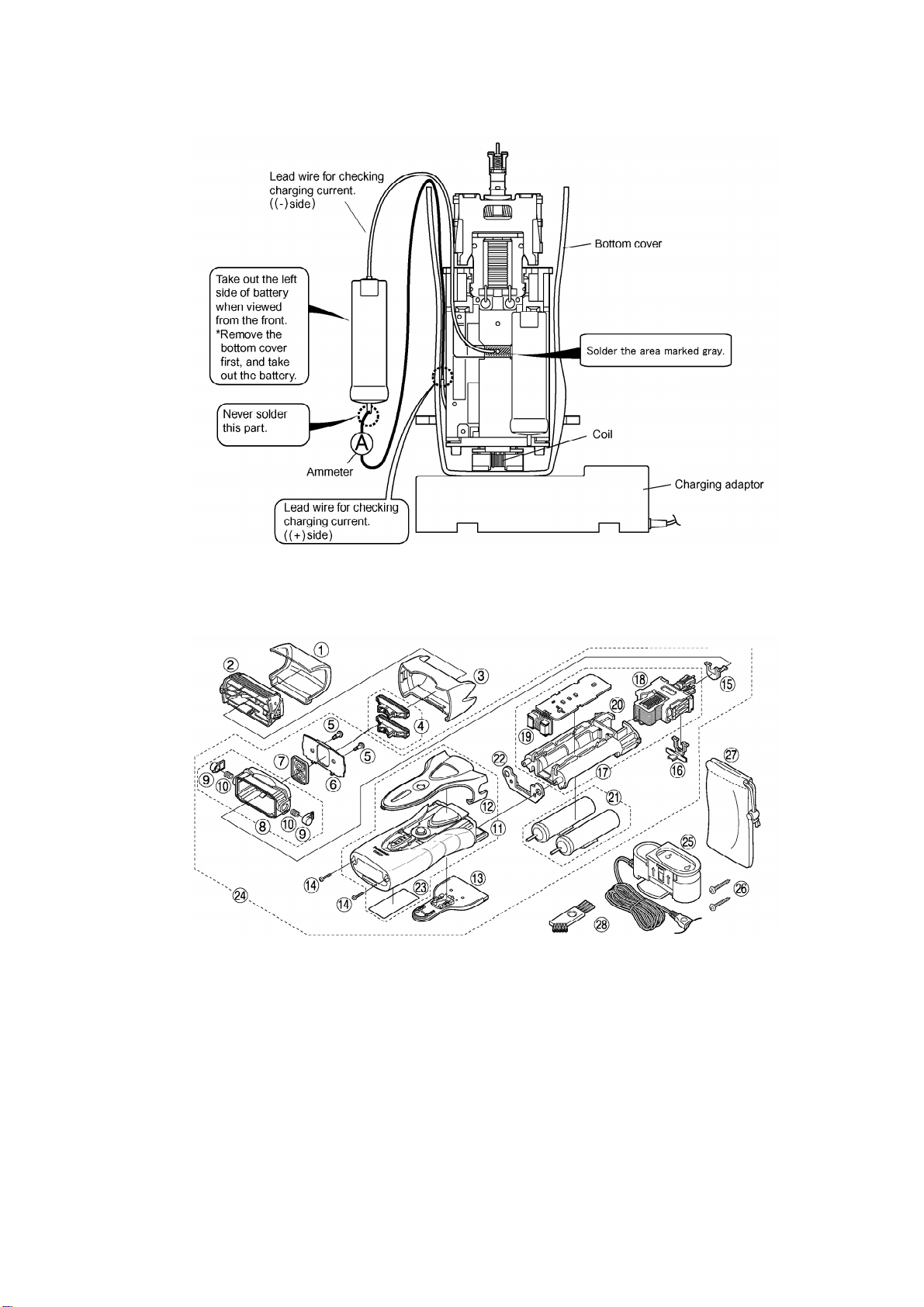

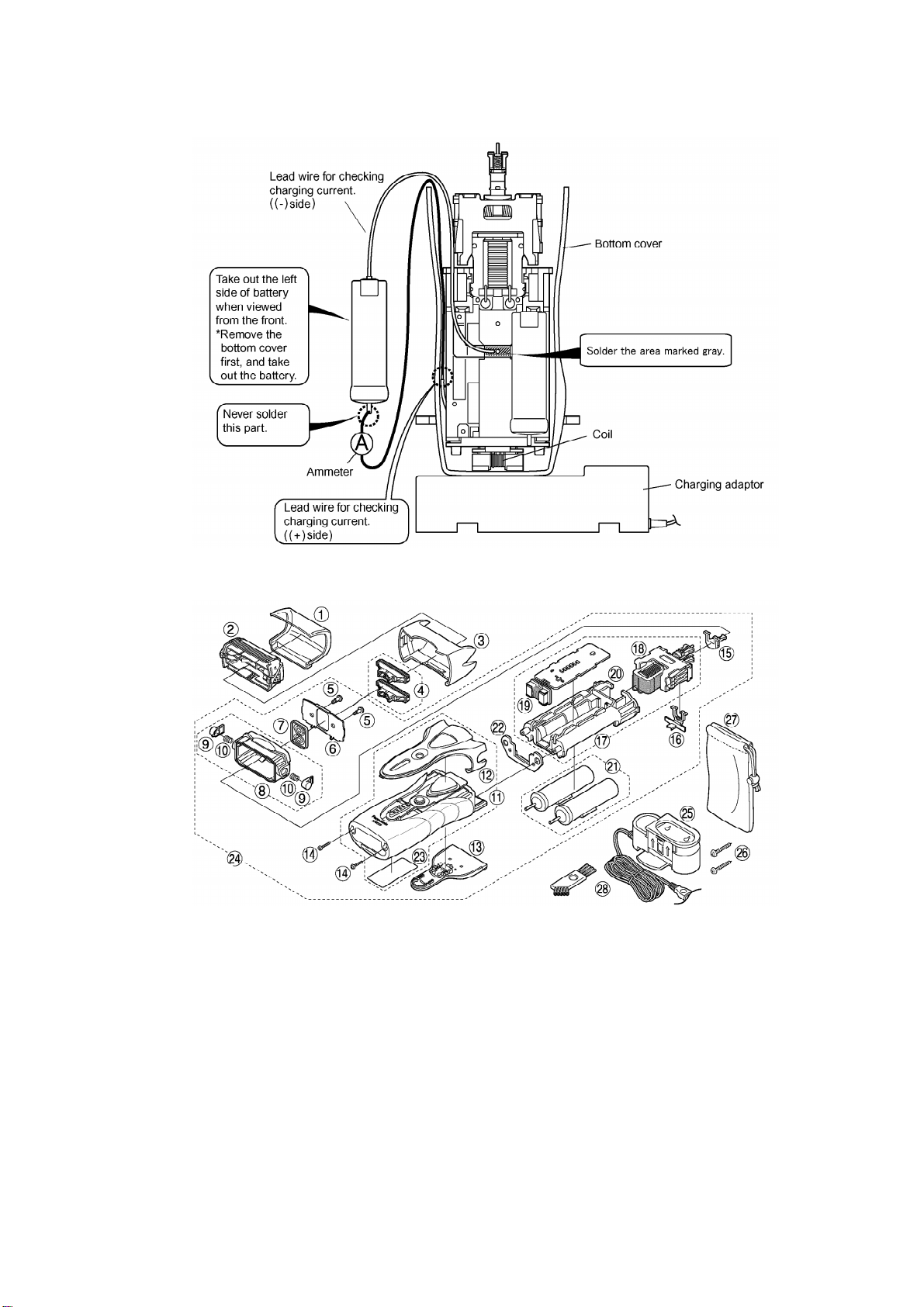

7. EXPLODED VIEW
8. REPLACEMENT PARTS LIST
NOTE
*A=available as anoptional accessory
*B=onlyavailable as set
*C=available individually
9

Ref. No. PartNo. PartName& Descriptions Remarks Per Unit
1WES8023X7158 PROTECTIVE CAP 1
2WES9077Y OUTER FOIL 1
3WES8026N0048 OUTER FOIL FRAME 1
4WES9072Y INNER BLADE *B 2
5WES882L9709 SCREW *C 2
6WES8035L0207 RETAINING PLATE 1
7WES8003L0327 WATER-PROOF RUBBER 1
8WES8921H0007 BLADEMOUNTING BASE 1
9WES7006H3267 FOIL FRAMERELEASE BUTTON *C 2
10 WES3001L0177 SPRING FOR RELEASE BUTTON *C 2
11 WES8026S3158 HOUSING 1
12 WES8026S3968 SWITCH PANEL 1
13 WES8080H1507 TRIMMER 1
14 WES762L6007 SCREW *C 2
15 WES8035L1077 TRIMMER DRIVING BAR B 1
16 WES8068L1087 TRIMMER DRIVING BAR A 1
17 WES8950L4307 LINEAR MOTOR ASSEMBLY 1
18 WES8035L1007 LINEAR MOTOR 1
19 WES8950L2127 MODULE 1
20 WES8035L0777 CHASSIS 1
21 WES882L2508 RECHARGEABLEBATTERY Ni-Mh type 1
22 WES8921L0607 RUBBER 1
23 WES8026S8409 NAMEPLATE 1
24 WES8026S3038 BODYBLOCK 1
25 WES8026H7664 CHARGING ADAPTOR C-2 plug 1
25 WES8026H7660 CHARGING ADAPTOR B-2 plug (U.K.) 1
26 WES663S6007 SCREW *B 2
27 WES8023A7008 SOFTCASE 1
28 WES861B7057 CLEANING BRUSH 1
- WES8026S8008 INDIVIDUAL BOX 1
-WES8026S8108 OPERATING INSTRUCTIONS 1
10

ORDERNO. SD0203A41C3
Wet/DryRechargeableShaver
ES8025-A3 / ES8026-A3
SPECIFICATIONS
SPECIFICATIONS
Power source AC100-240V, 50-60Hz
(Automaticvoltageconversion)
Power consumption 90mA
Motorvoltage 2.4V DC
Charging time 1-hour
Shaves per charge 14 times (3minutes shave)
Measurement (H) 14.0X (W) 6.0X (D) 3.5cm
Weight 230g, 0.51lbs
Suppliedaccessory Soft case
2002 Matsushita ElectricWorks Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. SCHEMATIC DIAGRAM
1

2. WIRING CONNECTION DIAGRAM
3. DISASSEMBLY INSTRUCTIONS
Followthe procedure belowtodisassemble the mainunit.
1. Remove the cap, the outer foil with foil frame and the inner blades.
2. Unhook the right and left side of hooks at upside using aflat
screwdriver with aposition 8mm sliding above. Then slightly
move the trimmer until position marking , and unhook the
lower side of hooks.
2

To remove the trimmer driving bars, press bar outward.
3. Loosen twoscrewsand the retaining plate. Take out the
waterproof rubber and the blade mounting base.
4. Loosen twoscrewson the bottom.
5. Take out the actuator from housing. Donot push the switch
button when removing or inserting the actuator. Itmaycause the
3

break of the pushed switch.
4. CAUTION IN ASSEMBLY
NOTE: Whenreassembling, replace the newwaterproof rubber.
4.1. Battery
4.1.1. Replacement
To remove battery, fix the top of batteryterminal witha flat plate and lifting up the batterypin.
4.1.2. Attachment
Followthe procedure toprevent the deformation of batteryterminal.
1. Install (+)terminal of batterypininto the terminal.
2. Firmlyset the batterysliding the direction of arrow.
3. Attach (-) terminal of battery.
4

4.2. Waterproof Rubber
The waterproof rubbermust be fittedthe right wayaround. Install as showninfigure by
inserting firmlytothe set position.
4.3. Trimmer
Set a position where marking and hook lowerside of twohooks. Witha position 8mm
sliding down, hook right and left side of hooks at upside.
4.4. Module
Module is solderedwithconnection terminal of chassis.
Followthe stepbelowtoremove the module.
1. Unsolder four points A, B, C, and D.
2. Remove the modulefrom four hooks with chassis.
5. TROUBLESHOOTING GUIDE
(RefertoWIRING CONNECTION DIAGRAM)
5

< TROUBLE > < CHECK. > <
REMEDY
Motordoes not rotate. <CHECK CHARGING ADAPTOR.>
Does not charge. Connect toratedvoltage withthe normal main
unit set ontothe NOReplace
charging
Functions fora
moment and adaptor. adaptor.
stops. Check if the charging lampof mainunit is lit.
OK
<CHECK RECHARGEABLE BATTERIES.> NOReplace
both
recharge-
Okayif the voltage of rechargeable batteries is
more thanapproxi- able
batteries
the
mately1.2V DC between(+) and (-) terminals. same
time.
(Replace tworechargeable batteries at the same
time eventhough
one batteryis defective due toseries connection.)
OK
<CHECK MODULE.> NOCheck
the
soldering
Insert the actuatorintothe housing, and connect
toratedvoltage points
from
D.
withthe normal adaptor. It is OK, if LED of main
unit is flashing.
OK
Replace
module.
NO
OK Replace
linear
motor.
<CHECK MODULE.> OKGotothe
step,
"Check
Whenswitching ON and OFF, it is OK if LED is
flashing and the charging
current".
motorrotates.
NO
<CHECK MODULE.> OK Replace
linear
motor.
Check the soldering condition at eachparts from
A toD.
NO
Replace
module.
NO
6

Resolder.
6. TROUBLESHOOTING GUIDE
(RefertoWIRING CONNECTION DIAGRAM)
< TROUBLE > < CHECK.> <
REMEDY
Noise is too loud. Oiling a drop forthe outerfoil.
Amplitude is too large. NO
<CHECK TRIMMER DRIVING BARS.> NO Replace
the
trimmer
Check if there is anydeformation withtrimmer
driving barA and B. driving
bar.
OK
<CHECK DRIVING HEAD AMPLITUDE.> NO Replace
linear
motor.
Turnthe switchON, and measure the amplitude
using a pinof
NO
drivinhead. (See the figure shownbelow.) Replace
module.
7

Amplitude is too
small. <CHECK DRIVING HEAD AMPLITUDE.> NO Replace
linear
motor.
Does not sharp
enough. Turnthe switchON, and measure the amplitude using a pinof (onlythe
case
the
drivinhead. (See the figure as shownabove.) amplitude
is
clear-
ance (
2.8mm
full
wideth.))
NO
Replace
module.
Does not function, but <CHECK MODULE.> NO Replace
module.
LED flashes. Take out the right battery. (Viewedfromthe front.)
Connect lead
NO
wire withchassis and (-) terminal of battery. Check
charging current Replace
linear
motor.
betweenleadwire comes frommodule side (stated
on WIRING CON-
NECTION DIAGRAM) and (+) terminal of battery
setting on the normal
adaptor. Okayif it is more than600mA when
connecting torated
voltage.
NOTE: The charging current fluctuates depending on the space betweencharging adaptorand
the coil. / Please followthe procedure below.
1. Put the coil and the bottom part of housing close together.
2. Put the bottom part of housing and the charging adaptor close
together.
3. Measure the charging currents between (+)terminal of batteryand
lead wire comes from moduleside.
8

7. EXPLODED VIEW & REPLACEMENT PARTS LIST
7.1. EXPLODEDVIEW for ES8025
7.2. REPLACEMENTPARTS LIST for ES8025
NOTE
*A=available as anoptional accessory
*B=onlyavailable as set
*C=available individually
9

Ref. No. PartNo. PartName& Descriptions Remarks Per Unit
1WES8023X7158 PROTECTIVE CAP 1
2WES9077E OUTER FOIL 1
3WES8921S0047 OUTER FOIL FRAME 1
4WES9072E INNER BLADE *B 2
5WES882L9709 SCREW *C 2
6WES8035L0207 RETAINING PLATE 1
7WES8003L0327 WATER-PROOF RUBBER 1
8WES8921H0007 BLADEMOUNTING BASE 1
9WES7006H3267 FOIL FRAMERELEASE BUTTON *C 2
10 WES3001L0177 SPRING FOR RELEASE BUTTON *C 2
11 WES8025S3159 HOUSING 1
11 WES8025S3160 HOUSING onlyfor KOREA 1
11 WES8025S3161 HOUSING onlyfor TAIWAN 1
12 WES8025S3968 SWITCH PANEL 1
12 WES8025S3969 SWITCH PANEL onlyfor KOREA/TAIWAN 1
13 WES8080H1507 TRIMMER 1
14 WES762L6007 SCREW *C 2
15 WES8035L1077 TRIMMER DRIVING BAR B 1
16 WES8068L1087 TRIMMER DRIVING BAR A 1
17 WES8025L4308 LINEAR MOTOR ASSEMBLY 1
18 WES8035L1007 LINEAR MOTOR 1
19 WES8025L2128 MODULE 1
20 WES8035L0777 CHASSIS 1
21 WES882L2508 RECHARGEABLEBATTERY Ni-Mh type 1
22 WES8921L0607 RUBBER 1
23 WES8025S8409 NAMEPLATE 1
23 WES8025S8410 NAMEPLATE onlyfor TAIWAN 1
24 WES8025S3039 BODYBLOCK 1
24 WES8025S3040 BODYBLOCK onlyfor KOREA 1
24 WES8025S3041 BODYBLOCK onlyfor TAIWAN 1
25 WES8026H7663 CHARGING ADAPTOR C-2 PLUG 1
25 WES8026H7662 CHARGING ADAPTOR A-2 PLUG 1
25 WES8026H7671 CHARGING ADAPTOR KOREAN PLUG 1
26 WES663S6007 SCREW *B 2
27 WES8023A7008 SOFTCASE 1
28 WES861B7057 CLEANING BRUSH 1
- WES8025S8008 INDIVIDUAL BOX 1
-WES8025S8009 INDIVIDUAL BOX onlyfor KOREA/TAIWAN 1
-WES8026N8109 OPERATING INSTRUCTIONS 1
7.3. EXPLODEDVIEW for ES8026
10
