Panasonic FZ-10 User manual

Panasonic
3DO Interactive Multiplayer
Model No. FZ-10
Operating Instructions
EEE K* mm
DKMTU. AUDIO 1OMPHCS )
(Digital audio CD) (CD-G)
Please read these instructions completely before operating this product.
300. the 3D0 logos, and Interactive Multiplayer are trademarks of The 3D0 Company.
Panasonic is aregistered trademark and REAL is atrademark ot Matsushita Electric Industrial Co.. Ltd,
Photo CD mark licensed trom Kodak.

Precautions and Warnings
Please be sure to read through this instruction manual and completely
follow all the written procedures before using the multiplayer.
The following mark and symbols are located on bottom of the product
CAUTION To reduce the risk of
electric shock do not remove cover
or back No user-serviceable parts
inside Refer servicing to qualified
service personnel
A
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute
arisk of electric shock to persons
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product
"Warnings" and "Cautions" are also included to indicate the need for take special care Please do not discard
these important instructions
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain, moisture, or any type of liquid
Installation
Placement
In order to prevent injuries or unit damage, do not place
the unit on top of an unstable TV set (cart, table, etc )
where it would be prone to fall Place it on aflat, level
surface
Environment
Do not use or store the unit in locations exposed to heat,
direct sunlight, extreme cold, high humidity, excessive
smoke, or dust The unit should be situated away from
equipment or devices that generate strong magnetism
Heat
The unit should be situated away from heat sources such
as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat
Operating 10°C to 35°C (50°F to 95°F )
Storage -20°C to 60°C (-4°F to 140°F )
When packed for shipment
Wall or Ceiling Mounting
The unit should not be mounted on awall or ceiling
Ventilation
Ventilation openings are provided in this unit to prevent
overheating These openings must not be blocked or
covered Do not use this unit directly against awall, on
top of abed or sofa or in any other place where heat
generated will be confined inside the unit
Water and Moisture
Do not use this unit near water -for example, near a
bath tub, wash bowl, in awet basement, swimming pool,
etc Do not handle this unit or compact discs with wet
hands
Stacking
Do not place heavy objects (TV, etc )on top of the unit
Never allow anyone to stand or sit on this unit

Transporting
This unit is aprecision-made device Take care
to protect it from vibration and impact while
moving it In particular, care must be taken when moving
the unit together with acart, or it may topple over
If the unit is moved suddenly from acold to awarm
location, water vapor may condense in this unit To
correct this problem, turn on the power and wait about
one hour for the moisture to evaporate
Always remove adisc before moving the console
Attachments
When connecting attachments {control pad, etc ), use
only those authorized products that display the 3DO
compatibility symbol
Note to CATV system installer
This reminder is provided to call the CATV system
installer's attention to Section 820-40 of the NEC
{National Electrical Code) which provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system
of the building, as close to the point of cable entry as
practical
Safety
Object and Liquid Entry
Never push objects of any kind into this unit through
openings as they may touch dangerous voltage points
or short-out parts that could result in afire or electric
shock Never spill liquid of any kind on the unit
Power Sources
This unit should be operated only from the type of power
source indicated on the unit surface If you are not sure
of the type of power supply to your home, consult your
product dealer or local power company
Polarization
This unit is equipped with apolarized alternating-current
line plug {a plug having one blade wider than the other)
This plug will fit into the wall outlet only one way This is
asafety feature If you are unable to insert the plug fully
into the wall outlet, try reversing the plug If the plug
should still fail to fit, contact your electrician to replace
your obsolete wall outlet Do not defeat the safety
purpose of the polarized plug
Power Cord Protection
Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed on
top of or against them, with particular attention paid to
cords at plugs, convenience receptacles, and the point
where they exit from the unit
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to
the unit, be sure the antenna or cable system is grounded
so as to provide some protection against voltage surges
and built-up static charges Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information
with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors,
location of the antenna-discharge unit, connection to
grounding electrodes, and requirements for the
grounding electrode
See following diagram
NATIONAL ELECTRICAL CODE (NEC)
GROUND CLAMP,
GROUND CLAMPS
ANTENNA LEAD-IN
WIRE
ANTENNA DISCHARGE
UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
POWER SERVICE
GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

Lightning
For added protection for this unit during alightning storm,
or when it is left unattended and unused for long periods
of time, unplug it from the wall outlet and disconnect the
antenna or cable system This will prevent damage to
the unit due to lightning and power-line surges
Power lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines
or circuits When installing an outside antenna system,
extreme care should be taken to keep from touching such
power lines or circuits, as contact with them might be
fatal
Overloading
Do not overload wall outlets, extension cords or
convenience receptacles, as this can result in arisk of
fire or electric shock
Cleaning
Unplug this unit from the wall outlet before cleaning Do
not use liquid cleaners or aerosol cleaners Use adamp
cloth for cleaning
!Maintenance and Service
Servicing
Do not attempt to service this unit yourself as opening or
removing covers may expose you to dangerous voltage
or other hazards Refer all servicing to qualified service
personnel
Damage Requiring Service
Under the following conditions, unplug this unit from the
wall outlet and refer servicing to qualified service
personnel
a) When the power supply cord or plug is damaged
b) If liquid has been spilled, or objects have fallen, into
the unit
c) If the unit has been exposed to rain or water
d) If the unit does not operate normally when following
the operating instructions Adjust only those controls
that are described in the operating instructions, as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the unit to its normal
operation
e) If the unit has been dropped or damaged in any way
f)When the unit exhibits adistinct change in
performance
Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer, or parts which have the same
characteristics as the original parts Unauthorized
substitutions may result in fire, electric shock, or other
hazards
Safety Checks
Upon completion of any service or repairs to this unit, ask
the service technician to perform safety checks to
determine that the unit is in proper operating condition
Control Pad Warning
Warning
The connection of control pad (or other attachments) to
the Interactive Multiplayer console which are not produced
under license from The 3DO Company may be hazardous
and result in electrical shock, fire or injury, and could
damage the player and/or the unlicensed attachment
Please use caution not to connect any device to the player
which does not bear the 3DO logo
IAcaution to projection TV users
To avoid causing damage to the display mechanism of a
projection television, do not use the Interactive Multiplayer
with this type of television
Due to the nature of projection television it is advisable to
limit the amount of time afrozen or non changing image
is displayed on the screen
Panasonic can accept no responsibility for burn-in
condition of the display tubes of the projection
televisions.

Federal communications commission radio frequency interference statement
Note: This equipment has been tested and found to comply
with the limits for aClass Bdigital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in aresidential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in aparticular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on acircuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Warning
To assure continued FCC compliance, the user must use
only shielded interfacing cables when connecting to aTV
or Accessaries, also use the exclusive control pad
equipped with shielded cable or shielded cable with ferrite
core at end of plug side. Also, any unauthorized changes
or modifications to this equipment would void the user's
authority to operate.
CAUTION
THIS PRODUCT UTILIZES ALASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
CLASS 1LASER PRODUCT:
THIS PRODUCT CONTAINS ACLASS 1CD-ROM DRIVE UNIT WHICH COMPLIES WITH DHHS RULES, 21 CFR CHAPTER I,
SUBCHAPTER J.
PLEASE ONLY USE TYPE OF CD MENTIONED IN THESE INSTRUCTIONS.
Warning
AMEDICAL PRECAUTIONS
1
.
Physical activities involving regular repeated movements of the wrists, hands and/or fingers
may possibly cause repetitive strain injury. Such injury may also affect muscles in the
arms, wrists, hands, fingers, shoulders and neck, chest and abdomen, and the legs and
back.
2. There have been reports that some people may experience epileptic symptoms or even
seizures while. concentrating on flashing lights. It is possible that persons with no previous
epileptic experiences may, nevertheless, have an undetected condition. To avoid apossible
medical problem, if you have an epileptic condition, consult your physician before playing
video games or any other visually intensive software products.
To avoid either of these situations, and as sound practice, if you should use this product for
an extended period of time, it is suggested that you take periodic breaks of 10-15 minutes
each hour. Product should be used in abrightly lit room. Operating in aclose distance to the
TV should be avoided.
In any event, stop using this product and consult your physician if you detect involuntary
muscle movements (such as twitching), altered vision, mental or visual confusion, convulsions,
muscular pain, numbness of fingers, palms or other areas.
The model number and serial number of this product can
be found on bottom of the product. Please note them in
the space provided right and retain them for future
reference.
MODEL NUMBER:
SERIAL NUMBER:
FZ-10

Unpacking Contents
Check the packing carton for these items
If any item is missing, please contact your dealer
immediately
Player (1)
3DO Control Pad (1)
Can also be purchased
separately
Power Cord (1)
DRF Cable (1)
Operating Instructions (1)
Service Center List and Warranty Sheet (1)
Consumer Registration (1)
7Control pad
7Handling CDs
8Connection
10 Basic operation
1Playing games with a3DO CD
12 Using Photo CDs
12 Viewing photo collections
(Photo CDs) on the TV screen
14 Using audio CDs and CD-G
14 Listening to audio CDs and
viewing CD-G
16NORMAL setting
16 RANDOM setting
17 PROGRAM setting
18 Repeat play (REPEAT ON)
18To switch from stereo to
monaural or vice versa
19 Troubleshooting
Specifications

Control pad
How to hold the control pad
Directional
pad Place your finger here When connecting two or more
control pads
Some software allows the connection of additional
control pads so that two or more (up to 8) persons
can play together at the same time
Connector
(detach port cover
and connect)
/Place your left
thumb here
Place your right
thumb here ^
Details on directional pad and
button functions
The functions performed by the directional pad and
buttons differ depending on the software used
Refer to the instructions accompanying each
software package
Control pad (sold separately)
Acontrol pad (model number FZ-JP1X) with a
headphone jack can also be used
When using 3DO"bontrol pads made by another manufacturers, follow the instructions accompanying them
Handling CDs
r. How to remove aCD from its case
Press the center holder down and remove How to return aCD to its case
With the label side facing up, press the CD down
over the center holder
How to hold aCD
Do not touch the surface of the CD When aCD is dirty
First wipe the CD with asoft cloth moistened with water
and then wipe with adry cloth Always wipe from the
center of the CD toward its edge
Precautions
For the label side (with the printing)
•Do not write anything with apencil or ballpoint pen
•Do not apply any paper, stickers, etc
For the disc side (shiny side)
•Handle this side carefully so that no fingerprints
or marks are left on it
•Do not use aconventional record cleaner or
solvent
•Do not use aCD lens cleaner
(^
When condensation has formed
If condensation has formed when aCD has been
suddenly brought from acold environment into awarm
room, wipe it off using asoft dry cloth
Where to keep or store your CDs
•Anywhere not exposed to direct sunlight
•Anywhere with minimal moisture and dust
•Anywhere not directly exposed to heat from aheater

Connection
Connecting the player to aTV set (or stereo system, etc.)
Switch off the TV set.
S-video cable
(not supplied)
Audio/Video cable
(not supplied)
Connecting to aTV set
with an S-video input jack
It is recommended that the S-video cable
(not supplied) be used for connection
In this case, disconnect both video plugs
(yellow) of the Audio/Video cable, if it is
used
Use the Audio/Video cable sold on stores
when connecting with aTV set having audio/
video input jacks.
Match up the colors of the jacks and plugs
In the case of connection with RF cable, all
CDs are played in monaural sound
Connect to the TV set
and Antenna.
Set CH SELECT to the channel not
used for broadcasting in your area
(3 or 4), using the tip of aballpoint
pen or similar instrument
8

r®Connect the
control pad.
r,
Player
AC1 20V outlet
/TT\ Connect the
V^Jy power cord.
Connection with a TV set
TV set with "MONO" audio and video input jacks
"A
Video input jack
(VIDEO) Yellow -Video output jack
TV set
rAudio input
jack
(AUDIO)
i<
I
Yellow
Red -Right audio output jack (R)
White -Left audio output jack (L)
Player
Video cable
(not supplied)
Pin-to-pin cable (not supplied)
When adifferent type of TV set or antenna is used
Different parts (not supplied) are required depending on the type of TV set
or antenna First check the type of TV set and antenna and then consult
with your Audio/Video dealer
Connection to aTV set and stereo system
Yellow -Video output jack
Yellow -Video
input jack
TV set
Video cable
(not supplied)
Red -Right audio output jack (R)
White -Left audio output jack (L)
Player
Audio cable
(not supplied)
Stereo system
White -Left audio input jack (L)
Red -Right audio input jack (R)
Also refer to the operating instructions accompanying the stereo system

Basic operation
Playing games with a3D0™CD
rQ Switch on the TV set,
^-^ and set to the channel to which
the player has been connected
Set the power switch
(POWER) to ON.
The ready indicator (READY) lights up red
Proceed
following the instructions
accompanying the CD
software in use
CD access indicator
(ACCESS)
This lights or flashes while
the CD is being accessed
How to quit
CD Quit the software being used (Refer to the
instructions accompanying the software used )
©Open the lid
(3) Remove the CD once it has stopped spinning
©Close the lid
(D Set the power switch (POWER) to OFF
Removing the CD
Put your finger on the center
holder while raising one side
of the CD with your thumb
Don't press down hard the
center holder
|Center holder

Press [PUSH] to
open the lid. K&rcfto) oo@©ffi© ©IMsiQ^GMKia@@K
yZ\\ Insert the CD.
(\~njy Insert the CD with its
Ilabel side facing up
t>^
Press down on the CD label
side so that it slides over the
center holder
Press [PUSH] to
close the lid
until it clicks.
With a3DO™ CD
The game now
starts automatically
Caution
If the CD has not been
properly placed on the
center holder, it may be
damaged when the lid is
closed
The sound of CD drive
accessing may be heard
when operating software
This is not amalfunction
Game data can be saved.
Depending on the game software, it may be possible to save results and
other such data at interim stages in the built-in storage The saved data will
not be lost even when the power is turned off (For details on operation,
refer to the instructions accompanying the software concerned )
Saved data can be removed.
When the built-in storage is full, no more new data can be saved In this
case, it is possible to remove data no longer required by following the
procedure given below
(jj) Without inserting aCD in the player, turn on the power
@When the "Press Xto start STORAGE MANAGER" message appears,
press the (x) button (The data list screen now appears )
(SJ) Select the item to be removed using the
up/down directional pad
(g) Press the ®button L,st screen
(Confirmation is needed )
Confirmation screen
IT
Check the name of the item,
and remove it using the
®button
(@) Quit Storage Manager using
the ®button
'Press the ®button to remove all the item
Data names
•When aname is too long to be viewed on the list screen, check it on the
confirmation screen
•All track sequences of audio CDs (see page 17) are stored in "acd playhst
"
This is listed as "Audio CD Program" on the list screen
Caution
•Always press the (x) button when the list screen is displayed to quit
Storage Manager If the power is turned off or the lid is opened or closed
before quitting Storage Manager, the contents of the back-up memory
may be lost
•The numbers on the list screen denote the amount of data in the back-up
memory Included in these numbers are the 64 bytes used by the system
"Total memory size" denotes the total memory in use The system uses
152 bytes at all times
•Once removed, data cannot be restored'

Using Photo CDs
Viewing photo collections (Photo CDs) on the TV screen
Important or valuable photographs can be stored semi-permanently in aCD album where they will not be
subject to discoloration Up to 100 photos can be stored on aCD and viewed on aTV's large screen
How to create aPhoto CD
Take your 35 mm films to acamera store which handles Photo CDs
(For details, consult acamera store which is qualified to handle Photo CDs )
r
Panning up/down or
to the left/right
The photo is panned up or
down or to the left or right,
depending on which direction
the pad is pressed
Rotate function
The photo is rotated when the
up/down directional pad is
used while the (t) (or (§))
button is held down
Mirror function
Amirror image of the photo is
displayed if the left/right
directional pad is operated
while the ©(or ®) button is
held down
»•First, insert aCD bearing
&3BSa£t3 'this logo The total number of photos on the
CD is now indicated, and the first photo is
then displayed
To automatically flip through
photos or stop this €K
To display the photo number \
Press the ©(or ®) and ©buttons (Press the
buttons again to remove this number
)
To return to the first photo
Use the (t) button together
with another button or the
directional pad
Directional pad

TO View the next phOtO: Press ®button
TO View the previOUS phOtO: Press down either ©or ®button and
then press ®button
To flip through photos
Hold the ®button down and the photos will flip forward
To go backwards, hold down either the ©or ®button and then press the ®button
until you reach the photo you want to see again
To set the photo display
to half size
When there is no box, press the ©
(or ®) and ®buttons {When the
buttons are pressed again, the display
returns to normal size )
To use the zoom function
Each time the ®button is pressed, the zoom box
changes, zooming commences when it is
pressed while the ©(or ®) button is held down
Zoom box
Zoom sizes
(5 types)
x2 normal size
Normal size
1/2 size
x8 normal size
x4 normal size
Use the ®button together with
another button or the directional pad
To view the control pad
HELP screen
(The screen appears only while the button
is pressed
)
Up/down or left/right
panning speed
This speed can be adjusted by pressing
the ©(or ®) and ©buttons together
How to quit
Press [PUSH] on the player to open the lid Remove
the CD once it has stopped spinning
13

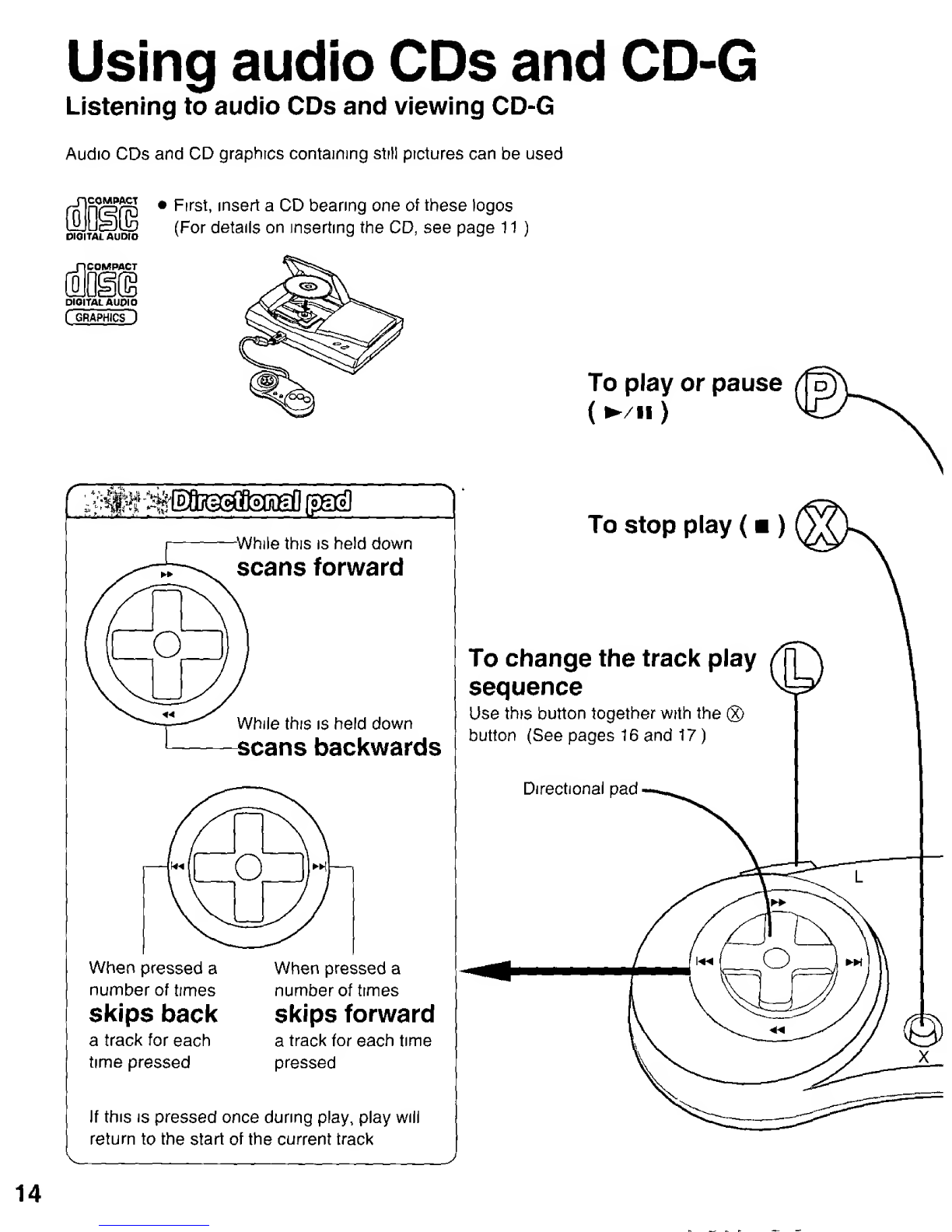

Using audio CDs and CD-G
Listening to audio CDs and viewing CD-G
Audio CDs and CD graphics containing still pictures can be used
fnln^RfrG #F,rst'insert aCD °eanng one of these logos
UillJalk) (For details on inserting the CD, see page 1 1 )
DIGITAL AUDIO xo>r=> /
nCOMRACT
te§
DIGITAL AUDIO
(GRAPHICS J
To play or pause
(/»
)
f,?#f:t[te
While this is held down
scans forward
While this is held down
cans backwards
When pressed a
number of times
skips back
atrack for each
time pressed
When pressed a
number of times
skips forward
atrack for each time
pressed
If this is pressed once during play, play will
return to the start of the current track
To stop play ()
To change the track play
sequence
Use this button together with the ®
button (See pages 16 and 17)
Directional pad

To set the image screen where graphics
dance to the rhythm
(This player contains four screens Any screen can be viewed while the CDs are being played )
To switch screens during CD-G play
(Only for CD-G with multiple screens)
To change the track play sequence
Press this button together with the ®button
(See pages 16 and 17 )
To view the control pad
HELP screen
(The screen appears only while the button is pressed )
How to adjust the volume
Adjust the volume to the desired level using the
controls on the TV set or stereo system
How to quit
Press [PUSH] on the player to open the lid Remove
the CD once it has stopped spinning
Caution
The images may be disturbed if any operations (such as
scan) are done during CD-G play sequence
15

Using audio CDs and CD-G
NORMAL setting for listening to tracks from the beginning
All the tracks starting with the first
track are heard.
Press the ®button
(Play now begins
)
Play screen
To stop play
Press the (X) button
Track number
Elapsed play time
Audio level
To find out the number of
tracks or total play time
Display the programming screen by pressing
the ©(or ®) and (x) buttons
Programming screen
Total play time
Press the buttons again to return to the play screen
Programming screen
RANDOM setting for listening to the tracks in random order
With this setting the player decides
the sequence in which it will play
the tracks. (It does this automatically )
Display the screen shown on the right by
pressing the (t) (or ®) and ®buttons
SET
Total play time
Track sequence
r~
Select NORMAL
using the up/
down directional
pad
Select SET using
the left/right
directional pad
Select RANDOM
using the ®button
Return to the play
screen using the ®
button
Press the ®button
(Play now commences
)
Caution
The tracks will be played at the RANDOM
setting from now on
ACD which was last played in the RANDOM
mode will be played at the RANDOM setting
when it is next played
This setting needs to be reset to return to the
NORMAL setting if the CD is to be played
starting from the first track r*-NORMAL
RANDOM
-PROGRAM
MMsWK'KHL

IPROGRAM setting for listening to selected tracks only
Selected tracks are heard in their programmed sequence.
Display the screen on the right by
pressing the Q(or ®) and (x) buttons
Programming screen
SET Total program time
Select NORMAL
using the up/down
directional pad
Select the //a
preferred track
number using the
directional pad
Select SET using
the directional pad
Press the ®button
{Play now commences
)
Programmed track
number list
-Track number list
Select PROGRAM using
the ®button
Press the ®button
(The track number is
entered on the
programmed track
number list
)
Repeat steps© and ©
Return to the play screen
using the ®button
(The information is saved
in the player
)
To delete a
programmed track
Use the directional pad to select
the number of the track to be
deleted from the programmed track
number list, and press the ®
button
To add another track
Use the directional pad to select
the position in the programmed
track number list where the track is
to be added
Use the directional pad to select
the number of the track to be
added from the track number list
Press the ®button
r
Track sequences for about 80 audio CDs can be saved.
Simply by inserting the same CD, it is possible to listen to the tracks in their saved sequence
Caution
•In some cases, atrack sequence can not be saved
Asequence can not be saved when the amount of game data saved is too large In this case, remove data
which is no longer required (See page 1 1 )
However, when even one sequence has been saved,
Memory for about 80 CDs is set aside so that it is not affected by the amount of game data stored
•When the memory size for saving track sequences (equivalent to about 80 CDs) has been exceeded,
Track sequences are automatically erased, starting from the oldest ones, and new track sequences are
stored
17

r. Repeat play (REPEAT ON)
Switch to the programming screen
by pressing the ©(or ®) and ®buttons
Select REPEAT OFF using the
up/down directional pad
Select SET using the left/right
directional pad
Set REPEAT ON using
the ®button
Return to the play screen
using the ®button
si C^mEPEAnoMIHI
(^flRMALWWWW
C*TSTCR£01
To switch from stereo to "MONO" or vice versa
•When using asound-multiplexed CD for "karaoke" such as CD-G (when the singer's voice is heard
through the right channel and the accompaniment through the left)
When the sound mode is set to R-MONO or MONO, you can listen to the example singing first, or
when the sound mode is set to L-MONO you can sing along to just the accompaniment
Display the programming screen by pressing
the ©(or ®) and (x) buttons
Select STEREO using the
up/down directional pad
Select SET using the left/right
directional pad
Decide on one of the
settings on the right using
the ®button
Return to the play screen
using the ®button
tr OVREPEATtON
FftiP'WfflV irF
KVl^MONOijy^^^^
STEREO
MONO
L-MONO
R-MONO
i

Troubleshooting
Please check through the items listed below before requesting repair service
fSymptom Checkpoint |JJl^No?8 \
No power. •Has the power cord been plugged in properly'? 9
No picture. •Have the player and TV set been turned on? 10
•Have the player and TV set been connected properly? 8
•Is the TV/VCR selector set to the correct position? 10
No further operation is
possible.
•Set the power switch (POWER) to OFF and reset the power switch
to ON —
No CD play. •Has the CD been set properly over the center holder? 11
•Has the CD been inserted with its label side facing up? 11
•ACD which is not compatible with the player can not be used Front
cover
•The CD is dirty —Wipe off the dirt using asoft cloth 7
•The lens is dirty -» Wipe off the dirt using acotton swab or blow it
away using a rubber blower for cleaning lenses (available from
camera stores)
—
•Is the CD scratched, cracked, or warped? (If so, do not use it
)
—
•Has condensation formed on the player?
—Turn off the power, wait an hour or so for the
condensation to dry out, and then try operating the player
—
Demonstration screen
appears but no further
operation is possible.
•Has aCD been inserted? 11
•Has the CD been inserted properly over the center holder? 11
Software program screen
appears but no further
operation is possible.
•Has the control pad been connected properly?
8
Picture appears but
there is no sound.
•Have the player and TV set been connected properly? 8
•Is the TV set volume at its lowest setting or is it muted? —
Something is wrong
with the sound.
•Has the audio/video cable (if used) been connected properly? 8
•In the case of amonaural TV set, has the pin-to-pin cable
(not supplied) been connected properly? 9
Poor picture quality. •Have the player and TV set been connected properly? 8
•Have the TV set's brightness and contrast been adjusted properly? —
•Place the player at adistance from the TV set —
Edges of the picture are
cut off or distorted.
•This may occur due to the condition of the TV set and the software,
and it is not amalfunction J
If the problem persists even though the steps described above have been taken, discontinue use, disconnect
the power cord, and consult with aPanasonic service center (In the United States, consult an MSC
Authorized Servicenter for detailed instructions )
Matsushita Services Company

Specifications
CPU 32-bit RISC processor ARM60 (12 5MHz)
Memory RAM/
VRAM J MLS d. Mb Main-HAM
'1MB VRAM ,
SRAM 32 KB (Battery back up)
ROM 1MB
DSP Original 16-bit digital signal processor '
Video/Audio Video output RF Video, NTSC, channel 3or 4(Switch selectable)
S-Video, NTSC
Composite video, NTSC (RS170 Astandard)
Resolution 640 (H) x480 (V) dots (Inside 320 x240 dots)
Colors Max 16 7Milhon/Std 32 k
Audio Stereo 16-bit PCM (Sampling 44 1kHz)
Storage CD-ROM drive Size 12 and 8cm (CD single)
Double Speed CD-ROM Drive (Read Buffer 32 KB)
I/O Port Control port Low speed I/O Dsub-9 pin x1
Daisy-chain system
Expansion port High speed I/O 30 pin x1
AV Expansion port High speed AV-I/O (Video CD Adaptor) 68 pin x1
System System dimensions
(W xDxH)
310 x236 x68 mm (12 2x93x27inch)
Weight 17kg (3 8lbs )
Power requirement 120 VAC 60 Hz
Power consumption 30 W
Indicator Power indicator Red-LED x1
CD-access indicator Green-LED x1
Temperature Operating 10°Cto35°C (50°Fto95°F)
Storage -20°C to 60°C (-4°F to 140°F)
(When packed for shipment)
Specifications are subject to change without notice
Weight and dimensions are approximate
©Matsushita Electric Industrial Co ,Ltd 1994, All Rights Reserved
Panasonic
Matsushita Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way Secaucus,
New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. ("PSC")
Ave 65 de Infanteria Km 95
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Printed in Japan DFQS3015ZD SS1 294-4065
