Operating Instructions
(Mono bloc) Air-to-Water Heatpump System
F568658_YS0112-0.indb 1F568658_YS0112-0.indb 1 5/9/2012 1:54:42 PM5/9/2012 1:54:42 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C

2
• Panasonic (Mono bloc) Air-to-Water Heatpump is a system designed
for combination with Panasonic Tank Unit. In case of non-Panasonic
Tank Unit is being used with Panasonic (Mono bloc) Air-to-Water
Heatpump System, Panasonic cannot guarantee neither good
operation nor reliability of the system.
• This manual describes how to operate the Heatpump system.
• Other operation such as water tank, radiator, external thermo controller
and underfloor system, please refer to respective manufacturer
operation manuals.
SAFETY PRECAUTIONS
Thank you for purchasing
Panasonic Product
TABLE OF CONTENTS
TABLE OF CONTENTS
SAFETY PRECAUTIONS
2~3
REMOTE CONTROL
4~7
MONO BLOC UNIT
8
TROUBLESHOOTING
9
INFORMATION
74~76
NOTE
NOTE
The illustrations in this manual are for
explanation purposes only and may
differ from the actual unit. They are
subjected to change without notice for
future improvement.
OPERATION CONDITION
OPERATION CONDITION
Water outlet
Temperature (°C)
HEATING Max. 55
Min. 25
Ambient
Temperature (°C)
HEATING Max. 35
Min. -20
NOTICE : When the outdoor temperature
is out of the above temperature
range, the heating capacity will
drop significantly and mono bloc
unit might stop for protection
control.
The unit will restart automatically
after a short time when the
outdoor temperature is back in
the limits.

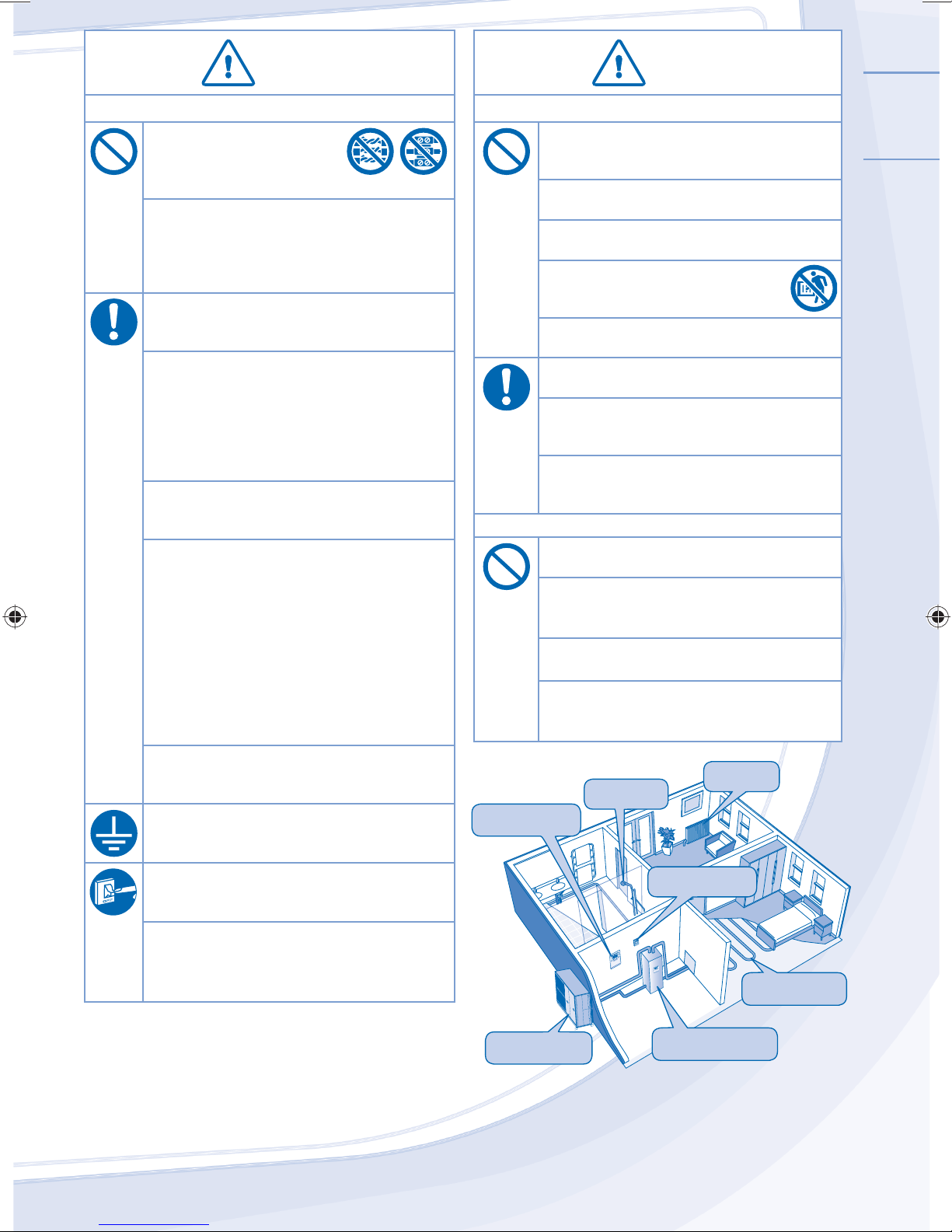

To prevent personal injury, injury to others, or property damage, please
comply with the following.
Incorrect operation due to failure to follow instructions below may cause
harm or damage, the seriousness of which is classified as below:
WARNING
WARNING
This sign warns of death or serious injury.
CAUTION
CAUTION
This sign warns of injury or damage to
property.
The instructions to be followed are classified by the following symbols:
This symbol denotes an action that is
PROHIBITED.
These symbols denote an action that
is COMPULSORY.
WARNING
WARNING
MONO BLOC UNIT
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Please consult authorized dealer or specialist to clean
the internal parts, repair, install, remove and reinstall the
unit. Improper installation and handling will cause leakage,
electric shock or fire.
When repair or service refrigeration system, confirm to
authorized dealer or specialist on usage of specified
refrigerant type. Using of refrigerant other than the specified
type may cause product damage, burst and injury etc.
Do not install the unit in a potentially explosive or flammable
atmosphere. Failure to do so could result in fire.
Do not insert your fingers or other objects into the
mono bloc unit, rotating parts may cause injury.
Do not touch the mono bloc unit during lightning, it may
cause electric shock.
Do not sit or step on the unit, you may fall down
accidentally.
F568658_YS0112-0.indb 2F568658_YS0112-0.indb 2 5/9/2012 1:54:45 PM5/9/2012 1:54:45 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C

ENGLISH
3
CAUTION
CAUTION
MONO BLOC UNIT
Do not install the unit close to any combustible
equipment or at bathroom. Otherwise, it may
cause electric shock or fire.
Do not touch the water discharge pipe during
operation.
Do not place anything on top or beneath of the
unit.
Do not touch the sharp aluminium fin,
sharp parts may cause injury.
Do not use the system during sterilization to
prevent scalding or overheat during shower.
Ensure drainage pipe is connected properly.
Otherwise, leakage may occur.
After a long period of use, make sure the
installation rack does not deteriorate to prevent
the unit from falling down.
The sterilization function field settings must be
configured by the authorized dealer according
to local laws and regulation.
REMOTE CONTROL
Do not let the remote control get wet.
Otherwise, it may cause malfunction.
Do not press the buttons on the remote control
with hard, pointed objects. Otherwise, it may
damage the unit.
Do not wash the remote control with water,
benzene, thinner or scouring powder.
Do
not inspect or service the remote control by
not inspect or service the remote control by
yourself. Please consult authorized dealer.
yourself. Please consult authorized dealer.
Otherwise, it can damage or malfunction.
WARNING
WARNING
POWER SUPPLY
Do not use a modified cord,
joint cord, extension cord or
unspecified cord to prevent
overheating and fire.
To prevent overheating, fire or electric shock:
• Do not share the same power outlet with other
equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
If the supply cord is damage, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
This unit is equipped with Residue Current Circuit
Breaker (RCCB). It is strongly recommended to
check the operation of the RCCB after installation
and periodically after servicing or maintenance
by authorized dealer to ensure it is in good
working order. Otherwise, it may cause electrical
shock or fire in case of malfunction.
It is strongly recommended to install Residual
Current Device (RCD) on-site to prevent electric
shock or fire.
Stop using the product if any abnormality/failure
occurs and disconnect the power plug or turn off
the power switch and breaker.
(Risk of smoke/fire/electric shock)
Examples of abnormality/failure
• The RCCB switches off by itself.
• Burning smell, abnormal noise or vibration
sound is observed when the unit is in use.
• Hot water keeps on coming off the unit.
Contact your local dealer immediately for
maintenance/repair.
It is recommended to wear gloves during
servicing or maintenance in order to avoid
hazard.
This equipment must be earthed to prevent
electrical shock or fire.
Prevent electric shock by switching off the power
supply when:
- Before cleaning or servicing.
This appliance is for multiple uses. All power
supply circuits must be turn off before access to
any of the terminals in the unit, to avoid electrical
shock, burn or fatal injury.
/
Floor Heating
Panel
Power Supply
Water Tank Unit
Mono bloc Unit
Shower
Remote Control
F568658_YS0112-0.indb 3F568658_YS0112-0.indb 3 5/9/2012 1:54:45 PM5/9/2012 1:54:45 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C

4
SETTING UP THE SPECIAL FUNCTIONS
REMOTE CONTROL
• Some functions describe in this manual may not be applicable to your unit.
• Consult your nearest authorized dealer for further information.
• For normal operation, the
ERROR
RESET
,
FORCE
and
SERVICE
buttons are not in use.

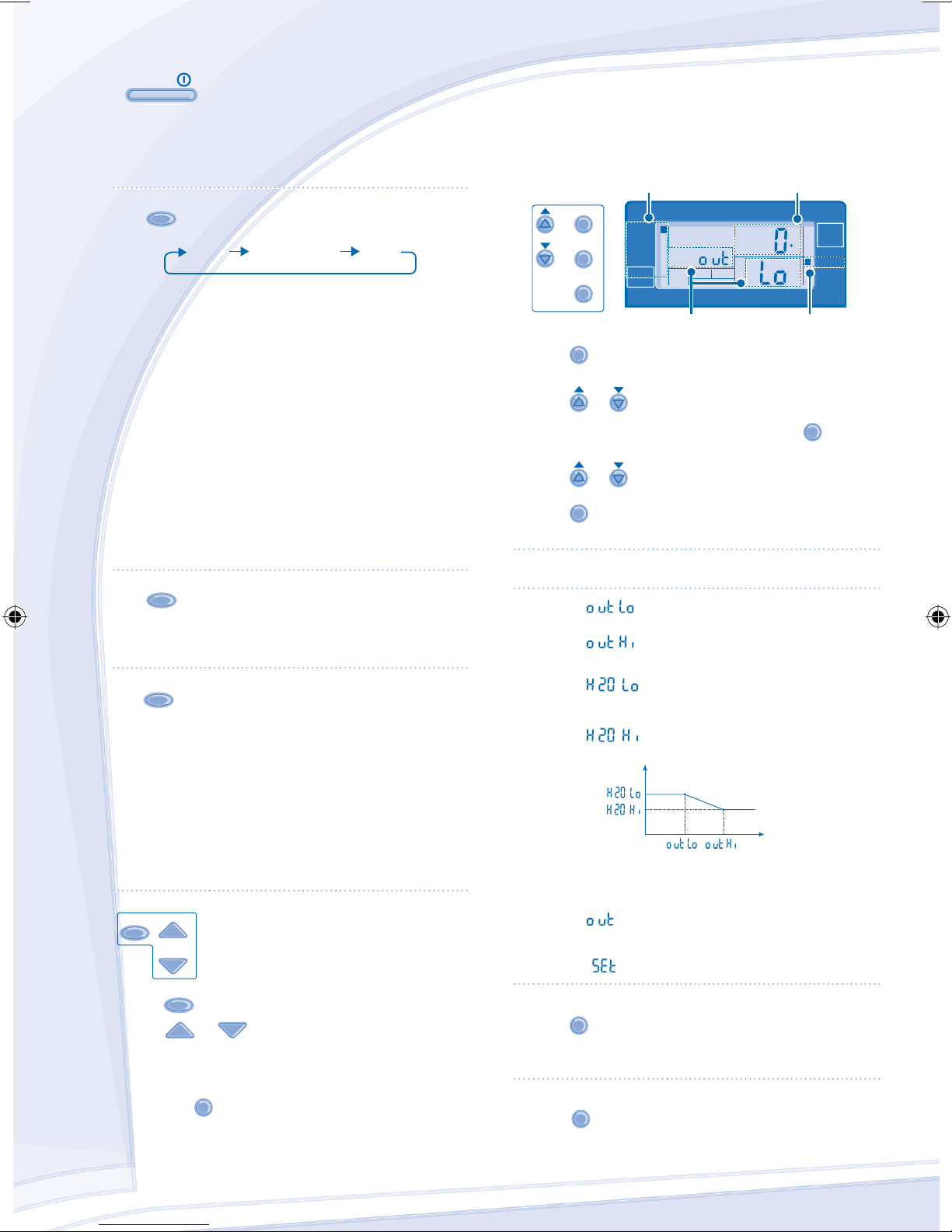

REMOTE CONTROL’S DISPLAY
aHeat Mode OFF/ON Indicator jTimer/Clock Setting Display
bTank Mode Indicator kOutdoor Ambient Temperature Display
cQuiet Mode Indicator lWater Outlet Temperature Display
dBackup Heater Enabled/Disabled Indicator mBackup Heater Actual (OFF/ON) Indicator
eForce Heater Request OFF/ON Indicator nBooster Heater Actual (OFF/ON) Indicator
fExternal Thermo Controller Connected Display oSystem Defrost Operation OFF/ON Indicator
gOperation LED pSystem Setting Mode OFF/ON Indicator
hSolar Display qSystem Status Check Mode OFF/ON Indicator
iCaution (Tank Temperature above 60°C) Indicator rSystem Service Mode OFF/ON Indicator
REMOTE CONTROL’S BUTTON
1OFF/ON Button 6Timer Setting Group Buttons
2Operation Mode Button 7Force Heater Mode Button
3Quiet Operation Button 8System Service Mode Button
4Backup Heater Enabling Button 9System Status Check Button
5System Setting Mode Buttons 10 Error Reset Button
HEAT
TAN K
QUIET
FORCE
HEATER
OPERATI ON
BOOSTER
HEATER
ACTUAL
DEFROST
SETTING
STATUS
SERVICE
WATER OUTLET
OFF /ON
TIMER OUTDOOR
C
C
C
Open cover for buttons selections.
TIMER OUTDOOR
HEAT
SETTING
STATUS
SERVICE
BOOSTER
QUIET
TANK
DEFROST
WATER OUTLET
C
C
SET
SELECT
CANCEL ERROR
RESET
SETTING STATUS
SEARCH
SERVICEFORCECLOCK
CHECK
OFF/ON
MODE
HEATER
QUIET
OFF/ON
TIMER
HEATER
OPERATION
FORCE
HEATER
ACTUAL
TIMER
1
MON TUE WEDTHU FRI SAT SUN
SOLAR REMOTE
23456
ON
OFF
a
b
c
d
e
f
g
h i jk l m
n
o
p
q
r
1
6
5 10 3 7
8
4
9
2
Notes:
• The current day and time need to be set when:
- The power is turned on for the first time.
- After a long time has elapsed since the power was last turned on.
• The current time that has been set will be the standard time for all
the Timer operations.
1. Press
CLOCK
.
2. Press or to set current day.
3. Press
SET
to confirm.
4. Repeat steps 2 and 3 to set the current time.
REMOTE CONTROL PREPARATION
Setting Current Day and Time
F568658_YS0112-0.indb 4F568658_YS0112-0.indb 4 5/9/2012 1:54:46 PM5/9/2012 1:54:46 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C

ENGLISH
5
SETTING UP THE SPECIAL FUNCTIONS
SETTING UP THE SPECIAL FUNCTIONS
• After initial installation, you can manually adjust the settings. The initial setting remains active until the user changes it.
• The remote control can be used for multiple installations. Some functions may not be applicable to your unit.
• Ensure the operation LED is in OFF condition before setting.
SET
SELECT
CANCEL
SETTING STATUS
CHECK
1. Press
SET
and
CHECK
simultaneously for 5 seconds to enter special setting mode.
“SETTING” and “STATUS” indicator is ON.
2. Press or to browse functions.
3. Press
SELECT
to enter function.
4. Press or to enable YES or disable NO function, or set other options.
5. Press
SET
to confirm.
Set Remote Control’s Display Description
1External Thermo Controller (YES / NO)
To set external thermo controller connection.
2
HEATER
Backup Heater Capacity Selection (3kW / 6kW / 9kW)
To reduce the heater power whenever unnecessary. Options vary depending on model.
3Water System Freeze Prevention Function (YES / NO)
To activate or deactivate water system freeze prevention function when unit is OFF.
4
TANK
Tank Connection (YES / NO)
To set tank connection.
Note: If select “Tank connection” is “NO”, Set 5 ~ 14 are skipped.
5
SOLAR
Solar Priority (YES / NO)
To choose the solar use for water tank heat up.
6
HEAT
Heating Priority (YES / NO)
To choose the room heating as priority during HEAT + TANK mode.
Note: If select “Heating priority” is “YES”, Set 7 ~ 8 are skipped.
7
HEAT
Heating operation Interval Set
To set timer for Heat mode during HEAT + TANK mode (0.5hour ~ 10 hours).
8
TANK
Tank Heat-up Interval Set
To set timer for Tank during HEAT + TANK mode (5minutes ~ 1hour 35minutes).
9
BOOSTER
Booster Heater Function (YES/NO)
To activate or deactivate tank booster heater function.
Note: If select “Booster heater function” is “NO”, Set 10 is skipped.
10
BOOSTER
Booster Heater Delay Timer Set
To set delay timer for booster heater to ON if water tank temperature is not reached
(20minutes ~ 1hour 35minutes).
• Do not use the system during sterilization to prevent scalding or overheat during shower.
• The sterilization function field settings must be configured by the authorized dealer according to local laws and regulation.
11 Sterilization (YES/NO)
To set sterilization, if required.
Note: If select “Sterilization” is “NO”, set 12 ~ 14 are skipped.
12 Sterilization Day & Time Set
To set timer for sterilization (only once a week, will operate even in standby condition).
13 Sterilization Temperature Set
To set temperature for sterilization function (40°C ~ 75°C).
14 Sterilization Continue Time
To set timer to maintain heating temperature in order to complete the sterilization
function (5minutes ~ 1hour).
F568658_YS0112-0.indb 5F568658_YS0112-0.indb 5 5/9/2012 1:54:49 PM5/9/2012 1:54:49 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C

6
BASIC OPERATION
OFF /ON
TO TURN ON OR OFF THE UNIT
• When unit is ON, operation LED is lit and the actual
temperature for water outlet and outdoor ambient are
shown on the remote control display.
MODE
TO SELECT OPERATION MODE
HEAT HEAT +TANK TANK
• HEAT MODE
- To turn ON or OFF the panel/floor heating operation.
- In this mode, the mono bloc unit will provide heating
capacity to the system.
• HEAT + TANK MODE
- In this mode, the mono bloc unit will provide heating
capacity to the sanitary tank and the system.
- This operation is not used when the sanitary water
tank is not installed.
• TANK MODE
- To turn ON or OFF the sanitary tank operation.
- In this mode, the mono bloc unit will provide heating
capacity to the sanitary tank.
QUIET
TO ENJOY QUIET ENVIRONMENT
• This operation reduces mono bloc unit noise. In this
condition, it may cause decrease in heating capacity.
HEATER
TO ENABLE THE BACKUP
HEATER
• The backup heater provides extra heating capacity
during cold outdoor temperature and only can operated
at heat mode operation when he was enabled by
pushing this button.
• The backup heater will automatically turn ON when the
setting conditions is fulfilled.
• To disabled the Heater operation manually, press the
respective button again.
STATUS
SEARCH
CHECK
SYSTEM STATUS CHECK MODE
1.Press
CHECK
for 5 seconds to enter STATUS mode.
2.Press or to check the Water Inlet
Temperature, Tank Temperature, Compressor Running
Frequency or Error History.
• Press
C
AN
C
E
L
to exit STATUS mode.
• Once STATUS mode is entered, “STATUS”
indicator is ON.
• STATUS mode cannot be activated when the
“SETTING” indicator is ON.
• It is strongly recommended to contact the nearest
authorized dealer to change the water temperature range.
• Using the remote control could set the temperature
range for water outlet temperature and outdoor ambient
temperature.
SYSTEM SETTING MODE
SET
SELECT
CANCEL
SETTING
TIMER OUTDOOR
HEAT
SETTING
STATUS
SERVICE
BOOSTER
DEFROST
QUIET
TANK
WATER OUTLET
C
HEATER
OPERATION
FORCE
HEATER
ACTUAL
ON
Operation Mode Temperature display
SETTING indicator
Parameter *
1. Press
SET
for 5 seconds to enter “SETTING” mode.
“SETTING” indicator is ON.
2. Press or to choose a parameter.
3. After selecting the desired parameter,press
SELECT
to enter
the parameter.
4. Press or to set the desired temperature.
5. Press
SET
again to confirm the setting.
• Repeat steps 2 to 5 to set other parameters.
Operation
Mode Parameter * Description
HEAT
Low outdoor ambient set temperature
(-15°C ~ 15°C).
HEAT
High outdoor ambient set temperature
(-15°C ~ 15°C).
HEAT
Water outlet set temperature at low
outdoor ambient temperature
(25°C ~ 55°C).
HEAT
Water outlet set temperature at high
outdoor ambient temperature
(25°C ~ 55°C).
Water Temperature
Outdoor Temperature
HEAT
OFF
Set temperature for turning OFF heating
operation (5°C ~ 35°C).
HEATER
ON
Outdoor ambient set temperature for
turning ON heater operation
(-15°C ~ 20°C).
TANK
Sanitary tank set temperature
(40°C ~ 75°C).
WATER TEMPERATURE THERMO SHIFT SETTING
1. Press
SET
within 5 seconds.
• Repeat steps 3 to 5 to set the desired shift temperature
(-5°C ~ 5°C).
Notes:
• Press
C
AN
C
E
L
or wait 30 seconds to exit “SETTING” mode.
• The setting temperature will be stored in the system once
confirm.
• “SETTING” mode cannot be activated when the
“SERVICE” and “STATUS” indicator is ON.
ADVANCE OPERATION
F568658_YS0112-0.indb 6F568658_YS0112-0.indb 6 5/9/2012 1:54:51 PM5/9/2012 1:54:51 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C

ENGLISH
7
TIMER
1
MON TUE WEDTHU FRI SAT SUN
2 3 4 5 6
ON
OFF
C
SOLAR REMOTE
Lights up if Timer operation is selected
Day to be selected
ON Timer - To automatically switch “ON” the unit
6 different programs can be set in a day (1 ~ 6)
Indicates the selected day
Water temperature thermo shift (-5ºC ~ 5ºC)
OFF Timer - To automatically switch “OFF” the unit
SET
SELECT
CANCEL
SETTING
CLOCK
OFF/ON
TIMER
STATUS
MODE
HEATER
QUIET
Function Step
Enter timer mode Press
TIMER
.
Set day & time 1.
Press or to select your desired day.
2. Press
SELECT
to confirm.
3. “1” will be blinking, press
SELECT
to set program 1.
4. Press
OFF/ON
to select ON or OFF timer.
5.
Press or to select your desired time.
You can set
MODE
,
QUIET
,
HEATER
and desired shift temperature with timer.
6. Press
SET
to confirm program 1. The selected day will be highlighted with ▼.
• After 2 seconds, the display will move to the next program.
7.
Repeat steps 4 to 7 to set programs 2 to 6.
• During timer setup, if no button is pressed within 30 seconds, or if the
SET
button is pressed the
setting at that moment is confirmed and timer setup is ended.
Add/Modify timer Repeat the steps above.
Disable timer Press
TIMER
, then press
CANCEL
.
Enable timer Press
TIMER
, then press
SET
.
Check timer 1. Press
TIMER
.
2. Press or until your desired day is shown, press
SELECT
to confirm your selection.
3. Press or to check the set programs.
Cancel timer 1. Press
TIMER
.
2. Press or until your desired day is shown, press
SELECT
to confirm your selection.
3. Press
SELECT
to enter program setting.
4. Press or until your desired program is shown.
5. Press
CANCEL
to cancel the program.
WEEKLY TIMER SETTING
Notes:
• You can set the Timer for each day of the week (Monday to Sunday) with 6 programs per day.
• When the unit is switched on by the ON TIMER, it will use the previously set temperature to control the water outlet
temperature.
• Same timer program cannot be set in the same day.
• You may also select collective days with same timer setting.
• Promotes energy saving by allowing you to set up to 6 programs in any given day.
F568658_YS0112-0.indb 7F568658_YS0112-0.indb 7 5/9/2012 1:54:52 PM5/9/2012 1:54:52 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C

8

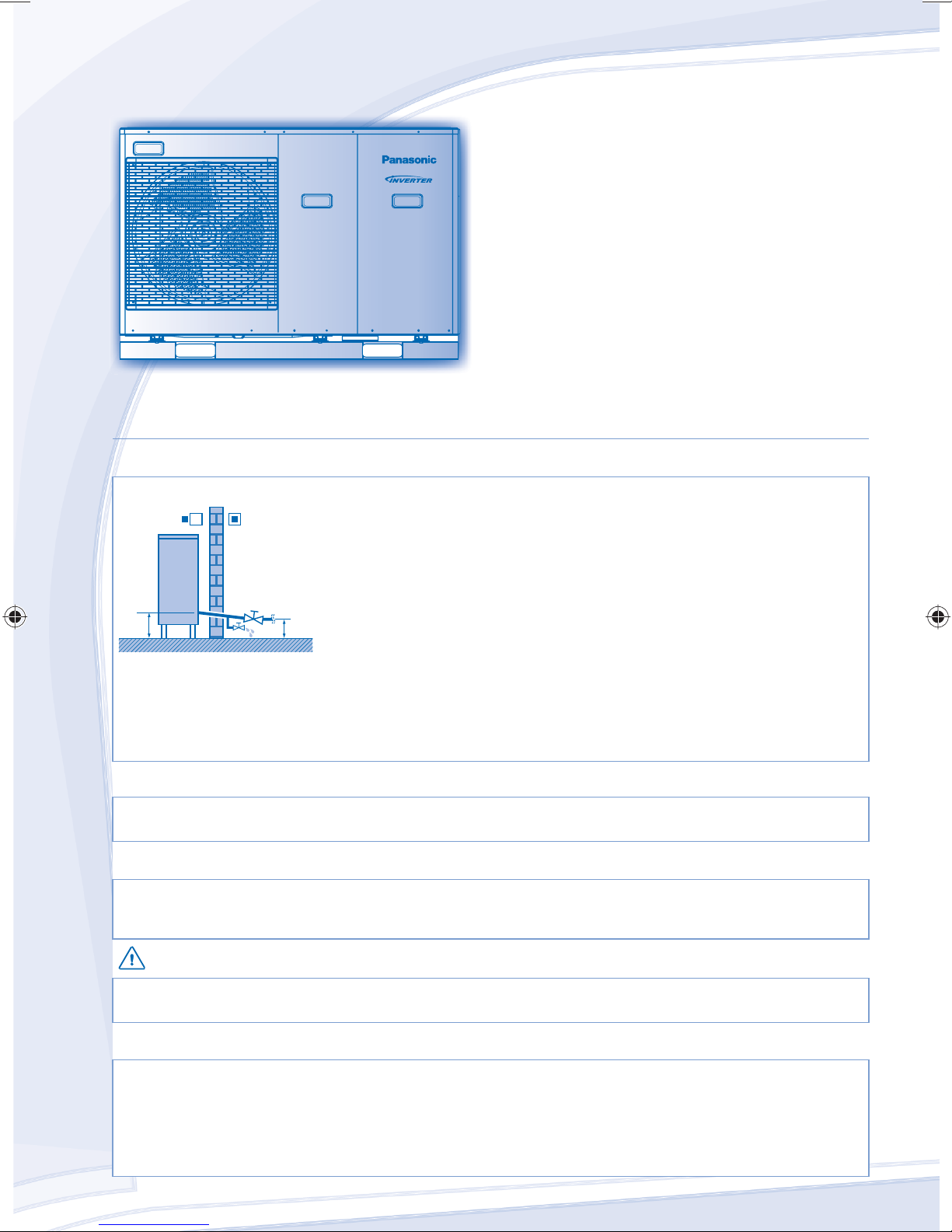

MONO BLOC UNIT
MONO BLOC UNIT
In case of a power supply failure or pump operating failure, drain the system (as suggested in the figure below).
H<H
When water is idle inside the system, freezing up is very likely to happen which could damage the system.
• Do not obstruct the air inlet and air outlet vents, it may cause low performance or breakdown. Please remove obstacles to
assure the ventilation.
• During winter, please clean and remove the snow near mono bloc unit so that the snow does not cover the air inlet and air
outlet vents.
EXTERNAL FILTER
• Please clean the external filter at least once a year. Fail to do so might cause filter clogged, consequent system
breakdown. Please consult authorized dealer.
INSPECTION
• In order to ensure optimal performance of the unit, seasonal inspections on the unit, external filter and field wiring have to
be carried out at regular intervals. This maintenance should be carried out by authorized dealer.
• Clear any obstruction at the air inlet and air outlet vents of mono bloc unit.
FOR EXTENDED NON-USE
• Do not switch off the power supply. Switching off the power supply will stop the automatic water pump operation and cause
the water pump jammed.
NON SERVICEABLE CRITERIAS
NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
The following symptoms do not indicate malfunction.
SYMPTOM CAUSE
Check the following before calling for servicing.
SYMPTOM CHECK
The operation LED blinks and error code appear on remote control display.
Force Heater Mode Button
F568658_YS0112-0.indb 8F568658_YS0112-0.indb 8 5/9/2012 1:54:55 PM5/9/2012 1:54:55 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C

ENGLISH
9
TROUBLESHOOTING
The following symptoms do not indicate malfunction.
The following symptoms do not indicate malfunction.
SYMPTOM
SYMPTOM
CAUSE
CAUSE
Flowing sound during operation. ►• Refrigerant flow inside the unit.
Operation is delayed a few minutes after restarting. ►• The delay is a protection to the unit’s compressor.
Mono bloc unit emits water/steam. ►• Condensation or evaporation occurs on pipes.
Mono bloc unit emits steam during heating mode. ►• This is due to defrost operation happens at the heat
exchanger.
Mono bloc unit does not operate. ►• When the outdoor temperature is out of the operation
condition range, the heatpump system enter protection
control.
(Mono bloc) Air-to-water Heatpump system operation will
turn off. ►•
The heatpump system enter protection control. Compressor
stops by water inlet temperature lower than 18°C; and
backup heater power turn on by water inlet temperature
lower than 23°C.
System difficult to heat-up. ►• When heating is operated together with floor heating or
panel heater simultaneously, there may be case where
warm water temperature is getting lower and cause floor
heating or panel heater heat-up is weaken.
• When outdoor air temperature is low, it may be difficult to
get warm.
• Is the snow pile blocking the discharge outlet or intake
inlet of mono bloc unit.
• When water outlet set temperature is low, it may be
difficult to get warm.
System cannot get warm instantly. ►• Due to the nature of the heatpump system, it may take
some time to heat-up the water if the unit is operated
from cold-start.
Backup heater turn ON automatically when it is not
enabled. ►• The turn ON of backup heater is a protection to the indoor unit’s heat exchanger.
Operation starts automatically even without ON Timer. ►• The sterilization timer has been set.
Check the following before calling for servicing.
Check the following before calling for servicing.
SYMPTOM
SYMPTOM
CHECK
CHECK
Heating operation is not working efficiently. ►• Set the temperature correctly.
• Is the panel heater valve closed.
• Clear any obstruction at the air inlet and air outlet vents
of mono bloc unit.
Noisy during operation. ►• Check if the unit has been installed at an incline or the
cover is not closed properly.
The unit does not work. ►• Check if the circuit breaker is tripped.
Operation LED is no lit or remote control display is blank. ►• Is the power supply off or power failure.
The operation LED blinks and error code appear on remote control display.
The operation LED blinks and error code appear on remote control display.
TIMER
TIMER
1
MON TUE WEDTHU FRI SAT SUN
2 3 4 5 6
ON
OFF
• Turn the unit off and reveal the error code to authorized dealer.
• Timer operation cancel when error code occur.
Force Heater Mode Button
Force Heater Mode Button
FORCE
• In case of a failure of the (Mono bloc) Air-to-Water Heatpump system, the backup heater can be
used to heat up the heating water. Press
FORCE
to switch on the backup heater.
• Press
OFF /ON
to stop the force heater operation.
• During Force Heater mode, all other operations are not allowed.
F568658_YS0112-0.indb 9F568658_YS0112-0.indb 9 5/9/2012 1:54:56 PM5/9/2012 1:54:56 PM
Process CyanProcess CyanProcess MagentaProcess MagentaProcess YellowProcess YellowProcess BlackProcess BlackPANTONE 293 CPANTONE 293 C
