Panasonic SC-PT660 User manual

Operating Instructions
DVD Home Theater Sound System
Mo_elNo SC-PT660
SC-PT754
The illustration shows SC-PT660.
Region number
The player plays DVD-Video marked with labels containing the region
number 1" or ALL'.
Example:
VIDEO
Hi 31FIrll|TM VlEf LJ k
HI_H-_FI_rrIoNMULtIMeDIA INTE_ACE
As an ENERGY STAR_Partnerl _
Panasonic has determined that
this product meets the ENERGY STAR_
guidelines for energy efficiency.
For Canada only: The word Participant" is used in place of the word
Partner",
Before connecting, operating or adjusting this product, please read
the instructions completely.
Please keep this manual for future reference,
If you have any questions contact
In the U.S.A.: 1-800-211-PANA (7262)
In Canada: 1-800-561-5505
[PC RQTX0094-1P

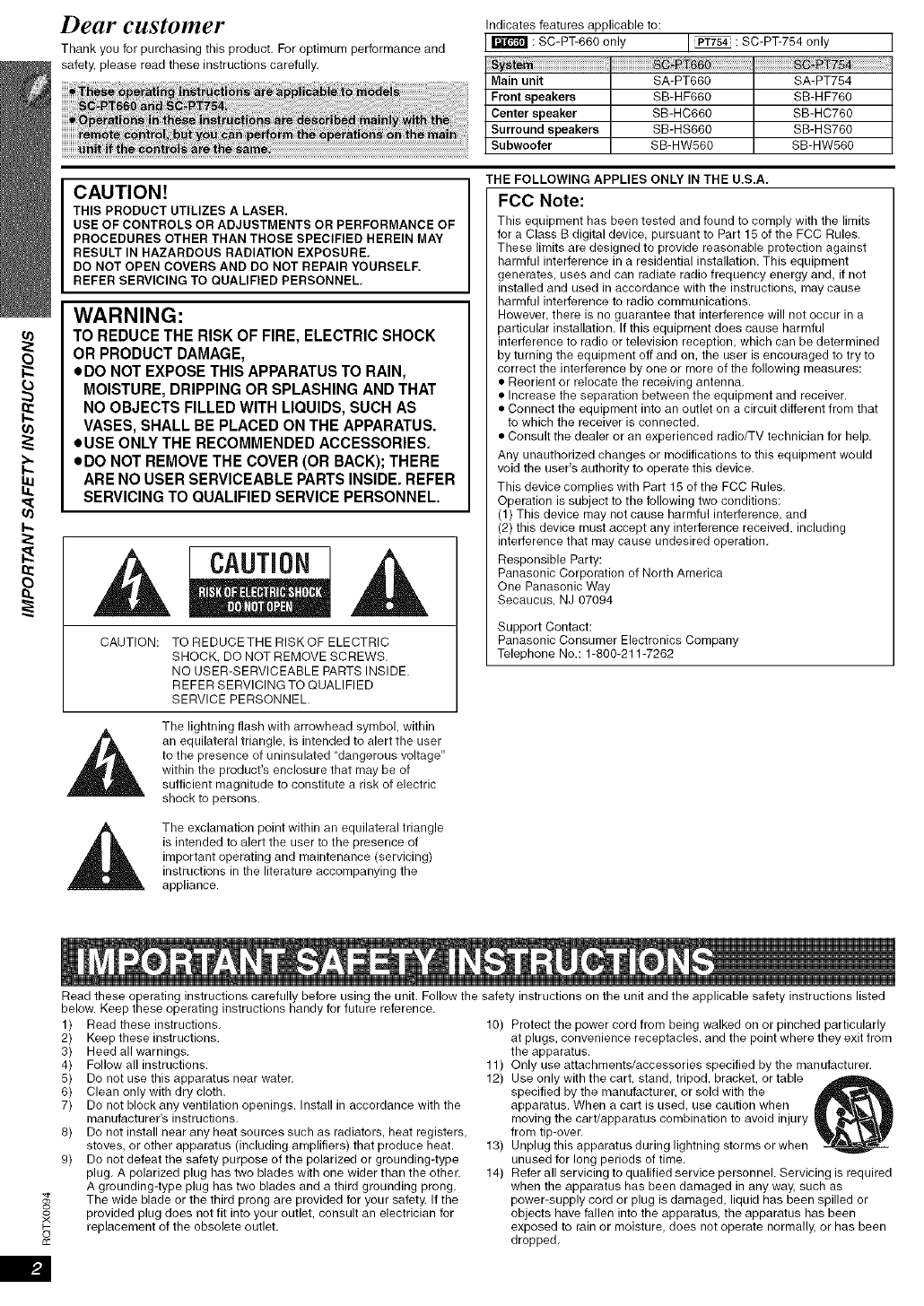

Dear customer
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully.
Indicates features applicable to:
I _ : SC-PT-660 only I_ : SC-PT-754 only
Main unit SA-PT660 SA-PT754
Front speakers SB-HF660 SB-HF760
Center speaker SB-HC660 SB-HC760
Surround speakers SB-HS660 SB-HS760
Subweofer SB-HW560 SB-HW560
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE,
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL,
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,
• DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
•USE ONLY THE RECOMMENDED ACCESSORIES.
oDO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
THE FOLLOWING APPLIES ONLY IN THE U.S.A,
FCC Note:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would
void the user's authority to operate this device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-7262
oo
x
o
£c
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed
below. Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
P41

TABLE OF CONTENTS
Basic play ............................. 14
Using the main unit .......................... 14
Using the remote control ..................... 15
Other playback functions ................ 16
Playing CDs sequentially (CD Mode) ............ 16
Repeat play ............................... 16
Program and Random play .................... 16
Using navigation menus ................. 17
Playing datadiscs .......................... 17
Playing RAM and DVD-R/-RW (DVD-VR) discs... 17
Using on-screen menus ................. 18
Changing the player settings ............. 20
Selectingthe delay time of the speakers......... 23
Using the VIERA Link TM "HDAVI Control TM''. .. 24
One touch play ............................. 24
Auto input switching ......................... 24
Power off link .............................. 24
Speaker control ............................ 25
VlERA Link Control only with TV's remote control
[for "HDAVl Control 2 (or later)"] .............. 25
Using sound effects .................... 26
Setting the sound effects ..................... 26
Using Dolby Pro Logic lI ..................... 26
Using Whisper-mode Surround ................ 26
Adjusting the subwoofer level ................. 27
Using Subwoofer Boost ...................... 27
Adjusting the speaker level ................... 27
Enjoying the FM/AM radio ............... 27
Manual tuning ............................. 27
Operating other equipment .............. 28
Enjoying TV audio .......................... 28
Enjoying digital audio ........................ 28
Using the iPod ............................. 28
Discs that can be played ................. 30
Maintenance ........................... 31
Troubleshooting guide .................. 32
Glossary .............................. 35
Product Service ........................ 35
Specifications ......................... 36
Limited Warranty (ONLY FOR U.S.A.) ...... 38
Limited Warranty (ONLY FOR CANADA) .... 39
Accessories .................... Back cover
oo
x
o
££

_Assembling the speakers
Preparation
•To prevent damage or scratches, lay down a soft cloth and perform assembly on it,
• For assembly, use a Phillips-head screwdriver.
• For optional wall mount, refer to page 6.
: Front speakers
iii
Pipe
Thread the
cable throu(
the base.
Join the pipes.
Cable
Tighten securely.
Small
_screws
Match these holes when
you insert the pipe.
Slide into the groove.
@
Tighten
securely. Screws
Phillips-head
screwdriver
(not included)
Pull and press the
cable into the groove. Cable
Speaker
Tighten securely.
O
Screws
Insertthe wire _1
fully.
÷ : White
: Blue Push!
_ Press into
the groove.
•Preventing the speakers from falling
• You will need to obtain the appropriate screw eyes to match the
walls or pillars to which they are going to be fastened.
• Consult a qualified housing contractor concerning the
appropriate procedure when attaching to a concrete wall or a
surface that may not have strong enough support. Improper
attachment may result in damage to the wall or speakers.
e.g. PT754 Front speakers
String (net included)
Thread from the wall to the speaker and tie tightly.
Rear of the speaker
Approx,
Screw eye Wall 150 mm
(not included) (52%/')

_Positioning
How you set up your speakers can affect the bass and the sound field,
Note the following points:
• Place speakers on flat secure bases,
• Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains,
• For optional wall mount, refer to page 6,
Keep your speakers at least 10 mm (W32") away from the system for proper ventilation.
Setup example
Place the front, center, and surround speakers at approximately the same distance from the seating position. The angles in the diagram are
approximate.
Subwoofer
Place to the right or left of the
TV, on the floor or a sturdy
shelf so that it will not cause
vibration. Leave about 30 cm
(11_3/_6") from the TV.
///;
_i_!iiiiiiiiiiiiiiiiii!!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iii!ll!!ii_i_i
e,g,W
Front speakers
\/
/
!
Center speaker
Put on a rack or shelf. Vibration caused by the
speaker can disrupt the picture if it is placed
directly on the TV.
Main unit
To allow for proper ventilation and to maintain
good airflow around the main unit, position it with
at least 5 crn (2") of space on all sides.
e.g.I_r_r_l
Surround speakers
12o°
Back of the main unit i i PUSH
transmitter cover • Remove the digital transmitter cover before installing any
optional Panasonic wireless accessory.
• Replace the cover when the digital transmitter is not in
use,
You can use the blunt end of a writing instrument to push
here until the cover pops out.

Notes on speaker use
=Use only supplied speakers
Using other speakers can damage the unit, and sound quality will be
negatively affected.
• You can damage your speakers and shorten their useful life if you play
sound at high levels over extended periods.
• Reduce the volume in the following cases to avoid damage:
-When playing distorted sound.
-When the speakers are reverberating due to a record player, noise
from FM broadcasts, or continuous signals from an oscillator, test
disc, or electronic instrument.
-When adjusting the sound quality.
-When turning the unit on or off.
If irregular coloring occurs on your TV
The center speaker is designed to be used close to a TV, but the picture
may be affected with some TVs and setup combinations.
If this occurs, turn the TV off for about 30 minutes.
The demagnetizing function of the TV should correct the problem. If it
)ersists, move the speakers further away from the TM
Caution
•The main unit and supplied speakers are to be
used only as indicated in this setup. Failure to
do so may lead to damage to the amplifier and/
or the speakers, and may result in the risk of
fire. Consult a qualified service person if
damage has occurred or if you experience a
sudden change in performance.
•Do not attempt to attach these speakers to
walls using methods other than those
described in this manual.
Caution
• Do not touch the front netted area of the speakers. Hold by the sides.
e.g. Center speaker
DO DO
NOT
• Do not stand on the base. Be cautious when children are near.
e.g. PT754 Front speaker
DO
NOT
•Attaching to a wall
You can attach all of the speakers (except subwoofer) to a wall.
• The wall or pillar on which the speakers are to be attached
should be capable of supporting 10 kg (22 Ibs) per screw.
Consult a qualified building contractor when attaching the
speakers to a wall. Improper attachment may result in damage to
the wall and speakers.
(T) Drive ascrew (not included) into the wall.
/At least 30 mm (lS/_6")
_2,4.0mm(S/s2 ') _'_/I
_-_/_Z-L_-_ _- 07.0 mm to 9.4 mm
_ (9/32" to 11/32")
Wall or pillar _ 4.0 mm to 6.0 mm (%2"to W')
_) Fit the speaker securely onto the screw(s) with the hole(s).
e.g. I_i"_ e.g. I_i_F4_l
Front speaker Center speaker
(_ 190 mm(7W32") (_
4_ 4_
6 6
e.g.I_i"_r_
Surround speaker
e.g. iPT754i
Front speaker
Attach to a wall withoutthe
base and the stand e.g.
/In this
/._"_ position, the
DO speaker will
NOT [ v) likely fall if
--_"J moved to the
left or right.
C_T"-- Move the
speakerso
DO _ I that the
screw is in
this position.
•Fitting speaker stands (notincluded)
(Except subwoefer)
Ensure the stands meet these conditions before purchasing them.
Note the diameter and length of the screws and the distance
between screws as shown in the diagram.
• The stands must be able to support over 10 kg (22 Ibs).
• The stands must be stable even ifthe speakers are in a high
position.
e.g. Center speaker
Metal screw holes
For attaching to
speaker stands
i!11 !!!!!!!!!iii iii i) 1! i iiiiiiiiiiiii 111
iiiiiiiii ii' i' i'i!'i!'!!'iiii'!
i_ii_i_illiiii!iiiiiiiiiii_!!i_ii!i_iiiii!ii_i!ii_i!ii_i!ii_i!ili!_i_ii!!!!ii_ii_!iiiiiiiiiiiiiiiiiiiii!ii_i_i-ilii_i_ii_i_ii_i_ii_!!
)iE]i_!_::ilLiiiiiiiil;ijiiil¸_i_iilEiiil}Ji_i_iiii_i_i_i_i_]iii_i!!iii_i_il}ll
_] iiiiiiIi!i_!i@iIi!il _!
- Ii -
ii5.0 mm (3/,_,), pitch 0.8 mm (Vs= .............
Plate thickness plus J_ Speaker
7.0 mm to 10 mm 60 mm 2s/8 ' (not included) _
(plus %/_ to W32") "L

Cable connections
Turn off all equipment before connection and readthe appropriate operating instructions.
Do not connect the AC power supply or cord until all other connections are complete.
Basic setup example
Main unit
To your cable TV
service or TV antenna
RF cable (not included) --
TV (not included)
Cable TV box or video cassette recorder
(not included)
You can enjoy audio from your TV,
video cassette recorder or cable TV
(included)
TV terminal Cable required Main unit terminal Features
(not included)
HDMIcable HDMI i
Hii:_lmlll
AV _N
i@Yi
All Panasonic televisions
that have 480p input
connectors are
compatible. Consult the
manufacturer if you have
another brand of TV.
• Non-HDMI-compliant cables
cannot be utilized.
• It is recommended that you use
Panasonic's HDMI cable.
Recommended part number:
RP-CDHG15 (1.5 m/4.9 ft),
RP-CDHG30 (3.0 m/9.8 ft),
RP-CDHGSO (5.0 m/16.4 ft), etc.
Video cables
HZ:3m|
COMPONENT VIDEO i
• Connect to terminals
of the same color.
This connection provides the best picture quality.
• Set "VIDEO PRIORITY" to "ON" (4 22, "HDMI"
menu).
• Set "VIDEO FORMAT" in Menu 4 (HDMI) (4 19).
VIERA Link "HDAVI Control"
If your Panasonic TV is an HDMI control compatible,
you can operate your TV synchronizing with home
theater operations or vice versa (4 24, Using the
VIE RA Link TM "H DAVI ControITM").
• Make the audio connection (.-) above) when you use
VIERA Link "HDAVI Control" function.
This connection provides a much purer picture than the
VIDEO OUT terminal.
• After making this connection, select DARKER" from
the BLACK LEVEL" in the 'VIDEO" menu (.4.21).
To enjoy progressive video
• Connect to a progressive output compatible TM
-Set "Vl DEO OUT (I/P)" in "Vl DEO" menu to
PROGRESSIVE" and then follow the instructions
on the menu screen (.4. 21, 'VIDEO" menu).
• Do not make the video connections through the video cassette recorder,
Due to copy guard protection, the picture may not be displayed properly.
• Only one video connection is required. Choose one of the video connections above depending on your TM (Continued on next page)

Cable connections
Main unit
Main unit terminal FeaturesTV terminal
OPTICALOUT
Cable required
(not included)
Optical digital audio cable
•Do not bend sharply when
connecting.
Connecting the speakers to the main unit:
OPTICAL IN
OPTICAL
_N
This unit can decode the surround signals received
through cable TV box, digital broadcasting or satellite
broadcasts. Refer to your equipment's operating
instructions for details. Only Dolby Digital and PCM can
be played with this connection.
• After making this connection, make settings to suit the
type of audio from your digital equipment (-€ 28).
Connect to terminals of the same color,
Speaker Terminal/connector color
(1) FRONT (L) White
(2) FRONT (m) Red
(3) SURROUND (L) Blue
(4) SURROUND (R) Gray
(5) CENTER Green
(6) SUBWOOFER Purple
Main unit
lu[]uuu[]l ]
8UBW_FER _OENTER] FRONT _ SURROUND _ Insert fully.
• Keep loose antenna cables away from other wires and cables.
only:
Insert the wire fully.
+: White
: Blue
Push!
• Be careful not to cross (short circuit) or reverse
the polarity of the speaker wires as doing so
may damage the speakers.
make connection easier.
e.g,[PT754i
FM indoor antenna
(included)
Affix this end of the antenna where
AM loop antenna
(included)
Stand the antenna up on its base.
_Main unit

Use outdoor antenna if FM/AM radio reception is poor. AM outdoor antenna
• Disconnect the antenna when the unit is not in use. [Using a vinyl wire (not included)]
• Do not use the outdoor antenna during an electrical storm. Run a piece of vinyl wire horizontally across a
window or other convenient location.
FM outdoor antenna /r
[Using a TV antenna (not included)] /II AMANT
/• The antenna should be installed by a _ ................ L. -i.... _.'.,_
- o-_.-J-_ competent technician I_-_-I ___EXT
o_-_._ " 5.0 m to 12 m IJJ _,_ __LOOP
(16 ft to 39 ft) LJJl _-'
m-_-- 75 r2 coaxial cable _ Leave the AM loop _ I _FMANT
_(not included) antenna connected. 1
Rework your outdoor antenna's 75 _2coaxial cable as follows.
($) Remove a piece of the outer (_ Carefully pull the tabs apart (_) Install the coaxial cable,
vinyl insulator, to remove the cover. Clamp the cable conductor, and
wind it on so that it does not
contact anything else.
10 mm Peel(W3d')back __
10 mm (WJ') @
$
7 mm (%d') Clamp with pliers
j Main unit
@Attach the cover.
_AC cord connection
AC power supply cord
(included)
Main unit
Conserving power
The main unit consumes a small amount of power when it is turned off
(main unit: approx. 0.3 W). To save power when it is not to be used for a
long time, unplug it from the household AC outlet,
You will need to reset some memory items after plugging in the main
unit.
The included AC power supply cord is for use with the main unit only,
Do not use it with other equipment. Also, do not use cords for other
equipment with the main unit,
Preparing the remote control
•Batteries
Insert so the poles (+ and ) match those in the remote control,
R6/LR6,AA
ICAUTION I
Danger ofexplosionifbatteryisincorrectlyreplaced.Replace only I
withthe same or equivalenttype recommended bythe manufacturer. I
Dispose of used batteries according to the manufacturer's instructions. I
• Do not heat or expose to flame,
• Do not leave the battery(ies) in an automobile exposed to direct
sunlight for a long period of time with doors and windows closed.
Do not:
• mix old and new batteries,
• use different types at the same time,
• take apart or short circuit,
• attempt to recharge alkaline or manganese batteries.
• use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can
severely damage the remote control.
Remove the batteries if the remote control is not going to be used for a
long period of time. Store in a cool, dark place,
•Use
Aim at the remote control signal sensor (4 13), avoiding obstacles,
at a maximum range of 7 m (23 ft) directly in front of the unit.

Performing QUICK SETUP
The QUICK SETUP screen assists you to make necessary settings.
Preparation
Turn on your TV and select the appropriate
video input mode (e.g, VIDEO 1, AV 1, HDMI,
etc,),
eTo change your TV's video input mode, refer
to its operating instructions,
eThis remote control can perform some basic
TV operations (4 12),
Turn on the unit.
Select "DVD/CD''.
Show the setup menu.
(.Din
5r _@
-- -DVD
= -RETURN/-SETUP
Select "QUICK SETUP".
SET
_RETURN
Follow the messages and
make the settings.
eMENU LANGUAGE
eTV TYPE
eTV ASPECT
To return to the previous screen, press
[-RETURN].
QUICK SETUP.
Exit.
•Details of settings
MENU LANGUAGE • ENGLISH • FRAN_AIS •ESPA_IOL
Choose the language for the
on-screen messages,
• STANDARD • CRT
Select to suit the type of TM • PROJECTION • PLASMA
TV ASF
Choose the setting to suit your TV
and preference.
• Underlined items are the factory settings in the above table.
• 4:3PAN&SCAN
• 16:9NORMAL • 4:3LETTERBOX • 16:9SHRINK
• LCD
• 4:3ZOOM
• 16:gZ©OM
