Panasonic EYFLA3J - DRILL - MULTI LANGUAGE User manual

Cordless Impact Driver/Cordless Impact Wrench
Akku-Schlagschrauber
Perceuse à impact sans l/Clé de serrage à impact sans l
Avvitatore ad impulsi senza li/Chiave ad impulsi senza li
Snoerloze slagschroevendraaier/Snoerloze slagmoersleutel
Destornillador de impacto inalámbrico/Llave de impacto inalámbrica
Akku-slagboremaskine/Akku-slagnøgle
Sladdlös slagskruvdragare/Sladdlös slagskruvnyckel
Trådløs slagbormaskin/Trådløs slagnøkkel
Langaton iskuruuviavain/Langaton iskuavain
Ударный аккумуляторный шуруповерт/Ударный аккумуляторный гайковерт
Ударний акумуляторний шуруповерт/Ударний акумуляторний гайковерт
Bezdrátový elektrický utahovák / Bezdrátový nárazový šroubovák
Beforeoperatingthisunit,pleasereadtheseinstructionscompletelyandsavethismanualforfuture use.
VorInbetriebnahme desGerätes dieBetriebsanleitungbittegründlichdurchlesenunddieseBroschürezumspäterenNachschlagensorgfältigaufbewahren.
Lireentièrementlesinstructionssuivantesavantdefairefonctionnerl’appareiletconservercemoded’emploiàdesfinsdeconsultationultérieure.
Primadiusarequestaunità,leggerecompletamentequesteistruzionieconservareilmanualeperusifuturi.
Leesdezegebruiksaanwijzingaandachtigdoorvooruhetapparaatingebruikneemtenbewaardegebruiksaanwijzingvooreventuelenaslag.
Antesdeusaresteaparatoporprimeravez,leatodaslasinstruccionesdeestemanualyguardeelmanualparapoderloconsultar enelfuturo.
Gennemlæsdennebetjeningsvejledningførbrugenoggemdentilfremtidigbrug.
Läsigenomhelabruksanvisningeninnanverktygettasi bruk.Spara bruksanvisningenförsenareanvändning.
Førenhetentasibruk,vennligstlesdissealleanvisningeneogoppbevarderetterbruksanvisningenforsenere bruk.
Lueohjeethuolellaennenlaitteenkäyttöönottoajasäilytätämäkäyttöohjetallessatulevaatarvettavarten.
Перед эксплуатацией данного устройства, пожалуйста, полностью прочтите данную инструкцию и сохраните данное руководство для использования в будущем.
Перед екплуатацiєю даного пристрою, будь ласка, повнiстю прочитайте дану iнструкцiю i збережiть даний посiбник для використання у майбутньому.
Před použitím tohoto nástroje si, prosím, pročtěte veškeré instrukce a návod k obsluze si uchovejte pro budoucí použití.
Operating Instructions
Bedienungsanleitung
Instructions d’utilisation
Istruzioni per l’uso
Gebruiksaanwijzing
Manual de instrucciones
Brugsvejledning
Driftsföreskrifter
Bruksanvisning
Käyttöohjeet
Инструкция по эксплуатации
Iнструкцiя з експлуатації
Návod k obsluze Model No: EYFLA1A / EYFLA2A
EYFLA2Q / EYFLA3J
* Pictured: Cordless impact driver
* Abgebildet: Akku-Schlagschrauber
* Image: Perceuse à impact sans l
* Nell’immagine: Avvitatore ad impulsi senza li
* Afgebeeld: Snoerloze slagschroevendraaier
* En la imagen: Destornillador de impacto inalámbrico
* Billedet viser: Akku-slagskruetrækker
* På bild: Sladdlös slagskruvdragare
* Avbildet: Trådløs slagdriver
* Kuvassa: Langaton iskuavain
* На рисунке: Ударный аккумуляторный шуруповерт
* На малюнку: Ударний акумуляторний шуруповерт
* Zobrazení: Bezdrátový elektrický utahovák

- 2 -
Index/Index/Index/Indice/Index/Indice/Indeks/Index/Indeks/Hakemisto/Индекс/Індекс/Index
English: Page 6 Dansk: Side 83
Deutsch: Seite 18 Svenska: Sid 96
Français: Page 31 Norsk: Side 108
Italiano: Pagina 44 Suomi: Sivu 120
Nederlands: Bladzijde 57 Русский: Страница 131
Español: Página 70 Українська: Сторiнка 143
Czech: Česky 155
FUNCTIONAL DESCRIPTION
FUNKTIONSBESCHREIBUNG
DESCRIPTION DES FONCTIONS
DESCRIZIONE DELLE FUNZIONI
FUNCTIEBESCHRIJVING
DESCRIPCIÓN FUNCIONAL
FUNKTIONSBESKRIVELSE
FUNKTIONSBESKRIVNING
FUNKSJONSBESKRIVELSE
TOIMINTAKUVAUS
ФУНКЦИОНАЛЬНОЕ ОПИСАНИЕ
ФУНКЦIОНАЛЬНИЙ ОПИС
POPIS FUNKCÍ
(G)(H)
(I)
(M)
(N)
(O)
(L)
(P)
(U)
(T)
(Q)
(S)
(R)
(B)
EYFLA2Q
EYFLA3J
(A)
(C)
(D)
(E)
(F)
(J)
(K)
EYFLA1A
EYFLA2A
Remote control and battery are not included.
Fernbedienung und Batterie werden nicht mitgeliefert.
La télécommande et la batterie ne sont pas incluses.
Telecomando e batteria non in dotazione.
Afstandsbediening en batterij zijn niet bijgeleverd.
El control remoto y la batería no están incluídos.
Fjernbetjening og batteri medfølger ikke.
Fjärrkontroll och batteri medföljer ej.
Fjernkontroll og batteri er ikke inkludert.
Kaukosäädin ja paristo eivät kuulu varusteisiin.
Пульт дистанционного управления и батарея не входят в комплект.
Пульт дистанційного управління і батарея не входять до комплекту.
Dálkové ovládání a baterie nejsou obsaženy v balení.

- 3 -
(A)
6.35 mm (1/4") hex quick connect chuck (EYFLA1A, EYFLA2A)/square drive (EYFLA2Q, EYFLA3J/Pin type)
6,35 mm (1/4") Sechskant-Schnellaufspannfutter (EYFLA1A, EYFLA2A)/Vierkant (EYFLA2Q, EYFLA3J/Stifttyp)
Mandrin de connexion rapide hexagonal de 6,35 mm (1/4")/entraînement carré (EYFLA2Q, EYFLA3J/Type à goujon)
Mandrino esagonale di collegamento rapido da 6,35 mm (1/4")/attacco quadro (EYFLA2Q, EYFLA3J/Tipo con piolo)
6,35 mm zeskantboorkop met snelkoppeling/vierkante aandrijving (EYFLA2Q, EYFLA3J/pen-type)
Mandril hexagonal de conexión rápida de 6,35 mm (1/4")/Excitador cuadrado (EYFLA2Q, EYFLA3J/tipo pasador)
6,35 mm (1/4") hexagonal borepatron til hurtig tilslutning/rkantet drev (EYFLA2Q, EYFLA3J/stifttype)
Snabbchuck med 6,35 mm sexkantshylsa/fyrkantskoppling (EYFLA2Q, EYFLA3J/stifttyp)
6,35 mm (1/4") hex hurtigtilkoplingschuck/rkantdrev (EYFLA2Q, EYFLA3J/pinnetype)
6,35 mm (1/4") kuusiopikaistukka/neliöavain (EYFLA2Q, EYFLA3J/nastatyyppi)
6,35 мм (1/4") шестигранный патрон быстрого подсоединения/квадратный хвостовик (EYFLA2Q, EYFLA3J/Штифтового типа)
6,35 мм (1/4") шестигранний патрон швидкого приєднання/квадратний хвостовик (EYFLA2Q, EYFLA3J/Штифтового типу)
6,35 mm (1/4“) Svěrací šroub s vnějším šestihranným nástavcem (EYFLA1A, EYFLA2A)/ vnitřní čtyřhran (EYFLA2Q, EYFLA3J/ typ s kontaktním kolíkem)
(B)
Tightening conrmation lamp
Anzugsbestätigungslampe
Témoin de conrmation de serrage
Spia conferma serraggio
Aanhaaltoestand-bevestigingslampje
Lámpara de conrmación de apriete
Lampe til bekræftelse af stramning
Lampa för bekräftad åtdragning
Strammebekreftelseslampe
Kiristyksen varmistuslamppu
Лампочка подтверждения затяжки
Лампочка підтвердження затяжки
Kontrolka utažení
(C)
Forward/Reverse lever
Vorwärts-/Rückwärtshebel
Levier d’inversion marche avant/marche arrière
Leva di avanzamento/inversione
Links/rechtsschakelaar
Palanca de avance/marcha atrás
Greb til forlæns/baglæns retning
Riktningsomkopplare
Forover-/bakoverbryter
Eteenpäin/taaksepäin vipu
Рычаг переключения вперед/назад
Важіль перемикання вперед/назад
Spínač předního a zpětného chodu
(D)
Alignment mark
Ausrichtmarkierungen
Marques d’alignement
Marcature allineamento
Uitlijntekens
Marcas de alineación
Flugtemærker
Anpassningsmärken
Opprettingsmerke
Sovitusmerkit
Метки совмещения
Мітки вирівнювання
Značka zarovnání
(E)
Remote control receiver
Fernbedienungsempfänger
Récepteur de la télécommande
Ricevitore telecomando
Afstandsbedieningontvanger
Receptor de control remoto
Fjernbetjeningsmodtager
Fjärrstyrningsgivare
Fjernkontrollmottaker
Kaukosäätimen vastaanotin
Датчик дистанционного управления
Датчик дистанційного управління
Přijímač signálu dálkového ovládání
(F)
Control panel
Bedienfeld
Panneau de commande
Pannello di controllo
Bedieningspaneel
Panel de control
Kontrolpanel
Kontrollpanel
Kontrollpanel
Säätöpaneeli
Панель управления
Панель управління
Kontrolní panel
(G)
LED light on/off button
LED-Leuchten-EIN/AUS-Taste
Bouton Marche/Arrêt de la lumière DEL
Tasto di accensione e spegnimento della luce LED
Aan/uit-toets (ON/OFF) voor LED-lampje
Botón ON/OFF de luz LED
TÆND/SLUK-knap til LED-lys
Strömbrytare för LED-ljus
PÅ/AV-knapp for LED-lys
LED-valon kytkin/katkaisupainike
Кнопка включения/выключения светодиодной подсветки
Кнопка ввімкнення/вимкнення світлодіодного підсвічування
Spínač zap./vyp. elektroluminiscenční diody LED

- 4 -
(H)

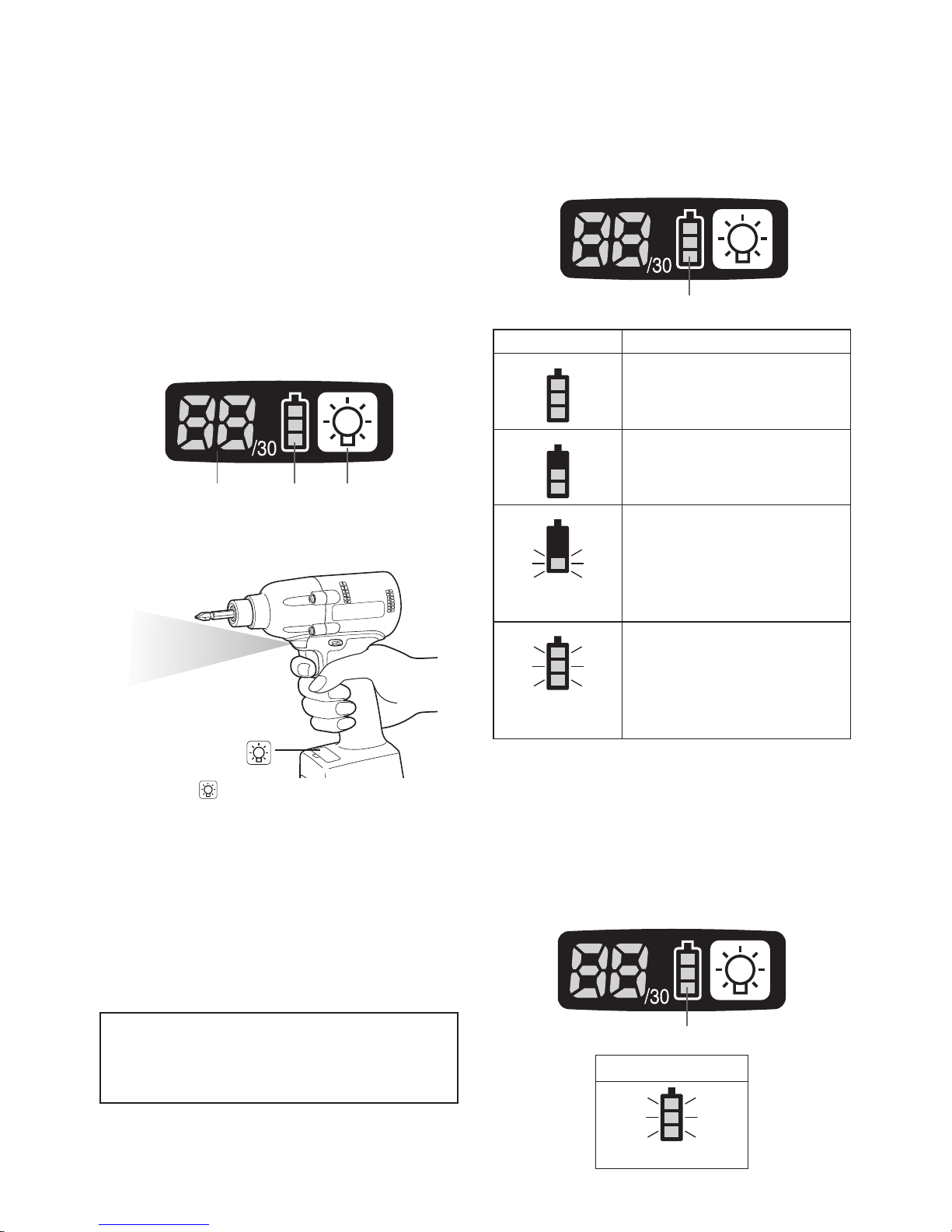

Battery indication lamp
Akku-Anzeigelampe
Témoin indicateur de la batterie
Spia livello batteria
Accu-indicatielampje
Lámpara de indicadora de la batería
Batteriindikatorlampe
Batteriindikator
Batteriindikasjonslampe
Akun osoituslamppu
Индикаторная лампочка батареи
Індикаторна лампочка батареї
Kotrolka stavu baterie
(I)
Display
Anzeige
Afchage
Display
Display
Visor
Display
Indikeringsfönster
Display
Näyttö
Дисплей
Дисплей
Displej
(J)
Variable speed control trigger
Variabler Geschwindigkeitskontrollschalter
Gâchette de commande de vitesse
Grilletto di controllo velocità variabile
Startschakelaar met variabele toerentalregeling
Disparador del control de velocidad variable
Kontroludløser for variabel hastighed
Avtryckare med variabel varvtalsreglering
Trinnløs hovedbryter
Nopeudensäätökytkin
Переключатель регулировки переменной скорости
Перемикач регулювання змінної швидкості
Spoušť rychlostní regulace
(K)
LED light
LED-Leuchte
Lumière DEL
Luce LED
LED-lampje
Luz indicadora
LED-lys
LED-ljus
LED-lys
LED-valo
Светодиодная подсветка
Світлодіодне підсвічування
Světlo LED
(L)
Remote control
Fernbedienung
Télécommande
Telecomando
Afstandsbediening
Control remoto
Fjernbetjening
Fjärrkontroll
Fjernkontroll
Kaukosäädin
Пульт дистанционного управления
Пульт дистанційного управління
Dálkové ovládání
(M)
+ button
Taste +
Bouton +
Tasto +
+ toets
Botón +
+ knap
Knapp (+)
+ knapp
+ painike
Кнопка +
Кнопка +
Tlačítko +
(N)
− button
Taste –
Bouton −
Tasto −
− toets
Botón −
− knap
Knapp (−)
− knapp
− painike
Кнопка −
Кнопка −
Tlačítko −
(O)
OK button
Taste OK
Bouton OK
Tasto OK
OK toets
Botón OK (correcto)
OK-knap
Bekräftelseknapp
OK knapp
OK-painike
Кнопка OK
Кнопка OK
Tlačítko OK

- 5 -
(P)
Torque level button
Anzugsmomentstufentaste
Bouton de niveau du couple de serrage
Tasto livello coppia
Aanhaalmoment-niveautoets
Botón de palanca de par de torsión
Knap til stramningsmomentniveau
Väljare för momentnivå
Dreiemomentknapp
Vääntömomentin tasopainike
Кнопка уровня крутящего момента
Кнопка рівня крутильного моменту
Tlačítko regulace hladiny točivého momentu
(Q)
Format button
Formattaste
Bouton de format
Tasto formato
Formatteertoets
Botón de formato
Formatknap
Formateringsknapp
Format knapp
Formaatin painike
Кнопка формата
Кнопка формату
Rázové tlačítko
(R)
Holder
Halter
Support
Supporto
Houder
Retenedor
Holder
Hållare
Holder
Pidin
Держатель
Держак
Držák
(S)
Battery
Batterie
Batterie
Batteria
Accu
Batería
Batteri
Batteri
Batteri
Akku
Батарея
Батарея
Baterie
(T)
Interval set button
Intervall-Einstelltaste
Bouton de réglage de l’intervalle
Tasto impostazione intervallo
Interval-insteltoets
Botón de ajuste de intervalo
Intervalindstillingsknap
Intervallinställningsknapp
Intervallinnstillingsknapp
Jakson säätöpainike
Кнопка установки интервала
Кнопка встановлення інтервалу
Tlačítko intervalového nastavení
(U)
Torque set button
Anzugsmoment-Einstelltaste
Bouton de réglage du couple de serrage
Tasto impostazione coppia
Aanhaalmoment-insteltoets
Botón de ajuste de par de torsión
Knap til indstilling af stramningsmoment
Momentinställningsknapp
Dreiemomentinnstillingsknapp
Vääntömomentin säätöpainike
Кнопка установки крутящего момента
Кнопка встановлення крутильного моменту
Tlačítko nastavení hladiny točivého momentu

- 6 -
I .INTENDED USE
This tool is a Cordless Impact Driver/Wrench
and can be used to tighten bolts, nuts, and
screws. Additionally, it provides a torque con-
trol function that automatically stops tool oper-
ation when a preset load is reached to deliver
consistent tightening torque.
Read “the Safety Instructions” booklet
and the following before using.
II . ADDITIONAL SAFETY
RULES
1 ) Wear ear protectors when using the
tool for extended periods.
2) Be aware that this tool is always in an
operating condition, since it does not have
to be plugged into an electrical outlet.
3) When screwing or driving into walls, floors,
etc., “live” electrical wires may be encoun-
tered. DO NOT TOUCH THE HEX QUICK
CHUCK OR ANY FRONT METAL PARTS
OF THE TOOL! Hold the tool only by the
plastic handle to prevent electric shock in
case you screw or drive into a “live” wire.
4) Do NOT operate the Forward/Reverse
lever when the main switch is on. The bat-
tery will discharge rapidly and damage to
the unit may occur.
5) During charging, the charger may become
slightly warm. This is normal.
Do NOT charge the battery for a long period.
6) When storing or carrying the tool, set the
Forward/Reverse lever to the center posi-
tion (switch lock).
7) Do not strain the tool by holding the speed
control trigger halfway (speed control
mode) so that the motor stops.

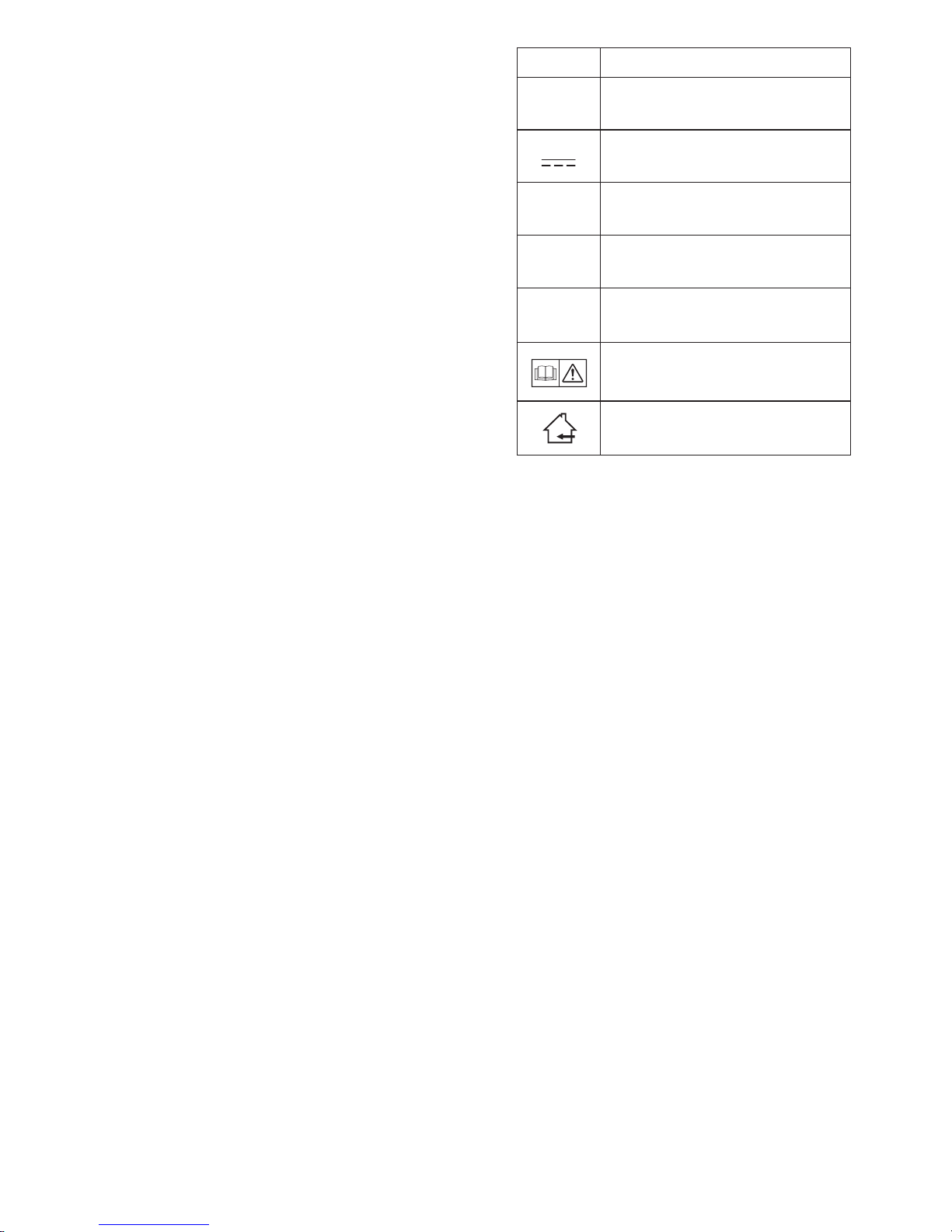

Symbol Meaning
VVolts
Direct current
n0No load speed
… min-1 Revolutions or reciprocations
per minutes
Ah Electrical capacity of battery
pack
Read the operating
instructions before use.
For indoor use only.
III .ASSEMBLY
Attaching or Removing Bit
NOTE:
•
When attaching or removing a bit, discon-
nect battery pack from tool or place the
switch in the center position (switch lock).
1. Hold the collar of quick connect chuck and
pull it out from the tool.
2. Insert the bit into the chuck. Release the
collar.
3. The collar will return to its original position
when it is released.
4.
Pull the bit to make sure it does not come out.
5. To remove the bit, pull out the collar in the
same way.
CAUTION:
•If the collar does not return to its origi-
nal position or the bit comes out when
pulled on, the bit has not been properly
attached. Make sure the bit is properly
attached before use.
EYFLA1A/EYFLA2A
12 mm
(15/32") 9 mm – 9.5 mm
(23/64" – 3/8")
6.35 mm
(1/4")

- 7 -

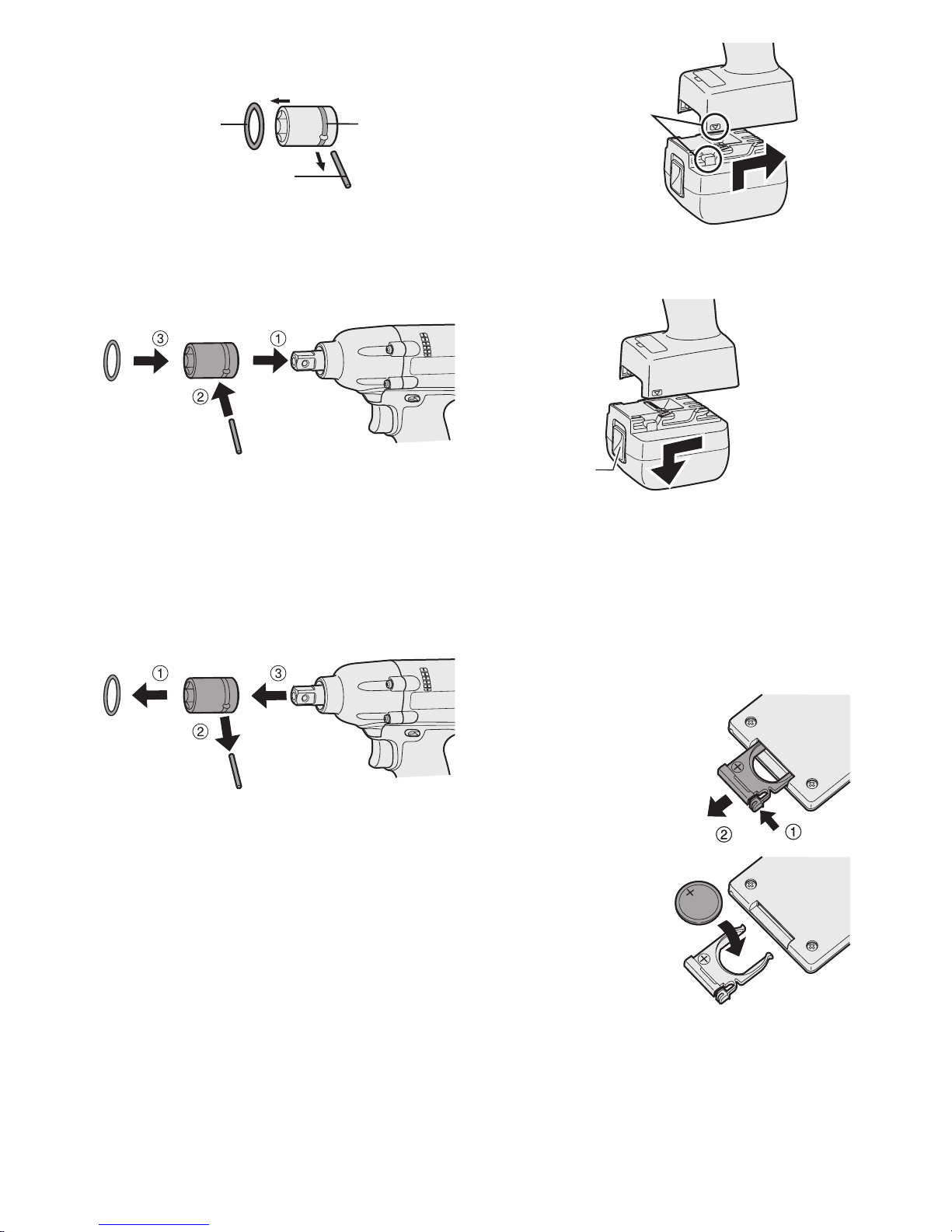

Attaching Socket
• Remove the socket’s rubber ring and pin.
rubber ring
pin
groove
1 Attach the socket to the tool.
2 Insert the pin. (Taking care to align the pin
holes on the socket and tool.)
3 Attach the rubber ring by sliding it into place
over the groove.
NOTE:
Be sure to attach the rubber ring to prevent
the pin from falling out.
Removing Socket
1 Remove the rubber ring.
2 Remove the pin.
3 Remove the socket from the tool.
NOTE:
Keep the temperature of the tool above
the freezing point (0°C/32°F) when attach-
ing sockets to or detaching them from
the square drive on the tool. Do not use
excessive force when attaching or detach-
ing sockets.
AttachingorRemovingBat-
tery Pack
1. To connect the battery pack:
Line up the alignment marks and attach
the battery pack.
•Slide the battery pack until it locks into
position.
Alignment
marks
2. To remove the battery pack:
Push up on the button from the front to re-
lease the battery pack.
Button
IV .OPERATION
Before Using the Remote
Control (Available as an
optional accessory)
Insert the battery
1. Pull out the battery holder.
1Push in on the fas-
tener as indicated by
the arrow.
2 Pull out the holder.
2. Insert the battery and
push the holder
back in.
NOTE:
•If the tool does not respond to the wire-
less remote control even when the remote
control is operated close to the tool, the
battery (CR2025) is dead. Replace it with
a fresh battery.
• The included battery is provided for sam-
ple use and may not last as long as com-
mercially available batteries.

- 8 -
Wireless remote control range
Approx. 50 cm
Vertically
A
p
p
r
o
x
.
6
0
°
A
p
p
r
o
x
.
6
0
°
The remote control should be operated within
approximately 50 cm and approximately 60°
vertically and horizontally of the perpendicular
relative to the infrared receiver on the tool.
• Under the following circumstances, you may
not be able to operate the tool, even within
this range.
•If there is an object between the remote
control’s transmitter and the tool’s receiver.
•Use outdoors or in other environments
where the remote control receiver is
exposed to a strong light source, or when
the remote control transmitter or receiver is
dirty may cause the tool to fail to respond,
even when the remote control is used within
the operating range.
[Main Body]
Switch and Forward/Reverse
Lever Operation
Forward Reverse
Switch lock
CAUTION:
To prevent damage, do not operate
Forward/Reverse lever until the bit comes
to a complete stop.
Forward Rotation Switch
Operation
1. Push the lever for forward rotation.
2. Depress the trigger switch slightly to start
the tool slowly.
3. The speed increases with the amount of
depression of the trigger for efficient tight-
ening of screws. The brake operates and
the bit stops immediately when the trigger
is released.
4. After use, set the lever to its center posi-
tion (switch lock).
Reverse Rotation Switch
Operation
1. Push the lever for reverse rotation. Check the
direction of rotation before use.
2.
Depress the trigger switch slightly to start the
tool slowly.
3. After use, set the lever to its center posi-
tion (switch lock).
CAUTION:
• To eliminate excessive temperature
increase of the tool surface, do not
operate the tool continuously using two
or more battery packs. Tool needs cool
off time before switching to another
pack.
Tightening confirmation lamp
• The tightening confirmation lamp can be
used to check whether the torque control
function was activated.
Tool status Lamp display
Tightening complete
(with torque control
function operation)
Green
(For approx. 2
seconds)
•Tightening not complete
• Tightening complete
with retightening within 1
second
Red
(For approx. 2
seconds)
The automatic stop
function has been
activated.
Red
(For approx. 5
minutes)

- 9 -
CAUTION:
• When the tool stops automatically after
the switch is released during impact-
mode tightening and then reengaged
within 1 second, the red lamp will light up
to indicate the risk of excessive torque
application as a result of retightening.
NOTE
•The tightening confirmation lamp will not
turn on under the following conditions:
• When the torque clutch is set to “F”
• During reverse rotation operation
• The lamp turns off when the tool is in
operation.

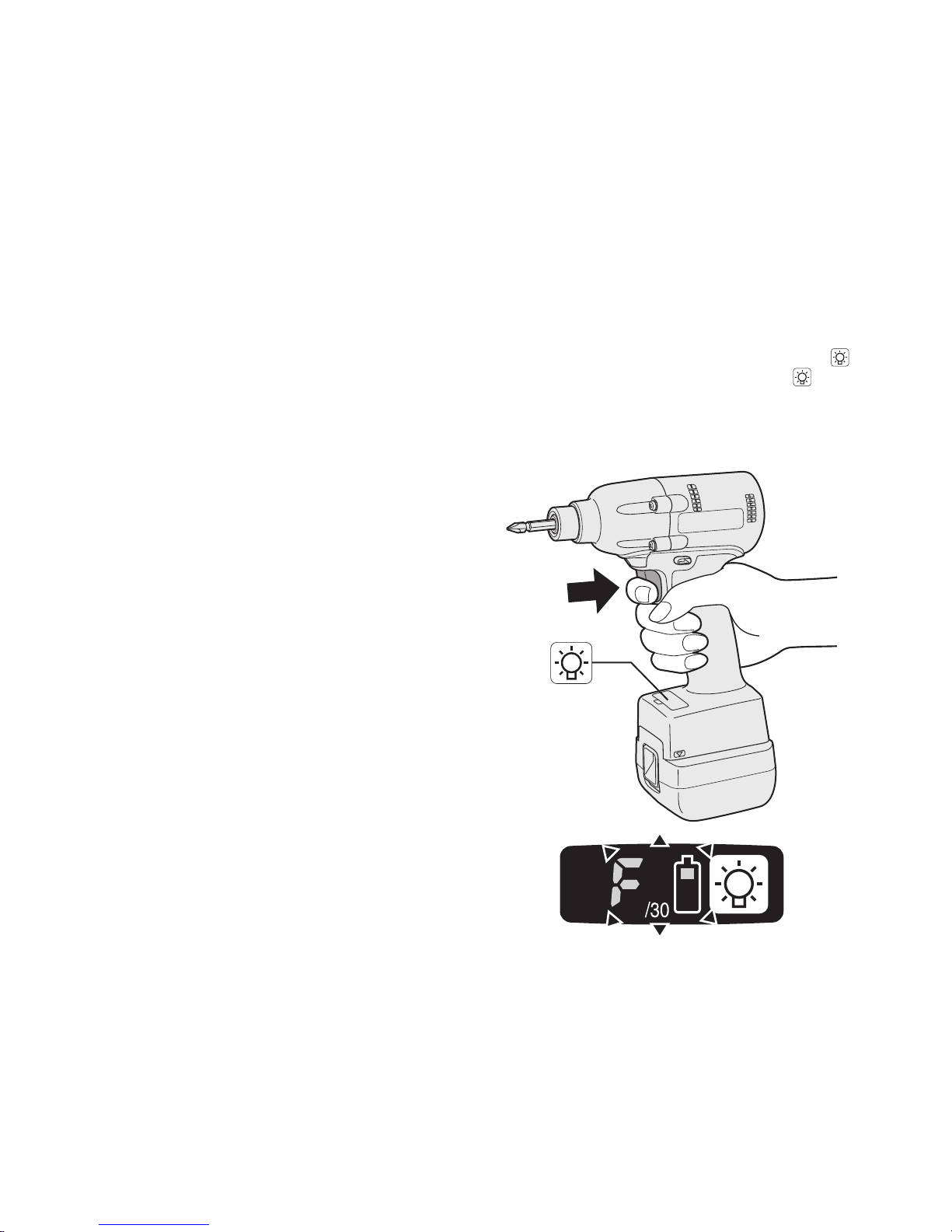

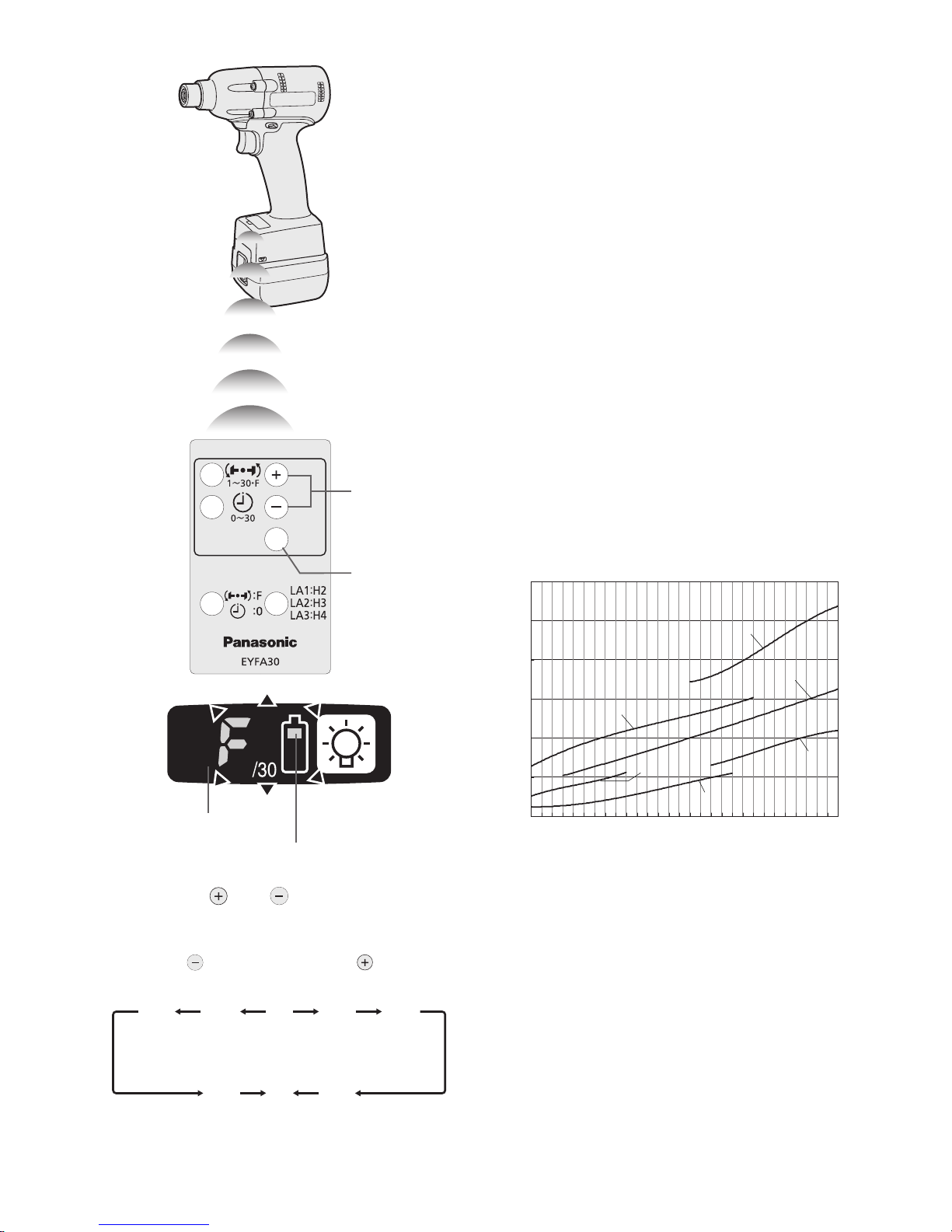

Control Panel
(1) (2) (3)
(1) LED light
Pressing the button toggles the LED light on
and off.
The light illuminates with very low current, and
it does not adversely affect the performance
of
the
tool during use or its battery capacity.
CAUTION:
•The built-in LED light is designed to illu-
minate the small work area temporarily.
•
Do not use it as a substitute for a regu-
lar
flashlight, since it does not have
enough brightness
.
Caution : DO NOT STARE INTO BEAM.
Use of controls or adjustments or performance
of procedures other than those specied herein
may result in hazardous radiation exposure.
(2) The battery indication lamp
• Use the battery indication lamp to check
how much power is left in the battery.
• Battery life varies slightly with ambient tem-
perature and battery characteristics. The
lamp is designed to provide a rough indica-
tion of remaining battery life.
Battery indication lamp
Indicator Battery status
Fully charged
Approx. 40% or less
remaining
Flashing
Flashing
Approx. 20% or less
remaining (indicates need
to recharge battery)
The battery pack will need
to be charged soon.
Flashing
No charge
The battery pack needs to
be charged.
(The tool’s automatic
power-off function will
activate at this stage.)
Automatic power-off function
• The automatic power-off function is designed
to prevent a loss of tightening torque due
to reduced battery voltage. Once it has
been activated, the tool will not operate until
the battery pack has been charged (or re-
placed with a fresh unit), even if the trigger is
depressed.
Battery indication lamp
Indicator
Flashing

- 10 -
NOTE:
• All 3 bars on the battery indication lamp
will flash when the automatic power-off
function is activated.
• When the battery indication lamp begins
flashing, the battery pack should be
charged (or replaced with a fresh unit)
immediately.
• Be sure to fully charge the battery pack
in question after activation of the auto-
matic power-off function. Failure to do
so may prevent the automatic power-off
function from being properly deactivated.
(3) The torque control function
• The torque control function calculates the
load from the motor’s rotational angle during
the hammer impact and determines that the
bolt has been properly seated when a pre-
set load value is exceeded. Driving is then
automatically stopped after a preset number
of impacts have been delivered to the bolt.
CAUTION:
• Always check the tool’s tightening torque
before use. Improper tool operation may
result in excessive or inadequate tight-
ening.
CAUTION:
• Always operate the tool with the switch
fully engaged. The torque control func-
tion will not operate when the switch is
not sufficiently engaged, preventing the
tool from stopping automatically.
• In work where a heavy load comes to
bear during tightening, the load may be
interpreted as the seating of the bolt,
preventing the bolt from being com-
pletely tightened.
•Repeated tightening of the same bolt
may break the bolt or deform the mate-
rial into which the bolt is being driven as
a result of excessive tightening.
• The tightening torque value and preci-
sion vary with factors such as the mate-
rial into which the bolt is being driven
and the condition of the socket being
used. Adjust the torque as necessary
for the work being performed. Bolt tight-
ening torque varies due to the factors
described below.
1) Bolt
• Bolt diameter: Tightening torque gener-
ally increases with bolt diameter.
• Torque coefficient (indicated by the bolt
manufacturer), grade, length, etc.
2) Other
• Bit and socket condition: Material,
amount of play, etc.
•Use of a universal joint or socket
adapter
•User: Manner in which the tool is
applied to the bolt, strength with which
the tool is held, manner in which the
tool’s switch is engaged
•Condition of object being tightened: Ma-
terial, seating surface finish
Setting the tool to configuration mode
1. Turn off the control panel.
• If the control panel is on, remove and
then reinsert the battery pack.
2. Engage the switch while pushing the
button and then release both the but-
ton and the switch.
• After all the LED lamps have turned off,
the control panel will flash and change
to configuration mode.
NOTE:
• Tools ship from the factory set to “F”
mode (torque control function off).
•The control panel will turn off if the tool
is not operated for a period of 5 min-
utes.

- 11 -
Configuring the torque clutch setting
(1)
(2)
Display
Battery indication lamp
1. Press the and buttons to select the
clutch setting that is appropriate for the
work being performed.
3…28
1F30 229
As the button
is pressed As the button is pressed
• “F” indicates that the torque control func-
tion is off.
• You can select from 30 torque clutch
settings (1 to 30).
• Use figures from the Tightening Torque
Chart to guide your selection of torque
clutch setting. (See the following tighten-
ing torque chart)
2. Press the OK button to accept the select-
ed torque clutch setting.
•The control panel will stop flashing and
light up.
CAUTION:
•You must press the OK button in order
for the selected setting to take effect.
• Be sure to verify the new value after
changing the setting. (See page 12.)
Tightening Torque Chart (for Reference
Use)
The values illustrated on this chart were mea-
sured under the conditions described below
and are provided for reference purposes.
Actual tightening torque varies with ambient
conditions (the particular bolt being tightened,
hardware being used, method of holding the
bolt in place, etc.).
0
10
20
30
40
50
60
EYFLA1 (M6)
EYFLA2 (M6)
EYFLA1 (M8)
EYFLA2 (M8)
EYFLA3 (M8)
EYFLA3 (M10)
N • m
1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930
Measurement conditions
• Temperature: Room temperature (20°C/68°F)
Using the Interval Set
•The interval set operates to prevent the tool
from operating after it automatically stops as
a result of the torque control function, even if
the switch is engaged.
1. Set the tool to configuration mode.
(See page 10.)
2. Press the interval set button.
• The control panel will begin flashing.
Display: The number 0 ashes on and off.
Battery indication lamp: The middle bar
of the battery ashes on and off.

- 12 -
Display
Battery indication lamp
3. Press the and buttons to set the
desired time.
Buttons Display Seconds
30 3
10.1
0 Off
4. Press the OK button to accept the selected
setting.
•The control panel will stop flashing and
light up, and the torque clutch setting
will be displayed.
CAUTION:
• Be sure to verify the new value after
changing the setting.
Initializing All Settings
Factory settings
• Torque clutch setting: “F” (torque con-
trol function off)
•Interval setting: 0 (off)
• This section explains how to revert all tool
settings to their default values at the time of
shipment from the factory.
• The error display will be turned off.
1. Set the tool to configuration mode.
(See page 10.)
2. Press the format button.
• The control panel will begin flashing.
Display: The letter “F” ashes on and off.
Battery indication lamp: The upper and
lower bars of the battery ash on and off.
Display
Battery indication lamp
3. Press the OK button to accept the select-
ed setting.
•The control panel will stop flashing and
light up.
Checking Tool Settings
•This section describes how to have the tool
display current settings for approximately 3
seconds when the tool is stopped.
•You cannot check tool settings when the
control panel is turned off. First, engage
the switch briefly to reactivate the display.
Checking the torque clutch setting
1. Press the torque set button.
• Control panel display
Display: The torque set lights up.
Battery indication lamp: The upper bar of
the battery ashes on and off.
Checking the interval
1. Press the interval set button.
• Control panel display
Display: The interval set lights up.
Battery indication lamp: The middle bar
of the battery ashes on and off.
Checking tool circuits
1. Press the torque set button.
• Control panel display
Display: The torque set display lights up.
Battery indication lamp: The middle and
lower bars of the battery ash on and off.
Display Tool circuit
H2 EYFLA1
H3 EYFLA2
H4 EYFLA3
NOTE:
• If you engage the switch while a setting
is being displayed, the control panel will
revert to the torque clutch setting dis-
play.
CAUTION:
• The torque set display is not intended
to be used to identify the type of drive
component parts (hammer, etc.) used
in a particular tool.

- 13 -
Error Display
In the event of a tool or battery pack malfunction, the control panel will display an error message.
Please check the tool or battery pack as described in the following chart before having them
serviced.
Display Likely cause Corrective action
Setting error Re-initialize the tool using the
remote control. (See page 12.)
The battery pack is too hot. Stop work and allow the battery
pack to cool before resuming use
of the tool.
The tool is too hot to operate. Stop work and allow the tool to
cool before resuming use.
The contacts that connect the
battery pack and tool are dirty. Remove any dirt.
The battery pack has not been
properly inserted into the tool. Insert the battery pack rmly into
the tool.
The pins on either the tool or
battery pack have worn down. Replace the battery pack.
Motor failure, etc. Stop using the tool immediately.
Sensor malfunction, failure, etc.
Tool circuit malfunction, failure,
etc.
[Battery Pack]
ForAppropriate Use of Bat-
tery Pack
Li-ion Battery Pack (EYFB30)
• For optimum battery life, store the Li-ion bat-
tery pack following use without charging it.
• When charging the battery pack, confirm
that the terminals on the battery charger
are free of foreign substances such as dust
and water etc. Clean the terminals before
charging the battery pack if any foreign sub-
stances are found on the terminals.
The life of the battery pack terminals may be
affected by foreign substances such as dust
and water etc. during operation.
• When battery pack is not in use, keep it
away from other metal objects like: paper
clips, coins, keys, nails, screws, or other
small metal objects that can make a con-
nection from one terminal to another.
Shorting the battery terminals together may
cause sparks, burns or a fire.
•When operating the battery pack, make sure
the work place is well ventilated.
•When the battery pack is removed from the
main body of the tool, replace the battery
pack cover immediately in order to prevent
dust or dirt from contaminating the battery
terminals and causing a short circuit.

- 14 -
Battery Pack Life
The rechargeable batteries have a limited life.
If the operation time becomes extremely short
after recharging, replace the battery pack with
a new one.
Battery Recycling
ATTENTION:
For environmental protection and recycling
of materials, be sure that it is disposed of
at an ofcially assigned location, if there is
one in your country.
[Battery Charger]
Charging
Read the operating manual for Panasonic battery
charger for the battery pack before charging.
Before charging the battery
When charging EYFB30:
Charge the battery at a temperature of 5°C
(41°F) to 40°C (104°F).
The battery pack cannot be charged at a tem-
perature of less than 5°C (41°F). If the tem-
perature of the battery pack is less than 5°C
(41°F), rst remove the battery pack from
the charger and allow it to sit for an hour in a
location where the temperature is 5°C (41°F) or
warmer. Then charge the battery pack again.
Information for Users on Collection and Disposal of Old Equip-
ment and used Batteries
These symbols on the products, packaging, and/or accompanying documents
mean that used electrical and electronic products and batteries should not be
mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
[Information on Disposal in other Countries outside the Euro-
pean Union]
These symbols are only valid in the European Union. If you wish to discard these items,
please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies
with the requirement set by the Directive for the chemical involved.

- 15 -
V. MAINTENANCE
Use only a dry, soft cloth for wiping the unit.
Do not use a damp cloth, thinner, benzine, or
other volatile solvents for cleaning.
VI .ACCESSORIES
Charger
• EY0L80
Battery pack
•EYFB30
Remote control
•EYFA30
Protector for tool
•EYFA01-A (Blue)
• EYFA01-Y (Yellow)
• EYFA01-H (Gray)
Protector for battery
•EYFA02-H
VII .SPECIFICATIONS
MAIN UNIT
Model EYFLA1 EYFLA2 EYFLA3
A A Q J
Moter 10.8 V DC
Chuck size Single-
ended 9 – 9.5 mm (23/64" – 3/8")
9 – 9.5 mm
(23/64"
– 3/8")
□9.5 mm
(3/8")
□12.7 mm (1/2")
Double-
ended 12 mm (15/32") 12 mm
(15/32")
No load
speed Stage 1 2
3 – 5
6
7
8
9 – 30·F
0 – 950
0 – 1000
0 – 1050
0 – 1300
0 – 1450
0 – 1550
0 – 2300
1
2
3
4 – 30·F
0 – 1300
0 – 1450
0 – 1550
0 – 2300
0 – 2300
Impact per
minute Stage 1 2
3 – 5
6
7
8
9 – 30·F
0 – 1900
0 – 1950
0 – 2100
0 – 2500
0 – 2800
0 – 3000
0 – 4000
1
2
3
4 – 30·F
0 – 2500
0 – 2800
0 – 3000
0 – 3600
0 – 3000
Maximum torque 40 N·m
(408 kgf-cm, 354 in-lbs) 90 N·m (918 kgf-cm, 796 in-lbs) 120 N·m (1224 kgf-cm,
1062 in-lbs)
Torque control function
operating range Approx. 3 – 22 N·m (31 – 224 kgf-cm,
27 – 195 in-lbs)
Approx. 6 – 30 N·m
(61 – 306 kgf-cm,
53 – 266 in-lbs)
Approx. 16 – 53 N·m
(163 – 540 kgf-cm,
142 – 469 in-lbs)
Overall length 158 mm (6-7/32") 164 mm (6-7/16")
Weight (with battery
pack: EYFB30) 1.3 kg (2.8 lbs) 1.35 kg (2.9 lbs)

- 16 -
BATTERY PACK (not included with shipment)
Model EYFB30
Storage battery Li-ion battery
Battery voltage 10.8 V DC (3.6 V/6 cells)
Capacity 3 Ah
BATTERY CHARGER (not included with shipment)
Model EY0L80
Rating See the rating plate on the bottom of the charger.
Weight 0.95 kg (2.1 lbs)
[Li-ion battery pack]
Charging time 3 Ah
10.8 V
EYFB30
Usable: 40 min.
Full: 65 min.
Remote control (not included with shipment)
Model EYFA30
Battery voltage 3 V DC
Dimensions 54 mm (2-1/8") × 86 mm (3-3/8") × 10 mm (13/32”)
Weight (with battery) Approximately 29 g (0.6 lbs)

- 17 -
ONLY FOR U. K.
VIII . ELECTRICAL PLUG
INFORMATION
FOR YOUR SAFETY PLEASE READ
THE FOLLOWING TEXT CAREFULLY
This appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
A 5 amp fuse is tted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rat-
ing of 5 amp and that it is approved by ASTA
or BSI to BS1362.
Check for theASTAmark or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover
you must ensure that it is retted when the
fuse is replaced.
If you lose the fuse cover the plug must not
be used until a replacement cover is ob-
tained.
Areplacement fuse cover can be purchased
from your local Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS UN-
SUITABLE FORTHE SOCKETOUTLET IN
YOUR HOME THEN THE FUSE SHOULD
BE REMOVED AND THE PLUG CUT OFF
AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELEC-
TRICAL SHOCK IF THE CUT OFF PLUG
IS INSERTED INTO ANY 13 AMP SOCK-
ET.
If a new plug is to be tted please observe
the wiring code as shown below.
If in any doubt please consult a qualied
electrician.
IMPORTANT:
The wires in this mains lead are col-
oured in accordance with the following
code:
Blue: Neutral
Brown: Live
As the colours of the wire in the mains lead
of this appliance may not correspond with
the coloured markings identifying the termi-
nals in your plug, proceed as follows.
The wire which is coloured BLUE must be
connected to the terminal in the plug which
is marked with the letter N or coloured
BLACK.
The wire which is coloured BROWN must be
connected to the terminal in the plug which is
marked with the letter L or coloured RED.
Under no circumstances should either of
these wires be connected to the earth ter-
minal of the three pin plug, marked with the
letter E or the Earth Symbol .

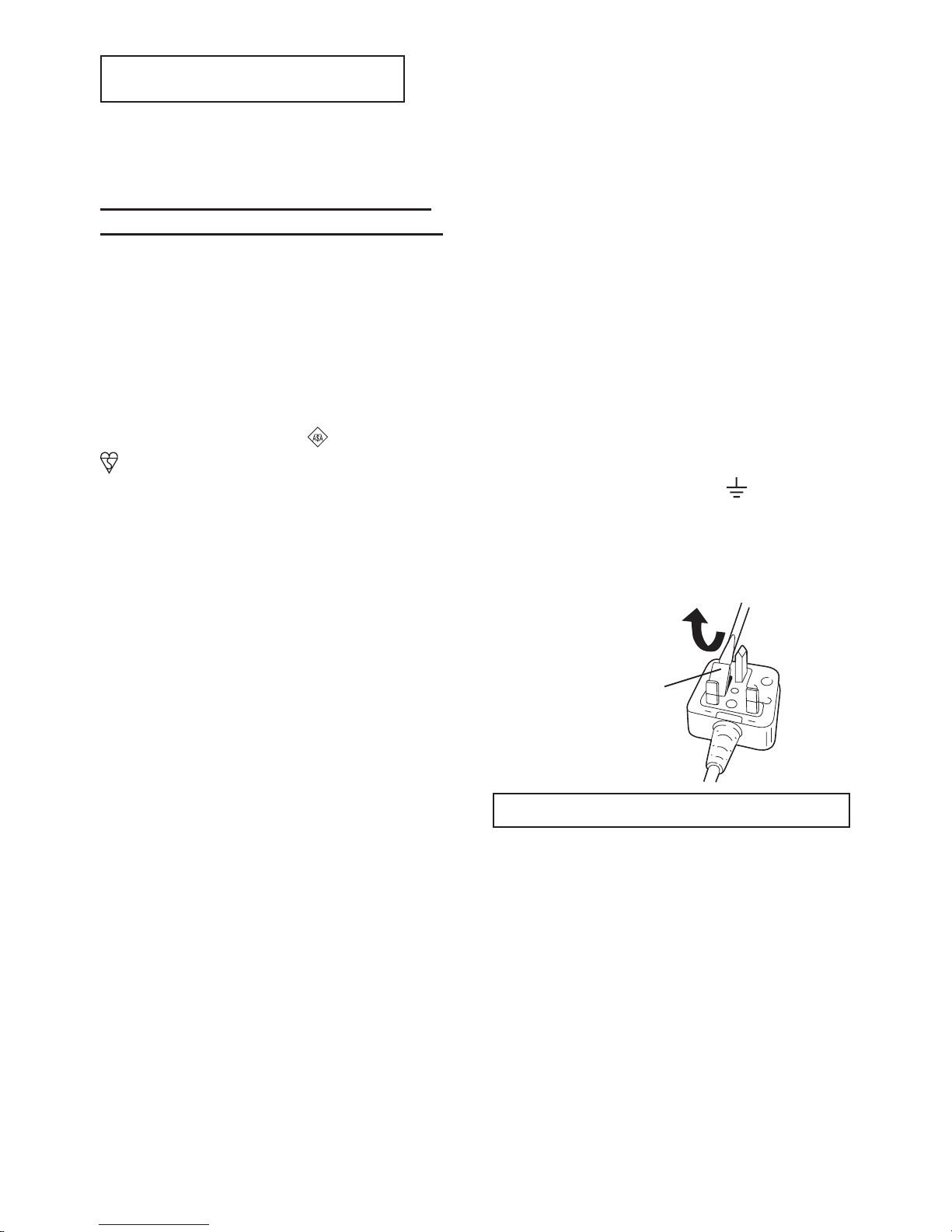

How to replace the fuse: Open the fuse
compartmentwithascrewdriverandreplace
the fuse and fuse cover if it is removable.
Fuse Cover
This apparatus was produced to BS800.

- 18 -
I .VERWENDUNGS-
ZWECK
Dieses Werkzeug ist ein Akku-Schlagschrauber
und kann zum Anziehen von Bolzen, Muttern
und Schrauben verwendet werden. Darüber
hinaus bietet es eine Anzugsmoment-Steuer-
funktion, die den Werkzeugbetrieb automatisch
stoppt, wenn eine voreingestellte Last erreicht
wird, um ein gleichmäßiges Anzugsmoment
zu liefern.
Lesen Sie bitte vor der ersten Inbetriebnah-
me dieses Gerätes das separate Handbuch
„Sicherheitsmaßregeln“ sorgfältig durch.
II . WEITERE WICHTIGE
SICHERHEITSREGELN
1) Geeigneten Gehörschutz tragen, wenn
das Werkzeug längere Zeit im Betrieb ist!
2) Denken Sie daran, dass das Werkzeug
ständig betriebsbereit ist, da es nicht an
die Steckdose angeschlossen werden
muss.
3) Beim Schrauben in Wände, Fußböden
usw. können stromführende Kabel
berührt werden. DAHER NIE DAS VIER-
KANTSCHNELLSPANNFUTTER ODER
ANDERE VORDERE METALLTEILE
BERÜHREN! Das Werkzeug beim
Schrauben nur am Kunststoffgriff halten,
um in solchen Fällen vor elektrischen
Schlägen geschützt zu sein.
4) Betätigen Sie den Rechts-/Linkslauf-
Umschalthebel NICHT, wenn der Haupts-
chalter eingeschaltet ist. Der Akku entlädt
sich sonst schnell, und das Gerät kann
beschädigt werden.
5) Beim Aufladen kann sich das Ladegerät
etwas erhitzen. Dies ist normal.
Den Akku daher NICHT über lange Zeit
aufladen.
6) Stellen Sie den Rechts-/Linkslauf- Umschal-
thebel zum Lagern oder Tragen des
Werkzeugs auf die Mittenstellung (Schalter-
sperre).
7) Belasten Sie das Werkzeug nicht, indem
Sie den Elektronikschalter halb gedrückt
halten (Drehzahlregelmodus), sodass der
Motor stehen bleibt.
Symbol Bedeutung
VVolt
Gleichstrom
n0Leerlaufdrehzahl
… min-1 Drehzahl oder Hubzahl pro
Minute
Ah Akkukapazitat in Ampere
Stunden
Lesen Sie die
Bedienungsanleitung vor
Gebrauch.
Nur für Inneneinsatz.
III .BAUGRUPPE
AnbringenoderAbnehmen
des Bits
HINWEIS:
• TrennenSievordemAnbringenoderAbneh-
men eines Bits den Akku vom Werkzeug
ab, oder stellen Sie den Elektronikschalter
auf die Mittelstellung (Schaltersperre).
1. Die Hülse des Schnellspannfutters halten
und vom Werkzeug herausziehen.
2. Den Bit in das Bohrfutter einsetzen. Die
Hülse loslassen.
3. Der Ring springt in seine Ausgangsposition
zurück, wenn er losgelassen wird.
4.
An dem Bit ziehen, um sicherzustellen, das er
nicht abgezogen werden kann.
5. Zum Entfernen des Bits die Hülse auf die
gleiche Weise herausziehen.
VORSICHT:
• Wenn der Ring nicht in seine Ausgangs-
position zurückkehrt oder wenn sich
der Bit löst, wenn an ihm gezogen wird,
wurde der Bit nicht ordnungsgemäß eing-
esetzt. Vor der Inbetriebnahme sicher-
stellen, dass der Bit ordnungsgemäß bef-
estigt ist.

- 19 -
EYFLA1A/EYFLA2A
12 mm
(15/32") 9 mm – 9,5 mm
(23/64" – 3/8")
6,35 mm
(1/4")
Anbringen einer Stecknuss
• Den Gummiring und Stift der Stecknuss ent-
fernen.
Gummiring
Stift
Nut
1 Die Stecknuss am Werkzeug anbringen.
2 Den Stift einsetzen. (Die Stiftlöcher in Steck-
nuss und Werkzeug sorgfältig ausrichten.)
3Den Gummiring durch Aufschieben auf die
Nut anbringen.
HINWEIS:
Bringen Sie unbedingt den Gummiring an,
um Herausfallen des Stifts zu verhüten.
Abnehmen einerStecknuss
1 Den Gummiring entfernen.
2 Den Stift entfernen.
3 Die Stecknuss vom Werkzeug abnehmen.
HINWEIS:
Halten Sie die Temperatur des Werkzeugs
über dem Gefrierpunkt (0°C), wenn Sie
Stecknüsse am Vierkant des Werkzeugs
anbringen oder davon abnehmen. Wenden
Sie beim Anbringen oder Abnehmen von
Stecknüssen keine übermäßige Kraft an.
Anbringen oder Abnehmen
desAkkus
1. Zum Anschließen des Akkus:
Die Ausrichtmarkierungen aufeinander
ausrichten, und den Akku anbringen.
•Den Akku einschieben, bis er einrastet.
Ausricht-
markierungen
2. Zum Entfernen des Akkus:
Zum Abnehmen des Akkus den Knopf an
der Vorderseite hochdrücken.
Knopf
IV .BETRIEB
Vor Benutzung der Fern-
bedienung (Als Sonder-
zubehör erhältlich)
Die Batterie einlegen
1. Den Batteriehalter
herausziehen.
1Die Raste in Pfeilrich-
tung hineindrücken.
2Den Halter heraus-
ziehen.
2. Die Batterie einlegen, und
den Halter wieder
einschieben.

- 20 -
HINWEIS:
• Falls das Werkzeug nicht auf die draht-
lose Fernbedienung reagiert, selbst wenn
die Fernbedienung nahe am Werkzeug
betätigt wird, ist die Batterie (CR2025)
erschöpft. Ersetzen Sie die Batterie durch
eine neue.
• Die mitgelieferte Batterie ist für Probe-
betrieb vorgesehen und hält möglicher-
weise nicht so lange wie eine im Handel
erhältliche Batterie.
Reichweite der drahtlosen Fernbe-
dienung
ca. 50 cm
Vertikal
c
a
.
6
0
°
c
a
.
6
0
°
Die Fernbedienung sollte innerhalb von etwa
50 cm und 60° vertikal und horizontal zur Sen-
krechten relativ zum Infrarotempfänger des
Werkzeugs betätigt werden.
•Unter den folgenden Umständen lässt sich
das Werkzeug selbst innerhalb dieses
Bereichs eventuell nicht bedienen.
• Wenn sich ein Gegenstand zwischen dem
Geber der Fernbedienung und dem Emp-
fänger des Werkzeugs befindet.
• Bei Verwendung im Freien oder in anderen
Umgebungen, wo der Fernbedienungsemp-
fänger einer starken Lichtquelle ausgesetzt
ist, oder wenn der Fernbedienungsgeber
oder -empfänger schmutzig ist, reagiert das
Werkzeug eventuell nicht, selbst wenn die
Fernbedienung innerhalb des Wirkungsbe-
reichs benutzt wird.
[Hauptteil]
Umschalten und Betätigung
des Rechts-/Linkslauf- Ums-
chalthebels
Rechts Links
Schaltersperre
VORSICHT:
Nicht den Rechts-/Linkslauf- Umschal-
thebels betätigen, bevor der Bit vollständig
zur Ruhe gekommen ist, um Schäden zu
verhindern.
Rechtslauf-Schalterbetäti-
gung
1. Für Rechtslauf den Hebel drücken.
2. Drücken Sie den Schalter leicht, um das
Werkzeug langsam zu starten.
3. Die Drehzahl nimmt zu, je stärker der Aus-
löser gedrückt wird, um effizientes Anzie-
hen von Schrauben zu ermöglichen. Beim
Loslassen des Auslösers wird die Bremse
betätigt und der Bit sofort angehalten.
4. Nach der Verwendung den Hebel auf die
Mittenposition zurückstellen (Schalter-
sperre).
Linkslauf - Schalterbetäti-
gung
1. Für Linkslauf den Hebel drücken. Die Dreh-
richtung vor dem Betrieb prüfen.
2. Drücken Sie den Schalter leicht, um das
Werkzeug langsam zu starten.
3. Nach der Verwendung den Hebel auf die
Mittenposition zurückstellen (Schalter-
sperre).
