Panasonic NI-L45NR User manual

Panasonic
Electronic Steam Iron
Operating Instructions
Model No.NI-L45NR
NL-L45NR
Please
read
these
instructions
carefully
before
using
this
product
and
save
this
manual
for
future
use.
For assistance, please call: 1-800-211-PANA (7262)
or send e-mail to : [email protected]
or
visit
us
at
WWW.
panasonic.com
(USA)
For assistance, please call : 787-757-4300
or
visit
us
at
WWW.
panasonicpr:com
(Puerta
Rico)

IMPORTANT
SAFEGUARDS
When
using
your
flatiron,basic
safety
precautions
should
always
be
followed,
including
the
following:
READ
ALL
INSTRUCTIONS
BEFORE
USING
1. Use iron only for its intended use.
2.
To
protect
against
a
risk
of
electric
shock,
do
not
immerse
the
iron
in
water
or
other
liquids.
3.
The
iron
should
always
be
turned
to
OFF
before
plugging
or
unplugging
Power
base
cord
from
outlet.
Never
yank
cord
to
disconnect
from
outlet;
instead,
grasp
plug
and
pull
to
disconnect.
4.
Do
not
allow
cord
to
touch
hot
surfaces.
Let
iron
cool
completely
before
putting
away.
Bundle
up
power
base
cord
band
when
storing.
5.
Always
disconnect
power
base
cord
from
electrical
outlet
when
filling
iron
with
water
and
when
not
in
use.
Be
careful
to
avoid
spilling
water
over
iron
when
filling.
6.
Do
not
operate
iron
with
a
damaged
cord
or
if
the
iron
or
power
base
has
been
dropped
or
damaged.
To
avoid
a
risk
of
electric
shock,
do
not
dis-
assemble
the
iron
or
power
base,
take
it
to
a
qualified
serviceman
for
ex-
amination
and
repair.
Incorrect
reassembly
can
cause
a
risk
of
electric
shock
when
the
iron
is
used.
7.
Close
supervision
is
necessary
for
any
appliance
being
used
by
or
near
children.
Do
not
leave
iron
unattended
while
connected
to
an
electrical
outlet
or
on
an
ironing
board.
Always
position
iron
carefully
to
prevent
it
from
falling
if
ironing
board
is
accidentally
bumped
or
if
cord
is
pulled.
When
not
in
use,
always
place
iron
securely
into
power
base.
8.
Burn
can
occur
from
touching
hot
metal
parts,
hot
surface
of
the
power
base,
hot
water,or
steam.
Use
caution
when
you
turn
a
steam
iron
upside
down-there
may
be
hot
water
in
the
reservoir.
SPECIAL
INSTRUCTIONS
1.
To
avoid
a
circuit
overload,
do
not
operate
another
high
wattage
appliance
on
the
same
circuit.
|
2.
if
an
extension
cord
is
absolutely
necessary,
a
12
ampere
cord
should
be
used.
Cords
rated
for
less
amperage
may
overheat.
Care
should
be
taken
to
arrange
the
cord
so
that
it
cannot
be
pulled
or
tripped
over.
SAVE
THESE
INSTRUCTIONS
©
2002
Matsushita
Electric
industrial
Co.,
LTD.
All
rights
reserved.
-2-

COMPONENTS IDENTIFICATION
Jet of steam button Steam Button
Up: Regular Steam
Med: Light Steam
Down: Non-Steam(Dry)
A
w=
WATER FILL i =)
OPENING N
C a
o O a
CS DS
MAXIMUM aE i
LEVEL INDICATOR —
EF
N - —— )
Handle
Fabric Guide
Chart
Power Base
AC Power Cord
Release Button
Cover Case

MAKING ACQUAINTANCE WITH YOUR CORDLESS IRON
Read these instructions to become familiar with the iron and its features.
How does it work?
A cordless iron, as you can see, has no electrical cord directly attached to itself, Therefore,
you might wonder how the heat will be maintained.
tf you'll think back on how you've been ironing, you'll remember that you've always placed the
iron somewhere to be able to have two hands free, so that you can move the garment on your
ironing board.
Since the remaining heat of the soleplate is used for ironing with a cordless iron, it requires to
be placed on its power base and nowhere else.
The iron will re-heat quickly every time it is placed on the power base and maintains its tem-
perature by repeating these movements.
NOTE:
A cordless iron is NOT a rechargeable device. You can not continuously use this iron without
having it placed on the power base.
TIPS AND HINTS BEFORE USING YOUR IRON
1. Most ordinary tap water can be used in this iron. However, in extremely hard water areas,
distilled or demineralized water should be used. Do not use water processed through home
water softening systems, since this water contains minerals that may be harmful! to the iron.
2. It is best to start ironing with garments which require lower temperature settings. Wrong
temperature setting may damage the fabric. if you are not sure of the fabric content, try the
temperature of the iron on an hidden area of the garment.
3. Before ironing, sort the garments according to the different heat settings required.
Do not touch plastic buttons with hot iron, for this may damage the buttons.
Also caution is required when ironing around zippers and similar items which might scratch
the soleplate.

As a guide to the international Textile Care Labeling code,the following symbols are noted for
your information.
INTERNATIONAL TEXTILE CARE & LABELING CODES
TAAO
Washing Bleaching Ironing Dry Cleaning
A symbol crossed out indicates that the article of clothing
must not be subjected to the particular treatment.
EXAMPLE:(DO NOT BLEACH) X ;
1. Place the unit on a firm and stable surface.
2. While pulling the case lock to the outside position, lift the cover case to open.
The cover case cannot be opened when the unit is held in the air.
HOW TO FILL WATER @Remove the tap
Make sure the iron is turned off and the AC power cord is
unplugged from the electrical outlet. The iron can be filled
with the water tank in place or removed. Confirm that the
steam button is pressed to the dry ironing position(DOWN)
when installing or removing the tank.
1. Remove the water tank by pressing the water tank release button.
2. Open the water fill cover.
3. Fill the tank up to * MAX " line.
DO NOT OVERFILL. Check the water
level with the water tank held in its vertical position.
Hold the tank upright and
fill it with water up to
the full scale mark
-5-

4. Close the water fill cover.
5. Re-install the water tank to the main unit.
Press until a click sound is heard.
Push the tan
until it clicks
back in place
HOW TO SUPPLY ELECTRICITY
The iron must be set securely on the power base in order to supply electricity.
Electricity will only be provided while the iron is placed on the power base.
Should you desire to place the iron while moving the garment on your ironing
board, the iron must be placed nowhere else than the power base.
The power base will keep the temperature of the iron at selected level.
HOW TO CONTROL TEMPERATURE
=> How to operate the temperature control pad
1. Every time you push the temperature control pad, the temperature
indicator light moves to the next position, a higher temperature.
2. Desired temperature can be chosen by pushing the pad until the light
comes to its certain position.
TEMPERATURE INDICATOR LIGHTS ( RED):
* Continuously blinks until the iron reaches its
selected temperature.
* Turns on continuously when the iron has reached
its selected temperature to let you know that you
can start ironing
“OFF” LIGHT ( GREEN):
This light turns on when;
* The cord is plugged into the outlet
* The iron has automatically shut itself off.
* The iron has been manually turned off
NOTE: All the light will turn off, once the iron leaves the power base. They will turn on again
when the iron is re-placed.

| HOWTOUSEASSTEAMIRON __ |
1. Fill iron with water. See section ° How to Fill Water ".
2. Plug the cord into a standard electrical outlet.
3. Set the iron on the power base securely, the green " OFF “ light will turn on.
NOTE: If the green light does not turn on, replace the iron on the power base
again, otherwise the temperature set pad can not function.
4. Push the "SET ° pad until the red light for " STEAM “starts blinking.
See section “ HOW to Contro! Temperature ".
( Steam Button }
"Water Fill Opening "
" Steam Button "
"steam Button "
Up: for Regular Steam
Med: for Light Steam
Down: for Non-Steam( Dry)
2("MID")
3("HIGH")
HOW TO USE AS A DRY IRON
1. Press the steam button down to the dry position.
2. Plug the cord into a standard electrical outlet.
3. Set the iron on the the power base securely, the green " OFF " light will turn on.
NOTE: If the green light does not turn on, replace the iron on the power base again,
otherwise the temperature set pad can not function.
4. Push the " SET " pad until the red blinking light reaches your desired heating level.
Steam button should be at " DOWN " position. (See drawing above)

SPECIAL FUNCTIONS
1. Jet of Steam
A powerful jet of steam will burst out with air, eliminating ugly wrinkles and cleaning
the steam holes at the same time.
Powerful steam has the following effects.
a) Deodorizing.
Steam removes uncomfortable odors caused by cigarette smoke, sweat, insecticide,
etc.
b) Sterilizing.
Germs and bacteria are killed by hot steam as it penetrates through the fabric.
c) Removing static electricity.
Irritating static electricity is removed by steam instantly.
d) Revives worn fabrics
= Wool Steam will bring old worn out wool back to life. Wool carpets pressed
by heavy furniture can aslo be revived by steam.
> Fur Fur items which have been stored away during the summer time are
sometimes disfigured. By adding steam, you can restore the fluffy and
shiny fur back.
NOTE: Do not touch the fabric with the iron, Keep the iron slightly over the
fabric to prevent burns or disfiguring.
Jet of Steam can be provided by pumping the ° Jet of Steam Button ".
Set temperature at " HIGH ” level.
To avoid hot water from dripping out of the soleplate, please give 2-5 seconds of
interval time before re-pumping
2.Auto-Valve System ( Automatic Water Seal )
This model has an Auto-Valve System, When the temperature of the soleplate's
surface drops below 250° F, the valve for the vaporizing chamber in the iron
automatically close and stops the water from going in further. This prevents
hot unvaporized water from spitting out from the soleplate when the iron has
cooled down. with this system, it is unnecessary for you to wait until the inside
of the vaporizing chamber dries completely when you store the iron.
NOTE: It is no sign of malfunction when you hear a clicking sound.
This sound can be heard whenever this system is activated.
3. Automatic Shut-off
The Automatic Shut-off system provides you with a visible warning signal before
the iron automatically shut off. If after 10 minutes the iron has been left on the
power base unmoved, the iron will automatically shut itself off. 10 seconds before
the actual shut-off, the " OFF/AUTO OFF ° indicator will start blinking rapidly.
If the iron is not moved during the warning, it will automatically shut off the power to
the heater in the iron's soleplate.

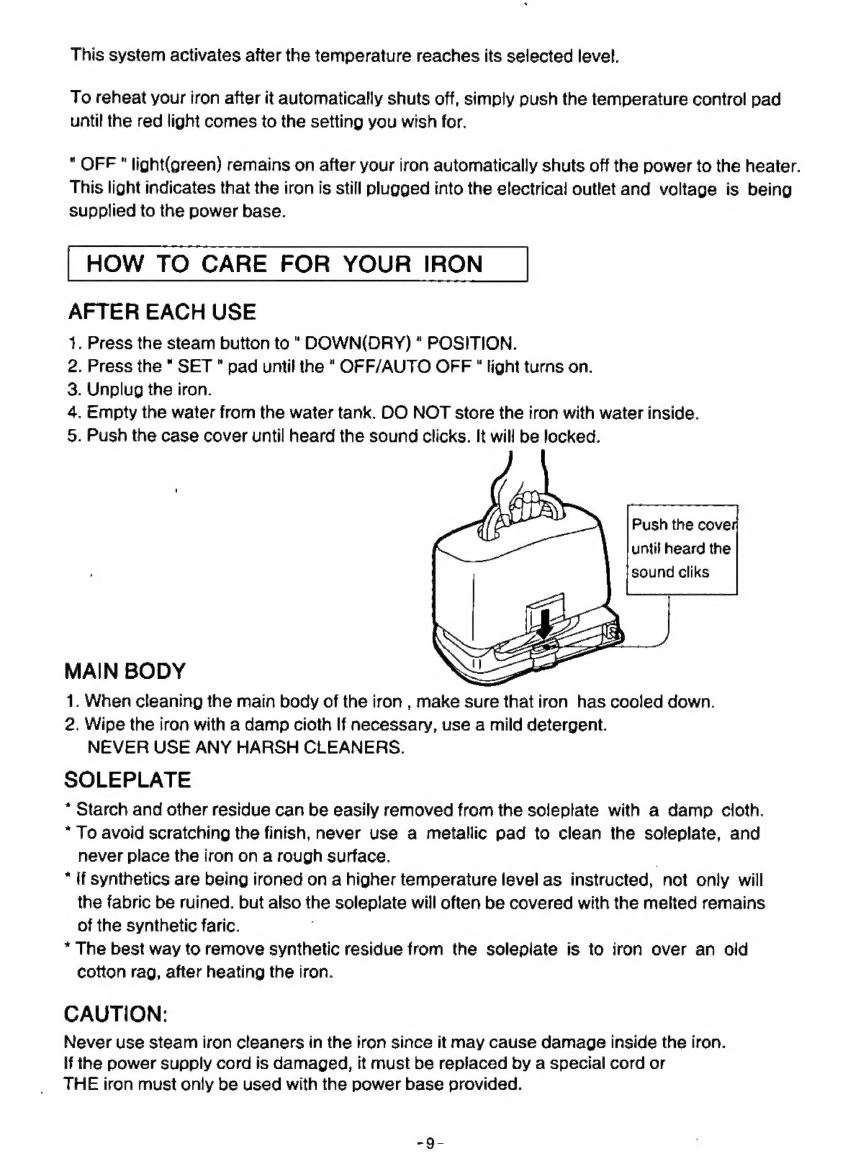

This system activates after the temperature reaches its selected level.
To reheat your iron after it automatically shuts off, simply push the temperature control pad
until the red light comes to the setting you wish for.
"OFF" light(green) remains on after your iron automatically shuts off the power to the heater.
This light indicates that the iron is still plugged into the electrical outlet and voltage is being
supplied to the power base.
HOW TO CARE FOR YOUR IRON
AFTER EACH USE
1. Press the steam button to " DOWN(DRY) " POSITION.
2. Press the " SET " pad until the " OFF/AUTO OFF " light turns on.
3. Unplug the iron.
4. Empty the water from the water tank. DO NOT store the iron with water inside.
5. Push the case cover until heard the sound clicks. It will be locked.
until heard the
sound cliks
MAIN BODY
1. When cleaning the main body of the iron , make sure that iron has cooled down.
2. Wipe the iron with a damp cioth If necessary, use a mild detergent.
NEVER USE ANY HARSH CLEANERS.
SOLEPLATE
* Starch and other residue can be easily removed from the soleplate with a damp cloth.
* To avoid scratching the finish, never use a metallic pad to clean the soleplate, and
never place the iron on a rough surface. l
“if synthetics are being ironed on a higher temperature level as instructed, not only will
the fabric be ruined. but also the solepiate will often be covered with the melted remains
of the synthetic faric.
* The best way to remove synthetic residue from the soleplate is to iron over an old
cotton rag, after heating the iron.
CAUTION:
Never use steam iron cleaners in the iron since it may cause damage inside the iron.
lf the power supply cord is damaged, it must be replaced by a special cord or
THE iron must only be used with the power base provided.
-9-

FABRIC IRONING CHART
NOTES: 1. Check garment for specific ironing instructions, Always follow manufacturer's
instructions.
2. Iron blended fabrics at setting for lower-temperature fiber or for the
highest percentage fiber.
3. Use caution, some synthetics may melt at high temperature.
Temperature:
Pabna
l
]
Selector
Setting
Ironing
Recommendations
ACRYLIC
,
* ACRILAN Dry iron on reverse side, or use a press cloth on
* CRESLAN .top of fabric. Don't sprinkle water directly on
1 * ORLON fabric to avoid spots.
ACETATE To iron suede, cover ironing board with brown
METALLICS paper.and use it as a press cloth.
SUEDE
NYLON
* ANTORON Dry iron on reverse side.
* CAPROLAN
SILK
PERM. PRESS
RAYONS
POLYESTER
x DACRON
* FORTREL
* KODEL
TRIACETATE
* ARNEL
W'n W COTTON
WOOL
VELVET
* Trademarks of Fiber Manufacturers.
Dry iron on reverse side. To touch-up collars,
cuffs, pockets, etc..., lightly iron the surface.
Steam ironing is suggested. Never iron completely . but
leave it with little moisture. To iron velvet, use steam but
do not let the iron touch the fabric. Hold it slightly above
the surface.
Steam ironing is suggested. Sprinkle water on the fabric,
depending on its thickness. tron dark fabrics on reverse
side to avoid unwanted sheen.
Steam ironing is suggested. Iron dark fabrics on reverse
side to avoid unwanted sheen.
Panasonic Consumer Electronics Panasonic Sales Company,
Company, Division of Matsushita Division of Matsushita Electric of
Electric Corporation of America Puerto Rico, Ink.{“PSC*)
One Panasonic Way Secaucus Ave. 65 de Infanteria. Km, 9.5
New Jersey 07094 San gabriel Industrial Pack, Carolina.
Puerto Rico 00985
consumerproducts @ panasonic.com i82000-0K64A
-10-
