Panasonic TX-24CS500E User manual
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and
retain them for future reference.
Please carefully read the “Safety Precautions” of this manual before use.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.
English
Nederlands
For more detailed instructions, please refer to
[eHELP] (Built-in Operating Instructions).
How to use [eHELP] (p. 15)
Model No.
TX-24CS500E
English
Operating Instructions
LCD Television
2
English
Contents
Be Sure to Read
··················································· 3
3
Quick Start Guide
6
7
11
13
Using your VIERA
14
15
Others
16
17
17
3
English

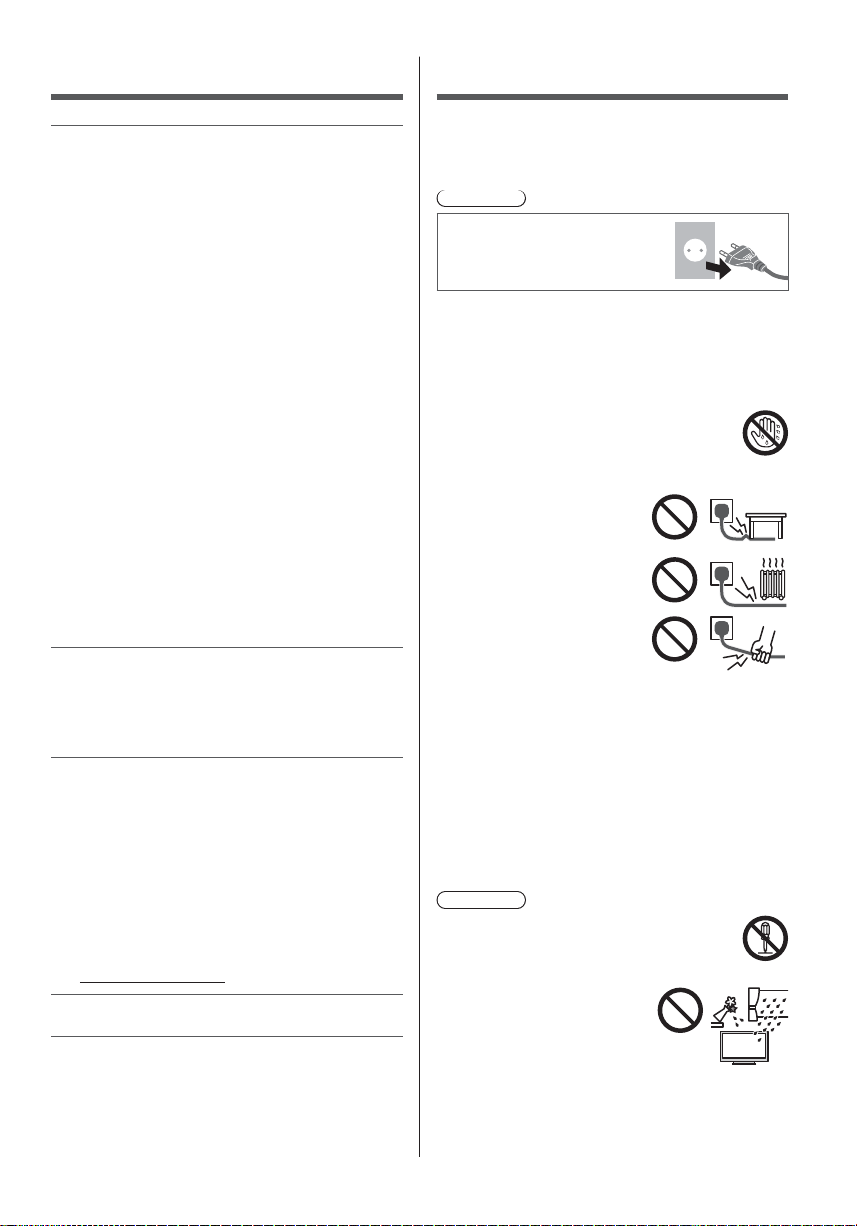

Safety Precautions
Mains plug and lead
Warning
Take care
Warning
Important Notice
Notice for DVB / Data broadcasting /
IPTV functions
http://panasonic.net/viera/support
4
English
Radio waves
Warning
Built-in wireless LAN
Caution
*
*
Ventilation
Caution
10 10 10
10
To prevent the
spread of fire, keep
candles or other
open flames away
from this product at
all times
Suffocation / Choking Hazard
Warning
Pedestal
Warning
Caution
5
English
LCD Television
Declaration of Conformity (DoC)
Moving the TV
Caution
When not in use for a long time
Caution
Excessive volume
Caution
Battery for the Remote Control
Caution
6
English
Assembling / Removing the pedestal
Assembly screw (2)
Pedestal
Assembling the pedestal
2
1
A
B
Removing the pedestal from the TV
1
2
Accessories
Remote Control
(p. 11)
Pedestal
(p. 6)
Mains lead
(p. 7)
Batteries (2)
(p. 12)
Operating Instructions
Pan European Guarantee Card
7
English
Basic connections
Mains lead
Insert the mains plug firmly into place.
Aerial
Cable
DVB-via-IP client connection
Wired connection
Cable
Connections
Terminals
9
8
7
1
2
3
45
6
1 DIGITAL AUDIO
2 HDMI1 - 2 (p. 8, 9)
3 AV1 (SCART) (p. 8)
4 ETHERNET (p. 7, 8)
5 AV2 (COMPONENT / VIDEO) (p. 9)
6 Terrestrial / cable terminal (p. 7, 8)
7 Headphone jack (p. 9)
8 USB port
9 CI slot (p. 9)
8
English
DVD Recorder (VCR) / Set top box
Cable
Network
(p. 13)
Wired connection
Wireless connection
Wireless connection
Cable
AV devices
DVD Recorder / VCR
Cable
9
English
Headphones
[Headphone Volume] in the Sound Menu
[Speaker Setting] in the Sound Menu
Common Interface
[Common Interface] in the Setup Menu
CI module
Other connections
DVD Player
Camcorder / Game equipment
Amplifier
10
English
VIERA Link
11
English
8 [Option Menu]
9 Coloured buttons
(red-green-yellow-blue)
10
Volume Up / Down
11
Numeric buttons
12
[eHELP]
13
Input mode selection
14
Aspect
15
Subtitles
16
Exit
17
Netflix
18
HOME
19
Cursor buttons
20
Return
21
Channel Up / Down
22
Sound Mute On / Off
23
Last view
24
Operations for contents, connected equipment,
etc.
Identifying Controls
Remote Control
1 Standby On / Off switch
2 TV Guide
3 [Main Menu]
4 Teletext button
5 Information
6 APPS
7 OK
12
English
7 Mains power On / Off switch
Installing / Removing batteries
Indicator / Control panel
7
5
4
6
123
1 Remote control signal receiver
2 Ambient sensor
3 Power LED
Red:
Green:
Orange:
4 Input mode selection
[Main Menu]
OK
5 Channel Up / Down
6 Volume Up / Down
13
English
Tick the TV signal mode to tune, and then select
[Start Auto Setup]
3Select the type of [Home Screen]
Auto Setup is now complete and the
TV is ready for viewing.
Note
[Auto Setup] in [Tuning Menu] (Setup Menu)
[Add TV Signal] in [Tuning Menu] (Setup Menu)
[Shipping Condition] in [System Menu] (Setup
Menu)
First time Auto Setup
1Plug the TV into a live mains socket
and turn the power on
2Select the following items
Please select your viewing environment.
Home Shop
How to use the remote control
Select the language
Select [Home]
Set up the network connection
Select your country
14
English
3Select a channel
To access each feature
Access [APPS List] and select a feature
Operation
Turn power on
Watching TV
1Select the TV viewer from [Home
Screen]
2Select the mode
TV Selection
DVB-C
DVB-T
Analogue
DVB-via-IP
15
English
How to Use eHELP
1Display [eHELP]
[Help] [eHELP]
2Select the category and item
16
English
When pushed with a finger, the display panel moves
slightly and makes a noise
FAQs
The TV does not switch on
The TV goes into Standby mode
The remote control does not work or is intermittent
(p. 12)
No image is displayed
An unusual image is displayed
[TV Self Test] (Help Menu)
[Shipping Condition] in [System Menu] (Setup
Menu)
Parts of the TV become hot
17
English
Specifications
TV
Model No.
Dimensions (W × H × D)
Mass
Power source
Panel
Sound
Speaker output
Headphones
Connection terminals
AV1 input / output
SCART
AV2 input (COMPONENT / VIDEO)
VIDEO
:
AUDIO L - R
Y
PB/CB, PR/CR
HDMI 1 / 2 input
Card slot
Maintenance
First, remove the mains plug from the
mains socket.
Display panel, Cabinet, Pedestal
Regular care:
For stubborn dirt:
Caution
Mains plug
18
English
Operating conditions
Temperature
Humidity
Built-in wireless LAN
Standard compliance and Frequency range*
Security
*
Note
ETHERNET
USB Port
DIGITAL AUDIO output
Receiving systems / Band name
DVB-C
DVB-T/T2
PAL B, G, H, I
SECAM B, G
SECAM L, L’
PAL D, K
SECAM D, K
PAL 525/60
M.NTSC
NTSC (AV input only)
Aerial input
19
English
When using the wall-hanging bracket
Depth of screw
Minimum : 8 mm
Maximum : 12 mm
Diameter: M4
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean that
used electrical and electronic products and batteries must not be mixed with general
household waste.
For proper treatment, recovery and recycling of old products and batteries, please take
them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Web Site: http://www.panasonic.com
© Panasonic Corporation 2015
English
TQB0E2573U
Printed in the Czech Republic
