Panasonic tx-l55wt65b Assembly instructions

e
HELP
English
TX-L47WT65B
TX-L55WT65B

- 2 -
Watching
my Home Screen
•Information 11
•How to use 12
•Settings 13
Basic
•Satellite connection 15
•Basic connection 16
•Selecting channel 19
•Information banner 21
•Option Menu 23
•Subtitle 25
•Off Timer 26
•Last view 26
External equipment
•External connection 27
•Watching external input 31
•Operating with TV’s remote control 33
•HDMI features 35
•Terminal information 37
•Valid input signals 38
For best picture
•Viewing Mode 39
•Ambient Sensor 40
•Auto power standby function 40
•Aspect 41
•Aspect Control Signal 42
•Advanced Settings 44
•Lock Settings 48
•Copy Adjustment 48
For best audio
•Sound mode 49

- 3 -
TV Guide
•Using TV Guide 50
•Timer Programming 53
•Guide link programming 54
Teletext
•Digital text service 55
•Viewing Teletext 56
•Teletext mode 58
3D
•Note 59
•3D Eyewear - Maintenance 59
•Viewing 3D 60
•3D Mode Selection 61
•3D Settings 62
•Source image format 64
Tuning and editing channels
•Setting menu 65
•Favourites Edit 66
•Channel List 69
•Regional Channel Edit 70
•Auto Setup 71
•Channel Sorting by Region 73
•Manual Tuning 74
•Update Channel List 75
•New Channel Message 75
•Signal Condition 75
•Add New Channels 76
Recording
USB HDD setup
•Preparations 77
•Setting for USB HDD 78

- 4 -
Recording current programme
•One Touch Recording 80
•Rewind LIVE TV 81
Timer Programming
•Setting timer programming 83
•Editing timer programming 85
•Note 87
Technical information
•USB HDD 88
Internet service
Internet content
•Information 89
•Selecting internet content 90
•Note 91
Network connections
•Internet connection 92
•Note 93
Network settings
•Network Connection 94
•Custom - Wireless 96
•Custom - Wired 98
•Network Status 100
•VIERA remote Settings 100
•Network Link Settings 100
•Software Update 100
•New Software Message 100
Home network
DLNA
•Information 101
•Using DLNA 104

- 5 -
Network connections
•DLNA connection 105
•Note 107
Network settings
•Network Connection 108
•Custom - Wireless 110
•Custom - Wired 113
•Custom - Wireless Access Point 114
•Network Status 115
•VIERA remote Settings 116
•Network Link Settings 117
•Software Update 118
•New Software Message 118
Photos
•Selecting file 119
•Viewing photo 120
•Using slideshow 120
Videos
•Selecting file 122
•Watching video 123
•Video Setup 124
•Audio output settings 125
Music
•Selecting file 126
•Playing music 127
•Music Setup 127
DIGA Recorder
•Controlling DIGA Recorder 128
Technical information
•Photo format 129
•Video format 130
•Music format 133

- 6 -
Media Player
Using Media Player
•Information 134
•Selecting device / mode 136
Photo mode
•Selecting file 138
•Viewing photo 139
•Sorting photos 139
•Multi Shot 3D 140
•Using slideshow 141
Video mode
•Selecting file 145
•Watching video 146
•Video Setup 148
•Audio output settings 149
Recorded TV mode
•Selecting content 150
•Watching recorded TV 151
•Grouping contents 152
•Deleting content 153
•Changing device 153
•Chapter List 153
•Audio output settings 154
Music mode
•Selecting file 155
•Playing music 156
•Music Setup 156
Technical information
•Device handling caution 157
•SD Card 157
•USB devices 158
•Photo format 159
•Video format 160

- 7 -
•Music format 163
Functions
APPS List
•Information 164
•How to use 164
•Settings 165
Multi Window
•Information 166
•How to use 167
•Note 169
VIERA Link “HDAVI Control™”
•Summary of VIERA Link 170
•Preparations 174
•Easy playback 175
•Power on Link 175
•Power off Link 175
•Standby Power Save 175
•Intelligent Auto Standby 176
•VIERA Link Control 176
•Speaker Selection 177
•Note 178
Child Lock
•Using Child Lock 179
•PIN number 180
•Parental Rating 181
Common Interface
•Caution 182
•Using Common Interface 183
Shipping Condition
•Shipping Condition 184
Updating the TV Software
•Information 185

- 8 -
•Auto update 185
•Manual update 186
Setting characters
•Using numeric buttons 187
Built-in Camera
•Using built-in Camera 188
Voice Control
•Preparations 189
•How to use 190
Bluetooth devices
•Bluetooth Setup 191
Keyboard / Gamepad
•Keyboard 193
•Gamepad 194
Settings
Setting menu
•How to use 195
•Viewing Mode 197
•Basic settings 198
•Ambient Sensor 198
•Noise reduction settings 198
•Resolution Remaster 199
•Caption Smoother 199
•Brilliance Enhancer 199
•Intelligent Frame Creation 199
•24p Smooth Film 199
•Advanced Settings 199
•Option Settings 200
•Screen Settings 201
•3D Settings 203
•Lock Settings 204

- 9 -
•Copy Adjustment 204
•Reset to Defaults 204
Sound
•Mode 205
•Basic settings 206
•Volume settings 207
•Voice Guidance Settings 208
•Audio Description 209
•Advanced settings 210
•Reset to Defaults 211
Network
•Network Connection 212
•Network Status 212
•VIERA remote Settings 212
•Network Link Settings 212
•Other settings 212
Timer
•Off Timer 213
•Timer Programming 213
•Time Zone 213
•Auto Standby 213
•No signal Power off 213
Setup
•Eco Navigation 214
•Voice Control Settings 214
•TV Guide Settings 214
•USB Device Setup 214
•Recording Setup 214
•VIERA Touch Pad Controller 215
•Bluetooth Setup 215
•Child Lock 215
•Tuning Menu 216
•Language 218

- 10 -
•Display Settings 219
•VIERA Link Settings 221
•Professional Mode (isfccc) 221
•System Menu 222
•Other Settings 223
Support
FAQs
•Picture 224
•Digital TV 226
•Analogue TV 228
•Sound 229
•3D 230
•HDMI 231
•Network 232
•Other 233
Maintenance
•Care and Cleaning 235
Information
•Using Help menu 236
Optional accessories
•3D Eyewear 237
•Wall-hanging bracket 237
Licence
•Licence 238
OK Letters enclosed in a box indicate remote control buttons.
Menu Letters in cyan indicate on-screen display items.
References in this eHELP
●The images shown in this eHELP are for illustrative purposes only.

- 11 -
Watching
my Home Screen
Information
“my Home Screen” is a gateway to the TV, applications, and more.
It provides easy access to special features such as the Media Player, videos,
games, communication tools, etc. as shown below (example).
HOME
OK
OK HOME
Home Screen
Selected content screen (TV, application, etc.)
Home Screen Selection
– Your preferred Home Screen can be selected or added.

- 12 -
How to use
Home Screen provides access to special features such as the Media Player,
TV, internet content, data services, communication tools, etc.
1. Display Home Screen with HOME
(Example)
●The last viewed Home Screen is displayed when the TV is turned on.
●Press again to select or add your preferred Home Screen layout.
Watching my Home Screen Settings

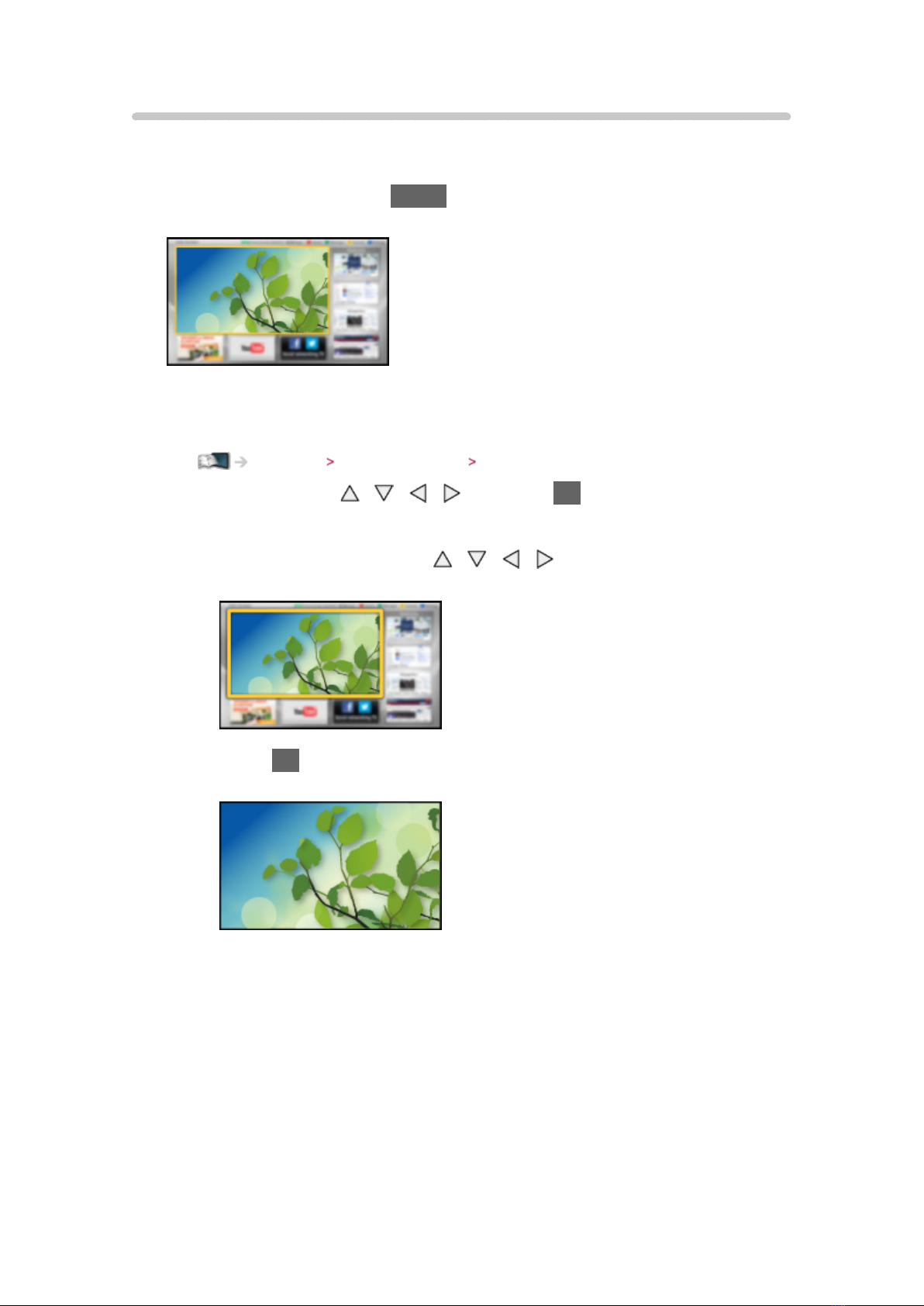

2. Select a feature with / / / and press OK to access
●To watch full-screen TV
1) Select the TV viewer with / / /
(Example)
2) Press OK to watch
(Example)
●Also refer to Tutorial from the tool guide.

- 13 -
Settings
Select the setup menu from the tool guide on the top of the screen, or use
coloured button to display the setup menu.
(Example)

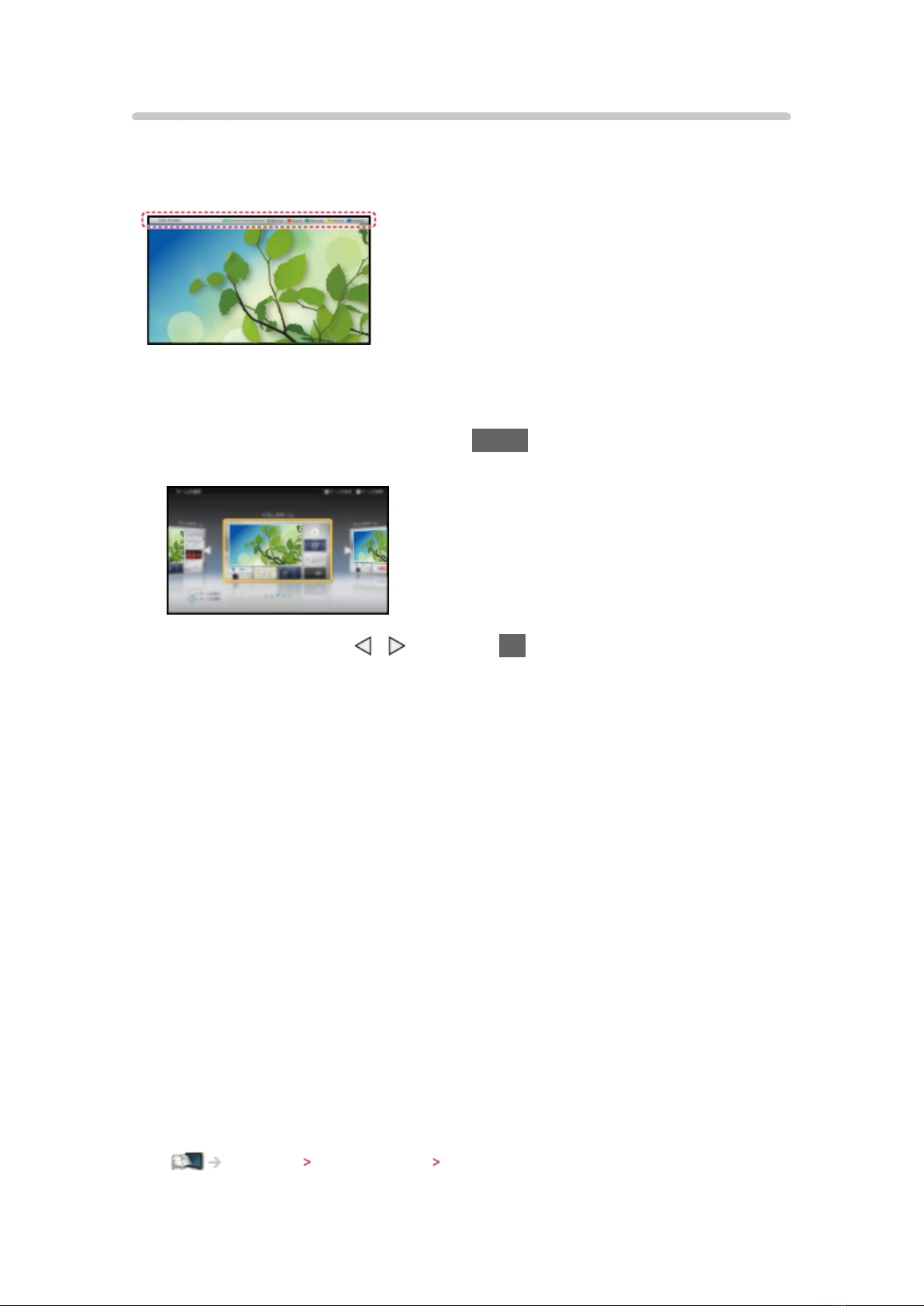

■Home Screen Selection
1. Display Home Screen Selection with HOME
(Example)
2. Select the screen with / and press OK to set
Full Screen TV:
Displays full-screen TV
TV Home Screen:
To make your TV experience more convenient and comfortable.
Lifestyle Screen:
Displays the TV with useful information and services for everyday life.
Info Screen:
Enjoy internet content while watching TV.
Add New Screen:
You can add a new screen to personalise.
■Face Recognition
By using the built-in Camera, you can select the registered Home Screen with
face recognition. Please refer to Tutorial from the tool guide.
●For details of the built-in Camera
Functions Built-in Camera Using built-in Camera

- 14 -
■Settings
You can customise any Home Screen. (For example, changing the wallpaper,
renaming freely, editing applications, setting the screen launched when the
TV is turned on, etc.)
1. Select Settings from the tool guide
2. Follow the on-screen instructions
■Search
You can search the content from various features.
1. Select Search from the tool guide
2. Follow the on-screen instructions
= Note =
●To use this function fully, you need a broadband network environment.
Ensure the network connections and network settings are completed.
Internet service Network connections
Internet service Network settings
●Be sure to update the software when a software update notice is displayed
on the TV screen. If the software is not updated, you will not be able to use
my Home Screen. You can update the software later manually.
Internet service Network settings Software Update

- 15 -
Basic
Satellite connection
Please ensure that the unit is disconnected from the mains socket before
attaching or disconnecting any cables.
●For freesat, Other Sat. / Satellite

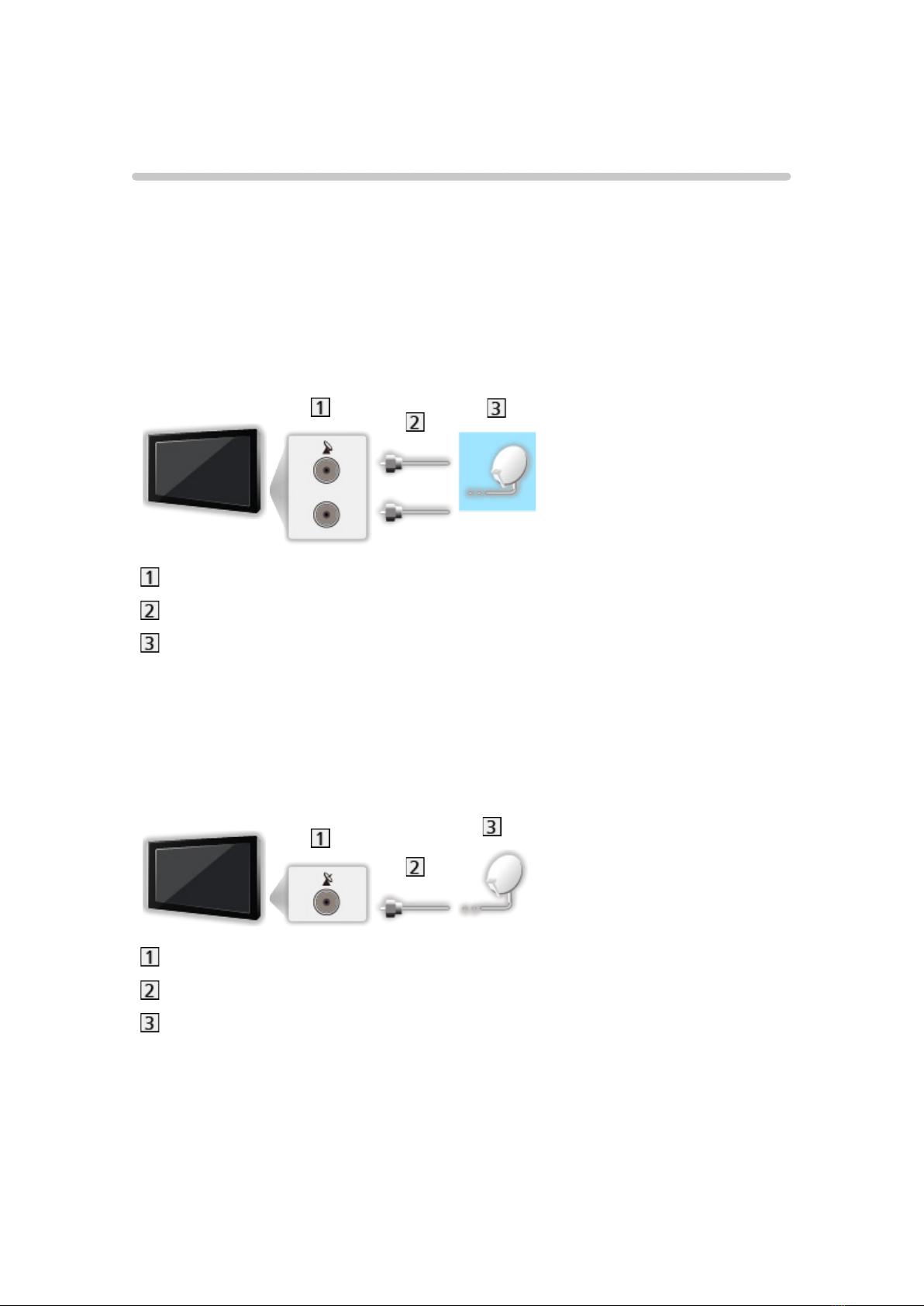

■Dual tuner
Connect the both of satellite IN 1 / IN 2 terminals to the satellite dish, and you
can watch or record 2 satellite programmes simultaneously, etc.
Satellite IN 1 / IN 2 terminals
Satellite cables
Satellite dish
■Single tuner
Connect the satellite IN 1 terminal to the satellite dish.
●Watching or recording 2 satellite programmes simultaneously, etc. are not
available.
Satellite IN 1 terminal
Satellite cable
Satellite dish

- 16 -
= Note =
●To ensure your satellite dish is correctly installed, please consult your local
dealer. Also consult the received satellite broadcasting companies for
details.
●The freesat channel uses Astra2 at 28.2° East and Eurobird1 at 28.5° East
satellites. To ensure your satellite dish is correctly installed, consult your
freesat registered dealer. (UK only)
●External equipment and cables shown are not supplied with this TV.
●Keep the TV away from electronic equipment (video equipment, etc.) or
equipment with an infrared sensor, otherwise distortion of image / sound
may occur or operation of other equipment may be affected.
●Check the terminal type and cable plugs are correct when connecting.
Basic connection
Please ensure that the unit is disconnected from the mains socket before
attaching or disconnecting any cables.

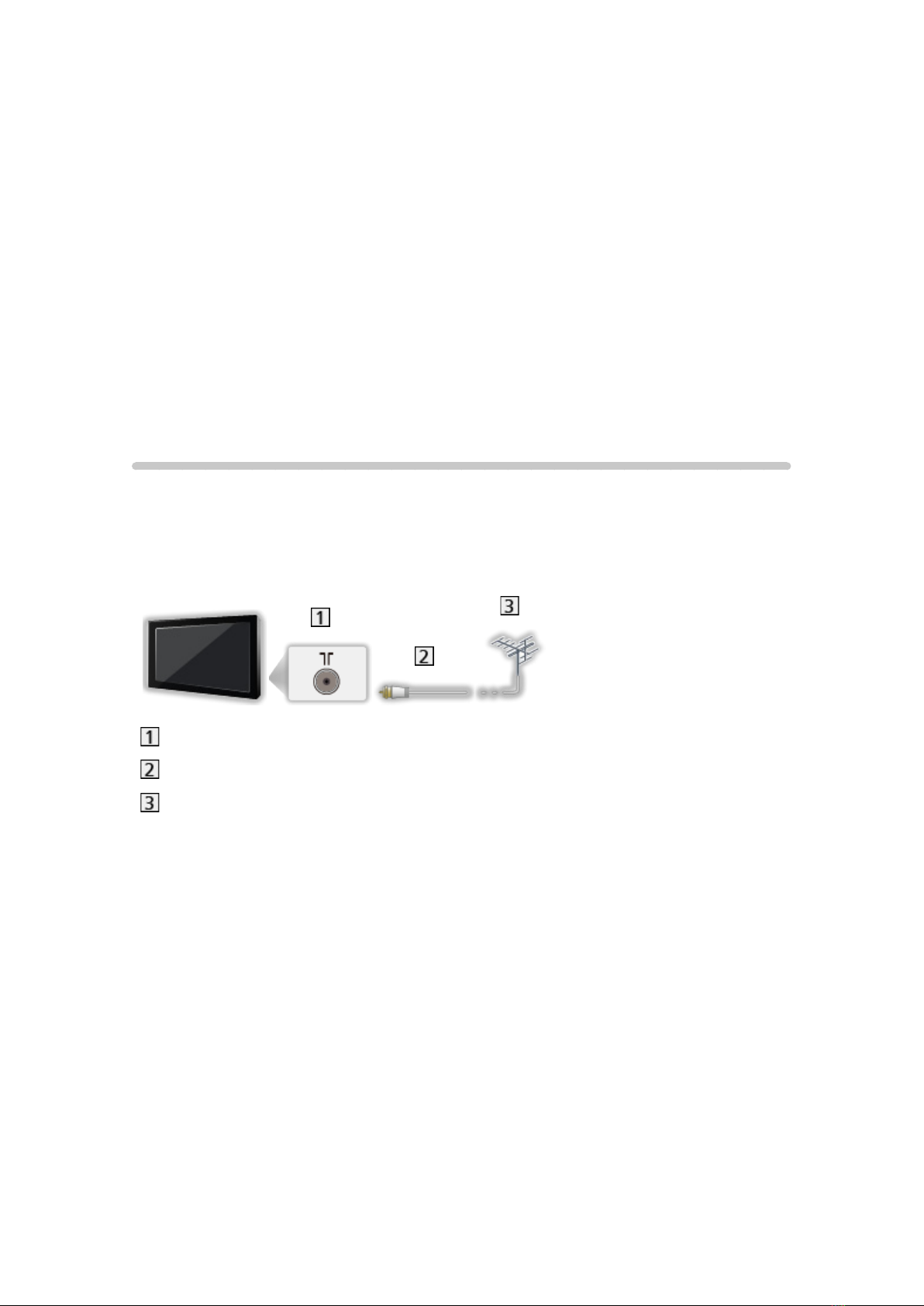

■Aerial
Terrestrial terminal
RF cable
Terrestrial aerial
●For DVB, Analogue

- 17 -
■DVD Recorder / VCR
Terrestrial terminal
RF cable
DVD Recorder / VCR
Terrestrial aerial
AV1 (SCART) terminal
SCART cable
– AV1 (SCART) adaptor (supplied) is necessary when connecting to the
TV.

- 18 -
■DVD Recorder / VCR and Set top box
HDMI terminal
HDMI cable
Cable TV box
Terrestrial aerial or cable
AV1 (SCART) terminal
SCART cable
– AV1 (SCART) adaptor (supplied) is necessary when connecting to the
TV.
RF cable
SCART cable
Terrestrial terminal
RF cable
DVD Recorder / VCR
●For VIERA Link connections
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link

- 19 -
= Note =
●External equipment and cables shown are not supplied with this TV.
●Please also read the manual of the equipment being connected.
●Keep the TV away from electronic equipment (video equipment, etc.) or
equipment with an infrared sensor, otherwise distortion of image / sound
may occur or operation of other equipment may be affected.
●When using a SCART or HDMI cable, it is recommended to use fully wired
one.
●Check the terminal type and cable plugs are correct when connecting.
Selecting channel
1. Display the TV Selection screen with TV
2. Select the mode with / and press OK to set
freesat (UK only) / DVB / Analogue / Other Sat. (UK only) / Satellite
(Ireland only)
●Other Sat. is displayed if Auto Setup is completed for Other Sat.
channels.
Watching Tuning and editing channels Auto Setup
●The selectable modes vary depending on the channels stored.
●You can also select the mode pressing TV repeatedly on the remote
control or INPUT/OK/HOLD for MENU button on the control panel of
the TV.
●If the TV Selection menu is not displayed, press TV to switch the mode.
3. Select a channel with Channel Up / Down or numeric buttons
●freesat channel position numbers are in the 100 - 999 and 0100 - 0999
ranges. DVB and Other Sat. / Satellite channel position begin from
number 1 upward. Analogue channel position numbers are in the 0 - 99
range.
■To select a channel using information banner
It is possible to confirm the channel name and programme information by
using the information banner before changing channels.
1. Display information banner with if it is not displayed
2. Select a channel with / and press OK to watch while the banner is
displayed
Watching Basic Information banner

- 20 -
■To select a channel using TV Guide
It is possible to confirm the channel and programme information by using TV
Guide (EPG) before changing channels.
1. Display TV Guide with GUIDE
2. Select the current programme or channel with / / / and press
OK to access
3. Select View with / and press OK to access (DVB)
– The current programme is displayed on the top left of the screen.
4. Press OK to exit TV Guide
Watching TV Guide Using TV Guide
■To watch pay-TV
●For information of the encrypted channels
Functions Common Interface Using Common Interface
●Consult the operator / broadcaster or CI module manufacturer for more
information and conditions of the services.
