Panasonic TH-43FS432M User manual

TH-43FS432M
7N07T

-2-
CONTENT
CONTENT-----------------------------2
Technical Specification------------3-14
Block Diagram ----------------------15
List of key parts-------------------16
IC BLOCK Diagram--------------------17-21
MAIN PCB-TOP------------------------22
Circuit Diagrams--------------------24

-3-
Technical Specification

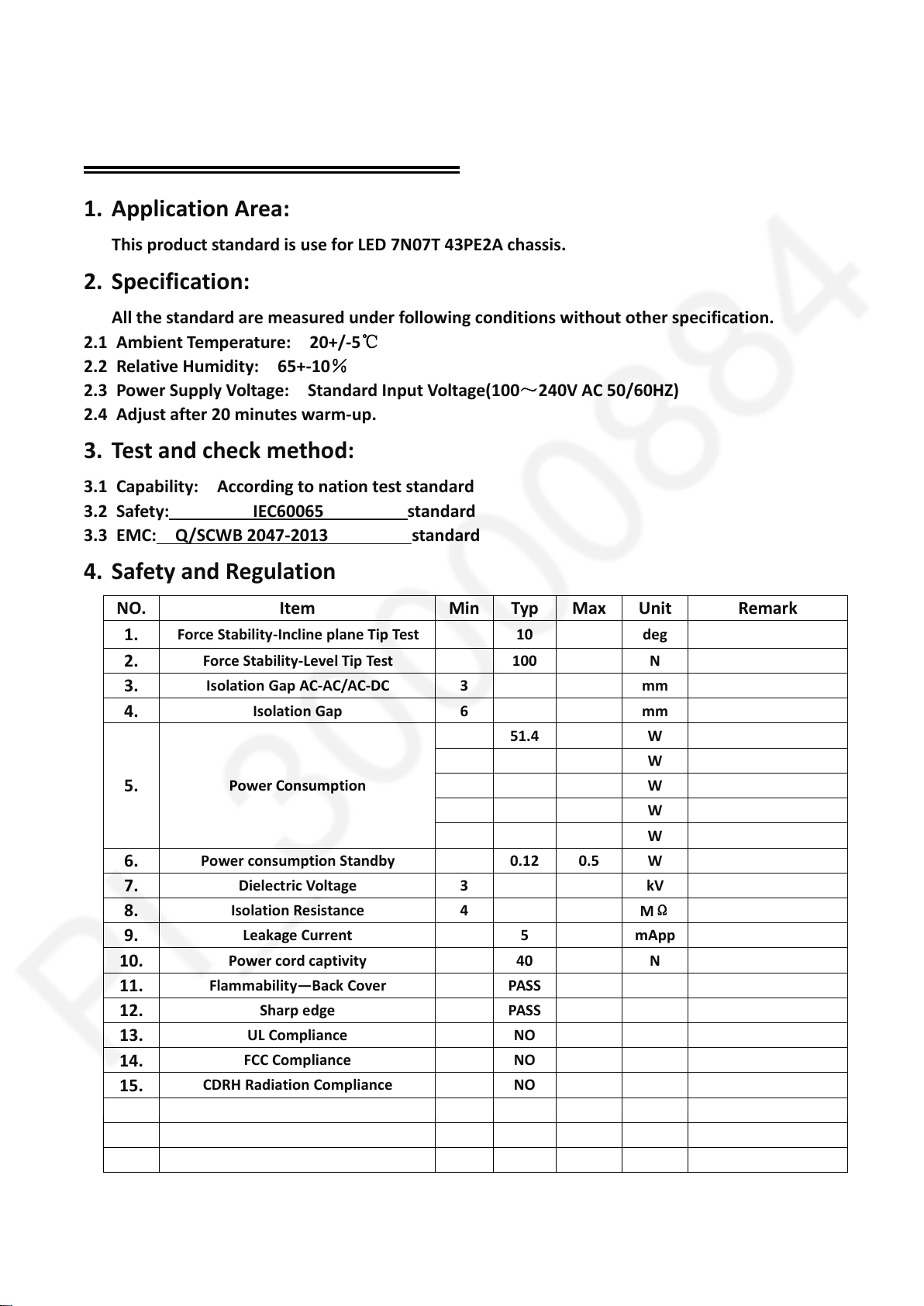

1. Application Area:
This product standard is use for LED 7N07T 43PE2A chassis.
2. Specification:
All the standard are measured under following conditions without other specification.
2.1 Ambient Temperature: 20+/-5℃
2.2 Relative Humidity: 65+-10％
2.3 Power Supply Voltage: Standard Input Voltage(100～240V AC 50/60HZ)
2.4 Adjust after 20 minutes warm-up.
3. Test and check method:
3.1 Capability: According to nation test standard
3.2 Safety: IEC60065 standard
3.3 EMC: Q/SCWB 2047-2013 standard
4. Safety and Regulation
NO.
Item
Min
Typ
Max
Unit
Remark
1.
Force Stability-Incline plane Tip Test
10
deg
2.
Force Stability-Level Tip Test
100
N
3.
Isolation Gap AC-AC/AC-DC
3
mm
4.
Isolation Gap
6
mm
5.
Power Consumption
51.4
W
W
W
W
W
6.
Power consumption Standby
0.12
0.5
W
7.
Dielectric Voltage
3
kV
8.
Isolation Resistance
4
MΩ
9.
Leakage Current
5
mApp
10.
Power cord captivity
40
N
11.
Flammability—Back Cover
PASS
12.
Sharp edge
PASS
13.
UL Compliance
NO
14.
FCC Compliance
NO
15.
CDRH Radiation Compliance
NO
16.
CSA Compliance
NO
17.
CEB Compliance
NO
18.
CE Compliance
Base on different orders

-4-
19.
CB Compliance
YES
5. Video
NO.
Item
Min
Typ
Max
Unit
Remark
1.
Linearity Distortion, Vertical
1
％
2.
Linearity Distortion, Horizontal
1
％
3.
Trapezoidal Distortion, Vertical
1
％
4.
Trapezoidal Distortion, Horizontal
1
％
5.
Over scan, Vertical
95
97
％
6.
Over scan, Horizontal
95
97
％
7.
Brightness Maximum
250
Nit(s)
8.
Video Noise Limited
Sensitivity(@S/N=30dB) VHF
51
dBuV
9.
Video Noise Limited
Sensitivity(@S/N=30dB) UHF
54
dBuV
10.
Selectivity -1.5M
35
dB
11.
Selectivity +8M
40
dB
12.
Tuning Range
-0.7
MHz
13.
Resolution Horizontal
1920
Lines
14.
Resolution Vertical
1080
Lines
6. Chroma
NO.
Item
Min
Typ
Max
Unit
Remark
1.
White Balance, X axis
2.
White Balance, Y axis
3.
White Balance, Color Temperature
6500
9800
12.5k
kdeg
12500(266,276)
9800(280,290)
6500(313,329)
4.
Color Sensitivity
30
dB
5.
Color Burst Lock-in Range
+/-300
Hz
6.
Color Killer Sensitivity
30
dBuV
7. Audio
NO.
Item
Min
Typ
Max
Unit
Remark
1.
Audio Noise Limited Sensitivity, VHF-L
25
dBuV
2.
Audio Noise Limited Sensitivity,VHF-H
25
dBuV
3.
Audio Noise Limited Sensitivity, UHF
28
dBuV
4.
Buzz(S/N Ratio)
40
dB
5.
Distortion
3
％

-5-
6.
Audio ouput,L/R,at 10％ THD
6
W
7.
Audio ouput,Center
6
W
8.
Stereo Separation
21
dB
9.
Speaker Impedance
6
ohm
10.
Speaker Power rating
10
W

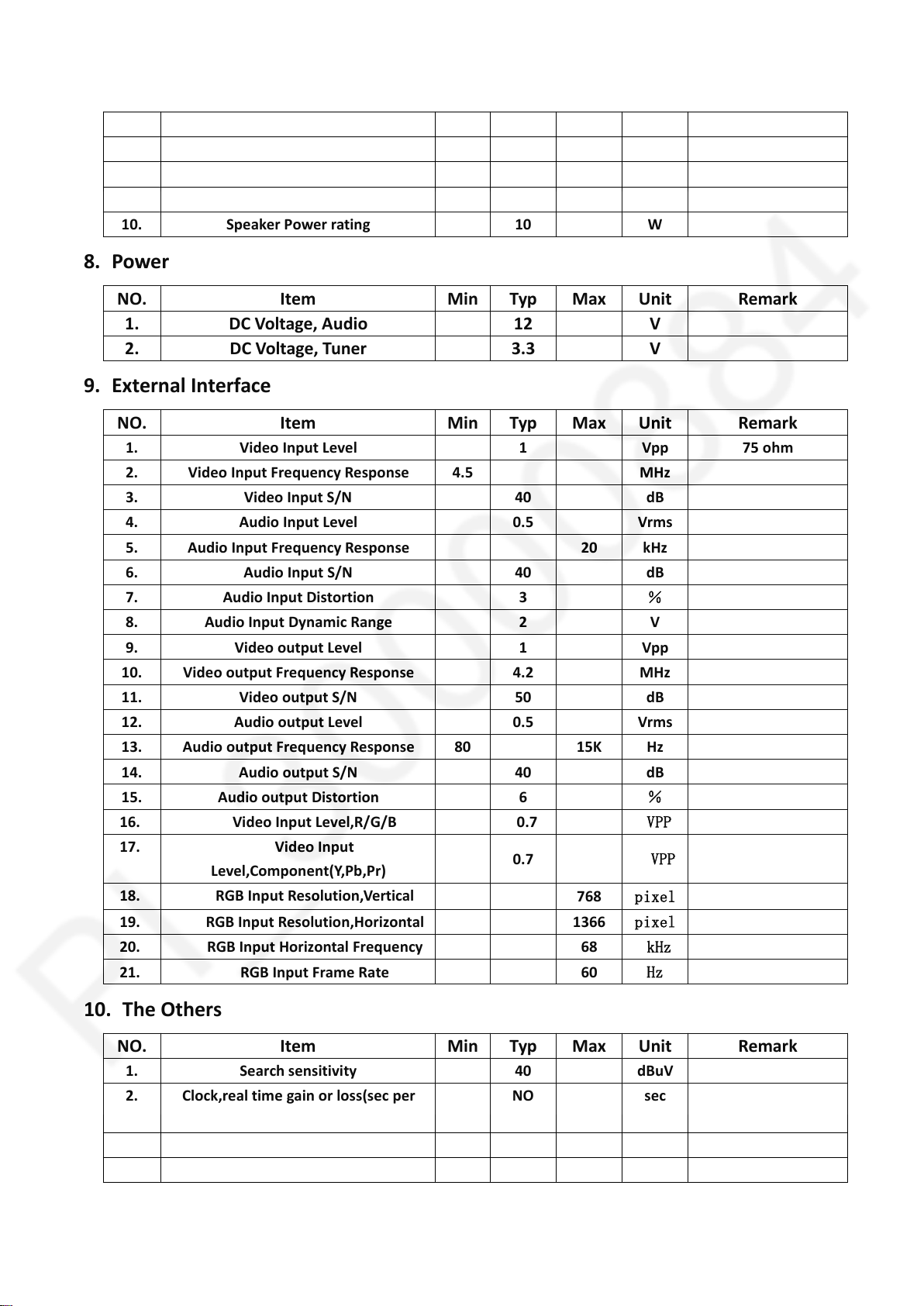

8. Power
NO.
Item
Min
Typ
Max
Unit
Remark
1.
DC Voltage, Audio
12
V
2.
DC Voltage, Tuner
3.3
V
9. External Interface
NO.
Item
Min
Typ
Max
Unit
Remark
1.
Video Input Level
1
Vpp
75 ohm
2.
Video Input Frequency Response
4.5
MHz
3.
Video Input S/N
40
dB
4.
Audio Input Level
0.5
Vrms
5.
Audio Input Frequency Response
20
kHz
6.
Audio Input S/N
40
dB
7.
Audio Input Distortion
3
％
8.
Audio Input Dynamic Range
2
V
9.
Video output Level
1
Vpp
10.
Video output Frequency Response
4.2
MHz
11.
Video output S/N
50
dB
12.
Audio output Level
0.5
Vrms
13.
Audio output Frequency Response
80
15K
Hz
14.
Audio output S/N
40
dB
15.
Audio output Distortion
6
％
16.
Video Input Level,R/G/B
0.7
VPP
17.
Video Input
Level,Component(Y,Pb,Pr)
0.7
VPP
18.
RGB Input Resolution,Vertical
768
pixel
19.
RGB Input Resolution,Horizontal
1366
pixel
20.
RGB Input Horizontal Frequency
68
kHz
21.
RGB Input Frame Rate
60
Hz
10. The Others
NO.
Item
Min
Typ
Max
Unit
Remark
1.
Search sensitivity
40
dBuV
2.
Clock,real time gain or loss(sec per
day)
NO
sec
3.
Software Functionality Test
YES
4.
REMOCON Working
8
m

-6-
sensitivity,Straight
5.
REMOCON Working
sensitivity,T/B/L/R
6
m
6.
Close caption sensitivity
46
dBuV
7.
Teletext sensitivity
46
dBm
8.
Resonance of unit(sweep
freq:50~1000)
NO
11. Customer Menu Setup(as shipped condition)
NO.
Item
Specification
Remark
1.
PSM
Standard
2.
SSM
Standard
3.
Volume
30
4.
Mute
off
5.
Input Mode
RF-Air
6.
Customer menu language
English
Based on different order
7.
AVL
off
8.
Sleep Timer
off
9.
Auto sleep
off
10.
Surround
off
11.
Noise Reduction
Middle
12. Reliability
NO.
Item
Min
Typ
Max
Unit
Remark
1.
ESD
4
kV
IEC-1000-4-2
2.
EFT/Burst
kV
IEC-1000-4-4
3.
Surge Immunity
kV
IEC-1000-4-5
4.
Voltage Dip Test,10ms
％
IEC-1000-4-11
5.
Voltage Dip Test,100ms
％
IEC-1000-4-11
6.
Operation Temperature
deg
7.
Operation Humidity
％
8.
Storage Temperature
deg
9.
MTBF(confidence Level:90%)
hour
DTV-Productions Specification
1
Outlook
Please refer
to the

-7-

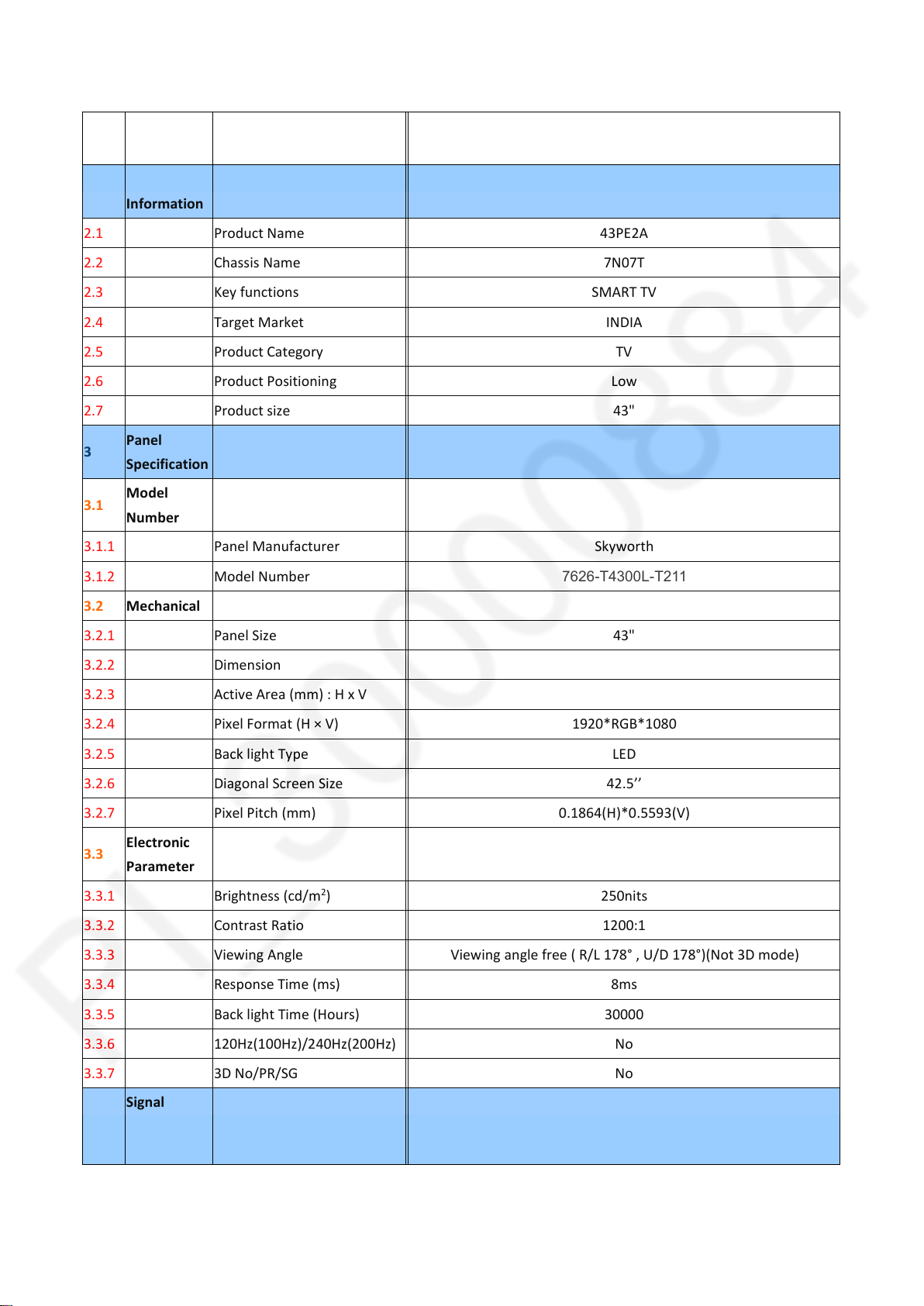

2
Brief
Information
2.1
Product Name
43PE2A
2.2
Chassis Name
7N07T
2.3
Key functions
SMART TV
2.4
Target Market
INDIA
2.5
Product Category
TV
2.6
Product Positioning
Low
2.7
Product size
43"
3
Panel
Specification
3.1
Model
Number
3.1.1
Panel Manufacturer
Skyworth
3.1.2
Model Number
7626-T4300L-T211
3.2
Mechanical
3.2.1
Panel Size
43"
3.2.2
Dimension
3.2.3
Active Area (mm) : H x V
3.2.4
Pixel Format (H × V)
1920*RGB*1080
3.2.5
Back light Type
LED
3.2.6
Diagonal Screen Size
42.5’’
3.2.7
Pixel Pitch (mm)
0.1864(H)*0.5593(V)
3.3
Electronic
Parameter
3.3.1
Brightness (cd/m2)
250nits
3.3.2
Contrast Ratio
1200:1
3.3.3
Viewing Angle
Viewing angle free ( R/L 178° , U/D 178°)(Not 3D mode)
3.3.4
Response Time (ms)
8ms
3.3.5
Back light Time (Hours)
30000
3.3.6
120Hz(100Hz)/240Hz(200Hz)
No
3.3.7
3D No/PR/SG
No
4
Signal
Receiving
System

-8-
4.1
ATV
Receiving
System
4.1.1
PAL BG/I/DK/ + NTSC-M
YES
4..1.2
PAL/SECAM BG/DK/I + SECAM
L/L"
PAL/SECAM BG/DK/I
4.1.3
PAL M/N + NTSC-M
No
4.2
DTV
Receiving
System
4.2.1
ISDB-T/ISDB-S/SBTVD-T
No
4.2.2
ATSC
No
4.2.3
DTMB
No
4.2.4
DVB-T
YES
4.2.5
DVB-T2
YES
4.2.6
DVB-C
YES
4.2.7
DVB-S
No
4.2.8
DVB-S2
No
4.2.9
DVB-CI(*Not a system, but
important to indicate the type
of DTV)
No
4.2.10
DVB-CI+(*Not a system, but
important to indicate the type
of DTV)
No
4.3
Antenna
input
4.3.1
Antenna Input port: 1 (1 for
analogue)
No
4.3.2
Antenna Input port: 1 (1 for
both analogue and digital)
1 for DVB-T/T2/C/Analogue
4.3.3
Antenna Input port: 2 (1 air +
1 Cable)
No
Antenna input port 2 (1 Sat)
No
4.3.4
Type of Antenna Input Port
IEC Female
4.3.5
Receiving Frequency range
(ATV)
47.25MHz～865.25MHz
4.3.6
Receiving Frequency range
(DTV)
DVB-T: 174 MHz ~ 230 MHz, 470 MHz ~ 860 MHz
DVB-C: 50 MHz ~ 858 MHz

-9-
4.4
External
Signal
Receiving
System
4.4.1
Composite
Input
PAL 50Hz/60Hz
Yes
4.4.2
SECAM
Yes
4.4.3
NTSC 3.58
Yes
4.4.4
NTSC4.43
Yes
4.4.5
Component
Input
480i /480p/720p/1080i
(60Hz)
No
4.4.6
576i /576p/720p/1080i
(50Hz)
No
4.4.7
1080P
24Hz/25Hz/30Hz/50Hz/60Hz
No
4.4.8
PC Input
VGA (640 x 480)
Yes
4.4.9
S-VGA (800 x 600)
Yes
4.4.10
XGA (1024 x 768)
Yes
4.4.11
W-XGA (1280 x 768)
Yes
4.4.12
W-XGA（1360×768）
Yes
4.4.13
S-XGA (1280 x 1024)
Yes
4.4.14
HDMI Input
480i /480p/720p/1080i/2160i
(60Hz) (Video Format)
Yes
4.4.15
576i /576p/720p/1080i
(50Hz) (Video Format)
Yes
4.4.16
1080P
24Hz/25Hz/30Hz/50Hz/60Hz
(Video Format)
Yes
4.4.17
VGA (640 x 480) (PC Format)
Yes
4.4.18
S-VGA (800 x 600) (PC
Format)
Yes
4.4.19
XGA (1024 x 768) (PC Format)
Yes
4.4.20
W-XGA (1280 x 768) (PC
Format)
Yes
4.4.21
W-XGA（1360×768）(PC
Format)
Yes
4.4.22
S-XGA (1280 x 1024) (PC
Format)
Yes

-10-
4.4.23
USB
Media player formats
Refer to sheet "Mediaplayer Formats"
5
Features

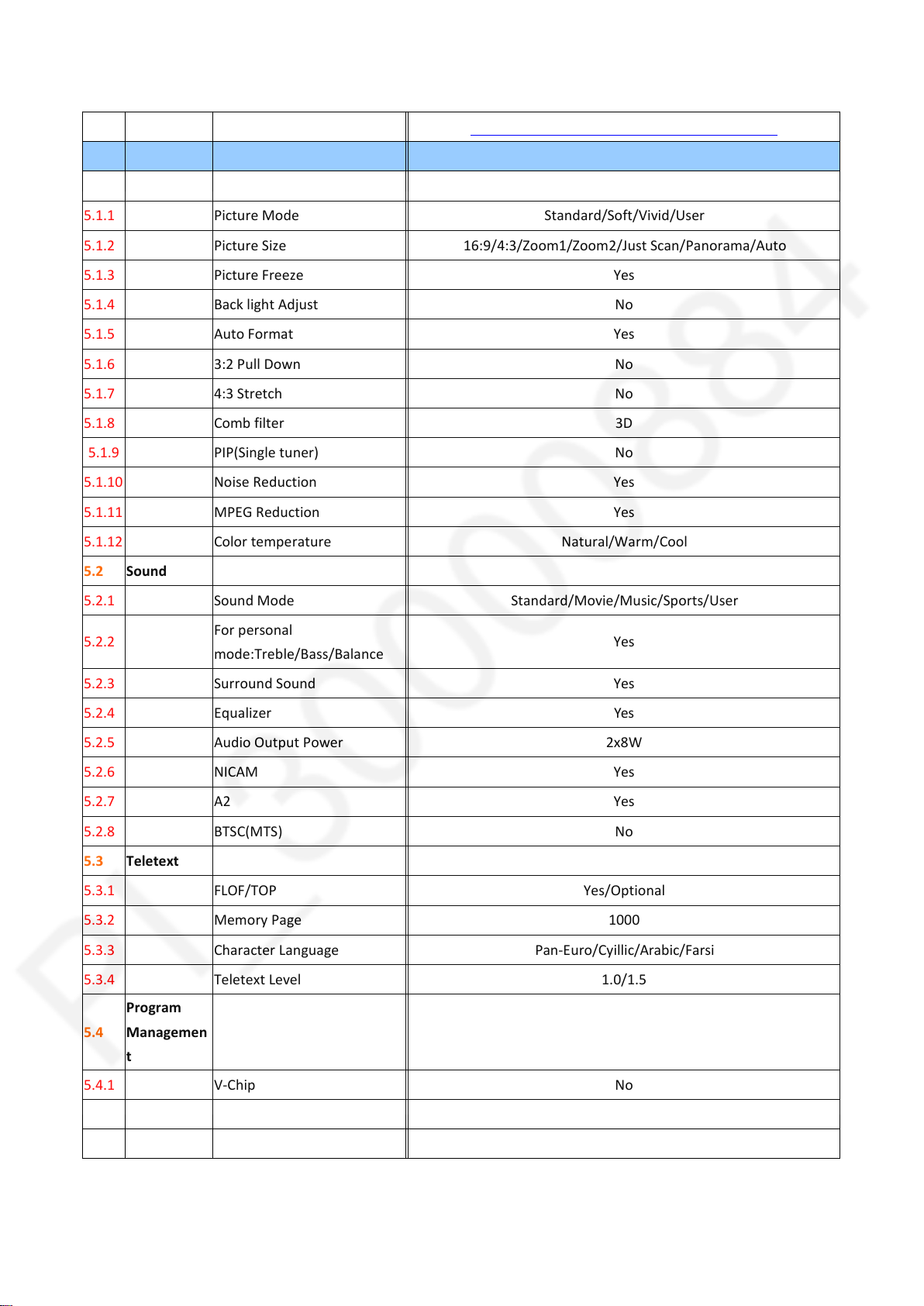

5.1
5.1.1
Picture Mode
Standard/Soft/Vivid/User
5.1.2
Picture Size
16:9/4:3/Zoom1/Zoom2/Just Scan/Panorama/Auto
5.1.3
Picture Freeze
Yes
5.1.4
Back light Adjust
No
5.1.5
Auto Format
Yes
5.1.6
3:2 Pull Down
No
5.1.7
4:3 Stretch
No
5.1.8
Comb filter
3D
5.1.9
PIP(Single tuner)
No
5.1.10
Noise Reduction
Yes
5.1.11
MPEG Reduction
Yes
5.1.12
Color temperature
Natural/Warm/Cool
5.2
Sound
5.2.1
Sound Mode
Standard/Movie/Music/Sports/User
5.2.2
For personal
mode:Treble/Bass/Balance
Yes
5.2.3
Surround Sound
Yes
5.2.4
Equalizer
Yes
5.2.5
Audio Output Power
2x8W
5.2.6
NICAM
Yes
5.2.7
A2
Yes
5.2.8
BTSC(MTS)
No
5.3
Teletext
5.3.1
FLOF/TOP
Yes/Optional
5.3.2
Memory Page
1000
5.3.3
Character Language
Pan-Euro/Cyillic/Arabic/Farsi
5.3.4
Teletext Level
1.0/1.5
5.4
Program
Managemen
t
5.4.1
V-Chip
No
5.4.2
Parent Control(Child Lock)
Yes
5.4.3
Closed Caption
No

-11-
5.4.4
Subtitle
No
5.4.5
EPG
No
5.4.6
Channel list
No
5.4.7
Favorite Channel List
No
5.4.8
Channel Editor
No
5.4.9
Sleep Timer
Yes
5.4.10
On/Off timer
Yes
5.4.11
Channel Swap timer
No
5.4.12
Blue Screen
Yes
5.5
AC Input
5.5.1
AC Input Range
100-240V AC (-10%,+10%)
5.5.2
AC Plug Type
VDE
5.5.3
AC Cable Length
1.5m
5.5.4
Power Consumption
TBD
5.5.5
Standby Power Consumption
<0.5w
5.6
HDMI
5.6.1
CEC
Yes
5.6.2
ARC
No
5.6.3
3D
No
5.6.4
MHL
No
5.7
Software
Update
5.7.1
By USB
Yes
5.7.2
By Internet
Yes
5.7.3
Internet Auto search
No
5.7.4
By Over-Air
No
5.7.5
By other Service Port
No
5.8
PVR
5.8.1
By External USB or HDD
Yes
5.8.2
Built in HDD
No
5.8.3
Time Shift
Yes
5.9
OSD
Language
5.9.1
OSD Language
English/Portuguese/Arabic/Farsi/Indonesian/French
5.1O
USB File
System

-12-
5.10.1
FAT16
Yes
5.10.2
FAT32
Yes
5.10.3
NTFS
Yes(Only read)

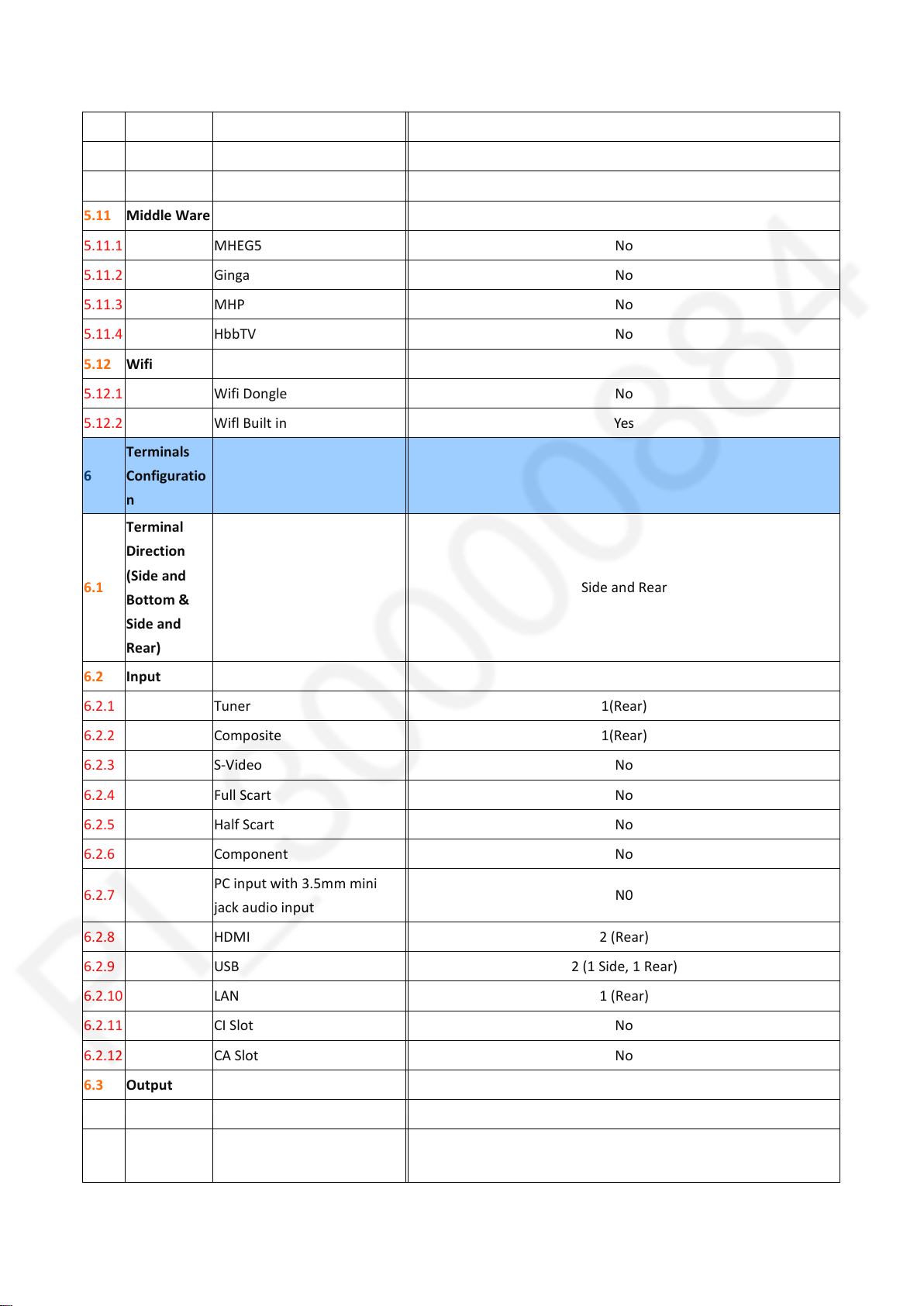

5.11
Middle Ware
5.11.1
MHEG5
No
5.11.2
Ginga
No
5.11.3
MHP
No
5.11.4
HbbTV
No
5.12
Wifi
5.12.1
Wifi Dongle
No
5.12.2
Wifl Built in
Yes
6
Terminals
Configuratio
n
6.1
Terminal
Direction
(Side and
Bottom &
Side and
Rear)
Side and Rear
6.2
Input
6.2.1
Tuner
1(Rear)
6.2.2
Composite
1(Rear)
6.2.3
S-Video
No
6.2.4
Full Scart
No
6.2.5
Half Scart
No
6.2.6
Component
No
6.2.7
PC input with 3.5mm mini
jack audio input
N0
6.2.8
HDMI
2 (Rear)
6.2.9
USB
2 (1 Side, 1 Rear)
6.2.10
LAN
1 (Rear)
6.2.11
CI Slot
No
6.2.12
CA Slot
No
6.3
Output
6.3.1
Video Output
No
6.3.2
Audio Output (Fixed &
Variable)
No

-13-
6.3.3
Digital Audio Output (Coaxial
& Optical)
1 ( Coaxial, Rear)
6.3.4
Earphone
1 (Side)
6.4
Diagram of
Terminal
Configuration
7
Mechanical
Spec
7.1
Cabinet
7.1.1
Cabinet color
For front back stand
TBD
7.1.2
Operation
Keys / Touch
sensor
5 in 1, Keys outside
7.1.3
AC Power
Switch
Mechanical power switch
No
7.1.4
LED Indicator
Power on (Green)
No
7.1.5
Power on / Standby (Green /
Red )
Yes (Green / Red)
7.1.6
Power on / Standby /
Recording(Green / Red /
Orange)
No
7.1.7
Program Timer / Recording
(Green / Red)
No
7.1.8
On Timer or Program
Timer(Green)
No
Red / Green / Blue,
independent PWM controlled
No
7.1.9
Logo Style
Silk Printing / SUS Badge (inlet
type)
SUS Badge
7.1.10
Stand
Tilt / Swivel
Tilt
7.2
Dimension &
Stuffing
7.2.1
Size (with stand)( mm )
TBD
7.2.2
Size (without stand) ( mm )
TBD
7.2.3
Package Size (with
stand)(mm)
TBD
7.2.4
Net Weight(Kg)
TBD
7.2.5
Gross Weight
TBD

-14-
7.2.6
Loading quantity
(20GP/40GP/40GP) with
pallet
TBD

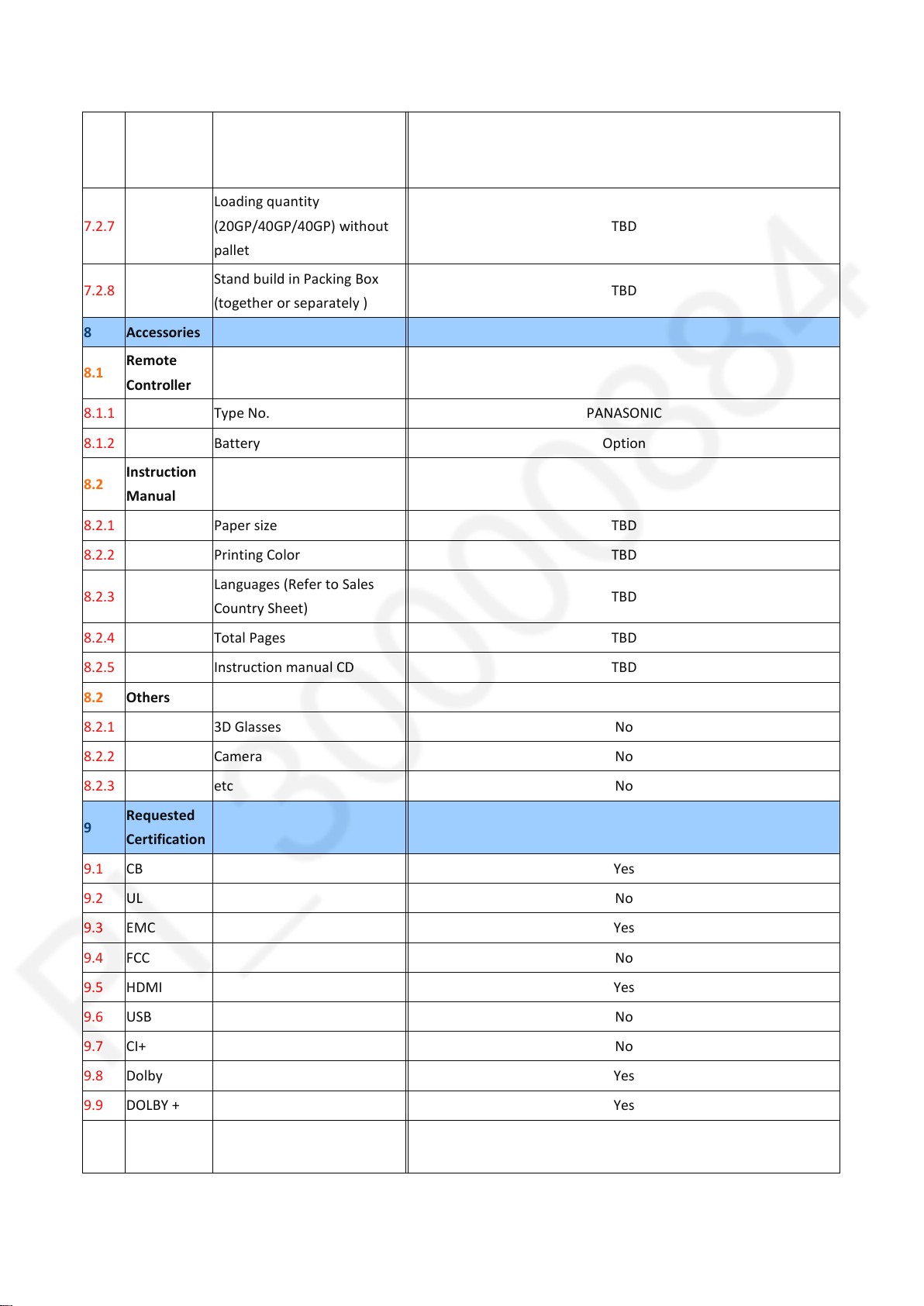

7.2.7
Loading quantity
(20GP/40GP/40GP) without
pallet
TBD
7.2.8
Stand build in Packing Box
(together or separately )
TBD
8
Accessories
8.1
Remote
Controller
8.1.1
Type No.
PANASONIC
8.1.2
Battery
Option
8.2
Instruction
Manual
8.2.1
Paper size
TBD
8.2.2
Printing Color
TBD
8.2.3
Languages (Refer to Sales
Country Sheet)
TBD
8.2.4
Total Pages
TBD
8.2.5
Instruction manual CD
TBD
8.2
Others
8.2.1
3D Glasses
No
8.2.2
Camera
No
8.2.3
etc
No
9
Requested
Certification
9.1
CB
Yes
9.2
UL
No
9.3
EMC
Yes
9.4
FCC
No
9.5
HDMI
Yes
9.6
USB
No
9.7
CI+
No
9.8
Dolby
Yes
9.9
DOLBY +
Yes
9.10
Dvix
Hometheatre
No

-15-
9.11
DviX HD
No
9.12
DviX+HD
No
9.13
MHL
Optional
9.14
DLNA
Optional
9.15
CTS
No
9.16
Energy Star
No
9.17
CE
No

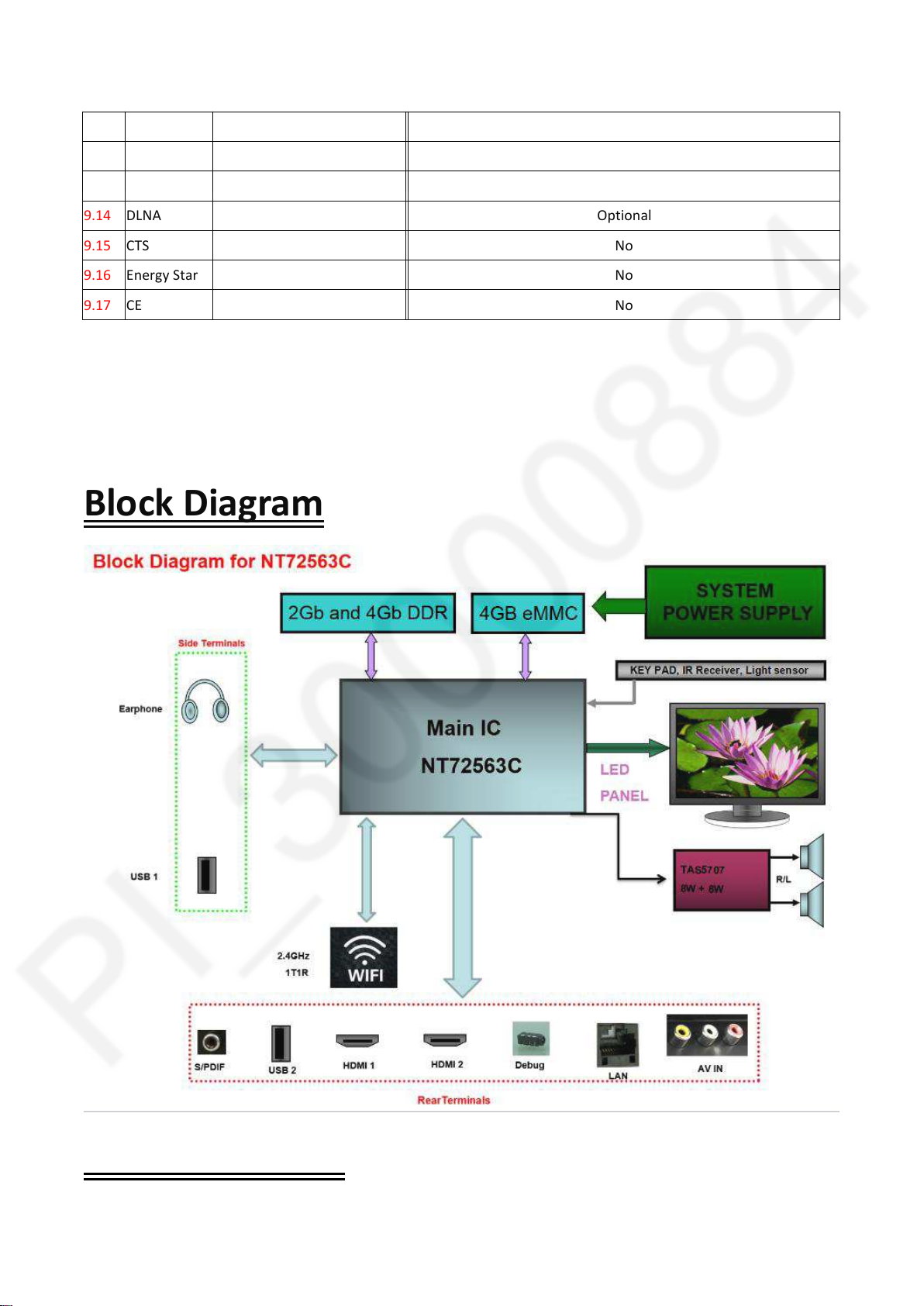

Block Diagram
List of key parts

-16-
name
position
model
Spec.
P/N
IR RECEVIER
M0K1
SDR138
SMD MODULE
38KHZ
5300-147438-0S00
SPEAKER
SL411-08E
SPEAKER 6
OHM 8W MAX
53FJ-3932E2-0020
CRYSTAL
X2T1
49S-16.000-20-30/A
16MHz
4900-127053-R000
IC
U2
NT72563BG-AC
NOVATEK
SMD IC
475V-N72561-4240
U9
H5TQ2G63GFR-RDC
HYNIX
SMD IC
4711-H5T2G6-0960
U7
H5TQ4G63CFR-RDC
HYNIX
SMD IC
4711-H5T4G7-0960
U0M1
MX25L1606EM2I-12G
16MB SPI FLASH
SMD IC
47F2-G25161-0080
U0M2
THGBMBG5D1KBAIL
TOSHIBA
SMD IC
4701-T5D4G1-1530
U0A3
TAS5707PHPR TEXAS
SMD IC
4722-T57070-0480
U0A1
TPA6138A2PWR TI
SMD IC
4722-T61380-0140
U0P4
MP1495DJ-LF-Z MPS
SMD IC
476A-M14950-0080
U0P2
MP1470GJ-Z MPS
SMD IC
476A-M14700-0060
U2P1
ME4953 MATSUKI
SMD IC
47D9-M49530-0080
U0P7
MP1495DJ-LF-Z MPS
SMD IC
476A-M14950-0080
U2P2
AS1117L/TR-HF A1
SMD IC
47B6-A11174-0300
U1P1
AS1117L-3.3/TR-HF
A1
SMD IC
47B6-A11170-03
U0J2
AZC399-04S.R7G
AMAZING
SMD IC
47FY-A39904-0060
MOS
U0L1
ME9435A MATSUKI
SMD IC
47D9-M94350-0080
IC Block Diagram
1. NT72563BG-AC
