OK Letters enclosed in brackets indicate remote control buttons.
Menu Letters in cyan indicate on-screen display items.
References in this eHELP
●The images shown in this eHELP are for illustrative purposes only.

my Home Screen
my Home Screen
Information
“my Home Screen” is a gateway to the TV, applications, and more.
It provides easy access to special features such as Media Player, videos,
games, communication tools, etc. as shown below (example).
HOME
OK
OK HOME
Home Screen
Selected content screen (TV, application, etc.)
Home Screen Selection
– Your preferred Home Screen can be selected.
- 10 -

How to use

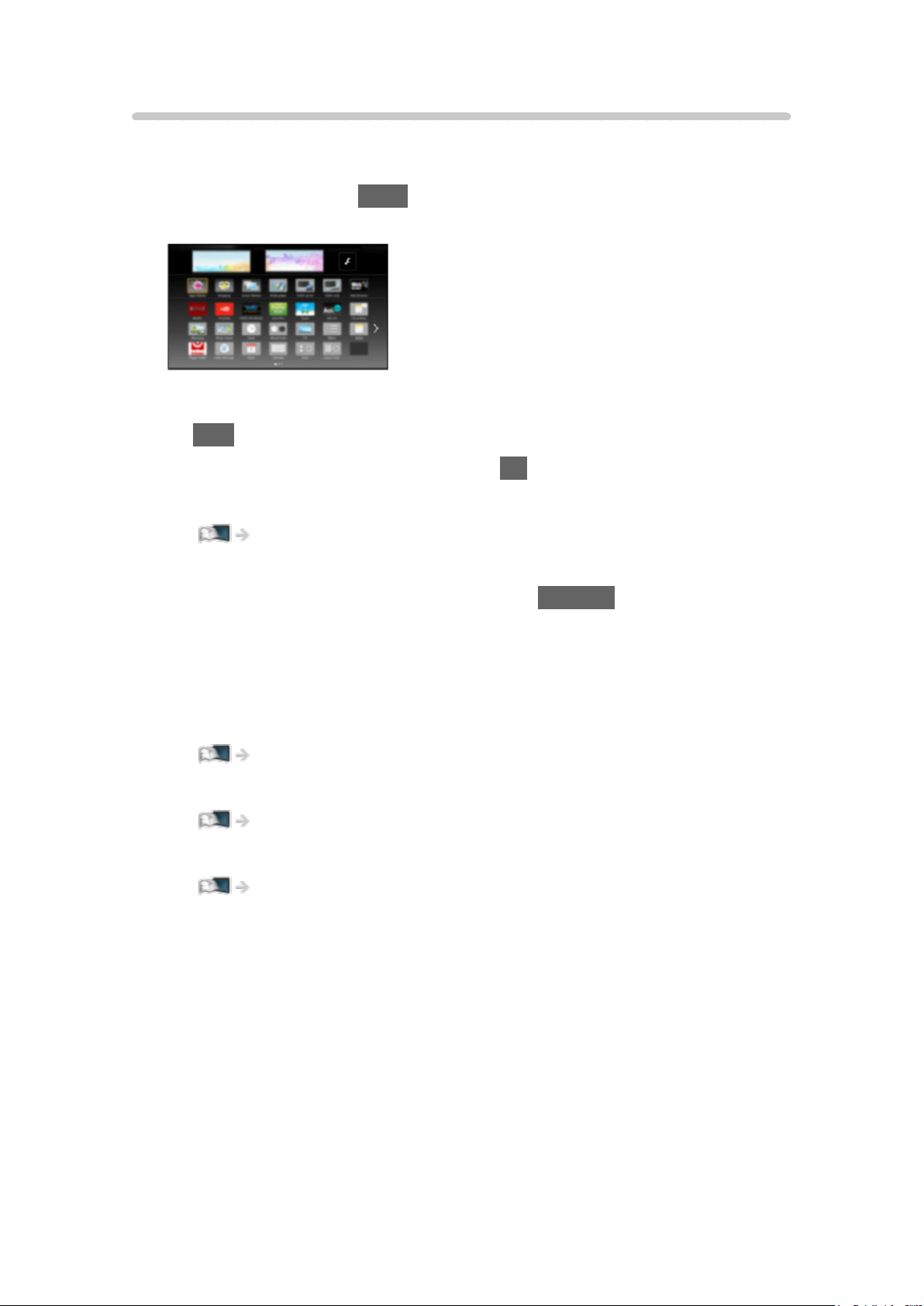

Home Screen provides access to special features such as Media Player, TV,
internet content, data services, communication tools, etc.
1. Display Home Screen with HOME.
(Example)
●The last viewed Home Screen is displayed when the TV is turned on.
●Press again to select or add your preferred Home Screen layout.
my Home Screen > my Home Screen > Settings
2. Select a feature and press OK to access.
●To watch full-screen TV
1) Select the TV viewer.
(Example)
2) Press OK to watch.
(Example)
●Also refer to Tutorial from the tool guide.
- 11 -

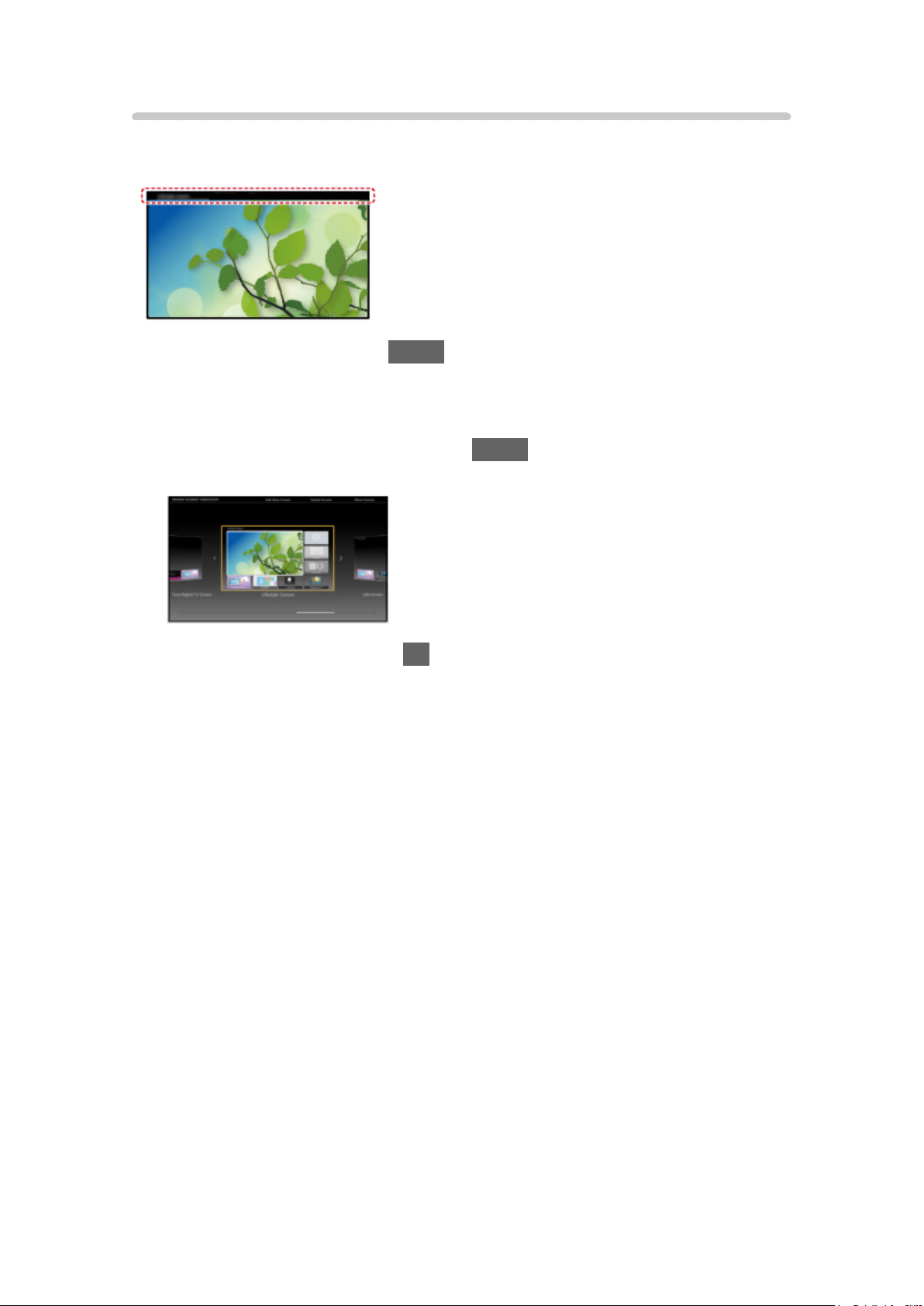

Settings
Select the setup menu from the tool guide on the top of the screen.
(Example)
●Display the tool guide with HOME if it is not displayed.

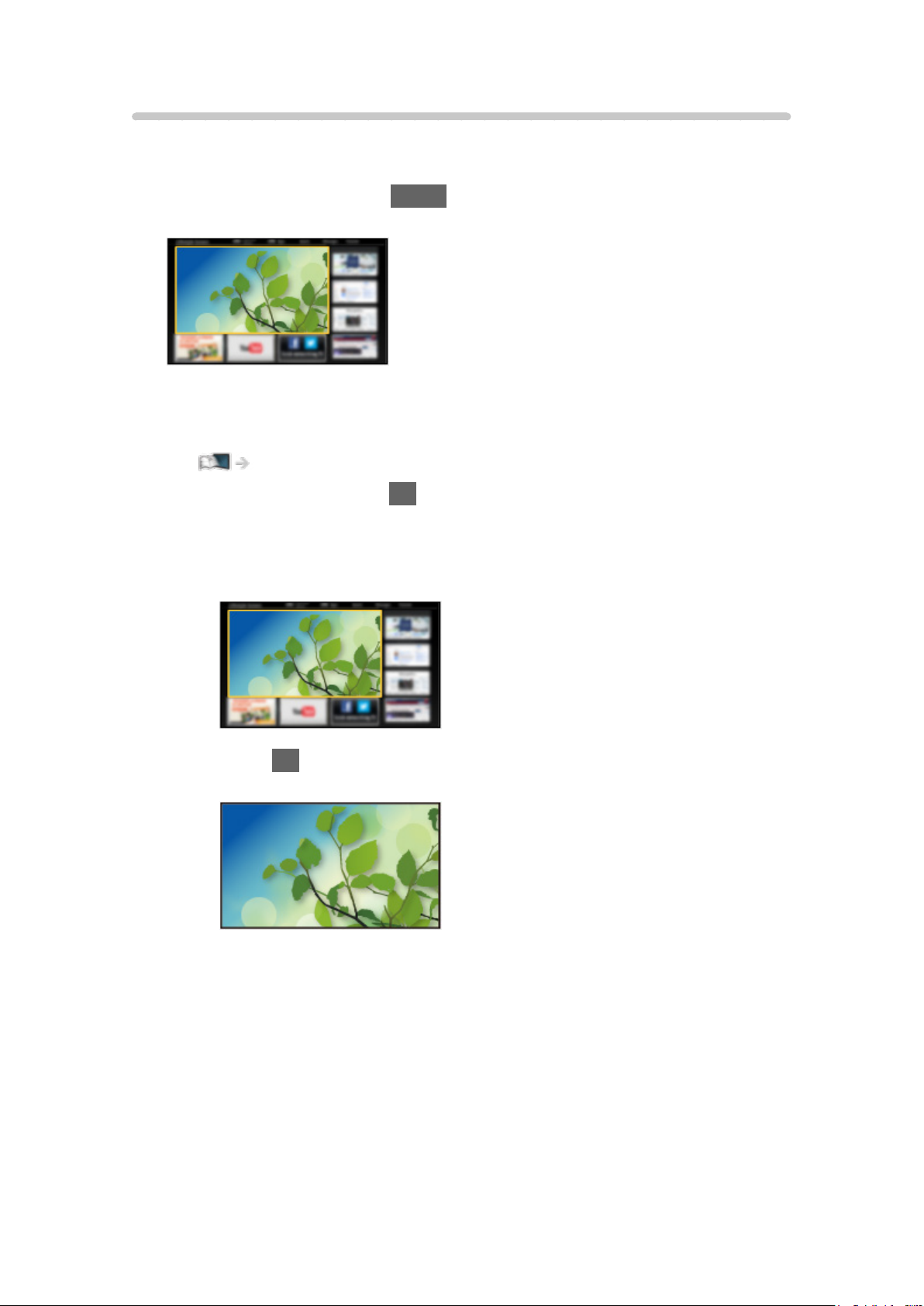

■Home Screen Selection
1. Display Home Screen Selection with HOME.
(Example)
2. Select the screen and press OK to set.
Full Screen TV:
Displays full-screen TV.
Free Digital TV Screen:
Displays the TV and Digital TV streaming services (if available). (UK
only)
TV Home Screen:
To make your TV experience more convenient and comfortable
Lifestyle Screen:
Displays the TV with useful information and services for everyday life.
Info Screen:
Enjoy internet content while watching TV.
- 12 -

■Settings
You can customise any Home Screen. (For example, changing the wallpaper,
renaming freely, editing applications, setting the screen launched when the
TV is turned on, etc.)
1. Select Settings from the tool guide.
2. Follow the on-screen instructions.
■Search
You can search the content from various features.
1. Select Search from the tool guide.
2. Follow the on-screen instructions.
= Note =
●To change the colour type of on-screen displays, set OSD Colour.
my Home Screen > my Home Screen > OSD Colour
●A broadband network environment is required to be able to use this
function fully. Ensure the network connections and network settings are
completed.
Network > Network connections
Network > Network settings
●Be sure to update the software when a software update notice is displayed
on the TV screen. If the software is not updated, you may not be able to
use my Home Screen. You can update the software later manually.
Network > Network settings > Software Update
- 13 -

OSD Colour
1. Display the menu with MENU.
2. Select Setup > Display Settings > OSD Colour and press OK to access.
3. Set the item and press OK to store.
OSD Colour
(Jet black / Pale grey / Organic brown / Sand beige)
Selects the preferred colour type of on-screen displays.
●This function is available for the information banner, menu screen, Home
Screen, etc.
- 14 -

APPS List
Information
Various applications (internet content, network content, Media Player, etc.)
can be accessed easily from APPS List.
■APPS List
(Example)
= Note =
●APPS List is subject to change without notice.
- 15 -

How to use
You can access special features such as internet content, network content,
Media Player, etc. from APPS List.
1. Display APPS List with APPS.
(Example)
●To exit APPS List
EXIT
2. Select an icon of the features and press OK to access.
Internet content
Network > Internet content
Netflix
●You can also access the service pressing NETFLIX.
●A broadband network environment is required to be able to use this
function fully.
●This service may be stopped or changed without notice.
Media Player
Media Player > Using Media Player > Selecting device / mode
Media Server
Network > DLNA > Using DLNA
VIERA Link
Functions > VIERA Link “HDAVI Control™”
- 16 -

Settings
You can customise APPS List (screen settings, etc.).
1. Display APPS List with APPS.
2. Select the icon for settings on APPS List and press OK to access.
3. Follow the on-screen instructions.
= Note =
●Setup menu items may be changed without notice.
- 17 -

Watching
Basic
Basic connection
Please ensure that the unit is disconnected from the mains socket before
attaching or disconnecting any cables.
●External equipment and cables shown are not supplied with this TV.

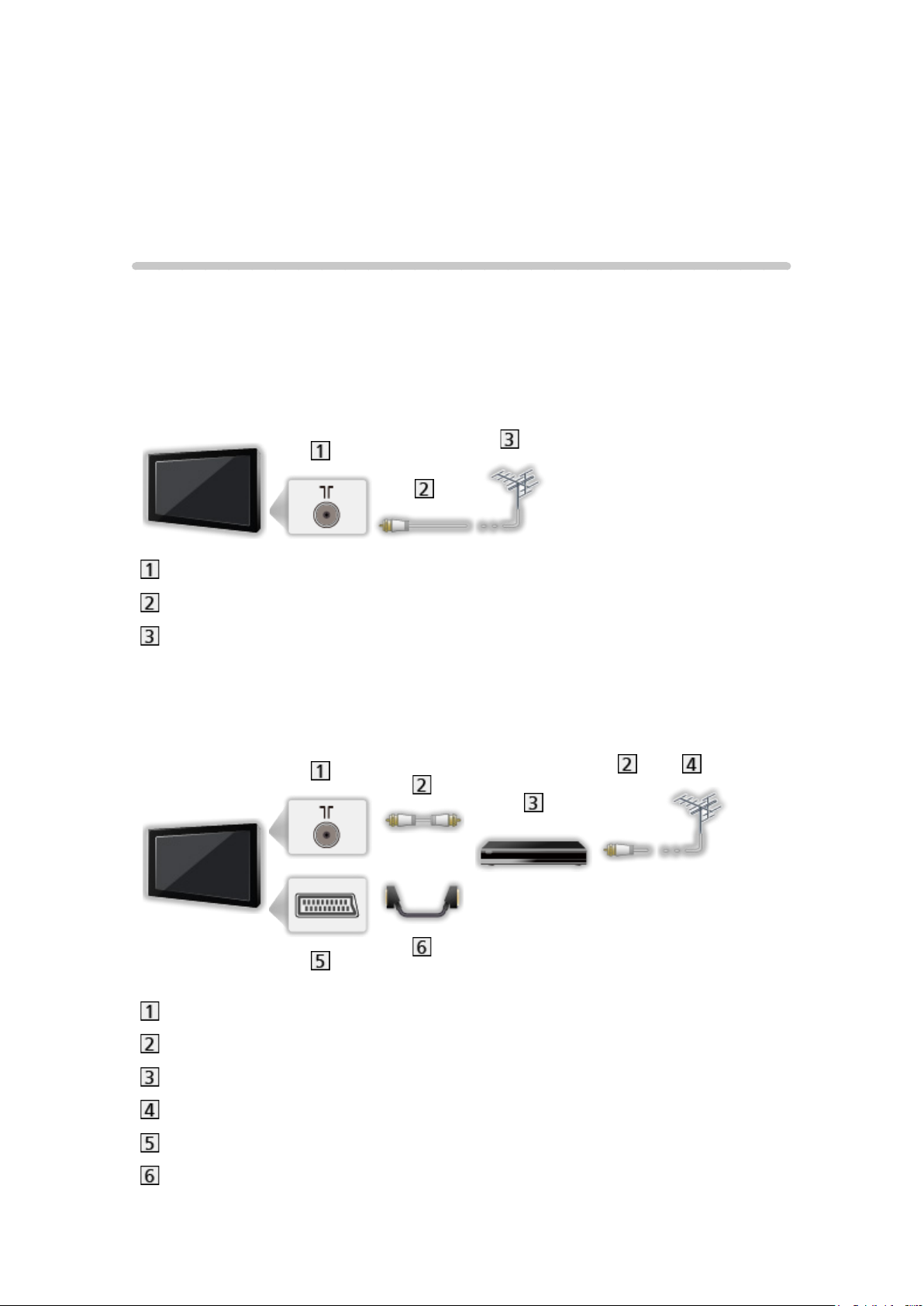

■Aerial
Terrestrial terminal
RF cable
Terrestrial aerial
●For DVB, Analogue
■DVD Recorder / VCR
Terrestrial terminal
RF cable
DVD Recorder / VCR
Terrestrial aerial
AV1 (SCART) terminal
SCART cable
- 18 -

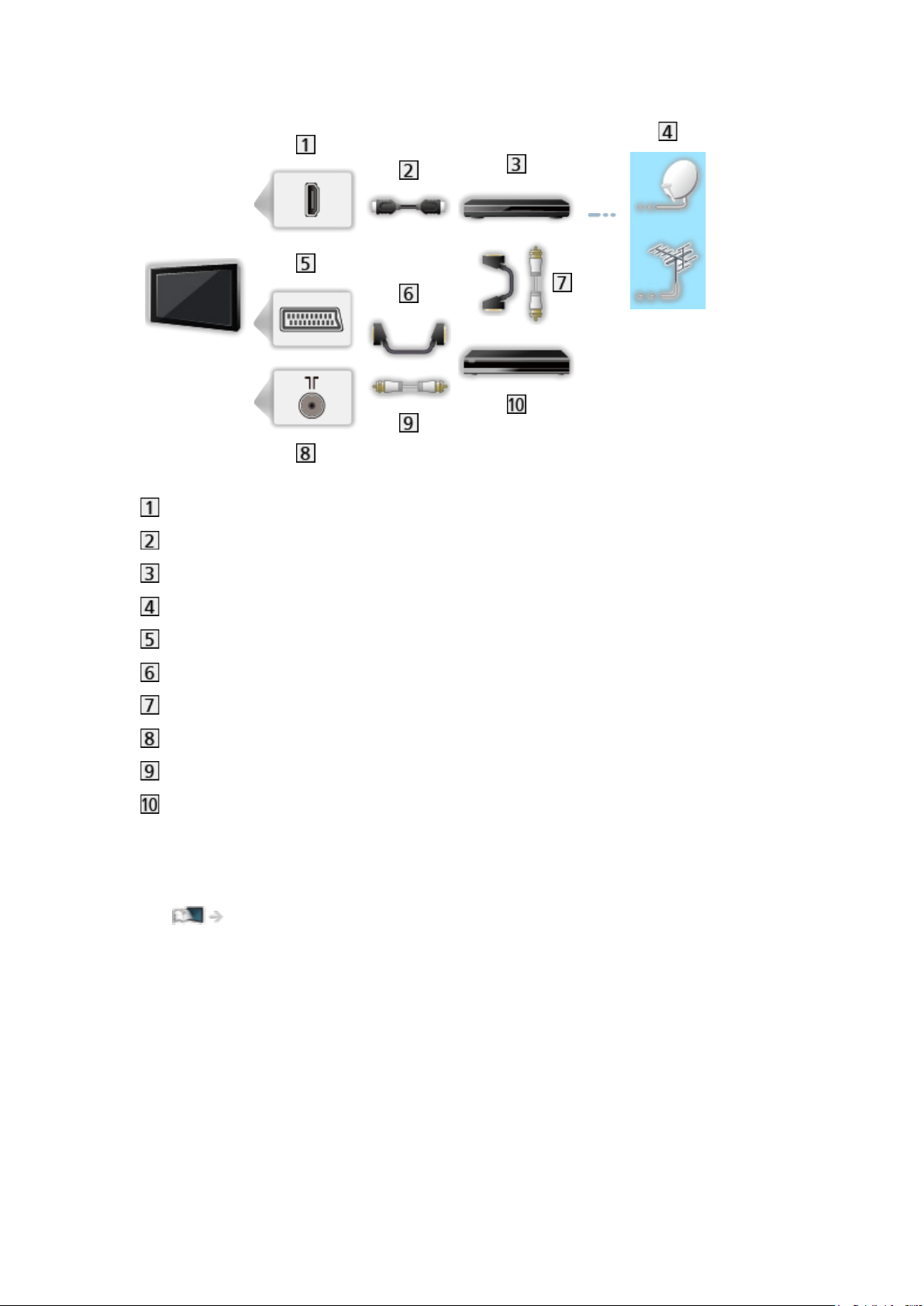

■DVD Recorder (VCR) / Satellite receiver
HDMI terminal
HDMI cable
Satellite receiver
Satellite dish / Terrestrial aerial
AV1 (SCART) terminal
SCART cable
RF cable / SCART cable
Terrestrial terminal
RF cable
DVD Recorder / VCR
= Note =
●For details of VIERA Link connections
Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link
●Please also read the manual of the equipment being connected.
●Keep the TV away from electronic equipment (video equipment, etc.) or
equipment with an infrared sensor, otherwise distortion of image / sound
may occur or operation of other equipment may be affected.
●Use a fully wired HDMI compliant cable.
●Use a fully wired SCART cable.
●Check the terminal type and cable plugs are correct for connection.
- 19 -

Selecting channel
1. Select the mode with TV.
DVB / Analogue
●Selectable modes vary depending on the channels stored.
2. Select a channel with Channel Up / Down or Numeric buttons.
●DVB channel position begins from number 1 upward. Analogue channel
position numbers are in the 0 - 99 range.
■To select a channel using information banner
1. Display information banner with if it is not displayed.
2. Select a channel and press OK to watch while the banner is displayed.
Watching > Basic > Information banner
■To select a channel using TV Guide
1. Display TV Guide with GUIDE.
2. Select the current programme and press OK to access.
– The current programme is displayed on the top left of the screen.
3. Press OK to exit TV Guide.
Watching > TV Guide > Using TV Guide
■To select the type of channel list
Automatically selects all channels or favourites list in the information banner
when the TV is turned on.
1. Display the menu with MENU.
2. Select Setup > Other Settings > Power on Channel List and press OK to
access.
3. Select All Channel List / Last and press OK to set.
■To watch pay-TV
●For details of the encrypted channels
Functions > Common Interface > Using Common Interface
●Consult the operator / broadcaster or CI module manufacturer for more
information and conditions of the services.
- 20 -
