Panasonic Ramsa WR-DA7 mkII User guide

The meter bridge shown in photo is one of the optional accessories.
Application GuideVersion 2
Audio Mixer
WR-DA7

Limit of Liability/Disclaimer of Warranty: The author, Audio Video Systems Division of
Matsushita Communication Industrial Co., Ltd has used its best efforts in preparing this book.
However, Audio/Video Systems Division of Matsushita Communication Industrial Co., Ltd makes
no representation or warranties with respect to the accuracy or completeness of the contents of
this book and hereby specifically disclaims any implied warranties or merchantability or fitness for
any particular purpose and shall in no event be liable for any loss of profit or any other commer-
cial damage, including but not limited to special, incidental, consequential, or other damages.
TRADEMARKS
Audio Video Systems Division of Matsushita Communication Industrial Co., Ltd has made every
effort to supply trademark information about company names, products, and services mentioned
in this document. Trademarks indicated below were derived from various sources. All products or
services not listed below are the trademarks, service marks, registered trademarks or registered
service marks of the respective owners.
ADAT is a registered trademark of Alesis Corporation
TDIF is copyrighted by TEAC Corporation and TASCAM is a registered trademark of TEAC
Corporation
IBM is a registered trademark of International Business Machines Corporation
Mac is a registered trademark of Apple Computer, Inc.
Mark of the Unicorn is a trademark of Mark of the Unicorn, Inc.
2

3
Table of Contents
1. Introduction......................................................................................... 4
2. Notes for connections with peripheral equipment............................. 5
2.1 Wordclock....................................................................................... 5
2.2 Installing and using option cards with the WR-DA7...................... 5
2.3 ADAT, BRC....................................................................................... 8
2.4 DA-98, 88, 38 .................................................................................. 9
2.5 DAT (with AES/EBU or S/PDIF I/O) ................................................11
2.6 Digital timepiece.............................................................................11
2.7 Expansion Software (Macintosh Version).......................................11
3. WR-DA7 system applications................................................................15
3.1 Example of systems for ADAT(1unit)
(When a timecode is recorded on the tapetrack).........................15
3.2 Example of systems for ADAT (3units) and BRC............................17
3.3 Example of systems with Two WR-DA7 in tandem
with 4 ADATs and BRC...................................................................20
3.4 Example of systems with 3 DA-88s.................................................24
3.5 Example of systems for WR-DA7 tandem connections
with DA-98(1unit) and DA-38(3units)...........................................27
3.6 Example of systems for analog 16-track recorder(1unit) ..............30
3.7 Example of systems for Digital Video Recorder (1unit) ................32
3.8 Example of systems for VTR (1unit), ADAT (1unit),
and BRC.........................................................................................34
3.9 Example of systems for VTR (1unit) and DA-98 (1unit)................37
3.10 System Example of Pro Tools .......................................................40
3.11 System Example of PC Sequencer (Performer)............................43
3.12 System Example of Tandem-Connection
to PC Sequencer (Performer) ......................................................46
3.13 System Example of AKAI DR8 (1 unit).........................................50
3.14 Connection to MAX (Macintosh) expansion software ................52
3.15 Connection to MAX (Macintosh) expansion software
and Other Sequence Software.....................................................54
3.16 Tandem-Connection to MAX (Macintosh) expansion software ...57
3.17 Tandem-Connection to MAX (Macintosh) expansion software
and Other Sequence Software.....................................................60

4

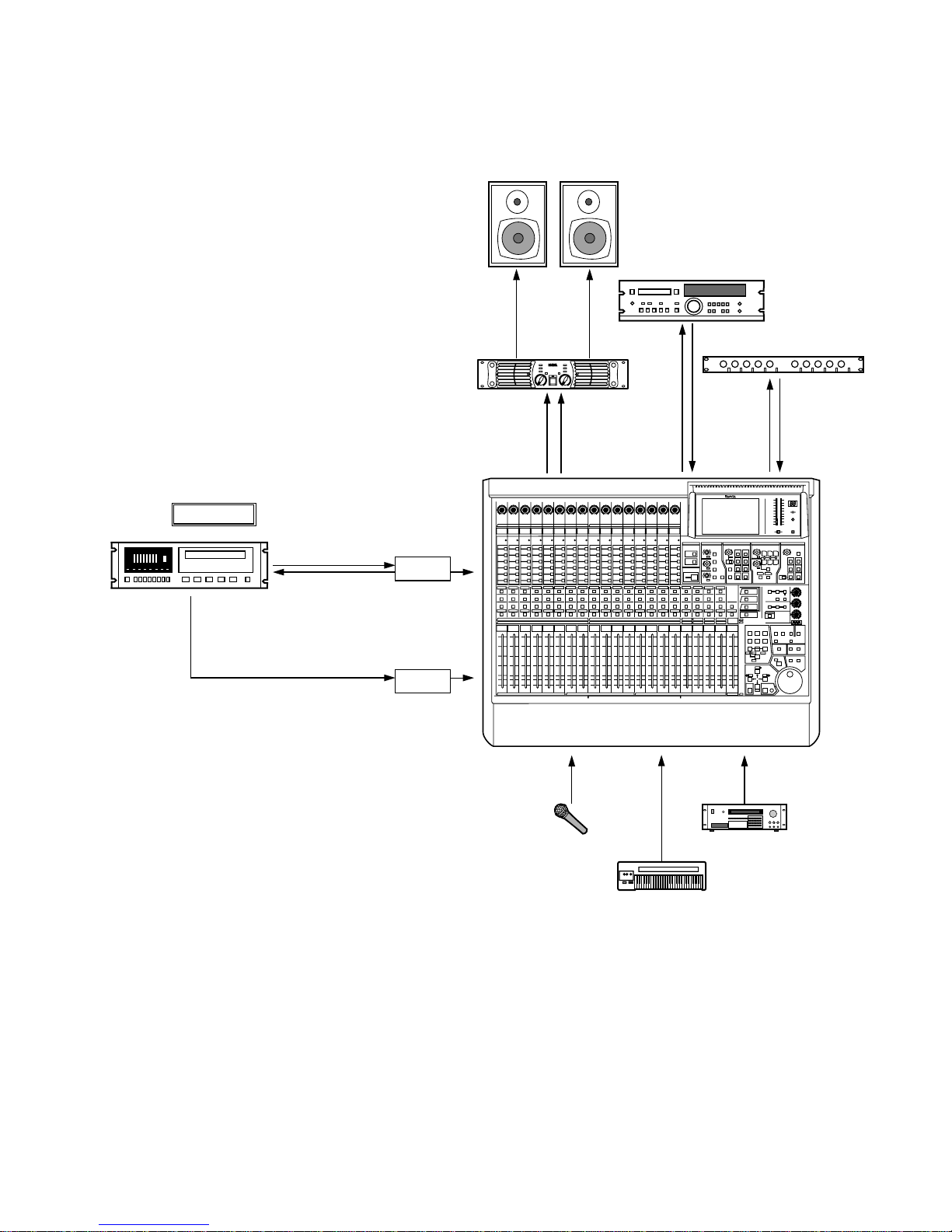

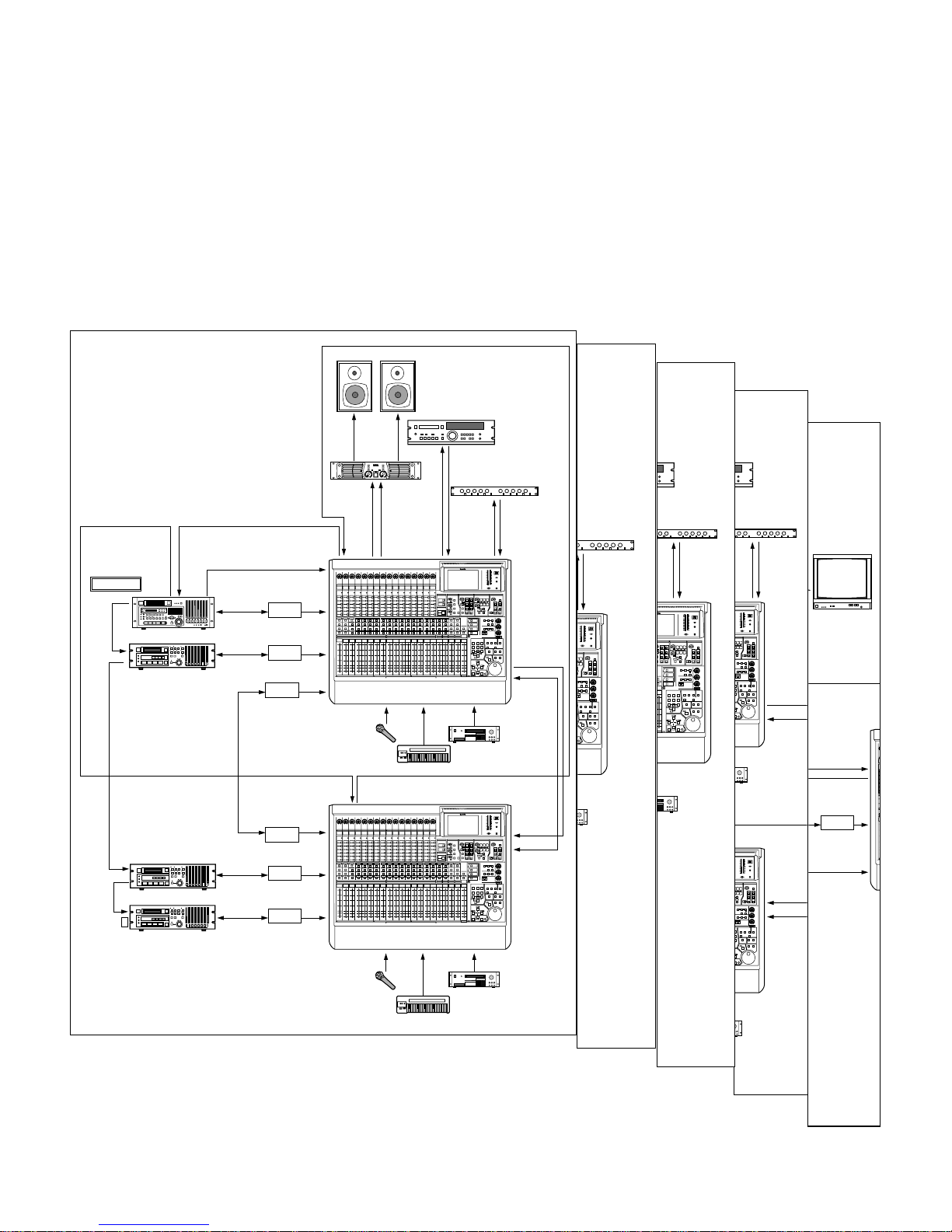

1. Introduction
This Application Guide supplies examples for interfacing the WR-DA7 with commonly used
peripheral recording equipment. This guide’s diagrams provide the necessary connections and
the methods for establishing proper system operation.
MIDI IN
MIDI OUT
WR-TDIF
IF-1
(BNC)
WORD CLOCK IN
(75Ω=ON)
W
REC O
TV
Monitor
NPUT 1-16
WORD CLO
C
OUT (75Ω=
O
To PC
WORD CLO
C
IN (75Ω=ON
)
To PC
I
NPUT 1-16
e
r
A
UX
S
END AUX RTN
Effector
INPUT 1-8
R
SR
ler
UX
END AUX RTN
Effector
AUX
RTN
NPUT 1-16
f
ector
r
WR-DA7
MIDI
IN
MMC
MTC
MIDI
OUT
WR- TANDM
SYNC OUT
SLOT 1
(17-24ch)
(MASTER)
(MASTER)
(SLAVE)
SLOT 2
(25-32ch)
SLOT 3 INPUT 1-16
WORD CLOCK
OUT (75Ω=OFF)
To PC
WORD CLOCK IN
(75Ω=ON)
To PC
MIDI
IN
MIDI
OUT
MIDI
OUT
MIDI
IN
WR-DA7
IN
SLOT 1
(17-24ch)
(SLAVE)
SLOT 2
(25-32ch)
SLOT 3
INPUT 1-16
WR- TANDM
WCK MASTER
WR-TDIF
DA-98 ID1
TDIF-1 TDIF-1
WORD SYNC OUT
(BNC) (BNC)
WORD CLOCK IN
(75Ω=OFF)
PW-88DL
WR-TDIF
DA-38 ID2
TDIF-1 TDIF-1
PW-88DL
IN
SYNC OUT
PW-88S
PW-88S
WR-TDIF
TDIF-1 TDIF-1
PW-88DL
WR-TDIF
TDIF-1 TDIF-1
PW-88DL
IN
SYNC OUT
PW-88S
Terminator
R
SR
Mic Sampler
Keyboard
R
SR
Mic Sampler
Keyboard
DA-98 ID3
DA-38 ID4
DA-38 ID3
SP
AES/EBU
SP
Power
AMP
REC
OUT 2TR
A IN AUX
SEND AUX RTN
DAT
Effector
A B
DA-98 ID3
MONITOR
A

5
2. Notes for connections
with peripheral equipment
2.1 Wordclock
The WR-DA7 as wordclock master
The DA7 has an internal wordclock generator that provides a timing reference for the external
(digital) audio devices connected to it. This is neither MIDI nor SMPTE timecode. You can set the
internal generator to synchronize to either 44.1 or 48K, selectable from The [D-I/O>INPUT SET]
window.
When multiple digital audio devices are used, it becomes necessary to synchronize the audio sig-
nals with a single reference timing signal or master wordclock source. In a system where all of the
digital audio devices share a common wordclock it is essential that all of the devices be turned on
even if they are not being used.
The WR-DA7 as wordclock slave
The DA7 can be slaved to an external wordclock source, to accomplish this you must go to the [D-
I/O>INPUT SET] window. Here you can choose Wordclock In [WCK IN], Video Sync In [V SYNC],
2 track A input [2TR IN A] and Slot 1,2 or 3.
For example: it is possible to select the WR-AESS card as the wordclock source of the WR-DA7.
The DA7 can be synchronized with the digital audio signals being input on Channels 1/2 of the
WR-AESS card. However, when no input is present on Channels 1/2 an UNLOCK status will be dis-
played. The wordclock synchronization with the other channels will not be realized either.
If the word clock is set incorrectly (for example, a system where multiple equipment units are set
as the wordclock master), noise (usually in the form of clicks and pops) may become audible. It is,
therefore, necessary that all of the slave units be synchronized with the wordclock master unit.
2.2 Installing and using option cards with the WR-DA7:
Be sure to install all of the Option Cards with the power of the DA7 turned OFF. Set the
Dipswitches on the card accordingly for the type of devices being connected.
Insert the card into the WR-DA7. Install all of the supplied mounting screws (for proper ground-
ing) securely to the DA7’s chassis.
WR-TDIF: Set the dipswitches, or switches on the card, according to the devices
being connected.
When connecting a DA-38 or DA-98 (SW1) ON, (SW2) OFF
When connecting a DA-88 (SW1) OFF, (SW2) OFF

6
WR-AESS: Select the switch (AES/EBU, S/PDIF) on the card, according to the devices being
connected. It is possible to select settings for each pair of channels 1/2, 3/4, 5/6,
and 7/8.
This switch is used for switching the electrical signal not for format
change.
WR-TNDM: The Tandem card is for use in Slot 3 (only) of both mixers.
WR-SMPT: SMPTE Card, carefully follow the steps to install the WR-SMPT according to the
instructions in the owner’s manual.
Wordclock
For proper wordclock connections, it is necessary to terminate the last device in the wordclock
chain. The WR-DA7 allows ON/OFF of the 75-Ohm terminator on the wordclock input.
ON: Is selected when the WR-DA7 is used as a wordclock master or as a slave at the end of
the wordclock connections (terminated at 75 Ohm). (A clock output synchronized with DA7
is generated at the word clock’s output.)
OFF: Is selected when the WR-DA7 is used as a slave, the wordclock input entered in the WR-
DA7 is transmitted as a through output.
MIDI
To select the port for MIDI communication, press the MIDI switch until the [MIDI>SETUP] screen
appears. Then select the port for [Gen.Rx] and/or [Gen.Tx] from either MIDI or TO PC.
The MIDI channels assigned to Gen.Rx and Gen.Tx function serve as a device ID number of the
WR-DA7 during reception or transmission of MIDI data. (Select OMNI to receive messages on all
MIDI channels.) For selecting the MIDI channels, press the MIDI switch until the MIDI SETUP
screen appears. Then, select a channel for Gen.Rx or Gen.Tx.
To control external equipment using MIDI Machine Control commands, set the MMC port to MIDI
and assign a MIDI channel. The MIDI channel needs to be the same as the external equipment
being controlled. To make the setting, press the MIDI switch until the MIDI SETUP screen appears.
Then, set up the MMC port and CH (MIDI channel).
Timecode
The WR-DA7 can record and playback automation in synchronization with external timecode. The
WR-DA7 can be synchronized to MIDI timecode (MTC), MIDI clock, and SMPTE timecode (using
the option card WR-SMPT). To select the timecode settings, press the AUTOMATION button until
the SETUP screen appears. Select the appropriate timecode from the TIME BASE area in
Automation EXECUTE window, using the parameter dial select MTC, MIDI CLK, or SMPTE then
push the ENTER key.
When MTC is used, select a port to be used for receiving the MIDI data. The MTC receive port can
be selected by pressing the MIDI switch until the MIDI SETUP screen appears. Then, select the
MTC port from MIDI or TO PC.

7
Tandem connection
Make all connections with the mixers turned OFF.
You will need the following cables and cards:
(2) WR-TNDM cards,
(1) Tandem cable (part # DA/DB-DB: Available in the USA),
(1) MINI DIN 8-Pin Serial cable (Macintosh Printer Cable), or (2) MIDI cables,
(1) 75 ohm BNC-BNC wordclock cable (part # DA/BNC: Available in the USA).
Set up the consoles as master and slave and make the tandem connections for the mixers accord-
ingly. MASTER: When used with the tandem master unit.
SLAVE: When used with the tandem slave unit.
To connect two WR-DA7 mixers in Tandem, install a WR-TNDM card in Slot 3 of each mixer (with
the mixers powered OFF).
Select MASTER/SLAVE on the front panel of each WR-TNDM card.
For proper wordclock synchronization between the two mixers, connect the WORD CLOCK OUT
terminal of the master unit to the WORD CLOCK IN terminal of the slave unit (75 ohm terminate
ON). To set the wordclock of the slave unit, press the D-I/O switch until the INPUT SETUP screen
appears. Then, set the SOURCE SELECT to WCK IN.
To establish communications between the Tandem mixers connect the specified serial cable
(Macintosh cross cable printer cable) or MIDI cable between the RS-422/485 and MIDI ports on
each of the mixers (TO PC or MIDI IN/OUT) must be selected to establish communications.
Communication setting are selected by pressing the D-I/O switch to display the TO SLOT screen of
D-I/O page then select the port from either TO PC or MIDI. In the case of TO PC connection, the
setting should be set so that the baud rates of the master and slave units are set the same on each
of the mixers (a baud rate of 125k is recommended). For baud rate setting, press the MIDI switch
to display the MIDI SETUP screen then select the necessary baud rate.
To establish tandem connections, press the D-I/O to display the TO SLOT screen of D-I/O and
switch the TANDEM setting to ON in Slot 3.
Press the MIDI button in the Set Up section on the Top Panel of the DA7 to select the MIDI SET UP
screen. In the PORT SELECT Area of the SERIAL I/O SETUP section, select TO PC. Set the BAUD
RATE for both consoles to 125K by highlighting the area with cursor and using dial to select the
rate. In the MIDI SETUP area, make sure the MIDI channels are set to the SAME channels for
Gen.Rx/Gen.Tx for BOTH consoles. Set Gen.Rx/Gen.Tx PORT to TO PC.
Press the D-I/O to display the TO SLOT Window. If TANDEM is not selected in the
NORMAL/INSert/TANDEM area, select it. Below the “SLOT 3 TANDEM” area, make sure TANDEM
is set to ON. Select AUTO in the OFFSET DELAY section. Make sure the PORT SELECT is set to TO
PC. The CONNECT area will read SLOT NG or DATA NG until the SLAVE console is configured.
On the Slave console, follow the same procedures. The CONNECT area in the TO SLOT window
will read SLOT NG or DATA NG until data is sent between the consoles. Turning a channel to ON
will initiate the data flow, and the CONNECT prompt in the D-I/O TO SLOT screen will then read
OK on both DA7s (this can take up 5 seconds).

8
2.3 ADAT, BRC
Connections
To connect an ADAT with the WR-DA7 digitally, the WR-ADAT option card is needed to connect the
optical cables. Install the card (with the mixer turned OFF) and screw the option card securely
into place to ensure proper grounding. To use the ADAT’s DIGITAL INPUT press the DIGITAL IN
button on the ADAT to display DIGITAL IN. (Do not switch the DIGITAL I/O button on the BRC to
ON, this is for transferring data between ADATs and may cause unsuspected results.)
To select the ADAT’s wordclock source press the SET LOCATE and DIGITAL IN simultaneously, the
ADAT will display ‘int’ for internal word clock or ‘digi’ for external word clock.
To connect multiple ADAT units, each unit is required to make ID setting. The ID order of the
ADAT are set up automatically according to how the sync cable are connected, starting with 1, in
the order of ADAT SYNC cable connections from SYNC OUT to SYNC IN. (The same ID is used
even when the BRC is connected.)
The ADATs must be powered-up before the BRC. The BRC should be turned on last.
Wordclock
If the ADAT is being used as the wordclock master set the ADAT wordclock to INT. The WR-DA7
functions as an ADAT SLAVE. The WR-DA7 wordclock settings can be set by pressing the D-I/O
switch to display the INPUT SET window of the D-I/O setup section. Then; the SOURCE SELECT is
used to select the slot where the WR-ADAT card is inserted. Cursor to that Slot and press Enter.
LOCK should be displayed in the adjacent window.
When the ADAT and the BRC are in the wordclock master mode, the sampling rate is determined
by selecting the Fixed Mode to 48kHz.
To set the sampling rate at 44.1kHz, select the Variable Mode and press the PITCH DOWN switch
on the front panel. Make the setting -147 cent (‘44.1’ display).
For the ADAT-XT, this setting is done with the CLOCK SELECT switch on the front panel and the
ADAT is set to INT clock.
To use the WR-DA7 as the wordclock master, press the CLOCK SELECT switch on the front panel
of ADAT XT to set up the ADAT XT to DIG to slave to an external clock source. When using a BRC
as ADAT master controller it is recommended that the BRC be set to slave to the DA7. To do this
press the Edit button then the External Sync button on the BRC and select 48 kHz input using the
arrow keys. Press the Edit button to exit this mode. Make sure the EXTERNAL SYNC mode is
selected (the external sync button will light green).
MIDI
To use the ADAT’s MMC operations from the DA7 with a BRC, it is necessary that the transmitting
MIDI channel of the WR-DA7 match the MIDI channel of MMC to be received on the BRC.
For MIDI setting on the BRC, press the MIDI/UTIL to display #11:
MIDI Device screen and set up the value of (MIDI channel of the
MMC command to be output from the WR-DA7) – 1.
Set up ‘ALL’ if it is necessary for the BRC to receive the MIDI messages from other MIDI equip-
ment.

9
When a MIDI message is received at the MIDI IN terminal of the BRC it is immediately transferred
as a through output from the MIDI OUT terminal. To send MIDI data through the BRC, press the
MIDI/UTIL switch several times on the front panel of the BRC to display the 1:MIDI ECHO screen,
then select ‘ON’ using the arrow keys.
Timecode
To generate MTC from the BRC, press the EDIT switch and then press the GEN SYNC switch until
the MIDI screen appears. Select MTC, and turn the GEN SYNC switch to ON.
To generate SMPTE timecode from the BRC, press the EDIT switch and then press the GEN SYNC
switch until the SMPTE screen is displayed. Set to -10dB and turn the GEN SYNC switch to ON.
To generate timecode from the BRC when the ADAT is in FF/REW operation, press the MIDI/UTIL
switch on the front panel of the BRC until #8 is displayed. Output Rew/FF SMPTE AND MTC:
Screen, and select to ‘ON.’
2.4 DA-98, 88, 38
Connections
When making connections between the DA98, 88, 38 and the WR-DA7, use the WR-TDIF option
card and make the connections using the Panasonic part # DA/DB-TDIF(Available in the USA) or
use Part # PW-88D (1m) or PW-88D-L (5m) made by TASCAM.
Set the dipswitches on the WR-TDIF card, according to the model of DA-98, 88, or 38.
(SW1) ON, (SW2) OFF: When the DA-38 or DA-98 is connected.
(SW1) OFF, (SW2) OFF: When the DA-88 is connected.
To receive a digital signal on the DA-98, 88, or 38, press the DIGITAL IN switch on the front panel
to select the ‘DIGITAL IN’ indicator.
When multiple DA98, 88, or 38s are connected, set the machine ID to ‘1’ (‘0’ in the case of DA-
88s) on the first unit (master unit). The machine IDs of the slave units should be set sequentially,
starting with ‘2’ subsequent to the units connected using the PW-88S Sync cables.
The machine ID for the DA-88 is the number added with (ID No. of
the rear panel switch) + 1.
When multiple DA98, 88, 38s are connected using the PW-88S Sync cables, the terminator included
with the Sync cables should be connected to the Sync OUT terminal of the last device.
Wordclock
When the DA-98, 88, or 38 is used as the wordclock master, the wordclock for the DA-98, 88, or 38
is set to ‘INT.’ The Wordclock selection is made by pressing the CLOCK switch on the front panel
to select ‘INT.’
To set the clock selection to INT, WORD, or VIDEO press the CLOCK
switch on the front panel of the DA-98, 88, and 38, the machine IDs
of the DA-98, 88, and 38 are required to be set as
specified below.
DA-98, 38: ID=1
DA-88: ID=0
To use a DA-88 as the wordclock master, connect a 75 ohm BNC to BNC cable from the WORD

10
SYNC OUT terminal of the DA-88 to the WCK IN terminal of the WR-DA7. Then press the D-I/O
switch of the WR-DA7 several times in order to display the INPUT SET screen of the D-I/O window.
Then, select the SOURCE SELECT to ‘WCK IN.’
When the DA-98 or 38 is the wordclock master, the slot where the WR-TDIF card is inserted can be
selected as the wordclock source, in addition to the above-mentioned WCK IN. For WR-DA7 word-
clock setting, press the D-I/O switch several times to display the INPUT SET screen of the D-I/O
window. Then, select the SOURCE SELECT to the SLOT where the WR-TDIF card is installed.
The sampling rate settings for the DA-98, 88, 38 is dependent on the format of the tape being
used. Therefore, the sampling rate is automatically selected according to the sample rate on the
tape.
When the WR-DA7 is the wordclock master, the BNC cable should be connected from the WORD
CLOCK OUT terminal of the WR-DA7 to the WORD SYNC IN terminal of the DA-98 or 38. Select
WORD by pressing the CLOCK switch on the front panel of the DA-98 or 38.
When Connecting a DA-88 the WR-DA7 must function as the slave unit.
MIDI
For MMC control from the WR-DA7 to the DA-98, select Menu Group 3 in the DA-98 screen and
select the Ctrl Prt (Control Protocol) to ‘MIDI.’
For the MIDI ID of MMC being received on the DA-98, select Menu Group 7 in the DA-98 screen
and set the MIDI ID to the same number of the MIDI channel of the MMC to be sent from the WR-
DA7.
Install the SY-88 Sync board to perform MMC operation from the
WR-DA7 to the DA88.
For SY-88 Sync board setting, set the MODE dip switch 2 on the rear panel at 0 (OFF) so that con-
trol from external equipment can be accomplished through the MIDI port.
Timecode
When playing back the timecode recorded on the tape from the DA-98, select Menu Group 5 in
the DA-98 screen and set Tape (ABS) with OutTc Src.
To generate the MTC output from the DA-98, select Menu Group 7 on the DA-98 screen and set
the output to ‘ON’ with MTC Out. To generate the MTC output while the DA-98 is in FF/REW oper-
ation, set fast to ‘ON.’ To generate the MTC output when the DA-98 is stopped, set Stop to ‘ON.’
To generate the timecode output from the DA-98 in synchronization with the digital audio data,
select Menu Group 5 in the DA-98 screen and set ‘Digital’ with OutTc Tmg.
When an SY-88 Sync board is installed in the DA-88, it is possible to generate SMPTE timecode and
MTC (MIDI timecode) from the DA-88.
For proper SY-88 Sync board setting, set the MODE dip switch 6 on the rear panel to 1 (ON) so
that the timecode recorded on the tape of the DA-88 can be converted to MTC.
If the MODE dip switch 6 is set to 0 (OFF), the timecode received in the TIME CODE IN terminal
of the DA-88 is then outputted after being converted to MTC.
To generate timecode from the DA-88 in synchronization with the digital audio data set the MODE
dip switch 5 on the SY-88’s real panel to 0 (OFF).

11
2.5 DAT (with AES/EBU or S/PDIF I/O)
To record and playback using the DAT Recorder as the wordclock master and the WR-DA7 as a
slave, connect the DAT to the REC OUT and 2TR IN terminals of the WR-DA7. Press the D-I/O
switch on the WR-DA7 to display the INPUT SET screen on the D-I/O so that synchronization is
secured with the digital audio signal of the DAT. Then, set the SOURCE SELECT to ‘2TR IN A.’
To record and playback using the WR-DA7 as the wordclock master and the DAT as the slave, con-
nect the DAT to the REC OUT and 2TR IN terminals of the WR-DA7, and select a wordclock source
to another device other than the DAT connected to 2TR IN A.
To record with the S/PDIF output of the WR-DA7 connected to the DAT, please note that some DAT
units may not operate in the normal recording mode. In this case, the connection between the
WR-DA7 and the DAT should be made using the AES/EBU digital audio terminals.
2.6 Digital timepiece
Note the following: when setting up a system using the Mark of the Unicorn Digital Timepiece
(DTP).
When an ADAT is connected to the DTP using an ADAT Sync cable and the DTP is the master
machine the ADAT is synchronized using the timecode being generated by the DTP. Therefore, the
timecode of the DTP is kept unchanged even though the operation of PLAY and REC is performed
on the ADAT. For this reason, the ADAT cannot be synchronized with the timecode and normal
operation cannot be performed.
When the DA-98, 88, or 38 is controlled by the DTP, the DTP functions as the master unit and the
others operate as the slave. Therefore, set the machine ID to another ID other than ID=1 for the
DA-98 or 38, set at something other than ID=0 for the DA-88. When the CHASE switch of the DA-
98, 88, or 38 is set to ON, each unit works as a slave unit to the DTP and all other units run in syn-
chronization with the DTP.
When the DTP is used as the MIDI interface with MMC from the WR-DA7 for the ADAT or the DA-
98, 88, or 38 connected through the DTP and the SYNC cable, the following operation takes place:
FF/REW operation: Stops where the timecode makes leading of less than
10 seconds.
REC operation: REC is effected upon the cancellation of the record
standby condition. No recording is performed.
When using the VIDEO OUT of the DTP as the wordclock source for the WR-DA7, the WR-DA7 may
be in a mode where the VIDEO frame rate of the DTP cannot be recognized correctly. Recognition
is not possible when the DTP frame rate is set to any rate other than 59.94 (frames/second).
2.7 Expansion Software (Macintosh Version)
Connection
To connect a personal computer (Macintosh), in which RAMSA MAX software is installed, to the
WR-DA7, use the recommended cable (ImageWriter printer cable) to connect the serial port
(modem port or printer port) on the Macintosh computer to the TOPC port on the WR-DA7.
.

12
Normally, a Macintosh computer has two serial ports: modem and printer port. RAMSA MAX soft-
ware permits connection of either of these ports to the WR-DA7. To control one WR-DA7, the
modem port is normally used. To control two WR-DA7s, connect the WR-DA7 (serving as the mas-
ter) to the modem port and the other one (serving as the slave) to the printer port.
For tandem communication between the two WR-DA7s, a MIDI cable must be connected from
MIDI IN on one WR-DA7 to MIDI OUT on the other.
MIDI
For communication with RAMSA MAX software, set it as follows:
When [Preference] is selected in the Edit menu, the Preference dialog appears on the screen.
Select [Port Setup] from it, and select the port (normally, the modem port) that is connected
to the WR-DA7 as [Automation Port].
Select a communication speed (Baud Rate) of either 62.5 k or 125 k. Communication will be
faster at 125 k, however if the computer's operation is unstable, then select 62.5 k.
If you are using an external MIDI device, select [Use MIDI], then quit the expansion software, and
restart it. Now, select a MIDI device from the [MIDI Source, Echo MIDI to] box. In selecting a MIDI
device, the MIDI devices connected by the OMS must be recognized. Start the OMS setup applica-
tion to have the MIDI devices recognized. (Obtain the OMS setup application by downloading it,
(for example, from the home page of OPCODE.)
Set the WR-DA7 MIDI as follows:
Port Select: TOPC Baud Rate setting to 62.5 k or 125 k
(to suit the expansion software settings)
Gen Tx: TOPC MIDI CH 1
Gen Rx: TOPC MIDI CH 1
PRG CHG: TX-on RX-on THRU-off
CTRL CHG: TX-on RX-on THRU-off NRPN-on
SYSTEM EX: TX-on RX-on THRU-off
When using Tandem Connections, set the WR-DA7 as follows:
Press the DI/O button on the WR-DA7 to select the TO SLOT screen.
Set SLOT 3 to TANDEM ON and [Port Select] to MIDI.
Timecode
Expansion software allows MTC or SMPTE timecode to be received via the WR-DA7. In this case,
set the expansion software as follows:
When [Preference] is selected in the Edit menu, the Preference dialog box appears in the screen.
Select the[Port Setup] and set the [Sync Source] to WR-DA7 Timecode.
Set the WR-DA7 as follows:
Press the Automation button on the 10 Key Pad until the EXECUTE screen appears. Select
[MTC] for the [Timebase] and press the Enter button on the top panel of WR-DA7.
Press the MIDI button on the WR-DA7 until the MIDI Setup screen appears. Set the MTC
receiving port to MIDI and set the THRU button of [OTHERS] to ON.
With the expansion software, MTC can be directly received from the Macintosh computer's serial
port, to which there are no WR-DA7 being connected, using OMS.

13
Set the OMS as follows:
Start the OMS setup application. If the OMS is not installed, it can be downloaded from the
manufactures web-site.
Select [OMS MIDI Setup] in the Edit menu.
Select the port (normally, the printer port) in which there's no WR-DA7 connected. (In this
case, de-select [Modem] and [Run MIDI In background].)
If OMS is started for the first time, the MIDI devices connected to the computer must be rec-
ognized by the OMS. Connect the MIDI devices being used to the printer port, and turn on
each MIDI device. Then, execute [Easy Setup]. When the OMS recognizes all the MIDI
devices, save the settings of the OMS setup application, and quit the operation.
Set-up the expansion software as follows:
Select [Preference] in the Edit menu to open the Preference dialog-box. Select [Port Setup]
and check [Use MIDI], quit the expansion software, and restart it.
Select [Preference] again in the Edit menu, and select MTC (OMS) for [Sync Source] from the
[Port Setup]. Select the MIDI device from the box in which the MTC is being sent.
Caution in setting Macintosh Computers
If Free MIDI is active in your Macintosh computer, the expansion software may become unstable in
operation and may conflict with OMS compatibility. In this case, open the extension manager in
the Apple menu, and de-select Free MIDI, then restart the Macintosh computer.
RAMSA MAX software requires at least 8 MB of RAM. (12 MB of RAM is recommended). If there is
sufficient RAM, select the icon for the expansion software, press the Command key and the charac-
ter key [I] and change memory size to select a RAM size of 12.
If the expansion software is unstable despite the above settings, open the extension manager in
the Apple menu, and turn off any unused applications. It is known that applications that are relat-
ed to the serial ports and Apple Talk will conflict with the serial MIDI drivers (OMS, Free MIDI,
MIDI Manager, etc.). Remove the drivers related to Quick Time using the Macintosh Extensions
Manager if it is not necessary to use them because they will impede the computer’s performance.
After changing these settings, the Macintosh computer must be restarted.

15
3. WR-DA7 system applications
3.1 Example of systems for ADAT (1 unit)
(When a timecode is recorded on a tape track)
This system is used to record the SMPTE timecode on track # 8 of an ADAT. This timecode will be
used as the timecode reference for automation.
Method of connection
With the mixer powered ‘OFF’ Insert the option card WR-ADAT (Slot 1) and WR-SMPTE in the dedi-
cated slot of the WR-DA7 and firmly fasten them to the mixer using the supplied screws.
Connect the WR-ADAT card of the WR-DA7 to the DIGITAL IN/OUT terminal of the ADAT using an
optical cable and press the DIGITAL IN switch on the front panel of the ADAT to select the digital
input mode.
The timecode is transferred by using the 8th Channel’s OUTPUT (RCA Pin Jack) of the ADAT
analogs output to the SMPTE IN (XLR: 1,3-GND, 2-SIGNAL) of the WR-DA7 using the (optional)
WR-SMPT installed.
WR-DA7 setting
Set the ADAT to the wordclock master and the WR-DA7 to the slave.
In the INPUT SET screen of D-I/O of the WR-DA7, set the SOURCE SELECT to ‘SLOT1.’
To display the SMPTE timecode received at the SMPTE IN, set the TIME BASE to ‘SMPTE’ in the
EXECUTE screen of the AUTOMATION window.
ADAT setting
To use the ADAT as the wordclock master, press the CLOCK SELECT switch to select ‘INT 48k’ or
‘INT 44.1k’ (for the ADAT-XT).
For ADAT’s other than the ADAT-XT select to INT 48kHz, select the Fixed Mode. For INT 44.1kHz
setting, select the Variable Mode. Then, press the PITCH DOWN switch to select the setting at -
147cent (display of 44.1).
During ADAT playback, there is no PLAY output while ALL INPUT on the front panel is ON. ALL
INPUT must be turned OFF.

16
System configuration-1
WCK MASTER
WR-ADAT
ADAT
DIGITAL
OUT
TRACK8
ANALOG OUT
(RCA)
IN
IN
OUT
Optical Cable
WR-SMPT
SMPTE IN
SLOT 1
(17-24ch)
(XLR)
SP
AES/EBU
SP
Power
AMP
REC
OUT 2TR
A IN AUX
SEND AUX RTN
INPUT 1-16
DAT
WR-DA7
Mic
Effector
Sampler
Keyboard
A B
R
SR
MONITOR
A

17
3.2 Example of systems for ADAT (3 units) and BRC
This system is configured using 3 ADATs and a BRC connected using the ADAT Sync cables and the
three ADAT units are being remote-controlled from the BRC. In addition, it is possible to perform
automation synchronized to timecode (MTC or SMPTE) from the ADAT using the MIDI out of the
BRC, and having the ADAT controlled by MMC from the WR-DA7.
Method of connection
With the mixer powered OFF insert the option card WR-ADAT in Slot 1, 2, 3 of the WR-DA7 and fas-
ten them to the securely using the 4 screws.
Connect the WR-ADAT card in the WR-DA7 to the DIGITAL IN/OUT terminals of the ADAT using an
optical cable and press the DIGITAL IN switch on the front panel of each ADAT to set up the digital
input mode.
The BRC functions as the wordclock master. Connect the WORD OUT of the BRC to WORD
CLOCK IN of the WR-DA7 using a BNC cable and set the WR-DA7 wordclock termination to 75
Ohm=ON.
For MIDI connection, connect the WR-DA7 to the MIDI IN/OUT of the BRC using a MIDI cable.
The MMC and MTC functions are now available.
For the timecode, MTC is received using the MIDI connection. (Using the option card WR-SMPT, it
is possible to receive the SMPTE timecode. The SMPTE OUT (Phone Jack) of the BRC is connected
to the SMPTE IN (XLR: 1,3-GND, 2-SIGNAL) of the WR-DA7.)
WR-DA7 setting To use the WR-DA7 as a slave unit, set the SOURCE SELECT to ‘WCK IN’ in the
INPUT SET screen. (For synchronization with the ADAT card source, set SOURCE SELECT to
‘SLOT1.’)
For MMC, set MMC PORT to ‘MIDI’ in the MIDI SETUP screen. The MIDI channels should be set
to the same MIDI channel of the MMC being received on the BRC.
To receive MTC on the DA7, set the MTC PORT to ‘MIDI’ in the MIDI SETUP screen of the WR-
DA7.
To have the MTC read out on the LCD screen, set the TIME BASE to ‘MTC’ in the EXECUTE
screen of AUTOMATION SETUP.
(For SMPTE timecode using the optional WR-SMPTE card, set the TIME BASE to ‘SMPTE.’)
ADAT setting
For ADAT wordclock setting, connect a Sync cable from the BRC and turn on the power supply. At
that time, the setting is automatically set to ‘EXT’ and the ADAT works as a slave to the BRC.
The ADAT ID numbers are automatically set from 1, in the sequential order of the SYNC cable con-
nections from SYNC OUT to SYNC IN.
The power supply of each ADAT should be turned on in the sequential order, starting with the last
unit located at the end of SYNC cable connections to the first unit. Finally, turn of the power sup-
ply of the BRC.
The audio input of the ADAT needs to be selected into the digital input mode. Press, the DIGITAL
IN buttons on the front panel of each ADAT being used.

18
During ADAT playback there will be no playback while ALL INPUT is ON. ALL INPUT must be
turned OFF.
BRC setting
Select the Fixed Mode when the BRC is used as a word clock master and the sampling rate is set at
48kHz. Select the Variable Mode when the sampling rate is set at 44.1kHz. Press the PITCH DOWN
switch to make setting at -147cent ( ‘44.1’ display).
For MTC setting, set MIDI in the GEN SYNC setting at ‘MTC’ and turn on the GEN SYNC switch.
For SMPTE setting set SMPTE in the GEN SYNC setting at ‘-10dB’ and turn on the GEN SYNC
switch.
To obtain a timecode output from the BRC during FF/REW operations in the ADAT, obtain a display
of 8: Output Rew/FF SMPTE & MTC: for ‘ON’ in MIDI/UTIL setting of the BRC.
To accomplish MMC operation, there must be coincidence of the MIDI channel between the WR-
DA7 and the MMC’s MIDI channel of the BRC. On the BRC, obtain a display of 11: MIDI Device
screen by MIDI/UTIL setting. Set the value of ‘MIDI channel set for the WR-DA7 - 1.’ Otherwise, set-
ting should be set to ‘ALL.’

19
System configuration-2
WCK MASTER
WR-ADAT
ADAT
ADAT ID1
BRC
WR-DA7
DIGITAL
OUT
IN
MIDI
IN
MTC
MMC
MIDI
OUT
WCK OUT
(48kHz OUT)
REMOTE OUT TO ADAT
Sync Cable
WORD CLOCK IN
(75Ω=ON)
IN
IN
OUT
Optical Cable
WR-ADAT
ID2
DIGITAL
OUT
IN
SYNC OUT
Sync Cable
IN
IN
OUT
Optical Cable
WR-ADAT
ADAT ID3
DIGITAL
OUT
IN
SYNC OUT
Sync Cable
IN
IN
OUT
Optical Cable
SLOT 1
(17-24ch)
SLOT 2
(25-32ch)
WR-ADAT
SLOT 3
(9-16ch)
INPUT 1-8
MIDI
IN
MIDI
OUT
R
SR
Mic Sampler
Keyboard
SP
AES/EBU
SP
Power
AMP
REC
OUT 2TR
A IN AUX
SEND AUX RTN
DAT
Effector
A B
MONITOR
A

20
3.3 Example of systems with Two WR-DA7 in tandem with 4 ADATs and BRC
This is a 32-track digital recording system utilizing two WR-DA7’s connected in tandem along with
four ADAT units a BRC and ADAT Sync cable connections. The four ADAT units can be controlled
from the BRC. It is also possible to perform recording and playback synchronized to timecode
(MTC or SMPTE) generated from the ADAT through the MIDI interface of the BRC, and also con-
trol ADAT operation via MMC from the WR-DA7 is possible.
Method of connection
With the consoles turned OFF, insert the option cards of WR-ADAT in Slots 1 and 2 and install the
WR-TNDM in Slots 3 of the two WR-DA7 units and firmly fasten them to the back panel using the
screws supplied.
Set the switch on the front of WR-TNDM card to MASTER for the WR-DA7 that is to being used as a
master unit. Set switch on the card to SLAVE of the WR-DA7 being used as a slave unit.
Make the connections between the mixers using the recommended cables for proper tandem con-
nection. (Part No. DA/DB-DB: Available in the USA))
For serial or MIDI communications between the two WR-DA7 units, connect the master unit of the
WR-DA7 by selecting the TO PC (for serial) or the MIDI port of the slave unit using either the spec-
ified serial (Macintosh Printer Cable) or MIDI cables.
For wordclock communication, make the connections between the WORD OUT of the BRC
(48kHz) and WCK IN of the WR-DA7 on the master unit, and connect between the WCK OUT of
the master unit to the WR-DA7 and WCK IN of the slave unit using BNC cables (Part No./BNC:
Available in the USA).
Select he master mixer’s termination to 75 ohm OFF and set the slave unit to 75 ohm ON.
Make the connections between the BRC and ADAT and between the ADAT units using the ADAT
SYNC cables, in the order off the ADAT’s to be used from SYNC OUT to SYNC IN.
Connect the WR-ADAT card from the WR-DA7 to the DIGITAL IN/OUT terminal of the ADAT using
an optical cable (Part No. DA/TOS: Available in the USA) and press the DIGITAL IN switches on
each ADAT to select the digital-input mode.
To make the MIDI connections, establish a loop for the two WR-DA7 units and the BRC, and make
MIDI cable connections from MIDI OUT to MIDI IN. This makes MMC and MTC operative.
(It is possible to receive SMPTE timecode by using the WR-SMPT option card, by making the con-
nections from the SMPTE OUT (Phone Jack) of the BRC to SMPTE IN (XLR: 1,3-GND, 2-HOT) of
the WR-DA7.)
WR-DA7 setting
To use the WR-DA7 as a slave unit, set the SOURCE SELECT in the Input Set Window of the D-I/O
SETUP SECTION to ‘WCK IN’ on the MASTER mixer.
(For synchronization with the ADAT card source, set the SOURCE SELECT to ‘SLOT1’ on the MAS-
TER mixer. Select ‘WCK IN’ on the SLAVE mixer.)
To maintain communications between the two WR-DA7 units, set the PORT SELECT to ‘TO PC’ in
the SERIAL I/O SETUP area of the MIDI SETUP screen for both MASTER and SLAVE consoles. Then
set the baud rates at the same value.

21
For proper tandem connections, select the TANDEM setting to ‘ON’ in the TO SLOT screen of the
D-I/O Input Setup Section.
To operate MMC, set the MMC PORT to ‘MIDI’ in the MIDI SETUP screen of the TANDEM MASTER
unit. In this case, the MIDI channel of MMC should be set at the same MIDI channel of MMC to be
received on the BRC.
To send/receive the MIDI messages, set the PORT of Gen.Rx and Gen.Tx to ‘MIDI’ in the MIDI
SETUP screen. For the TANDEM SLAVE unit, set the SEND/RECEIVE of the various MIDI messages
to ‘THRU.’
For MTC reception on the WR-DA7, set MTC PORT to ‘MIDI’ in the MIDI SETUP screen of the
TANDEM Master unit.
To obtain the MTC timecode display on the LCD screen set the TIME BASE to ‘MTC’ in the
AUTOMATION EXECUTE screen of the Automation SETUP SECTION.
(To use SMPTE timecode connect the WR-SMPTE card, and set the TIME BASE to ‘SMPTE.’)
ADAT setting
For ADAT wordclock setting, connect a Sync cable from the BRC and turn on the power supply.
The setting is automatically set to ‘EXT’ and the ADAT functions as a SLAVE to the BRC.
The ADAT ID numbers are automatically set in the order of the SYNC cable connections from
SYNC OUT to SYNC IN.
The power supply of each ADAT should be turned on first, then turn ON the power supply of the
BRC.
To use the digital input of the ADAT, the DIGITAL IN button should be selected S on the ADAT’s
front panel.
During ADAT playback if ALL INPUT is ON there will be no playback. ALL INPUT must be turned
OFF.
BRC setting(BRC as the wordclock master)
Select the Fixed Mode when the BRC is used as the wordclock master and set the sampling rate to
48kHz. When the sampling rate is set to 44.1kHz select the Variable Mode and press the PITCH
DOWN switch to a setting of-147cent ( ‘44.1’ display).
To obtain a through output of the MIDI message received on the BRC, press the BRC’s MIDI/UTIL
button repeatedly to display the MIDI ECHO screen and select the ON setting.
For setting MTC, display the MIDI screen by pressing the GEN SYNC button to select a setting of
‘MTC.’ Press the EDIT button to exit the edit mode then, press the GEN SYNC button to enable
sync generation.
For setting SMPTE, press the GEN SYNC button to display SMPTE: and use the UP/DOWN to select
‘-10dB’ then, press the EDIT button to exit the edit mode press the GEN SYNC switch to enable
SMPTE sync the LED will light.
To obtain a timecode output from the BRC even during FF/REW operations of the ADAT, obtain a
display of 8: Output Rew/FF SMPTE & MTC: for ‘ON’ in MIDI/UTIL setting of the BRC.
