Handheld Computer
Supplementary Instructions
for Wireless LAN
®
This manual contains supplementary instructions regarding the use of the
computer. This supplementary Instructions manual explains how to get started
with a wireless LAN and point out cases where the operation of the computer
will differ from that in the Operating Instructions.
Contents
Read Me First................................................. 2
Connecting to Wireless LAN ........................ 4
Specifications .............................................. 10
Wireless LAN
Antenna
Wireless LAN communications are done via an antenna. Do not shield this antenna
with the hand, etc. This will negatively effect the performance of your wireless LAN
communications.
NOTE
Model No. CF-P1Series
The illustration differs in shape, depending on the model.

2
Information to the User
This product and your Health
This product, like other radio devices, emits radio frequency electromagnetic energy. The
level of energy emitted by this product however is far much less than the electromagnetic
energy emitted by wireless devices like for example mobile phones.
Because this product operates within the guidelines found in radio frequency safety stan-
dards and recommendations, we believe this product is safe for use by consumers. These
standards and recommendations reflect the consensus of the scientific community and result
from deliberations of panels and committees of scientists who continually review and inter-
pret the extensive research literature.
In some situations or environments, the use of this product may be restricted by the proprietor
of the building or responsible representatives of the organization. These situations may for
example include:
Using this product on board of airplanes, or
In any other environment where the risk of interference to other devices or services is
perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices in a specific
organization or environment (e.g. airports), you are encouraged to ask for authorization to
use this product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interference caused by unauthorized modi-
fication of this product. The correction of interference caused by such unauthorized modifi-
cation will be the responsibility of the user. We and its authorized resellers or distributors are
not liable for damage or violation of government regulations that may arise from failing to
comply with these guidelines.
Read Me First
Declaration of Conformity (DoC)
“Hereby, we and Panasonic Service Europe GmbH (PSE), declares that this
Personal Computer is in compliance with the essential requirements and other
relevant provisions of the Directive 1999/5/EC.
Hint:
If you want to get a copy of the original DoC of our products which relates to the R&TTE,
please contact to our web address: http://doc.panasonic-tc.de
For U.K.

3
For U.S.A.
Replace as follows.
Federal Communications Commission Radio Frequency Interference
Statement
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the Panasonic Service Center or an experienced radio/TV technician for help.
Safety Notice
Do not touch or move antenna while the unit is transmitting or receiving.
Do not hold any component containing the radio such that the antenna is very close or
touching any exposed parts of the body, especially the face or eyes, while transmitting.
Do not operate a portable transmitter near unshielded blasting caps or in an explosive
environment unless it is type especially qualified for such use.
Warning
To assure continued compliance, use only shielded interface cables when connecting to a
computer or peripheral. Also, any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this equipment.
FCC RF Exposure Warning:
•This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
•This equipment must be installed and operated in accordance with provided instructions
and minimum 1.5 cm spacing must be provided between antenna and all person’s body
(excluding extremities of hands, wrist and feet) during wireless modes of operation.
•This equipment may use multiple installed transmitters, which may be capable of simulta-
neous transmission.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause
undesired operation.
Responsible Party: Matsushita Electric Corporation of America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP-5 (1-800-527-8675)

4
After finishing the first-time operation, make a connection setting for Wireless LAN
using the following procedure.
Connecting to Wireless LAN
Automatic network detection
A connection manager periodically scans wireless networks for available connections. If
any networks are detected and no networks are connected yet, the connection manager
will try to connect with a more favorable network first. If such a network cannot be used
or the connection manager cannot connect with any suitable network due to an invalid
WEP key, the connectivity bubble (A) is displayed for manual network connection. (
below)
If you don’t see the suitable network, tap [Settings] ( page 5, step (3)) to display the
detailed configuration window.
If the connection manager is able to connect to a network automatically, the connec-
tivity bubble ( below) will not appear, and you can follow the steps described in
page 5 step (3) to access the connection manager.
NOTE
Connect to a wireless LAN
(1) Select a network to connect to and what the network
will connect to, then tap [Connect] from the connec-
tivity bubble.
(2) If the connectivity bubble pops up as shown at right,
enter the WEP key, then tap [Connect].
(A)

5

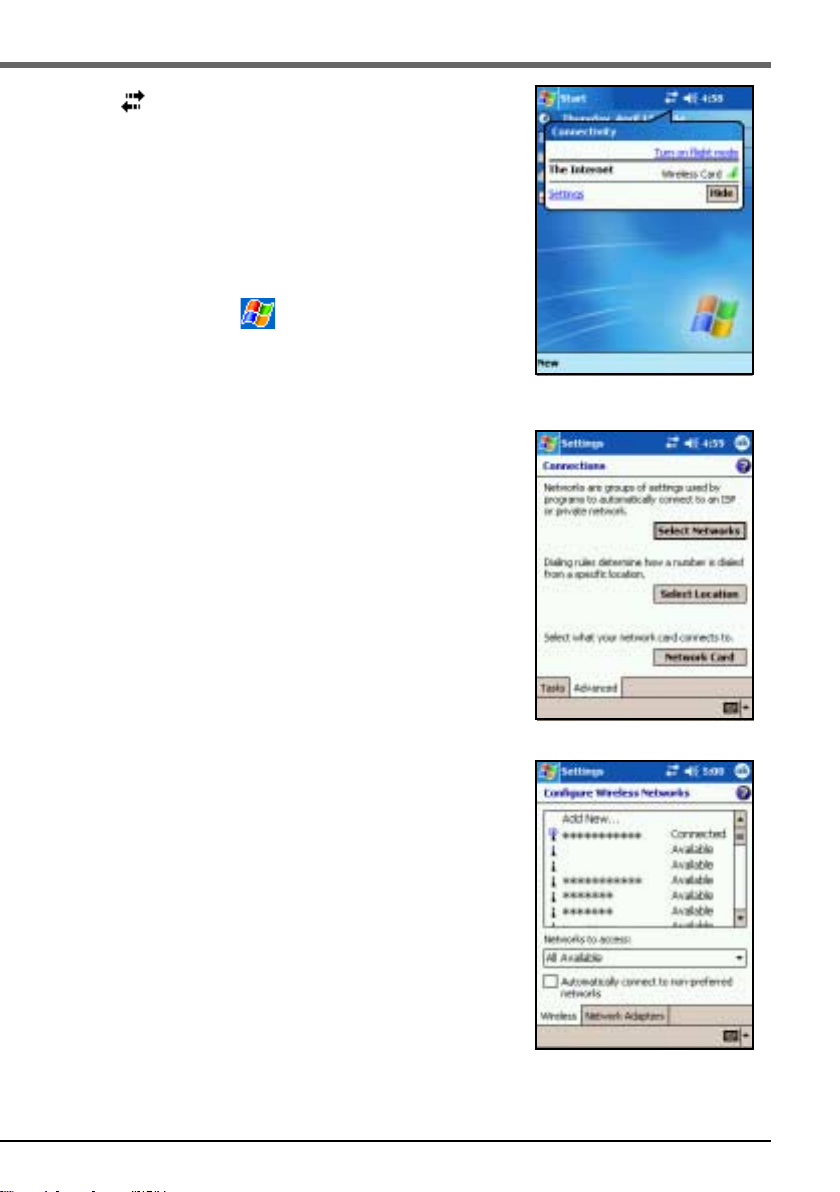

(3) Tap to display the connectivity bubble.
(4) Tap [Settings] to display [Connections] screen*1.
*1You can also tap - [Settings] - [Connections]
tab - [Connections].
(5) Tap [Advanced] tab - [Network Card].
(6) Tap [Wireless] tab.
(7) At [Networks to access], select [AllAvailable] or [Only
access points].
(8) Tap on the access point you want to connect to from
the list.
[Configure Wireless Network] screen will appear.

6
Connecting to Wireless LAN

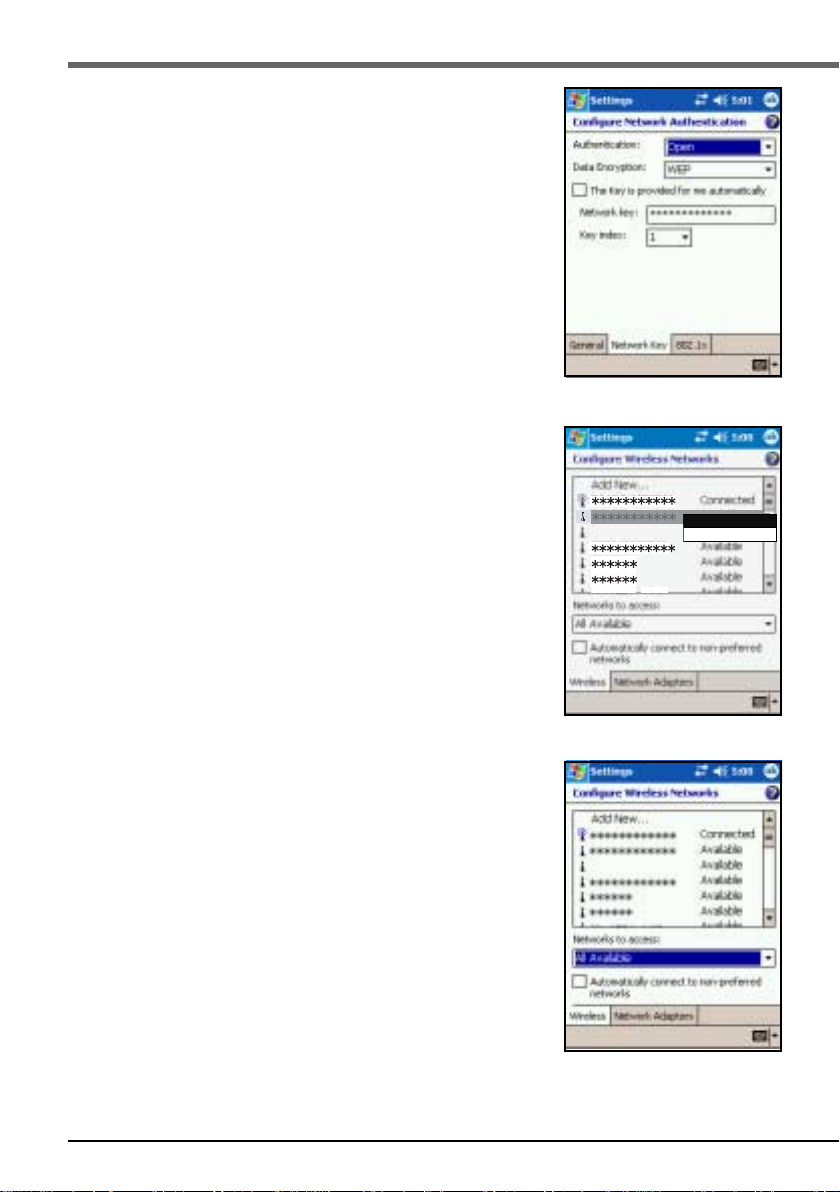

(9) Tap [Network Key] tab and select [Authentication].
If WEP is enabled:
Select [WEP] at [Data Encryption].
Enter the key string in [Network key] and select [Key
index], then tap [ok].
If WEP is not enabled:
Tap [ok] to return to the previous screen.
(10) Tap and hold on the access point you want to connect
to, and tap [Connect] on the popup menu.
(11) The screen will be updated to show the new connec-
tion.
Remove Settings
Connect

7
(12) If the CF-P1 is not connected with a host computer
via a sync cable, then on the navigation bar nor-
mally indicates the Wireless LAN connection is prop-
erly established.
You can also check on [Network Adapters] tab to
check if the IP address obtained from DHCP is cor-
rect.
(13) Tap [Panasonic Pegasus WLAN CF Module] to see
the IP address information.

8
Connecting to Wireless LAN
Peer to peer mode
The Peer-to-peer mode is also known as the “Ad-Hoc” mode. There are two ways to con-
nect CF-P1 with other devices in the peer-to-peer mode. The first way is to create an Ad-
Hoc network on CF-P1, then allow other devices to connect to CF-P1 by joining the net-
work. The second way is simply by connecting CF-P1 to an existing ad-hoc network if the
peer device has already created such a network.
(1) Display [Configure Wireless Networks] screen (
page 5 step (6)).At [Networks to access], select [Only
computer-to-computer].
(2) Select [Add New… ] from the list.

9

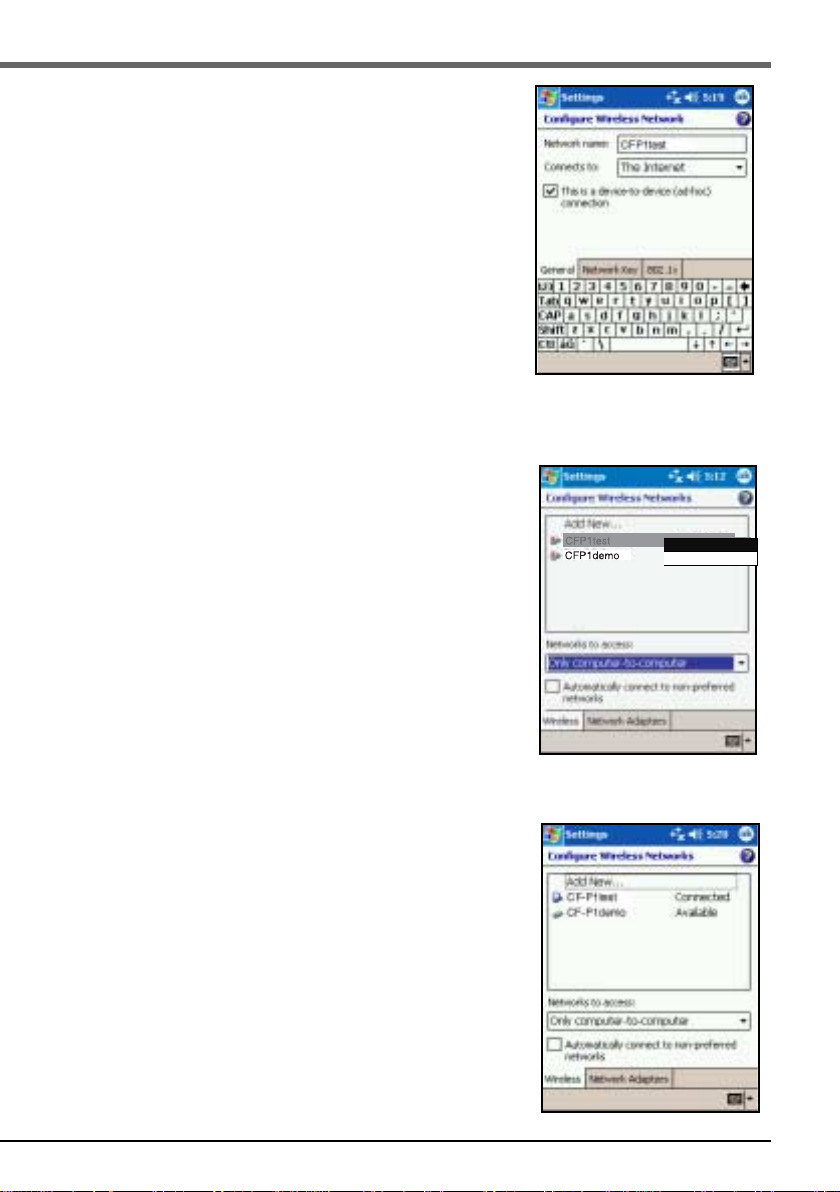

(5) Tap and hold the network name and tap [connect].
(6) Now the new ad-hoc network has been created, and it
is visible to other WLAN devices.
CF-P1 is connected to the ad-hoc network.
Remove Settings
Connect
(3) Type in the network name in [Network name]
(CFP1test, for example). Then add a checkmark for
[This is a device-to-device (ad-hoc) connection].
Ad-hoc channel is assigned automatically.
(4) Tap [ok] to return to the previous screen.

10
Standards Compliance IEEE802.11b compliant, Frequency 2.4 GHz band
Communication Protocol Direct Sequence Spread Spectrum (DS-SS), Half
Duplex
Frequency Range 2.412-2.462 GHz (1-11ch)
Transmission Rate 1, 2, 5.5, 11 Mbps
Media Access Protocol CSMA/CA
Access Mode Infrastructure mode, Ad-Hoc
Security 128/64 Bit WEP and WPA support
802.1x Authentification EAP-PEAP, EAP-TLS
Specifications

11
