Panasonic PT-53WX54UJ User manual

MTNC040311A1
B19 Canada: B02
HDTV MONITOR
PT-53WX54J / PT-53WX54UJ/ PT-47WX54J / PT-47WX54UJ/
PT-47WX34J / PT-47WX34UJ
P8W
Please fileand use thismanual together with the mainservice
manual for Model PT-53WX53G, Order No. MTNC030518C1. This
simplified service manual includes adifference parts list. ModelsPT-
53WX54J / UJare identical to modelsPT-53WX53G / UG,PT-
47WX54J / UJare identical to modelsPT-47WX53G / UG, PT-
47WX34J / UJare identical to modelsPT-47WX33G / UG except for
the differences included on thissimplified service manual.
1

2004 Matsushita ElectricCorporation of America. All rights
reserved. Unauthorized copying and distribution isaviolation of
law.
1. Safety precautions
General guidelines
Anisolation transformershouldalways be usedduring the servicing of a receiverwhose
chassis is not isolatedfromAC powerline. Use a transformerof adequate powerrating as this
protects the technicianfromaccidents resulting inpersonal injuryfromelectrical shocks. It will
alsoprotect the receiverfrombeing damagedbyaccidental shorting that mayoccurduring
servicing.
Whenservicing, observe the original leaddress, especiallyinthe high voltage circuit. Replace
all damagedparts (alsoparts that showsigns of overheating.)
Always replace protective devices, suchas fishpaper, isolation resistors and capacitors, and
shields afterservicing the receiver. Use onlymanufacturer’s recommendedrating forfuses,
circuits breakers, etc.
High potentials are present whenthis receiveris operating. Operation of the receiverwithout
the rearcoverintroduces dangerforelectrical shock. Servicing shouldnot be performedby
anyone who is not thoroughlyfamiliarwiththe necessaryprecautionswhenservicing high
2

voltage equipment.
Extreme care shouldbe practicedwhenhandling the picture tube. Rough handling maycause it
toimplode due toatmospheric pressure. (14.7 lbs persq. in.). Donot nick orscratchthe glass
orsubject it toanyundue pressure. Whenhandling, usesafetygoggles and heavygloves for
protection. Discharge the picture tube byshorting the anode tochassis ground (not tothe
cabinet ortoothermounting hardware). Whendischarging connect coldground (i.e. dag
ground lead) tothe anode witha wellinsulatedwire oruse a grounding probe.Avoidprolonged
exposure at close range tounshieldedareas of the picture tube toprevent exposure tox ray
radiation.
The test picture tube usedforservicing the chassis at the benchshouldincorporate safety
glass and magnetic shielding. The safetyglass provide shielding forthe tube viewing area
against x rayradiation as well as implosion. The magnetic shieldlimits the x rayradiation
around the bell of the picture tube inaddition tothe restricting magnetic effects. Whenusing a
picture tube test jigforservice, ensure that the jigis capable of handling 50kV without causing
x rayradiation.
Before returning a servicedreceivertothe owner, the service technicianmust thoroughlytest
the unit toensure that is completelysafe tooperate. Donot use a line isolation transformer
whentesting.
Leakage current coldcheck
Unplug the A.C. cordand connect a jumperbetweenthe twoplug prongs.Measure the
resistance betweenthe jumperedAC plug and expose metallic parts suchas screwheads,
antenna terminals, control shafts, etc. If the exposedmetallic part has a returnpathtothe
chassis, the reading shouldbe between240k and 5.2M . If the exposedmetallic part does
not have a returnpathtothe chassis, the reading shouldbe infinite.
Leakage current hot check
Plug the AC corddirectlyintothe AC outlet. Donot use anisolation transformerduring the
check.
Connect a 1.5k 10 watt resistorinparallel witha 0.15 Fcapacitorbetweenanexposed
metallic part and ground. Use earthground, forexample a waterpipe.
Using a DVM witha 1000 ohms/volt sensitivityorhigher, measure the AC potential across the
resistor.
Repeat the procedure and measure the voltage present withall otherexposedmetallic parts.
Verifythat anypotential does not exceed0.75 volt RMS. A leakage current tester(sucha
Simpson model 229, Sencore model PR57 orequivalent) maybe usedinthe above procedure, in
whichcase anycurrent measure must not exceed0.5 milliampere.If anymeasurement is out of
the specifiedlimits, there is a possibilityof a shock hazardand the receivermust be repaired
and recheckedbefore it is returnedtothe customer.
Hot check circuit
3

Insulation test
Connect aninsulation testerbetweenanexposedmetallic part and A.C. line. Apply1080VAC/
60Hz for1 second. Confirm that the current measurement is 0.5mA ~ 2.0mA. Repeat test with
othermetallic exposedparts.
X rayradiation
WARNING
The potential source of x rayradiation inthe PTV set is inthe high voltage section and the
picture tube.
NOTE
It is important touse anaccurate, calibratedhigh voltage meter.
Applyall black videosignals (1080i) and confirm high voltage measures 31.5 ± 1.0kV. If the high
voltage is not withinthe range, change C514 to1800pF, 2000pF, 2400pF or2700pF until the
desiredvalue is obtained.ApplyNTSC white patternand confirm the high voltage measures 30.1
± 1.5kV. ApplyHD 1080i white patternand confirm the high voltage measures 30.1 ± 1.5kV.
2. About lead free solder (PbF)
NOTE
Leadis listedas (Pb) inthe periodic table of elements. / Inthe information below, Pbwill referto
leadsolder, and PbF will refertoLeadFree Solder. / The leadfree solderusedinour
manufacturing process and discussedbelowis (Sn+Ag+Cu). / Thatis Tin(Sn), Silver(Ag) and
Copper(Cu) although othertypes are available.
This model uses PbFree solderinit’s manufacture due toenvironmental conservation issues.
For/ service and repairwork, we’dsuggest the use of Pbfree solderas well, although Pbsolder
maybe / used. / PCBs manufacturedusing leadfree solderwill have the “PbF” ora leaf symbol
stampedon the / back of PCB.
4

CAUTION
-Pb free solder has ahigher melting point than standard solder.
Typicallythe melting point is50 ~ 70 °F (30 ~ 40 °C)higher. Please
use ahigh temperature soldering iron and set itto 700 ± 20 °F (370
± 10 °C).
-Pb free solder will tend to splash when heated too high (about 1100
°F or 600 °C). / Ifyou must use Pb solder, please completely
remove all of the Pb free solder on the pins or solder area before
applying Pb solder. Ifthisisnot practical, be sure to heat the Pb
free solder until itmelts, before applying Pb solder.
-After applying PbF solder to doublelayered boards, please check
the component side for excess solder which mayflow onto the
opposite side.
SuggestedPbfree solder
There are several kinds of Pbfree solderavailable forpurchase. This product uses Sn+Ag+Cu
(tin, silver, copper) solder. However, Sn+Cu(tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder
canalsobeused.
5

3. Important safety tests
Measuring H.V.
The anode caps are cementedtothe CRTs. To gainaccess forhigh voltage measurement,
remove the redCRT’s anode leadfromthe flyback transformerdistributor. Graspthe anode lead
protective capat its bottomand squeeze it against thelocking capbodyinside, rotate 1/4 turn
counterclockwise and pull the anode leadsleeve out of the FBTdistributor. Connect a high
voltage positive leadfromyourH.V. metertothe FBTdistributor, and the common negative lead
tocoldground
FBTleads removal
Note:
Reinsert the anode leadintothe FBTdistributoruntil it is tightlyand fullyseated. Turnthe
locking capclockwise tolock inplace.
(EHT) Protectoroperation check
Withthe cabinet back removed, applya nominal 120V A.C. tothe PTV.
Overvoltage test
Preparation:
1. Turn PTV “OFF”
2. Connect aNTSCsignal generator to the antenna terminal.
3. Connect DVM positive lead to D31 pin2and negative lead to D31
6

pin1on D-Board H.V. measurement
4. Connect aH.V. meter (statictype, class 0.1) with high voltage
leads to high voltage distributor on FBT.
DVM and powersupplyconnection
5. Connect the 15 ~ 25 VDC variablepower supplypositive lead to
D34 or IC802 pin2(DBoard) and negative lead to heat sink of
Q551 or D825
Procedures:
1. ApplyaNTSCwhite pattern.
2. Turn PTV ON.
3. Adjust the picture or brightness controlsso that the DVM reads
12.4± 0.4volts.
4. Increase the variablepower supplyuntil set turns off. The set
shouldturn off at 12.4± 0.4volts (DVM) and high voltage less than
36.4kV.
5. Ifthe DVM reading isother than 12.4± 0.4volts, readjust picture
or brightness control and repeat steps 3.
6. Turn off the variablesupplyand confirm that the set will turn on
with the remote control.
7

4. Service notes
NOTE
These components are affixedwithglue. Be careful not tobreak ordamage anyfoil underthe
component orat the pins of the ICs whenremoving. Usuallyapplying heat tothe component for
a short time while twisting withtweezers will break the component loose.
Leadless chipcomponent (surface mount)
Chipcomponents must be replacedwithidentical chips due tocritical foil track spacing. There
are no holes inthe boardtomount standardtransistors ordiodes. Some chips capacitoror
resistorboardsolderpads mayhave holes through the board,howeverthe hole diameterlimits
standardresistorreplacement to1/8 watt. Standardcapacitormayalsobe limitedforthe same
reason. It is recommendedthat identical components be used.
Chipresistorhave a three digit numerical resistance code, 1st and 2nd significant digits and a
multiplier. Example: 162 = 1600 or1.6k resistor, 0 = 0 (jumper).
Chipcapacitors generallydo not have the value indicatedon the capacitor. The colorof the
component indicates the general range of the capacitance.
Chiptransistors are identifiedbya twolettercode. The first letterindicates the type and the
second letter, the grade of transistor.
Chipdiodes have a twoletteridentification code as perthe code chart and are a dual diode pack
witheithercommon anode orcommon cathode. Check the parts list forcorrect diode number.
Component removal
1. Use solder wick to remove solder from component end caps or
terminal.
2. Without pulling up, carefullytwist the component with tweezers to
break the adhesive.
3. Donot reuse removed leadless or chipcomponents since they
are subject to stress fracture during removal.
Chipcomponent installation
1. Put asmall amount of solder on the board soldering pads.
2. Holdthe chipcomponent against the soldering pads with
tweezers or with aminiature alligator clipand applyheat to the
8

pad area with a30 watt iron until solder flows. Donot applyheat
for more than 3seconds.

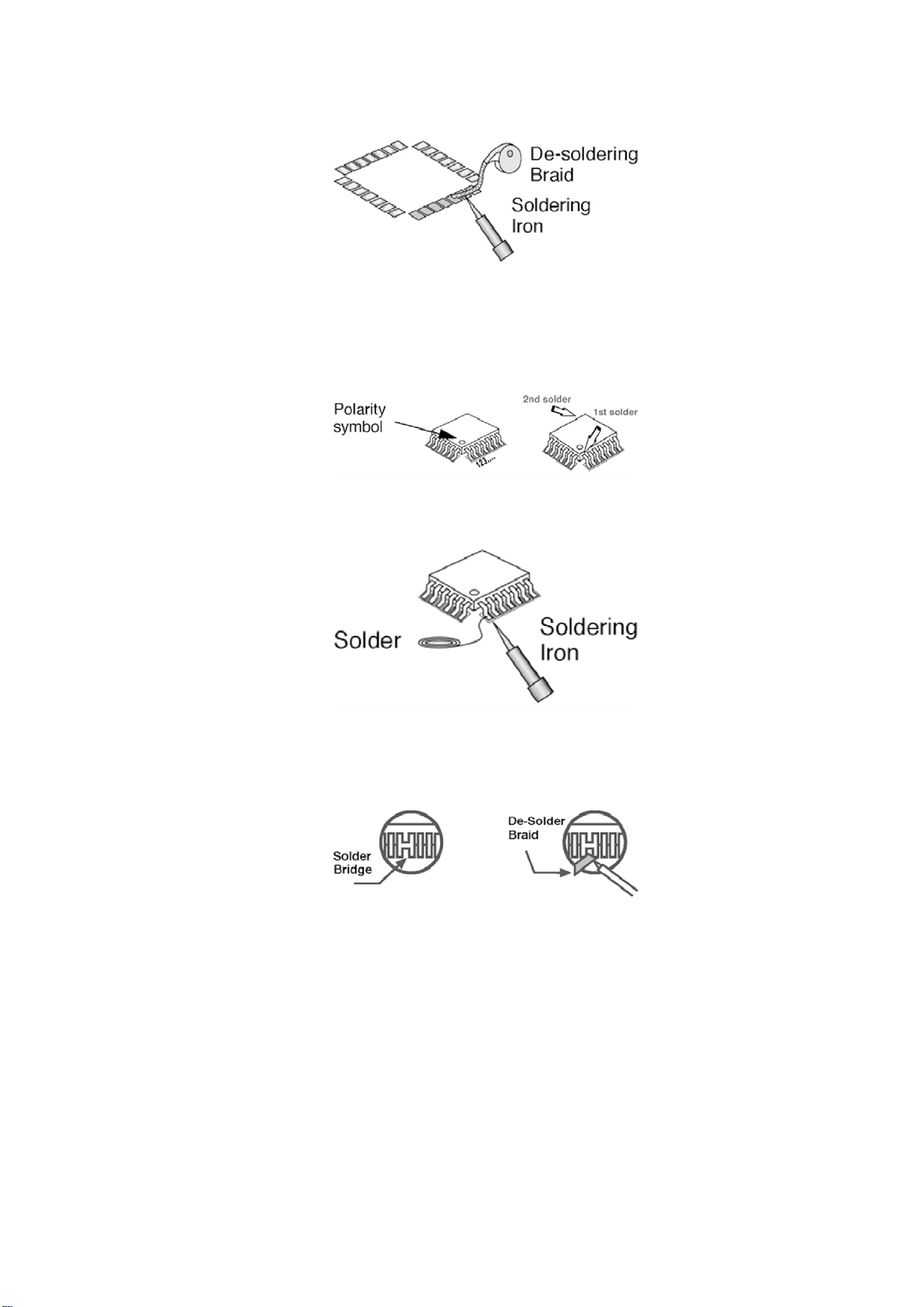

Howtoreplace flat ic (requiredtools)
1. Remove the solder from all of the pins of aFlat ICbyusing a
desolder braid
2. Put the iron wire under the pins of the Flat ICand pull itinthe
direction indicated whileheating the pins using asoldering iron.
Asmall awl can be used instead of the iron wire.
3. Remove the solder from all the pads of the Flat ICbyusing ade
solder braid
9

4. Position the new Flat ICinplace (applythe pins of the Flat ICto
the soldering pads where the pins need to be soldered). Properly
determine the positions of the soldering pads and pins by
correctlyaligning the polaritysymbol
5. Solder all pins to the soldering pads using afine tipped soldering
iron
6. Check with amagnifier for solder bridge between the pins or for
dryjoint between pins and soldering pads. To remove asolder
bridge, use ade solder braidas showninthe figure below
IMPORTANT
To protect against possibledamage to the solidstate devices due
to arcing or staticdischarge, make certainthat all ground wires are
securelyconnected
CAUTION
The power supplycircuitisabove earth ground and the chassis
cannot be polarized. Use an isolation transformer when servicing
the receiver to avoiddamage to the test equipment or to the
chassis. Connect the test equipment to the proper ground(HOTor
10

COLD)when servicing, or incorrect voltages will be measured.
WARNING
Thisreceiver has been designed to meet or exceed applicable
safetyand xrayradiation protection as specified bygovernment
agencies and independent testing laboratories.
To maintainoriginal product safetydesign standards relative to x
rayradiation and shock and fire hazard, parts indicated with the
symbol on the schematicmust be replaced with identical parts.
Order parts from the manufacturer’sparts center using the parts
numbers showninthisservice manual, or provide the chassis
number and the part reference number.
For optimum performance and reliability, all other parts shouldbe
replaced with components of identical specification.
5. Receiver feature table
FEATURE/MODEL PT-53WX54J / PT-53WX54UJPT-47WX54J / PT-
47WX54UJ
CHASSIS AP825
MICRO 256K
MENU LANGUAGE ENG/SPAN/FR
CLOSE CAPTION X
V-CHIP (USA/CANADA X
CHANNELINFO BANNER X
VIDEO INPUTSKIP SKIP
CHANNELCOUNT 181
PIP (1T), 2TPIP (2T), 2TSPLIT 2TSPLIT
2RF X
REMOTE CONTROL(W/LIGHT) EUR7613Z9A
CRTSUPPLIER MDDA (CENTAUR)
SCREEN W/PROTECTIVE SCREEN
CHASSIS P8W
COMB FILTER MOTION ADP, 3D Y/C
HEC/VEC (X=BOTH) X
NEW YNR X
VM X (DIGITAL)
V/A NORM (X=BOTH) X
COLOR TEMP X
AIP X
PRESET/INPUTLABELING X
VIDEO PICTURE MEMORY X
DIGITALSCAN RATE 1080i, 480p
11

FEATURE/MODEL PT-53WX54J / PT-53WX54UJPT-47WX54J / PT-
47WX54UJ
NTSC LINE DOUBLER 480pPROGRESSIVE (NEW)
MTS/SAP/DBX X
BUILT-IN AUDIO POWER 15Wx2 (10%)
No. OFSPEAKERS 4
BASS/BALANCE/TREBLE CONTROL X
AI SOUND X
SURROUND X
SPATIALIZER/BBE BBE
A/V IN (REAR/FRONT) 4(3/1)
A/V PROGRAM OUT X
AUDIO OUT(FAO: F, VAO:V) F, V
COMPONENTINPUT(Y, Pb, Pr) 2
S-VHS INPUT(REAR/FRONT) 2/1
HDMI/HDCP INPUT DVI/HDCP
FEATURE/MODEL PT-47WX34J / PT-47WX34UJ
CHASSIS AP825
MICRO 256K
MENU LANGUAGE ENG/SPAN/FR
CLOSE CAPTION X
V-CHIP (USA/CANADA X
CHANNELINFO BANNER X
VIDEO INPUTSKIP SKIP
CHANNELCOUNT 181
PIP (1T), 2TPIP (2T), 2TSPLIT 2TSPLIT
2RF X
REMOTE CONTROL(W/LIGHT) EUR7613Z8B
CRTSUPPLIER MDDA (CENTAUR)
SCREEN WITH PROTECTIVE SCREEN
CHASSIS P8W
COMB FILTER MOTION ADP, 3D Y/C
HEC/VEC (X=BOTH) X
NEW YNR X
VM X (DIGITAL)
V/A NORM (X=BOTH) X
COLOR TEMP X
AIP X
PRESET/INPUTLABELING X
VIDEO PICTURE MEMORY X
DIGITALSCAN RATE 1080i, 480p
NTSC LINE DOUBLER 480pPROGRESSIVE (NEW)
MTS/SAP/DBX X
BUILT-IN AUDIO POWER 15Wx2 (10%)
12

FEATURE/MODEL PT-47WX34J / PT-47WX34UJ
No. OFSPEAKERS 4
BASS/BALANCE/TREBLE CONTROL X
AI SOUND X
SURROUND X
SPATIALIZER/BBE BBE
A/V IN (REAR/FRONT) 4(3/1)
A/V PROGRAM OUT X
AUDIO OUT(FAO: F, VAO:V) F, V
COMPONENTINPUT(Y, Pb, Pr) 2
S-VHS INPUT(REAR/FRONT) 2/1
HDMI/HDCP INPUT DVI/HDCP
Note:
Specifications are subject tochange without notice orobligation.
6. Board description table
BOARD PARTNUMBER DESCRIPTION
A-BOARD TNP2AH045 MAIN CHASSIS
D-BOARD TNP2AH046 POWER SUPPLY
*DC-BOARD TNPAA120 CONVERGENCE CIRCUIT
*DV-BOARD TNP2AA114 DVI BOARD
*DG-BOARD TNP2AA126 PIP PROCESSING, SPLIT, SEARCH,
FORMATS
LB-BOARD TNP2AA147 BLUE PRT
LR-BOARD TNP2AA145 RED PRT
LG-BOARD TNP2AA146 GREEN PRT
K-BOARD TNP2AA089AA FRONTKEY BOARD
G-BOARD TNP2AA090AA FRONTA/V BOARD
R-BOARD TNPA0615AB IR BOARD
NOTE
Whenordering a replacement boardassembly, append an“S” tothe boardnumber
EXAMPLE
To orderthe A Board, the replacement boardis TNP2AH045S
*NOTE
The DC-Board, DG-Boardand DV-Boardare non-serviceable boards, except forDV-Boardaudio
connectorand DVI connector. If anyof these boards orDV-Boardcomponents are defective,
replace it witha newon one.
13

7. Location of controls (EUR7613Z8B remote)
Note:
Foradditional information forthis remote please refertothe owner’s manual section remote
operation, listedon the parts list section.
8. Parts list
8.1. Description of abbreviations guide
14

8.2. Parts list
Ref. No. PartNo. PartName& Description Remarks
CAPACITORS
C002 ECJ2VC1H220J CAPC 22PF-J-50V
C003 ECJ2VC1H220J CAPC 22PF-J-50V
C004 F2A1H4R7A162 CAPE4.7UF-50V
C005 F2A1H2R2A162 CAPE2.2UF-50V
C006 ECA0JM332E CAPE3300UF-6.3V
C008 F2A1H4R7A162 CAPE4.7UF-50V
C009 ECJ2VC1H220J CAPC 22PF-J-50V
C010 ECJ2VC1H220J CAPC 22PF-J-50V
C011 ECJ2VF1H104Z CAPC .1UF-Z-50V
C012 ECJ2VF1H104Z CAPC .1UF-Z-50V
C013 ECA0JM332E CAPE3300UF-6.3V
C014 F2A1H2R2A162 CAPE2.2UF-50V
C017 ECJ2VF1H104Z CAPC .1UF-Z-50V
C018 ECJ2VF1H104Z CAPC .1UF-Z-50V
C021 F2A1HR22A162 CAPE.22UF-50V
C022 F2A1HR22A162 CAPE.22UF-50V
C033 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C051 EEUFC1E470B CAPE47UF-25V
C052 TACCX103T50V CAPC .010UF-50V
C301 F2A2E100A025 CAPE10UF-250V
C302 ECCR1H221JC5 CAPC 220PF-J-50V
C304 ECKW2H103PU8 CAPC .01UF-P-500V
C305 F2A1H470A162 CAPE47UF-50V
15

Ref. No. PartNo. PartName& Description Remarks
C306 F2A2E100A025 CAPE10UF-250V
C307 ECKR1H103ZF5 CAPC .01UF-Z-50V
C312 ECKC3D102KBN CAPC 1000PF-K-2KV
C313 ECKR2H102KB5 CAPC 1000PF-K-500V
C331 F2A1H470A162 CAPE47UF-50V
C332 ECKR1H103ZF5 CAPC .01UF-Z-50V
C333 F2A1H470A162 CAPE47UF-50V
C334 F2A2E470A026 CAPE47UF-250V
C335 ECCR1H221JC5 CAPC 220PF-J-50V
C336 F2A1H470A162 CAPE47UF-50V
C337 F2A2E470A026 CAPE47UF-250V
C339 ECKW2H103PU8 CAPC .01UF-P-500V
C340 ECKR1H103ZF5 CAPC .01UF-Z-50V
C341 F2A2E100A025 CAPE10UF-250V
C345 ECKC3D102KBN CAPC 1000PF-K-2KV
C346 ECKR2H102KB5 CAPC 1000PF-K-500V
C361 F2A1C101A159 CAPE100UF-16V
C362 ECCR1H221JC5 CAPC 220PF-J-50V
C364 ECKW2H103PU8 CAPC .01UF-P-500V
C365 F2A2E100A025 CAPE10UF-250V
C366 F2A1H470A162 CAPE47UF-50V
C367 ECKR1H103ZF5 CAPC .01UF-Z-50V
C372 ECKC3D102KBN CAPC 1000PF-K-2KV
C373 ECKR2H102KB5 CAPC 1000PF-K-500V
C374 F2A1C101A159 CAPE100UF-16V
C405 ECA1EHG102E CAPE1000UF-25V
C406 ECA1EHG102E CAPE1000UF-25V
C407 ECJ2VF1H103Z CAPC .01UF-Z-50V
C408 ECJ2VF1H103Z CAPC .01UF-Z-50V
C411 TCJ2VB1H822K CAPC 8200PF-K-50V
C412 ECQB1224KF3 CAPP.22UF-K-100V
C413 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C414 TCJ2VB1H272K CAPC 2700PF-K-50V
C417 ECJ2VF1H104Z CAPC .1UF-Z-50V
C418 TCJ2VF1H223Z CAPC .022UF-Z-50V
C421 ECA1CEN100B CAPE10UF-16V
C458 ECJ2VF1H103Z CAPC .01UF-Z-50V
C461 ECA1HHG221B CAPE220UF-50V
C501 ECA1EM101B CAPE100UF-25V
C502 ECQV1H105JL3 CAPP1.0UF-J-50V
C503 ECKR2H102KB5 CAPC 1000PF-K-500V
C509 ECWF2474JSR CAPP.47UF-J-200V
C510 TCJ2VC1H221J CAPC 220PF-J-50V
C511 ECWH20222JVY CAPP2200PF-J-2KV
C512 ECWH20102JVY CAPP1000PF-J-2KV
C513 ECQF4103JZH CAPP.01UF-J-400V
C514 ECWH20222JVY CAPP2200PF-J-2KV
C518 ECKW3D221JBP CAPC 220PF-J-2KVDC
C519 ECKW3D221JBP CAPC 220PF-J-2KVDC
C520 ECQB1H103JF3 CAPP.01UF-J-50V
C522 ECWH20182JVY CAPP1800PF-J-2KV
C523 ECWH20182JVY CAPP1800PF-J-2KV
16

Ref. No. PartNo. PartName& Description Remarks
C524 ECQB1224JF3 CAPP.22UF-J-100V
C525 ECEA1HN220UB CAPE22UF-50V
C526 F2A2E101A026 CAPE100UF-250V
C527 ECKR2H102KB5 CAPC 1000PF-K-500V
C528 F2A1H470A162 CAPE47UF-50V
C531 ECA160V33UE CAPE33UF-160V
C533 ECKR2H101KB5 CAPC 100UF-K-500V
C535 ECA1EM471E CAPE470UF-25V
C601 EEUFC1C331B CAPE330UF-16V
C602 ECJ2VF1H103Z CAPC .01UF-Z-50V
C701 F2A1C101A159 CAPE100UF-16V
C702 ECKW3D271KBP CAPC 270PF-K-2KV
C703 ECQM2104KZW CAPP.1UF-K-200V
C704 ECKR2H391KB5 CAPC 390PF-K-500V
C707 ECJ2VF1H103Z CAPC .01UF-Z-50V
C708 ECQE1685KFB CAPP6.8UF-K-100V
C801 ECQU2A104MNB CAPP.10UF-M-250VAC
C802 ECQU2A823MNB CAPP.082UF-M-250V
C803 ECKCNA222ME7 CAPC 2200PF-M-125V
C804 ECKCNA222ME7 CAPC 2200PF-M-125V
C805 ECKW2H472PU7 CAPC 4700PF-P-500V
C806 ECKW2H472PU7 CAPC 4700PF-P-500V
C807 ECKW2H472PU7 CAPC 4700PF-P-500V
C808 ECA1EM101B CAPE100UF-25V
C809 TCJ2VB1E223K CAPC .022UF-K-25V
C810 EETED2D102C CAPE1000PF-200V
C812 ECA1EHG471B CAPE470UF-25V
C814 ECKW3D102KBP CAPC 1000PF-K-2KV
C815 ECQB1H152JF3 CAPP1500PF-J-50V
C816 ECKW3D821KBP CAPC 820PF-K-2KV
C817 ECKW3D102KBP CAPC 1000PF-K-2KV
C819 ECQB1H102JF3 CAPP1000PF-J-50V
C820 ECQV1H334JL3 CAPP.33UF-J-50V
C821 ECQB1H272KF3 CAPP2700PF-K-50V
C822 F2A1H220A162 CAPE22UF-50V
C823 TCJ2VC1H151J CAPC 150PF-J-50V
C824 EEUFC1V151B CAPE150UF-35V
C825 ECKCNA102MBB CAPC .001UF-M-125V
C826 ECJ2VF1H104Z CAPC .1UF-Z-50V
C830 EETHC2C471B CAPE470PF-160V
C831 ECKW3D821KBP CAPC 820PF-K-2KV
C832 ECJ2VF1H103Z CAPC .01UF-Z-50V
C834 EEUFC1V222E CAPE2200UF-35V
C836 ECKR3A331KBP CAPC 330PF-K-1KVDC
C837 F2A1E472A135 CAPE4700UF-25V
C839 ECKR3A331KBP CAPC 330PF-K-1KVDC
C841 F2A1E472A135 CAPE4700UF-25V
C842 ECKR3A331KBP CAPC 330PF-K-1KVDC
C843 F2A1V222A128 CAPE2200UF-35V
C844 ECKR3A331KBP CAPC 330PF-K-1KVDC
C845 F2A1V222A128 CAPE2200UF-35V
C846 ECKR3A331KBP CAPC 330PF-K-1KVDC
17

Ref. No. PartNo. PartName& Description Remarks
C848 F2A1C101A159 CAPE100UF-16V
C849 ECKR1H223ZF5 CAPC .022UF-Z-50V
C851 ECQV1H104JL3 CAPP.10UF-J-50V
C852 ECA1EM101B CAPE100UF-25V
C854 F2A1C101A159 CAPE100UF-16V
C855 ECJ2VF1H104Z CAPC .1UF-Z-50V
C876 ECJ3VF1H224Z CAPC .22UF-Z-50V
C877 ECA0JM221B CAPE220UF-6.3V
C878 EEUFC1V561E CAPE560UF-35V
C879 EEUFC1C471LB CAPE470UF-16V
C880 TCJ2VB1H152K CAPC 1500PF-K-50V
C881 TCJ2VB1H152K CAPC 1500PF-K-50V
C882 ECA0JM221B CAPE220UF-6.3V
C883 TCJ2VB1H152K CAPC 1500PF-K-50V
C885 TCJ2VB1H152K CAPC 1500PF-K-50V
C886 TCJ2VB1H152K CAPC 1500PF-K-50V
C887 EEUFC1V561E CAPE560UF-35V
C888 EEUFC1V561E CAPE560UF-35V
C889 ECJ2YF1E474Z CAPC .47UF-Z-25V
C890 ECJ2VF1H103Z CAPC .01UF-Z-50V
C891 EEUFC1C471LB CAPE470UF-16V
C892 F2A1C221A159 CAPE220UF-16V
C893 EEUFC1C471LB CAPE470UF-16V
C895 ECJ3VF1H224Z CAPC .22UF-Z-50V
C896 ECJ3VF1H224Z CAPC .22UF-Z-50V
C897 TCJ2VB1H152K CAPC 1500PF-K-50V
C902 ECQM2103KZB CAPP.01UF-K-200V
C903 ECKR1H103ZF5 CAPC .01UF-Z-50V
C904 ECKR1H103ZF5 CAPC .01UF-Z-50V
C906 ECQM2103KZB CAPP.01UF-K-200V
C907 F2A2C100A023 CAPE10UF-160V
C908 F2A1C101A159 CAPE100UF-16V
C909 F2A1C101A159 CAPE100UF-16V
C910 F2A2C100A023 CAPE10UF-160V
C912 F2A1H220A162 CAPE22UF-50V
C931 F2A1H101A162 CAPE100UF-50V
C932 TCJ2VB1H103K CAPC .01UF-K-50V
C933 F2A1C101A159 CAPE100UF-16V
C934 ECA1CM100B CAPE10UF-16V
C935 TCJ2VB1H102K CAPC 1000PF-K-50V
C936 TCJ2VB1H103K CAPC .01UF-K-50V
C939 ECKR1H103ZF5 CAPC .01UF-Z-50V
C940 ECQM2103KZB CAPP.01UF-K-200V
C941 ECKR1H103ZF5 CAPC .01UF-Z-50V
C942 ECQM2103KZB CAPP.01UF-K-200V
C943 F2A2C100A023 CAPE10UF-160V
C944 F2A1C101A159 CAPE100UF-16V
C945 F2A1C101A159 CAPE100UF-16V
C947 F2A2C100A023 CAPE10UF-160V
C962 ECKR1H103ZF5 CAPC .01UF-Z-50V
C963 ECQM2103KZB CAPP.01UF-K-200V
C965 ECKR1H103ZF5 CAPC .01UF-Z-50V
C966 ECQM2103KZB CAPP.01UF-K-200V
C967 F2A2C100A023 CAPE10UF-160V
18

Ref. No. PartNo. PartName& Description Remarks
C968 F2A1C101A159 CAPE100UF-16V
C969 F2A1C101A159 CAPE100UF-16V
C970 F2A2C100A023 CAPE10UF-160V
C972 F2A1H220A162 CAPE22UF-50V
C1101 ECJ2VF1H103Z CAPC .01UF-Z-50V
C1102 ECJ2VF1H104Z CAPC .1UF-Z-50V
C1103 ECJ2VB1C104K CAPC .1UF-K-16V
C1105 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C1112 ECJ2VF1H103Z CAPC .01UF-Z-50V
C1113 ECEA1CKA101B CAPE100UF-16V
C1502 ECQE6104KFB CAPP100UF-K-100V
C1503 ECQE6104KFB CAPP100UF-K-100V
C1504 ECJ2VF1H104Z CAPC .1UF-Z-50V
C1505 F2A1C101A159 CAPE100UF-16V
C1506 ECJ2VF1H103Z CAPC .01UF-Z-50V
C1508 F2A1C101A159 CAPE100UF-16V
C1509 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C1510 ECJ2VF1H103Z CAPC .01UF-Z-50V
C1511 TCJ2VC1H471J CAPC 470PF-J-50V
C1513 ECEA1EN101UB CAPE100UF-25V
C1514 F2A1C101A159 CAPE100UF-16V
C2202 F2A1H2R2A162 CAPE2.2UF-50V
C2203 F2A1H4R7A162 CAPE4.7UF-50V
C2204 AP106K016CAE CAPT1OUF-16V
C2205 F2A1H1R0A162 CAPE1.0UF-50V
C2206 ECQB1H223JF3 CAPP.022UF-J-50V
C2207 AP335K016CAE CAPT3.3UF-16V
C2208 ECJ2VB1C104K CAPC .1UF-K-16V
C2209 ECJ2VB1C104K CAPC .1UF-K-16V
C2210 ECJ2VB1C104K CAPC .1UF-K-16V
C2211 F2A1H100A162 CAPE10UF-50V
C2212 ECQB1H473JF3 CAPP.047UF-J-50V
C2213 ECJ2VF1H104Z CAPC .1UF-Z-50V
C2214 ECJ2VF1H104Z CAPC .1UF-Z-50V
C2215 F2A1C101A159 CAPE100UF-16V
C2218 F2A1HR47A162 CAPE.47UF-50V
C2303 ECA1EM101B CAPE100UF-25V
C2304 ECJ2VF1H103Z CAPC .01UF-Z-50V
C2330 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2331 F2A1H100A162 CAPE10UF-50V
C2332 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2333 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2334 ECJ2VF1H103Z CAPC .01UF-Z-50V
C2335 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2337 ECA50YT2R2KB CAPE2.2UF-50V
C2338 ECA50YT2R2KB CAPE2.2UF-50V
C2342 TCJ2VB1H333K CAPC .033UF-K-50V
C2343 ECEA1CN100UB CAPE10UF-16V
C2344 ECQB1H224JF3 CAPP.22UF-J-50V
C2345 EEUFC1E222E CAPE2200UF-25V
C2346 TCJ2VB1H561K CAPC 560PF-K-50V
C2347 ECJ3VB1H104K CAPC .1UF-K-50V
C2348 F2A1H100A162 CAPE10UF-50V
C2349 ECEA1CN100UB CAPE10UF-16V
19

Ref. No. PartNo. PartName& Description Remarks
C2351 F1J1C225A083 CAPC 2.2UF-Z-16V
C2352 EEUFC1E222E CAPE2200UF-25V
C2354 TCJ2VB1H471K CAPC 470PF-K-50V
C2355 TCJ2VC1H270J CAPC 27PF-J-50V
C2356 TCJ2VB1H471K CAPC 470PF-K-50V
C2357 TCJ2VB1H331K CAPC 330PF-K-50V
C2358 ECJ3VB1H104K CAPC .1UF-K-50V
C2359 TCJ2VB1H331K CAPC 330PF-K-50V
C2360 ECJ3VB1H104K CAPC .1UF-K-50V
C2361 TCJ2VB1H471K CAPC 470PF-K-50V
C2362 TCJ2VB1H471K CAPC 470PF-K-50V
C2363 TCJ2VB1H682K CAPC 6800PF-K-50V
C2364 ECJ3VB1H104K CAPC .1UF-K-50V
C2365 ECJ3VB1H104K CAPC .1UF-K-50V
C2367 ECQB1H224JF3 CAPP.22UF-J-50V
C2368 TCJ2VB1H333K CAPC .033UF-K-50V
C2369 TCJ2VB1H561K CAPC 560PF-K-50V
C2370 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2371 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2373 TCJ2VB1H682K CAPC 6800PF-K-50V
C2374 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2375 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2451 ECEA1HN4R7UB CAPE4.7UF-50V
C2452 ECEA1HN4R7UB CAPE4.7UF-50V
C2453 TCJ2VB1H332K CAPC .0033UF-K-50V
C2454 TCJ2VB1H332K CAPC .0033UF-K-50V
C2455 TCJ2VB1H333K CAPC .033UF-K-50V
C2456 TCJ2VB1H333K CAPC .033UF-K-50V
C2457 TCJ2VB1H222K CAPC 2200PF-K-50V
C2458 TCJ2VB1H222K CAPC 2200PF-K-50V
C2459 ECJ2VB1C104K CAPC .1UF-K-16V
C2460 ECJ2VB1C104K CAPC .1UF-K-16V
C2461 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2462 ECJ2VB1C104K CAPC .1UF-K-16V
C2463 ECJ2VB1C104K CAPC .1UF-K-16V
C2464 F2A1H4R7A162 CAPE4.7UF-50V
C2465 F2A1H4R7A162 CAPE4.7UF-50V
C2466 F2A1H4R7A162 CAPE4.7UF-50V
C2467 F2A1H4R7A162 CAPE4.7UF-50V
C2468 F2A1H4R7A162 CAPE4.7UF-50V
C2474 F2A1C101A159 CAPE100UF-16V
C2475 TCJ2VB1H103K CAPC .01UF-K-50V
C2507 F2A1C101A159 CAPE100UF-16V
C2513 ECJ2VB1C104K CAPC .1UF-K-16V
C2518 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C3001 F2A1C101A159 CAPE100UF-16V
C3002 ECA1CM470B CAPE47UF-16V
C3009 ECEA1CKA101B CAPE100UF-16V
C3011 ECEA1CN100UB CAPE10UF-16V
C3012 ECEA1CN100UB CAPE10UF-16V
C3013 ECEA1CN100UB CAPE10UF-16V
C3014 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C3015 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C3016 ECEA1CN100UB CAPE10UF-16V
20
