Panasonic TH-42PX20U/P Operating User manual

ORDERNO. ITD0309035C1
B19 Canada: B07
High Definition Plasma Television
TH-42PX20U-P
GPH6DU Chassis
SPECIFICATIONS
Specifications
Power
Source AC 120 V, 50 / 60 Hz
Power
Consumption Maximum:595 W
Stand-bycondition :0.9W
Plasma
Displaypanel Drivemethod :AC type42-inch, 16 :9aspect ratio
Screen
Size 36.22 “ (920 mm) (W) × 20.39 “ (518 mm) (H) × 41.57 “ (1056 mm) (diagonal)
Dimensions
W
× H × D ) 44.88 “ (1140mm) × 29.8“ (757 mm) × 5.47 “ (139 mm)
Mass
(Weight) 90.4lb.(41 kg)Net
Channel
Capability-181 VHF-12 :UHF-56 :Cable-125
Sound
Speaker Woofer 80mm × 2, Tweeter 16mm × 73mm × 8
AudioOutput 26 W[ 5W+ 5W, 8W+ 8W] (10 %THD )
Headphone M3(3.5mm) Jack × 1
FEATURES
Twoscreendisplayfuctions 3D Y / C FILTER
BBE VIVA LINEAR PIP
CLOSED CAPTION V-Chip
Accessories
Supplied Remotecontrol Transmitter EUR7603ZB0
AA Battery× 2 Ferritecores (large× 5, small × 5)
AC Cord F typeAntennaAdaptor(3C-2V × 2, 5C-2V × 2)
Pedestal
1

Operating
Conditions Temperature : 34 ° F- 104 ° F(0° - 40 ° C)
Humidity: 20 %- 80 %(non-condensing)
Connection
Terminals RGB input D-SUB 15pin R, G, B / 0.7Vp-p(75 )
HD, VD / 1.0-5.0Vp-p(high
impedance)
AV INPUT1-3 VIDEO
(Phono Jack Type) 1.0Vp-p(75 )
S-VIDEO
(Mini DIN 4-pin) Y :1.0Vp-p(75 ), C : 0.286
Vp
(75 )
AUDIO L-R
(Phono Jack Type× 2) 0.5Vrms
AV PROG.OUT VIDEO
(Phono Jack Type) 1.0Vp-p(75 )
AUDIO L-R
(Phono Jack Type× 2) 0.5Vrms
TO AUDIO AMP AUDIO L-R
(Phono Jack Type× 2) 0.5Vrms
COMPONENTVIDEO Y 1.0Vp-p(including
synchronization)
INPUT1-2 PB / PR ±0.35 Vp-p
AUDIO L-R
(Phono Jack Type× 2) 0.5Vrms
HDMI INPUT HDMI typeAconnector
AUDIO L-R
(Phono Jack Type× 2) 0.5Vrms
Note
:
Design
and Specifications are subject tochange without notice.Weight and Dimensions shownare
approximate.
2003 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.

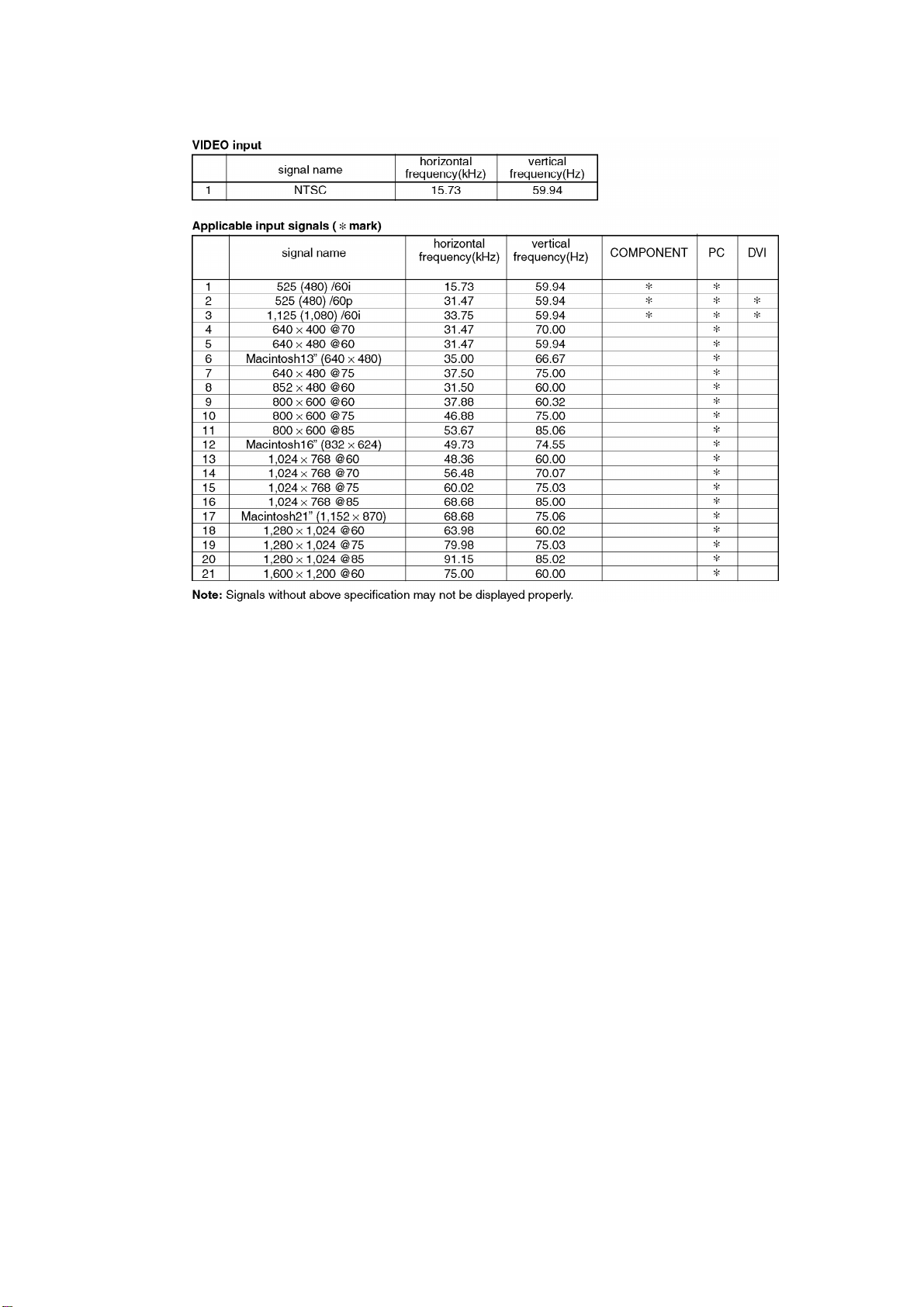

1. Applicable signals
2

2. Safety Precautions
2.1. General Guidelines
1. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
2. After servicing, see to itthat all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to
prevent the customer from being exposed to shock hazards.
2.1.1. Leakage Current ColdCheck
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to thechassis,
3

the reading shouldbe between 1M and 5.2M . / When the
exposed metal does not have areturn path to the chassis, the
reading must be . Figure 1

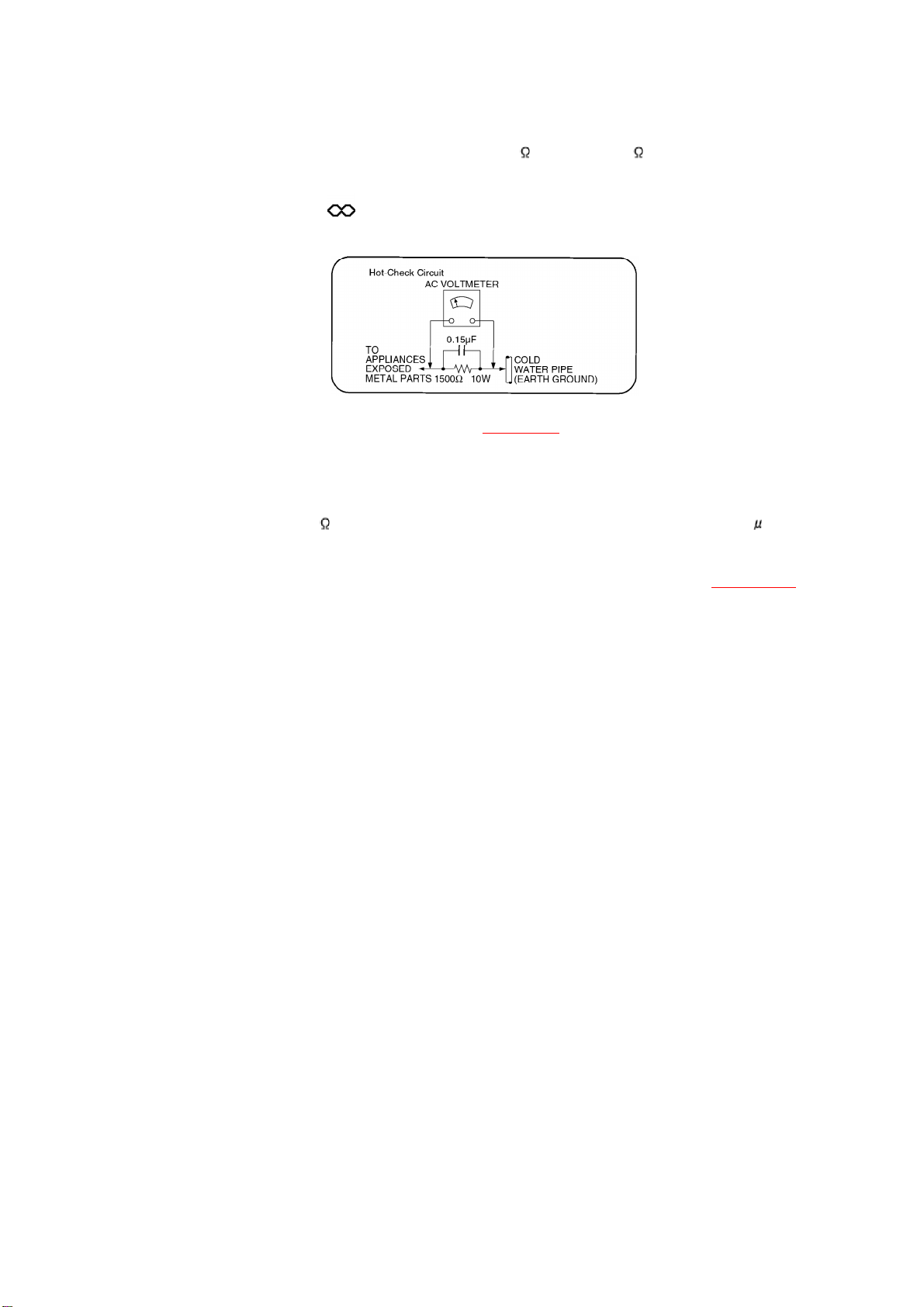

2.1.2. Leakage Current Hot Check (See Figure 1 .)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F
capacitors, between each exposed metallicpart on the set and a
good earth ground such as awater pipe, as shownin Figure 1.
3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A
leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
milliamp. Incase ameasurement isoutsideof the limits specified,
there isapossibilityof ashock hazard, and the equipment should
be repaired and rechecked before itisreturned to the customer.
3. Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such
components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical
ES devices are integratedcircuits and some field-effect transistorsand semiconductor"chip"
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
4

1. Immediatelybefore handling anysemiconductor component or
semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap,
whichshouldbe removed for potential shock reasons prior to
applying power to the unitunder test.
2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as alminum foil,
to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan anti-staticsolder removal device. Some solder
removal devices not classified as "anti-static(ESDprotected)"
can generate electrical charge sufficient to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, alminum foil or
comparableconductive material).
7. Immediatelybefore removing the protective material from the
leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
Caution
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodilymotions when handling unpackaged replacement
ES devices. (Otherwise hamless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricity(ESD)sufficient
todamage an ES device).
5

4. About lead free solder (PbF)
Note: Leadis listedas (Pb) inthe periodic table of elements.
Inthe information below, Pbwill refertoLeadsolder, and PbF will refertoLeadFree Solder.
The LeadFree Solderusedinourmanufacturing process and discussedbelowis (Sn+Ag+Cu).
That is Tin(Sn), Silver(Ag) and Copper(Cu) although othertypes are available.
This model uses PbFree solderinit’s manufacture due toenvironmental conservation issues.
Forservice and repairwork, we’dsuggest the use of Pbfree solderas well, although Pbsolder
maybe used.
PCBs manufacturedusing leadfree solderwill have the PbF withina leaf Symbol
stampedon the back of PCB.
Caution
-Pb free solder has ahigher melting point than standard solder.
Typicallythe melting point is50 ~ 70 °F (30~40 °C)higher. Please
use ahigh temperature soldering iron and set itto 700 ± 20 °F (370
± 10 °C).
-Pb free solder will tend to splash when heated too high (about 1100
°F or 600 °C).
Ifyou must use Pb solder, please completelyremove all of the Pb
free solder on the pins or solder area before applying Pb solder. If
thisisnot practical, be sure to heat the Pb free solder until it
melts, before applying Pb solder.

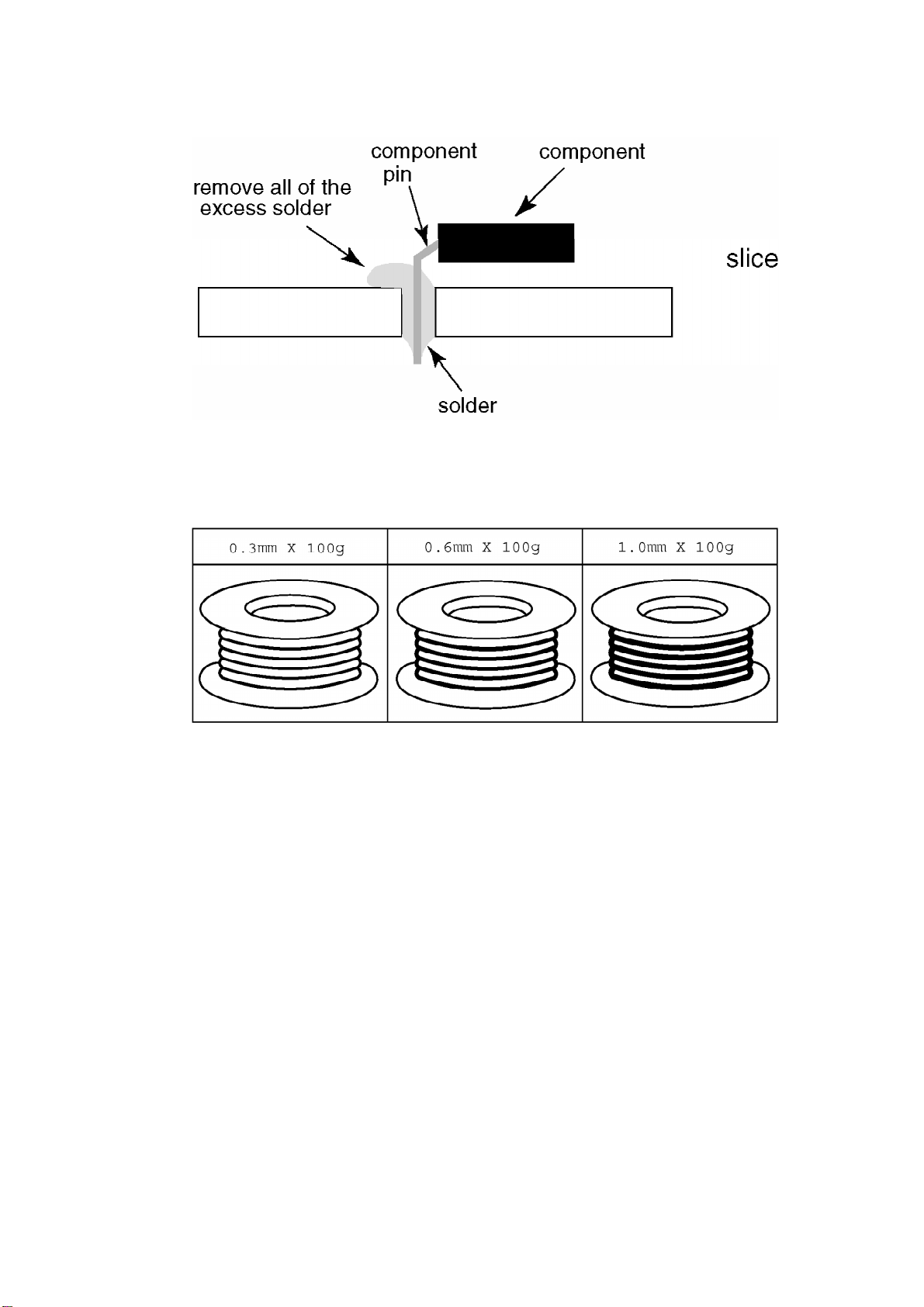

-After applying PbF solder to doublelayered boards, please check
the component side for excess solder which mayflow onto the
opposite side. (see figure below)
6

SuggestedPbfree solder
There are several kinds of Pbfree solderavailable forpurchase. This product uses Sn+Ag+Cu
(tin, silver, copper) solder. However, Sn+Cu(tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder
canalsobeused.
5. Service Hint
7

BoardName Function BoardName Function
C1 DATA DRIVER (UPPER
RIGHT) PF LINE FILTER
C2 DATA DRIVER (UPPER
LEFT) SC SCAN DRIVE
D DIGTALSIGINALPROCESS SD SCAN OUT(DOWN)
DG DIGTALCORE MICOM SS SUSTAIN DRIVE
GFRONTTERMINAL, SWITCH SS2 SUSTAIN CONNECTION (UP)
H REAE TERMINAL SS3 SUSTAIN CONNECTION
(DOWN)
KLED, REMOTE, SU SCAN OUT(UP)
P POWER SUPPLY TA MAIN TUNER
PA DC/DC, AUDIO TB SUB TUNER
C3 DATA DRIVER (LOWER
RIGHT) JG PC/SD CARD
C4 DATA DRIVER (LOWER
LEFT) DV HDMI
S POWER SW
6. Location of Lead Wiring

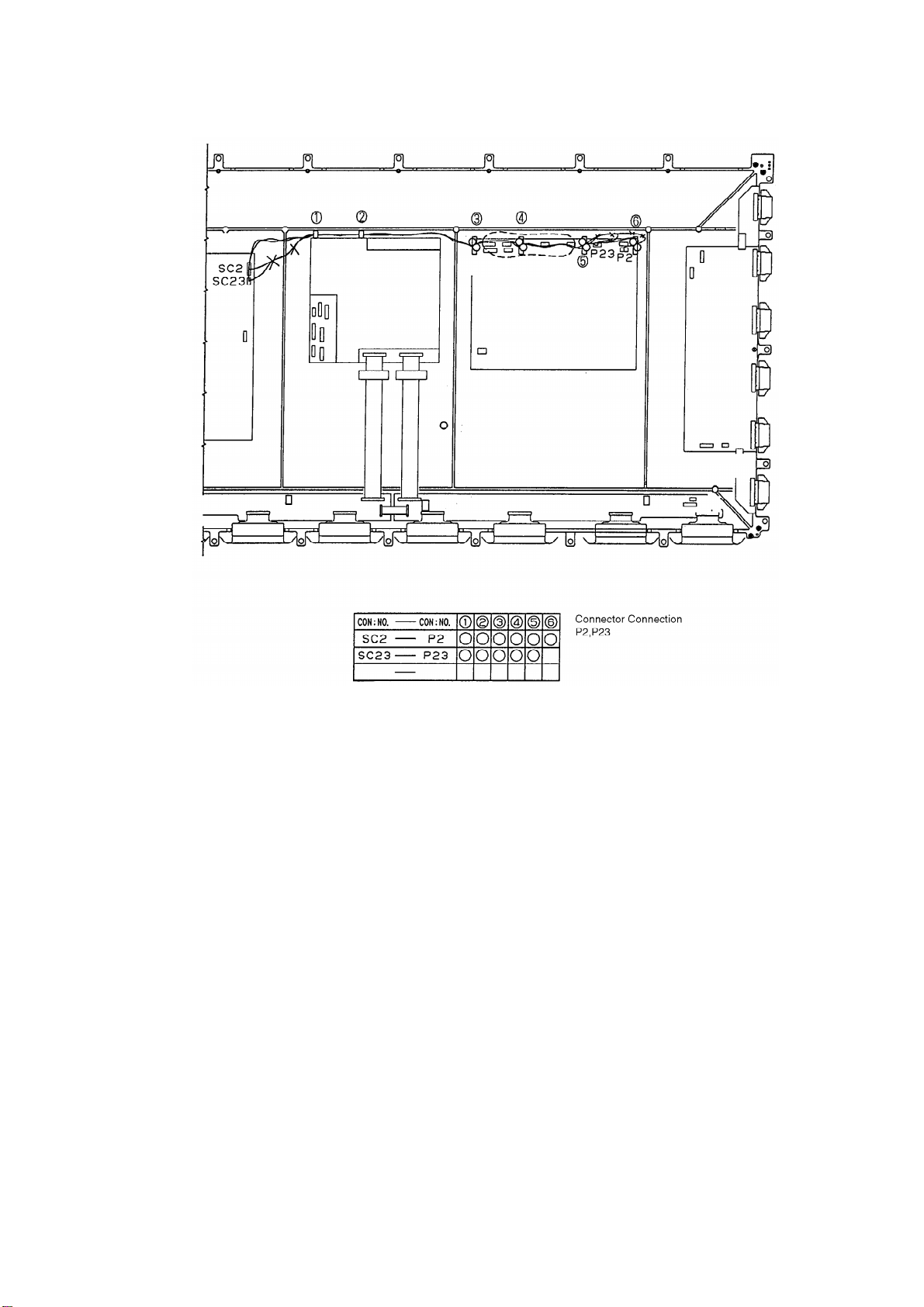

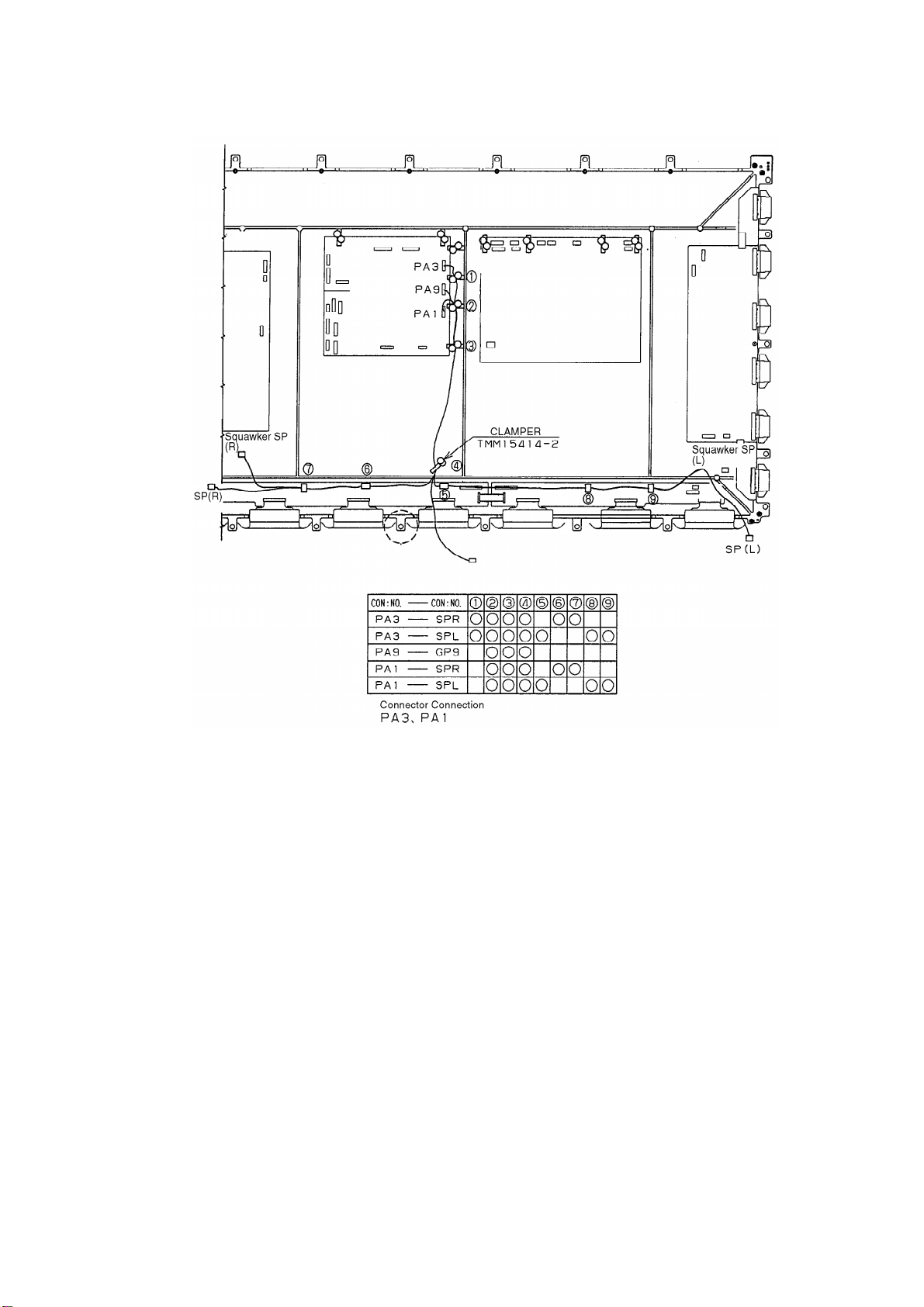

6.1. Lead of Wiring (1)
8

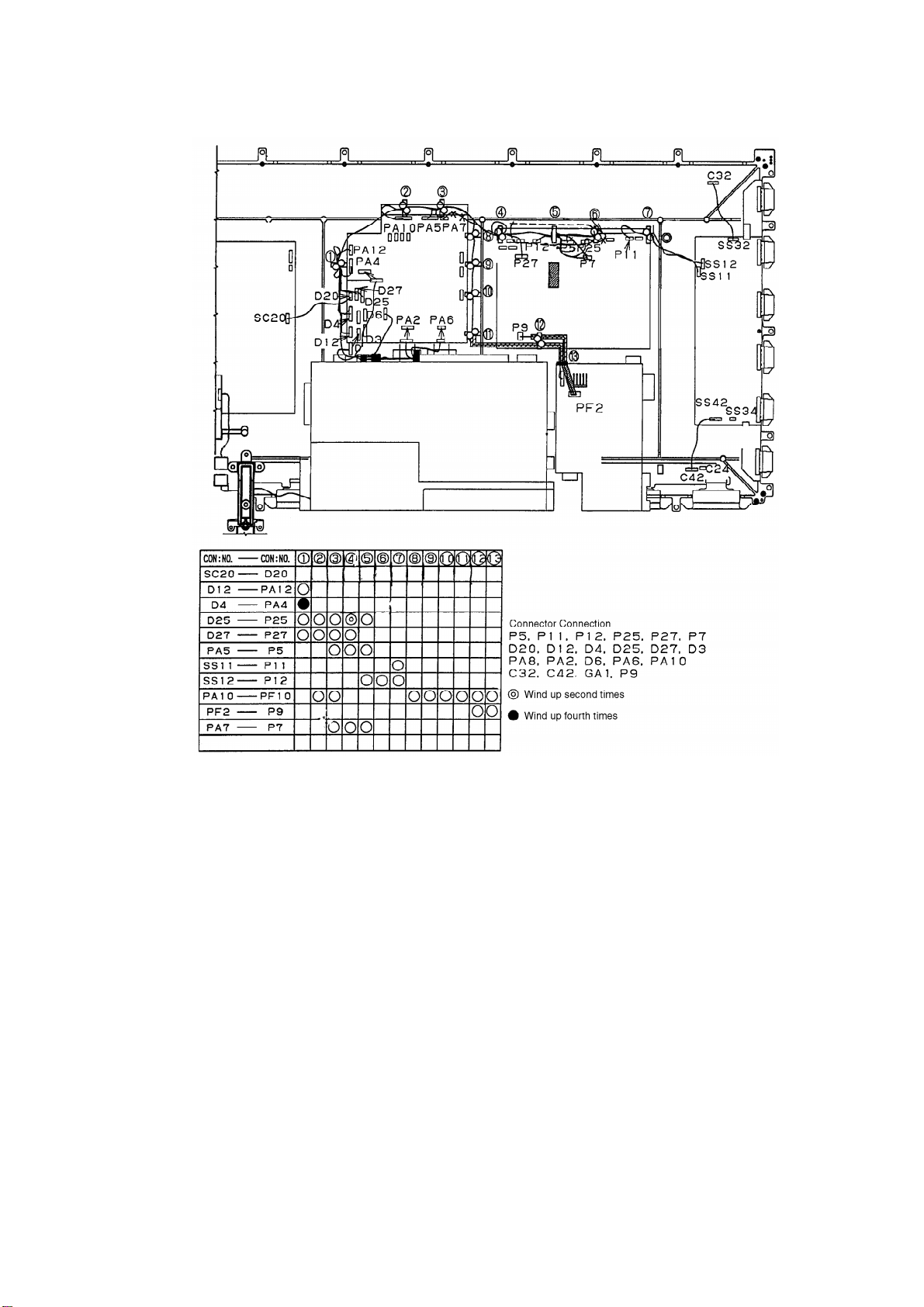

6.2. Lead of Wiring (2)
9

6.3. Lead of Wiring (3)
10

6.4. Lead of Wiring (4)
11

6.5. Lead of Wiring (5)
12

6.6. Lead of Wiring (6)
7. Self-check Function
Whensymptoms like “the powerfails sometimes” or“sometimes there is no picture and/or
sound” cannot be confirmedat the time of servicing, the self-check function canbe usedto
confirm the occurrenceand tofind the defective circuit.
Incase of “powerfailure”, flashing of the “POWER” indication (red) at the front of the unit can
13

be usedtonarrowdownthe +B line.
7.1. Self-check of the microcomputer control system (bus line)
Indicaton method
Press the “ACTION” button inthe control panel of the unit simultaneouslywiththe “POWER”
button inthe control panel of the unit. Holdthemfewseconds.
Returntohe normal screen
Press anybutton on the unit orinthe remote control.

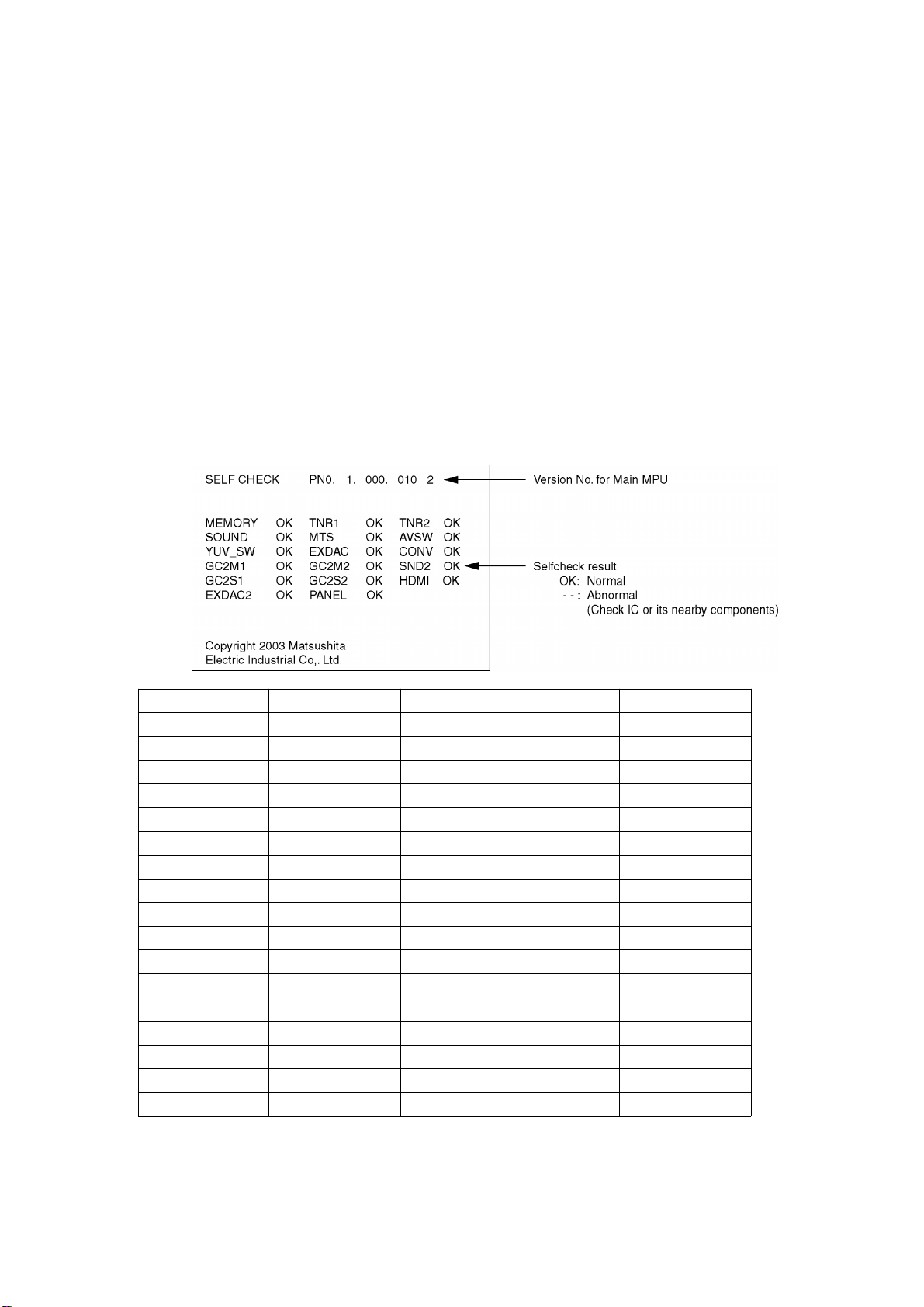

ScreenDisplay
Display Ref. No. Description Board
MEMORY IC002 EEPROM forMainMPU DG
SOUND IC2401 Sound Control H
YUV_SW IC4301 YUV switch H
GC2M1 IC4501 Global Core 2 formain DG
GC2S1 IC4502 Global Core 2 forsub DG
EXDAC2 IC5011 EXDAC DV
TNR1 TNR201 Tuner1 TA
MTS IC4205 Multiplex sound H
EXDAC IC8031 External I/O DG
GC2M2 IC4501 Global Core 2 formain DG
GC2S2 IC4502 Global Core 2 forsub DG
PANEL - - - - - Panel - - - - -
TNR2 TNR251 Tuner2 TB
AVSW IC4302 AV switch H
CONV IC3801 Convert Micom DG
SND2 IC4203 BBE H
HDMI IC5003 HDMI Recelver DV
14

7.2. Power LEDBlinking timing chart
1. Subject
Information of LEDFlashing timing chart.
2. Contents
When an abnormalityhas occurred the unit, the protection circuit
operates and reset to the stand bymode. Atthistime, the
defective block can be identified bythe number of blinkes of the
Power LEDon the front panel of the unit.
3. Remarks
Above Fan function isoperated during the fans are installed.
7.3. NoPower
[First check point]
There are following 3 states of NoPowerindication bypowerLED.
1. Nolit
15

2. Green islitthen turns red blinking afew seconds later.
3. Onlyred islit.
1. Nolit
7.4. NoPicture
7.5. Local screen failure

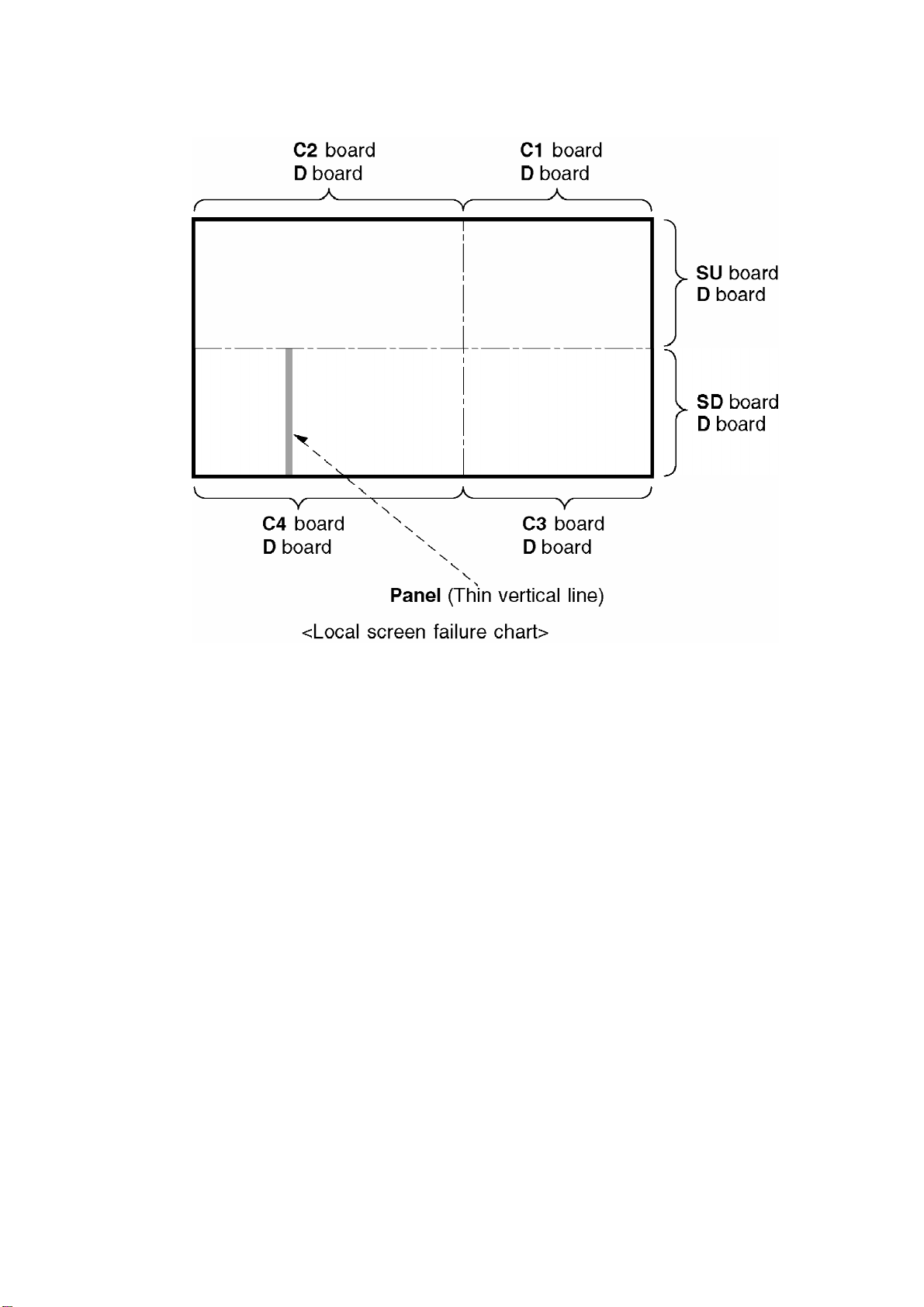

Plasma displaymayhave local area failure on the screen. Fig - 1 is the possible defect P.C.B. for
eachlocal area.
Fig- 1
16

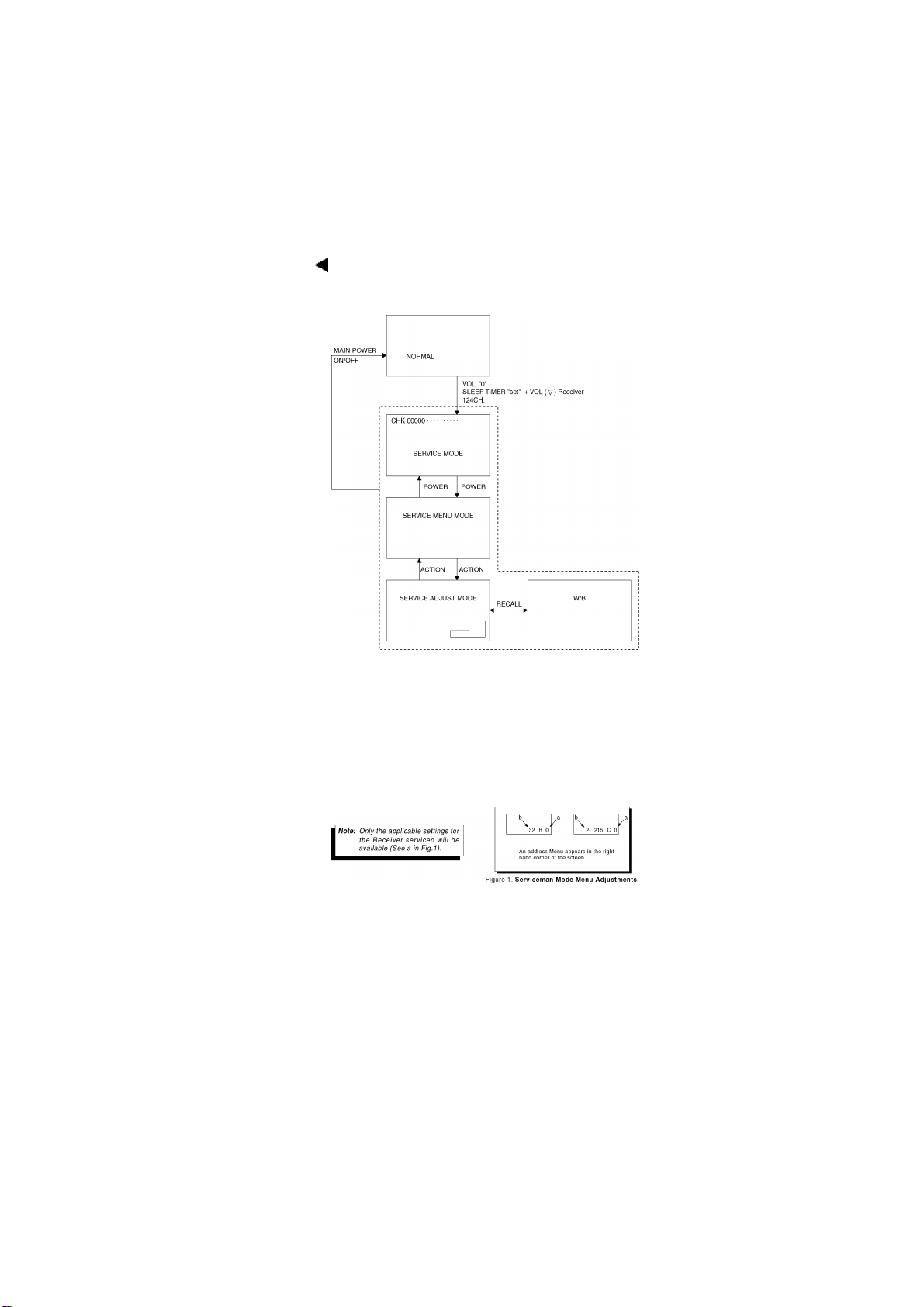

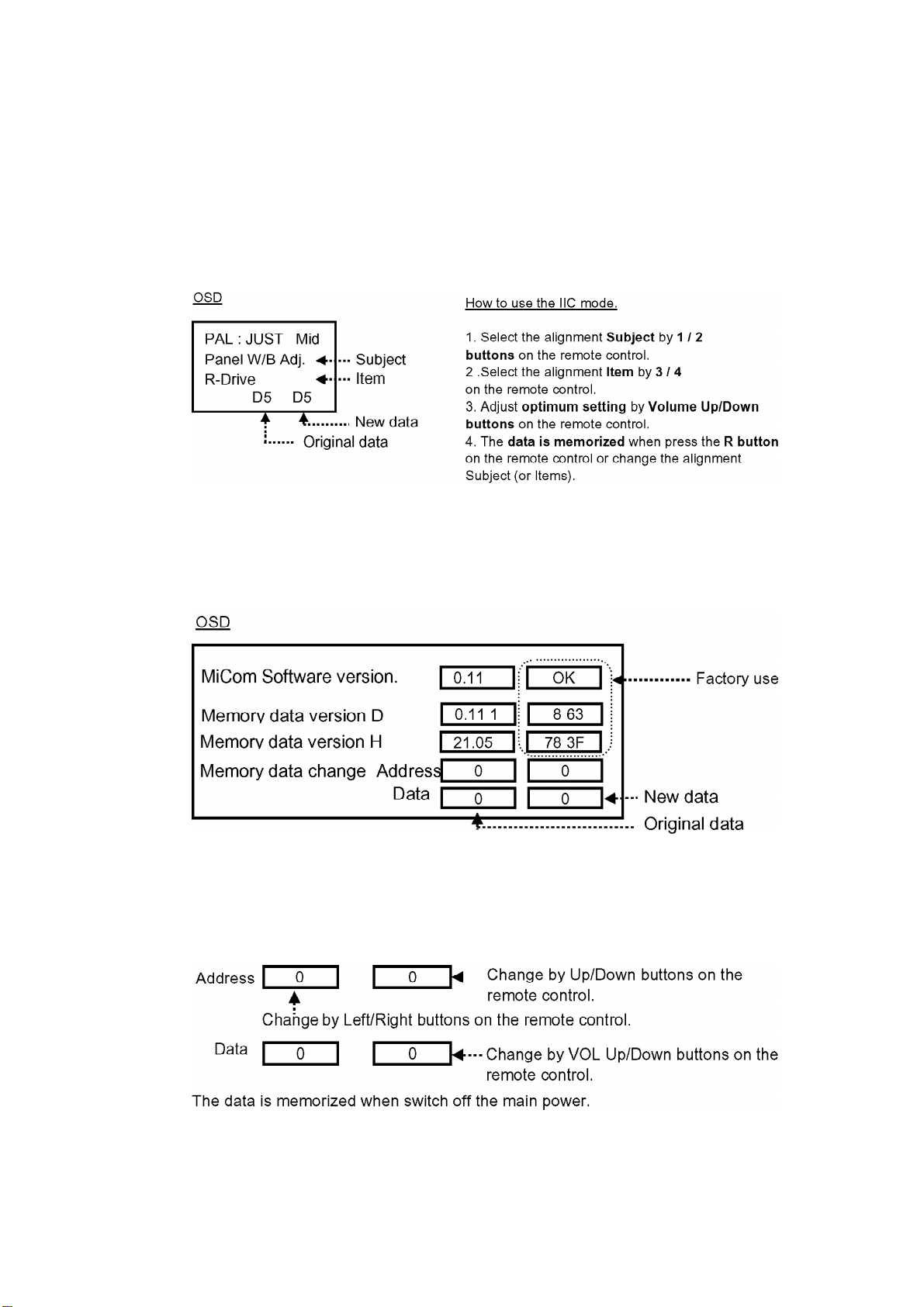

8. Serviceman Mode (Electronic Controls)
This Receiverhas electronic technologyusing the I2C BUS Concept. It performs as a control
function and it replaces manymechanical controls. Insteadof adjusting mechanical controls
individually, manyof the control function are nowperformedbyusing “OnScreenDisplay
Menu”. (The ServicemanAdjustment Mode.)
Note
It is suggestedthat the technicianreads all the waythrough and understand the following the
procedure forEntering/Exiting the ServicemanMode; thenproceedwiththe instructions
working the Receiver. Whenbecoming familiarwiththe procedure, the FlowChart for
ServicemanMode maybe usedas a quick guide.
Quick EntrytoServicemanMode:
At times whenminoradjustments needtobe done tothe electronic controls, the method of
Entering the servicemanMode without removal of the cabinet back is as follows using the
Remote Control:
1. Select SET-UPicon and select CABLE mode.
2. Select TIMERicon and set SLEEP time for 30 Min.
17

3. Press ACTIONbutton twice to exitmenus.
4. Tune to the Channel 124.
5. Adjust VOLUME to minimum (0).
6. Press the VOL button (decrease) on Receiver. Red “CHK”
appears inupper corner.
7. Press the Power Button on the Remote Control to select one of
sixServiceman Adjustment Modes.
A. Serviceman HADJUSTMENT.
B. Serviceman VADJUSTMENT.
C. Serviceman OTHERADJUSTMENT.
Exiting the ServicemanMode:
Press the Powerbuttons on the Receiver.
ForAdjustments:
1. Press Channel Up/Downon the Remote Control to select one of
the availableService Adjustments (a inFig.1).
Note:
18

Write Downthe original value set (binFig.1) foreachaddress before modifying anything. It is
easytoerroneouslyadjust the wrong item.
2. Press Volume Up/Downon the Remote Control to adjust the level
of the selected Service Adjustment (b inFig.1).
MAIN
ITEM SUB ITEM ORIGINAL
VALUE EEPROM
ADRESS DEFAULT
LEVEL
SLEEVE SUB
H H POS 15 1C CE
H WID 15 1B 2B
HP OF 15 61 FC
HW OF 15 60 00
V V POS 15 1E 0C
V WID 15 [] D1
VP OF 15 20
VW OF 15 29
OTHER SOSSW 01 97 01
POFWT 15 89 0A
PSRVS
SPDYN 15 86 -00
EEP AREA 15 9C ALL
IN EX 15 9D
EX IN 15 9E
9. CAT (computer Aided Test) mode
19

To exit the CATmode, access the ID mode and switchoff the mainpower.
9.1. IICmode
Select the IIC mode byUp/Downbutton on the remote control at the front page of CATmode
thenpress the Action button on the remote control.
“IIC mode structure”.
To exit the IIC mode, press the RECALL button on the remote control.
9.2. CD mode
Select the CD mode byUp/Downbutton on the remote control at the front page of CATmode
thenpress the Mute button on the remote control more than5 sec.
Micomsoftware version (IC9705), this version canbe upgrade by
1. replace of new version IC
2. Loading the new version software from loader tool, TZSC07036.
Memorydata change
To exit the CD mode, press the RECALL button on the remote control.
20
