Subject : SN board
Please file and use this supplement manual together with the service manual for Model No
TC-P42C2, ORDER NO. MTNC100205CE
TC-P42C2L, ORDER NO. MTNC100436AE
TC-P42C2X, ORDER NO. MTNC100326AE
TC-P42X2, ORDER NO. MTNC100319CE
TC-42PX24, ORDER NO. MTNC100322AE
TH-42PH20U, ORDER NO. MTNC100552CE.
1 SN Board
Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
Parts Set Production
zA Original
New
Early
Late
Original or new SN Board may be used in early or late production set.
Use original SN Board until exhausted, then stock new SN Board.
Part Number
Model No. Ref. No. Original Part No. New Part No. Notes Part Name & Descriptions
see above PCB TXNSN1LFUU
(indicated TNPA5066AB
on the board)
TXNSN1LAUU
(indicated TNPA5066AD
on the board)
SN Board
(RTL) Supplied by PAVCA
[Notice for SN Board]
Both original SN Board and new SN Board are compatible.
ORDER NO. ITD1010102SE

2 Different parts in SN board
Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
Parts SN Board
zD Original
New
Original
New
Original parts may be used in original SN Boards only.
New parts may be used in New SN Boards only.
Stock both original and new parts.
Part Number
Model No. Ref. No. Original Part No. New Part No. Notes Part Name & Descriptions
see above IC14901
IC14902
IC14903
IC14904
IC14951
IC14952
IC14953
IC14954
C0HBC0000018
(indicated R2A20260 on
the IC surface as maker
part number)
AN16530A-VT
(indicated AN16530A on
the IC surface)
Scan Driver IC
R14806
R14808
R14810
R14812
R14814
R14816
R14818
R14820
D0GBR00Z0002 none Short Jumper Resistor
[Note]
The earlier SN board doesn't have
these
resistors due to connection by foil
pattern.
R14805
R14807
R14809
R14811
R14813
R14815
R14817
R14819
none D0GBR00Z0002 Short Jumper Resistor
[Notice for IC]
Both original IC and new IC are not compatible.
Replace the same part number of IC for repair.
Please check the IC part number, C0HBC0000018 (indicated R2A20260) or AN16530A-VT (indicated AN16530A) marked on
the IC surface.
zC0HBC0000018 (indicated R2A20260) can be used for only
TXNSN1LFUU (indicated TNPA5066AB on the board).
zAN16530A-VT (indicated AN16530A) can be used for only
TXNSN1LAUU (indicated TNPA5066AD).
2

3
3 Different points for Schematic Diagrams
<Original>
TXNSN1LFUU (indicated TNPA5066AB on the board)
IC14954 IC14953 IC14952 IC14951 IC14904 IC14903 IC14902 IC14901
<New>
TXNSN1LAUU (indicated TNPA5066AD on the board)
IC14954 IC14953 IC14952 IC14951 IC14904 IC14903 IC14902 IC14901
C0HBC0000018
(indicated R2A20260)
C0HBC0000018
(indicated
R2A20260)
+5V LATD2GND +5V
108 111 108 111
R14819
R14820
R14812 R14811
AN16530A-VT
(indicated
AN16530A)
AN16530A-VT
(indicated
AN16530A)
+5V LATD2GND +5V
108 111 108 111
R14819
R14820
R14812 R14811
C0HBC0000018
(indicated R2A20260)
C0HBC0000018
(indicated
R2A20260)
+5V LATD1GND +5V
108 111 108 111
R14817
R14818
R14810 R14809
AN16530A-VT
(indicated
AN16530A)
AN16530A-VT
(indicated
AN16530A)
+5V LATD1GND +5V
108 111 108 111
R14819
R14820
R14812 R14811
C0HBC0000018
(indicated R2A20260)
C0HBC0000018
(indicated
R2A20260)
+5V LATU2GND +5V
108 111 108 111
R14815
R14816
R14808 R14807
AN16530A-VT
(indicated
AN16530A)
AN16530A-VT
(indicated
AN16530A)
+5V LATU2GND +5V
108 111 108 111
R14819
R14820
R14812 R14811
C0HBC0000018
(indicated R2A20260)
C0HBC0000018
(indicated
R2A20260)
+5V LATU1GND +5V
108 111 108 111
R14813
R14814
R14806 R14805
AN16530A-VT
(indicated
AN16530A)
AN16530A-VT
(indicated
AN16530A)
+5V LATU1GND +5V
108 111 108 111
R14819
R14820
R14812 R14811

4

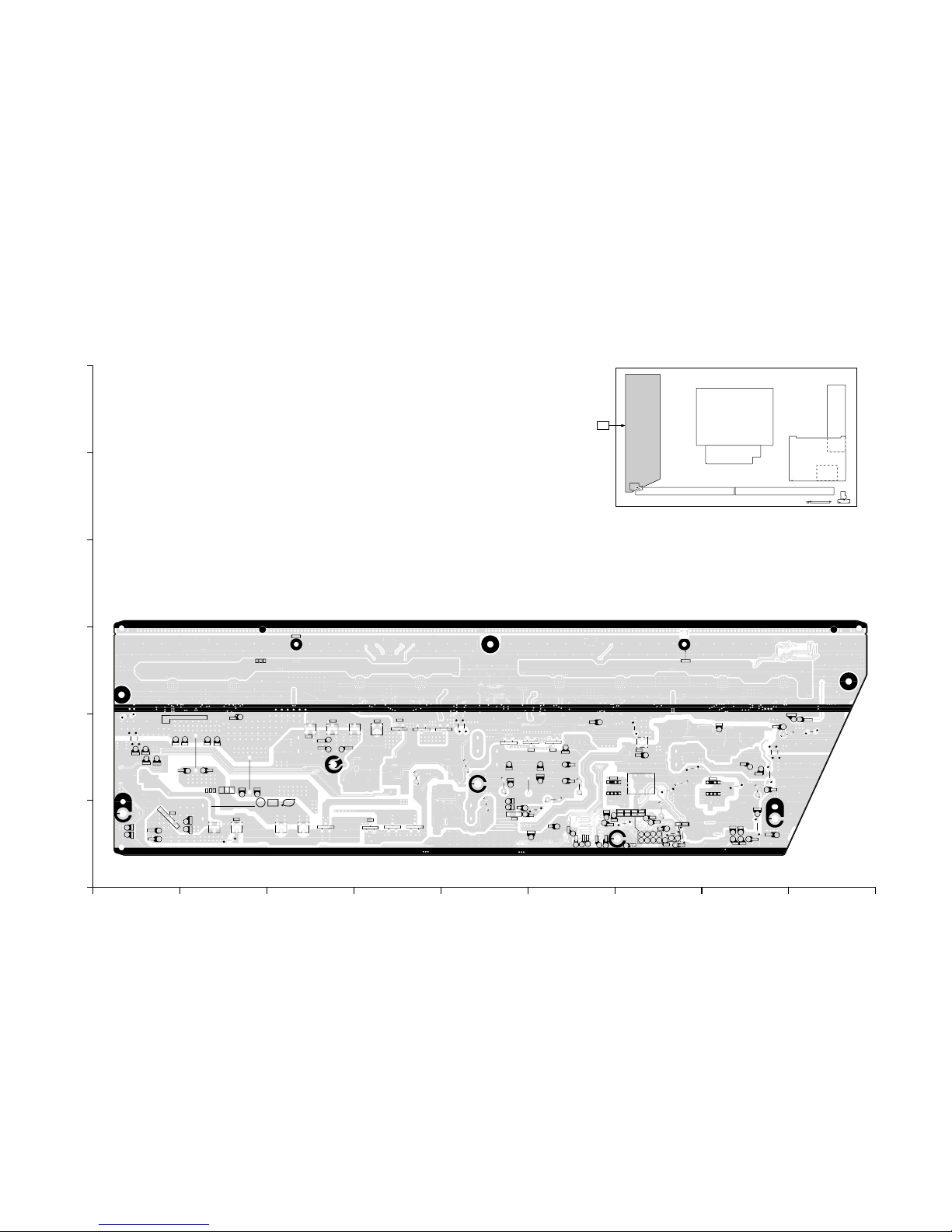

4 Conductor Views
4.1. SN-Board
ABCDEFGH I
1
2
3
4
5
6
TP90TP91
TP92
TP93
TP94
TP95
TP96
TP99
L698
C563
SN2
D722
SN3
D724
TP100
TP105 TP106
TP107 TP108
T471
TP109
IC784 IC786
TP110
C791
TP111
TP112
C793
TP113
TP114
C795
TP115
C796
TP116
TP117
TP118
TP121
TP122
TP125
C411
C412
C413
C414
R774
C813
Q401Q402
D401
C641
Q601
C642
C452
C842
C460
C461
Q421
C462
Q422
C463
D421 Q621
Q441
Q451
D641
D642
C691
TP1
TP2
TP4 TP5
TP6
TP7 TP8
Q661
TP9
D461D462
L400
L401
L411
D481
D482
TP10TP11
TP12
TP13
TP14
TP16
TP17 TP18
TP19
R838
TP20
TP21
TP22
TP23
TP24
TP25
TP26
TP27
TP28
TP29
TP30 TP31
TP32 TP33
TP34
TP35
TP36
TP37
TP38
TP39
TP40
C503
R860
TP52
TP58
TP60
L851
TP61
TP62
C523
TP63
TP67
L472
C721
R696
TP70
TP73
TP74
TP78
TP79
SN
3
TNPA5066
CRNo.16 3
2
1
CRNo.14
PbF
SNMM2
SNMM1
1
3
AA
K
1
5
A
A
K
P1 PT P2
S1S3
85
41
8
5
41
SEE REVERSE FOR ORDER NO.
C
E
G
C
E
G
AA
K
GS
D
G
C
EG
C
E
AA
K
C
GE
C
GE
G
C
E
AA
K
AA
K
G
C
E
AA
K
AA
K
AA
K
A
A
K
Q16401-HEAT0
TP90
TP91
TP92
TP93
TP94
TP95
TP96
TP99
L16698
C16563
SN2
D16722
SN3
D16724
TP100
TP105
TP106
TP107 TP108
T16471
TP109
IC16784
IC16786
TP110
C16791
TP111
TP112
C16793
TP113
TP114
C16795
TP115
C16796
TP116
TP117
TP118
TP121TP122
TP125
Q16451-HEAT0
C16411
C16412
C16413
C16414
R16774
C16813
Q16401 Q16402
D16401
C16641
Q16601
C16642
C16452
C16842
C16460
C16461
Q16421
C16462
Q16422
C16463
D16421
Q16621
Q16441
Q16451
D16641D16642
C16691
TP1
TP2
TP4
TP5
TP6
TP7
TP8
Q16661
TP9
D16461D16462
L16400
L16401
L16411
D16481 D16482
TP10
TP11
TP12
TP13
TP14
TP16
TP17
TP18
TP19
R16838
TP20
TP21
TP22
TP23
TP24
TP25
TP26
TP27
TP28
TP29
TP30
TP31
TP32
TP33
TP34
TP35
TP36
TP37
TP38
TP39
TP40
C16503
R16860
Q16441-HEAT0
TP52
TP58
TP60
L16851
TP61TP62
C16523
TP63
TP67
L16472
C16721
R16696
TP70
TP73
TP74
TP78
TP79
SN-BOARD (FOIL SIDE)
