Panasonic Viera TC-P50C2 User manual

ORDER NO.MTNC100206CE
B34 Canada: B62
Service Manual
50 inch Class 720p Plasma HDTV
Model No TC-P50C2
GPH13DU Chassis
A WARNING
This service in ormation is designed or experienced repair technicians only and is not designed or use by the general public.
It does not contain warnings or cautions to advise non-technical individuals o potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced pro essional technicians. Any attempt to service
or repair the product or products dealt with in this service in ormation by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important or sa ety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manu acturer's speci ied parts to prevent shock, ire or other hazards. Do not modi y the original design without permission o
manu acturer.
Panasonic © Panasonic Corporation 2010.
Unauthorized copying and distribution is a violation
o law.

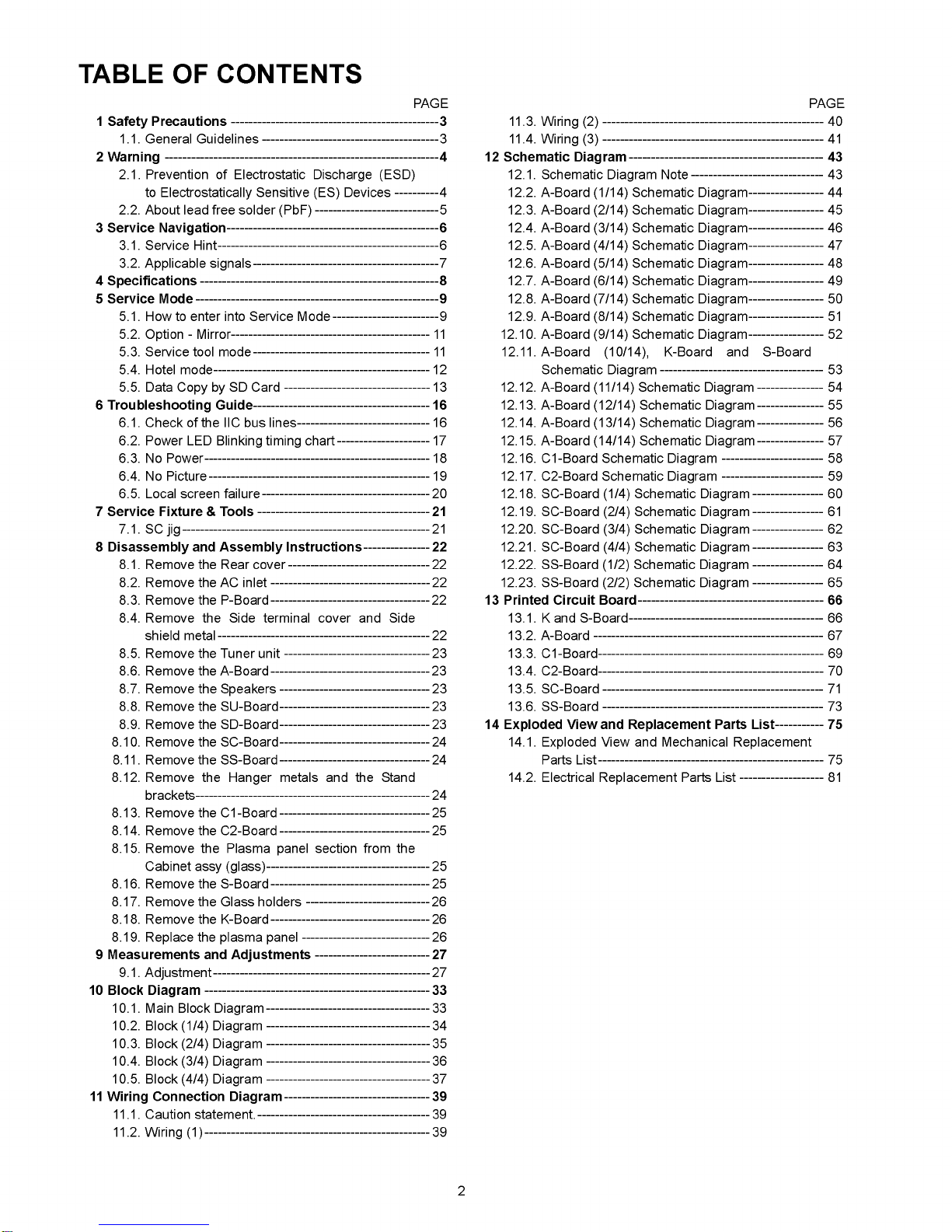

TABLE OF CONTENTS PAGE
1 Safety Precautions -------------------------------------------------- 3
1.1. General Guidelines-------------------------------------------3
2 Warning------------------------------------------------------------------4
2.1. Prevention o Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices-----------4
2.2. About lead ree solder (PbF)------------------------------5
3 Service Navigation--------------------------------------------------- 6
3.1. Service Hint----------------------------------------------------- 6
3.2. Applicable signals---------------------------------------------7
4 Specifications----------------------------------------------------------8
5 Service Mode-----------------------------------------------------------9
5.1. How to enter into Service Mode--------------------------9
5.2. Option - Mirror------------------------------------------------- 11
5.3. Service tool mode--------------------------------------------11
5.4. Hotel mode-----------------------------------------------------12
5.5. Data Copy by SD Card------------------------------------13
6 Troubleshooting Guide------------------------------------------ 16
6.1. Check o the IIC bus lines---------------------------------16
6.2. Power LED Blinking timing chart ----------------------- 17
6.3. No Power -------------------------------------------------------18
6.4. No Picture------------------------------------------------------ 19
6.5. Local screen ailure-----------------------------------------20
7 Service Fixture & Tools------------------------------------------ 21
7.1. SC jig-------------------------------------------------------------21
8 Disassembly and Assembly Instructions ---------------- 22
8.1. Remove the Rear cover----------------------------------22
8.2. Remove the AC inlet--------------------------------------22
8.3. Remove the P-Board--------------------------------------22
8.4. Remove the Side terminal cover and Side
shield metal----------------------------------------------------22
8.5. Remove the Tuner unit ---------------------------------- 23
8.6. Remove the A-Board--------------------------------------23
8.7. Remove the Speakers ------------------------------------23
8.8. Remove the SU-Board------------------------------------23
8.9. Remove the SD-Board------------------------------------23
8.10. Remove the SC-Board------------------------------------24
8.11. Remove the SS-Board------------------------------------24
8.12. Remove the Hanger metals and the Stand
brackets -------------------------------------------------------- 24
8.13. Remove the C1-Board------------------------------------25
8.14. Remove the C2-Board------------------------------------25
8.15. Remove the Plasma panel section rom the
Cabinet assy (glass)----------------------------------------25
8.16. Remove the S-Board--------------------------------------25
8.17. Remove the Glass holders ----------------------------- 26
8.18. Remove the K-Board--------------------------------------26
8.19. Replace the plasma panel ------------------------------26
9 Measurements and Adjustments----------------------------27
9.1. Adjustment----------------------------------------------------27
10 Block Diagram-------------------------------------------------------33
10.1. Main Block Diagram---------------------------------------33
10.2. Block (1/4) Diagram---------------------------------------34
10.3. Block (2/4) Diagram---------------------------------------35
10.4. Block (3/4) Diagram---------------------------------------36
10.5. Block (4/4) Diagram---------------------------------------37
11 Wiring Connection Diagram------------------------------------39
11.1. Caution statement.------------------------------------------39
11.2. Wiring (1)-------------------------------------------------------39
PAGE
11.3. Wiring (2)-------------------------------------------------------40
11.4. Wiring (3)-------------------------------------------------------41
12 Schematic Diagram ----------------------------------------------- 43
12.1. Schematic Diagram Note --------------------------------- 43
12.2. A-Board (1/14) Schematic Diagram ------------------- 44
12.3. A-Board (2/14) Schematic Diagram
------------------- 45
12.4. A-Board (3/14) Schematic Diagram ------------------- 46
12.5. A-Board (4/14) Schematic Diagram
------------------- 47
12.6. A-Board (5/14) Schematic Diagram ------------------- 48
12.7. A-Board (6/14) Schematic Diagram
------------------- 49
12.8. A-Board (7/14) Schematic Diagram ------------------- 50
12.9. A-Board (8/14) Schematic Diagram --------------------51
12.10. A-Board (9/14) Schematic Diagram ------------------- 52
12.11. A-Board (10/14), K-Board and S-Board
Schematic Diagram ---------------------------------------- 53
12.12. A-Board (11/14) Schematic Diagram
----------------- 54
12.13. A-Board (12/14) Schematic Diagram ----------------- 55
12.14. A-Board (13/14) Schematic Diagram
----------------- 56
12.15. A-Board (14/14) Schematic Diagram ----------------- 57
12.16. C1-Board Schematic Diagram --------------------------58
12.17. C2-Board Schematic Diagram--------------------------59
12.18. SC-Board (1/4) Schematic Diagram
------------------ 60
12.19. SC-Board (2/4) Schematic Diagram -------------------61
12.20. SC-Board (3/4) Schematic Diagram ------------------ 62
12.21. SC-Board (4/4) Schematic Diagram ------------------ 63
12.22. SS-Board (1/2) Schematic Diagram
------------------ 64
12.23. SS-Board (2/2) Schematic Diagram ------------------ 65
13 Printed Circuit Board
----------------------------------------------66
13.1. K and S-Board------------------------------------------------ 66
13.2. A-Board---------------------------------------------------------67
13.3. C1-Board--------------------------------------------------------69
13.4. C2-Board--------------------------------------------------------70
13.5. SC-Board-------------------------------------------------------71
13.6. SS-Board-------------------------------------------------------73
14 Exploded View and Replacement Parts List ------------- 75
14.1. Exploded View and Mechanical Replacement
Parts List------------------------------------------------------- 75
14.2. Electrical Replacement Parts List
--------------------- 81
2

1 Safety Precautions
1 1 General Guidelines
1. When conducting repairs and servicing, do not attempt to modi y the equipment, its parts or its materials.
2. When wiring units (with cables, lexible cables or lead wires) are supplied as repair parts and only one wire or some o the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
3. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.
4. When servicing, observe the original lead dress. I a short circuit is ound, replace all parts which have been overheated or
damaged by the short circuit.
5. A ter servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
6. A ter servicing, make the ollowing leakage current checks to prevent the customer rom being exposed to shock hazards.
1 1 1 Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed metal
lic cabinet part on the equipment such as screwheads,
connectors, control sha ts, etc. When the exposed metal
lic part has a return path to the chassis, the reading
should be between 1Mohm and 5.2Mohm.
When the exposed metal does not have a return path to
the chassis, the reading must be OO
1 1 2 Leakage Current Hot Check (See
Figure 1 )
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation trans ormer or this check.
2. Connect a 1.5kohm, 10 watts resistor, in parallel with a
0.15|iF capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more sensi
tivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the volt
age at each point.
5. Reverse the AC plug in the AC outlet and repeat each o
the above measurements.
6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a measure
ment is outside o the limits speci ied, there is a possibility
o a shock hazard, and the equipment should be repaired
and rechecked be ore it is returned to the customer.
Figure 1
3

2 Warning
2 1 Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec
trostatically Sensitive (ES) Devices. Examples o typical ES devices are integrated circuits and some ield-e ect transistors and
semiconductor [chip] components. The ollowing techniques should be used to help reduce the incidence o component damage
caused by electrostatic discharge (ESD).
1. Immediately be ore handling any semiconductor component or semiconductor-equipped assembly, drain o any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed or potential shock reasons prior to applying power to the unit under test.
2. A ter removing an electrical assembly equipped with ES devices, place the assembly on a conductive sur ace such as alumi
num oil, to prevent electrostatic charge buildup or exposure o the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classi ied as [anti-static (ESD protected)] can
generate electrical charge su icient to damage ES devices.
5. Do not use reon-propelled chemicals. These can generate electrical charges su icient to damage ES devices.
6. Do not remove a replacement ES device rom its protective package until immediately be ore you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive oam, aluminum oil or compara
ble conductive material).
7. Immediately be ore removing the protective material rom the leads o a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other sa ety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush
ing together o your clothes abric or the li ting o your oot rom a carpeted loor can generate static electricity (ESD) su icient
to damage an ES device).
4

2 2 About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu)
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available
This model uses Pb Free solder in it's manu acture due to environmental conservation issues. For service and repair work, we'd
suggest the use o Pb ree solder as well, although Pb solder may be used.
PCBs manu actured using lead ree solder will have the PbF within a lea Symbol PbF stamped on the back o PCB.
Caution
• Pb ree solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb ree solder will tend to splash when heated too high (about 1100 °F or 600 °C).
I you must use Pb solder, please completely remove all o the Pb ree solder on the pins or solder area be ore applying Pb sol
der. I this is not practical, be sure to heat the Pb ree solder until it melts, be ore applying Pb solder.
• A ter applying PbF solder to double layered boards, please check the component side or excess solder which may low onto the
opposite side. (see igure below)
component component
remove all o the ^1П\
excess solder
slice
\
solder
Suggested Pb free solder
There are several kinds o Pb ree solder available or purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How
ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.
5

3 Service Navigation
3 1 Service Hint
Board Name Function Board Name Function
P Power Supply
Non serviceable.
P-Board should be exchanged or service.
C1 Data Driver (Lower Right)
C2 Data Driver (Lower Le t)
SC Scan Drive
A DC-DC Converter, Tuner
Speaker out, AV Terminal, HDMI in, SD Card
Digital Signal Processor, Nile-TCON
Format Converter, Plasma AI, Sub-Field Processor
Key Switch
SS Sustain Drive
SU Scan out (Upper)
Non serviceable.
SU-Board should be exchanged or service.
SD Scan out (Lower)
Non serviceable.
SD-Board should be exchanged or service.
K Remote receiver, Power LED, C.A.T.S sensor
S Power Switch
6

3 2 Applicable signals
* Mark: Applicable input signal or Component (Y, PB, PR) and HDMI
horizontal requency (kHz) vertical requency (Hz) COMPONENT HDMI
525 (480) / 60i 15.73 59.94 * *
525 (480) /60p 31.47 59.94 * *
750 (720) /60p 45.00 59.94 * *
1,125 (1,080) /60i 33.75 59.94 * *
1,125 (1,080)/60p 67.43 59.94 *
1,125 (1,080)/60p 67.50 60.00 *
1,125(1,080)/24p 26.97 23.98 *
1,125(1,080)/24p 27.00 24.00 *
Note
• Signals other than those shown above may not be displayed properly.
• The above signals are re ormatted or optimal viewing on your display.
7

4 Specifications
Power Source
Power Consumption
Maximum
Standby condition
Plasma Display panel
Drive method
Aspect Ratio
Visible screen size
(W x H x Diagonal)
(No of pixels)
Sound Audio Output
Channel Capability (Digital/Analog)
Operating Conditions
Connection Terminals
VIDEO IN 1-2
COMPONENT INPUT 1-2
HDMI 1-2
Card slot
DIGITAL AUDIO OUT
FEATURES
Dimensions (W x H x D)
Including pedestal
TV Set only
Mass Including pedestal
TV Set only
AC 120 V, 60 Hz
299 W
0.3 W
AC type
16:9
50 inch class (49.9 inches measured diagonally)
43.5 inch x 24.4 inch x 49.9 inch (1,105 mm x 622 mm x 1,268 mm)
786,432 (1,024 (W) x 768 (H))[3,072 x 768 dots]
20 W [ 10 W + 10 W ] ( 10 % THD )
VHF/ UHF: 2 - 69, CATV: 1 - 135
Temperature:
Humidity: 32 °F - 104 °F (0 °C - 40 °C) 20 % - 80 % RH (non-condensing)
RCA PIN Type x 1 1.0 V [p-p] (75 Q)
RCA PIN Type x 2 0.5 V [rms]
1.0 V [p-p] (including synchronization)
±0.35 V [p-p]
RCA PIN Type x 2 0.5 V [rms]
VIDEO:
AUDIO L-R:
Y:
PB, PR:
AUDIO L-R:
TYPE A Connector x 2
This TV supports [HDAVI Control 5] unction.
SD CARD slot x 1
PCM / Dolby Digital, Fiber Optic
3D Y/C FILTER
CLOSED CAPTION V-Chip
VIERA IMAGE VIEWER HDAVI Control 5
48.0 inch x 32.2 inch x 14.1 inch (1,218 mm x 817 mm x 357 mm)
48.0inch x 30.3 inch x 3.7 inch (4.1 inch) (1,218 mm x 769 mm x 93 mm (104mm))
72.8 lb. (33.0 kg)
70.6 lb. (32.0 kg)
Note
• Design and Speci ications are subject to change without notice. Mass and Dimensions shown are approximate.
8

5 Service Mode
5 1 How to enter into Service Mode
While pressing [VOLUME ( - )] button o the main unit, press [INFO] button o the remote control three times within 2 seconds.
So tware version ■
Picture adjustment ----------
White balance adjustment
Option setting ----------------
Vsus adjustment -------------
Aging ----------------------------
SERVICE
ADJUST
WB-ADJ
OPTION
VSUS
AGING
SRV-TOOL
DTVSOC SOFT *. * * * RB Cnt
DTVSOC EEP *. **. ** **
LSI DATA *. **, **
ST BY SOFT
ST BY EEP **. **.* ***
PDP SOFT до ^
PDP EEP э|сз|с
PDPFPGA
PDPPDROM 3|(3C
EPOP
I Sub Item
| 1
'ADJUST' i '
'CONTRAST' '0000'
YMAX
5 1 1 Key command
[1] button...Main items Selection in orward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in orward direction
[4] button...Sub items Selection in reverse direction
[VOL] button...Value o sub items change in orward direction ( + ), in reverse direction ( - )
9

5 1 2 Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value di ers depending on models.
• A ter entering the adjustment mode, take note o the value in each item be ore starting adjustment.
Main item Sub item Sample Data Remark
ADJUST CONTRAST 46
COLOR 00
TINT 00
SUB-BRT 000
WB-ADJ R-CUT 80
G-CUT 80
B-CUT 80
R-DRV FD
G-DRV FB
B-DRV FF
ALL-DRV FF
OPTION BOOT ROM Factory Preset
STBY-SET - -
EMERGENCY ON
CLK MODE ON
CLOCK FFF
MIRROR 00 (See next)
EDID-CLK HIGH
VSUS
AGING ALL WHITE Built-in test patterns can be
AI ALL BLUE + WHITE FLAME displayed.
AI ALL GREEN
AI ALL RED
LOW STEP WHITE
LOW STEP BLUE
LOW STEP GREEN
LOW STEP RED
RAMP WHITE
RAMP RED
RAMP GREEN
RAMP BLUE
A-ZONE B-ZONE
1% WINDOW
COLOR BAR
9 POINT BRIGHTNESS
WHITE FLAME
AI ALL BLUE
TWICE FIXATION 1% WINDOW
SCROLL
ON/OFF OR RGBW
R/G/B/W AGING MODE
0.5 TIME FIXATION ALL WHITE
ALL WHITE WITH COUNT
SRV-TOOL -See next
5 1 3 How to exit
Switch o the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
10

5 2 Option - Mirror
Picture can be reversed le t and right or up and down.
00 : De ault (Normal picture is displayed)
01 : Picture is reversed le t and right.
02 : Picture is reversed up and down.
Hint : I the de ective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection o this mirror, the possible cause is in
A-board.
5 3 Service tool mode
5 3 1 How to access
1. Select [SRV-TOOL] in Service Mode.
2. Press [OK] button on the remote control.
Display o TD2Microcode version —
Display o Flash ROM maker code -
Display o SOS History ---------------
SRV-TOOL
TD2Microcode:81 cOOOOe
Flash ROM : 1 - 227E
PTCT : 00 . 00 . 00 . 00 . 00 Time 00000:40 Count 01 POWER ON TIME/COUNT
Press [MUTE] button (3sec)
5 3 2 Display of SOS History
SOS History (Number o LED blinking) indication.
From le t side; Last SOS, be ore Last, three occurrence be ore, 2nd occurrence a ter shipment, 1st occurrence a ter shipment.
This indication except 2nd and 1st occurrence a ter shipment will be cleared by [Sel -check indication and orced to actory ship
ment setting].
5 3 3 POWER ON TIME/COUNT
Note : To display TIME/COUNT menu, highlight position, then press MUTE or (3sec).
Time : Cumulative power on time, indicated hour : minute by decimal
Count : Number o ON times by decimal
Note : This indication will not be cleared by either o the sel -checks or any other command.
5 3 4 Exit
1. Disconnect the AC cord rom wall outlet.
11

5 4 Hotel mode
1. Purpose
Restrict a unction or hotels.
2. Access command to the Hotel mode setup menu
In order to display the Hotel mode setup menu, please
enter the ollowing command (within 2 second).
[TV] : Vol. [Down] + [REMOTE] : INPUT (3 timesT
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord rom wall outlet.
4. Explain the Hotel mode setup menu
item Function
Mode Select hotel mode ON/OFF
Input Select input signal modes.
Set the input, when each time power is
switched on.
Selection:
—/RF/HDMI1/HDMI2/COMP1/COMP2/
VIDEO1/VIDEO2
• OFF: give priority to a last memory.
Channel Select channel when input signal is RF.
Set the channel, each time power is switched
on.
Selection:
Any channel number or [-].
[-] means the channel when turns o .
Volume Adjust the volume when each time power is
switched on.
Range:
0 to 100
Vol. Max Adjust maximum volume.
Range:
0 to 100
OSD Ctrl Restrict the OSD.
Selection:
OFF/PATTERN1
• OFF: No restriction
• PATTERN1: restriction
FP Ctrl Select ront key conditions.
Selection:
OF F/ALL/PATTER N1
• OFF: altogether valid.
• ALL: altogether invalid.
• PATTERN1: only input key is valid.
Pow Ctrl Select POWER-ON/OFF condition when AC
power cord is disconnected and then con
nected.
OFF: The same condition when AC power
cord is disconnected.
ON: Forced power ON condition.
12

5 5 Data Copy by SD Card
5 5 1 Purpose
(a) Board replacement (Copy the data when exchanging A-board):
When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.
TV (Be ore exchanging)
Copy to SD card
Ap. SD
'Ч (A ter exchanging)
Following data can be copied.
User setting data
(incl. Hotel mode setting data)
Channel scan data
Adjustment and actory preset data
Copy back rom SD card
(b) Hotel (Copy the data when installing a number of units in hotel or any facility):
When installing a number o units in hotel or any acility, the data in master TV can be copied to SD card and then copy to other
TVs.
5 5 2 Preparation
Make pwd ile as startup ile or (a) or (b) in a empty SD card.
1. Insert a empty SD card to your PC.
2. Right-click a blank area in a SD card window, point to New, and then click text document. A new ile is created by de ault
(New Text Document.txt).
3. Right-click the new text document that you just created and select rename, and then change the name and extension o the
ile to the ollowing ile name or (a) or (b) and press ENTER.
File name:
(a) For Board replacement : boardreplace.pwd
(b) For Hotel : hotel.pwd
Note:
Please make only one ile to prevent the operation error.
No any other ile should not be in SD card.
13

5 5 3 Data copy from TV set to SD Card
1. Turn on the TV set.
2. Insert SD card with a startup ile (pwd ile) to SD slot.
On-screen Display will be appeared according to the startup ile automatically.
3. Input a ollowing password or (a) or (b) by using remote control.
(a) For Board replacement : 2770
(b) For Hotel : 4850
Data will be copied rom TV set to SD card.
It takes around 2 to 6 minutes maximum or copying.
4. A ter the completion o copying to SD card, remove SD card rom TV set.
5. Turn o the TV set.
Note:
Following new older will be created in SD card or data rom TV set.
(a) For Board replacement : user_setup
(b) For Hotel : hotel
14

5 5 4 Data copy from to SD Card to TV set
1. Turn on the TV set.
2. Insert SD card with Data to SD slot.
On-screen Display will be appeared according to the Data older automatically.
3. Input a ollowing password or (a) or (b) by using remote control.
(a) For Board replacement : 2771
(b) For Hotel : 4851
Data will be copied rom SD card to TV set.
4. A ter the completion o copying to SD card, remove SD card rom TV set.
(a) For Board replacement : Data will be deleted a ter copying (Limited one copy).
(b) For Hotel : Data will not be deleted and can be used or other TVs.
5. Turn o the TV set.
Note:
1. Depending on the ailure o boards, unction o Data copy or board replacement does not work.
2. This unction can be e ective among the same model numbers.
(e.g. For exchanging
repair board)
Per orming
Completion
Dfte сору (Вмп} repUonwit)
Input password
Password lnput(For writing)
Cow S CJrt to TV
Псам Mil tor •
Инн do кл nm t №■ S urf W TIM
*
Writing per orming display
15

6 Troubleshooting Guide
Use the sel -check unction to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
6 1 Check of the IIC bus lines
6 1 1 How to access
Sel -check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
or more than 3 seconds.
Sel -check indication and orced to actory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote con
trol or more than 3 seconds.
6 1 2 Exit
Disconnect the AC cord rom wall outlet.
6 1 3 Screen display
6 1 4 Check Point
Con irm the ollowing parts i NG was displayed.
DISPLAY Re . No. Description P.C.B.
DTVSOC IC8001 Nile-TCON A-Board
TUN TU8302 TUNER A-Board
MEM1 IC8004 EEPROM (MPU) A-Board
MEM2 IC8503 EEPROM (Nile) A-Board
TEMP IC4701 TEMP SENSOR A-Board
PANEL IC9003 PANEL MICOM A-Board
AMP IC2106 AUDIO AMP A-Board
SYSMPU IC8001 SYSMPU (Nile-TCON) A-Board
16

6 2 Power LED Blinking timing chart
1. Subject
In ormation o LED Flashing timing chart.
2. Contents
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
de ective block can be identi ied by the number o blinks o the Power LED on the ront panel o the unit.
17

6 3 No Power
First check point
There are ollowing 2 states o No Power indication by power LED.
1. No lit
2. Red is lit then turns red blinking a ew seconds later. (See 6.2.)
No lit
OK
Check
A board
18

6 4 No Picture
Input only y v h a t's ^ \ lnPut 0Г|1У
Signal?
19

6 5 Local screen failure
Plasma display may have local area ailure on the screen. Fig-1 is the possible de ect P.C.B. or each local area.
Fig-1
20
