Watching TV
Cable / Satellite / Fiber with a box
Initial setting
1. Connecting
Select the wiring method connecting your box to the TV, AV IN or
Antenna/Cable in.
Tip: HDMI will provide the best HD picture
2. Change INPUT
INPUT
Press the INPUT button to select the proper connection. Wait 2 seconds.
3. Power on your Cable , Satellite or Fiber box
Use the box's remote control to change channels.
*If the box is connected to the TV using a COAX cable (Antenna/Cable in), then
set the TV channel to CH3 or CH4. Note that the picture will not be in HD.
*CC/SAP is not available when watching TV with a Cable or Satellite box
connected via HDMI.
*If your box is a high definition, then check that it is outputting 720p or 1080i
signal.
Tip: press the TV's INFO button to verify.
*Check your box "aspect" or "format" settings. It should be set to 16:9,
Widescreen or FULL.
*If the audio volume is too low, check the box's audio settings.
*Contact your Cable or Satellite provider for instructions on any box settings.
11

Watching TV
Antenna / Cable service without a box
Initial setting
1. Connect coax
Connect a COAX wire from either an antenna or Basic Cable service to the TV's
"ANTENNA/CABLE IN" screw terminal.
TV
ANTENNA/
CABLE IN Antenna
2. Scan the channel
MENU Setup > ANT/Cable setup > ANT in, Auto program
1. Select Programming source Cable or Antenna in Ant in.
2. Select Auto program and select scan mode
(All channels / Analog only / Digital only).
3. Start scanning.
*If at the end of the scanning no channels are found, then check:
Antenna's position - or Availability of Cable service.
Cable, Satellite or Fiber services with a box are typically connected to the TV's
A/V inputs, preferably HDMI, for best HD picture. In such a case, the channel
scanning is not needed (set ANT IN to Not used).
12

Watching TV
Antenna / Cable service without a box
Select channels
Select desired channel
or
CH buttons are also available on the TV.
Select desired digital channel
To directly enter a digital channel number use
When turning to a digital channel, press the button to enter the minor number in a
compound channel number.
(e.g. CH15-1 )
13

Watching TV
Antenna / Cable service without a box
Favorite channels (Set)
Channel numbers registered in Favorite are displayed on the favorite tune screen.
Select the desired broadcast station with the cursor or use the number buttons.
Favorite channels cannot be set when using Cable or Satellite box
Set the Favorite channel
OPTION Options menu > Set favorite
Select the list number using /and or directly to save the
displayed channel.
Delete a Favorite channel
OPTION Options menu > Set favorite
Select the list number using /and (press and hold) to delete.
* To change the page in Set favorite
FAVORITE or /repeatedly
14

Watching TV
Antenna / Cable service without a box
Favorite channels (Display)
Channel numbers registered in Favorite are displayed on the favorite tune screen.
Select the desired broadcast station with the cursor or use the number buttons.
Favorite channels cannot be set when using Cable or Satellite box.
To display a Favorite channel
FAVORITE Favorite channels
Select the list number using /and or directly to displayed
on favorite screen.
* To change the page in Favorite channels
FAVORITE or /repeatedly
15

Watching TV
Antenna / Cable service without a box
Closed caption
Viewing with Closed caption
CC
Switches the Closed caption mode.
( Closed caption Off / Closed caption On / Closed caption On mute )
*CC is not available when watching TV with a Cable or Satellite box connected
via HDMI.
*Contact your Cable or Satellite operator for instructions on enabling CC with
their box.
*The TV's CC button does not operate the Satellite or Cable box's CC function.
*For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing
with H-FILL, JUST, ZOOM or 4:3; characters might be cut off).
*If the CC is set to On on both the receiver and TV when the signal is 480i
(except for the HDMI connection), the CC may overlap on the TV.
*If a digital program is being output in analog format, the CC data will also be
output in analog format.
*If the recorder or output monitor is connected to the TV, the CC needs to be set
up on the recorder or output monitor.
16

Watching TV
Antenna / Cable service without a box
SAP
Listen with SAP (Secondary Audio Programming)
SAP is not available when watching TV with a Cable or Satellite box connected
via HDMI.
Contact your Cable or Satellite operator for instructions on enabling SAP with
their box.
The TV's SAP button does not operate the Satellite or Cable box's SAP
function.
Select the Audio mode for watching TV.
SAP
Digital mode: Select available audio service when receiving a digital channel.
Audio track is automatically selected as DTV language and SAP settings in
Audio menu.
Menu > Audio > DTV language and SAP settings
*If you change the audio settings with the SAP button, the DTV language and
SAP settings will not change.
Audio track 1 of 7 Track number / Number of tracks
English (Main
Audio) Current audio track information (language, audio
type)
English audio Audio service information
(example)
Analog mode: Select the desired Audio mode. ( Stereo / SAP / Mono )
17

Watching TV
Antenna / Cable service without a box
Other
1. Information banner
Displays TV status information. Also, when watching programs via the
Antenna/Cable input, INFO will include the channel banner.
INFO
Channel / Station identifier / Program title / Closed caption / SAP /
Rating level / Signal resolution / Picture mode / Aspect ratio /
Sleep timer remaining time / Clock
2. Options menu
This menu consists of shortcuts to convenient functions.
OPTION
Channel surf mode: Specify favorites or type of channels to view when
pressing the channel up/down button.
Set favorite: Set favorite channel
Edit CH caption: Edit the channel identifier
Signal meter: Check the antenna's signal strength
*Options menu is only available when the TV is using the Antenna/Cable input,
not when using Cable or Satellite box.
18

Watching TV
Blu-ray, DVD, Game Console, etc.
Connecting and viewing (1)
1. Connect device
Verify that the device is connected to the TV properly and connect to desired
terminal. Note which terminal the device is connected to (HDMI 1, HDMI 2,...
Component or Video)
Component and Composite (Video) in terminals are shared.
Please be careful not to confuse the connection when you use Component or
Video.
19

Watching TV
Blu-ray, DVD, Game Console, etc.
Connecting and viewing (2)
2. Select Input
1. Display Input select menu (With the connected equipment turned ON)
INPUT
2. Select the input used in step 1
Select correct input source, using /and press
You can also press the corresponding NUMBER button or press INPUT
repeatedly to cycle through the available inputs. If you are unsure which input to
select, wait 2 seconds between each selection.
AUDIO
VIDEO

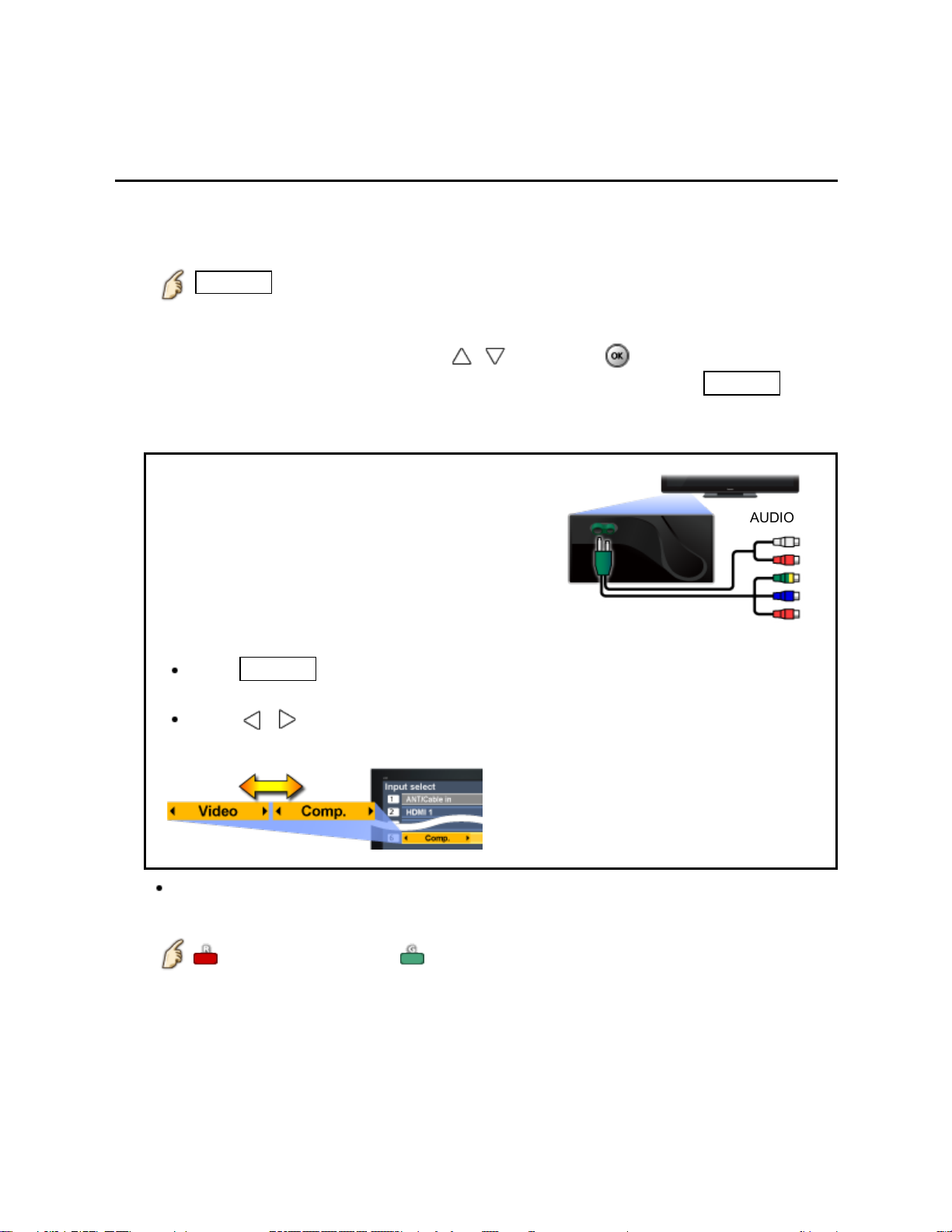

Component and Composite (Video) IN
terminals are shared and must be connected
using the supplied adapter.
NOTE: One red connector is for video and the
other audio.
You need to select Video or Component.
(Default: Video)
Press INPUT and select Video <->
Comp.
Press / to choose Video or
Component.
For your convenience, you can edit the inputs with labels that are easy to
remember.
Edit Labels Set ANT/Cable in
3. Operate using your device's remote control.
20
