Panasonic RX-ES22E User manual

final1.html
Table Of Contents
COVER
1 Before Repair and
Adjustment
2 Protection Circuitry
3 Accessories
4 Handling Precautions For
Traverse Deck
5 Precaution of Laser Diode
6 Caution for AC Mains
Lead
7 Location of Controls
8 The Remote Control
9 Self Diagnostic Function
9.1 Setting of self-diagnosis
Function
9.1.1 Setting of CD self-
diagnosis mode
9.1.2 Setting of cassette
mechanism self-diagnosis
mode
9.2 Display Location
9.3 Display Content
10 Operation Checks and
Main Component Replacement
Procedures
10.1 Checking Procedure for
each major P.C.B.
10.1.1 Checking for the
Panel P.C.B.
10.1.2 Checking for Main&
CD Servo P.C.B.
10.2 Disassembly and
Assembly of Traverse Deck
10.3 Main Component
Replacement Procedures
11 Schematic Diagram
12 Printed Circuit Board
13 Wiring Connection
Diagram
14 Troubleshooting Guide
15 Measurements and
Adjustments
15.1 Tuner Section
15.2 CD Section
15.2.1 Alignment Points
16 Type Illustration of IC’s,
Transistors and Diodes
17 Terminal Function Of
IC’s
18 Parts Location and
Replacement Parts List
18.1 Deck Mechanism
(RAA4401-1V)
18.1.1 Deck Mechanism
Parts Location
18.1.2 Deck Mechanism
Parts List
18.2 CD Loading
Mechanism
18.2.1 CD Loading
Mechanism Parts Location
Service Manual
TOP NEXT
Order No: MD0201021C2
Portable Stereo CD System
●RX-ES22E
RX-ES22EB
RX-ES22EG
Colour
(S)..........Silver Type
Tape Deck: SG2 Mechanism Series
Traverse deck: RAE0155Z-1V Mechanism Series
RADIO
Frequency range
AM 522-1629 kHz (9 kHz steps)
FM 87.5-108 MHz (50 kHz steps)
TAPE RECORDER
Track System 4 track, 2 channel, stereo
Recording system AC bias
Erasing system Multi Pole magnet
Monitor system Variable sound monitor
Frequency range
Normal position 50-14000 Hz
CD PLAYER
Sampling frequency 44.1 kHz
Decoding 16 bit linear
Beam source Semiconductor laser (wavelength 780 nm)
No. of channels 2 channel, stereo
Wow and flutter Below measurable limit
D/A converter MASH (1 bit DAC)
GENERAL
Power requirement
AC 230-240 V, 50 Hz
Power consumption 23 W
Battery 12 V [Eight R20/LR20 (D, UM-1) batteries]
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/PVAccel.html (1 of 2)06.11.2005 15:58:32

final1.html
18.2.2 CD Loading
Mechanism Parts List
18.3 Cabinet
18.3.1 Cabinet Parts
Location
18.3.2 Cabinet Parts List
18.4 Electrical Parts List
18.5 Packing Materials&
Accessories Parts List
18.6 Packaging
• Do not use rechargeable type batteries
Memory backup for computer/clock 6 V [Four R6/LR6 (AA, UM-3) batteries]
• Do not use rechargeable type batteries
Speakers 8 cm 2.7Ωx 2
Jacks
Output Phones: 3.5 mm stereo (16-32Ω)
Dimensions (W x H x D) 529 x 144 x 276 mm
Mass 4.0 kg without batteries
Notes:
1. Mass and dimensions shown are approximate.
2. Specifications are subject to change without notice.
© 2002 Matsushita Electronics (S) Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
TOP NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/PVAccel.html (2 of 2)06.11.2005 15:58:34

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0000000000.html
Service Manual
TOP NEXT
Order No: MD0201021C2
Portable Stereo CD System
●RX-ES22E
RX-ES22EB
RX-ES22EG
Colour
(S)..........Silver Type
Tape Deck: SG2 Mechanism Series
Traverse deck: RAE0155Z-1V Mechanism Series
RADIO
Frequency range
AM 522-1629 kHz (9 kHz steps)
FM 87.5-108 MHz (50 kHz steps)
TAPE RECORDER
Track System 4 track, 2 channel, stereo
Recording system AC bias
Erasing system Multi Pole magnet
Monitor system Variable sound monitor
Frequency range
Normal position 50-14000 Hz
CD PLAYER
Sampling frequency 44.1 kHz
Decoding 16 bit linear
Beam source Semiconductor laser (wavelength 780 nm)
No. of channels 2 channel, stereo
Wow and flutter Below measurable limit
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0000000000.html (1 of 2)06.11.2005 15:58:45

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0000000000.html
D/A converter MASH (1 bit DAC)
GENERAL
Power requirement
AC 230-240 V, 50 Hz
Power consumption 23 W
Battery 12 V [Eight R20/LR20 (D, UM-1) batteries]
• Do not use rechargeable type batteries
Memory backup for computer/clock 6 V [Four R6/LR6 (AA, UM-3) batteries]
• Do not use rechargeable type batteries
Speakers 8 cm 2.7Ωx 2
Jacks
Output Phones: 3.5 mm stereo (16-32Ω)
Dimensions (W x H x D) 529 x 144 x 276 mm
Mass 4.0 kg without batteries
Notes:
1. Mass and dimensions shown are approximate.
2. Specifications are subject to change without notice.
© 2002 Matsushita Electronics (S) Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
TOP NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0000000000.html (2 of 2)06.11.2005 15:58:45

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/final1.html
Table Of Contents
COVER
1 Before Repair and Adjustment
2 Protection Circuitry
3 Accessories
4 Handling Precautions For Traverse Deck
5 Precaution of Laser Diode
6 Caution for AC Mains Lead
7 Location of Controls
8 The Remote Control
9 Self Diagnostic Function
9.1 Setting of self-diagnosis Function
9.1.1 Setting of CD self-diagnosis mode
9.1.2 Setting of cassette mechanism self-diagnosis mode
9.2 Display Location
9.3 Display Content
10 Operation Checks and Main Component Replacement Procedures
10.1 Checking Procedure for each major P.C.B.
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/final1.html (1 of 3)06.11.2005 15:58:50
PV

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/final1.html
10.1.1 Checking for the Panel P.C.B.
10.1.2 Checking for Main& CD Servo P.C.B.
10.2 Disassembly and Assembly of Traverse Deck
10.3 Main Component Replacement Procedures
11 Schematic Diagram
12 Printed Circuit Board
13 Wiring Connection Diagram
14 Troubleshooting Guide
15 Measurements and Adjustments
15.1 Tuner Section
15.2 CD Section
15.2.1 Alignment Points
16 Type Illustration of IC’s, Transistors and Diodes
17 Terminal Function Of IC’s
18 Parts Location and Replacement Parts List
18.1 Deck Mechanism (RAA4401-1V)
18.1.1 Deck Mechanism Parts Location
18.1.2 Deck Mechanism Parts List
18.2 CD Loading Mechanism
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/final1.html (2 of 3)06.11.2005 15:58:50
PV

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/final1.html
18.2.1 CD Loading Mechanism Parts Location
18.2.2 CD Loading Mechanism Parts List
18.3 Cabinet
18.3.1 Cabinet Parts Location
18.3.2 Cabinet Parts List
18.4 Electrical Parts List
18.5 Packing Materials& Accessories Parts List
18.6 Packaging
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/final1.html (3 of 3)06.11.2005 15:58:50

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0100000000x.html
1 Before Repair and Adjustment
TOP PREVIOUS NEXT
Disconnect AC power, discharge Power Supply Capacitors C301 through a 10 Ω, 5 W resistor to
ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screw driver blade, for instance), as this may
destroy solid state devices.
After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
Current consumption at AC 220 V, 240 V, 60 Hz in NO SIGNAL mode should be ~100 mA
respectively.
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0100000000x.html06.11.2005 15:58:53

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0200000000x.html
2 Protection Circuitry
TOP PREVIOUS NEXT
The protection circuitry may have operated if either of the following conditions are noticed:
●No sound is heard when the power is turned on.
●Stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative
speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated
rated impedance ofthe amplifier are used.
If this occurs, follow the procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once again after one minute.
Note:
When the protection circuitry functions, the unit will not operate unless the power is first turned off and
then on again.
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0200000000x.html06.11.2005 15:58:57

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0300000000x.html
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0300000000x.html (2 of 2)06.11.2005 15:59:00

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0400000000x.html
4 Handling Precautions For Traverse Deck
TOP PREVIOUS NEXT

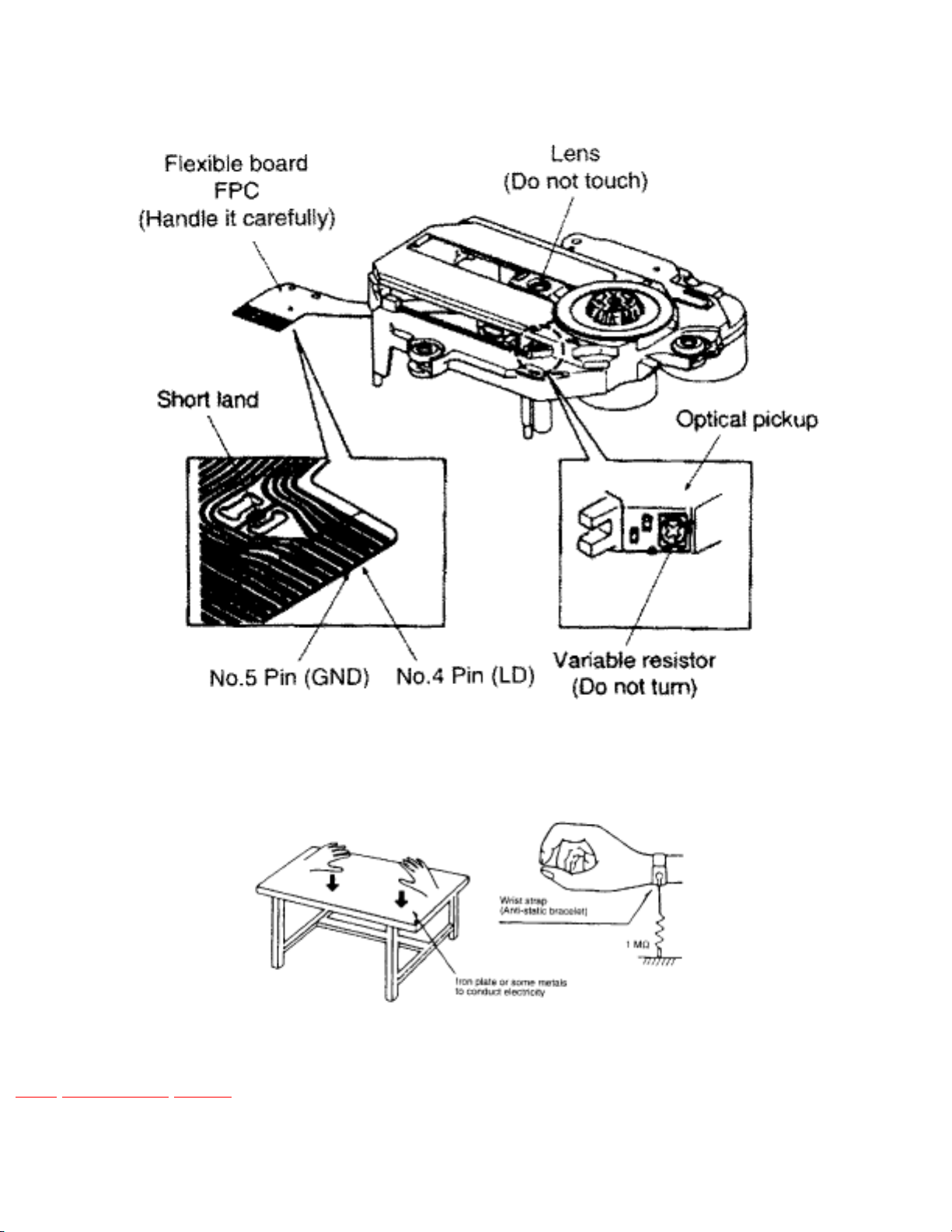

The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused
by static electricity of clothes or human body. So, be careful of electrostatic breakdown during repair of
the traverse deck (optical pickup).
●Handling of traverse deck (optical pickup)
1. Do not subject the traverse deck (optical pickup) to static electricity as it is extremely
sensitive to electrical shock.
2. To prevent the breakdown of the laser diode, an antistatic shorting pin is inserted into the
flexible board (FFC board).
3. Take care not to apply excessive stress to the flexible board (FFC board). When removing
or connecting the short pin, finish the job in as short time as possible.
4. Do not turn the variable resistor (laser power adjustment). It has already been adjusted.
●Grounding for electrostatic breakdown prevention
1. Human body grounding
Use the anti-static wrist strap to discharge the static electricity from your body.
2. Work table grounding.
Put a conductive material (sheet) or steel sheet on the area where the traverse deck (optical
pickup) is place, and ground the sheet.
Caution:
The static electricity of your clothes will not be grounded through the wrist strap. So, take care not to let
your clothes touch the traverse deck (optical pickup).
Cross-Ref] 20442: Body: Caution:Caution when replacing the Traverse Deck
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0400000000x.html (1 of 2)06.11.2005 15:59:17

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0400000000x.html
The traverse deck has a short point shorted with solder to protect the laser diode against electrostatics
breakdown. Be sure to remove the solder from the short point before making connections.
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0400000000x.html (2 of 2)06.11.2005 15:59:17

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0500000000x.html
5 Precaution of Laser Diode
TOP PREVIOUS NEXT
Cross-Ref] 30611: Body: Caution:Caution:
This product utilizers a class 1 laser. Invisible laser radiation is emitted from the optical pick up lens.
When the unit is turned on:
1. Do not disassemble the optical pick up unit, since radiation from exposed laser diode is
dangerous.
2. Do not adjust the variable resistor on the pick up unit. It was already adjusted.
3. Do not look at the focus lens using optical instruments.
4. Recommend not to look at pick up lens for a long time.
ACHTUNG:
Dieses Produkt enthält eine Laserdiode. Im enigeschalteten Zustand wird unsichtbare Laserstrahlung
von der Lasereinheit abgestrahlt.
Wellenlänge : 780nm
Maximale Strahlungsleistung der Lasereinheit : 100μW/VDE
DieStrahlung an der Lasereinheit ist ungefährlich, wenn folgende Punkte beachtet werden:
1. Die Lasereinheit nicht zerlegen, da die Strahlung an der freigelegten Laserdiode gefährlich ist.
2. Den werkseitig justierten Einstellregler der Lasereinhit nicht verstellen.
3. Nicht mit optischen Instrumenten in die Fokussierlinse blicken.
4. Nicht über längere Zeit in die Fokussierlinse blicken.
ADVARSEL: I dette a apparat anvendes laser.
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0500000000x.html (1 of 2)06.11.2005 15:59:21

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0500000000x.html
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Use of Caution Labels
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0500000000x.html (2 of 2)06.11.2005 15:59:21

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0600000000x.html
6 Caution for AC Mains Lead
TOP PREVIOUS NEXT
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0600000000x.html06.11.2005 15:59:29

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0700000000x.html
7 Location of Controls
TOP PREVIOUS NEXT
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0700000000x.html06.11.2005 15:59:35

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0800000000x.html
8 The Remote Control
TOP PREVIOUS NEXT
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0800000000x.html06.11.2005 15:59:39

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0900000000x.html
9 Self Diagnostic Function
TOP PREVIOUS NEXT
9.1 Setting of self-diagnosis Function
9.1.1 Setting of CD self-diagnosis mode
9.1.2 Setting of cassette mechanism self-diagnosis mode
9.2 Display Location
9.3 Display Content
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0900000000x.html06.11.2005 15:59:42

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0901000000.html
9.1 Setting of self-diagnosis Function
TOP PREVIOUS NEXT
9.1.1 Setting of CD self-diagnosis mode
9.1.2 Setting of cassette mechanism self-diagnosis mode
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0901000000.html06.11.2005 15:59:46

file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0901010000.html
9.1.1 Setting of CD self-diagnosis mode
TOP PREVIOUS NEXT
1. Remove the cassette from the deck.
2. Switch to CD function.
3. Press the CD/TAPE STOP key of the main set for more than 2 seconds. While pressing this key,
press the FF key on the main set for another 2 seconds to enter into the Self-Diagnosis mode.
*Even if STOP / FUNCTION key of the main set is pressed while the Self Diagnosis mode is on,
function shall not be switched. Instead, confirmation of error numbers shall begin.
TOP PREVIOUS NEXT
file:///C|/Documents and Settings/eDOK/Рабочий стол/RX-ES22/s0901010000.html06.11.2005 15:59:49
