Panasonic PT-4743 User manual

HDTV Projection Monitor
Operating Instructions
Monitor de proyección de HDTV
Instrucciones de Operación
Téléprojecteur haute définition
Manuel d’utilisation
TQB2AA0470-1 30407
PRINTED IN USA
IMPRESO EN EE.UU
IMPRIMÉ AUX ÉTATS-UNIS
PT-56TW53
PT-53TW53
PT-56WX53
PT-53WX53
PT-47WX53
PT-47WXC43
PT-47WX33
PT-4743

ENGLISH
ANY CHANGES OR MODIFICATIONS TO THIS PTV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES CATHODE RAY TUBES (CRT) AND OTHER
COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE MATERIALS
MAY BE REGULATED IN YOUR COMMUNITY DUE TO ENVIRONMENTAL
CONSIDERATIONS. FOR DISPOSAL OR RECYCLING INFORMATION
PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE ELECTRONICS
INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2003 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under USP4638258, 4482866,
5510752 and 5736897. BBE and BBE symbol are registered
trademarks of BBE Sound, Inc.
High Definition Sound
WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are in
the papers with the appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture and objects filled with liquids, such as vases,
should not be placed on this apparatus.
The Energy Star label, a symbol for energy efficiency, was created by the U.S.
Environmental Protection Agency (EPA) and the U.S. Department of Energy
(DOE) to help customers identify products that can save them money and protect
the environment by saving energy. Energy Star compliant products generally
consume less energy than similar standard products.
The Class II insulation symbol (square within a square) indicates
that this product has been evaluated and tested to comply with
Class II insulation requirements.
new2prod 0470-1 E doc2.fm Page 0 Friday, May 2, 2003 12:31 PM

IMPORTANTINFORMATION
1l
ENGLISH
Important Information
Information Regarding Convergence
In the projection television, the image is formed by
projecting 3 different color images (red, green and blue)
onto the projection screen. Convergence refers to the
alignment of red, green and blue images on the
projection screen. When these images are properly
aligned (converged), you see a sharp and vibrant color
image. Sometimes, the three images may require
alignment. This is due to the effect of earth’s magnetic field
on the projection tubes. Normally, adjustment is not
necessary after the initial alignment at the center of the
screen. It is possible to correct the color fringing on other
areas of the screen by using the buttons on the remote
control and by following the on-screen instructions in the
set-up menu. Please converge the images before using the
television for the first time. The following diagram shows
examples of a misaligned image and a properly aligned
image. Please refer to pages 26 and 27 for detailed
procedure on how to adjust convergence.
Notes:
•Make sure that the set is on for at least 20 minutes
before adjusting convergence as described on pages 26
and 27.
•Convergence adjustment is independent for each format
(480i, 1080i or zoom). Setting in one format does not
affect the other.
Important Information Regarding The Use Of
Video Games, Computers, Or Other Fixed
Image Displays.
FCC INFORMATION
This equipment has been tested and found to comply with
the limit for a Class B Digital Device in accordance with the
specifications in Part 15 of the FCC Rules. The limits are
designed to provide reasonable protection against radio
and television interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications, However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause interference to radio or
television reception (which you can determine by turning
the equipment off and on), try to correct the interference by
one or more of the following measures.
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the
receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV
technician for help.

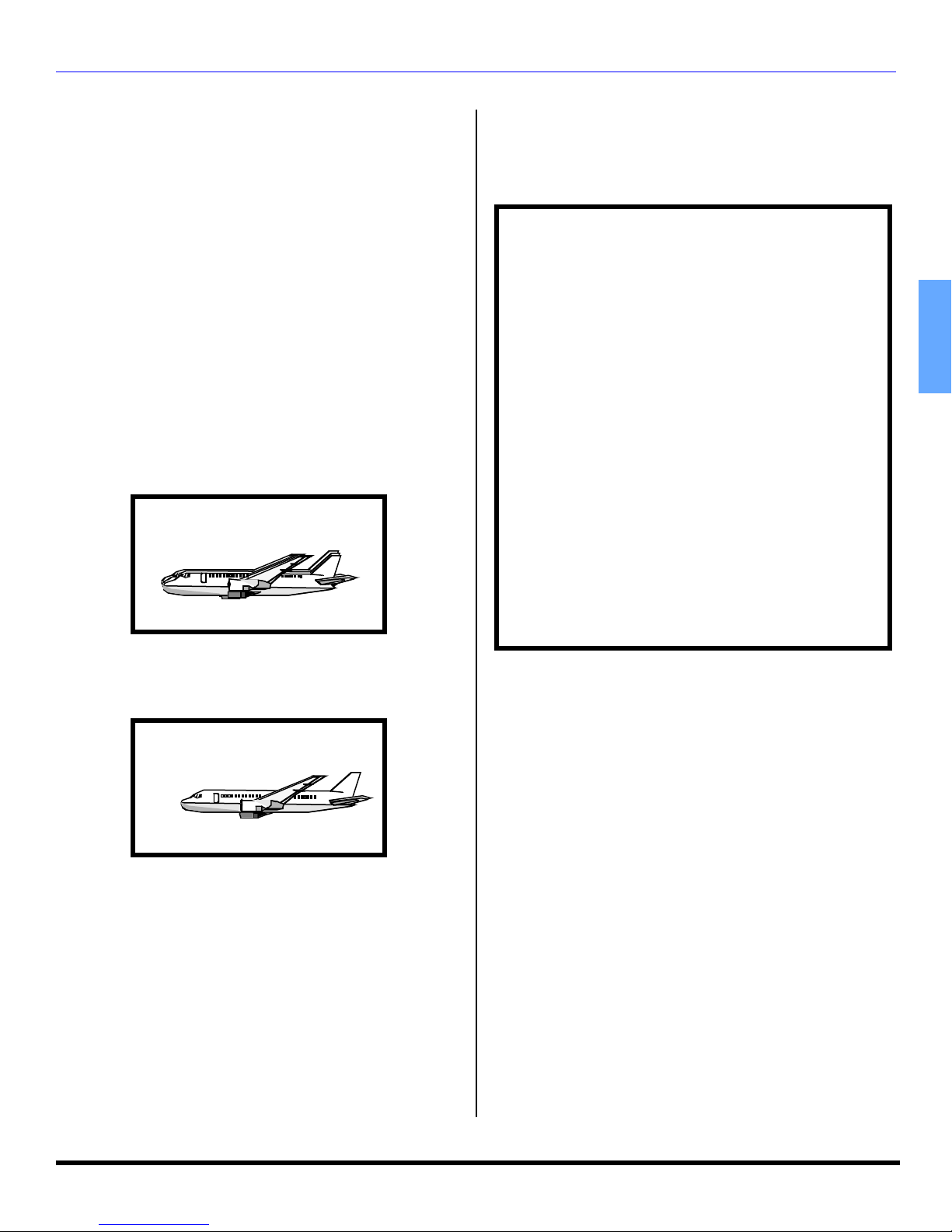

Misconverged image
Properly aligned image
WARNING: The marking or retained image on the
picture tube resulting from viewing fixed image is
not an operating defect and as such is not covered
by Warranty.
The projection television is designed to display
constantly moving images on the screen. Continuous
viewing of stationary images such as letterbox pictures
on standard screen TVs (with top/bottom bars), non-
expanded standard (4:3) pictures on wide screen TVs
(with side bars shown on each side of an image), stock
market report bars (ticker running at the bottom of the
screen), video game patterns, fixed scoreboards,
bright station logos, on-line (Internet) or repetitive
computer style patterns should be limited.
The extended use of fixed image program material can
cause a permanent picture tube damage, shown as a
“shadow image” viewable on normal programs. This
type of irreversible picture tube deterioration can be
limited by performing the following steps:
•Limit the display of fixed image program material to
no more than 15% of total viewing time per week.
•Turn the power off when not in use.
new2prod 0470-1 E doc2.fm Page 1 Friday, May 2, 2003 12:31 PM

2l
TABLEOFCONTENTS
ENGLISH
Table of Contents
Important Information .....................................1
Information Regarding Convergence.......................... 1
Information Regarding The Use Of Video Games
Computers, Or Other Fixed Image Displays............ 1
Congratulations ...............................................3
Customer Record........................................................ 3
Care and Cleaning...................................................... 3
Specifications.............................................................. 3
Feature Chart.............................................................. 3
Installation........................................................4
Television Location ..................................................... 4
Optional Cable Connections ....................................... 4
AC Power Supply Cord............................................... 4
Cable / Antenna Connection....................................... 4
Auto Set Up Menu ...................................................... 4
Optional Equipment Connections..................5
VCR ............................................................................ 5
Cable Box................................................................... 5
VCR and Cable Box.................................................... 5
Amplifier (TO AUDIO AMP)........................................ 6
Digital TV - Set-Top Box (DTV-STB) or DVD Players 6
Front Control Panel..................................................... 6
DVI (Digital Visual Interface) input connection ........... 7
Special Remote Buttons ............................................. 7
PIP And Split Operation ..................................8
PIP Operation ............................................................ 8
Split Operation ........................................................... 8
PIP and Split Operation With a Cable Box ................ 8
PIP And Split Operational Buttons.................8
TV/Video Button.......................................................... 8
Search Button............................................................. 8
Move Button ............................................................... 9
PIP MIN and PIP MAX Buttons .................................. 9
Freeze Button............................................................. 9
Main Picture Freeze Feature...................................... 9
PIP, Split and Freeze Mode Buttons
Operational Chart .................................................... 9
Remote Control Operation
(models PT-47WXC43 and PT-47WX33).................... 10
Battery Installation...................................................... 10
Operating Components with Remote Control............. 11
Programming the Remote.......................................... 12
Programming Without a Code.................................... 12
Component Codes ..................................................... 12
Remote Control Operation
(models PT-47/53/56WX53, PT-53/56TW53 and PT-4743)... 14
Battery Installation...................................................... 14
Operating Components with Remote Control............. 15
Programming the Remote.......................................... 17
Programming Without a Code.................................... 17
Component Codes ..................................................... 17
Basic Menu Navigation................................. 20
Icon Menus Operation.................................. 21
Picture........................................................................ 21
Audio .......................................................................... 21
Channels .................................................................... 22
Timer .......................................................................... 22
Lock............................................................................ 23
Set Up ........................................................................ 26
Troubleshooting Chart ................................. 28
Index............................................................... 29
Note: The warranty and service center information is located in the back of this manual.
new2prod 0470-1 E doc2.fm Page 2 Friday, May 2, 2003 12:31 PM

CONGRATULATIONS
3l
ENGLISH
Congratulations
Your new Projection Television (PTV) features state-of-the-
art technology for high quality picture and sound with
complete audio/video connections for your home theater
system. Your PTV is designed to give you many years of
enjoyment. It was thoroughly tested and tuned at the
factory for best performance.
Customer Record
The model and serial number of this product are located on
the back of the TV. You should note the model and serial
number in the space provided and retain as a permanent
record of your purchase. This will aid in identification in the
event of theft or loss. Product registration for U.S. customers
is available at: www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Projection Screen (Turn PTV Off)
The projection screen is a high precision lens system which
has a protective screen. The protective screen is fully
washable with the following precautions:
•Use a mild soap solution or window cleaner and a clean
cloth.
•DO NOT USE ABRASIVE CLEANERS.
•Do not use laundry detergent or automatic dishwasher
soap.
•Do not use alcohol, ammonia, or petroleum based
products.
•Avoid excessive moisture and wipe dry.
•Prevent solution from running into the receiver below.
•Avoid bumping or scraping the screen.
Note: Do not spray any type of cleaning fluid directly on the
screen.
Cabinet and Remote Control
•For cabinets and remote control, use a soft cloth
dampened with water or a mild detergent solution. Avoid
excessive moisture and wipe dry.
•Do not use benzene, thinner or other petroleum based
products.
Specifications
Specifications are subject to change without notice or
obligation.
Feature Chart
* For models PT-47WXC43 and PT-4743 the protective screen is
packed separately.
Power Source
PT-53WX53 (4.2A)
PT-56WX53 (4.2A)
PT-53TW53 (4.2A)
PT-56TW53 (4.2A)
PT-47WX53 (4.2A)
PT-47WXC43 (4.2A)
PT-47WX33 (4.2A)
PT-4743 (4.2A)
120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Video out jack 1Vp-p, 75 Ohm, Phono Jack Type
Audio Output Jacks 0-2.0V RMS 4.7K Ohm
DVI Input jack 1.0 compatible
Component Input (Y / PB/ PR)75 Ohm, Phono Jack Type
S-Video Input Jacks S-Video (Y-C) Connector
MODELS
PT-53TW53 PT-56TW53
PT-53WX53 PT-56WX53
PT-47WX53
*PT-47WXC43
*PT-4743
PT-47WX33
FEATURES
MENU LANGUAGE ENG/
SPAN/FR •••••
*PROTECTIVE SCREEN ••••
2 TUNER PIP •••••
2RF •••••
CLOSED CAPTIONING •••••
V-CHIP CAPABILITY •••••
DIGITAL SCAN RATE 1080i,
480p 1080i, 480p 1080i, 480p 1080i, 480p 1080i, 480p
NTSC LINE-DOUBLER 480p 480p 480p 480p 480p
VIDEO NORM •••••
AUDIO NORM •••••
STEREO •••••
AI SOUND •••••
BASS/BALANCE/TREBLE •••••
SURROUND •••••
BBE VIVA 3D •
BBE •••••
A/V IN (REAR/FRONT) 4
(3/1) 4 (3/1) 4 (3/1) 4 (3/1) 4 (3/1)
AUDIO OUT •••••
DVI INPUT •••••
S-VHS INPUT •••••
COMPONENT INPUT •••••
new2prod 0470-1 E doc2.fm Page 3 Friday, May 2, 2003 12:31 PM
