Panasonic PT-61G53X User manual

Panason,c
Color Video Projection System
Operating Instructions
PT-51G53
PT-61G53 PT-51G53X
PT-61G53X
TQB2AA0225
PRINTED IN USA 80304

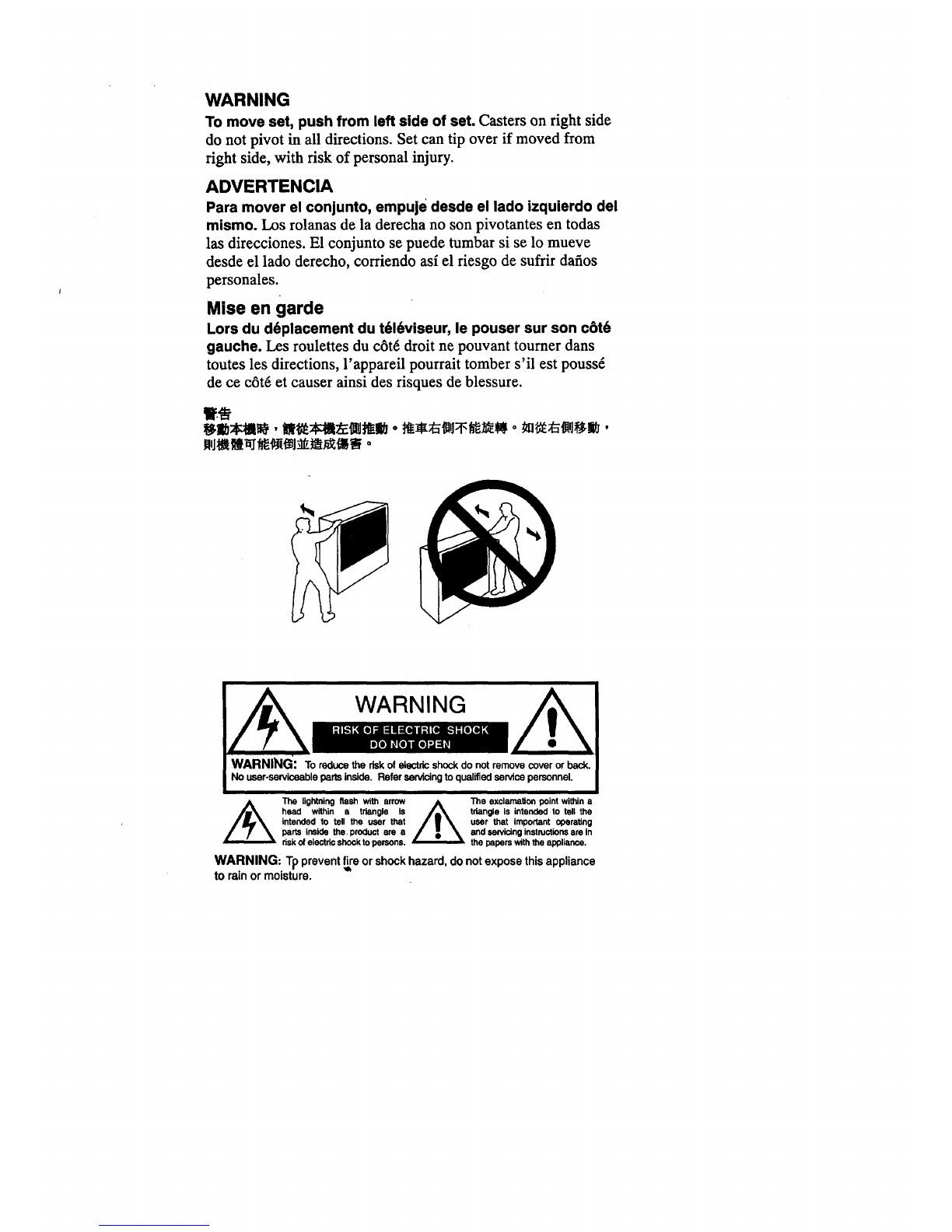

WARNING
To move set, push from left side of set. (3asterson right side
do not pivot in all directions. Set can tip over if moved from
right side, with risk of personal injury.
ADVERTENCIA
Para mover el conjunto, empuje desde el lade izquierdo del
mismo. Los rolanas de la derecha no son pivotantes en todas
las direcciones. E1 conjunto se puede tumbar si se lo mueve
desde el lade derecho, corriendo asi el riesgo de sufrir dafios
personales.
Mise en garde
Lors du d6placement du t616viseur, le pouser sur son c6t6
gauche. Les roulettes du c6t_ droit ne pouvant tourner dans
toutes les directions, l'appareil pourrait tomber s'il est pouss6
de ce c6t6 et causer ainsi des risques de blessure.
r_llb:_l_, _l!_:_l_J_l_l * _=_1:_ *_n_q_,
lllJ_m_J__ *
A WARNING
WARNING': To reducethe riskof electricshockdo not removecoveror back.
No user-serviceable partsinside. Refer servicingto qualifiedsenhee personnel.
AThe lightning flesh with arrow The exclamatioo point within a
head within a triangle Is triangle is intended to tell the
intended to tell the user that user that important operating
parts inside the. product are a and servicing instructions are in
risk el electric shock to persons, the papers with the appliance.
WARNING: Tp prevent f_e or shock hazard, do not expose this appliance
to rain or moisture.

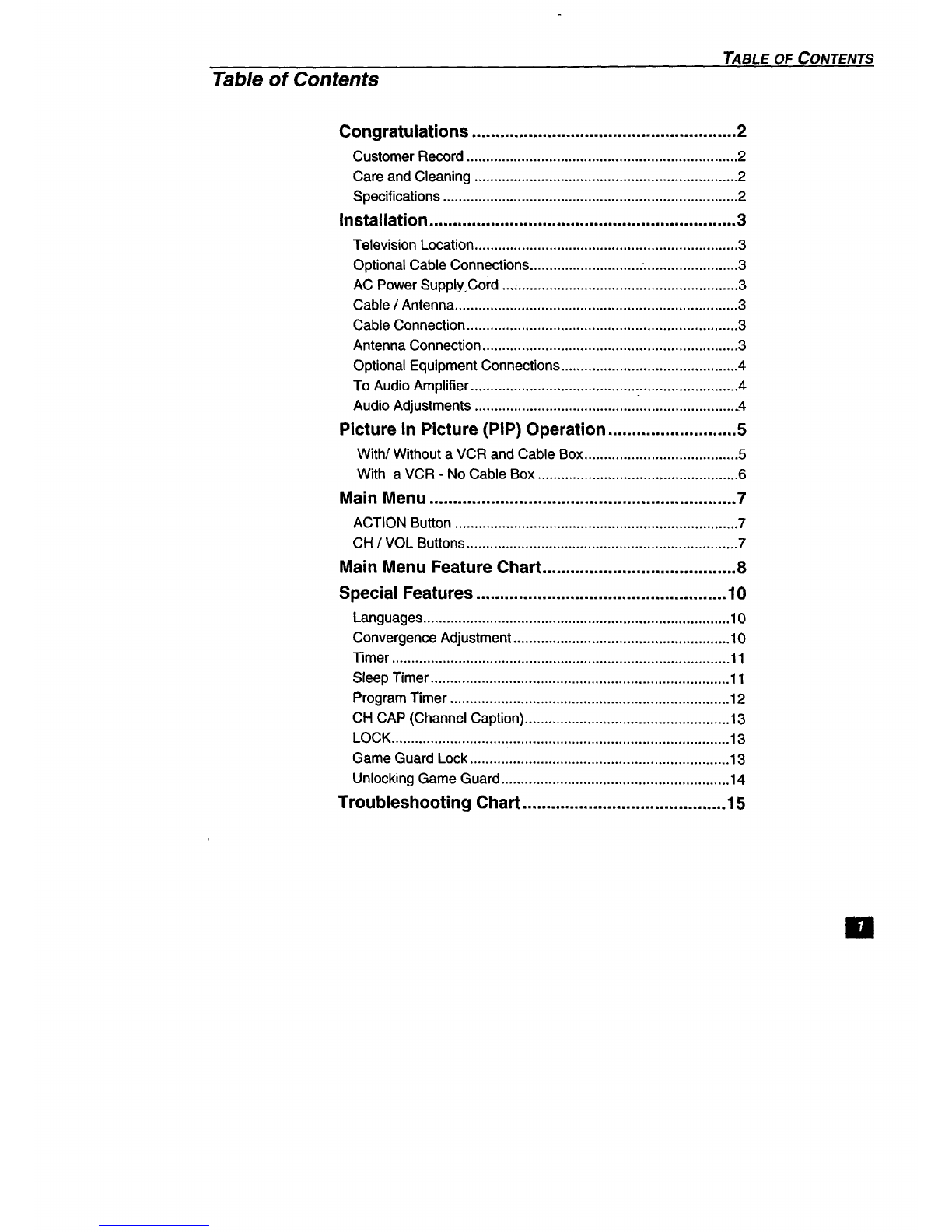

Table of Contents TABLE OF CONTENTS
Congratulations ........................................................ 2
Customer Record ..................................................................... 2
Care and Cleaning ................................................................... 2
Specifications........................................................................... 2
Installation ................................................................. 3
Television Location................................................................... 3
Optional Cable Connections............................. ........................ 3
AC Power SupplyCord ... ........................................................ 3
Cable /Antenna........................................................................ 3
Cable Connection..................................................................... 3
Antenna Connection................................................................. 3
Optional Equipment Connections............................................. 4
To Audio Amplifier.................................................................... 4
Audio Adjustments.................................................................. A
Picture In Picture (PIP) Operation ........................... 5
With/Without aVCR and Cable Box....................................... 5
With a VCR - No Cable Box ................................................... 6
Main Menu ................................................................. 7
ACTION Button ........................................................................ 7
CH /VOL Buttons ..................................................................... 7
Main Menu Feature Chart ......................................... 8
Special Features ..................................................... 10
Languages .............................................................................. 10
Convergence Adjustment ....................................................... 10
Timer ...................................................................................... 11
Sleep Timer ............................................................................ 11
Program Timer ....................................................................... 12
CH CAP (Channel Caption) .................................................... 13
LOCK...................................................................................... 13
Game Guard Lock .................................................................. 13
Unlocking Game Guard .......................................................... 14
Troubleshooting Chart ........................................... 15
ii

CONGRA TULA TIONS
Congratulations Your new Projection Television (P'I'V) system features a solid state chassis that is designed to
give you many years of enjoyment. It was thoroughly tested and tuned at the factory for best
performance.
Customer Record
The model and serial number of this product are located on the back of the PTV. You should
note the model and serial number in the space provided and retain as a permanent record of
your purchase. This will aid in identification in the event of theft or loss. Product registration.is
available at www.prodreg.com/panasonic.
Model
Number
Serial
Number
care and Cleaning
Projection Screen (Turn PTV Off)
The projection screen is a high precision lens system which does notattract dust.
OOccasionaldustingwithafeatherdusterorvery softbrushusingonlyupand downmotions.
• Never rubacrossthe screeninsidetosidemotion.
OInfrequent washing with a very weak solution of dishwashing soap, using a soft, lint-free
clean cloth.
• DO NOT USE ABRASIVE CLEANERS.
•Do not use window or glass cleaner, laundry detergent, automatic dishwasher soap, or
abrasive cleaners.
•Do not use alcohol, ammonia, or petroleum based products.
[3 Avoid excessive moisture and wipe dry.
•Prevent solution from running into the receiver below.
[3 Avoid bumping or scraping the screen.
•Protect the very fine grooves on the screen which transport the picture.
Cabinet and Remote Control
[3 For plastic cabinets and Remote Control, use a soft cloth dampened with water or a mild
detergent solution. Avoid excessive moisture and wipe dry.
I:1 For wooden cabinets, use asoft cloth and an occasional coat of furniture polish to preserve
the finish.
O Do not use benzene, thinner or other petroleum based products.
Specifications PowerSource
PT-51G53
PT-51G53X PT-61G53 PT-61G53X
2 VideoInput Jacks
_2 A
To AudioAMP Jack
120V AC, 60Hz
VHF_12 UHF,56; Cable-113
.........
1Vp-p, 75 Ohm, Phono Jack Type
500mV RMS 47K Ohm:
0-2.0V RMS 4.7K Ohm
am Specifications are subject to change without notice or obligation.

Installation INSTALLATION
Television Location
Thisunitcanbe usedas an entertainmentcenter.Consultyourdealerforavailableoptions.-"
OAvoidexcessivesunlightorbrightlights,includingreflections.
13 Keep away fromexcessiveheator moisture. Inadequateventilationmay causeinternal
componentfailure.
OFluorescentlightingmayreduceRemoteControltransmittingrange.
O Avoidmagneticequipment,includingmotors,fans,orexternalspeakers.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
OUse 75-ohm coaxial shielded cables,
OCheck type of output and input connectors on your components.
ODetermine required cable lengths,
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRICSHOCK,MATCHWIDE BLADEOF PLUGTO
WIDESLOT OF AC OUTLETAND FULLYiNSERT. DO NOT USE A PLUGWITHA
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY
iNSERTED TO PREVENTBLADE EXPOSURE. FOR SOME MODELSTHAT ARE
NON-POLARIZED,THE USE OF ANACADAPTORCONNECTORMAY
BENECESSARY.
Polarized plug
Cable /Antenna
For proper reception, either a cable or antenna connection is required,
Cable Connection
Connect the cable supplied by your local cable company.
Note: A cable converter box may be required for proper reception.
Check with your local Cable company for compatibility
requirements.
Antenna Connection
Incoming Cable from
Cable Company
21,
75 Ohm VHF/UHF
on back of PTV
For proper reception of VHF/UHF channels, an external antenna is required. For
best reception an outdoor antenna is recommended,
Antenna Mode must be set toTV inthe SET UP menu.
"Cable Preset
Cable Mode is preset at the factory. Antenna
users must changeto AntennaMode in the Set
UpMenu.
Incoming Cable from
Home Antenna
m

INSTALLATION

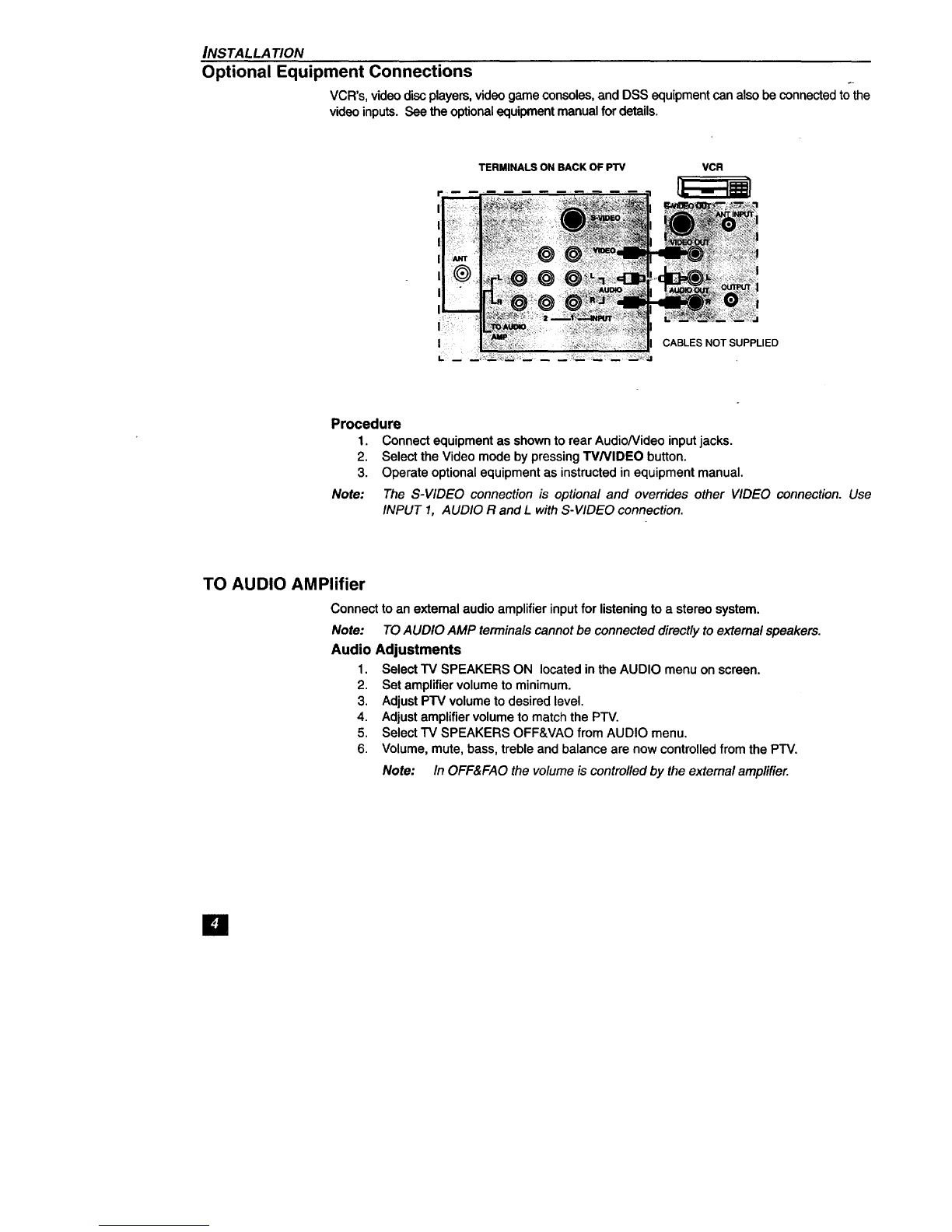

Optional Equipment Connections
VCR's, video discplayers,video game consoles,and DSS equipmentcan also be connectedtothe
video inputs. See the optionalequipment manual fordetails.
r
I
Ii
!
I
I
I
I
i
I
TERMINALS ON BACK OF PTV VCR
CABLES NOT SUPPLIED
Procedure
1. Connect equipment as shown to rear AudioNideo input jacks.
2. Select the Video mode by pressing W/VIDEO button.
3. Operate optional equipment as instructedin equipment manual.
Note: The S-VIDEO connection is optiona/ and overrides other VIDEO connection. Use
INPUT 1, AUDIO Rand L with S-VIDEO connection.
TO AUDIO AMPlifier
Connect to an extemal audio amplifier inputfor listening to a stereo system.
Note:
Audio
1.
2.
3,
4.
5.
6.
TO AUDIO AMP terminals cannot be connected directly to external speakers.
Adjustments
Select TV SPEAKERS ON located in the AUDIO menu on screen.
Set amplifier volume tominimum.
Adjust PTV volume to desired level.
Adjust amplifier volume to match the PTV.
Select TV SPEAKERS OFF&VAO from AUDIO menu.
Volume, mute, bass, treble and balance are now controlled from the PTV.
Note: In OFF&FAO the vo/urne is contro/led by the external amplifier
Ire

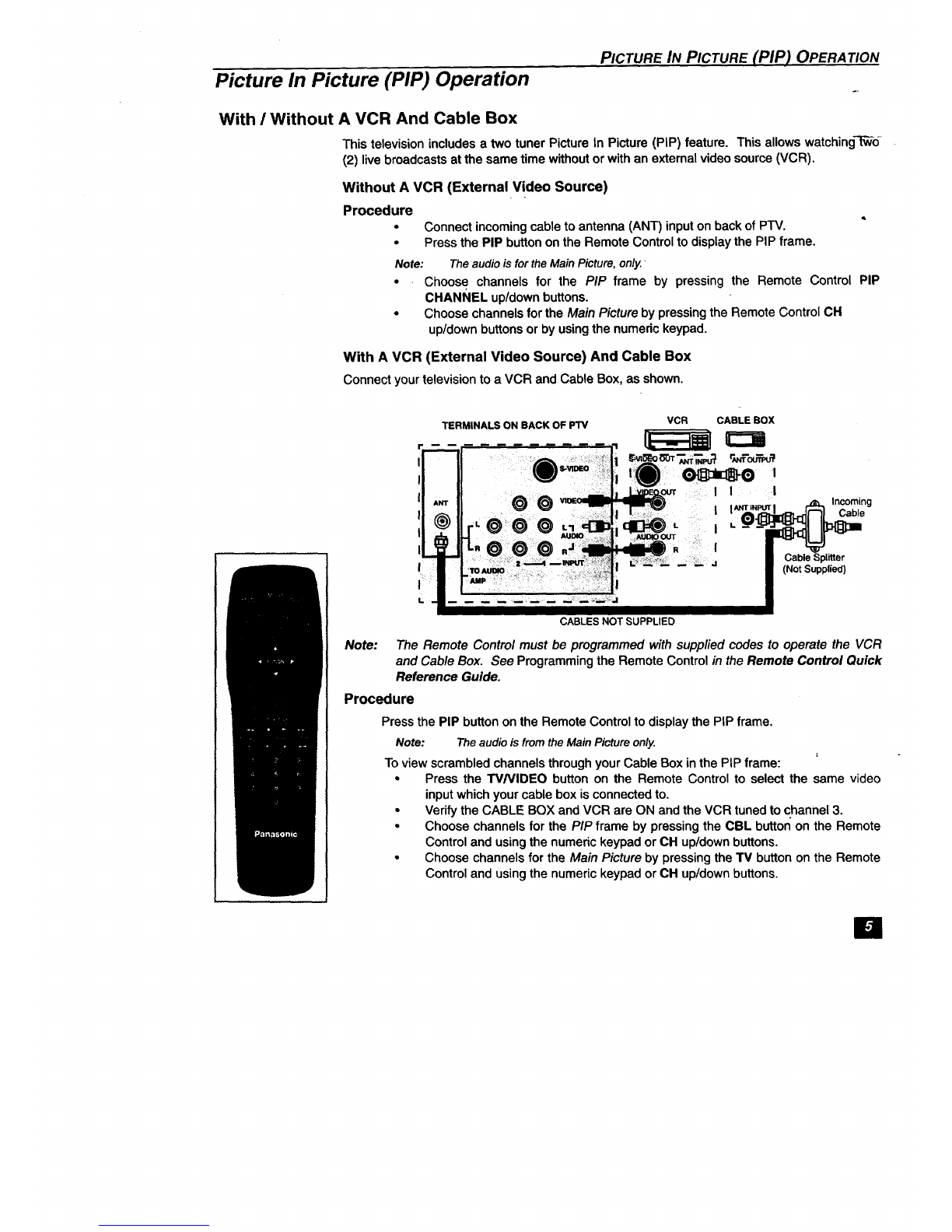

Picture In Picture (PIP) Operation PICTURE IN PICTURE (PIP) OPERATION
With !Without A VCR And Cable Box
This television includes a two tuner Picture In Picture (PIP) feature. This allows watching-[_d
(2) live broadcasts at the same time without or with an external video source (VCR).
Without A VCR (External Video Source)
Procedure
•Connect incoming cable to antenna (ANT) inputon back of PTV.
•Press the PIP button on the Remote Controlto display the PIP frame.
Note: TheaudioisfortheMain Picture,only.
Choose channels for the PIP frame by pressing the Remote Control PIP
CHANNEL up/down buttons.
Choose channels for the Main Picture by pressing the Remote Control CH
up/down buttons or by using the numeric keypad.
With A VCR (External Video Source) And Cable Box
Connectyourtelevisiontoa VCR and CableBox,as shown.
I
I
I
I
I
I
I
TERMINALS ON BACK OF PTV VCR CABLE BOX
[IE 3W c il
Incoming
Cable
Cable Splitter
(Not Supplied)
Note:
L
CABLES NOT SUPPLIED
The Remote Control must be programmed with supplied codes to operate the VCR
and Cable Box. See Programming the Remote Control in the Remote Control Quick
Reference Guide.
Procedure
Press the PIP button on the Remote Control to display the PIP frame.
Note: TheaudioisfromtheMainPictureonly.
TOview scrambled channels through your Cable Box in the PIP frame:
•Press the W/VIDEO button on the Remote Control to select the same video
inputwhich your cable box is connected to,
•Verify the CABLE BOX and VCR are ON and the VCR tuned to channel 3.
•Choose channels for the PIP frame by pressing the CBL button on the Remote
Control and using the numeric keypad or CH up/down buttons.
•Choose channels for the Main Picture by pressing the TV button on the Remote
Control and using the numeric keypad or CH up/down buttons.
lz

PICTURE IN PICTURE (PIP) OPERATION (CONT.)
Picture In Picture (PIP) Operation (Cont.)

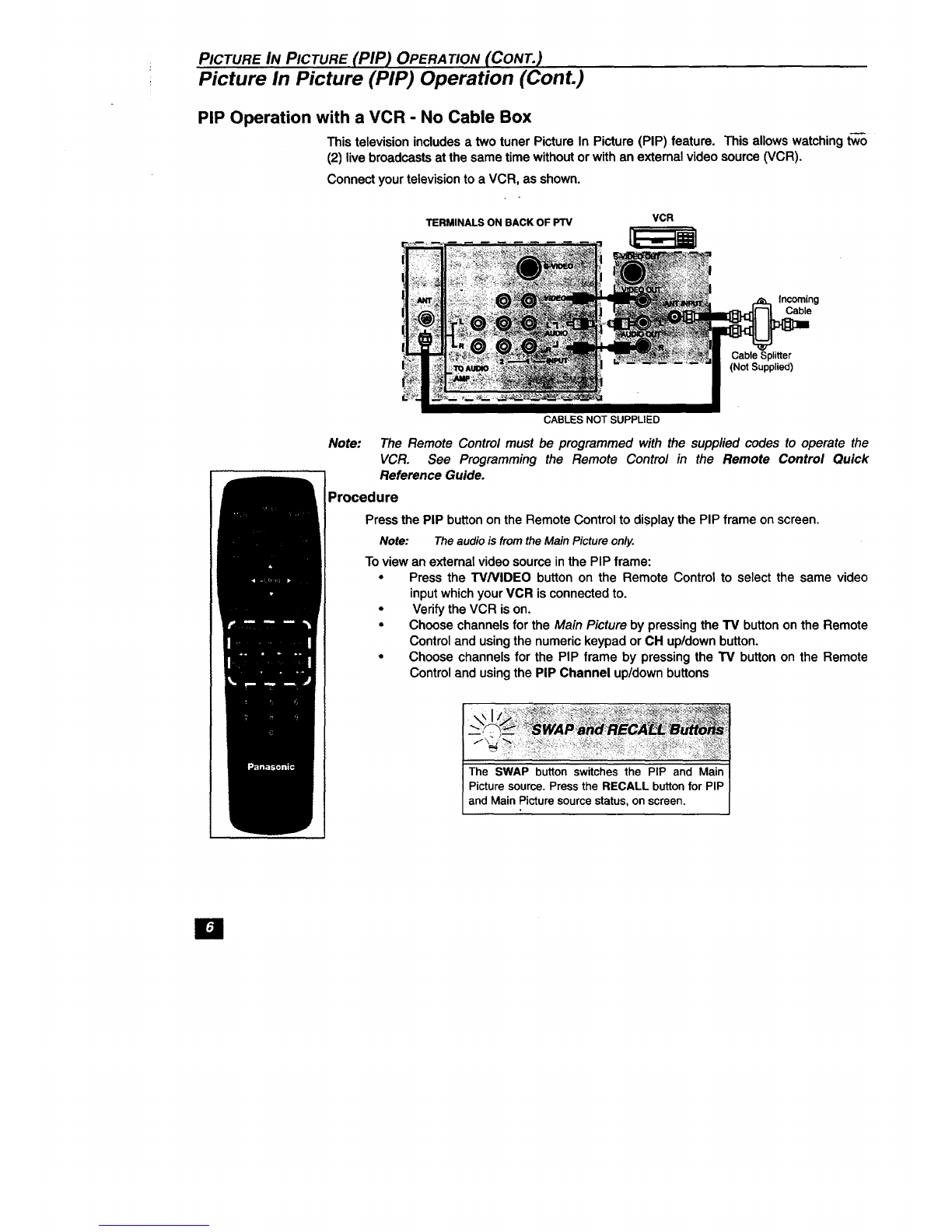

PIP Operation with a VCR -No Cable Box
This television includes atwo tuner Picture In Picture (PIP) feature. This allows watching two
(2) live broadcasts at the same time without or with an external video source (VCR).
Connect your television to a VCR, as shown.
TERMINALS ON BACK OF PTV VCR
Incoming
Cable
(Not Supplied)
Note:
CABLES NOT SUPPLIED
The Remote Control must be programmed with the supplied codes to operate the
VCR. See Programming the Remote Control in the Remote Control Quick
Reference Guide.
Press the PIP button on the Remote Control to display the PIP frame on screen.
Note: The audioisfrom theMain Picture only.
Toview an external video source inthe PiP frame:
•Press the W/VIDEO button on the Remote Control to select the same video
inputwhich your VCR is connected to.
•Verify the VCR ison.
•Choose channels for the Main Picture by pressing the TV button on the Remote
Control and using the numeric keypad or CH up/down button.
• Choose channels for the PIP frame by pressing the TV button on the Remote
Control and using the PIP Channel up/down buttons
The SWAP button switches the PIP and Main
Picture source. Press the RECALL button for PIP
and Main Picture source status, on screen.
E1

Main Menu MAIN MENU
Main Menu
mml l
m
=FAIll
ACTION Button
Press the ACTION buttonto display the Main Menu and Sub Menus. Press the ACTION button
repeatedly to exit.
CH /VOL Buttons
Press the CH (channel) or VOL (volume) buttons to select an icon. Use the CH buttons to
highlightthe desired features. Use VOL buttons to select and adjust features.
Remote Navigation /Action Buttons
CH
VOL
CH
VOL
Remote Control
The Remote Control Quick Reference Guide islocated withinthe package providedwiththis PTV.
IB

MAIN MENU FEATURE CHART
Main Menu Feature Chart
IND
When entered, TIME will display on screen after
pressing POWER button, RECALL button, or
changing channels.
Choose CABLE or TVto match the signal at your
antenna input.
Automatically program channels with a signal
into memory.
Manually add or delete channels from memory.
Power up the P'rv at the same time as the Cable Box
or other components.
! Select CC for Closed Captioning display. Select OFF
to display closed captioning when MUTE button is
pressed.
Select English, Spanish, or French menu.
Adjustment may be required when the PTV is moved
because of the effects of the Earth's magnetic field on
the projection tubes,
_Umo
Reset BASS, TREBLE and BALANCE to factory
default.
Increase or decrease the bass response.
Increase or decrease the treble response.
Emphasize the left/right speaker volume.
Select the audio mode:
D STEREO - Two channel audio reception.
O SAP - (Second Audio Program) Tune to the
alternate audio channel if available in your area
(bilingual or descriptive audio).
O MONO - One channel audio. Use when stereo
signal is weak.
Automatically maintain constant volume between
programs and commercials.
Enhances audio response when listeningto stereo.
E1

MAIN MENU FEATURE CHART

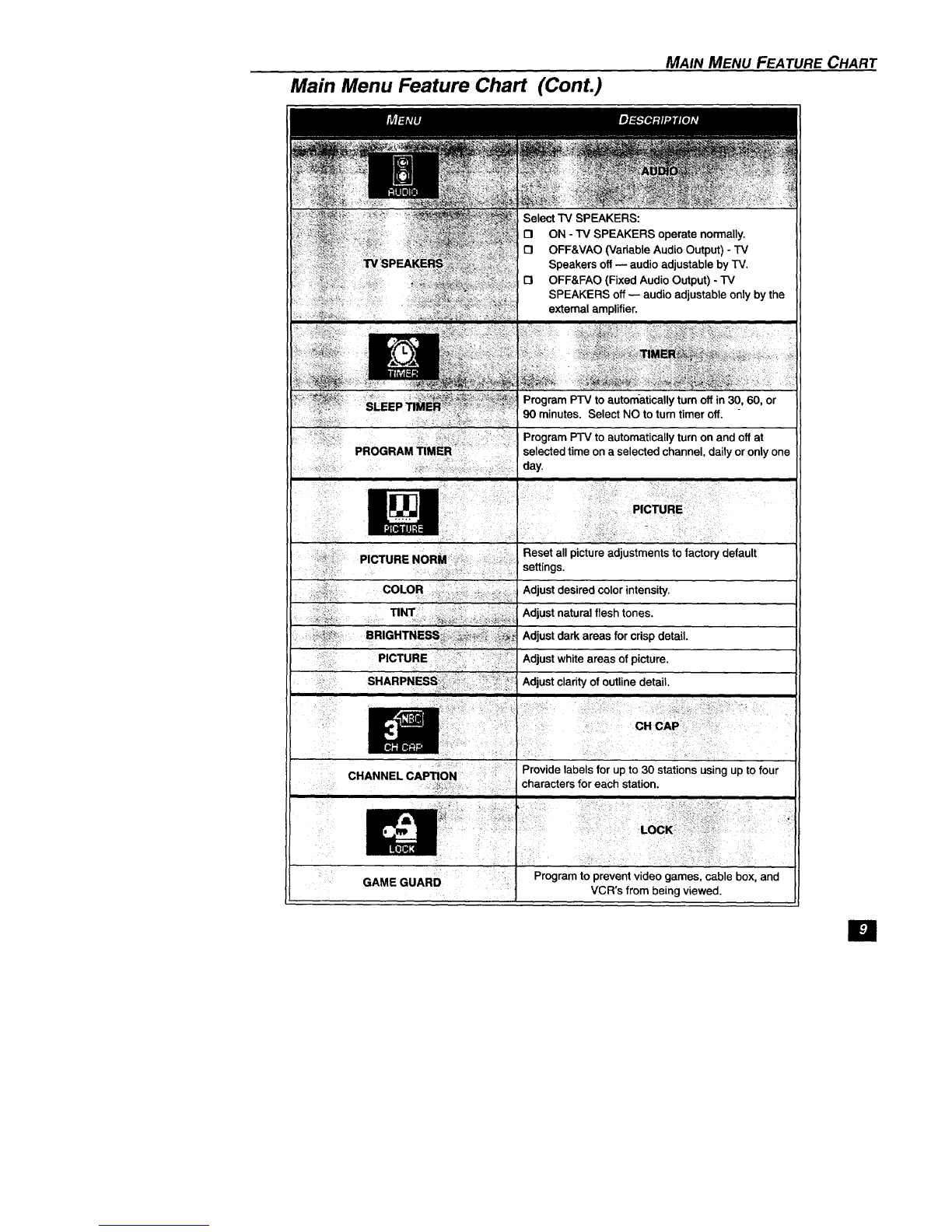

Main Menu Feature Chart (Cont.)
| ii
CHANNEL
90 minutes. Select NO to turn timer off.
day.
PICTURI
o
Reset all picture adjustments to factory default
settings.
Adjust desired color intensity.
Adjust natural flesh tones.
Adjust dark areas for crisp detail.
Adjust white areas of picture,
Adjust clarity of outline detail.
CRCA;
Provide labels for up to 30 stations using up to four
characters for each station.
GAMEGUARD Program to prevent video games, cable box, and
VCR's from being viewed.

SPECIAL FEATURES
Special Features
Languages D
In SET UP menu, select ENGLISH, ESPAI_IOL, or FRAN(_AIS tochange the menu language.
Convergence Adj. (Adjustment)
In SET UP menu, select CONVERGENCE ADJ only after moving the PTV to adjust for the
effects of the earth's magnetic field on the projection tubes. Use the navigation buttons to select
CONVERGENCE ADJ.
Note: Convergence adjustment seldom needs adjusting, except when moving the PTV
Use the navigation buttons to align the hodzontal and vertical green lines on screen with the
outside reference marks, as shown below. Press the ACTION button to move to the RED
CONVERGENCE screen.
Reference Marks
El

SPECIAL FEATURES
Convergence Adj. (Adjustment Cont.) D
Use the navigation buttons to align the red cross with the white cross pattern at the center of the
screen. Press ACTION to continue tothe blue convergence adjustment screen and repeat,'---
Note: TO PREVENT PICTURE TUBE DAMAGE. DO NOT LEAVE TEST PATTERN
ON FOR AN EXTENDED PERIOD OF TIME.
Timer D
An adjusted cross pattern appears white with a
minimum of color fringing.
Sleep Timer
In TIMER menu,programtoturnPTVOFF in 30,60, or90 minutes.SelectNOtoturnofftimer.
Note: Timer features are unavailable when AUTO POWER is on.
m

SPECIAL FEATURES
Program Timer W
In "l]mer menu, program Pi-V to automatically turn on and off at selected time on a selectP,.,d
channel, daily or one day.
Note: TIME must be entered in the SET UP menu to operate PROGRAM TIMER.
The PTV automatically turns OFF after 90 minutes
when tumed on by the PROGRAM TIMER. If the
OFF time is programmed or if a key is pressed,
the automatic OFF after 90 minutes will
be cancelled.
The PROGRAM TIMER is active when the PTV is
OFF or ON. The PTV will switch to the selected
channel at the selected time set by the
PROGRAM TIMER.
El

SPECIAL FEATURES
CH CAP (Channel Caption) I_
Program channel captions (station labels) for 30 stations using up to fourcharacters.
LOCK
Note: Delete channel captions by entering dashes (-) in all four character slots.
Game Guard Lock
InLOCKmenu, usetopreventvideogames and VCR tapesfrom beingviewedfor 12,24, or48
hoursusinga secretcode.
LockChannel3, Channel4, and videoinputsfor 12, 24, or 48 hoursby enteringathree-digit
secretcode.
Unlock GAME GUARD by re-entering the same three-digit secret code,
Note: Understand how to unlock GAME GUARD before using it, Use a code that is easy to
remember or record it in a safe place.
If you do not remember your code, Game Guard
will unlock in 12, 24, or 48 hours depending on
last setup.
la

SPECIAL FEATURES
Unlocking Game Guard
Enter the same three-digit code.
If the three-digit code is not the same as entered previously.
If the same three-digit code is used.
El

TROUBLESHOOTING CHART
Troubleshooting Chart
Before calling for sewice, determine the symptoms and follow suggested solutions.
Noisy Audio
\
Noisy Audio
Noisy Audio
No Audio
Noisy Audio
No Audio
Normal Audio
Wrong Audio
Normal Audio
Snowy Video
Multiple Image
Interference
Normal Video
•",'. , %'.
•,,. °....
• ., ° • .- .
•°". ". -o. *°
•,-.°j _ ,
No Video
No Video
No PIP
No Color
Normal Video
Normal Video
Intermittent Remote Control Operation
Adjust Antenna Location and Connection
Adjust Antenna Location and Connection
Check Antenna Lead-in Wire
Move PTV from Electrical Appliances, Lights,
Vehicles, and Medical Equipment
Increase Volume
Check Mute
Check TV SPEAKERS on/off
Change Channel
Set TV or Cable Mode Properly
Check Antenna Cables
Check Power Cord is Plugged into Active Outlet
Adjust Brightness and Audio Controls
Change Channel
Check Cable Connections
Program the Remote Control Again
Check Second Video Source Operation
Adjust Color Settings
Change Channel
Check Audio Is Set To Stereo Or Mono, Not SAP
Replace Remote Control Battedes
m

NOTES
m
Read these instructions completely before operating PTV.
Contents are subject to change without notice or obligation.
Copyright 1998by MatsushitaElectricCorporationofAmerica. All rightsreserved.
Unauthorizedcopying and distributionis aviolation oflaw.
Panasonlc Consumer Electronics Company,
Division of Matsushita
Electric Corporation of America
One Panasonic Way
Secaucus, New Jersey 07094
www.panasonic.com
[phone]
Panasonlc de Mexico, S.A, de C.V.
Amores No. 1120
CoL Dei Valle C.P. 03100
Mdxico, D.F.
Tel. [phone]
Fax [phone]
Panasonie Sales Company,
Division of Matsushita Electric
of Puerto Rico inc. ("PSC TM)
Ave. 65 de Infanteda, Km 9.5
San Gabriel Industrial Park
Carolina, Puerto Rico 00985
Tel. [phone]
Fax [phone]
