Panasonic PT47WXD64 - 47" PROJECTION TV User manual

ATSC CERTIFIED *
DIGITAL TELEVISION
High Definition Projection Television
Operating Instructions
™
*The presence of the DTV certification mark indicates that this
product will successfully receive digital television transmissions
that conform to any and all of the video formats described in the
ATSC Digital Television Standard.
Televisor de Proyección de Alta Definición
Instrucciones de Operación
TQB2AA0504 40203
PRINTED IN USA
IMPRESO EN EE.UU.
POWER WVOLUME X
CHANNELS
TTV/VIDEO
MENU OK
S-VIDEO VIDEO 4 L- AUDIO - R
PT-47WXD64

ENGLISH
The exclamation point within a triangle
is intended to tell the user that
important operating and servicing
instructions are in the papers with the
appliance.
The lightning flash with arrow head
within a triangle is intended to tell the
user that parts inside the product are
a risk of electric shock to persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE. DO NOT PLACE ANY OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, ON THIS APPARATUS.
The Class II insulation symbol (square within a square) indicates that this product has been evaluated
and tested to comply with Class II insulation requirements.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combi-
nation to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been dam-
aged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT INFORMATION
1z
ENGLISH
Important Information
THIS PRODUCT UTILIZES CATHODE RAY TUBES (CRT) AND OTHER
COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE MATERIALS
MAY BE REGULATED IN YOUR COMMUNITY DUE TO ENVIRONMENTAL
CONSIDERATIONS. FOR DISPOSAL OR RECYCLING INFORMATION
PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE ELECTRONICS
INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897.
BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
BBE High Definition Sound restores clarity and presence for better speech
intelligibility and musical realism.
High Definition Sound
WARNING: AS WITH ANY SMALL OBJECT, SD CARDS CAN BE SWALLOWED BY YOUNG CHILDREN. DO
NOT ALLOW CHILDREN TO HANDLE THE SD CARD.
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
U.S. Patents Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 6,381,747; and 6,516,132.
HDMI, the HDMI logo and High Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
: SD Logo is a trademark.
FCC CAUTION: ANY CHANGES OR MODIFICATIONS TO THIS PTV RECEIVER NOT EXPRESSLY
APPROVED BY MATSUSHITA ELECTRIC CORPORATION OF AMERICA COULD CAUSE
HARMFUL INTERFERENCE, WHICH WOULD VOID THE USER’S AUTHORITY TO
OPERATE THIS EQUIPMENT.
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2004 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.
is a trademark of Cable Television Laboratories, Inc.

2z
IMPORTANT INFORMATION (CONT.)
ENGLISH
Important Information (cont.)
Information Regarding Convergence
In the projection television, the image is formed by
projecting 3 different color images (red, green and blue)
onto the projection screen. Convergence refers to the
alignment of red, green and blue images on the
projection screen. When these images are properly
aligned (converged), you see a sharp and vibrant color
image. Sometimes, the three images may require
alignment. This is due to the effect of earth’s magnetic field
on the projection tubes. Normally, adjustment is not
necessary after the initial alignment at the center of the
screen. It is possible to correct the color fringing on other
areas of the screen by using the buttons on the remote
control and by following the on-screen instructions in the
set-up menu. Please converge the images before using the
television for the first time. The following diagram shows
examples of a misaligned image and a properly aligned
image. Please refer to pages 28 and 29 for detailed
procedure on how to adjust convergence.
Notes:
• Make sure that the set is on for at least 20 minutes
before adjusting convergence as described on pages 28
and 29.
Important Information Regarding The Use Of
Video Games, Computers, Or Other Fixed
Image Displays.
FCC INFORMATION
This equipment has been tested and found to comply with
the limit for a Class B Digital Device in accordance with the
specifications in Part 15 of the FCC Rules. The limits are
designed to provide reasonable protection against radio
and television interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications, However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause interference to radio or
television reception (which you can determine by turning
the equipment off and on), try to correct the interference by
one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.

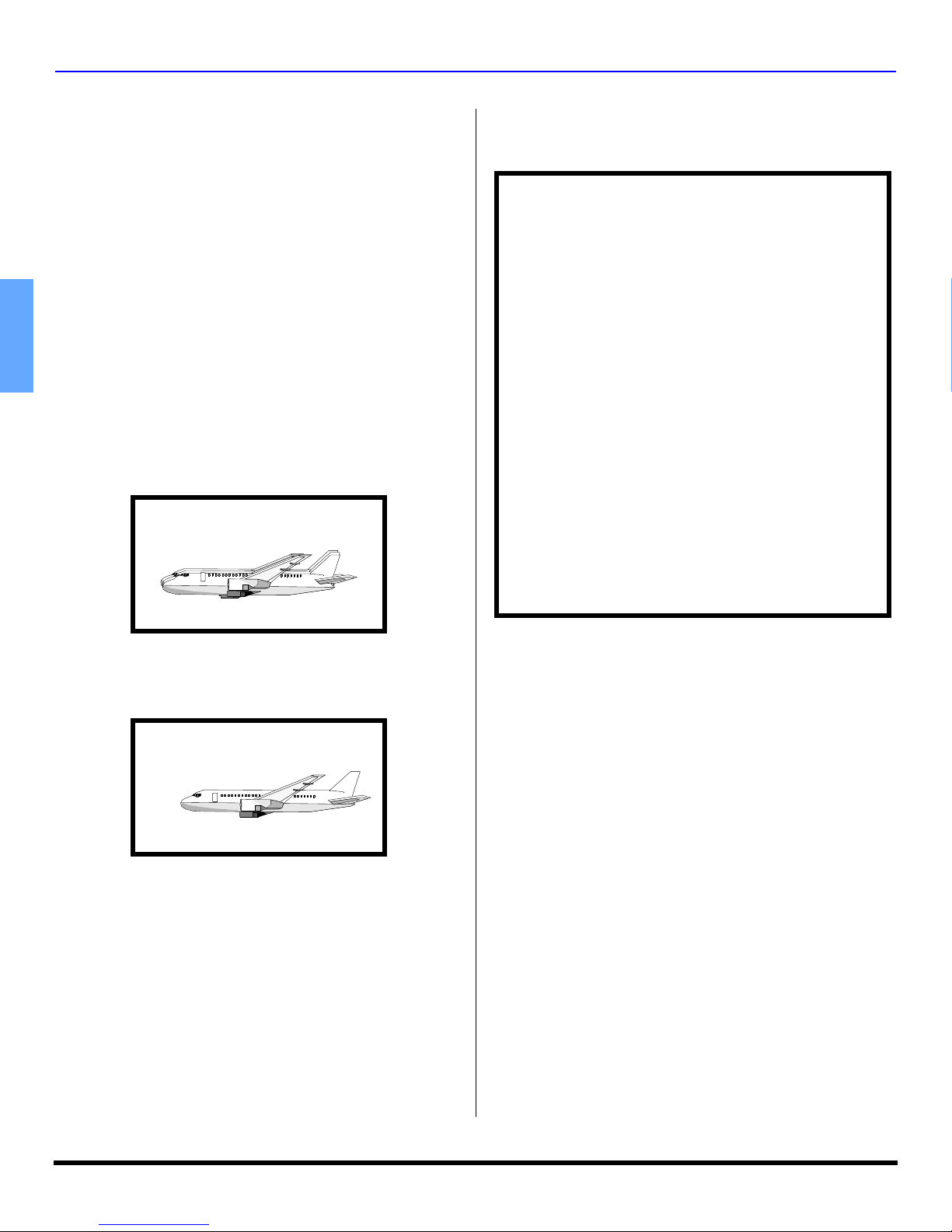

Misconverged image
Properly aligned image
WARNING: The marking or retained image on the
picture tube resulting from viewing fixed image is
not an operating defect and as such is not covered
by Warranty.
The projection television is designed to display
constantly moving images on the screen. Continuous
viewing of stationary images such as letterbox pictures
on standard screen TVs (with top/bottom bars), non-
expanded standard (4:3) pictures on wide screen TVs
(with side bars shown on each side of an image), stock
market report bars (ticker running at the bottom of the
screen), video game patterns, fixed scoreboards,
bright station logos, on-line (Internet) or repetitive
computer style patterns should be limited.
The extended use of fixed image program material can
cause permanent picture tube damage, shown as a
“shadow image” viewable on normal programs. This
type of irreversible picture tube deterioration can be
limited by performing the following steps:
• Limit the display of fixed image program material to
no more than 15% of total viewing time per week.
• Turn the power off when not in use.

TABLE OF CONTENTS
3z
ENGLISH
Table of ContentsTable of Contents
Important Information ..................................... 1
Information Regarding Convergence.......................... 2
Information Regarding The Use Of Video Games
Computers, Or Other Fixed Image Displays............ 2
Congratulations ............................................... 4
Customer Record........................................................ 4
Care and Cleaning...................................................... 4
Specifications.............................................................. 4
Feature Chart.............................................................. 4
Installation........................................................ 5
Television Location ..................................................... 5
Component Connection Cables................................... 5
AC Power Supply Cord............................................... 5
Cable / Antenna Connection....................................... 5
Remote Control Battery Installation ............................ 5
First Time Setup............................................... 6
Front and Rear View of the High Definition
Projection Television.................................... 7
Optional Equipment Connections.................. 8
VCR Connection ......................................................... 8
CableCARD Connection ............................................. 6
Digital TV - Set-Top Box (DTV-STB) or DVD Players . 8
Front Control Panel...................................................... 8
HDMI Input Connection .............................................. 9
Digital Audio Out connection ...................................... 10
Program Out Connection ............................................ 10
Amplifier Connection (Analog) .................................... 10
PIP Operation................................................ 11
PIP Operation ............................................................ 11
Split Operation ........................................................... 11
PIP And Split Operational Buttons ............. 11
TV/Video Button ......................................................... 11
Search Button............................................................. 11
Move Button ............................................................... 12
PIP MIN and PIP MAX Buttons .................................. 12
Freeze Button............................................................. 12
Main Picture Freeze Feature...................................... 12
PIP, Split and Freeze Mode Buttons
Operational Chart .................................................... 12
Special Features of the High Definition
Projection Television ................................ 13
Special Remote Buttons .............................. 14
Remote Control Operation .......................... 15
Operating Components with Remote Control............. 16
Programming the Remote .......................................... 18
Programming Without a Code .................................... 18
Component Codes ..................................................... 18
Basic Menu Navigation................................. 21
Menu Operations........................................... 22
Picture ........................................................................ 22
Audio .......................................................................... 22
Channel ...................................................................... 23
Photo Viewer™ Operation.......................................... 24
Timer .......................................................................... 26
Set Up ........................................................................ 27
Lock............................................................................ 30
Glossary and Acronyms............................... 33
Troubleshooting Chart ................................. 34
Index............................................................... 36
Note: The warranty and service center information is located in the back of this manual.

4z
CONGRATULATIONS
ENGLISH
Congratulations
Your new High Definition Projection Television (PTV)
features state-of-the-art technology for high quality picture
and sound with complete audio/video connections for your
home theater system. Your PTV is designed to give you
many years of enjoyment. It was thoroughly tested and
tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on
the back of the TV. You should note the model and serial
number in the space provided and retain as a permanent
record of your purchase. This will aid in identification in the
event of theft or loss. Product registration for U.S. customers
is available at: www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Projection Screen (Turn PTV Off)
The projection screen is a high precision lens system which
has a protective screen. The protective screen is fully
washable with the following precautions:
• Use a mild soap solution or window cleaner and a clean
cloth.
• DO NOT USE ABRASIVE CLEANERS.
• Do not use laundry detergent or automatic dishwasher
soap.
• Do not use alcohol, ammonia, or petroleum based
products.
• Avoid excessive moisture and wipe dry.
• Prevent solution from running into the receiver below.
• Avoid bumping or scraping the screen.
Warning: Do not spray any type of cleaning fluid directly on the
screen.
Cabinet and Remote Control
• For cabinets and remote control, use a soft cloth
dampened with water or a mild detergent solution. Avoid
excessive moisture and wipe dry.
• Do not use benzene, thinner or other petroleum based
products.
Specifications
Specifications are subject to change without notice or
obligation.
Feature Chart
*Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbols are trademarks of Dolby Laboratories.
Power Source
PT-47WXD64 (4.1A) 120V AC, 60Hz
Channel Capability ATSC/NTSC VHF/UHF- 2-69
CATV - 1-135
HDMI Input jack Type A
Digital Audio Out jack PCM / Dolby* Digital Fiber Optic
Component Inputs (Y / PB / PR)75 Ohm, Phono Jack Type
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Video out jack 1Vp-p, 75 Ohm, Phono Jack Type
Audio Output Jacks 500mV RMS 4.7K Ohm
S-Video Input Jacks S-Video (Y-C) Connector
MODEL
PT-47WXD64
FEATURES
ATSC DIGITAL TUNER •
PHOTO VIEWER™ •
CableCARD™ INTERFACE •
2 TUNER PIP/SPLIT •
2 RF •
ZOOM ADJUST (SIZE AND POSITION) •
PROTECTIVE SCREEN •
CLOSED CAPTIONING •
V-CHIP CAPABILITY •
DIGITAL SCAN RATE 1080i,
540p
NTSC LINE-DOUBLER 540p
VIDEO NORM •
AUDIO NORM •
STEREO •
AI SOUND •
BASS/BALANCE/TREBLE •
SURROUND •
BBE •
HDMI/HDCP INPUT •
A/V IN (REAR/FRONT) 4
(3/1)
DIGITAL AUDIO OUT •
S-VHS INPUTS •
COMPONENT INPUTS •

INSTALLATION
5z
ENGLISH
Installation
Television Location
This unit can be used as part of an entertainment center.
Consult your dealer for available options.
• Avoid excessive sunlight or bright lights, including
reflections.
• Keep away from excessive heat or moisture. Inadequate
ventilation may cause internal component failure.
• Fluorescent lighting may reduce remote control
transmitting range.
• Keep away from magnetic equipment, including motors,
fans and external speakers.
Component Connection Cables
Shielded audio and video cables should be used between
components. For best results:
• Use 75-ohm coaxial shielded cables.
• Use appropriate input and output connectors, that match
your component connectors.
• Avoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT
OF AC OUTLET AND FULLY INSERT. DO NOT
USE A PLUG WITH A RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED
OVER, CRIMPED, BENT, OR PINCHED, PARTICULARLY AT PLUGS,
CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT
FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception of analog or digital cable channels, a
cable service connection is required.
Cable Connection
Connect the cable supplied by your local
cable company to ANTENNA (A)
connection on back of television. Select
Cable mode and ANTENNA (A) in SET UP
menu under Program CH (Program
Channels).
Antenna Connection
• For proper reception of digital and analog VHF/
UHF channels, an external antenna is required. For
best reception an outdoor antenna is
recommended.
• Connect home antenna to
either ANT (A) or ANT (B)
connection on back of the
television. Select Antenna
mode for ANTENNA (A) or
(B) in Input Setup under
Program CH in Setup menu.
Note: Cable Mode is preset at the factory. Antenna users must
change to ANTENNA Mode for ANTENNA (A) in the Set
Up menu. If you have both Cable and Antenna, the
Cable must be connected to ANT (A).
Remote Control Battery Installation
Use two AA batteries (supplied):
1. Remove battery cover by pushing in on the catch while
lifting the cover up.
2. Install batteries by matching (+) and (-) polarity signs in
the compartment.
3. Re-insert the cover and press down the cover until it
snaps shut.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control.
Precautions
• Replace batteries in pairs.
• Do not mix battery types (example: zinc carbon with
alkaline).
• Do not recharge, heat, short circuit, disassemble, or burn
batteries.
• Battery replacement is necessary when the remote
control acts sporadically or stops operating the selected
device.
Polarized plug
75 Ohm ANT A
Incoming Cable from
Cable Company
Incoming Cable from
Home Antenna
+
-
+
-
+
+
-
+
-
12 3

6z
FIRST TIME SETUP
ENGLISH
First Time Setup
For your convenience, First Time Set up menu will be
displayed on screen when the set is turned on for the first
time. If needed, follow the menus and procedures
displayed on-screen for setting up the features.
Input Setup
To select the configuration of RF input depending on the
signal source.
Note: No video will be displayed in this setup mode.
Procedure
• Press VOL to select Cable only, Cable/Antenna or
Antenna only.
• Press the OK button to underline your selection.
• When the next screen is displayed, press OK button to
start the Auto Scan. All available channels with a signal
will be programmed into memory.
Auto Scan
This feature allows you to selectively auto scan channels.
You can Scan All, Analog only channels or Analog & Digital
channels.
Procedure
• Press OK button to start Auto Scan.
• After Auto Scan is completed the PTV tunes to the first
channel found during auto scan.
Notes:
• If the EXIT button is pressed at anytime during auto
scan, the First Time Setup menu will be cancelled and
the PTV will tune to analog channel 2 on ANTENNA (A).
• If a CableCARD is present during the First Time Setup
and Antenna (A) is set to cable, Antenna (A) will not be
scanned due to the CableCARD providing the channel
map.
Convergence
This menu lets you set the green CRT alignment and the center
convergence. Follow the instructions on-screen to perform
convergence. After convergence is performed, press EXIT to
return to normal viewing.
First time setup
Input Setup
Manual Program
Signal Meter
Auto Scan
OK
Cable only
 
Connect Cable to Antenna (A)
Change your Input Setup
and press OK



EXIT
MENU
to return
SELECT
First time setup
Convergence
Auto Scan
Input Setup Scan All
Antenna (A) Analog
Antenna (A) Analog & Digital
Antenna (B) Analog
Antenna (B) Analog & Digital
First time setup
Convergence
Auto Scan
Input Setup



EXIT
MENU
to return
SELECT OK
Press OK to go to
Convergence setup

FRONT AND REAR VIEW OF THE HIGH DEFINITION PROJECTION TELEVISION
7z
ENGLISH
Front and Rear View of the High Definition Projection Television
Front Panel Rear Panel Jacks
Feature Description
POWER
Toggles power OFF/ON
Note: In case of front panel lock-up or
remote control hang-up, press and hold
POWER button for more than 5 seconds
until the unit resets itself.
CH and CHTunes to lower or higher channels,
navigate up/down in menus.
VOL and VOL
Decrease or increase volume, navigate
left/right in menu, adjust selected feature
in menu.
TV/VIDEO Changes Input source
OK Completes channel specification, press to
accepts menu and sub-menu selection.
MENU Display or remove menu or return one
step backward in menus.
Photo Viewer™
Lets you display JPEG images recorded
on memory cards by a digital camera.
The Photo Viewer™ is located behind the
door marked SD.
Input 4 Analog inputs for external devices
Eject button Push this button to eject PC card.
POWER VOLUME
CHANNEL
TV/VIDEO
MENU OK
S-VIDEO VIDEO 4 L - AUDIO - R
POWER VOLUME 
CHANNEL 
TV/VIDEO
OK MENU
S-VIDEO VIDEO 4 L - AUDIO - R
SD Slot PC Slot
ON/OFF
Indicator LED Front Panel
controls
9
6
53
1
8
7
24
1
2
3
4
5
6
7
8
9
Item # Description
Antenna Inputs
ANT A - Connect Cable Antenna or Terrestrial Antenna to
this input to receive Digital channels.
ANT B - If you have both Cable antenna and Terrestrial
antenna, connect the Terrestrial antenna to ANT B.
CableCARD™ INTERFACE
Insert the CableCARD module from the Cable company to
receive premium digital service.
SERVICE ONLY
Card slot used by a certified service technician only. Do not
insert any memory card into this slot.
DIGITAL AUDIO OUT
5.1 Dolby Digital surround sound optical output.
HDMI (High Definition Multimedia Interface)
Input that accepts uncompressed digital signal and multi
channel digital audio signal.
AUDIO IN
Use these audio inputs when DVI devices are connected to
HDMI input using the DVI to HDMI adaptor.
COMPONENT VIDEO (Y-PB-PR) INPUTS
Use these jacks for connecting devices such as a DVD
player or Set Top Box.
INPUTS 1, 2 and 3
Composite inputs for connecting VCR and other devices.
PROG OUT
Terminals that output fixed audio and NTSC composite
video.
TO AUDIO AMP
Analog Audio Output to connect to an analog amplifier
Cooling fan
SERVICE
ONLY
HDMI
A/V IN
AUDIO IN
L
R
DIGITAL AUDIO OUT
ANT B
S-VIDEO
VIDEO
12
COMPONENT
VIDEO INPUT
INPUT
1
INPUT
2
INPUT
3
PROG
OUT
TO
AUDIO
AMP
AUDIO
Y
P
B
P R

L
R
VIDEO
ANT A
Cable In
CableCARD
TM
INTERFACE
1
2
3
4
5 6 7 8 9
11
10
1
2
3
4
5
6
7
8
9
10
11

8z
OPTIONAL EQUIPMENT CONNECTIONS
ENGLISH
Optional Equipment Connections
Note: The remote control must be programmed with supplied
codes to operate the optional equipment.
VCR Connection
Follow this diagram when connecting your television to a
VCR only.
Procedure
• Press the TV/VIDEO button on the remote control to
select the video input (VIDEO 1, VIDEO 2, etc.)
connected to your VCR.
• Begin the video.
CableCARD™ Connection
This module allows you to tune digital and high definition
cable channels through the cable antenna.Consult your
Cable company on the availability of this module.
Note: A Digital Cable Subscription is required. (refer to pg. 29)
Procedure
• Connect the Cable antenna to ANT A/Cable In input on
the back of the PTV.
• Insert the CableCARD module (upper side facing left)
into the CableCARD slot on the back of the PTV.
Notes:
• Left side is the upper side of the DCM cards.
• Do not insert a PCMCIA card into the CableCARD slot.
• Choose Cable mode for Antenna (A) in Input Setup.
• Follow the instructions on screen.
Note: If you experience keyboard or remote control function
hang-up when using CableCARD module, unplug the
PTV and plug it back on and try the controls again. If this
condition still exists, please call Panasonic Customer
Call Center for further instructions.
Digital TV - Set-Top Box (DTV-STB) or DVD
Connection
This television is capable of receiving 1080i, 480p, and 480i
DTV signals when connected to a DTV tuner set-top-box
(STB) or a DVD player. In order to view DTV programming, the
STB must be connected to the component video inputs
(Y,PB,PR) of the PTV. A DTV signal must be available in your
area. Select the output of the STB to either 1080i or 480p.
This television also utilizes a progressive scan doubler, which
de-interlaces the NTSC signal and progressively scans the
image. This allows you to sit close to the TV and not see the
thin black horizontal lines (venetian blind effect) associated
with interlaced TV pictures.
Use this diagram to connect the DTV-STB or DVD player to
the back of your projection television.
Note: There are two set of three video iacks, Y, PB, and PR.
Separate component color inputs provide luminance and
color separation. Use the L (left) and R (right) audio
inputs.
Front Control Panel
The front control panel can be used to access menus and
switch video mode when the remote control is not available.
A second VCR, Camcorder, a video disc player, video game
equipment or DSS equipment can also be connected to the
video inputs. See the optional equipment manual for details.
Procedure
• Connect equipment to front Audio/Video input jacks.
• Press TV/VIDEO button to select VIDEO 4 input mode.
• Operate optional equipment as instructed in equipment
manual.
L
R
S-VIDEO
COMPONENT
VIDEO INPUT
VIDEO
12
INPUT
1
INPUT
2
INPUT
3
PROG
OUT
TO AUDIO
AMP
L
R
AUDIO
VIDEO
Y
PB
PR

TERMINALS ON BACK OF PROJECTION TELEVISION
L
R
VIDEO OUT
AUDIO OUT
L
R
PLAY
STOP
R
E
W
FF
VCR
ANT B
AUDIO IN
L
R
SERVICE
ONLY
HDMI
DIGITAL AUDIO OUT
AV IN
ANT A
Cable In
CableCARD
INTERFACE
TM
CABLES NOT SUPPLIED
S-VIDEO
COMPONENT
VIDEO INPUT
VIDEO
12
INPUT
1
INPUT
2
INPUT
3
PROG
OUT
TO AUDIO
AMP
L
R
AUDIO
VIDEO
Y
PB
PR

TERMINALS ON BACK OF PROJECTION TELEVISION
L
R
ANT B
AUDIO IN
L
R
SERVICE
ONLY
HDMI
DIGITAL AUDIO OUT
A/V IN
Incoming
cable
signal

INSERTT
HIS END
ANT A
Cable In
CableCARD
INTERFACE
CableCARD
TM
TM
Left side (upper side)
of card
L
R
S-VIDEO
COMPONENT
VIDEO INPUT
VIDEO
12
INPUT
1
INPUT
2
INPUT
3
PROG
OUT
TO AUDIO
AMP
L
R
AUDIO
VIDEO
Y
P
B
P R

TERMINALS ON BACK OF PROJECTION TELEVISION
L
R
ANT B
AUDIO IN
L
R
SERVICE
ONLY
HDMI
DIGITAL AUDIO OUT
R-AUDIO-L - VIDEO S-VIDEO
NTSC OUTPUT
YPBPR
MAIN
VIDEO
DIGITAL TV OUTPUT
L-AUDIO-R
TERMINALS ON BACK OF DTV-STB OR
DVD PLAYER
AV IN
ANT A
Cable In
CableCARD
INTERFACE
TM
CABLES NOT SUPPLIED
POWER VOLUME MENUOK
CHANNEL TV/VIDEO S-VIDEO VIDEO 4 L - AUDIO - R
The ON/OFF indicator LED (red) will be lit when set is on.
Video 4 location for PT-47WXD64
ON/OFF Indicator LED
POWER ON/OFF SD Slot PC Slot Press this button to
eject card from PC
slot.

OPTIONAL EQUIPMENT CONNECTIONS
9z
ENGLISH
HDMI (High Definition Multimedia Interface)
input connection
About HDMI
HDMI is the first all digital consumer electronics A/V
interface that supports several uncompressed standard,
enhanced and high definition video format as well as
existing multi-channel audio format. One jack supports both
video and audio information. The HDMI/HDCP1input can
be connected to an EIA/CEA 8612compliant consumer
electronic device, such as a set top box or DVD player
equipped with a HDMI or DVI output connection. By
inputting a High-bandwidth Digital Content Protection
(HDCP) high definition picture source to the HDMI terminal
of this PTV, high definition pictures can be displayed on the
screen in their digital form. The HDMI input terminal is not
intended to be used with personal computers. This PTV is
compatible with 1080i, 480p and 480i formats. Select the
output of the connecting to device to match that of the PTV.
Notes:
1. HDMI/HDCP = High Definition Multimedia Interface /
High-Bandwidth Digital Copy Protection.
2. EIA/CEA-861 Profiles compliance covers profiles for
transmission of uncompressed digital video including
high bandwidth digital content protection.
Compatible formats
Connection diagram
Follow the diagram below to connect the PTV to a set top box or a
DVD player.
Procedure
• Connect the HDMI output from the set top box or a DVD
player to the HDMI input on the back of the PTV.
• Press TV/VIDEO button on the remote control to select
HDMI input. The connector on the PTV is HDMI Type A
connector.
• If the external device has DVI output only, use a DVI to
HDMI adaptor cable*3to connect to the HDMI jack on
the PTV. Also, connect the Audio Out signal from the
external device (set top box or DVD player) to the Audio
In*4jacks below the HDMI input.
• If you cannot display the picture because of your Digital
Set Top Box does not have a Digital Out terminal setting,
use the Component Video Input (or the S-Video Input or
Video Input). In this case, the picture will be displayed as
an analog signal.
Notes:
*3. HDMI-DVI conversion cable (TY-SCH03DH) available
on Panasonic Website: www.panasonic.com.
*4. Please refer to pages 22 and 23 for Audio setting detail.
This PTV is compatible with following formats. Please set
the connecting device to following format.
Video signal
Audio signal
When digital audio is included in the HDMI connection,
the compatible sampling frequencies are 48 KHz /
44.1Khz / 32 Khz.
Format No of dots Vertical scanning
frequency (Hz)
1080i 1920 x 1080i 59.94 / 60
540p (480p) 720 x 480p
640 x 480p
59.94 / 60
59.94 / 60
540p (480i) 720 x 480i 59.94 / 60
S-VIDEO
COMPONENT
VIDEO INPUT
VIDEO
12
INPUT
1
INPUT
2
INPUT
3
PROG
OUT
TO AUDIO
AMP
L
R
AUDIO
VIDEO
Y
P
B
P R

TERMINALS ON BACK OF PROJECTION TELEVISION
L
R
ANT B
AUDIO IN
L
R
SERVICE
ONLY
HDMI
DIGITAL AUDIO OUT
Incoming
Cable
EXTERNAL DIGITAL
COMPONENT
AV IN
AUDIO OUT
LR
HDMI
OUT
CABLES NOT SUPPLIED
ANT A
Cable In
CableCARD
INTERFACE
TM
*The connector on the PTV is HDMI Type A connector.

10 z
OPTIONAL EQUIPMENT CONNECTIONS
ENGLISH
Digital Audio Out Connection
Use the diagram below to connect the Digital Audio Output of your
HDTV Projection Television to a Dolby Digital decoder.
Digital Audio Out
Dolby Digital 5.1 channel surround sound delivers digital-quality
sound. Dolby Digital provides five discrete full-bandwidth
channels for front left, front right, center, surround left and
surround right, plus a LFE (Low Frequency Effect) subwoofer
channel. For a full Home Theater sound experience, an external
Dolby Digital decoder and a multichannel amplifier must be
connected to the Digital Audio Out jack on the PTV.
Procedure
• Connect the Digital Audio cable from the Digital Audio
Out jack on the PTV to the Digital Audio In connection on
the Dolby Digital decoder.
Note: When ATSC channel is selected, the output from the
Digital Audio Out jack will be Dolby Digital. But, if NTSC
channel is selected, the output will be PCM.
Program Out Connection (PROG OUT)
You can connect a VCR to the PROG OUT terminal to
record the program you are viewing on-screen. An external
monitor can also be connected to the PROG OUT and TO
AUDIO AMP terminals. Connect the VCR as shown below.
Procedure
• Connect the VCR to PROG OUT and TO AUDIO AMP
terminals
• PROG OUT terminal display is the same as on-screen
display.
• See the VCR instruction manual for further instructions
for recording the program.
Notes:
• This TV contains Video and Audio Outputs for the
purpose of recording television programming to VCR.
Due to license restrictions, if a device (STB, DVD, etc.) is
connected to the HDMI input of the TV, no video or audio
output is allowed.
• Program Out signal may not be available when
component input is selected for main picture.
• Program Out signal is available when receiving digital
channel. However, all digital formats are down converted
to composite NTSC video.
• When receiving digital or analog channels signals and
the analog or digital CC is ON, Program Out connector
will output open caption text in the NTSC video picture. If
CC is OFF, only analog CC closed caption code is
passed out the Program Out connector.
• Certain program content output from the Program Out
connector may have the Macrovision signal modification
applied to its signal, preventing VCRs from recording this
video signal.
Amplifier Connection (Analog)
To listen the audio through a separate stereo system,
connect an external audio amplifier TO AUDIO AMP
outputs on back of television.
Note: TO AUDIO AMP terminals cannot be connected directly
to external speakers.
Audio Adjustments
• Select Speakers Off in Audio Other Adjust menu.
• Set amplifier volume to the preferred level.
S-VIDEO
COMPONENT
VIDEO INPUT
VIDEO
12
INPUT
1
INPUT
2
INPUT
3
PROG
OUT
TO AUDIO
AMP
L
R
AUDIO
VIDEO
Y
P
B
P R

TERMINALS ON BACK OF PROJECTION TELEVISION
L
R
ANT B
AUDIO IN
L
R
SERVICE
ONLY
HDMI
DIGITAL AUDIO OUT
CABLES NOT SUPPLIED
A/V IN
90.7 MHZ
OPTICAL IN
Amplifier
Six channel Speaker system
ANT A
Cable In
CableCARD
TM
INTERFACE
S-VIDEO
COMPONENT
VIDEO INPUT
VIDEO
12
INPUT
1
INPUT
2
INPUT
3
PROG
OUT
TO AUDIO
AMP
L
R
AUDIO
VIDEO
Y
P
B
P R

TERMINALS ON BACK OF PROJECTION TELEVISION
L
R
ANT B
AUDIO IN
L
R
SERVICE
ONLY
HDMI
DIGITAL AUDIO OUT
CABLES NOT SUPPLIED
A/V IN
VCR
PLAY
STOP
R
E
W
FF
ANT IN
ANT OUT
VIDEO L - AUDIO - R
IN
OUT
ANT A
Cable In
CableCARD
INTERFACE
TM
CABLES NOT SUPPLIED
S-VIDEO
COMPONENT
VIDEO INPUT
VIDEO
12
INPUT
1
INPUT
2
INPUT
3
PROG
OUT
TO AUDIO
AMP
L
R
AUDIO
VIDEO
Y
P
B
P R

TERMINALS ON BACK OF PROJECTION TELEVISION
L
R
ANT B
AUDIO IN
L
R
SERVICE
ONLY
HDMI
DIGITAL AUDIO OUT
A/V IN
ANT A
Cable In
90.7 MHZ
EXTERNAL AMPLIFIER
CableCARD
INTERFACE
TM

PIP OPERATION
11 z
ENGLISH
PIP Operation
This television includes a two-tuner Picture In Picture (PIP)
feature. This allows you to watch two (2) live broadcasts at
the same time with or without an external video source
such as a VCR, cable box, etc.
Note: Only the Analog programming from Antenna (A) and video
inputs signal can be viewed in the PIP/SPLIT frame.
Procedure
• Connect incoming cable to ANT (A) input on back of TV.
• Press to display PIP frame.
• Select channels for the PIP frame by pressing
.
• Select channels for the Main picture by pressing
or use the remote control numeric keypad.
• Press to switch the PIP and MAIN PICTURE
source.
• Press to view picture source status.
• Press to cancel PIP frame.
Split Operation
This feature lets you watch two different channels side by
side with or without an external video source.
Procedure
• Press to display Split screen.
• Select channels for the Split by pressing .
• Select channels for the Main picture by pressing
or use the remote control numeric keypad.
• Press to switch the SPLIT SCREEN and MAIN
PICTURE source.
• Press to view picture source status.
• Press to cancel Split screen.
Note: PIP or SPLIT frame cannot display digital channel signal. You
can display digital channel as the Main picture and analog
channel in PIP/SPLIT frame or analog channels in both Main
and PIP/SPLIT frame. Swap is possible when both Main picture
and PIP/SPLIT picture are analog channels or video input
sources.
PIP and Split Operational Buttons
TV/VIDEO Button
Press when PIP or Split frame is displayed to select
desired input mode.
Search Button (PIP and Split)
This feature lets you scan through all available analog
channels.
Procedure
• Press or to display PIP or Split frame.
• Press to display search frames.
Note: When the main picture is ATSC (terrestrial) digital
channel, the search feature is unavailable. Search
feature is available only for analog channels.
• Press again to stop search feature. PIP or
Split frame channel will be the last active search frame.
• Press or to cancel PIP or Split frame
PIP
PIP CH
DVD/VCR CH
or
CH
CH
SWAP
RECALL
PIP
Note: Audio is from Main Picture only.
Main Picture
PIP Frame
SPLIT
PIP CH
DVD/VCR CH
or
CH
CH
SWAP
RECALL
SPLIT
PIP Frame
Main Picture
CH # COMPONENT1 COMPONENT2
HDMI
VIDEO 1/2/3/4
Main Picture
CH #
SPLIT Frame
COMPONENT1 COMPONENT2
HDMI
VIDEO 1/2/3/4
PIP SPLIT
SEARCH
OPEN/CLOSE
SEARCH
OPEN/CLOSE
PIP SPLIT
2
3
4
Search Frames
Main Picture

12 z
PIP OPERATION
ENGLISH
Move Button (PIP only)
This feature is used to move PIP frame to one of four
corners.
Procedure
• Press to display PIP frame.
• Press to position PIP frame to desired corner.
• Press to cancel PIP frame.
PIP MIN and PIP MAX Buttons
While PIP frame is displayed, press PIP MIN or PIP MAX
button to vary the size of PIP frame.
Procedure
• Press to display PIP frame.
• Press or to size PIP frame.
• Press to cancel PIP frame.
Freeze Button (PIP and Split)
This feature is used to stop action in PIP or Split frame.
Procedure
• Press or to display PIP or Split frame
• Press to stop PIP or Split frame action.
• Press again to continue action.
• Press or to cancel PIP frame.
Main Picture Freeze Feature
This feature is used to stop action of the Main Picture and
display it on a Split or PIP freeze frame.
Procedure
• To stop action for Main picture, press while
PIP or Split frame is not displayed.
• Main Picture freeze will be displayed in a PIP or Split
frame, depending on the selection in the Freeze menu
located in Picture Other ADJ. section (refer to page 20).
• Press again to cancel Main Picture freeze
frame.
Note: While Main Picture freeze frame is displayed, only
MOVE button is active for PIP, all other PIP and Split
buttons have no effect (see chart).
PIP, Split and Freeze Mode Buttons Operational chart
This chart indicates the buttons that are operational with
PIP, Split or Main Picture Freeze mode.
PIP
MOVE
PIP
PIP Frame
Main Picture
PIP
PIP MIN PIP MAX
PIP
Main Picture
MAX
MIN
PIP SPLIT
FREEZE
TV/VCR
FREEZE
TV/VCR
PIP SPLIT
Main Picture
Main Picture
PIP freeze frame
Note: Audio is from Main Picture only.
Split freeze frame
REMOTE
BUTTONS PIP MODE SPLIT MODE
MAIN
FREEZE
MODE
PIP MIN Size Smaller No Effect No Effect
PIP MAX Size Larger No Effect No Effect
FREEZE Freeze PIP
frame
Freeze Split
Frame
Display or
Delete
PIP CH Change
Channel
Change
Channel No Effect
SEARCH
Displays
Search Frame
(not available
when Main
picture is
digital)
Displays
Search frame
(not available
when Main
picture is
digital)
No Effect
PIP Delete PIP
Frame
Displays PIP
frame No Effect
SPLIT Displays Split
Frame
Delete Split
frame No Effect
MOVE Move PIP
Frame No Effect Move PIP Frame
SWAP
Swap with Main
Picture (not
available when
main picture is
digital channel)
Swap with
Main Picture
(not available
when main
picture is
digital
channel)
No Effect
FREEZE
TV/VCR
FREEZE
TV/VCR

SPECIAL FEATURES OF THE HIGH DEFINITION PROJECTION TELEVISION
13 z
ENGLISH
Special Features of the High Definition Projection Television
Channel and Program Tuning
Channel and Program tuning in digital television is different from
current conventional television. In DTV, multiple programs can
exist within a single 6MHZ channel. These channels behave as
sub-channels within a single channel. When tuning to a digital
channel, the HDTV Projection Television will also tune to a
program. The HDTV Projection Television will indicate the channel
and program using the on-screen Channel Banner display.
Note: In order to select channels properly, Auto Scan must be
performed (refer to page 25).
Tuning digital and analog channels
You can tune the digital and analog channels in the following
ways:
Direct tuning (0 - 9 keys) - using the numeric keys on the
Remote control to directly input the Channel number. If
necessary, use the button to enter the program number of
the digital channel.
Channel Up/Down Tuning (CH or CH buttons) - Tunes
to the next or previous available channel or program. The
Channel Up/Down tuning depends upon the surfing mode
(see pg. 21) you have set in the Channel menu.
Rapid Tuning (R-TUNE) - Switches between the last two
channels or programs.
Direct Tuning Method
Follow the procedure below to directly enter the channel number
using the Remote Control numeric keys.
Procedure
• Press the numeric keys on the Remote Control to enter
the Channel number. Press OK button.
• If tuning a digital channel and your channel contains
more than one program, press the button and enter
the program # (1, 2, 3 etc.) using the numeric keys.
Press OK button. The following is an example of tuning
to channel 15-1.
The HDTV Projection Television will tune to channel 15-1.
Channel Banner: Minimized
The minimized Channel Banner will display the antenna input,
channel number, and the station identification (if available).
Channel Banner: Maximized
Press the RECALL button to display the maximized channel
banner. While the channel banner is displayed, you can add the
channel to Favorite channel list or delete the channel from the
Favorite channel list.
Add Fav / Del Fav feature
This feature lets you add channels to Favorite channel list or
delete channels from Favorite channel list.
Procedure
• Tune the desired the channel to be added or deleted.
• Press the RECALL button to display the Channel
Banner.
• Press the OK button to execute your choice.
Emergency Alert System (EAS) Forced Tuning
If a CableCARD™ module is installed, the cable MSO (multiple
system owner/operator) may provide an Emergency Alert System
message. These messages are intended to alert the general
public of important local or national emergency situations. In the
event of receipt of one of these messages, the HDTV Projection
Television shall immediately tune to the channel as directed by the
EAS message. If the channel has blocked using the parental
control, the parental blocking has priority over the forced tune.
Direct Tuning Example
Step Action Channel Banner
Display
1Press1 1
2Press5 15
3Press 15-
4Press1 15-1
5 Press OK 15-1
A: 15-1
KPBS-HD
12:30 pm
30
Clock
Time remaining
in Sleep Timer
Audio Track 1 of 1 (English)
Audio Track of
digital channel
A: 15-1
KPBS - HD
Add FAV
TV-G 1080i VIVID
Antenna designation,
Channel and program #
and Station identifier
Rating
indication
Picture mode
setting
Closed Caption and
SAP indication
Add FAV or
Del FAV button
SAPCC
HDMI
PIP/SPLIT CH# or
Input information
FULL
Program Aspect
Signal Format

14 z
SPECIAL REMOTE BUTTONS
ENGLISH
Special Remote Buttons
ASPECT Button
The ASPECT button on the remote control lets you choose
one of four display modes, depending on the formats of the
received signal and your preferences.
BBE Button
Press this button to turn BBE sound feature On or Off.
SAP Button
Press this button to select the next audio track (if available) when
receiving a digital channel.
In analog mode, press this button to cycle through different audio
modes. For example:
• If receiving STEREO, SAP and MONO or receiving
STEREO and MONO only, pressing SAP button,
the audio will toggle as follows:
PROG button
When tuning digital channel, press the button to enter the
minor number in a compound channel number.
MENU button
Press to display the Main menu or return one step backward in
menus.
RECALL button
Press this button to display or remove the channel banner.
R-TUNE Button
Press to switch to previously viewed channel, Photo Viewer™ or
inputs.
Customer Options depending on Input Signal Format
INPUT
SIGNAL DISPLAY ON SCREEN ASPECT BUTTON OPTIONS
1080i 16:9 only No options
480p (16:9) Default to 16:9 4:3, Full or Zoom (see
below)
480p (4:3) Default to FULL mode. 4:3, Full or Zoom (see
below)
480i Default to JUST mode 4:3, Full, Just or
Zoom (see below)
Input Signal
ASPECT
4
3
Image on
16:9 Screen Size
4:3
480i or 480p
This will display a 4:3 picture
at its standard 4:3 size with
gray side bars. (Not
recommended for viewing
4:3 pictures as it may create
a permanent image on
screen if displayed for a
prolonged period of time.)
480i or 480p
Input Signal
ASPECT Image on
16:9 Screen Size
ZOOM
16
9
This will expand the 4:3
picture uniformly (width and
height) to full screen width
and then reposition the
picture vertically.
(Recommended for letterbox
pictures.)
480i or 480p
Input Signal
ASPECT Image on
16:9 Screen Size
FULL
16
9
This will show picture at full
screen size. (Recommended
for anamorphic pictures.)
Input Signal ASPECT Image on
16:9 Screen Size
480i
JUST
16
9
This will stretch the right and
left edges of a 4:3 picture to
fill the screen, The center of
the screen will have aspect
correction applied. The size
of the picture will depend on
the original signal.
(Recommended for regular
TV viewing.)
Audio Track 1 of 1 (English)
STEREO SAP MONO
PROG

REMOTE CONTROL OPERATION
15 z
ENGLISH
Remote Control Operation
10
1
2
4
3
5
7
6
8
9
11
12
13
14
15
16
18
17
19
20
21
22
23
24
25
26
27
28
30
29
31
32
BUTTON
NUMBER DESCRIPTION
Press to turn ON and OFF.
Note: The ON/OFF indicator LED (red) will be lit
when set is on.
Press to select remote operation.
Press to select (Component 1or 2), (HDMI),
(Video 1, 2, 3 or 4) input mode or TV mode.
Press to access Photo Viewer™.
Also press while Photo Viewer™ is displayed to
access Photo Viewer™ set up menu.
Press to select picture size (ratio) to match
programming format.
Also used for Photo Viewer™ to change aspect
of the image on-screen.
Press to mute sound. Press to display and
cancel CC (Closed Caption).
Press to adjust TV sound and navigate in
menus.
Press to choose menu and sub-menu entry.
1
2
3
4
5
6
7
8
BUTTON
NUMBER DESCRIPTION
Press to display Main Menu or return one step
backward in menus.
Press numeric keypad to select any channel or press to
enter alphanumeric input in menus.
Press to switch to previously viewed channel, Photo
Viewer™ or input modes.
PIP MIN - While remote is in TV mode, press to
decrease the PIP size.
REW - While remote is in VCR or DVD mode, press to
rewind.
While remote is in VCR or DVD mode, press to play.
While remote is in VCR or DVD mode, press to
pause.
FREEZE - While in TV mode, press to stop action in
the PIP or Split frame.
TV/VCR - Press to switch to TV or VCR.
Press to display or delete PIP frame.
Press to display or delete Split frame.
In analog mode, press to access audio modes (Stereo,
SAP or Mono). In digital mode, press to access next
audio track.
Press to illuminate remote buttons.
Press to switch to (A or B) RF antenna input.
Press to turn BBE OFF or ON.
Press to display or delete Channel banner.
Press to exit menus.
Press to change channels and navigate in menus.
Press after entering major channel numbers to enter
minor (-) channel numbers.
PIP MAX - While in TV mode, press to increase the PIP
size.
FF - While in VCR or DVD mode, press to fast
forward.
While remote is in VCR mode, press to record.
While remote is in VCR or DVD mode, press to stop.
SEARCH - Press to scan available channels in
search frames. Press again to delete search frames.
OPEN/CLOSE - Press to open or close DVD tray.
Press to change channels for PIP or VCR.
Press to swap Main picture with PIP or Split frame.
While PIP frame is displayed, press to move to one
of four corners.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

16 z
REMOTE CONTROL OPERATION
ENGLISH
Operating Components with Remote Control
Note: Refer to page 18 for programming Remote Control
procedure.
Operating a VCR
Program the remote control to use with VCR.
Operating a CABLE BOX
Program the remote control to use with Cable Box.
Operating a DBS
Program the remote control to use with DBS.
Operating a DVD
Program the remote control to use with DVD
TO DO THIS... PRESS
Turn on/off
Select TV Input mode for VCR
Change Channels up/down
Record REC
Play PLAY
Stop STOP
Fast Forward
PIP MAX
FF
Rewind the Tape
PIP MIN
REW
Pause PAUSE
Change to TV or VCR Mode
FREEZE
TV/VCR
On screen VCR Display
TO DO THIS... PRESS
Turn on/off
Select a Channel
Change Channels Up/Down
Back to previous channel R-TUNE
POWER
TV/VIDEO
PIP CH
DVD/VCR CH

RECALL
POWER
1 2 3
4 5 6
7 8 9
0
CH
CH
TO DO THIS... PRESS
Turn on/off
Display DBS menu
Menu Navigation
Select a Channel
Program Information
Back to previous channel R-TUNE
Select next page up/down
Exit menus
TO DO THIS... PRESS
Turn on/off
Next/Previous Chapter
DVD Display
Skip Search Reverse
PIP MIN
REW
Skip Search Fast Forward
PIP MAX
FF
Play PLAY
DVD Open/Close
SEARCH
OPEN/CLOSE
Stop STOP
Still PAUSE
Slow +/-
FREEZE
TV/VCR
POWER
OK
VOLVOL
CH
CH
1 2 3
4 5 6
7 8 9
0
RECALL
PIP CH
DVD/VCR CH
EXIT
POWER
CH
CH
RECALL


REMOTE CONTROL OPERATION
17 z
ENGLISH
Operating a Cassette Deck
To operate a cassette deck, the remote control must be in
AUX mode and be programmed with the appropriate code
for your equipment.
Operating a Receiver
Program the remote to operate audio receiver.
Operating a PVR (Personal Video Recorder)
Program the remote control to use with a PVR.
TO DO THIS... PRESS
Turn on/off
Receiver Volume Up/Down
Deck A/B R-TUNE
Record REC
Play PLAY
Stop STOP
Fast Forward
PIP MAX
FF
Rewind the Tape
PIP MIN
REW
Pause PAUSE
TO DO THIS... PRESS
Turn on/off
Audio Mute
RCVR. VOl Up Down
Tuner Pre-set stations Up/
Down
To select AV Inputs or
Components:
Press Remote numeric Keypad
Surround VOL Down
PIP MIN
REW
Surround VOL UP
PIP MAX
FF
Center CH VOL Up/Down
POWER
VOLVOL

POWER
MUTE
VOLVOL
CH
CH
AV 1 Press 1
AV 2 Press 2
AV 3 Press 3
AV 4 Press 4
CD Press 5
TUNER Press 6
PHONO Press 7
TAPE Press 8
AUX Press 9
PIP CH
DVD/VCR CH
TO DO THIS... PRESS
Turn on/off
Display PVR menu
MENU
PVR Navigation
Select a Channel
Play PLAY
Record REC
Pause PAUSE
Back to previous channel R-TUNE
Exit menus
Replay Zones R-TUNE
Quick Skip
SEARCH
OPEN/CLOSE
Return to live
PROG
PVR CH Up/Down
POWER
VOLVOL
CH
CH
1 2 3
4 5 6
7 8 9
0

EXIT
PIP CH
DVD/VCR CH

18 z
REMOTE CONTROL OPERATION
ENGLISH
Programming The Remote
The Universal Remote Control can be programmed to
operate many manufacturers’ components, using the
component function buttons for VCR, DVD, DBS, RCVR or
AUX. Follow the procedures for programming your Remote
Control with or without a code for the component.
Note: Determine the manufacturer of the component and look
in the table for the code (found on page 19).
Procedure
1. Confirm that the external component is plugged and
operating.
2. Turn the component off.
3. Press and together, for at least 5
seconds. After 5 seconds, the illuminated mode
(component) buttons will begin to flash. Release the OK
and POWER buttons.
4. Press appropriate component button on the Remote
Control VCR, DVD, DBS, RCVR, CBL or AUX (PVR or
VCR2). The component button will illuminate steadily
and all others will go out.
5. Enter the 3-digit component code using the Remote
Control numeric keypad (0 ~ 9 buttons). The component
button will blink twice.
6. Press the Remote Control to test the component.
If the procedure was successful, the component will
turn on and the component key will blink twice and then
go out.
Note: If the component does not operate with the Remote
Control, repeat steps 3 through 6 using another code.
(Some brands have multiple codes). If an incorrect code
is entered, or if the procedure takes longer than 30
seconds, the programming will fail.
Programming Without A Code
This procedure searches all codes and is called the
“sequence method.”
1. Confirm that the external component is plugged in and
on.
2. Turn the component off.
3. Press and
together, for at least 5
seconds. After 5 seconds, the illuminated mode
(component) buttons will begin to flash. Release the OK
and POWER buttons.
4. Press appropriate component button on the Remote
Control.
5. Press the button to set the remote control into the
step and set mode.
6. Point the remote control towards the component.
7. Press VOL (the mode key will blink three times), then
press the Remote Control to test the component.
Continue this process until the proper code is found. If
the procedure was successful, the component will turn
on.
Note: Each time you press the VOLbutton, make sure that
the component key blinks twice before pressing the
POWER button.
8. Once the device responds, press to store the
code. The mode (component) button will blink twice.
Note: It may take many attempts before the correct code
is found. If you miss a code, press VOL, then press the
button to test the component.
Component Codes
The Universal Remote Control is capable of operating
many component brands after entering a code. Some
components may not operate because the codes are not
available due to limited memory. The Universal Remote
Control does not control all features found in each model.
Device Operates Default
TV TV (Panasonic Only) Panasonic Code
VCR VCR (Preset) Panasonic Code
DVD/CD DVD and CD (Preset) Panasonic Code
DBS DBS STB & CBL STB (Preset) Panasonic DBS Code
RCVR Audio Receiver (Preset) Panasonic RCVR Code
CBL Cable (Preset) Panasonic CABLE
Code
AUX Personal Video Recorders,
Cassette and VCR2
Panasonic Personal
Video Recorder Code
OK
POWE
R
POWE
R
OK
POWE
R
Write the code numbers from tables in this space.
This will serve as a reference if you need to program
your Remote Control.
VCR DVD DVD (CD)
DBS RECEIVER CABLE
AUX (PVR) AUX (VCR2)
POWER
POWE
R
OK
POWER
