Panasonic NR-B29SG2 User manual

© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
Order Number VESR120601CE
REFRIGERATOR-FREEZER
Model No. NR-B29SG2
Model No. NR-B29SW2
Model No. NR-B32SG2
Model No. NR-B32SW2
Product-Color G:Inox-look
W:White
Destination E(Europe Continental) except France
F(France)
B(U.K.)
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 5
3 General/Introduction -------------------------------------------- 7
4 Technical Descriptions ----------------------------------------- 9
5 Location of Controls and Components ------------------12
6 Installation Instructions ---------------------------------------14
7 Operating Instructions-----------------------------------------16
8 Service Mode -----------------------------------------------------20
9 Troubleshooting Guide --------------------------------------- 23
10 Disassembly and Assembly Instructions--------------- 29
11 Measurements and Adjustments -------------------------- 75
12 Dimensions ------------------------------------------------------- 78
13 Schematic Diagram -------------------------------------------- 79
14 Exploded View and Replacement Parts List ----------- 80

2
1 Safety Precautions

3

4

5
2 Specifications
2.1. NR-B29 models
Name Plate
Model NR-B29SG2 NR-B29SW2
Destination Europe - France - U.K.
Volume capacity Total effective volume capacity 289 L
Refrigerator compartment (PC) 217 L
Freezer compartment ( FC ) 72 L
External dimensions width/ depth/ height (mm) 600 x 652 x 1,898
Installaion size side : 20 mm or above
back : 40 mm or above
top : 150 mm or above
Power supply plug Rating 250V/16A
Power supply code Length 2.5m
Interior lamp (LED) Rating 15V DC
IEC protection against electric shock classes Class 1
Climate Class T
Refrigerator compartment sensor PCC epcos NTC
Freezer compartment sensor FCC
Ambient temperature sensor ATC
Defrost temperature sensor DFC
Compressor Model PANASONIC
Rotation speed 23 / 42 / 58 (r/s)
Curled resistance cord (at 20°C) U-W, U-V, V-W = 7.2 Ohm
Overlord relay Model PANASONIC
Operating temperature without power 95 ± 5°C
Return temperature 61 ± 8°C
Operating current (A) 6.40 A ± 7.5 %
Fan motor Model/Rating EBM/1W AC -2200rpm
Dumper Model/Rating SANKYO/12V DC -0.5W
Defrost heater Rating/Voltage 220V/188.5+10+7 W
Thermal fuse Rating 76°C
Oil charge Class / Fill S8/215 ml
Ice making ability 2.65kg/24h
Freezing ability 12kg/24h
Values of the energy consumption 0,662
Energy efficiency grade A++
Refrigerant charge 55 gr
Measurement of exterior noise emitted 42 dB
Form polyurethane Cyclo pentane
Weight ( Kg ) Without packaged 77
With packaged 82

6
2.2. NR-B32 models
Name Plate
Model NR-B32SG2 NR-B32SW2
Destination Europe - France - U.K.
Volume capacity Total effective volume capacity 324 L
Refrigerator compartment (PC) 252 L
Freezer compartment ( FC ) 72 L
External dimensions width/ depth/ height (mm) 600 x 652 x 2,044
Installaion size side : 20 mm or above
back : 40 mm or above
top : 150 mm or above
Power supply plug Rating 250V/16A
Power supply code Length 2.5m
Interior lamp (LED) Rating 15V DC
IEC protection against electric shock classes Class 1
Climate Class T
Refrigerator compartment sensor PCC epcos NTC
Freezer compartment sensor FCC
Ambient temperature sensor ATC
Defrost temperature sensor DFC
Compressor Model PANASONIC
Rotation speed 23 / 42 / 58 (r/s)
Curled resistance cord (at 20°C) U-W, U-V, V-W = 7.2 Ohm
Overlord relay Model PANASONIC
Operating temperature without power 95 ± 5°C
Return temperature 61 ± 8°C
Operating current (A) 6.40 A ± 7.5 %
Fan motor Model/Rating EBM/1W AC -2200rpm
Dumper Model/Rating SANKYO/12V DC -0.5W
Defrost heater Rating/Voltage 220V/188.5+10+7 W
Thermal fuse Rating 76°C
Oil charge Class / Fill S8/215 ml
Ice making ability 2.65kg/24h
Freezing ability 12kg/24h
Values of the energy consumption 0,662
Energy efficiency grade A++
Refrigerant charge 60 gr
Measurement of exterior noise emitted 42 dB
Form polyurethane Cyclo pentane
Weight ( Kg ) Without packaged 80
With packaged 88

7
3 General/Introduction
3.1. Flow of Refrigerant

8
3.2. Flow of Air
3.2.1. Inside the Fridge 3.2.2. Flow of Air Through Air Ducts
(Front view)

9
4 Technical Descriptions
4.1. Setting the temperature
4.1.1. Fridge compartment (PC)
At the time of purchase, the temperature is set to 4°C
4.1.2. Freezer compartment (FC)
At the time of purchase, the temperature is set to -18°C
4.1.3. Chill compartment
You can adjust the temperature of the chill compartment by opening and closing the sliding part which is located inside the compart-
ment.
1. Press (upper) once and then press it again within 1 second.
• The temperature can be set.
2. Press the button repeatedly until the desired temperature is set.
• If no operation is performed for 1 second during the setting process, the set value will
flash and a beep will be heard indicating that the temperature is now set.
Note:
• When Super Cool Mode, Super Freeze Mode, Eco Mode, or Holiday Mode ends or is can-
celled, the unit returns to its previous settings.
1. Press (lower) once and then press it again within 1 second.
• The temperature can be set.
2. Press the button repeatedly until the desired temperature is set.
• If no operation is performed for 1 second during the setting process, the set value will
flash and a beep will be heard indicating that the temperature is now set.
Note:
• When Super Cool Mode, Super Freeze Mode, Eco Mode, or Holiday Mode ends or is can-
celled, the unit returns to its previous settings.
Open
Turn the sliding part to the opening position to set the compartment temperature lower by
1 °C to 2 °C than that set for the PC, and make the compartment work as the chill compart-
ment.
Closed
Turn the sliding part to the closing position to set the compartment temperature same as
that set for the PC, and make the compartment work as a part of the fridge compartment.
• When this compartment is used as 0 °C compartment, keeping food in the chill compartment
instead of the FC or PC allows food retain freshness and flavour longer, while preserving its
fresh appearance, When chill compartment drawer becomes dirty, remove it and wash it with
water. (Water freezes at 0 °C, but foods containing salt or sugar freeze at temperature lower
than that) Normally people use the chill compartment for raw fish, lightly pickled and rice,
etc...
• Pull the chill compartment drawer out toward you. the cover will open automatically.
Note:
• Do not put foods you want to freeze or ice trays in order to make ice.

10
4.2. Defrost Control
4.2.1. Calculating defrost starting time
According to this;
a) If ATC < 23 °C
Fix the defrost cycle to 16 hours (running + stopping)
b) If 23 °C < ATC < 28 °C
If door is not opened;
First Defrost cycle time will be fixed to 16 hours.
Second defrost cycle time will be fixed to 20 hours.
For next defrosts:
If doors isn’t opened during defrost cycle time;
fix the defrost cycle to 30 hours (running + stopping)
c) If 28 °C > ATC ≥35 °C
If doors isn’t opened during defrost cycle time;
defrost cycle is max. 8 hours of compressor running accumulated time (max at non door opens & close operation) or 16 hours of
total time (runnig+stopping)
d) ATC ≥35 °C ;
If doors isn’t opened during defrost cycle time;
defrost cycle is max. 12 hours of compressor running accumulated time or 16 hours of total time (running+stopping)
Checking of ambient temperature will be done every 10 min
Defrost conditions (durations) can be changed according to new ATC.
Step 1. When defrost accumulated time reach to appointed time;
Check if FCC sensor temp. < compressor OFF temp,
If YES, go to step 2 (1)
If NO and compressor running accumulated time is longer than 45min. go to step2. (2)
If NO and compressor running accumulated time is not longer than 45min. return to step1 (3)
Step 2. Set compressor OFF and evaporator fan motor ON. Wait 3 min. and start defrosting.

11

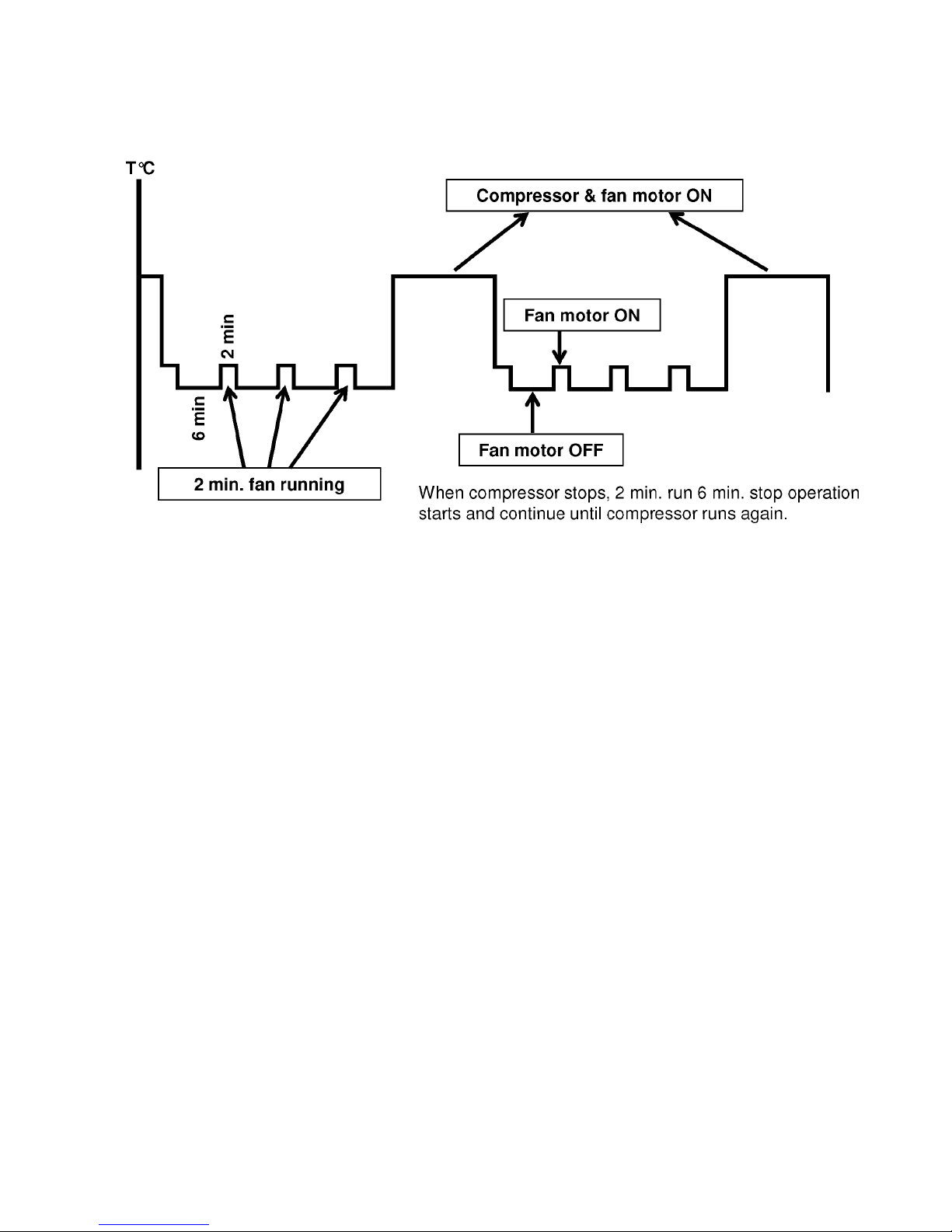

4.3. Fan Control
While compressor is running, evaporator fan is running.
When compressor stops and if damper motor is closed 2min run - 2 min stop operation starts and continue until compressor runs
or damper motor opens again.
If ambient temperature is ATC ≤22 °C or ATC ≥30 °C
• While compressor is running, evaporator fan motor is running.
• If PCC sensor is warmer than damper on set values damper must be on and fan motor must work continiously untill PCC sensor
reach to damper close set values.
• If PCC sensor is colder than damper close set values damper must be off and if compressor is stopping fan also must be off.

12
5 Location of Controls and Components
5.1. Display and Control Panel

13
5.2. Components

14
6 Installation Instructions
This section explains how to install your appliance for the most energy-efficient, safe and quiet operation.
Dimensions
NR-B29SG2/NR-B29SW2: W600 x D652 x H1898 (mm)
NR-B32SG2/NR-B32SW2: W600 x D652 x H2044 (mm)
Unpacking your appliance
Remove all packaging and tape.
Choosing the right location

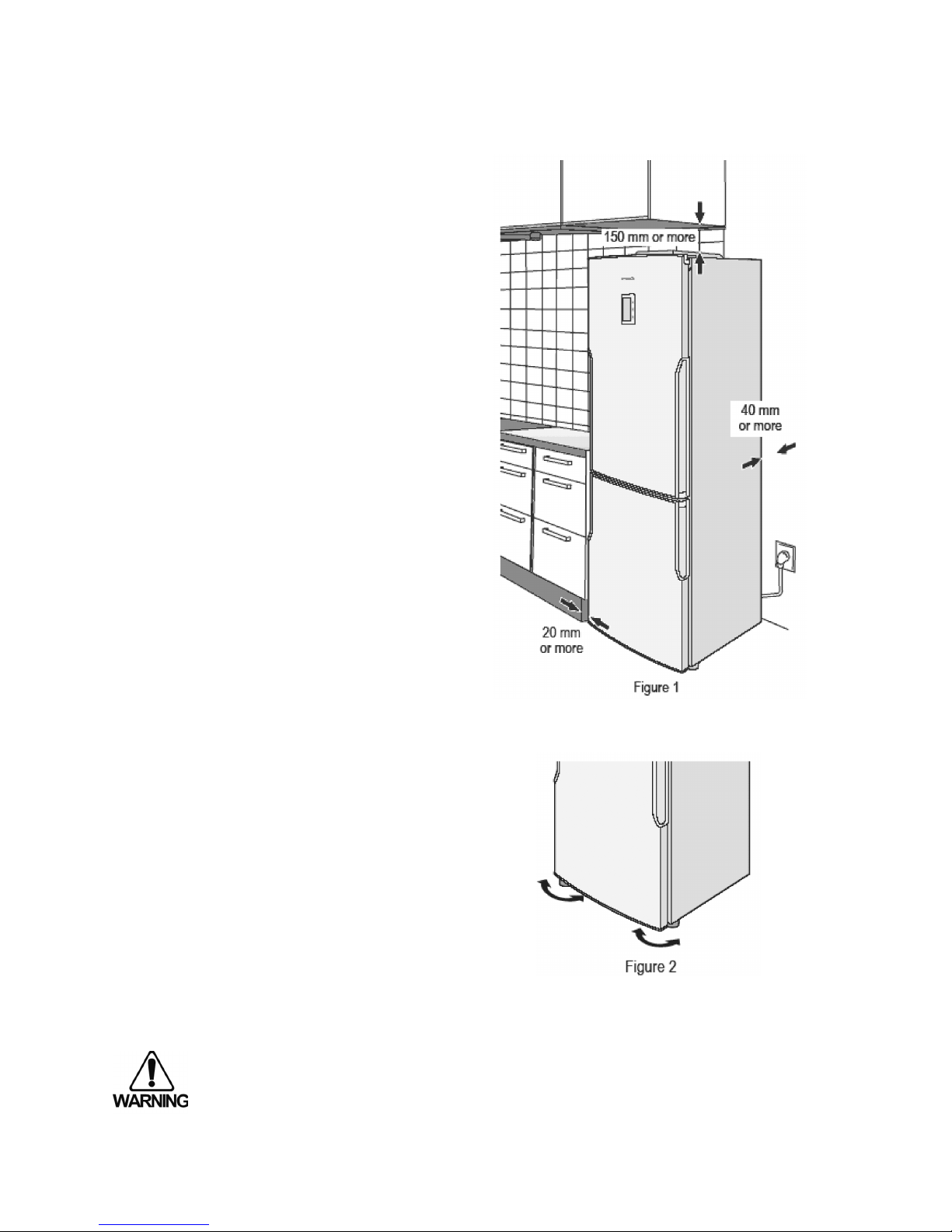

Ventilation
As the appliance gives off heat during operation, it should be
installed in a well-ventilated, dry room with plenty of space above
and behind it, as shown in Figure 1.
If you can hear it vibrating, it needs more space.
Temperature
The room temperature affects the refrigerator’s energyefficiency,
i.e. how much electricity it uses to chill and freeze foods.
For the best results, install your refrigerator:
• away from direct sunlight
• away from radiators, cookers or other heat sources
• where the room temperature corresponds to the climate classifica-
tion for which the appliance is designed. Refer to the Specifications
Section for your appliance’s climate classification.
Level
Install on a level floor that’s strong enough to support a fully loaded
refrigerator.
You can adjust the level of the refrigerator by screwing or
unscrewing the two adjustable front legs as shown in Figure 2.
This prevents vibration and noise.
If the appliance is to stand on a carpeted or vinyl floor, put a solid
board underneath it first. This will protect your floor against possible
color change due to heat given off by the appliance.
Refrigerator door
The refrigerator’s door hinges can be swapped over, from the right side to the left, so that the doors open in the
opposite direction. If this is more convenient in your home, please contact our service centre listed on the attached
sheet or access to our Web site (http://panasonic.net).
We could not be held responsible if you replace the hinges by yourself.
Parts for switching door opening direction are included in the unit packaging.

15

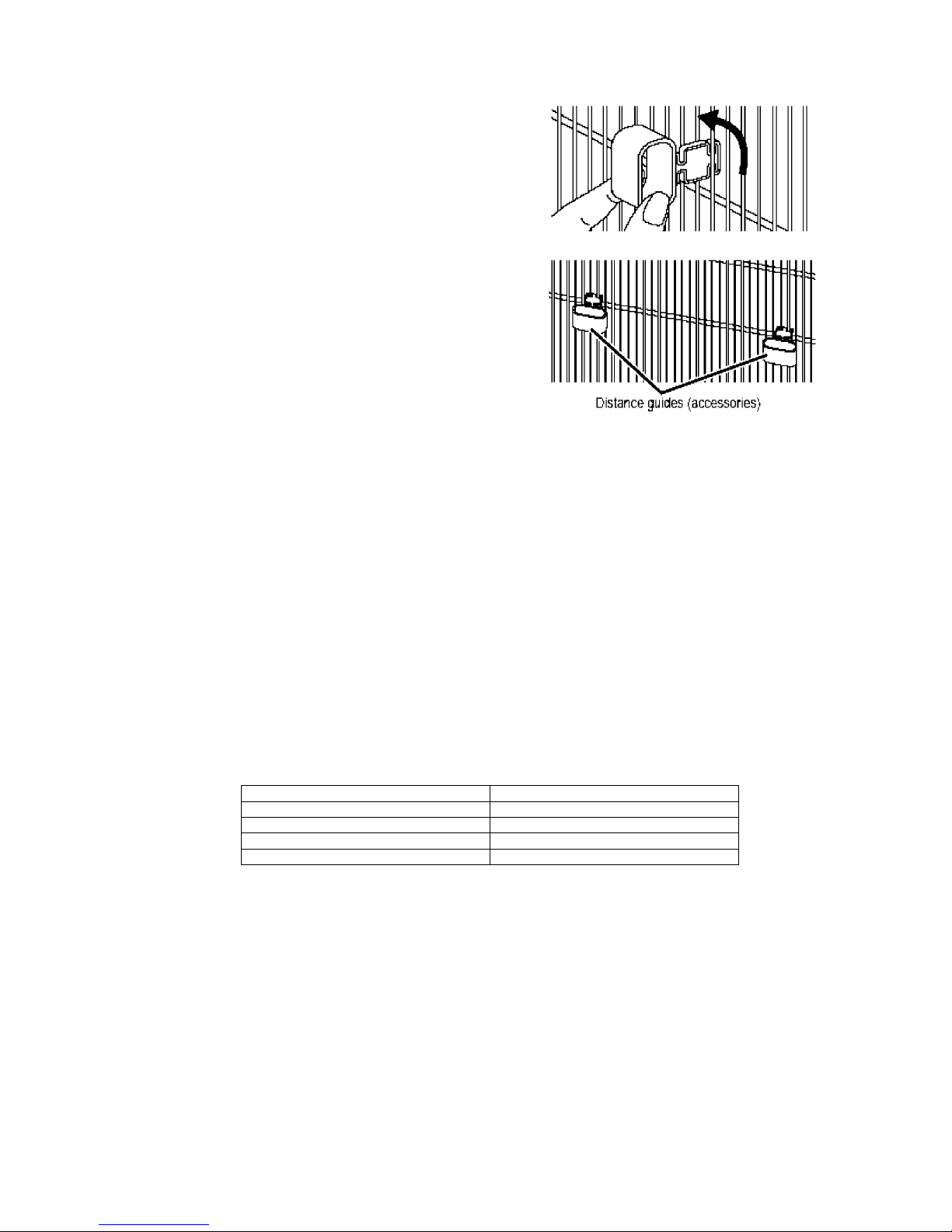

Installing the distance guides
To prevent the condenser (the black backside component with fins)
from touching the wall, put on two plastic distance guides in its
place rotating 90°.
Cleaning
After installation, wipe the appliance clean with warm water.
Connecting the mains plug to the household mains socket
You can connect the mains plug immediately after installation.
After the appliance is plugged, all symbols will appear for a moment, and then the startup values will appear as -18 °C on freezer setting indi-
cator and 4 °C on fridge setting indicator.
All buttons on the control panel are touch-operated. (Only press to activate the button you want to operate.)
Notes:
• Cooling may take longer in the summer months or at other times when the room temperature is higher.
• If you need to unplug the refrigerator, wait at least 10 minutes before you plug it back in again. If not, you might damage the compressor.
Ambient room temperature
You'll find your refrigerator's climate classification on the rating plate in the left side of the fridge compartment. It shows the room temperature
the appliance is designed to work in.
Climate classification Permitted ambient temperature
SN (Extended Temperate) +10 °C to 32 °C
N(Temperate) +16 °C to 32 °C
ST (Subtropical) +16 °C to 38 °C
T(Tropical) +16 °C to 43 °C

16
7 Operating Instructions
7.1. Functions
7.1.1. Super Freeze Mode
7.1.2. Super Cool Mode
Features :
• In this mode, the FC can be cooled rapidly, enabling the fresh foods, etc. which are placed
there to be frozen.
• Super Freeze Mode will automatically end after 24 hours or when the FCC sensor tempera-
ture becomes lower than -32 °C.
Settings :
1. Press (lower) until [SF] is shown.
2. If no operation is performed for 1 second during the setting process, [SF] will flash and a
beep will be heard indicating that Super Freeze Mode is set.
• During this mode, [SF] is displayed, and flashes alternately.
• To release the mode, press (lower).
Notes:
• During this mode:
- By pressing (lower), Super Freeze Mode will be cancelled and the desired tempera-
ture can be set.
- Eco Mode and Holiday Mode cannot be selected.
- The PC temperature can be adjusted.
• The effect on the stored food can be reduced if setting Super Freeze Mode several hours
before storing the food in the FC.
• The alarm sounds 3 hours after setting Super Freeze Mode. You can then store a small
amount of food.
• The following items are recommended in order to exert the maximum freezing capacity.
1. Set the FC temperature to -24 °C and the PC temperature to 2 °C 24 hours before
storing the food.
2. Set Super Freeze Mode 10 hours before storing the food.
3. If you wish to store a large amount of food, remove the two top drawers from the FC
and place the food directly on the glass shelf or put it in the lowest drawer of the
freezer.
(A bigger freezing capacity can be exerted if placing the food directly on the top glass
shelf.)
• The maximum freezing capacity within 24 hours is written in the rating label.
Features :
• In this mode, fast food can be cooled before eating, a large amount of food can be cooled
and stored, and drinks can be cooled quickly.
• Super Cool Mode will automatically end after 8 hours or when the PCC sensor temperature
becomes lower than 0 °C.
Settings :
1. Press (upper) until [SC] is shown.
2. If no operation is performed for 1 second during the setting process, [SC] will flash and a
beep will be heard indicating that Super Cool Mode is set.
• During this mode, [SC] is displayed, and flashes alternately.
• To release the mode, press (upper).
Notes:
• During this mode:
- By pressing (upper), Super Cool Mode will be cancelled and the desired tempera-
ture can be set.
- Eco Mode and Holiday Mode cannot be selected.
- The FC temperature can be adjusted.

17
7.1.3. Eco Mode
7.1.4. Holiday Mode
Features :
• In this mode, the control unit operates the FC and PC economically.
• In this mode, the PC temperature is automatically set to 4 °C and the FC temperature is
automatically set to -18 °C.
Settings :
1. Press repeatedly until a circle appears around.
2. If no operation is performed for 1 second during the setting process, the circle around
flashes and a beep will be heard, indicating that Eco Mode is set.
• During this mode, [E] is displayed on the PC / FC temperature display, and a circle is dis-
played around
• To release the mode, press
Notes:
• During this mode:
- FC and PC can be adjusted. When Eco Mode is released, the adjustment will be main-
tained.
- Super Cool Mode and Super Freeze Mode can be selected. Eco mode is released auto-
matically, and the selected mode is activated.
- After releasing Eco Mode, Holiday Mode can be selected, and the selected mode is acti-
vated.
Features :
• Set this mode when the fridge is not going to be used for a prolonged period such as during
a long vacation.
• In this mode, the PC temperature is automatically set to 8 °C and the FC temperature is
automatically set to -18 °C.
Settings :
1. Press repeatedly until a circle appears around
2. If no operation is performed for 1 second during the setting process, the circle around
flashes and a beep will be heard, indicating that Holiday Mode is set.
• [H] is displayed on the FC temperature display. No indication appears on the PC temperature
display
• During this mode, [H] is displayed on the FC temperature display, and a circle is displayed
around
Notes:
• Before using this mode, empty out the fridge, and close its door.
• When this mode is ended, the fridge will resume operation with its previous settings.
- FC and PC can be adjusted. When Holiday Mode is released, the adjustment will be
maintained.
- Super Cool Mode and Super Freeze Mode can be selected. Holiday mode is released
automatically, and the selected mode is activated.
- After releasing Holiday Mode, Eco Mode can be selected, and the selected mode is acti-
vated.

18
7.1.5. Drink Cool Mode
7.1.6. Screen Saver Mode
Features :
• Drinks can be cooled quickly in the FC.
• This mode has a timer function, and can be set to beep when the timer reaches 5, 10, 15, 20,
25 or 30 minutes.
• Remove the bottles when the beep is heard. If bottles are left in the freezer for a long time,
their contents could freeze and the bottles might break.
Settings :
1. Press (lower) button for 5 seconds.
2. [dc] is displayed on the FC temperature display and [05] flashes on the PC temperature
display.
3. Press (upper) to adjust the time (05-10-15-20-25-30 minutes).
4. The selected time flashes on the display 3 times and a beep will be heard.
5. Countdown by minutes starts from the set time, and the remaining time flashes on the dis-
play.
• To release Drink Cool Mode, press (lower) button for 5 seconds.
• When the set time comes, a beep will be heard, and both of the display indication
(Example: [00] and [dc]) flash until you press (lower).
Notes:
• When using this mode, check the temperature of the bottles regularly.
• When the bottles have cooled sufficiently, remove them from the FC.
Features :
• While setting this mode, the backlight of the display can be turned off to save energy.
Settings :
1. Press for 3 seconds to set the automatic Screen Saver function.
2. If no operation is performed for 5 seconds and any door is not opened, the backlight of
the display is turned off with all other marks and characters remaining on the display.
• The selected modes and functions are maintained.
• To set the automatic Screen Saver to off and keep the backlight of the display on, press
for 3 seconds.
Notes:
• When the automatic Screen Saver function is set to on and the display backlight is turned off
for a while, the display backlight will be turned on again and the set functions are indicated
on the display, if any button is pressed or any door is opened.
• When the Screen Saver and Child Lock are set to on, the Screen Saver is activated.
Therefore, while both of the functions are activated, the display backlight will be turned on
again when any button is pressed or any door is opened.

19
7.1.7. Child Lock function
7.2. Demo Mode
This mode will be use for only sales points by salesman to show functions & modes to customer without operating components as a
compressor, fan, motor..Etc
7.2.1. Entering Demo mode:
Demo mode can only be activated within one minute of switching on/plugging in the product
Then appliance will go on [demo function] and the [demo symbol] will light during the mode. All functions can be adjusted to show
customer how they are adjusted.
During the demo mode to show the alarm symbol , at the 3rd. pushing of the mode button Sr alarm symbol and the [Sr word] on the
7-segment will be active
7.2.2. Canceling Demo mode:
For cancelling; Same operation will be used. If user will push mode & freezer selection button at the same time for 5 sec. demo
function will be cancelled.
When appliance is Demo mode; if plug is removed or there is an electricity breakdown; demo mode will continue with current set-
tings after user plug into or electricity breakdown finish.
Features :
• Setting Child Lock can keep children from changing the settings while playing with the but-
tons.
Settings :
1. Press (upper) and (lower) for 5 seconds to set Child Lock.
• While Child Lock is set is lit.
• To release the mode, press (upper) and (lower) for 5 seconds.
You cannot change the mode that is currently set until Child Lock is released.
Notes:
• If electricity is interrupted or the power plug is removed, Child Lock is released.
• User will press Freezer Selection button & Mode button at the same time for 5 sec.

20
8 Service Mode
8.1. Entering service mode:
Push FC selection button continuously. During this time, open and close FC door for 3 times. Appliance will enter service mode 3
sec. later.
8.2. During service mode:
• Buzzer will sound beep for 0.1 sec. each 5 sec. during service mode
• Display will show error codes. Symbols will be OFF. And if error is disabled during service mode, error codes will be disabled in
display.
• If service man pushes Mode button he will be able to choose functions listed below.
Functions will be set if service man does not push any other button for 1 sec.
• Service man has 4 functions to select. First 4 push of Mode button will activate symbols.
Service man will cancel mode selection if he stops pushing button on the 5th push.
1. Push
Starting program
Push one time to mode button Economy symbol in display will blink during mode.
[5] will light when Middle Bracket heater is ON
[4] will light when defrost heater is ON
[3] will light when evaporator fan motor is ON
[2] will light when compressor is ON
[1] will light , no function
As starting program finishes, first symbol will be OFF. Appliance will return to initial service mode reaction.
2. Push
Forced defrost and forced canceling of defrost
Push 2 time to mode button Holiday symbol will blink during mode.
Defrosting mode will start, mode can be canceled manually or automatically.
Manual canceling will be done by pushing PC selection button. Symbol will be OFF if defrost is canceled manually. Appliance
will return to initial Service mode reaction.
If manual canceling of this function is not performed in 30 min.
Service mode will be canceled. Appliance will check if defrost is finished in this 30min.
If YES, appliance will go on from previous set values. But if defrost is not finished, appliance will go on defrost till it finishes and
then go on from previous set values.
3. Push
Forced opening and forced closing of damper motor
Push 3 time to mode button Super Freezer symbol will blink during mode.
As function is selected damper will be opened if it was closed; it will close if it was opened.
If service man does not reset the function, damper will return to initial condition (open or close) after 5 min Appliance will return
to initial service mode reaction.
Manual canceling will be done by pushing PC selection button. Symbol will be OFF as damper motor return to initial condition.
Appliance will return to initial service mode reaction.
