Panasonic SRR-681HP(AU) User manual

SRF-681HP(AU)
SRF-781HP(AU)
SRF-1281HP(AU)
SRF-1581HP(AU)
SRR-681HP(AU)
SRR-781HP(AU)
SRR-1281HP(AU)
SRR-1581HP(AU)
Ⅰ. Structure of Refrigerated Cabinet
1
Ⅱ Selection of Installation Site 2
·
Ⅲ. Matters Need Attention 2~8
···
Ⅴ. Parts 9
··
Ⅵ. About After-sale Service 10
·
Ⅶ. General Failure and Inspection 11
···········
Ⅷ. Safety Cautions / Warnings 12~16
SRF-1881HP(AU)
SRR-1881HP(AU)
Operation Instructions
Carefully read this instruction manual before operating the
product. After reading,please properly keep the operation
instructions.
MODEL
Contents
Ⅳ. Cleaning and Maintenance 8~9
··
·
8DM-6-P110-150-00-3
User registration
When purchasing, please fill in the table below for the convenience
of maintenance.
Commercial refrigerator Commercial freezer
Commercial refrigerator
Commercial freezer
Ⅸ. Main Technical Parameters 17~18

十、主要技术参数
1
Hold the bottom parts in two sides of
the baffle. Turn up when the baffle is
slightly slanted to open the baffle.a
month regularly.
Ⅰ. Structure of Refrigerated Cabinet
Condenser Filter
（If the condenser adheres dust and foreign
material，the cooling capability will
descend.In order to avoiding the
circumstance occur,clean it once or twice a
month regularly.
Condenser
Footings
Fan For Forced Circulation
Of Cold Air
The cold air which is circulating inside the showcase,is
absorbed and re-cooled by chiller,and then blown to inside
the showcase.
Cold Air Intake
Grill Door
Cold Air
Outlet
Chiller
Ⅸ. Main Technical Parameters
18
Commercial freezer
SRF-681HP(AU) SRF-781HP(AU) SRF-1281HP(AU) SRF-1581HP(AU) SRF-1881HP(AU)
Below -22℃
-27℃～ -17℃
External air temperature is 30℃ Without load balancing and direct sunlight shining
1210×800×1995 1460×800×1995
1074×682×1514 1324×682×1514
240V～ 30W
240V～37W
240V ～50Hz
３.０ｍ
609×682×1514
SC15CL
1312L 1650L
148kg 181kg
C-RHN110E5A
745×800×1995 1800×800×1995
1664×682×1514
With ground terminal two-pole plug (Type I protection)
With ground terminal two-pole plug
10A 250V
471L 598L
98kg 133kg
4
Net rack painted with polyethylene
50Hz
620×800×1995 1210×800×1995 1460×800×1995
745×800×1995 1800×800×1995
620×1458×1995 1210×1458×1995 1460×1458×1995
745×1458×1995 1800×1458×1995
120kg L:50kg R:100kg
50kg 100kg
Type I
104kg
620×800×1995
484×682×1514
（W×D×H）
(mm)
（W×D×H）
(mm)
1063L
See the nameplane
0.27㎡0.35㎡0.63㎡0.78㎡R:0.67㎡
L:0.31㎡
4.1A 7.1A
1400W
422W 830W
55W 60W 104W 114W 154W
240V～ 30Wx2
240V～37Wx2
Table 1 (Applicable to freezer with the volume＜500L)
Table 2 (Applicable to freezer with the volume≥500L)
Note：
1. If parameters in the table change, please refer to the nameplate.
2. Loading of net rack shall not exceed the values listed in the technical parameter table, otherwise, it may render
net rack to fall, causing damage.
3. Description for the meaning of climate type
Climate type code Meaning description
Climate type code
1
2
3
4
5
Temperature and humidity condition
16
22
25
30
40
Dry-bulb
temperature ℃
Relative
humidity %
80
65
60
55
40
SN,N,ST,T
SN
N
ST
T
Subtemperate zone:10℃
～32℃
Temperate zone:16℃
～32℃
Subtropical zone:18℃
～38℃
Tropical zone:18℃～43℃
Description
Model Number
Overall
Dimensions
Inner
Dimensions
Dimensions
Overall effective volume
Overall installation dimension
Overall operation dimension
Net rack
Max. workload of net rack
Available area of refrigeration net rack
Rated frequency
Rated voltage
Rated current
Total power input
Total power input of defrosting
Rated power input of other thermoelectric element
Performance
Condition
Internal Temperature
Temperature Setting Range
Climate type
Compressor model
Freezing
Assembly
Refrigerator
Blower
For Chiller
For Condenser
Power
Power
Cord Length
Plug
Applicable Socket
Weight
Anti-electric shock
protection category
Foaming agent
Material of foam layer Polyurethane
Cyclopentane
Power
610W
220-240V
See the nameplane
4
Max. quantity of net rack
With ground terminal two-pole plug
15A 250V

1. Please try to avoid acid, alkali and other environments containing
corrosive components. Such environment will corrode mechanical
parts of products, resulting in failure.
2. Please leave more than 30cm above the cabinet body space for
ventilation. Please put it in a place with the ambient temperature
at 5-35°C.
3. Please place it in a vertical or slightly inclined backwards place for
installation.
4.The product shall be installed on a ground is anti-water dropping
and immersion and is easy for drainage.
5. Please try to avoid direct sunlight or heating appliances, otherwise
it would reduce the cooling capacity.
6. Do not use it in outdoor. If use it under rain, leakage of electricity
electric shock and other accidents may occur. In addition, please
avoid water pipe, water tank and other places that are humid or
vulnerable to splash water.
Over 30cm
Ⅱ.Selection of Installation Site
2
Cautions
1. Danger
①Please do not put dangerous articles which are volatile, flammable
or explosive into the cabinet, otherwise explosion and fire may occur.
②When abnormal matters occur, please cut off the power and stop
the running, otherwise electric shock and fire may happen.
Ⅲ. Matters Need Attention
17
Commercial refrigerator
Ⅸ. Main Technical Parameters
SRR-681HP(AU) SRR-781HP(AU) SRR-1281HP(AU) SRR-1581HP(AU) SRR-1881HP(AU)
Below -5℃
-8 ℃～ 10 ℃
External air temperature is 30℃ Without load balancing and direct sunlight shining
1210×800×1995 1460×800×1995
1074×682×1514 1324×682×1514
240V～ 30W
240V～37W
240V～50Hz
３.０ｍ
609×682×1514
1329L 1669L
148kg 169kg
745×800×1995 1800×800×1995
1664×682×1514
With ground terminal two-pole plug (Type I protection)
With ground terminal two-pole plug 10A 250V
483L 610L
94kg 131kg
4
Net rack painted with polyethylene
50Hz
620×800×1995 1210×800×1995 1460×800×1995
745×800×1995 1800×800×1995
620×1458×1995 1210×1458×1995 1460×1458×1995
745×1458×1995 1800×1458×1995
120kg L:50kg R:100kg
50kg 100kg
Type I
100kg
620×800×1995
484×682×1514
（W×D×H）
(mm)
（W×D×H）
(mm)
1080L
0.27㎡0.35㎡0.63㎡0.78㎡R:0.67㎡
L:0.31㎡
2.4A 3.4A
600W
615W
52W 57W 88W 98W 139W
240V～ 30Wx2
Table 1 (Applicable to freezer with the volume＜500L)
Table 2 (Applicable to freezer with the volume≥500L)
Note：
1. If parameters in the table change, please refer to the nameplate.
2. Loading of net rack shall not exceed the values listed in the technical parameter table, otherwise, it may render
net rack to fall, causing damage.
3. Description for the meaning of climate type
Climate type code Meaning description
Climate type code
1
2
3
4
5
Temperature and humidity condition
16
22
25
30
40
Dry-bulb
temperature ℃
Relative
humidity %
80
65
60
55
40
SN,N,ST,T
SN
N
ST
T
Subtemperate zone:10℃～32℃
Temperate zone:16℃～32℃
Subtropical zone:18℃～38℃
Tropical zone:18℃～43℃
Description
Model Number
Overall
Dimensions
Inner
Dimensions
Dimensions
Overall effective volume
Overall installation dimension
Overall operation dimension
Net rack
Max. workload of net rack
Available area of refrigeration net rack
Rated frequency
Rated voltage
Rated current
Total power input
Total power input of defrosting
Rated power input of other thermoelectric element
Performance
Condition
Internal Temperature
Temperature Setting Range
Climate type
Compressor model
Freezing
Assembly
Blower
For Chiller
For Condenser
Power
Power
Cord Length
Plug
Applicable Socket
Weight
Anti-electric shock
protection category
Foaming agent
Material of foam layer Polyurethane
Cyclopentane
Power
Embraco EMS 6170Z Embraco FFI12HBK
220-240V
380W
300W
See the nameplane
4
Max. quantity of net rack
Refrigerantor

2.Warnings
①Other persons apart from manufacturer and professional maintena-
nce personnel appointed by the manufacturer shall not dismantle
the cabinet to repair or transform. When parts and components are
damaged or need to be changed, please contact with the manufac-
turer or professional personnel. In the repairing, do not transform
the parts and components as well as materials of the parts and co-
mponents. If wires provided as repairing parts break, please chan-
ge the whole wire instead of repairing and connecting the broken
wires. Incorrect operations may damage the cabinet and improper
repairing may cause electric shock and fire. In the repairing and
transform, parts and components of the cabinet shall be placed pr-
operly to prevent dangers caused by dropping and turning of parts
and components. Repairing personnel shall wear protective equipment.
②Leakage protector shall be equipped and the power socket shall ha-
ve reliable ground connection. Please check and confirm the leaka-
ge breaker regularly. If leakage breaker which is out of order is used,
when the electricity leakage happen, the leakage breaker will not w-
ork, which will cause electric shock. Do not connect the power line
and extended line with medium lines or share power with other app-
liances. Quick connection terminal shall be inserted and pulled out
straightly and turning should be prevented. When inserting and pull-
ing the plug, please hold the top of the plug. Pulling the wire may ca-
use breakage of the wire, which may cause the hot wire or fire. Do
not cut off the power frequently. The electric pressure of the working
supplying power can float around the rated voltage. The floating ran-
ge shall be±10%. The connection method of this product is Y conne-
ction. If the power line is broken, in order to prevent dangers, please
inform the manufacturer and personnel in maintenance department
or similar departments to change the wires.
③Please do not put hands on the mechanical parts such as fans which
are turning rapidly or hot pipes, otherwise you may be cut or scalded.
④When cleaning the cabinet, please cut off the power, otherwise electr-
ic shock or hurts caused by fans shall happen.
3
③The appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
④Children being supervised not to play with the appliance.
16

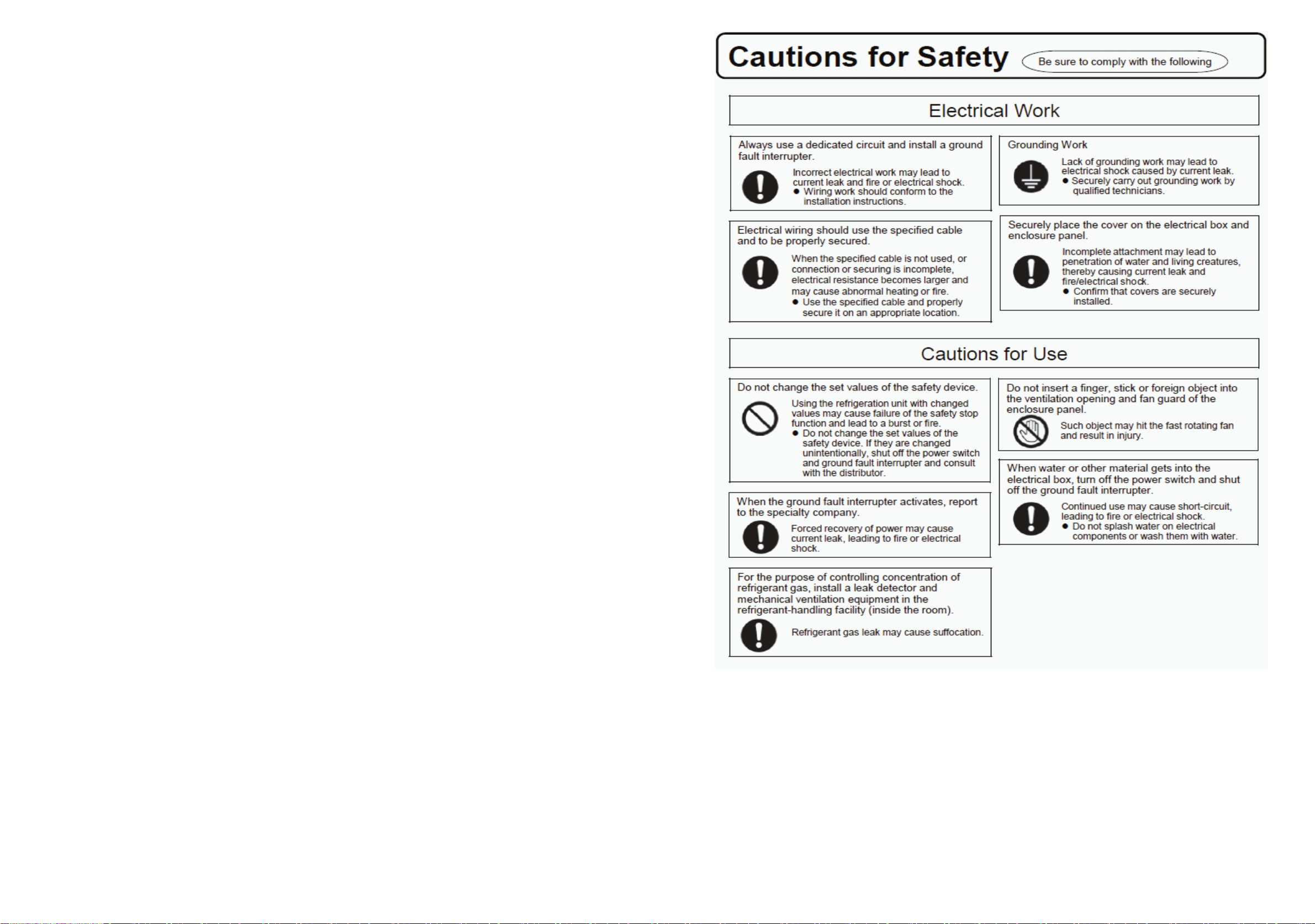

SAFETY CAUTIONS / WARNINGS

15
⑦When the product will not be used for a long term, please pull out the
plug or cut off the power for your safety, otherwise hot cabinet or fire
may happen. Please take all things in the cabinet out and clean the
cabinet. Please open and dry the cabinet to prevent the cabinet from
corrosion. Please put the product in a place where children will not
play. Take measures such as paste materials such as wood and so
on between the door and main body of the cabinet to guarantee that
the door will not closed and seal the cabinet.
⑧When cleaning and picking filter net of the condenser, please do not
touch the fins of the condenser directly with hands, otherwise you
may be hurt.
⑨For fluorescent lamp with two plugs, the same fluorescent pipes shall
be used when changing the pipes and the changing shall be taken by
professional personnel. The power should be cut, that is to say pull
the power plug out.
⑩When closing doors with locks, please confirm that nothing besides
the stored things is in the cabinet before locking the door, in case chil-
dren are locked into the cabinet. Please put the key in safe place.
⑪Material of foam layer. Material of foam layer is flammable. Pay atten-
tion to the warning of “Watch out Fire” on the cabinet.
3. Attentions
①When disposing of this refrigerator,remove the door/door seals and
door latch so that small children or animals cannot become trapped
inside. Children should be supervised to ensure that they do out play
with the appliance.If trapped inside,a child may get hurt or suffocate
to death.
If trapped inside,the child may become injury and suffocate to death.
Cyclopentane is used in the insulation.The gases in the insulation
material require a special disposal procedure.Please contact your
local authorities in regard to the environmentally safe disposal of this
product.
4
⑤Please do not put hands in the outlet and inlet openings of the air, ot-
herwise damages may occur due to rapid turning of the internal fans.
⑥Please do not put bottled articles or canned articles in freezing cham-
ber, otherwise the bottle or can may be burst, which may incur dam-
ages.
②If the product breaks down, food in the cabinet may go bad.
Before moving the freezer or the refrigerator ,the cabinet must be
emptied.Otherwise,all the consequences will be on your own.
⑫

14
1. Free warranty period：As the product is used as commercial equi-
pment, warranty period of the complete machine is twelve months
since the day of installation, acceptance and delivery or the day that
the customer begins to use.
2. If the machine fails by complying with the instructions for use and
operative precautions, please dial our toll-free number to report for
repair.
3. Within the warranty period, the company provides free repair for the
products supplied or products of affiliate enterprise. If it cannot be
repaired, new parts shall be timely replaced for free.
4. Within the warranty period, if one of the following circumstances
occurs,we will provide pay-needed maintenance.
①Components of the product damage or are lost when the customer
is responsible for transportation.
②Customers carry, install, operate, transform or conduct maintenance
without complying with the Operation Instruction.
③The machine is left unused for a long time during the warranty period
so that corrosion, damage, loss, etc. generate
④Due to customer’s own causes.
⑤Failure or damage, such as fire, abnormal voltage, flood etc. caused
by force majeure.
⑥Do not purchase invoice or change and alter invoices without
permission.
⑦Consumables are not covered by the warranty, such as fluorescent
lamp, display lamp, starter, battery of temperature display, glass
and so on.
Ⅵ. About After-sale Service
Description
Purchase date and designation
Status of failure
Address, name and TEL number
Interview date
Showed on the nameplate
Recorded in the guarantee
Knowing the detailed about
the failure
Let targeted person known
Please let we know your
free time
When request ,please make sure the following items
．．．．．．．．．
．．．．．．．．．
．．．．．．．．．
．．．．
．．．
10
⑦The transportation and packing tearing shall be carried out by
professional personnel with protective equipment.
⑧Before transferring the cabinet, please pay attention to that:
(1) When the packing and rubber belts are removed, the packing and
dismantled nails shall be disposed by professional personnel. Please
open the door of the cabinet to change the air.
(2) The cleaning has been completed before the packing and please
clean the inside part of the cabinet again.
(3) Before using the cabinet, please connect to the power for an hour to
confirm that the refrigeration runs normally.
⑨Fixation of the cabinet. Most cabinets in this series use the fixation legs.
When the product is put in the arranged position, it is not easy to move
it. For supporting of cabinets of special models, mobilizable legs can be
used. Before using the cabinet after the cabinet is placed in the arranged
position, the legs shall be adjusted to locking situation, otherwise the
cabinet will move easily and damage other things or hurt people.
⑩Please pay attention to the following content before putting foods in the
cabinet:
(1) Before storing the foods, please pay attention to the validation period
of the foods. The foods which are put firstly shall be taken out firstly.
(2) Hot food cannot be put in before it becomes cool to prevent that the
quality of the surrounding food is reduced.
(3) Please put the food in sealed bags or other sealed containers to prevent
that the flavor is mixed and the food is dried.
(4) This product is suitable for materials for pastry,
⑪Energy Saving
⑤Do not pour water on the cabinet, otherwise short circuit or electric
shock may happen.
⑥Do not throw things in the net rack, otherwise the dropping of the net
rack may damage the cabinet.
scratch the power wire. If the power wire is damaged, electric shock or
fire may be caused. Please take out the stocks and retainers, for the
dropping of these things may cause hurt for people. Please pay enough
attention to the dropping of the cabinet, otherwise hurt may be caused.
③Please do not take food or containers from freezing chamber when
your hands are wet, especially the metal containers, otherwise hurt
may be caused.
④Do not carry the product with hands. Please contact with agency shop
and professional personnel. Please pull the power line off and do not
5

6
(3) When the defrosting is carried out compulsively, press the switche
of [ ] for more than three seconds and the defrosting will be
carried out. After the defrosting is finished, the refrigeration will
begin automatically.
* The temperature sensor is in the air vent of the cabinet.
Range of temperature setting Refrigerated cabinet:-25～-15℃Cabinet freezer:-6～12℃
【Indicating Lights Instructions】
Indicating Light Symbol Status Function
The starting of the compressor is
prolonged.
The starting of the compressor.
The starting of the evaporator
fans is prolonged.
The starting of the evaporator
fans.
Parameter Setting Status
Refrigeration
Indicator
Cooling Fan
Indicator
Setting Indicator
Burn
Steady
Flicker
Flicker
Burn
Steady
Burn
Steady
③①②
Set
the [St] is on, the temperature can be set.
(2) Press the switches of []and [ ]. Observe the indication of ③and
adjust the temperature to required temperature within the temperature
setting range. Press [ ] in The setting is completed .
Instructions
1. On Temperature Setting
(1) Press the switch [Set] for three seconds. (in the setting status, ③when
(1)The opening times and closing times of the door of the cabinet shall
be as less as possible. The time when the door is open shall be as
short as possible. The door should be sealed.
(2) Set suitable temperature. If the refrigeration temperature is not proper,
waste will be caused.
5
13

12
rH
rL
CH
① Whether the door is
closed?
② Whether hot food is
put in?
The temperature in the cabinet is
12℃higher than the set temper-
ature,and the operation under this
temperature has kept on for more
than two hours. The indicated
temperature is the temperature in
the cabinet.
If reason above are excluded and the operation of the cabinet is not
normal or the temperature is indicated as Er, E1, E2, E3, rH, rL, CH,
and dEF, it is considered that the heat detector or other parts are
abnormal. When this kind of problem occur, please contact with the
retailer or consult in the customer’s service window.
Indication Instructions Examination Key Point
The temperature in the cabinet is
1℃lower than the set temperat-
ure,and the operation under thi s
temperature has kept on for more
than two hour. The indicated
temperature is the temperature in
the cabinet.
2. On Defrosting
The cabinet makes use of heater strip to defrost. Microcomputer will
control the defrosting time. When the defrosting is carried out,the
temperature in the cabinet is indicated as [dEF]. The refrigeration will
restart again automatically five minutes after the defrosting is finished.
(With ten minutes after the defrosting has finished, in order preventing
the temperature in the cabinet from increasing, the cooling fan will not
run.)
7
Whether frozen foods
are put in the cabinet
which are melting?
The temperature of the export for
the condenser is more than 63℃
and the condenser has operated
under this temperature for more
than 90 minutes. The indicated
temperature is the temperature in
the cabinet.
①Whether the filter
net is blocked?
②Whether the surro-
unding temperature
is too high?
When defrosting, the temperature in the cabinet will increase in some
degree, which has little effect on the temperature of foods. Therefore,
it is not necessary to take the foods in the cabinet out.
If any situation in the following table occurs, please make examination
according to the corresponding item. Ⅷ. Safety Cautions / Warnings
CP
The temperature of the export for
the condenser is more than 70℃
7

3.Method of Application
Please pay attention not to block
the channel for cool air and guarantee
that the cool air can cycle smoothly.
Caution label
Rotary Standard Plank
For products with mobile middle
column, when the door of the cabinet
is closed, please pay attention to the
warning label in the mobile middle
column. If the label is not towards to the
cabinet, please turn the mobile middle
column for 90°and the close the door.
8
When defrosting, the water flowing from the sides of the units will
be discharged from the accessary exhaust water pipe. If there is
no outfall near the cabinet, please connect the exhaust water pipe
with other pipes and drain the water to the outfall.
During the defrosting or after the defrosting for a short time when
the temperature is the highest, the largest indication or largest
measurement value of the temperature sensor is -3.2℃.
Plastic joint of water pipe
nominal diameter 13A(Non-accessory)
Plastic joint of water pipe
nominal diameter 13A(Non-accessory)
IV. Cleaning and Maintenance
Please keep the refrigerated cabinet clean.
● Cleaning of cabinet body
Use a cloth moistened with mild detergent to wipe off the dirt, then use
a cloth moistened with water to wipe, and lastly wipe dry with a dry cloth.
Do not use cleaning powder, acids, volatile oil, gasoline, thinner, boiled
water and other substances that can cause material damage.
If the performance becomes bad in the progress of use, please check
the following items!
11
Ⅶ. General Failure and Inspection
Not cold at all
Bad cooling
effect
Fault
phenomenon Key point for inspection
•Whether power fails or not.
• Whether the power line plug is inserted in the power
socket or not.
• Whether the leakage circuit breaker works or not
(under the condition of being installed with leakage
circuit breaker
） .
Too loud
sound
Condensation
（Outer
surface）
Cabinet door
cannot close
• Whether the temperature setting is appropriate or not.
• Whether the food blocks the cold air outlet and inlet
or not.
• Whether too much food is put in or not.
• Whether the cabinet door is opened too frequently or
open or not.
• Whether the filter screen of condenser is too dirty or
not.
• Whether the adjustable food contacts with the ground
or not.
• Whether the back contacts with the wall or not.
• Whether the basin or other container falls around or
not.
• In the continuous hot weather, condensation may
form on the outer surface. The reason is that in the
case of high temperature, condensation forms on the
surface when the moisture in the air contacts with
cold substance. This is not a failure. When such
phenomenon occurs, use a dry cloth to wipe clean.
•Whether the cabinet door edge is clamped or not.
•Whether the product leans forward or not.
7
degree, which has little effect on the temperature of foods. Therefore,
it is not necessary to take the foods in the cabinet out.

Magnet
1
1
9
● Filter screen of condenser
Remove it 1~2 times every month for cleaning. When it is very dirty,
please use the neutral detergent to clean.
1. Firstly dismount the fastening screw when the baffle is open. The filter
screen can be dismounted by lifting the grilled door.
2. When the filter screen is dismounted, firstly lift it and then take it out.
● Condenser
Clean once every half a year according to the sequences as shown
below.
1. Please unplug the power plug from the power socket.
2. Grasp the bottom on two sides of grilled door, pull forward to make
it slightly rotate, and lift upward to open the grilled door.
3. Use the brush to brush from top to bottom, thoroughly brushing the
dust. If the condenser filter is removed for cleaning, do not directly
touch the condenser fin, which may cause injury.
●Door seal
If continue to use it under the condition that it is stained with lactic acid
bacteria beverage or seasonings, door edge will be damaged. Do not
forget to clean the door edge and the surface contacted with edge.
●After the maintenance completes, the following inspection shall be
made for safety.
1. Whether the power line plug is completely inserted in the power
socket or not. Whether there is abnormal heating phenomenon or not.
2. IF the supply cord is damaged. It must be replaced by the manufact-
urer, its service agent or similarly qualified persons in order to avold
a hazard.
Ⅴ. Parts
SRR-781HP(AU)
3 3 3 3
12 15 15
3small net racks
3big net racks
Support
SRF-781HP(AU)
SRR-1281HP(AU) SRR-1581HP(AU)
SRF-1281HP(AU) SRF-1581HP(AU)
SRR-1881HP(AU)
SRF-1881HP(AU)
SRR-681HP(AU)
SRF-681HP(AU)
12 30
Net rack
1. Free warranty period：As the product is used as commercial equi-
pment, warranty period of the complete machine is twelve months
since the day of installation, acceptance and delivery or the day that
the customer begins to use.
2. If the machine fails by complying with the instructions for use and
operative precautions, please dial our toll-free number to report for
repair.
3. Within the warranty period, the company provides free repair for the
products supplied or products of affiliate enterprise. If it cannot be
repaired, new parts shall be timely replaced for free.
4. Within the warranty period, if one of the following circumstances
occurs,we will provide pay-needed maintenance.
① Components of the product damage or are lost when the customer
is responsible for transportation.
② Customers carry, install, operate, transform or conduct maintenance
without complying with the Operation Instruction.
③ The machine is left unused for a long time during the warranty period
so that corrosion, damage, loss, etc. generate
④ Due to customer’s own causes.
⑤ Failure or damage, such as fire, abnormal voltage, flood etc. caused
by force majeure.
⑥ Do not purchase invoice or change and alter invoices without
permission.
⑦ Consumables are not covered by the warranty, such as fluorescent
lamp, display lamp, starter, battery of temperature display, glass
and so on.
Ⅵ. About After-sale Service
Description
Purchase date and designation
Status of failure
Address, name and TEL number
Interview date
Showed on the nameplate
Recorded in the guarantee
Knowing the detailed about
the failure
Let targeted person known
Please let we know your
free time
When request ,please make sure the following items
．．．．．．．．．
．．．．．．．．．
．．．．．．．．．
．．．．
．．．
10
