Panasonic SA-VK72DGCS User manual

ORDERNO. MD0506272C3
DVDStereo System
SA-VK72DGCS / SA-VK72DGS
Colour
(S)... Silver Type
SPECIFICATIONS
Specifications
1
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

AMPLIFIER SECTION
RMS Output Power: DolbyDigital Mode
Main
70 Wper channel (6), 1kHz, 10%THD
Surround Ch
55 Wper channel (6), 1kHz, 10%THD
Center Ch
70 Wper channel (6), 1kHz, 10%THD
Total RMS DolbyDigital modepower
320 W
PMPO output power 4000 W
FM/AM TUNER, TERMINALS SECTION
Preset station FM 15 stations
AM 15 stations
FrequencyModulation (FM)
Frequencyrange 87.50 - 108.00 MHz (50 kHz step)
Sensitivity 2.5V (IHF)
S/N 26dB 2.2V
Antennaterminals 75 (unbalanced)
AmplitudeModulation (AM)
Frequencyrange 522 - 1629 kHz (9kHz step)
520 - 1630 kHz (10 kHz step)
AM SensitivityS/N 20dB at 999 kHz
560 V/m
Audioperformance (Amplifier)
Input sensitivity/Input
impedance
Aux 250 mV, 20 k
Phonejack
Terminal Stereo, 3.5mm jack
Micjack
Sensitivity 0.7mV, 600
Terminal Mono, 6.3mm jack (2system)
CASSETTE DECK SECTION
Type Auto-Reverse
Track system 4-Track, 2Channel
HeadRecord/Playback Solidpermalloyhead
Erasure Doublegapferritehead
Motor DC servomotor
Recording System AC Bias 100 kHz
Erasing System AC Erase 100 kHz
TapeSpeed 4.8cm/s
Overall frequencyresponse (+3, -6dB) at DECK OUT
Normal 35 Hz - 14 kHz
S/N Ratio 50 dB (Aweighted)
Wowand Flutter 0.18 %(WRMS)
Fast Forwardand Rewind Time Approx. 120 secondswith
C-60 cassettetape
DISC SECTION
Disc played[8cm or12 cm]
2
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

(1) DVD (DVD-Video, DVD-Audio)
(2) DVD-RAM (DVD-VR, JPEG*4,*5)
(3) DVD-R (DVD-Video)
(4) DVD-RW(DVD-Video)
+ R/RW(Video)
(5) CD,CD-R/RW[CD-DA, VideoCD, SVCD*1, MP3*2,*5, WMA*3,
*5, JPEG*4,*5, HighMATLevel 2(Audioand Image)]
*1Conforming toIEC62107
*2MPEG-1Layer 3, MPEG-2Layer 3
*3WindowsMediaAudioVer.9.0. Class 2A
Not compatiblewithMultipleBit Rate(MBR)
*4Exif Ver 2.1JPEG Baselinefiles
Picture resolution: between160 x120 and 6144 x4096 pixels
(Sub sampling is4:2:2or4:2:0)
*5Thetotal combinedmaximumnumber of recognizableaudio
and picture contentsand groups: 4000 audioand picture
contentsand 400 groups.
Pick up
Wavelength
CD 785 nm
DVD 662 nm
Audiooutput (Disc)
Number of channels 5.1ch(FL,FR,C,SL,SR,SW)
Audioperformance (measurement at: Lineout terminal)
Frequencyresponse
CD-Audio 4Hz to20 kHz (+1dB,-2dB)
VIDEO SECTION
Videosystem
Signal system PAL625/50, PAL525/60, NTSC
Compositevideooutput
Output level 1 Vp-p(75 )
Terminal Pinjack (1system)
S-videooutput
Y output level 1 Vp-p(75 )
C output level 0.3Vp-p(75 ) (PAL)
0.286 Vp-p(75 ) (NTSC)
Terminal S terminal (1system)
Component videooutput
[NTSC: 525 (480)p/525 (480)i, PAL: 625 (576)p/625 (576)i]
Y output level 1 Vp-p(75 )
PBoutput level 0.7Vp-p(75 )
PRoutput level 0.7Vp-p(75 )
Terminal
Pinjack (Y: green, PB: blue, PR: red) (1system)
GENERAL
Power supply
AC 110 to127V/220 to240 V, 50/60Hz
Power consumption 300 W
Power consumption instandbymode:
0.8W(approximate)
Dimensions(WxH xD) 250 x330 x348 mm
3
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Mass 8.8kg
Operating temperature range +5°C to+35°C
Operating humidityrange 5%to90%RH (no
condensation)
SYSTEM
SC-VK72D (GCS) MusicSystem: SA-VK72D (GCS)
Front Speakers: SB-VK72 (GC)
SateliteSpeakers: SB-PT72 (GC)
SC-VK72D (GS) MusicSystem: SA-VK72D (GS)
Front Speakers: SB-VK72 (GC)
SateliteSpeakers: SB-PT72 (GC)
Notes:
1. Specificationsaresubject to changewithoutnotice. Mass and
dimensionsareapproximate.
2. Total harmonicdistortion ismeasured bythedigital spectrum analyzer.
2005 Matsushita ElectricIndustrial Co. Ltd.. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
4
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

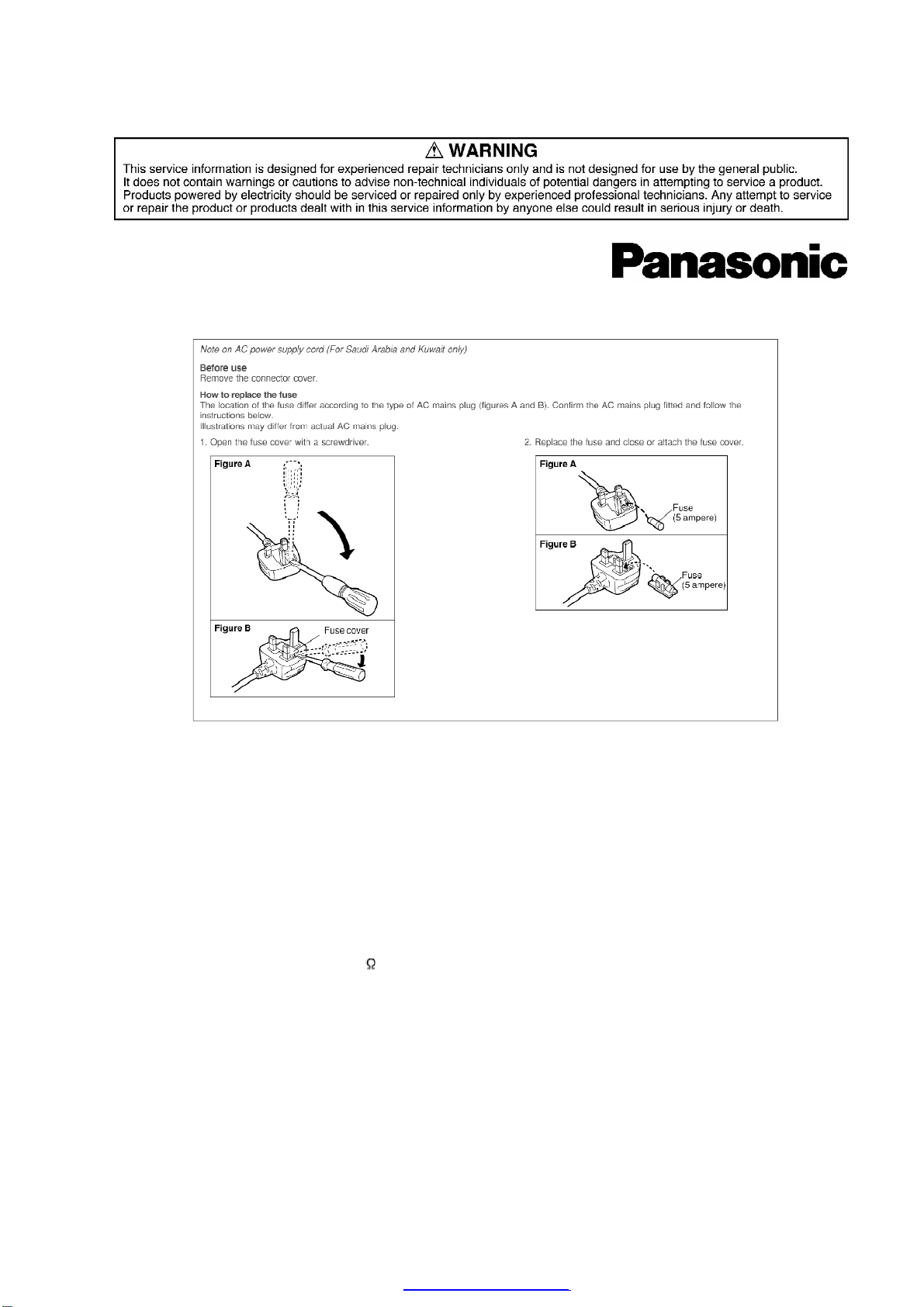

1. Safety precautions for AC Cord (For GS only)
2. Before Use (Caution)
Be sure todisconnect the AC cordbefore adjusting the voltage selector.
Use a minus(-) screwdrivertoset the voltage selector(on the rearpanel) tothe voltage setting
forthe area inwhichthe unit will be used. (If the powersupplyinyourarea is 110-127V or220-
240V.)
Note that this unit will be seriouslydamagedif this setting is not made correctly. (There is no
voltage selectorforsome countries, the correct voltage is alreadyset.)
3. Before Repair and Adjustment
Disconnect AC power, discharge PowerSupplyCapacitors C5815, C5818, C9513, C9533, C9534,
C9816 and C9817 through a 10 , 5W resistortoground.
DO NOTSHORT-CIRCUITDIRECTLY (witha screwdriverblade, forinstance), as this may
destroysolidstate devices.
Afterrepairs are completed, restore powergraduallyusing a variac, toavoidovercurrent.
Current consumption at AC 100/110V at 50/60 Hz & AC 240V at 50Hz inNO SIGNAL(vol. min, at
CD mode) shouldbe ~500mA .
4. Protection Circuitry
The protection circuitrymayhave operatedif eitherof the following conditions are noticed:
5
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-Nosound isheard when the power isturned on.
-Sound stops during aperformance.
The function of this circuitryis toprevent circuitrydamage if, forexample, the positive and
negative speakerconnection wires are
“shorted”, orif speakersystems withanimpedance less thanthe indicatedratedimpedance of
the amplifierare used.
If this occurs, followthe procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once againafter one minute.
Note :
Whenthe protection circuitryfunctions, the unit will not operate unless the poweris first turned
off and thenon again.
5. Safety Precautions
5.1. General Guidelines
1. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
2. After servicing, see to itthat all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to
prevent the customer from being exposed to shock hazards.
5.1.1. Leakage Current ColdCheck
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to the chassis,
the reading shouldbe between 1M and 5.2M .
When the exposed metal does not have areturn path to the
chassis, the reading must be .
Figure 1
6
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5.1.2. Leakage Current Hot Check / (See Figure1)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F
capacitor, between each exposed metallicpart on the set and a
good earth ground such as awater pipe, as showninFigure 1.
3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A
leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
milliamp. Incase ameasurement isout of the limits specified,
there isapossibilityof ashock hazard, and the equipment should
be repaired and rechecked before itisreturned to the customer.
6. Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor(solidstate) devices canbe damagedeasilybyelectricity. Such
components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical
ES devices are integratedcircuits and some field-effect transistors and semiconductor“chip”
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
7
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1. Immediatelybefore handling anysemiconductor component or
semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap, which
shouldbe removed for potential shock reasons prior to applying
power to the unitunder test.
2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as aluminium
foil, to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan anti-staticsolder remover device. Some solder
removal devices not classified as “anti-static(ESDprotected)”
can generate electrical charge to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, aluminium foil or
comparableconductive material).
7. Immediatelybefore removing the protective material from the
leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
Caution
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodymotions when handling unpackaged replacement
ES devices. (Otherwise harmless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricity(ESD)sufficient to
damage an ES device).
8
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

7. Handling the Lead-free Solder
7.1. About lead free solder (PbF)
Distinction of PbF P.C.B.:
P.C.B.s (manufactured) using leadfree solderwill have a PbF stampon the P.C.B.
Caution:
-Pb free solder has ahigher melting point than standard solder;
Typicallythe melting point is50 -70°F (30 -40°C)higher. Please
use ahigh temperature soldering iron. Incase of soldering iron
with temperature control, please set itto 700 ± 20°F (370 ± 10°C).
-Pb free solder will tend to splash when heated too high (about
1100°F/600°C).
-When soldering or unsoldering, please completelyremove all of
the solder on the pins or solder area, and be sure to heat the
soldering points with the Pb free solder until itmelts enough.
8. Precaution of Laser Diode
Caution :
Thisproduct utilizes alaser diode with the unitturned "ON",
invisiblelaser radiation isemitted from the pick up lens. /
Wavelength :785 nm(CD)/662 nm(DVD)/ Maximum output radiation
power from pick up :100 W/VDE
Laser radiation from pick up unitissafetylevel, but be sure the
followings:
1. Donot disassemblethe optical pick up unit, since radiation from
exposed laser diode isdangerous.
2. Donot adjust the variableresistor on the pick up unit. Itwas
alreadyadjusted.
3. Donot look at the focus lens using optical instruments.
4. Recommend not to look at pick up lens for along time.
9
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

CAUTION!
THIS PRODUCTUTILIZES A LASER.
USE OFCONTROLS OR ADJUSTMENTS OR PERFORMANCE OFPROCEDURES OTHER THAN
THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Use of Caution Labels
10
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

11
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

9. Cautions to be taken when handling Optical Pickup
The laserdiode usedinside optical pickup couldbe destroyeddue tostatic electricityas a
potential difference is causedbyelectrostatic loaddischargedfromclothes orhumanbody.
Handling the parts carefullytoavoidelectrostatic destruction during repair.
9.1. Handling Optical Pickup
1. Donot impact on optical pickup as the unitstructurallyuses an
extremelyprecise technology.
2. Short-circuitthe flexiblecableof optical pickup remove from the
circuitboard using ashort-circuitpinor clipinorder to prevent
laser diode from electrostaticdestruction (Refer to Fig. 9.1and
Fig. 9.2)
3. Donot handleflexiblecables forciblyas thismaycause snapping.
Handlethe parts carefully(Refer to Fig. 9.1)
4. Anew optical pickup isequipped with an anti-staticflexiblecable.
After replacing and connecting to the flexibleboard, cut the anti-
staticflexiblecable. (Refer to Fig. 9.1)
Fig. 9.1
9.2. Replacing Precautions for Optical Pickup Unit
DVD/CD Optical Pickup
The optical pickup bywhichpart supplywas carriedout attaches the short cliptothe flexible
boardforlaserdiode electrostatic discharge damage prevention. Please remove the short clip
12
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

and be sure tocheck that the short land is open, before connecting. (Please remove solder,
whenthe short land short-circuits.)
9.3. Grounding for Preventing ElectrostaticDestruction
1. Human bodygrounding
Use the anti-staticwrist strap to discharge the staticelectricity
accumulated inyour body. (Refer to Fig. 9.2)
2. Work place grounding
Place aconductive material (conductive sheet) or iron board
where optical pickup isplaced. (Refer to Fig. 9.2)
Note :
Keep your clothes awayfrom optical pickup as wrist strap does not
release the staticelectricitycharged inclothes.
Fig. 9.2
10. Accessories Remote control
13
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

AC cord
AC cord(ForGS only)
FM antenna
AM antenna
Videocable
14
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

11. Operation Procedures
12. Disc information
13. About HighMAT
13.1. What’sHighMAT?
Consumers worldwide are using PCs tocreate theirowncollections of music, photos and even
videobyburning themontoCDs. But howthese collections canbe experiencedacross different
devices canbe confusing tonavigate, time consuming toaccess fora DVD player, and be
incomplete interms of music information available tothe customer.
HighMAToffers a solution tothis growing consumerproblem. HighMATdramaticallyimproves
the digital media experience on consumerelectronic devices bydelivering a simple,
standardizedapproachthat allows consumers who have createdpersonal collections of digital
music, photographyand videoon theirPC to:
>> Create a HighMATCD orDVD whichcanbe easilyplayedback on consumerelectronics
devices suchas CD and DVD players, and carstereos.
>> Move digital media files (using recordable media suchas CD-R and CD-RW) betweenthe PC
and various playback devices suchas CD and DVD players.
A newstandardforcreating personal media on consumerelectronic devices, HighMATenable
easierand more seamless interoperabilitybetweenWindows PCs and devices designedfor
yourliving room, orthe car.
15
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

13.2. Whytake advantage of HighMAT?
A ProblemDefined:Today, whenconsumers create theirowndigital audio, videoorphoto
collections on CD-R orotherphysical formats, there are numerous, inconsistent ways that
devices readthe data. Forthe consumer, the playback experience canbe confusing:
A Solution Created: HighMATdelivers a betterdigital media access experience bycreating a
standardapproachforPCs tostructure digital media on various physical formats and for
playback devices toreadthe data.
13.3. Benefits of HighMAT?
16
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Conventional HighMAT
Eventhough DVD playeris CD-R/RW compatible, the
inconsistent ways that various DVD players canread
the music orphotos files oftenleads toa confusing
and inconsistant playback experince.
HighMATcompatible products play
content
withconsistent interface. This includes
products
whichare JPEG compatible products
without
HighMATsupport.
17
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

18
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

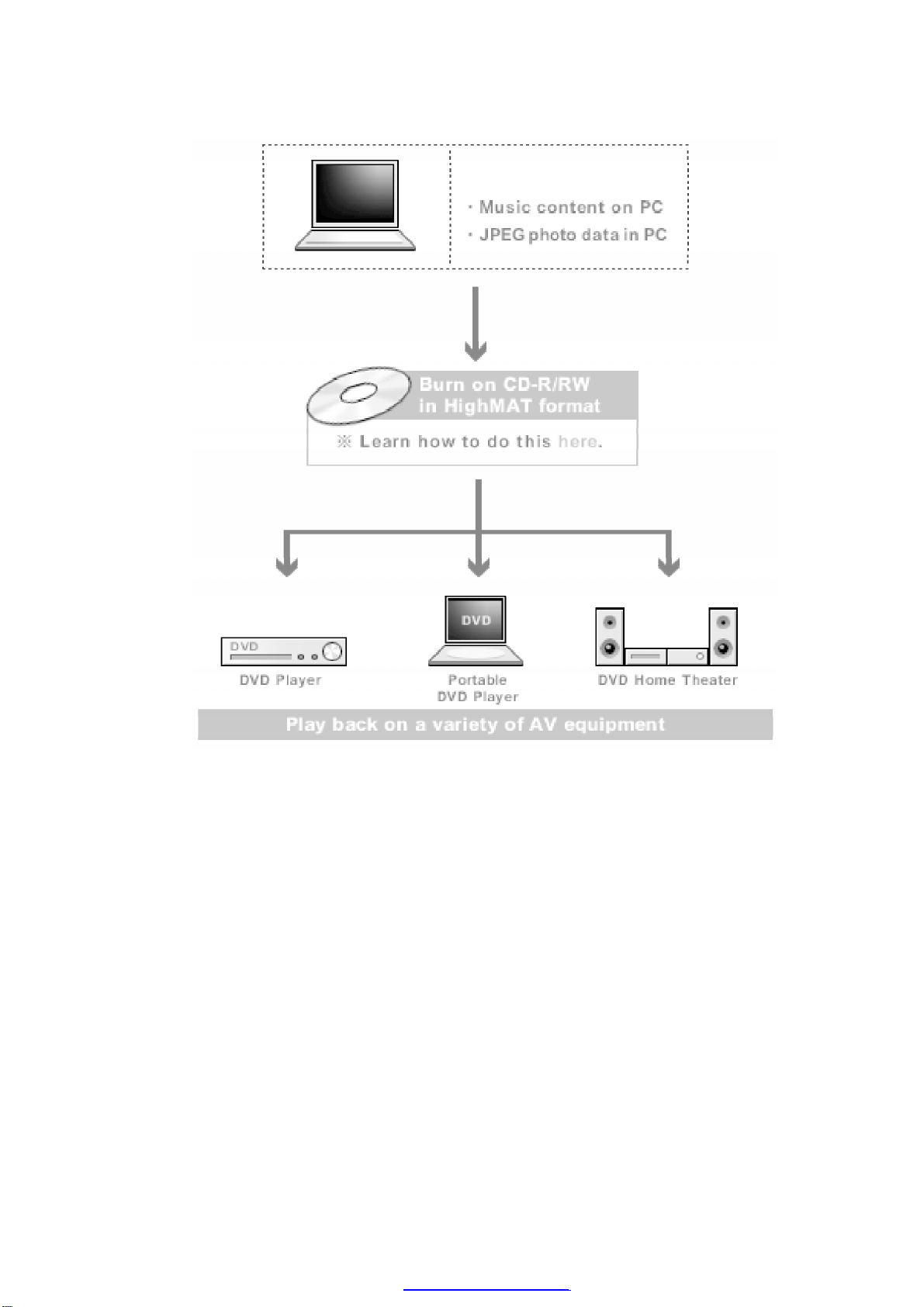

HighMATis nowavailable forCD Burning and inLeading DVD PlayersHighMATis a new
technologythat is nowavailable inleading software and consumerelectronic devices to
dramaticallyimprove the digital media experience whenyou create homemade CDsHighMAT
delivers a simple, standardizedwayforPC software and consumerelectronics devices totalk to
eachotherand work bettertogether.
Whenyou create yourhomemade CDs withsoftware that supports HighMATCD burning, and
thenplaythemback on a DVD playerthat supports HighMAT, you get better, easiernavigation.
You get folders you canaccess witha single click of yourDVD player's remote control. You can
viewimportant information about yourmusic like full song names, artist titles, albumnames
and genre. And you canget fasterstartup on yourhome entertainment device.
To enjoythe benefits of HighMAT, all you needis software that supports HighMATforCD
burning of music orphotos, as well as a home entertainment device like a DVD playerthat
supports HighMATforplayback. Always look forthe HighMATlogo on yoursoftware orhome
entertainment device toensure it supports the HighMATexperience.

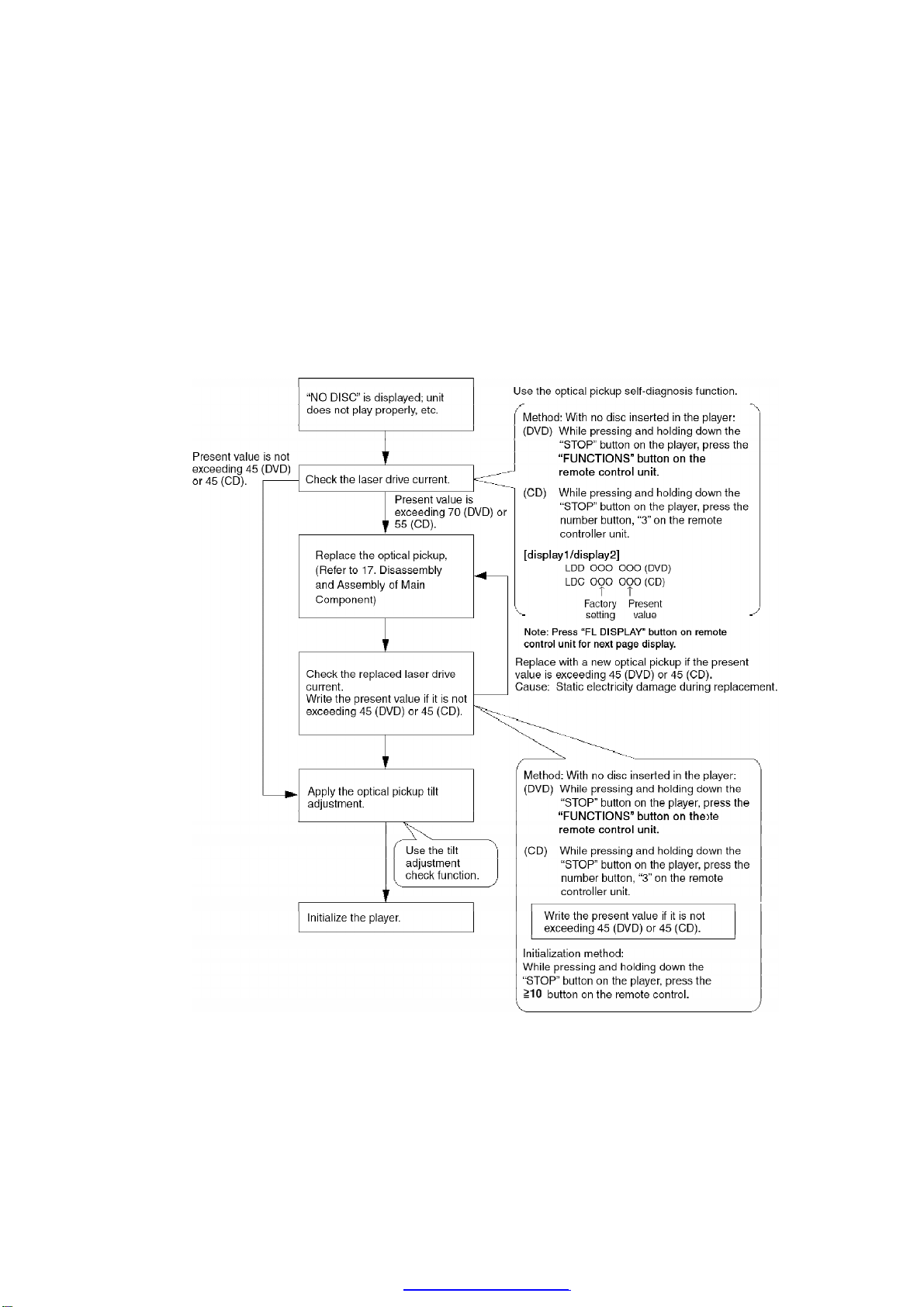

14. Optical Pickup Self-Diagnosis and Replacement
Procedure
14.1. Optical Pickup Breakdowndiagnosis
19
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

This unit is equippedwiththe optical pickup self-diagnosis function and the tilt adjustment
check function. Followthe procedure describedbelowduring repairinordertoperform self-
diagnosis and tilt adjustment effectively. Especiallywhen“NO DISC” is displayed, be sure to
applythe self-diagnosis function before replacing withanoptical pickup. Replacement of
optical pickup generallyrequires whenthe present value of laserdrive exceeds 45 (DVD) or45
(CD).
Note:
Start diagnosis withinthree minutes afterturning on the power(as diagnosis fails whenthe unit
becomes warm).
15. Self-Diagnosis Function
This unit is equippedwiththe self-diagnosis function, whichdisplays anerrorwhenit occurs,
foruse during servicing.
15.1. Entering into Self-DiagnosticMode
20
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
