Panasonic CT 20SX12D User manual

®
®
Color Television
Operating Instructions
CT-20SX12D
TQB2AA0415-1 22603
PRINTED IN USA
Télé-couleur
Manuel d’utilisation
TQB2AA0415-1 22603
IMPRIMÉ AUX ÉTATS-UNIS
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [e-mail] (USA only)
CT-20SX12D

WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND
OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE
MATERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO
ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING
INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE
ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:

T ABLE OF C ONTENTS
1l
Table of Contents
Congratulations.........................................................2
Customer Record ......................................................................2
Care and Cleaning.....................................................................2
Specifications ............................................................................2
Installation..................................................................3
Television Location....................................................................3
Optional Cable Connections......................................................3
AC Power Supply Cord..............................................................3
Cable / Antenna Connection......................................................3
Feature Chart .............................................................4
Optional Equipment Connections ...........................5
VCR...........................................................................................5
Front Control Panel ..................................................................5
Amplifier (TO AUDIO AMP) ......................................................6
Remote Control Operation........................................7
Mode Operational Key Chart ....................................................8
Programming the Remote .......................................................10
Programming With a Code......................................................10
Programming Without a Code.................................................10
Component Codes...................................................................11
Icon Menu Navigation .............................................13
Main Menu Icons......................................................14
Icon Menus..............................................................................14
Icon Menu Operation...............................................15
Set Up......................................................................................15
Picture .....................................................................................17
Timer .......................................................................................18
Audio .......................................................................................19
Channels .................................................................................21
Lock.........................................................................................21
V-Chip Menu Operation...........................................22
U.S. TV Programs ...................................................................22
U.S. Movies.............................................................................24
Rating Systems for Canada.....................................................25
Troubleshooting Chart............................................27
Limited Warranty .....................................................28
Customer Services Directory .................................30
Limited Warranty (Canada).....................................31
Index .........................................................................32
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.

2l
C ONGRATULATIONS
Congratulations
Your new Panasonic Tau television is designed to provide state-of-the-art picture quality and features an innovative pure
flat picture tube. It was thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
• Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.
rDo not use benzene, thinner or other petroleum based products.
Specifications
Specifications are subject to change without notice or obligation.
Power Source
CT-20SX12D (1.4A) 120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Audio Output Jacks 0-2.0V RMS 4.7K Ohm
S-Video Input Jacks S-Video (Y-C) Connector

I NSTALLATION
3l
Installation
Television Location
Follow these recommendations before deciding the location of your television.
rAvoid excessive sunlight or bright lights, including reflections.
rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
rFluorescent lighting may reduce remote control transmitting range.
rKeep away from magnetic equipment, including motors, fans and external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
rUse 75-ohm coaxial shielded cables.
rUse appropriate input and output connectors that match your component connectors.
rAvoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET
AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company.
Note: A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connection
• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.
Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under
ANT.
Polarized plug
75 Ohm VHF/UHF
on back of TV
Incoming Cable from
Cable Company
I
ncom
i
ng
C
a
bl
e
f
rom
Home Antenna

4l
F EATURE C HART
Feature Chart
MODEL
CT-20SX12D
FEATURES
MENU LANGUAGE
ENG/SPAN/FR
r
CLOSED CAPTIONING r
V-CHIP CAPABILITY r
75 OHM INPUT r
VIDEO NORM r
AUDIO NORM r
STEREO r
AI SOUND r
BASS/BALANCE/TREBLE r
SURROUND r
NUMBER OF SPEAKERS 2
A/V IN
(REAR/FRONT) 2
(2/1)
AUDIO OUT r
S-VHS INPUT r
HEADPHONE JACK r
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-
expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (Internet) or repetitive computer style patterns should
be limited.
The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:
• Do not display the fixed image for extended periods of time.
• Turn the power off when not in use.
A/V
JACKS
AUDIO SPECIAL
FEATURES

O PTIONAL E QUIPMENT C ONNECTIONS
5l
Optional Equipment Connections
VCR Connection

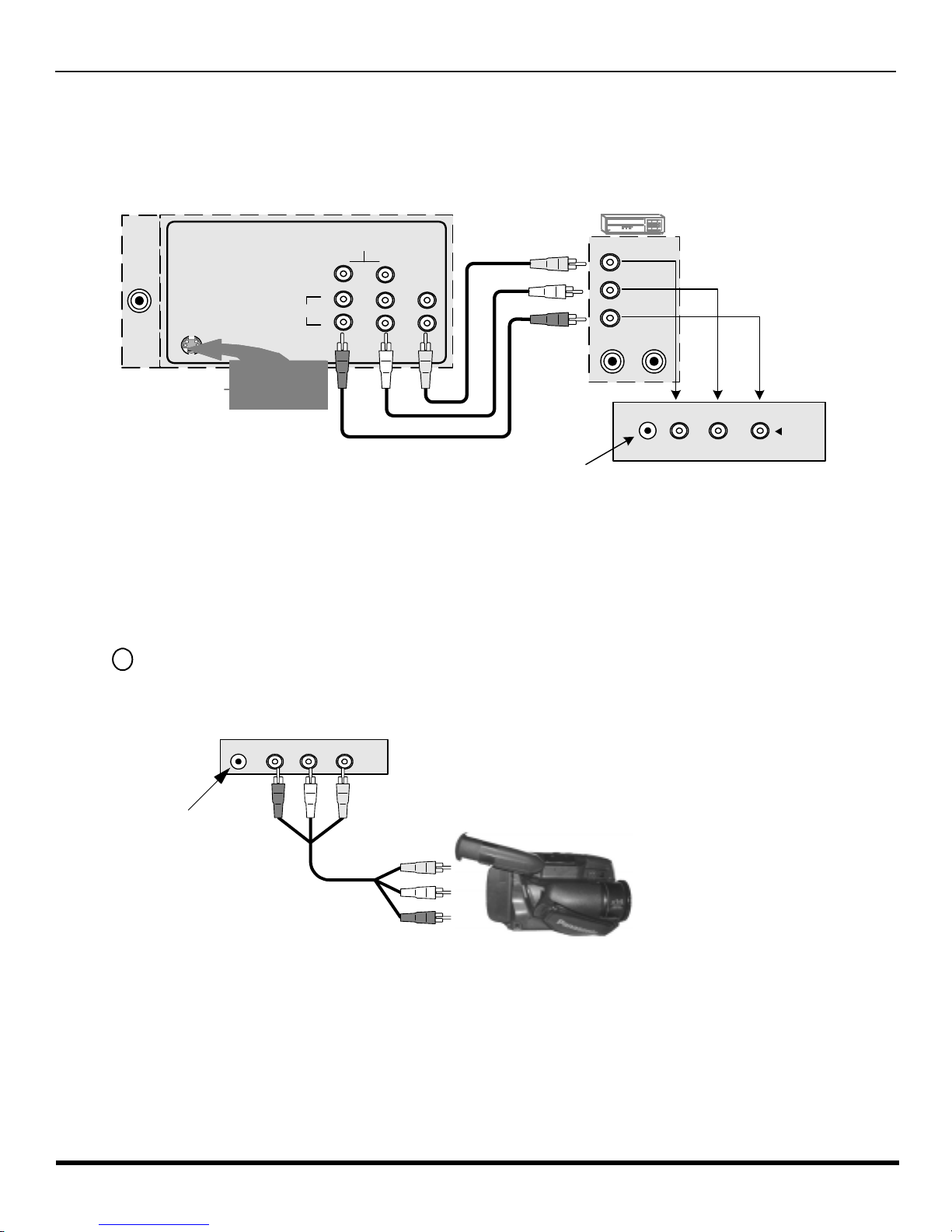

Follow this diagram when connecting your television to a VCR only
Note: The remote control must be programmed with the supplied codes to operate the VCR.
Front Control Panel
Use the front panel of the television to use the TV without remote or to use the Audio/Video input jacks (some models) for
optional equipment.
Press to select VIDEO input mode.
Note: The front control panel can be used to access menus and switch video mode when the remote control is not available.
A second VCR, a video disc player, video game equipment and DSS equipment can also be connected to the video inputs.
See the optional equipment manual for details.
Procedure
1. Connect equipment to front or rear Audio/Video input jacks.
Note: Front and rear Audio/Video connections cannot be operated at the same time.
2. Operate optional equipment as instructed in equipment manual.
TO AUDIO
AMP VIDEO
S-VIDEO
RL
INPUT 2
1
AUDIO
ANT
VCR
TERMINALS ON FRONT OF TV
L
R
ANT IN
VIDEO OUT
AUDIO OUT
ANT OUT
CONNECTIONS ON BACK OF TV
CABLES NOT SUPPLIED
Use either the
S- VIDE O or Video
connection.
Jack used for 1/8"
headphone plug
VIDEO L AUDIO R
t INPUT 2
HPJ
TV/VIDEO
VIDEO L - AUDIO - R
HPJ
FRONT A/V JACKS
CAMCORDER
Jacks used for 1/8”
headphone plug.

6l
O PTIONAL E QUIPMENT C ONNECTIONS

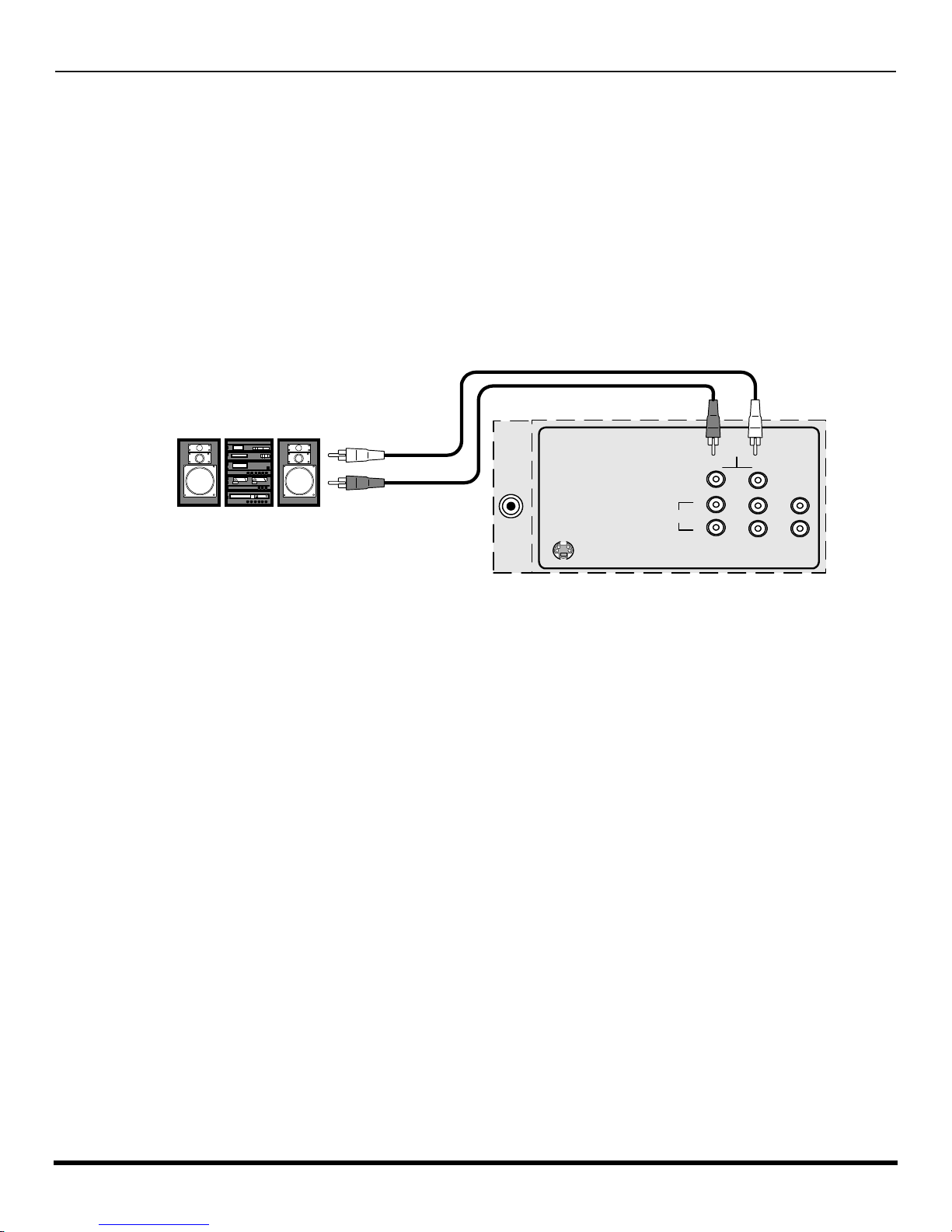

Amplifier Connection (TO AUDIO AMP)
To listen through a separate stereo system, connect an external audio amplifier TO AUDIO AMP outputs on back of
television.
Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.
Audio Adjustments
1. Select SPEAKERS ON located in the onscreen AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust television volume to desired level.
4. Adjust amplifier volume to match the television.
5. Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled through the television.
Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions through the external amplifier.
TO AUDIO
AMP VIDEO
S-VIDEO
RL
INPUT 2
1
AUDIO
ANT
CABLES NOT SUPPLIED
TERMINALS ON BACK OF TV
External Amplifier

R EMOTE C ONTROL O PERATION
7l
Remote Control Operation
POWER
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
*LIGHT
Press to illuminate remote buttons.
TV/VIDEO
Press to select TV, Video mode or FM mode.
Press to select remote operation.
TV
VCR
DBS/CBL
DVD
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOLVOL
RECALL
Press to display time, channel, sleep timer,
and other options.
EXIT
DBS functions button.
GUIDE
DBS functions button.
REW PLAY FF
TV/VCR STOP PAUSE
REC VCR/DBS CH
Component function buttons
u
Press numeric keypad to select any channel.
7
4
1 2
5
8
0
9
6
3
R-TUNE
Press to switch to previously viewed
channel or video mode.
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon
with alkaline).
• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
*To prolong the life for the batteries, turn the light
off and on by pressing R-TUNE and RECALL
buttons, simultaneously.
EUR511502

8l
R EMOTE C ONTROL O PERATION
Mode Operational Key Chart
This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAME TV MODE CABLE MODE DBS MODE
POWER POWER POWER POWER
MUTE MUTE CBL MUTE TV MUTE
TV/VIDEO INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
CHAN UP CHANNEL UP CABLE CHANNEL UP DBS NAVIGATION UP
CHAN DOWN CHANNEL DOWN CABLE CHANNEL DOWN DBS NAVIGATION DOWN
VOL RIGHT VOL + TV VOL + DBS NAVIGATION RIGHT
VOL LEFT VOL - TV VOL - DBS NAVIGATION LEFT
ACTION ACTION ENTER DBS MENU
RECALL DISPLAY TV DISPLAY DBS PROG. INFO
EXIT - - DBS EXIT
GUIDE - - DBS GUIDE
1DIGIT 1 DIGIT 1 DIGIT 1
2DIGIT 2 DIGIT 2 DIGIT 2
3DIGIT 3 DIGIT 3 DIGIT 3
4DIGIT 4 DIGIT 4 DIGIT 4
5DIGIT 5 DIGIT 5 DIGIT 5
6DIGIT 6 DIGIT 6 DIGIT 6
7DIGIT 7 DIGIT 7 DIGIT 7
8DIGIT 8 DIGIT 8 DIGIT 8
9DIGIT 9 DIGIT 9 DIGIT 9
0DIGIT 0 DIGIT 0 DIGIT 0
R-TUNE PREVIOUS CHAN
OR VIDEO MODE CABLE PREVIOUS CHANNEL PREVIOUS DBS CHANNEL
<<REW - - -
PLAY - - -
>>FF - - -
PAUSE - - -
STOP - - -
RECORD - - -
TV/VCR - - -
VCR/DBSCHAN
- - DBS CHANNEL DOWN
VCR/DBS CHAN
- - DBS CHANNEL UP
LIGHT REMOTE BUTTONS

R EMOTE C ONTROL O PERATION
9l
Mode Operational Key Chart (contd.)
KEY NAME VCR
MODE DVD MODE
POWER POWER POWER
MUTE TV MUTE TV MUTE
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH
ACTION -SELECT
CHAN UP -NEXT CHAPTER
CHAN DOWN - PREVIOUS CHAPTER
VOL RIGHT TV VOLUME + NAVIGATION RIGHT
VOL LEFT TV VOLUME - NAVIGATION LEFT
RECALL ONSCREEN VCR
DISPLAY DVD DISPLAY
EXIT - -
GUIDE - -
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
0- -
R-TUNE - -
<<REW VCR REWIND SKIP SEARCH <<
PLAY VCR PLAY DVD PLAY
>>FF VCR FF SKIP SEARCH
FF>>
PAUSE VCR PAUSE DVD PAUSE
STOP VCR STOP DVD STOP
RECORD VCR RECORD -
TV/VCR TV/VCR SWITCH OPEN/CLOSE
VCR/DBS
CHAN VCR CHANNEL
DOWN SLOW -
VCR/DBS
CHAN VCR CHANNEL UP SLOW +
LIGHT REMOTE BUTTONS

10 l
R EMOTE C ONTROL O PERATION
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
• Confirm that the external component is plugged in and operating.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.
• Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Programming Without A Code
This procedure searches all codes and is called the “sequence method.”
• Confirm that the external component is plugged in and on.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control.
• Press to move forward to the next code. Press to move backward.
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code
is found.
• After the code is found, press to store the code.
Default Modes For Remote Control
Device Operates Default
TV TV (Panasonic Only) Panasonic TV Codes
VCR VCR (Preset) Panasonic VCR Codes
DBS DBS (Preset) Panasonic DBS Codes
CABLE CABLE (Preset) Panasonic DBS Codes
DVD DVD, CD (Preset) Panasonic DVD Codes
Helpful Hints: Unsuccessful Code
If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.
ACTION
POWER
POWER
ACTION
POWER
VOL VOL
POWER
ACTION

R EMOTE C ONTROL O PERATION
11 l
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCR
DVD DBS CABLE
Codes For VCR
Brand Code
Admiral 135
Aiwa 127, 132
Akai 114, 115, 116, 129
Audio Dynamic 111, 139
Bell & Howell 105, 113
Broksonic 120, 126
Canon 123, 125
Citizen 106
Craig 105, 106, 129
Curtis Mathes 124, 127, 145
Daewoo 175, 124, 143
DBX 110, 111, 139
Dimensia 145
Emerson 103, 119, 120, 125, 126, 143
Fisher 105, 107, 108, 109, 113
Funai 120, 126, 134
GE 124, 133,145
Goldstar 106
Gradiente 134
Hitachi 100, 123, 145
Instant Replay 123, 124
Jensen 139
JVC 110, 111, 134,139
Kenwood 306, 310, 311, 339
LXI 100, 105, 106,107, 108, 109
Magnavox 123, 124, 131
Marantz 110, 111, 139
Marta 106
Memorex 109, 124
MGA 138, 140, 141, 147,148
Minolta 100,145
Mitsubishi 138, 140, 141, 147, 148
Multitech 104, 147
NEC 110,111, 134, 139
Olympic 123, 124
Optimus 106, 121, 128, 135
Brand Code
Orion 120, 126
Panasonic 121,122, 123, 124
J.C. Penney 100,105, 110, 111, 124, 139, 145
Pentax 100,111, 145
Philco 120, 123, 124, 126, 131, 143
Philips 123, 124, 131
Pioneer 123
Proscan 100, 101, 102, 123, 124, 131, 133,
145, 146
Quasar 121, 122, 123, 124
Radio Shack 105, 109, 124, 133, 136, 140
RCA 100, 101,102, 123, 124, 131, 133,
145, 146
Realistic 105, 109, 124, 136, 140
Samsung 102, 104, 133
Sansui 120, 126, 139, 152
Sanyo 105, 109, 113
Scott 101, 102, 104, 109, 120, 126, 138,
140, 147, 148
Sears 100, 105, 106, 107, 108
Sharp 135, 136
Shintom 117
Signature 2000 135
Singer 117
Sony 128, 129, 130
Sylvania 123, 124, 131
Tashiro 106
Tatung 110, 111, 139
Teac 110, 111, 139
Technics 121, 122, 123, 124
Teknika 124
Toshiba 101, 146
Vector Research 111
Wards 106, 109, 135, 136, 144
Yamaha 105, 110, 111, 139
Zenith 106,144

12 l
R EMOTE C ONTROL O PERATION
Brand Code
ABC 224
Archer 225, 232
Cableview 205, 232
Citizen 205, 222
Curtis 212, 213
Diamond 224, 225, 232
Eagle 229
Eastern 234
GC Brand 205,232
Gemini 222
General
Instrument/
Jerrold 211, 219, 220, 221, 222, 224, 225,
226, 227
Hamlin 212, 218, 240, 241, 242, 245
Hitachi 203, 224
Macom 203, 204, 205
Memorex 230
Movietime 205, 232
Oak 202, 237,239
Panasonic 209, 210, 214
Philips 206, 207, 228, 229, 230
Pioneer 201, 216
Pulsar 205, 232
Brand Code
Denon 100
Ferguson 101
JVC 109
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101
Brand Code
Puser 232
RCA 215
Realistic 232
Regal 212, 218, 240, 241, 242, 245, 249
Regency 234
Rembrandt 205, 232, 237
Samsung 205
Scientific Atlanta 211, 212, 213
Slmark 201, 205
Sprucer 205, 210
Stargate 205, 232
Teleview 201, 205
Texscan 244
Tocom 235, 236, 247
Toshiba 204
Unika 225, 232
Universal 222, 232
Videoway 206
Viewstar 229, 230
Zenith 200, 227
Zenith / Drake
Satellite 200
Brand Code
Saba 101
Samsung 110
Sharp 108
Sony 104
Thomson 101
Toshiba 103
Yamaha 100
Zenith 107
Component Codes (contd.)
Codes for Cable Box
Codes for DVD
Codes for DBS
Brand Code
Panasonic 104
Philips 101, 102
Primestar 108
RCA 106, 109, 110, 113
Sony 107
Toshiba 100
Uniden 101, 102
Brand Code
Dish Network
(Echostar) 105, 115, 116
Echo Star 105
G.E. 106
Gradiente 114
Hitachi 103, 111, 112
HNS (Hughes) 103

I CON M ENU N AVIGATION
13 l

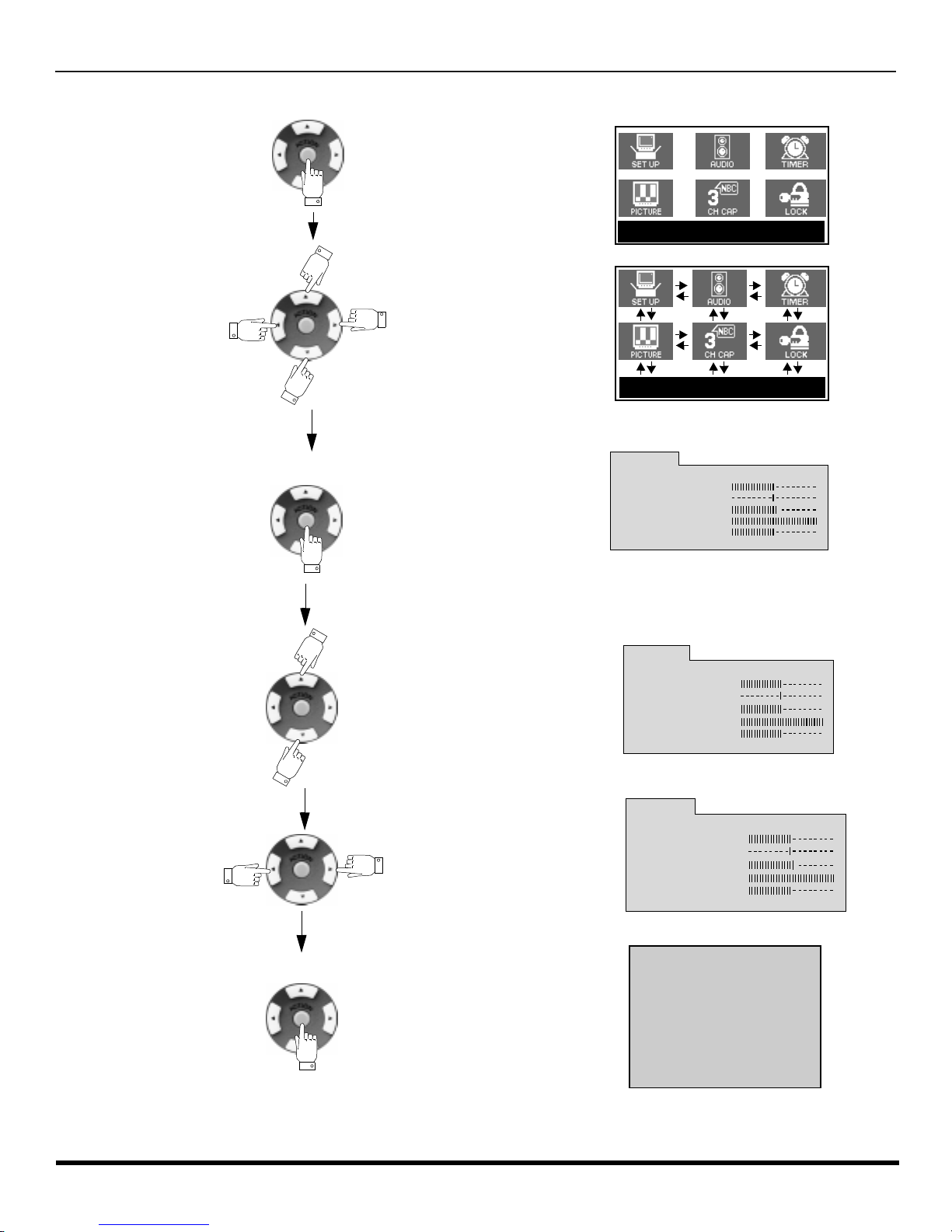

Icon Menu Navigation
Press to display the Icons.
Press to select desired icon.
Press to display selected
Icon features.
Press to select feature.
Press
PICTURE NORM NO
COLOR
TINT
BRIGHTNESS
SHARPNESS
31
32
31
31
63
PICTURE NORM NO
COLOR
TINT
BRIGHTNESS
SHARPNESS
31
31
31
31
63
to adjust or activate feature.
PICTURE NORM NO
COLOR
TINT
BRIGHTNESS
SHARPNESS
31
32
31
31
63
Press repeatedly to exit menus.
NORMAL PICTURE
EXIT
EXIT

14 l
M AIN M ENU I CONS
Icon Menus
These charts list all menus under each Icon and which pages to refer to for menus description.
REFER
TO
PAGE
r ENGLISH, FRANÇAIS, ESPAÑOL
r SET TIME
r ANT (TV or CABLE)
r AUTO PROGRAM
r MANUAL PROGRAM
r AUTO POWER
r CC MODE
15
16
REFER
TO
PAGE
r SLEEP TIMER
r PROGRAM TIMER 18
REFER
TO
PAGE
r MANUAL CAPTION 21
REFER
TO
PAGE
r AUDIO NORM
r BASS
r TREBLE
r BALANCE
r MODE (STEREO, SAP or MONO)
r AI SOUND
r SURROUND
r TV SPEAKERS
19
20
REFER
TO
PAGE
r NORMAL
r COLOR
r TINT,
r BRIGHTNESS,
r PICTURE,
r SHARPNESS
17
REFER
TO
PAGE
r GAME GUARD 21
V-CHIP OPERATION 22
Main Menu Icons
EXIT

I CON M ENU O PERATION
15 l
Icon Menu Operation
SET UP
Note: Refer to page 13 for Icon Menu Navigation procedures.
ENGLISH ESPAÑOL FRANÇAIS (Menu Languages)
In SET UP Menu, select ENGLISH, ESPAÑOL, FRANÇAIS to change menu language to ENGLISH, ESPAÑOL (Spanish)
or FRANÇAIS (French).
rSET TIME - Set the time of the day.
rANT - To select TV (antenna) or CABLE mode depending on the signal source.
rAUTO PROGRAM - To automatically program all channels with a signal.
rPress to select English, Spanish or French.
VOL
SET TIME --:-- AM
ANT CABLE
AUTO PROG NO
MANUAL PROG NO
AUTO POWER ON OFF
CC MODE OFF
ENGLISH ESPAÑOL FRANÇAIS
SET - UP
rPress or to select hours AM or PM.
rPress to select minutes position.
rPress or to select minutes.
VOL VOL
CH
VOL VOL
SET TIME --:-- AM
ANT CABLE
AUTO PROG NO
MANUAL PROG NO
CC MODE OFF
ENGLISH ESPAÑOL FRANÇAIS
SET - UP
rPress to select TV or CABLE.
VOL
SET TIME --:-- AM
ANT  CABLE
AUTO PROG NO
MANUAL PROG NO
AUTO POWER ON OFF
CC MODE OFF
ENGLISH ESPAÑOL FRANÇAIS
SET - UP
rPress to start AUTO PROGRAM.
VOL
SET TIME --:-- AM
ANT CABLE
AUTO PROG  NO
MANUAL PROG NO
AUTO POWER ON OFF
CC MODE OFF
ENGLISH ESPAÑOL FRANÇAIS
SET - UP

16 l
I CON M ENU O PERATION
rMANUAL PROGRAM - To manually add or delete channels.
rAUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components or select OFF.
(Closed Captioning)
This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored
letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.
Mode
Activates the onscreen Closed Caption feature by selecting one of the following modes:
rOFF - When Closed Caption is not desired.
Note: While in OFF mode, press MUTE button to display Closed Caption.
rC1 - For video related information to be displayed, up to 4 lines onscreen at a time. (It does not block relevant parts of the picture).
Text may be in any language.
rC2 - For other modes of video related information.
rPress to display next menu.
VOL
Note: Use and or Remote numeric keypad to
enter channel numbers.
CH CH
SET TIME --:-- AM
ANT CABLE
AUTO PROG   NO
MANUAL PROG NO
AUTO POWER ON OFF
CC MODE OFF
ENGLISH ESPAÑOL FRANÇAIS
SET - UP
t TO DELETE CHANNEL
u TO ADD CHANNEL
p q TO ENTER CHANNEL NUMBER
123
rPress to select OFF or SET.
VOL
SET TIME - - : - - AM
ANT CABLE
AUTO PROG NO
MANUAL PROG NO
AUTO POWER ON OFF
CC MODE OFF
ENGLISH ESPAÑOL FRANÇAIS
SET - UP
CC
CC
CC
rPress to select C1, C2, or OFF.
Note: C1 mode is recommended for viewing Closed Caption.
VOL
SET TIME --:-- AM
ANT CABLE
AUTO PROG   NO
MANUAL PROG NO
AUTO POWER ON OFF
CC MODE  OFF
ENGLISH ESPAÑOL FRANÇAIS
SET - UP

I CON M ENU O PERATION
17 l
Note: Refer to page 13 for Icon Menu Navigation procedures.
In Picture menu select:
rNORMAL - Reset all picture adjustments to factory default settings
rCOLOR - Adjusts desired color intensity.
rTINT - Adjusts natural flesh tones.
rBRIGHTNESS - Adjusts dark areas of picture.
rPICTURE - Adjusts white areas of picture.
rSHARPNESS - Adjusts clarity of outline detail.
rPress to select desired picture adjustment.
rPress or to adjust.
CH
VOL VOL
PICTURE NORM NO
COLOR
TINT
BRIGHTNESS
SHARPNESS
31
31
31
31
63

18 l
I CON M ENU O PERATION
TIMER
Note: Refer to page 13 for Icon Menu Navigation procedures.
Sleep Timer
In TIMER menu, select SLEEP TIMER to turn television off in 30, 60 or 90 minutes. Select NO to turn off timer.
Program Timer
In TIMER menu, select PROGRAM TIMER to turn the television on and off at selected times, on selected channels, and
on selected days.TIME must be entered in SET-UP menu to operate the TIMER features.
Turn Off After 90 Minutes
The television automatically turns OFF after
90 minutes when turned ON by the TIMER.
If the OFF time is selected or if a key is
pressed, the automatic OFF after 90
minutes will be cancelled.
TIMER Activation
The TIMER is active when the television is
OFF or ON. The television will switch to the
selected channel at the selected time set in
the TIMER.
rPress to select 30, 60, 90 or NO.
VOL
TIMER CONTROL
PROGRAM TIMER
ON _ _ : _ _
OFF _ _ :_ _
CHANNEL 3
SET TIME FIRST
SLEEP TIMER NO
rPress to select ON TIME, then press .
rRepeat for setting OFF TIME.
rPress to select ENTER CHANNEL, then press to
select channel.
rPress to select SET, then press to select NO, ONE
DAY or DAILY.
CH
VOL
CH
VOL
CH
VOL
TIMER CONTROL
ON _ _ : _ _
OFF _ _ : _ _
CHANNEL 3
SET TIME FIRST
SLEEP TIMER NO
PROGRAM TIMER
