Panasonic CT-27SX32 User manual

Color Television
Operating Instructions
CT-27SX32
TQB2AA0419-1 21103
PRINTED IN USA
Télé-couleur
Manuel d’utilisation
TQB2AA0419-121103
IMPRIMÉAUXÉTATS-UNIS
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [email protected] (USA only)
CT-27SX32

WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND
OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE
MATERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO
ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING
INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE
ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:

TABLEOFCONTENTS
1?
Table of Contents
Congratulations......................................................... 2
Customer Record ......................................................................2
Care and Cleaning.....................................................................2
Specifications ............................................................................2
Installation.................................................................. 3
Television Location....................................................................3
Optional Cable Connections......................................................3
AC Power Supply Cord..............................................................3
Cable / Antenna Connection......................................................3
Feature Chart ............................................................. 4
Auto Set Up Menu...................................................... 5
Optional Equipment Connections ........................... 6
VCR Connection........................................................................6
Front Control Panel ...................................................................6
Digital TV - Set-Top Box or DVD Player Connection ................7
Amplifier Connection (TO AUDIO AMP) ...................................7
2 Tuner Picture In Picture Operation ....................... 8

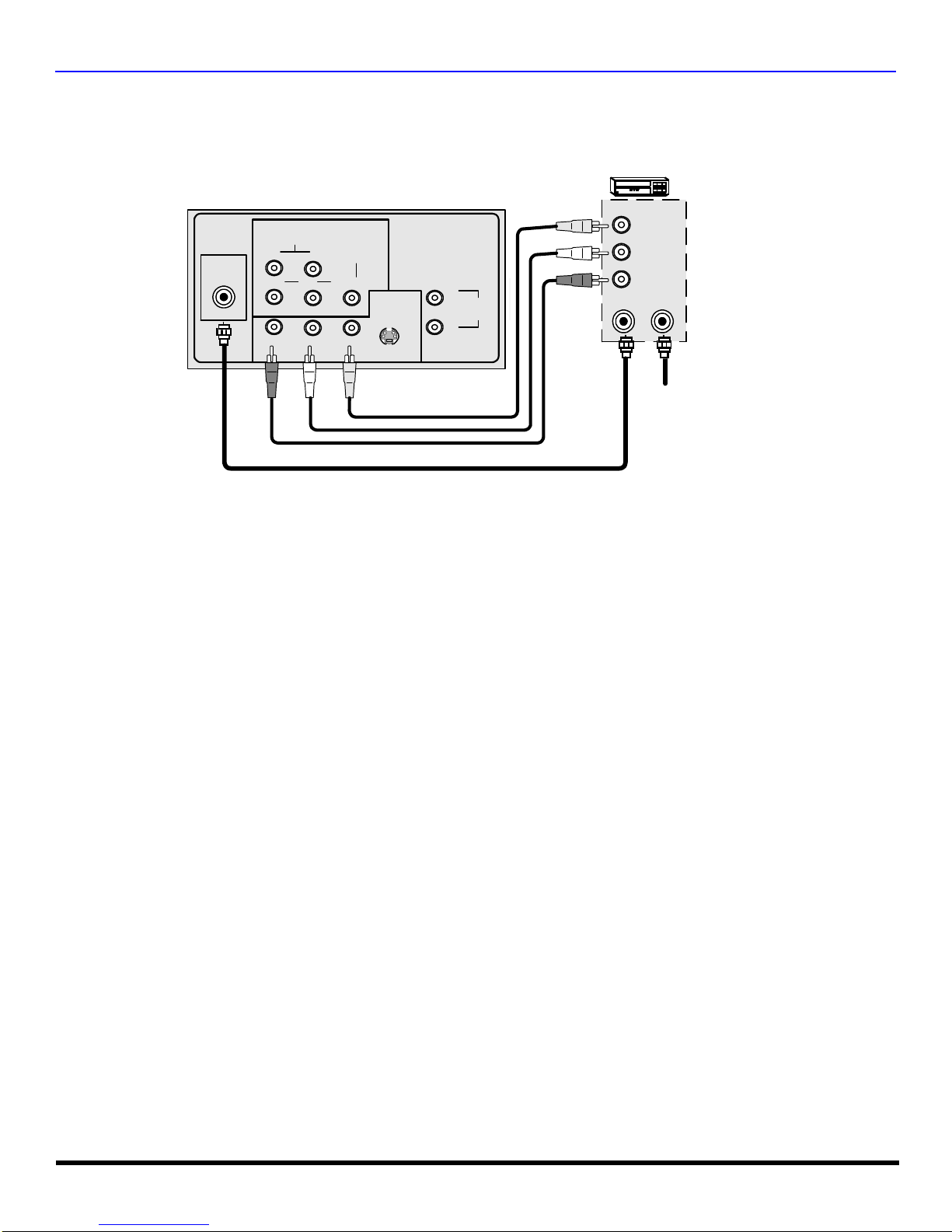

PIP Operation with a VCR and a Cable Box .............................8
PIP Operation with a VCR - No Cable Box................................9

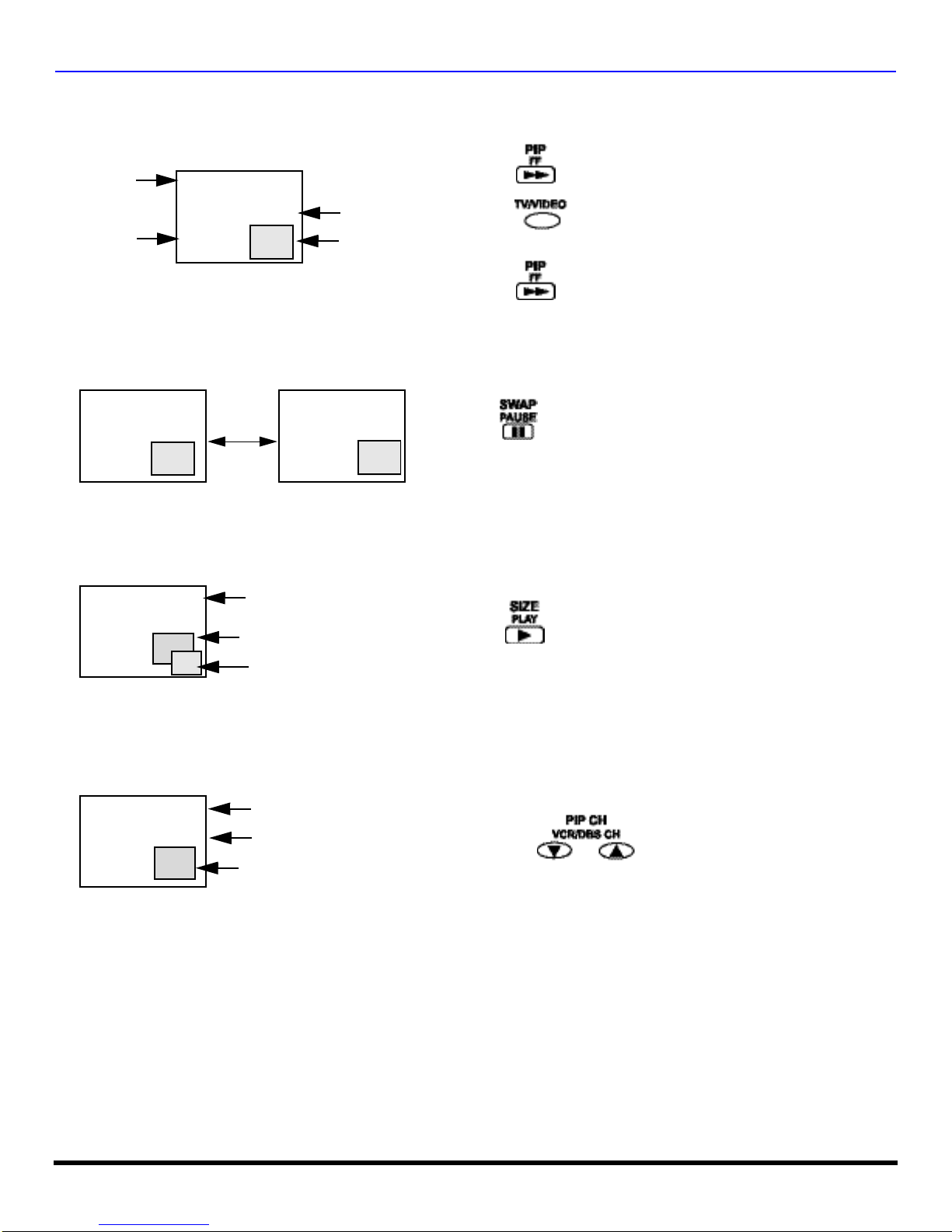

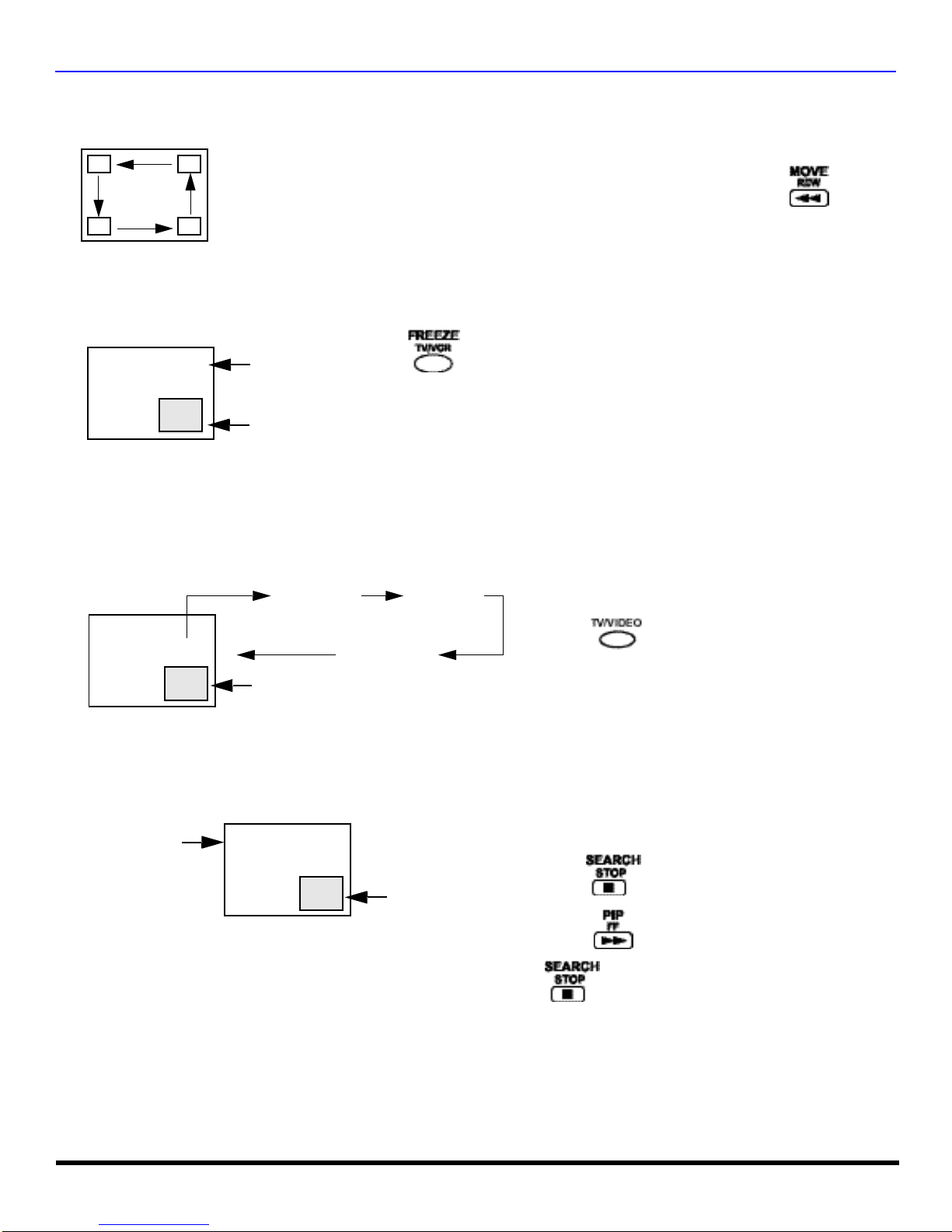

PIP Function Buttons ............................................. 10
Remote Control Operation ..................................... 12
Mode Operational Key Chart ..................................................13
Programming the Remote .......................................................15
Programming With a Code......................................................15
Programming Without a Code.................................................15
Component Codes...................................................................16

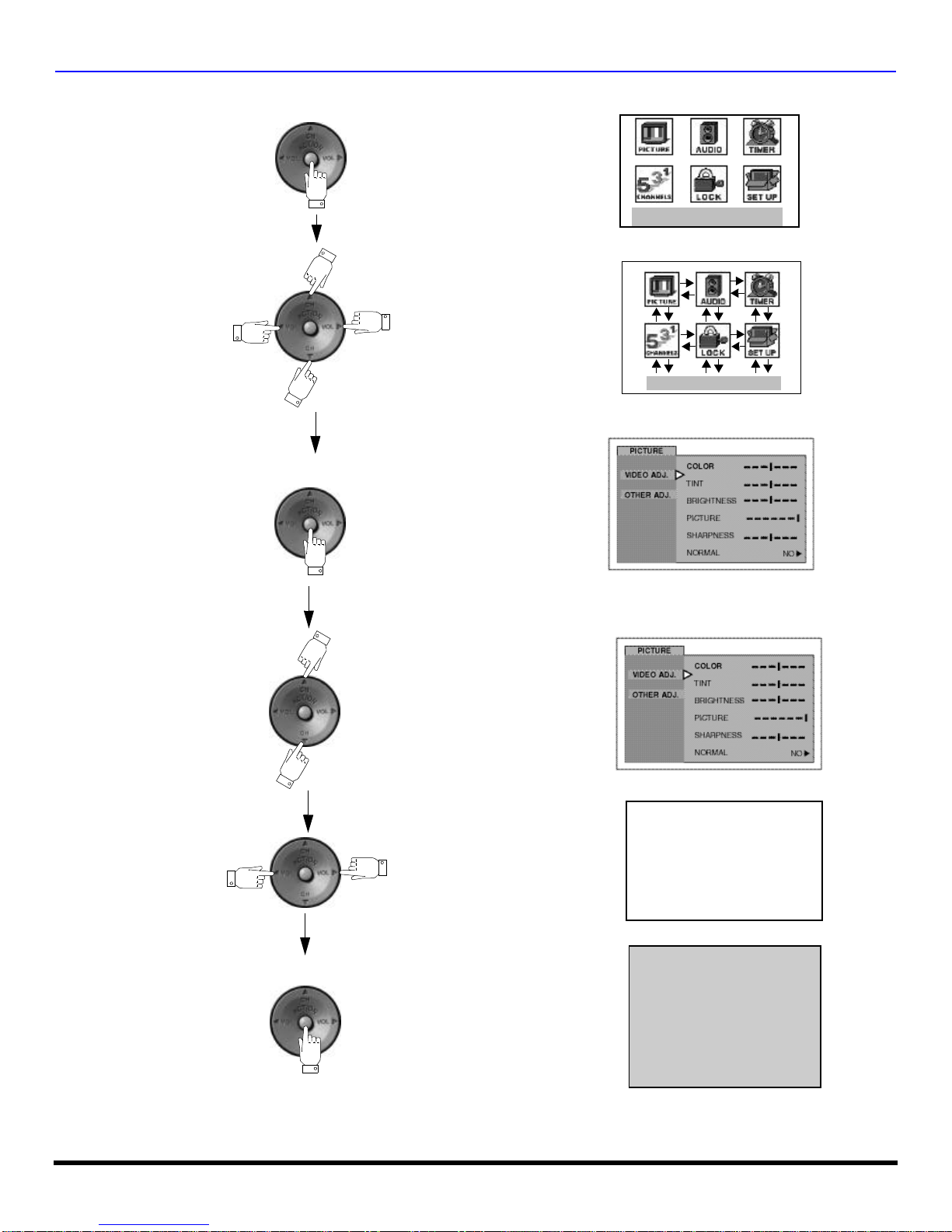

Icon Menu Navigation ............................................. 18
Main Menu Icons...................................................... 19
Icon Menus..............................................................................19
Icon Menu Operation............................................... 20
Set Up......................................................................................20
Picture .....................................................................................22
Timer .......................................................................................22
Audio .......................................................................................23
Channels .................................................................................25
Lock.........................................................................................26
V-Chip Menu Operation........................................... 27
U.S. TV Programs ...................................................................27
U.S. Movies.............................................................................28
Rating Systems for Canada.....................................................30
Troubleshooting Chart............................................ 32
Limited Warranty ..................................................... 33
Customer Services Directory ................................. 35
Limited Warranty (models sold in Canada only) ..36
Index ......................................................................... 37
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.

2?
CONGRATULATIONS
Congratulations
Your new Panasonic Tau television is designed to provide state-of-the-art picture quality and features an innovative pure
flat picture tube. The new dolphin gray cabinet with compact, elegant styling is designed to give you many years of
enjoyment. It was thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
•Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
•Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
?For cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.
?Do not use benzene, thinner or other petroleum based products.
Specifications
Specifications are subject to change without notice or obligation.
Power Source
CT-27SX32 (2.5 A)
CT-27SX32U (2.5 A) 120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Audio Output Jacks 0-2.0V RMS 4.7K Ohm
Component input (Y / PB/ PR)75 Ohms, Phono Jack Type
S-Video Input Jacks S-Video (Y-C) Connector

INSTALLATION
3?

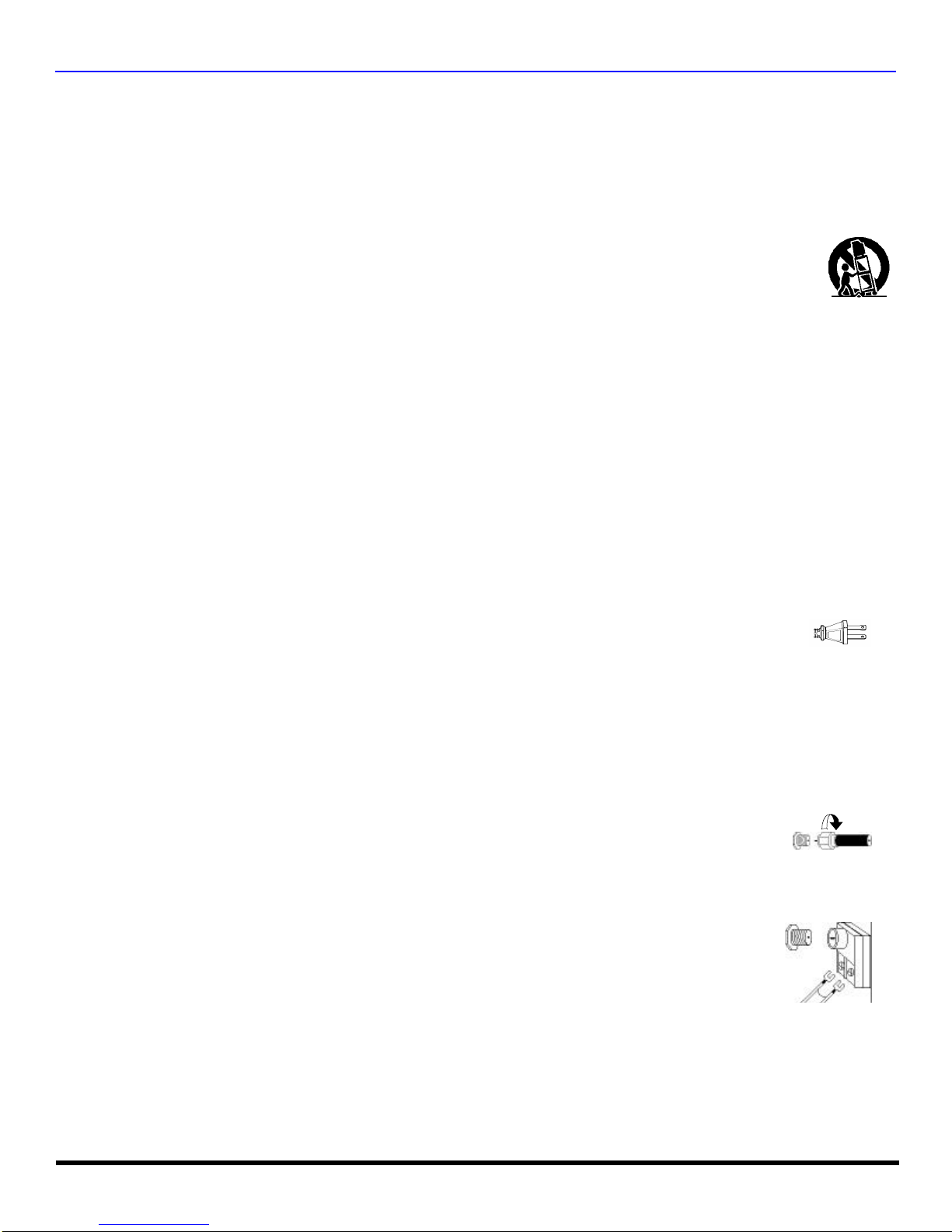

Installation
Television Location
Follow these recommendations before deciding the location of your television.
?Avoid excessive sunlight or bright lights, including reflections.
?Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
?Fluorescent lighting may reduce remote control transmitting range.
?Keep away from magnetic equipment, including motors, fans and external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
CT-27SX32:
CAUTION: This television receiver for use only with PANASONIC TY-27SX31P stand. Use with other carts (or stands) is capable
of resulting in instability causing possible injury.
CT-27SX32U:
CAUTION: This television receiver for use only with PANASONIC TY-27SX31P stand. Use with other carts (or stands) is capable
of resulting in instability causing possible injury.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
?Use 75-ohm coaxial shielded cables.
?Use appropriate input and output connectors that match your component connectors.
?Avoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET
AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company.
Note: A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connection
•For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.
•Connect home antenna to ANT on the back of television.
Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under
Prog Chan.
Polarized plug
75 Ohm VHF/UHF
on back of TV
Incoming Cable from
Cable Company
Incoming Cable from
Home Antenna

4?
FEATURECHARTFeature Chart
MODEL
CT-27SX32
Features
MENU LANGUAGE (ENG/SPAN/FR) ?
2 TUNER PIP ?
VIDEO PICTURE INPUT MEMORY ?
CHANNEL INFO BANNER ?
VIDEO INPUT SKIP ?
75 OHM INPUT ?
V-CHIP CAPABILITY ?
CLOSED CAPTIONING ?
VIDEO NORM ?
AUDIO NORM ?
STEREO ?
BASS/TREBLE/BALANCE ?
SURROUND ?
AI SOUND ?
BBE ?
NUMBER OF SPEAKERS 2
A/V IN
(REAR/FRONT) 3
(2/1)
AUDIO OUT ?
S-VIDEO INPUT
(REAR/FRONT) 2
(1/1)
COMPONENT VIDEO INPUT
(REAR/FRONT) 1
(1/0)
HEADPHONE JACK ?
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR OTHER FIXED
IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed image is not an
operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing of stationary
images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-expanded standard (4:3)
pictures on wide screen TVs (with side bars shown on each side of an image), stock market report bars (ticker
running at the bottom of the screen), video game patterns, fixed scoreboards, bright station logos, on-line (Internet)
or repetitive computer style patterns should be limited.
The extended use of fixed image program material can cause a permanent picture tube damage, shown as a
“shadow image” viewable on normal programs. This type of irreversible picture tube deterioration can be limited by
performing the following steps:
•Do not display the fixed image for extended periods of time.
•Turn the power off when not in use.
A/V JACKS AUDIO SPECIAL FEATURES

AUTOSETUPMENU
5?

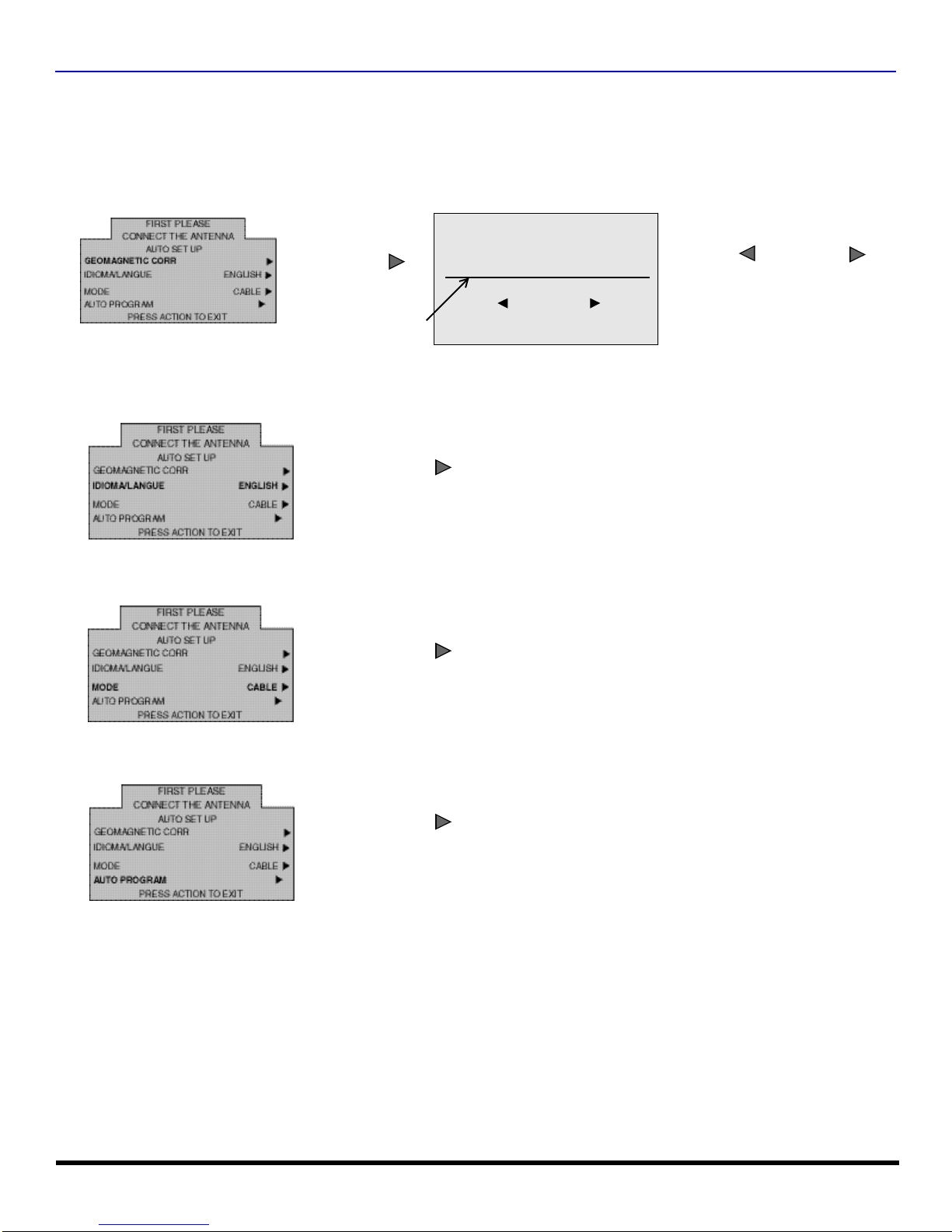

Auto Set Up Menu
For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.
?GEOMAGNETIC CORR - This feature is used to adjust the tilt of the picture due to earth’s magnetic field in the area.
?IDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.
?MODE - To select TV (antenna) or CABLE mode depending on the signal source.
?AUTO PROGRAM - To automatically program all channels with a signal.
?Press to
display sub-menu.
VOL
GEOMAGNETIC CORRECTION
- - - - - - - l - - - - - - -
TO ADJUST
PRESS ACTION TO EXIT
0
tilt adjustment bar
?Press or to
adjust the tilt adjustment bar
until it is parallel to the bottom of
the picture frame.
VOL
VOL
?Press to select English, Spanish or French.VOL
?Press to select TV or CABLE.VOL
?Press to start Auto Programming.
VOL

6?
OPTIONALEQUIPMENTCONNECTIONS
Optional Equipment Connections

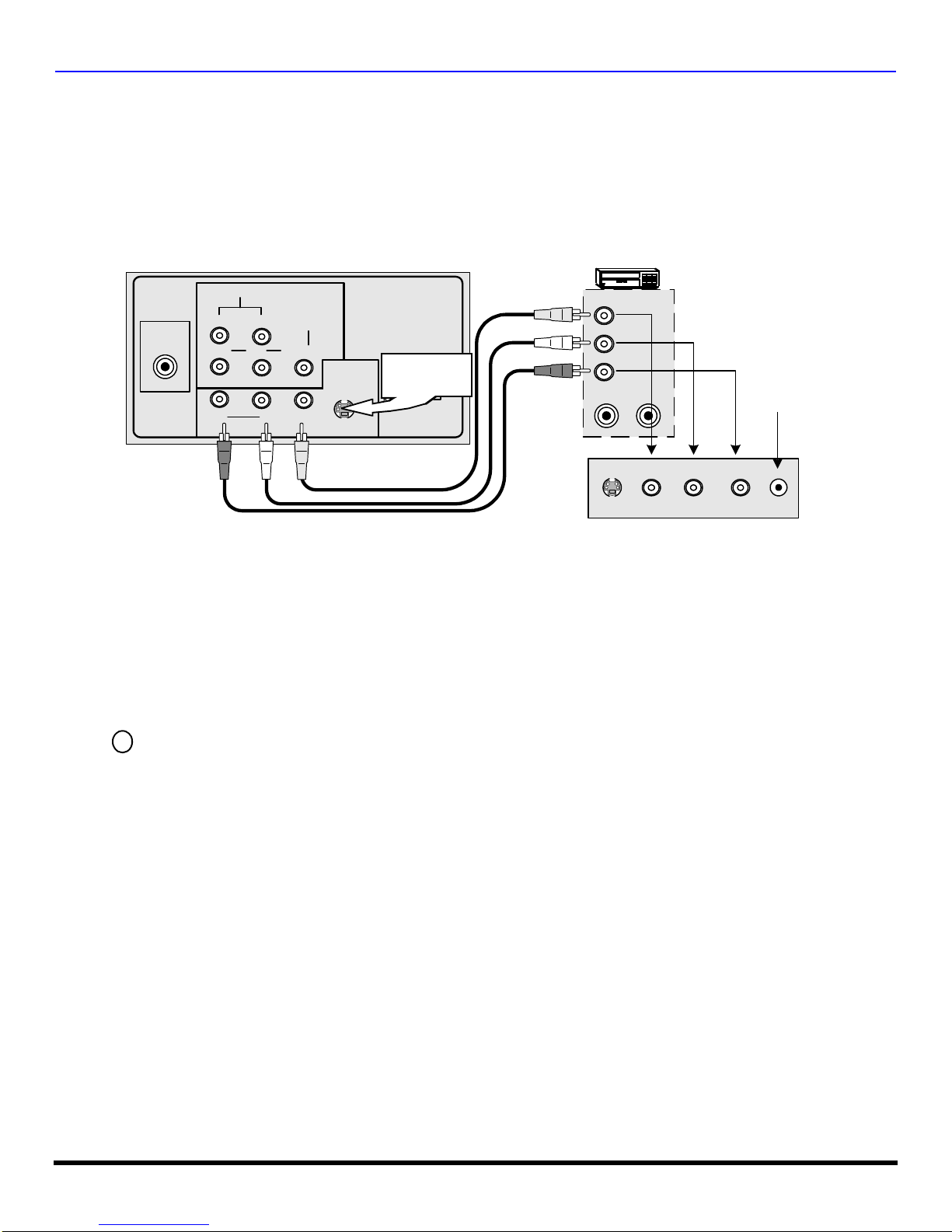

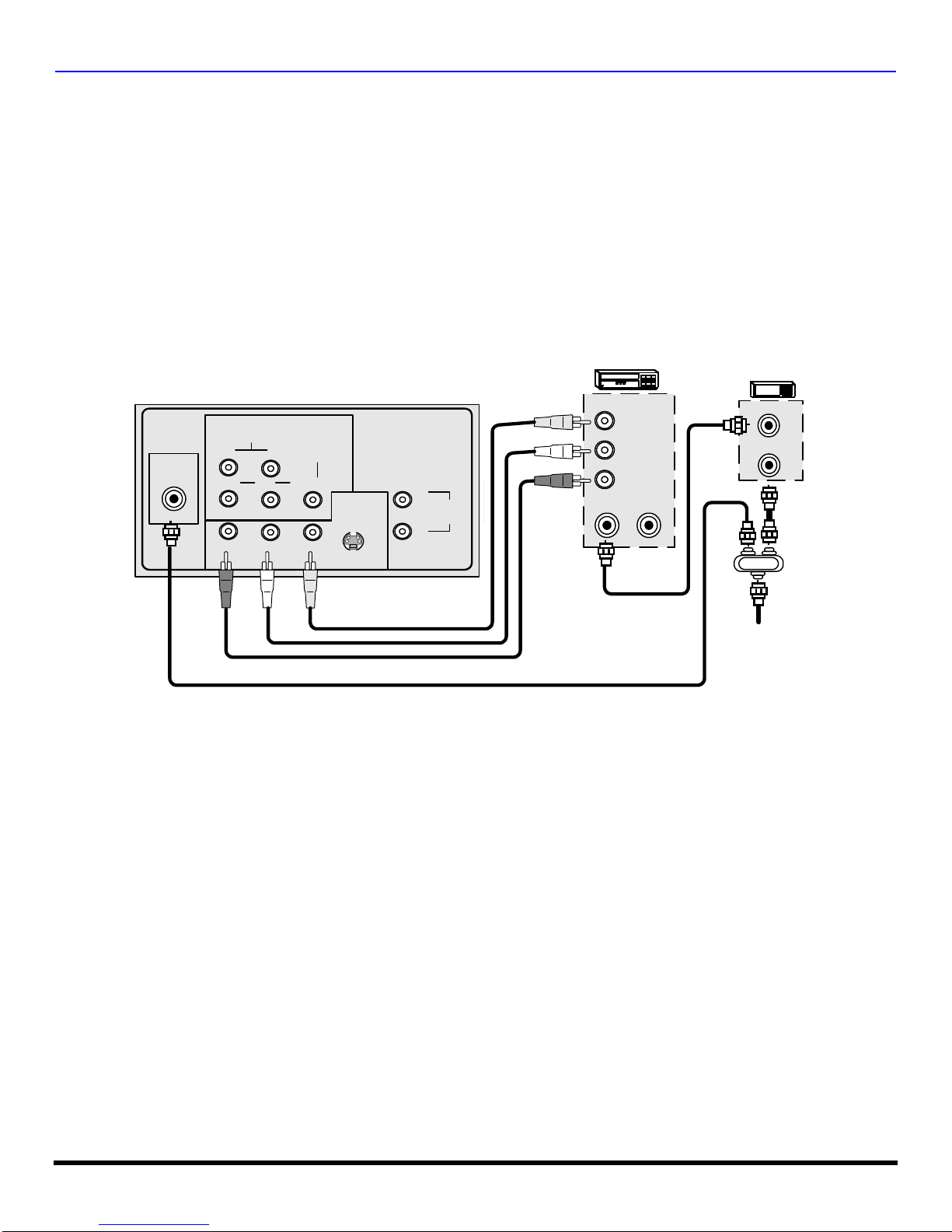

VCR Connection
VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the
optional equipment manual for more information.
INPUT 1 is a dual-purpose input. It is primarily intended for connection with 480i devices such as a DVD player using the Y PBPR
component video jacks and Audio L & R jacks. However, it can also be connected to conventional composite video sources such as a
VCR, using only the Y/Video jack and Audio L & R jacks. The on-screen label will display Component or Video 1 depending on which
source is connected.
Procedure
1. Connect equipment as shown to front or rear Audio/Video input jacks.
2. Select the Video mode by pressing TV/VIDEO button.
3. Operate optional equipment as instructed in equipment manual.
Front Control Panel
Use the front panel of the television to use the TV without remote or to use the Audio/Video input jacks for optional
equipment.
Press to select VIDEO input mode.
Note: The front control panel can be used to access menus and switch video mode when the remote control is not available.
TERMINALS ON FRONT OF TV
Jack used for 1/8"
headphone plug
L
R
ANT IN
VIDEO OUT
AUDIO OUT
ANT OUT
INPUT 3
S-VIDEO VIDEO L AUDIO R HPJ
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV VCR
COMPONENT
VIDEO INPUT
INPUT 1
P
B
P
R
Y/VIDEO
VIDEO
INPUT 2
S-VIDEO R
LTO AUDIO
AMP
ANT
AUDIO
LR
RL
Use either the
S-Video or Video
connection.
TV/VIDEO

FRONTCONTROLPANEL
7?
Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection
Use this diagram to connect the DTV-STB (Digital TV-Set-Top Box) to the back of your TV.
Notes:
?There are three video inputs, Y, PB, and PR. Separate component color inputs provide luminance and color separation. Use the L
(left) and R (right) audio inputs.
?Select DTV-STB to 480i output mode. TV set can receive 480i signal only.
Amplifier Connection (To Audio Amp)
Connect to an external audio amplifier input for listening to a stereo system.
Note: TO AUDIO AMP terminals cannot be connected directly to externalspeakers.
Audio Adjustments
1. Select TV SPEAKERS ON from AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust TV volume to desired level.
4. Adjust amplifier volume to match the TV.
5. Select TV SPEAKERS OFF&VAO from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled from the TV.
Note: In OFF&FAO the volume is controlled by the externalamplifier.
COMPONENT
VIDEO INPUT
INPUT 1
PB PRY/VIDEO
VIDEO
INPUT 2
S-VIDEO R
LTO AUDIO
AMP
ANT
AUDIO
LR
RL
NTSC OUTPUT
R-AUDIO-L VIDE
O
R-AUDIO-L
S-VIDEO
DIGITAL OUTPUT
PBPR
Y
COMPONENT VIDEO INPUT TERMINALS ON BACK OF TV
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
CABLES NOT SUPPLIED
COMPONENT
VIDEO INPUT
INPUT 1
P
B
P
R
Y/VIDEO
VIDEO
INPUT 2
S-VIDEO R
LTO AUDIO
AMP
ANT
AUDIO
LR
RL
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
S-VIDEO
External Amplifier

8?
2 TUNERPICTUREINPICTURE(PIP) OPERATION
2 Tuner Picture In Picture (PIP) Operation
PIP Operation with a VCR and a Cable Box
This television includes a two tuner Picture In Picture (PIP) feature. This allows watching two (2) live broadcasts at the
same time with or without an external video source (VCR).
Without a VCR (External Video Source)
Procedure
1. Connect incoming cable to antenna (ANT) input on back of TV.
2. Press the PIP button on the Remote Control to display the PIP frame.
Note: Audio is for the Main Picture (left) only.
3. Choose channels for the PIP frame by pressing the Remote control PIP CHANNEL up/down buttons.
4. Choose channels for the main Picture by pressing the Remote Control CH up/down buttons or by using the numeric keypad.
With a VCR (External Video Source) and Cable Box
Connect your television to a VCR and Cable Box, as shown.
Note: The Remote Control must be programmed with supplied codes to operate the VCR and Cable Box.
Procedure
Press the PIP button on the Remote Control to display the PIP frame.
To view scrambled channels through your Cable Box in the PIP frame:
1. Press the TV/VIDEO button on the Remote Control to select the same video input to which your cable box is connected.
2. Verify that the CABLE BOX and VCR are ON and the VCR tuned to channel 3.
3. Choose channels for the PIP frame by pressing the CBL button on the Remote Control and using the numeric keypad or CH
up/down buttons.
4. Choose channels for the Main Picture by pressing the TV button on the Remote Control and using the numeric keypad or CH
up/down buttons.
Note: The SWAP button switches the on screen PIP and Main Picture source. Press the RECALL button for PIP and Main Picture
source status.
Incoming Cable
VCR
COMPONENT
VIDEO INPUT
INPUT 1
AUDIO L
PB PRY/VIDEO
RLVIDEO
INPUT 2
S-VIDEO
R
R
LTO AUDIO
AMP
ANT
CONNECTIONS ON BACK OF TV
CABLES NOT SUPPLIED
L
R
ANT IN
VIDEO OUT
AUDIO OUT
ANT IN
ANT OUT
CABLE BOX

2 TUNERPICTUREINPICTURE(PIP) OPERATION
9?
2 Tuner PIP Operation with a VCR - NO Cable Box
This television includes a two tuner Picture In Picture (PIP) feature. This allows viewing two (2) live broadcasts at the same
time with or without an external video source (VCR).
Connect your television to a VCR, as shown.
Note: The Remote Control must be programmed with the supplied codes to operate the VCR.
Procedure
Press the PIP button on the Remote Control to display the PIP frame on screen.
Note: The audio is from the Main Picture only.
To view an external video source in the PIP frame:
1. Press the TV/VIDEO button on the Remote Control to select the same video input to which your VCR is connected.
2. Verify that the VCR is on.
3. Choose channels for the Main Picture by pressing the TV button on the Remote Control and using the numeric keypad or CH
up/down button.
4. Choose channels for the PIP frame by pressing the VCR button on the Remote Control and using the VCR/DBS CH up/down
buttons.
Note: The SWAP button switches the PIP and Main Picture source. Press the RECALL button for on screen PIP and Main
Picture source status.
L
R
ANT IN
VIDEO OUT
AUDIO OUT
COMPONENT
VIDEO INPUT
INPUT 1
AUDIO L
PB PRY/VIDEO
RLVIDEO
INPUT 2
S-VIDEO
R
R
LTO AUDIO
AMP
ANT
CONNECTIONS ON BACK OF TV
CABLES NOT SUPPLIED
VCR
Incoming
Cable

10 ?
PIP FUNCTIONBUTTONS
PIP Function Buttons
PIP (Picture-in-Picture) Button
Swap Button
Size Button
PIP Channel Buttons
CH 2
PIP VIDEO 1
Main
with
Audio PIP Frame
PIP Video Source
or
PIP CH #
Main Picture
Channel ?Press to display PIP frame.
?Press while PIP frame is displayed to select desired input
mode.
?Press again to cancel the PIP feature.
Note: Audio is from Main Picture only
CH 2
PIP VIDEO 1
VIDEO 1
PIP CH 2
INPUT:
?Press (when PIP frame is displayed) to interchange the main
picture with the picture in the PIP frame.
Small PIP frame
?Press (when PIP frame is displayed) to choose either the
large or small PIP frame.
Main Picture
Large PIP frame
PIP CH #
Main Picture
PIP frame
PIP channel ?Press the while PIP frame is displayed to scan
through channels.

PIP FUNCTIONBUTTONS
11 ?
PIP Function Buttons (contd.)
Move Button
Freeze Button
TV/VIDEO Button
Search Button
?The PIP frame may be placed at any corner of the Main Picture by pressing the button.
Each time the MOVE button is pressed, the PIP frame will move counterclockwise as illustrated.
Main
PIP
Frame
PIP CH #
?Press to stop action in the Main or PIP frame.
Note: •Pressing FREEZE button when PIP frame is not displayed, will display a
snapshot image of the main picture in the PIP frame.
•Pressing FREEZE button when PIP frame is displayed, will freeze the
action in the PIP frame. Press the FREEZE button again to continue
action.
PIP Frame
PIP CH #
PIP VIDEO 1 PIP VIDEO 2
PIP VIDEO 3 ?Press while PIP frame is displayed to
select desired input mode.
Search Frame
?This feature lets you scan through all available
channels.
?Press to display search frames.
?Press to stop search frame or press
to delete search frame.
Main Picture

12 ?
REMOTECONTROLOPERATION
Remote Control Operation
POWER
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
SAP
Press to access second audio program.
TV/VIDEO
Press to select TV or Video mode.
Press to select remote operation.
TV
VCR
DBS/CBL
DVD
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOLVOL
EXIT
DBS functions button.
GUIDE
DBS functions button.
MOVE
REW SIZE
PLAY PIP
FF
SWAP
PAUSE SEARCH
STOP REC
FREEZE
TV/VCR PIP CH
VCR /DBS CH
Component function buttons
?
Press numeric keypad to select any channel.
7
4
1 2
5
8
0
9
6
3
R-TUNE
Press to switch to previously viewed
channel or video mode.
EUR511502
EUR7613Z30
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up neararrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control
Precautions
•Replace batteries in pairs.
•Do not mix battery types (zinc carbon
with alkaline).
•Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
PROG
Press to enter minor number in a compound
number.
RECALL
Press to display time, channel, sleep timer,
and other options.
MENU
Press to access DBS or DVD menus.

REMOTECONTROLOPERATION
13 ?
Mode Operational Key Chart
This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAME TV MODE CABLE MODE DBS MODE
POWER POWER POWER POWER
SAP SAP ON/OFF -STB AUDIO TRACK
MUTE MUTE CBL MUTE TV MUTE
TV/VIDEO INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
MENU - -DBS MENU
CH ?CHANNEL UP CABLE CHANNEL UP DBS NAVIGATION UP
CH ?CHANNEL DOWN CABLE CHANNEL DOWN DBS NAVIGATION DOWN
VOL ?VOL + TV VOL + DBS NAVIGATION RIGHT
? VOL VOL - TV VOL - DBS NAVIGATION LEFT
ACTION ACTION ENTER DBS MENU
RECALL DISPLAY TV DISPLAY DBS PROG. INFO
EXIT - - DBS EXIT
GUIDE - - DBS GUIDE
1DIGIT 1 DIGIT 1 DIGIT 1
2DIGIT 2 DIGIT 2 DIGIT 2
3DIGIT 3 DIGIT 3 DIGIT 3
4DIGIT 4 DIGIT 4 DIGIT 4
5DIGIT 5 DIGIT 5 DIGIT 5
6DIGIT 6 DIGIT 6 DIGIT 6
7DIGIT 7 DIGIT 7 DIGIT 7
8DIGIT 8 DIGIT 8 DIGIT 8
9DIGIT 9 DIGIT 9 DIGIT 9
0DIGIT 0 DIGIT 0 DIGIT 0
R-TUNE PREVIOUS CHAN
OR VIDEO MODE CABLE PREVIOUS CHANNEL PREVIOUS DBS CHANNEL
PROG - - DBS PROGRAM
<<MOVE
REW TV PIP MOVE - -
SIZE/PLAY TV PIP SIZE - -
>>PIP
FF TV PIP ON / OFF - -
SWAP/PAUSE TV PIP SWAP - -
SEARCH/STOP TV PIP SEARCH - -
RECORD VCR RECORD - -
FREEZE/TV/VCR TV PIP FREEZE - -
PIP CH
VCR/DBS CH
TV PIP CHANNEL DOWN -DBS CHANNEL DOWN
PIP CH
VCR/DBS CH
TV PIP CHANNEL UP -DBS CHANNEL UP

14 ?
REMOTECONTROLOPERATION
Mode Operational Key Chart (contd.)
KEY NAME VCR
MODE DVD MODE
POWER POWER POWER
SAP - -
MUTE TV MUTE TV MUTE
MENU - -
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH
CHAN ?-NEXT CHAPTER
CH ?- PREVIOUS CHAPTER
VOL ?TV VOLUME + NAVIGATION RIGHT
? VOL TV VOLUME - NAVIGATION LEFT
ACTION - -
RECALL ONSCREEN VCR
DISPLAY DVD DISPLAY
EXIT - -
GUIDE - -
PROG - -
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
0- -
R-TUNE - -
<<MOVE
REW VCR REWIND SKIP SEARCH REW <<
SIZE/PLAY VCR PLAY DVD PLAY
>>PIP/FF VCR FF SKIP SEARCH FF>>
SWAP/PAUSE VCR PAUSE DVD STILL
SEARCH/STOP VCR STOP DVD STOP
RECORD VCR RECORD -
FREEZE/TV/VCR TV/VCR SWITCH OPEN/CLOSE
PIP CH
VCR/DBS CH
VCR CHANNEL
DOWN SLOW -
PIP CH
VCR/DBS CH
VCR CHANNEL UP SLOW +
DVD MODEE

REMOTECONTROLOPERATION
15 ?
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for TV, VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
•Confirm that the external component is plugged in and operating.
•Turn the component off.
•Press and together, for at least 5 seconds.
•Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.
•Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).
•Press the Remote Control to test the component. If the procedure was successful, the component will turnon.
Programming Without a Code
This procedure searches all codes and is called the “sequence method.”
•Confirm that the external component is plugged in and on.
•Turn the component off.
•Press and together, for at least 5 seconds.
•Press appropriate component button on the Remote Control.
•Press to move forward to the next code. Press to move backward.
•Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code
isfound.
•After the code is found, press to store the code.
Default Modes For Remote Control
Device Operates Default
TV TV (Panasonic Only) Panasonic TV Codes
VCR VCR (Preset) Panasonic VCR Codes
DBS DBS (Preset) Panasonic DBS Codes
CABLE CABLE (Preset) Panasonic DBS Codes
DVD DVD, CD (Preset) Panasonic DVD Codes
Helpful Hints: Unsuccessful Code
If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.
ACTION
POWER
POWER
ACTION POWER
VOL
VOL
POWER
ACTION

16 ?
REMOTECONTROLOPERATION
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCR DVD DBS CABLE
Brand Code
Admiral 335
Aiwa 332
Akai 314, 315, 316, 329
Audio Dynamic 311, 339
Bell & Howell 305, 313
Broksonic 320, 326
Canon 323, 325
CCE 343
Citizen 306
Craig 305, 306, 329
Curtis Mathes 324, 345
Daewoo 301, 324, 343
DBX 310, 311, 339
Dimensia 345
Emerson 303, 319, 320, 325, 326, 343
Fisher 305, 307, 308, 309, 313
Funai 320, 326, 334
GE 324, 333, 345
Goldstar 306
Gradiente 334
Hitachi 300, 323, 345
Instant Replay 323, 324
Jensen 339
JVC 310, 311, 334,339
Kenwood 306, 310, 311, 339
LXI 300, 305, 306,307, 308, 309
Magnavox 323, 324, 331
Marantz 310, 311, 339
Marta 306
Memorex 309, 324
MGA 338, 340, 341, 347,348
Minolta 300, 345
Mitsubishi 338, 340, 341, 347, 348
Multitech 304, 347
NEC 310,311, 334, 339
Olympic 323, 324
Optimus 306, 321, 328, 335
Brand Code
Orion 320, 326
Panasonic 321,322, 323, 324
J.C. Penney 300,305, 310, 311, 324, 339, 345
Pentax 300,311, 345
Philco 320, 323, 324, 326, 331, 343
Philips 323, 324, 331
Pioneer 323
Proscan 300, 301, 302, 323, 324, 331, 333,
345, 346
Quasar 321, 322, 323, 324
Radio Shack 305, 309, 324, 333, 336, 340
RCA 300, 301,302, 323, 324, 331, 333,
345, 346
Realistic 305, 309, 324, 336, 340
Samsung 302, 304, 333
Sansui 320, 326, 339, 352
Sanyo 305, 309, 313
Scott 301, 302, 304, 309, 320, 326, 338,
340, 347, 348
Sears 300, 305, 306, 307, 308
Sharp 335, 336
Shintom 317
Signature 2000 335
Singer 337
Sony 328, 329, 330
Sylvania 331, 324, 331
Tashiro 306
Tatung 310, 311, 339
Teac 310, 311, 339
Technics 321, 322, 323, 324
Teknika 324
Toshiba 301, 346
Vector Research 311
Wards 306, 309, 335, 336, 344
Yamaha 305, 310, 311, 339
Zenith 306,344
Codes For VCR

REMOTECONTROLOPERATION
17 ?
Component Codes (cont’d.)
Brand Code
ABC 224
Archer 225, 232
Cableview 205, 232
Citizen 205, 222
Curtis 212, 213
Diamond 224, 225, 232
Eagle 229
Eastern 234
GC Brand 205,232
Gemini 222
General
Instrument/
Jerrold 211, 219, 220, 221, 222, 223, 224,
225, 226, 227
Hamlin 212, 218, 240, 241, 242, 245
Hitachi 203, 224
Macom 203, 204, 205
Magnavox 233
Memorex 230
Movietime 205, 232
Oak 202, 237,239
Panasonic 209, 210, 214
Philips 206, 207, 228, 229, 230
Pioneer 201, 216
Pulsar 205, 232
Brand Code
Denon 100
Ferguson 101
JVC 109
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101
Brand Code
Puser 232
RCA 215
Realistic 232
Regal 212, 218, 240, 241, 242, 245
Regency 234
Rembrandt 205, 232, 237
Samsung 205
Scientific Atlanta 211, 212, 213
Slmark 201, 205
Sprucer 205, 210
Stargate 205, 232
Teleview 201, 205
Texscan 244
Tocom 235
Toshiba 204
Unika 225, 232
Universal 222, 232
Videoway 206
Viewstar 229, 230
Zenith 200, 217
Zenith / Drake
Satellite 200
Brand Code
Saba 101
Samsung 110
Sharp 108
Sony 104
Technics 100
Thomson 101
Toshiba 103
Yamaha 100
Zenith 107
Codes for Cable Box
Codes for DVD
Codes for DBS
Brand Code
Panasonic 104
Philips 101, 102
Primestar 108
Proscan 106, 109, 110, 113
RCA 106, 109, 110, 113
Sony 107
Star Choice 103, 108
Toshiba 100
Uniden 101, 102
Brand Code
Dish Network
(Echostar) 105, 115, 116
Echo Star 105
Express VU 105, 115
G.E. 106
G.I. (General
Instrument) 108
Gradiente 114
Hitachi 103, 111, 112
HNS (Hughes) 103
Magnavox 101, 102

18 ?
ICONMENU NAVIGATION
Icon Menu Navigation
Press to display the icons.
Press to select desired icon.
Press to display selected
Icon features.
Press to select feature.
Press to adjust or activate feature.
BRIGHTNESS 32 -- -- -- I -- -- --
Press repeatedly to exit menus.
NORMAL PICTURE
EXIT
EXIT
