Panasonic CT-32SL32 User manual

®
®
Color Television
Operating Instructions
CT-32SL32
CT-32SX32
CT-36SL32
CT-36SX32
CT-F3442
CT-F3442L
CT-F3442X
TQB2AA0418 20516
PRINTED IN USA
Televisor a color
Instrucciones de Operación
TQB2AA0418 20516
IMPRESO EN EE.UU.
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [e-mail] (USA only)
Para asistencia llame al teléfono: 1-800-211-PANA (7262)
o envíe un correo electrónico a la dirección:
[e-mail] (Solo en Estados Unidos)
CT-32SL32
CT-32SX32
CT-36SL32
CT-36SX32
CT-F3442
CT-F3442L
CT-F3442X

WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND
OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE
MATERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO
ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING
INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE
ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under USP4638258 and 4482866.
BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
High Definition Sound
The double insulation symbol (a square within a square) is
intended to alert qualified service personnel to use only iden-
tical replacement parts in this apparatus.

T ABLE OF C ONTENTS
1l
Table of Contents
Congratulations.........................................................2
Customer Record ......................................................................2
Care and Cleaning.....................................................................2
Specifications ............................................................................2
Installation..................................................................3
Television Location....................................................................3
Optional Cable Connections......................................................3
AC Power Supply Cord..............................................................3
Cable / Antenna Connection......................................................3
Feature Chart .............................................................4
Auto Set Up Menu......................................................5
Optional Equipment Connections ...........................6
VCR Connection........................................................................6
Front Control Panel ...................................................................7
Cable Box Connection...............................................................8
VCR and Cable Box Connection...............................................8
Digital TV - Set-Top Box or DVD Player Connection.................9
Program Out Connection (PROG OUT)..................................10
Amplifier Connection (TO AUDIO AMP)..................................10
PIP Function Buttons .............................................11
Remote Control Operation .....................................13
Battery Installation...................................................................13
Mode Operational Key Chart ..................................................14
Programming the Remote .......................................................16
Programming With a Code......................................................16
Programming Without a Code.................................................16
Component Codes...................................................................17
Icon Menu Navigation .............................................19
Main Menu Icons......................................................20
Icon Menus..............................................................................20
Icon Menu Operation...............................................21
Set Up......................................................................................21
Picture .....................................................................................23
Timer .......................................................................................24
Audio .......................................................................................25
Channels .................................................................................26
Lock.........................................................................................27
V-Chip Menu Operation...........................................28
Troubleshooting Chart............................................33
Limited Warranty .....................................................34
Customer Services Directory .................................36
Index .........................................................................37
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.

2l
C ONGRATULATIONS
Congratulations
Your new TV Monitor/Receiver features a solid state chassis that is designed to give you many years of enjoyment. It was
thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
• Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.
rDo not use benzene, thinner or other petroleum based products.
Specifications
Specifications are subject to change without notice or obligation.
Power Source
CT-32SX32 (2.8A)
CT-32SX32U (2.8A)
CT-32SL32 (2.8A)
CT-32SL32U (2.8A)
CT-36SX32 (2.8A)
CT-36SX32U (2.8A)
CT-36SL32 (2.8A)
CT-36SL32U (2.8A)
120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Video Output Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Output Jacks 0-2.0V RMS 4.7K Ohm
Component input (Y / PB/ PR)75 Ohms, Phono Jack Type
S-Video Input Jacks S-Video (Y-C) Connector

I NSTALLATION
3l
Installation
Television Location
Follow these recommendations before deciding the location of your television.
rAvoid excessive sunlight or bright lights, including reflections.
rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
rFluorescent lighting may reduce remote control transmitting range.
rKeep away from magnetic equipment, including motors, fans and external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
CT-32SX32, CT-32SX32U:
CAUTION: These television receivers for use only with PANASONIC TY-32SX31P stand. Use with other carts (or stands) is capa-
ble of resulting in instability causing possible injury.
CT-32SL32, CT-32SL32U:
CAUTION: These television receivers for use only with PANASONIC TY-32HL42P stand. Use with other carts (or stands) is capa-
ble of resulting in instability causing possible injury.
CT-36SX32, CT-36SX32U:
CAUTION: These television receivers for use only with PANASONIC TY-36SX31P stand. Use with other carts (or stands) is capa-
ble of resulting in instability causing possible injury.
CT-36SL32, CT-36SL32U:
CAUTION: This television receiver for use only with PANASONIC TY-36HL42P stand. Use with other carts (or stands) is capable
of resulting in instability causing possible injury.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
rUse 75-ohm coaxial shielded cables.
rUse appropriate input and output connectors that match your component connectors.
rAvoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET
AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company.
Note: A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connection
• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.
• Connect home antenna to ANT on the back of television.
Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under
Prog Chan.
Polarized plug
75 Ohm VHF/UHF
on back of TV
Incoming Cable from
Cable Company
Incoming
C
able from
Home Antenna

4l
F EATURE C HART
Feature Chart
MODELS
CT-32SX32
CT-32SL32
CT-36SX32
CT-36SL32
Features
MENU LANGUAGE ENG/SPAN/FR
r r r r
2 TUNER PIP r r r r
VIDEO PICTURE MEMORY r r r r
CHANNEL INFO BANNER r r r r
VIDEO INPUT SKIP r r r r
2RF r r r r
V-CHIP CAPABILITY r r r r
CLOSED CAPTIONING r r r r
VIDEO NORM r r r r
AUDIO NORM r r r r
STEREO r r r r
BASS/TREBLE/BALANCE r r r r
SURROUND r r r r
AI SOUND r r r r
BBE r r r r
SUBWOOFER r r
A/V IN (REAR/FRONT) 3
(2/1) 3 (2/1) 3 (2/1) 3 (2/1)
A/V PROGRAM OUT r r r r
S-VIDEO INPUT (REAR/FRONT) 2
(1/1) 2 (1/1) 2 (1/1) 2 (1/1)
COMPONENT VIDEO INPUT r r r r
HEADPHONE JACK
r r r r
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-
expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (internet) or repetitive computer style patterns should
be limited.
The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:
• Do not display the fixed image for extended periods of time.
• Turn the power off when not in use.
A/V JACKS AUDIO SPECIAL FEATURES

A UTO S ET U P M ENU
5l
Auto Set Up Menu
For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.
rIDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.
rMODE - To select TV (antenna) or CABLE mode depending on the signal source.
rAUTO PROGRAM - To automatically program all channels with a signal.
rGEOMAGNETIC CORRECTION - This feature is used to adjust discoloration of the picture due to earth’s magnetic
field in the area.
rTILT CORRECTION - This feature is used to adjust the tilt of the picture due to earth’s magnetic field in the area.
rPress VOL uto select English, Spanish or French.
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
rPress VOL uto select TV or CABLE.
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
rPress VOL uto start Auto Programming.
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
rPress VOL uto display adjustment menu.
rPress tVOL or VOL uto adjust discoloration in
picture.
GEOMAGNETIC CORRECTION
- - - - - - - - - - - - - - - - - -
0
t TO ADJUST u
PRESS ACTION TO EXIT
l
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
rPress VOL uto display adjustment menu.
rPress tVOL or VOL uto adjust picture tilt.
TILT CORRECTION
- - - - - - - - - - - - - - - - - -
0
t TO ADJUST u
PRESS ACTION TO EXIT
l

6l
O PTIONAL E QUIPMENT C ONNECTIONS
Optional Equipment Connections
VCR Connection
VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the
optional equipment manual for more information.
Note: Input 1 is a dual-purpose input. It is primarily intended for connection with 480i devices such as a DVD player using the
Y P
B
P
R
component video jacks and Audio L & R jacks. However, it can also be connected to conventional composite
video sources such as a VCR, using only the Y/Video jack and Audio L & R jacks. The on-screen label will display
Component or Video 1 depending on which source is connected.
If INPUT 1 is used as component video input, connect the A/V Out from the VCR to INPUT 2 A/V jacks. Connect Video Out
and Audio out from VCR to INPUT 2 Video jack and Audio L& R jacks. INPUT 3 can also be used to connect a VCR and
other optional video equipments.
Note: The remote control must be programmed with supplied codes to operate the VCR.
Viewing a television program
Procedure
1. Select ANT1 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to the television program you want to view.
Viewing a video
Procedure
rOption A
1. Select ANT1 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
3. Begin the video.
rOption B
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Tune the television to Channel 3 or 4, depending on your VCR.
3. Begin the video.
Recording a television program
Procedure
rOption A (Recording and viewing the same program)
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Tune the television to Channel 3 or 4, depending on your VCR.
3. Using the VCR, tune to the television program you want to record.
4. Begin recording.
rOption B (Recording one program while viewing another program)
1. Select ANT1 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
3. Using the VCR, tune to the television program you want to record.
4. Begin recording.
5. Press the TV/VIDEO button on the remote control to switch back to TV mode.
6. Tune the television to the television program you want to view.

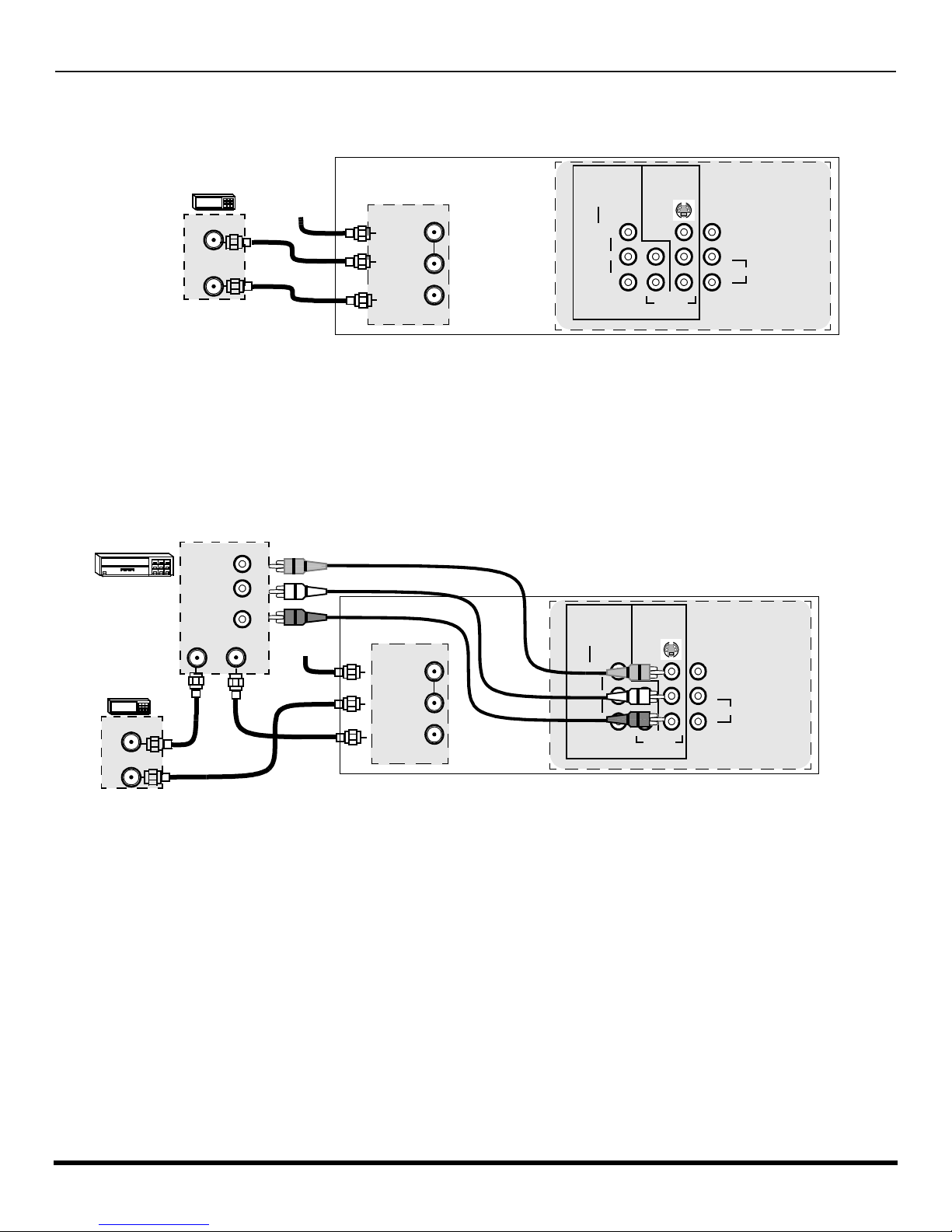

VCR
CABLES NOT SUPPLIED
TERMINALS ON BACK OF THE TV
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
ANT 1
ANT 2
SPLIT OUT TO AUDIO AMP
VIDEO INPUTS
L
R
AUDIO OUT
VIDEO OUT
ANT INANT OUT
Incoming
Cable
Use either the
S-Video or Video
connection.
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO

O PTIONAL E QUIPMENT C ONNECTIONS
7l
Front Control Panel (models CT-32SX32 and CT-36SX32)
Press to select VIDEO 3 input mode.
Note: The front control panel located behind the customer control door can be used to access menus and switch video mode when
the remote control is not available.
A second VCR, Camcorder, a video disc player, video game equipment or DSS equipment can also be connected to the
video inputs. See the optional equipment manual for details.
Procedure
1. Connect equipment to front Audio/Video input jacks.
2. Press TV/VIDEO button to select VIDEO 3 input mode.
3. Operate optional equipment as instructed in equipment manual.
Front control Panel (models CT-32SL32 and CT-36SL32)
Follow the procedure above to connect the optional equipment to front Audio/Video input jacks.
TV/VIDEO
ACTION TV/VIDEO q CHANNEL p
t
VOLUME u
POWER
HPJ S-VIDEO VIDEO L-AUDIO-R
INPUT 3
ON/OFF INDICATOR
POWER ON/OFF
Note: The ON/OFF indicator LED (red) will be lit when set is on.
Note: The S-VIDEO connection provides higher quality picture. It
overrides VIDEO 3 connections. Use INPUT 3, AUDIO L
and R with S-VIDEO connection.
CAMCORDER
INPUT 3
p
CH
S-VIDEO VIDEO L-AUDIO-R HPJ
ACTION TV/VIDEOPOWER VOL
ut
VOL
q
CH
Note: The ON/OFF indicator LED (red) will be lit when set is on.
CAMCORDER
POWER ON/OFF
ON/OFF INDICATOR
INFRARED SENSOR
Note: The S-VIDEO connection provides higher quality picture. It overrides VIDEO 3 connections. Use INPUT 3, AUDIO L and R
with S-VIDEO connection.

8l
O PTIONAL E QUIPMENT C ONNECTIONS
Cable Box Connection
Follow this diagram when connecting your television to a cable box only.
Note: The remote control must be programmed with supplied codes to operate the cable box.
Viewing a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to Channel 3.
3. Using the cable box, tune to the premium cable channel you want to view.
Note: To use special features such as Channel Caption, ANT1 must be selected in the SET UP menu under Prog Chan.
VCR and Cable Box Connection
Follow this diagram when connecting your television to both a VCR and a cable box.
Note: The remote control must be programmed with supplied codes to operate the VCR and cable box.
Viewing a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to Channel 3.
3. Using the cable box, tune to the premium cable channel you want to view.
Recording a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
3. Turn the VCR ON.
4. Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.
5. Using your cable box, tune to the premium cable channel you want to record.
6. Begin recording.
Note: To view a different channel while recording:
• Select ANT1 in the SET UP menu under Prog Chan.
• Press the TV/VIDEO button on the remote control to TV mode.
• Tune the television to a different program (except another premium cable channel).
TERMINALS ON BACK OF THE TV
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
ANT 1
ANT 2
SPLIT OUT TO AUDIO AMP
VIDEO INPUTS
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO

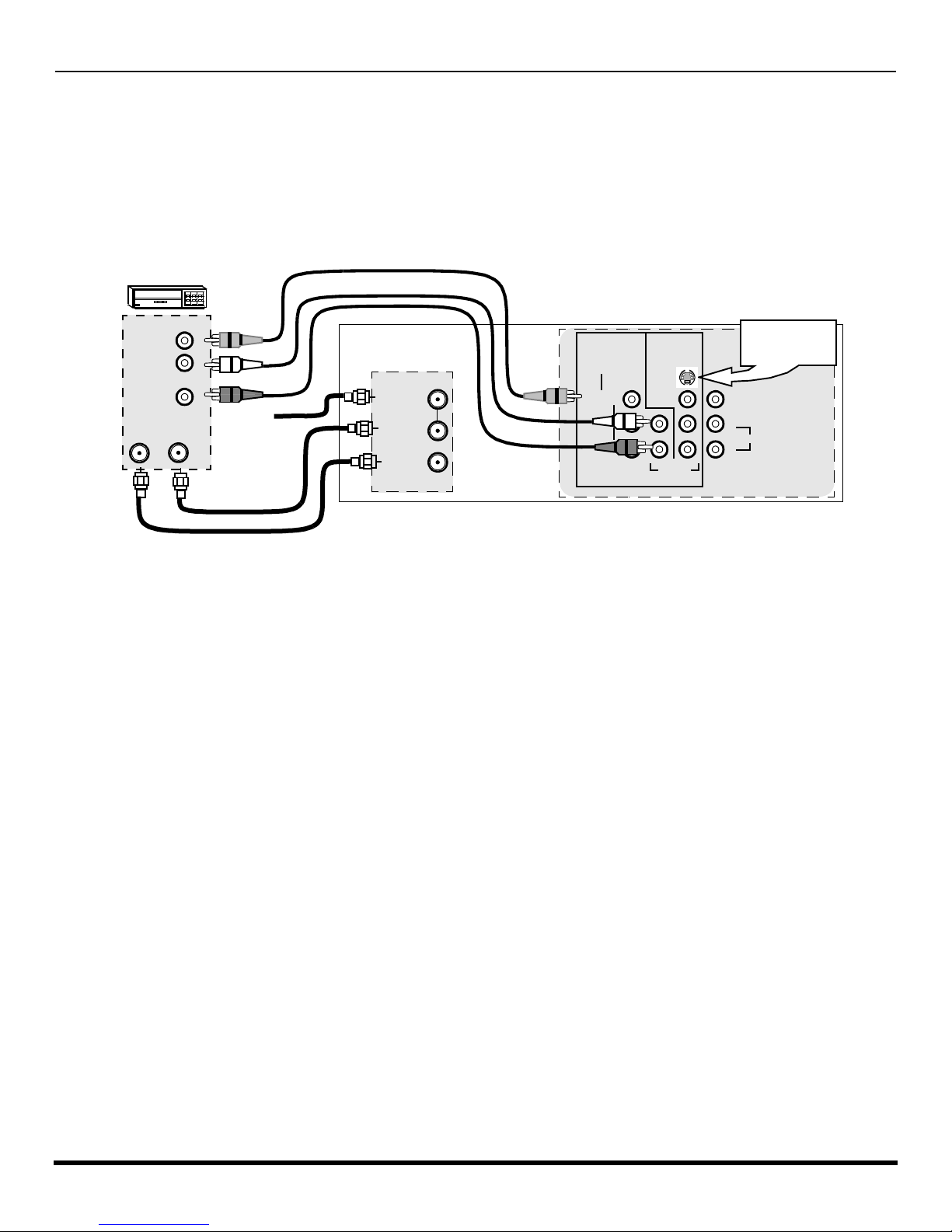

CABLE BOX INCOMING
CABLE
CABLES NOT SUPPLIED
ANT OUT
ANT IN
TERMINALS ON BACK OF THE TV
CABLES NOT SUPPLIED
Incoming
Cable
CABLE BOX
ANT IN
ANT OUT
VCR
L
R
AUDIO OUT
VIDEO OUT
ANT OUTANT IN
S-VIDEO
AUDIO
VIDEO/Y
P
B
P
R
PROG
OUT
L
COMPONENT
ANT 1
ANT 2
SPLIT OUT
TO AUDIO AMP
VIDEO INPUTS
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO

O PTIONAL E QUIPMENT C ONNECTIONS
9l
Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV.
Notes:
rThere are three video inputs, Y, PB, and PR. Separate component colour inputs provide luminance and color separation. Use the L
(left) and R (right) audio inputs.
rSelect DTV-STB to 480i output mode. TV set can receive 480i signal only.
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
DIGITAL TV OUTPUT
PR PB Y
MAIN
VIDEO
NTSC OUTPUT
R-AUDIO-L S-VIDEO
R-AUDIO-L
-VIDEO
TERMINALS ON BACK OF TV
CABLES NOT SUPPLIED
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
TO AUDIO AMP
VIDEO INPUTS
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO

10 l
O PTIONAL E QUIPMENT C ONNECTIONS
Program Out Connection (PROG OUT)
To use the television audio and video with optional equipment, connect the PROG OUT and TO AUDIO AMP connections on the back of
the television.
Notes: • When a component input video signal is connected to Video 1 (Y, P
B,
P
R
) terminals, and the TV main picture is Component, the Program
output video will be luminance signal (no color).
• When S-Video input signal is used for TV main picture, the Program output video will be luminance signal (no color).
Procedure
1. Connect optional equipment to PROG OUT and TO AUDIO AMP terminals.
2. PROG OUT terminal display is the same as onscreen display.
3. See optional equipment manual for further instructions for recording and monitoring.
Amplifier Connection (To Audio Amp)
Connect to an external audio amplifier input for listening to a stereo system.
Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.
Audio Adjustments
1. Select TV SPEAKERS ON from AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust TV volume to desired level.
4. Adjust amplifier volume to match the TV.
5. Select TV SPEAKERS OFF&VAO from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled from the TV.
Note: In OFF&FAO the volume is controlled by the external amplifier.

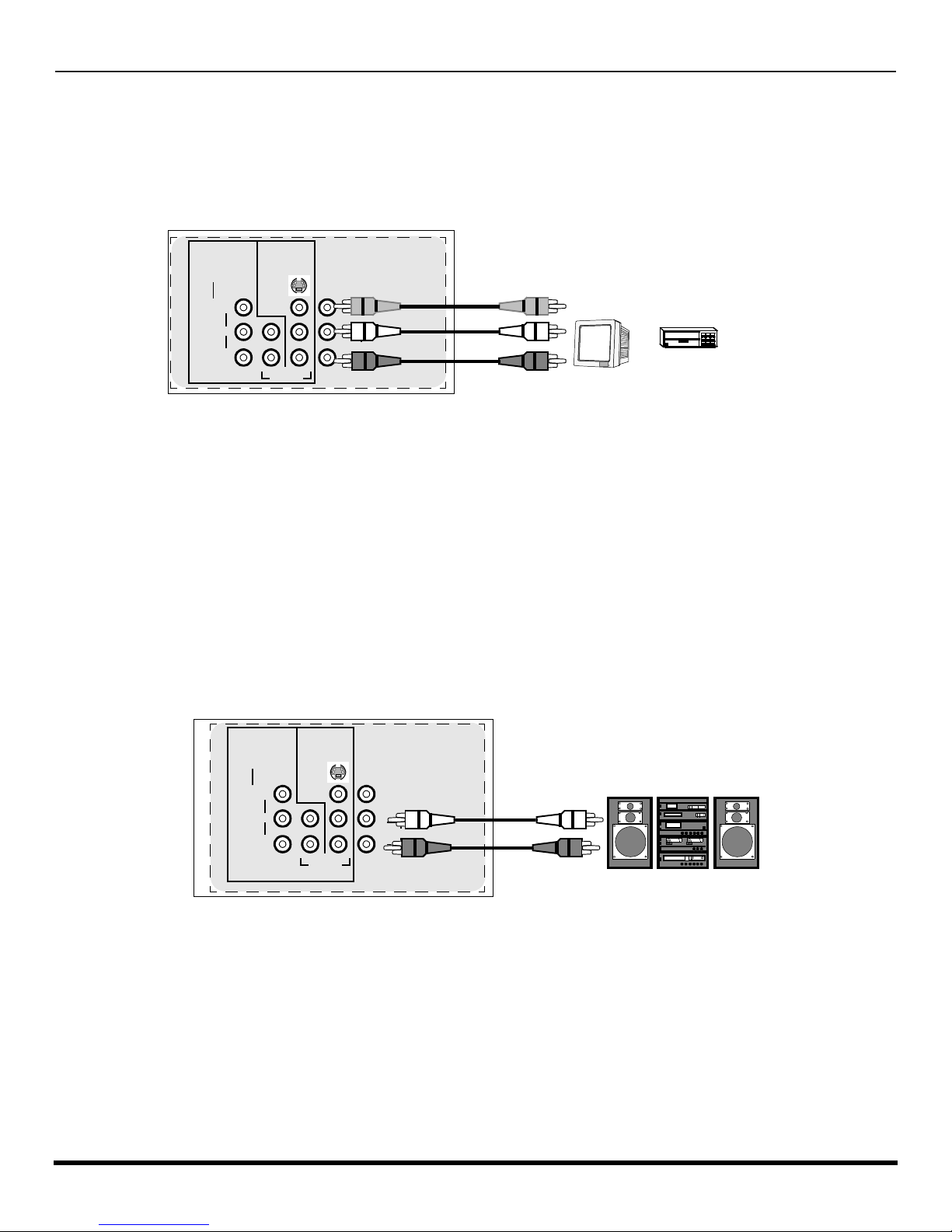

CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
VCR
OR
MONITOR
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
TO AUDIO AMP
VIDEO INPUTS
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO
CABLES NOT SUPPLIED
TERMINALS ON BACK OF TV
External Amplifier
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
TO AUDIO AMP
VIDEO INPUTS
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO

PIP F UNCTION B UTTONS
11 l

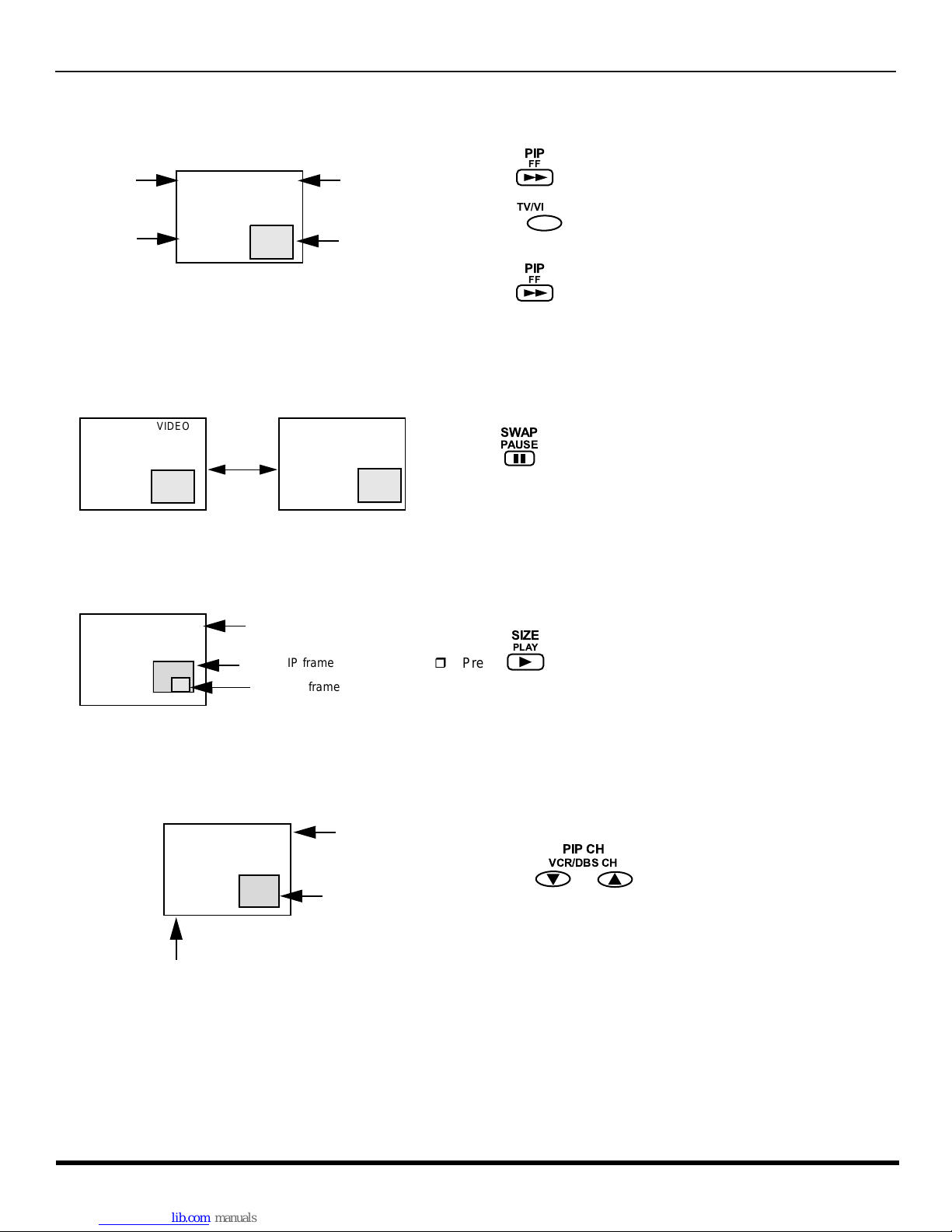

PIP Function Buttons
PIP (Picture-in-Picture) Button
Swap Button
Size Button
PIP Channel Buttons
CH 2 VIDEO 1
Main
with
Audio PIP Frame
PIP Video Source
or
PIP CH #
Main Picture
Channel
rPress to display PIP frame.
rPress while PIP frame is displayed to select desired input
mode.
rPress again to cancel the PIP feature.
Note: Audio is from Main Picture only
PIP
FF
TV/VIDEO
PIP
FF
CH 2 VIDEO 1 VIDEO 1 CH 2
rPress (when PIP frame is displayed) to interchange the main
picture with the picture in the PIP frame.
SWAP
PAUSE
small PIP frame
rPress (when PIP frame is displayed) to choose either the
large or small PIP frame.
SIZE
PLAY
Main Picture
large PIP frame
CH #
Main Picture
PIP frame
PIP channel
rPress the while PIP frame is displayed to scan
through channels.
q
p
PIP CH
VCR/DBS CH

12 l
PIP F UNCTION B UTTONS
PIP Function Buttons (contd.)
Move Button
Freeze Button
TV/VIDEO Button
Search Button
rThe PIP frame may be placed at any corner of the Main Picture by pressing the button.
Each time the MOVE button is pressed, the PIP frame will move counterclockwise as illustrated.
MOVE
REW
Main
PIP
Frame
rPress to stop action in the Main or PIP frame.
Note:
• Pressing FREEZE button when PIP frame is not displayed, will display a
snapshot image of the main picture in the PIP frame.
• Pressing FREEZE button when PIP frame is displayed, will freeze the
action in the PIP frame. Press the FREEZE button again to continue
action.
FREEZE
TV/VCR
PIP Frame
CH #
VIDEO 1 VIDEO 2
VIDEO 3
rPress while PIP frame is displayed to
select desired input mode.
TV/VIDEO
COMPONENT
or
Search Frame
rThis feature lets you scan through all available
channels.
rPress to display search frames.
rPress to stop search frame or press to
delete search frame.
SEARCH
STOP
PIP
FF
SEARCH
STOP
Main Picture

R EMOTE C ONTROL O PERATION
13 l
Remote Control Operation
POWER
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption)..
SAP
Press to acces second audio program.
TV/VIDEO
Press to select TV, Video or Component
mode for Main Picture or PIP frame.
Press to select remote operation.
TV
VCR
DBS/CBL
DVD
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOLVOL
EXIT
DBS functions button.
GUIDE
DBS functions button.
MOVE
REW SIZE
PLAY PIP
FF
SWAP
PAUSE SEARCH
STOP REC
FREEZE
TV/VCR PIP CH
VCR /DBS CH
Component function buttons
u
Press numeric keypad to select any channel.
7
4
1 2
5
8
0
9
6
3
R-TUNE
Press to switch to previously viewed
channel or video mode.
EUR7613Z30
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon
with alkaline).
• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
PROG
Press to enter minor number in a compound
number.
RECALL
Press to display time, channel, sleep timer,
and other options.
MENU
Press to access DBS or DVD menus.

14 l
R EMOTE C ONTROL O PERATION
Mode Operational Key Chart
This chart defines the keys that are opereational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAME TV MODE CABLE MODE DBS MODE
POWER POWER POWER POWER
SAP SAP ON/OFF - -
MUTE MUTE TV MUTE TV MUTE
TV/VIDEO INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
MENU - -DBS MENU
CHAN UP CHANNEL UP CABLE CHANNEL UP DBS NAVIGATION UP
CHAN DOWN CHANNEL DOWN CABLE CHANNEL DOWN DBS NAVIGATION DOWN
VOL RIGHT VOL + TV VOL + DBS NAVIGATION RIGHT
VOL LEFT VOL - TV VOL - DBS NAVIGATION LEFT
ACTION ACTION -DBS MENU
RECALL DISPLAY TV DISPLAY DBS PROG. INFO
EXIT - - DBS EXIT
GUIDE - - DBS GUIDE
PROG - - DBS
1DIGIT 1 DIGIT 1 DIGIT 1
2DIGIT 2 DIGIT 2 DIGIT 2
3DIGIT 3 DIGIT 3 DIGIT 3
4DIGIT 4 DIGIT 4 DIGIT 4
5DIGIT 5 DIGIT 5 DIGIT 5
6DIGIT 6 DIGIT 6 DIGIT 6
7DIGIT 7 DIGIT 7 DIGIT 7
8DIGIT 8 DIGIT 8 DIGIT 8
9DIGIT 9 DIGIT 9 DIGIT 9
0DIGIT 0 DIGIT 0 DIGIT 0
R-TUNE PREVIOUS CHAN
OR VIDEO MODE CABLE PREVIOUS CHANNEL PREVIOUS DBS CHANNEL
PROG - - DBS PROGRAM
MOVE
<<REW TV PIP MOVE - -
SIZE
PLAY TV PIP SIZE - -
PIP
FF >> TV PIP ON / OFF - -
SWAP
PAUSE TV PIP SWAP - -
SEARCH
STOP TV PIP SEARCH - -
RECORD VCR RECORD - -
FREEZE/TV/VCR TV PIP FREEZE - -
PIP CH
VCR/DBS CH
TV PIP CHANNEL DOWN -DBS CHANNEL DOWN
PIP CH
VCR/DBS CH
TV PIP CHANNEL UP -DBS CHANNEL UP

R EMOTE C ONTROL O PERATION
15 l
Mode Operational Key Chart (contd.)
KEY NAME
VCR MODE DVD MODE
POWER POWER POWER
SAP - -
MUTE TV MUTE TV MUTE
MENU - -
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH
CHAN UP -NEXT CHAPTER
CHAN DOWN - PREVIOUS CHAPTER
VOL RIGHT TV VOLUME + NAVIGATION RIGHT
VOL LEFT TV VOLUME - NAVIGATION LEFT
ACTION - -
RECALL ONSCREEN VCR
DISPLAY DVD DISPLAY
EXIT - -
GUIDE - -
PROG - -
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
0- -
R-TUNE - -
MOVE
<<REW VCR REWIND SKIP SEARCH REW <<
SIZE
PLAY VCR PLAY DVD PLAY
PIP
FF>> VCR FF SKIP SEARCH FF>>
SWAP
PAUSE VCR PAUSE DVD STILL
SEARCH
STOP VCR STOP DVD STOP
RECORD VCR RECORD -
FREEZE/TV/VCR TV/VCR SWITCH OPEN/CLOSE
PIP CH
VCR/DBS CH
VCR CHANNEL
DOWN SLOW -
PIP CH
VCR/DBS CH
VCR CHANNEL UP SLOW +

16 l
R EMOTE C ONTROL O PERATION
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
• Confirm that the external component is plugged in and operating.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.
• Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Programming Without A Code
This procedure searches all codes and is called the “sequence method.”
• Confirm that the external component is plugged in and on.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control.
• Press VOL uto move forward to the next code. Press tVOL to move backward.
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code
is found.
• After the code is found, press to store the code.
Default Modes For Remote Control
Device Operates Default
TV TV (Panasonic Only) Panasonic TV Codes
VCR VCR (Preset) Panasonic VCR Codes
DBS DBS (Preset) Panasonic DBS Codes
CABLE CABLE (Preset) Panasonic DBS Codes
DVD DVD, CD (Preset) Panasonic DVD Codes
Helpful Hints: Unsuccessful Code
If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.
ACTION POWER
POWER
ACTION POWER
POWER
ACTION

R EMOTE C ONTROL O PERATION
17 l
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCR
DVD DBS CABLE
Brand Code
Admiral 335
Aiwa 332
Akai 314, 315, 316, 329
Audio Dynamic 311, 339
Bell & Howell 305, 313
Broksonic 320, 326
Canon 323, 325
CCE 343
Citizen 306
Craig 305, 306, 329
Curtis Mathes 324, 345
Daewoo 301, 324, 343
DBX 310, 311, 339
Dimensia 345
Emerson 303, 319, 320, 325, 326, 343
Fisher 305, 307, 308, 309, 313
Funai 320, 326, 334
GE 324, 333, 345
Goldstar 306
Gradiente 334
Hitachi 300, 323, 345
Instant Replay 323, 324
Jensen 339
JVC 310, 311, 334,339
Kenwood 306, 310, 311, 339
LXI 300, 305, 306,307, 308, 309
Magnavox 323, 324, 331
Marantz 310, 311, 339
Marta 306
Memorex 309, 324
MGA 338, 340, 341, 347,348
Minolta 300, 345
Mitsubishi 338, 340, 341, 347, 348
Multitech 304, 347
NEC 310,311, 334, 339
Olympic 323, 324
Optimus 306, 321, 328, 335
Brand Code
Orion 320, 326
Panasonic 321,322, 323, 324
J.C. Penney 300,305, 310, 311, 324, 339, 345
Pentax 300,311, 345
Philco 320, 323, 324, 326, 331, 343
Philips 323, 324, 331
Pioneer 323
Proscan 300, 301, 302, 323, 324, 331, 333,
345, 346
Quasar 321, 322, 323, 324
Radio Shack 305, 309, 324, 333, 336, 340
RCA 300, 301,302, 323, 324, 331, 333,
345, 346
Realistic 305, 309, 324, 336, 340
Samsung 302, 304, 333
Sansui 320, 326, 339, 352
Sanyo 305, 309, 313
Scott 301, 302, 304, 309, 320, 326, 338,
340, 347, 348
Sears 300, 305, 306, 307, 308
Sharp 335, 336
Shintom 317
Signature 2000 335
Singer 337
Sony 328, 329, 330
Sylvania 331, 324, 331
Tashiro 306
Tatung 310, 311, 339
Teac 310, 311, 339
Technics 321, 322, 323, 324
Teknika 324
Toshiba 301, 346
Vector Research 311
Wards 306, 309, 335, 336, 344
Yamaha 305, 310, 311, 339
Zenith 306,344
Codes For VCR

18 l
R EMOTE C ONTROL O PERATION
Component Codes (contd.)
Brand Code
ABC 224
Archer 225, 232
Cableview 205, 232
Citizen 205, 222
Curtis 212, 213
Diamond 224, 225, 232
Eagle 229
Eastern 234
GC Brand 205,232
Gemini 222
General
Instrument/
Jerrold 211, 219, 220, 221, 222, 223, 224,
225, 226, 227
Hamlin 212, 218, 240, 241, 242, 245
Hitachi 203, 224
Macom 203, 204, 205
Magnavox 233
Memorex 230
Movietime 205, 232
Oak 202, 237,239
Panasonic 209, 210, 214
Philips 206, 207, 228, 229, 230
Pioneer 201, 216
Pulsar 205, 232
Brand Code
Denon 100
Ferguson 101
JVC 109
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101
Brand Code
Puser 232
RCA 215
Realistic 232
Regal 212, 218, 240, 241, 242, 245
Regency 234
Rembrandt 205, 232, 237
Samsung 205
Scientific Atlanta 211, 212, 213
Slmark 201, 205
Sprucer 205, 210
Stargate 205, 232
Teleview 201, 205
Texscan 244
Tocom 235
Toshiba 204
Unika 225, 232
Universal 222, 232
Videoway 206
Viewstar 229, 230
Zenith 200, 217
Zenith / Drake
Satellite 200
Brand Code
Saba 101
Samsung 110
Sharp 108
Sony 104
Technics 100
Thomson 101
Toshiba 103
Yamaha 100
Zenith 107
Codes for Cable Box
Codes for DVD
Codes for DBS
Brand Code
Panasonic 104
Philips 101, 102
Primestar 108
Proscan 106, 109, 110, 113
RCA 106, 109, 110, 113
Sony 107
Star Choice 103, 108
Toshiba 100
Uniden 101, 102
Brand Code
Dish Network
(Echostar) 105, 115, 116
Echo Star 105
Express VU 105, 115
G.E. 106
G.I. (General
Instrument) 108
Gradiente 114
Hitachi 103, 111, 112
HNS (Hughes) 103
Magnavox 101, 102
