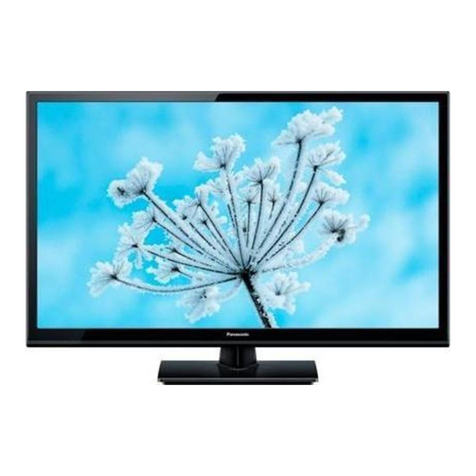

Panasonic E60 Series Assembly instructions

Panasonic

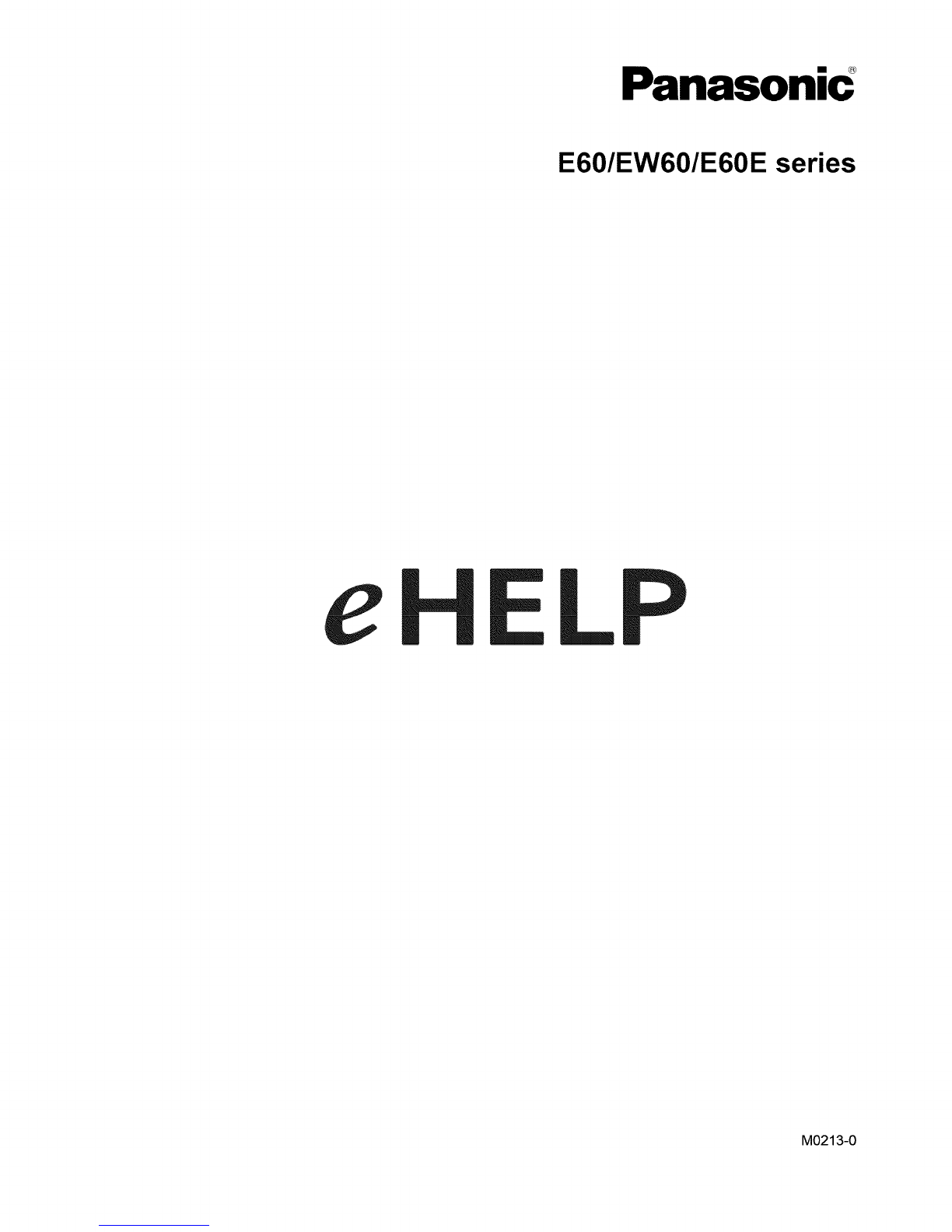

E60/EW60/E60E series
M0213-0

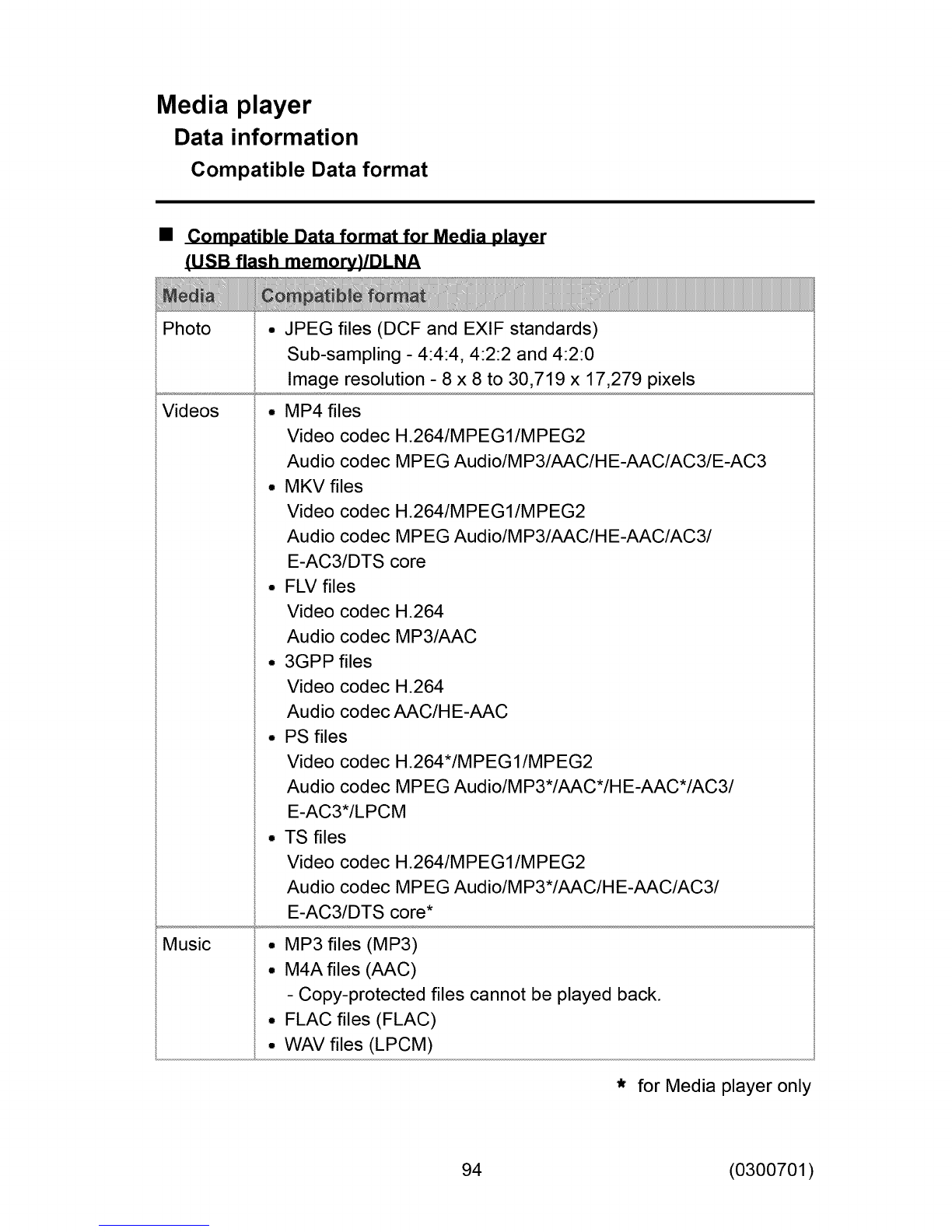

Media player
Data information
Compatible Data format
•Compatible Data format for Media player
(USB flash memory)/DLNA
Videos
•JPEG files (DCF and EXIF standards)
Sub-sampling - 4:4:4, 4:2:2 and 4:2:0
Image resolution - 8 x 8 to 30,719 x 17,279 pixels
° MP4 files
Video codec H.264/M PEG I/M PEG2
Aud io cod ec MPEG Aud io/M P3/AAC/H E-AAC/AC3/E-AC3
• MKV files
Video codec H.264/M PEG I/M PEG2
Aud io cod ec MPEG Aud io/M P3/AAC/H E-AAC/AC3/
E-AC3/DTS core
• FLV files
Video codec H.264
Audio codec MP3/AAC
• 3GPP files
Video codec H.264
Audio codec AAC/HE-AAC
• PS files
Video codec H.264*/MPEG1/MPEG2
Audio codec MPEG Audio/M P3*/AAC*/H E-AAC*/AC3/
E-AC3*/LPCM
• TS files
Video codec H.264/M PEG I/M PEG2
Audio codec MPEG Audio/M P3*/AAC/H E-AAC/AC3/
E-AC3/DTS core*
Music • MP3 files (MP3)
• M4A files (AAC)
-Copy-protected files cannot be played back.
• FLAC files (FLAC)
• WAV files (LPCM)
*for Media player only
94 (0300701)

•Supported Subtitles formats
•MicroDVD, SubRip, TMPlayer (.srt, .sub, .txt)
•The video file and subtitles text file are inside the same folder, and the file
names are the same except for the file extensions.
°If there are more than one subtitles text files inside the same folder, they
are displayed in the following order of priority: "srt" "sub ....txt"
95 (0300701)

Media player
Data information

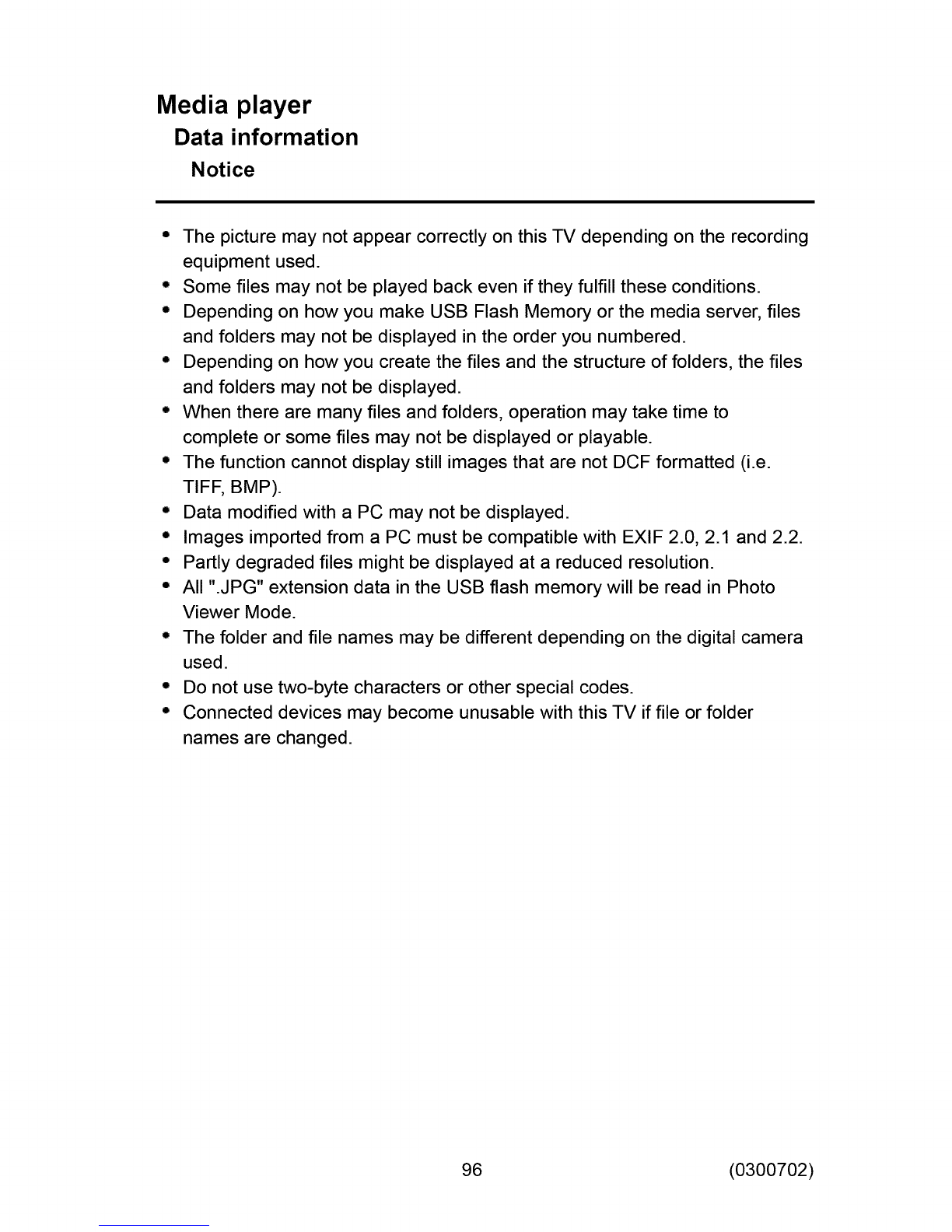

Notice
° The picture may not appear correctly on this TV depending on the recording
equipment used.
• Some files may not be played back even if they fulfill these conditions.
• Depending on how you make USB Flash Memory or the media server, files
and folders may not be displayed in the order you numbered.
• Depending on how you create the files and the structure of folders, the files
and folders may not be displayed.
° When there are many files and folders, operation may take time to
complete or some files may not be displayed or playable.
° The function cannot display still images that are not DCF formatted (i.e.
TIFF, BMP).
° Data modified with a PC may not be displayed.
° Images imported from a PC must be compatible with EXIF 2.0, 2.1 and 2.2.
° Partly degraded files might be displayed at a reduced resolution.
° All ".JPG" extension data in the USB flash memory will be read in Photo
Viewer Mode.
• The folder and file names may be different depending on the digital camera
used.
• Do not use two-byte characters or other special codes.
• Connected devices may become unusable with this TV if file or folder
names are changed.
96 (0300702)

Convenience features
Using Apps list
Features
Special features (internet contents, network contents, Media Player, etc.) can
be accessed easily from Apps (applications) list.
•Apps list
° Apps list is subject to change without notice.
97 (0501401)

Convenience features
Using Apps list

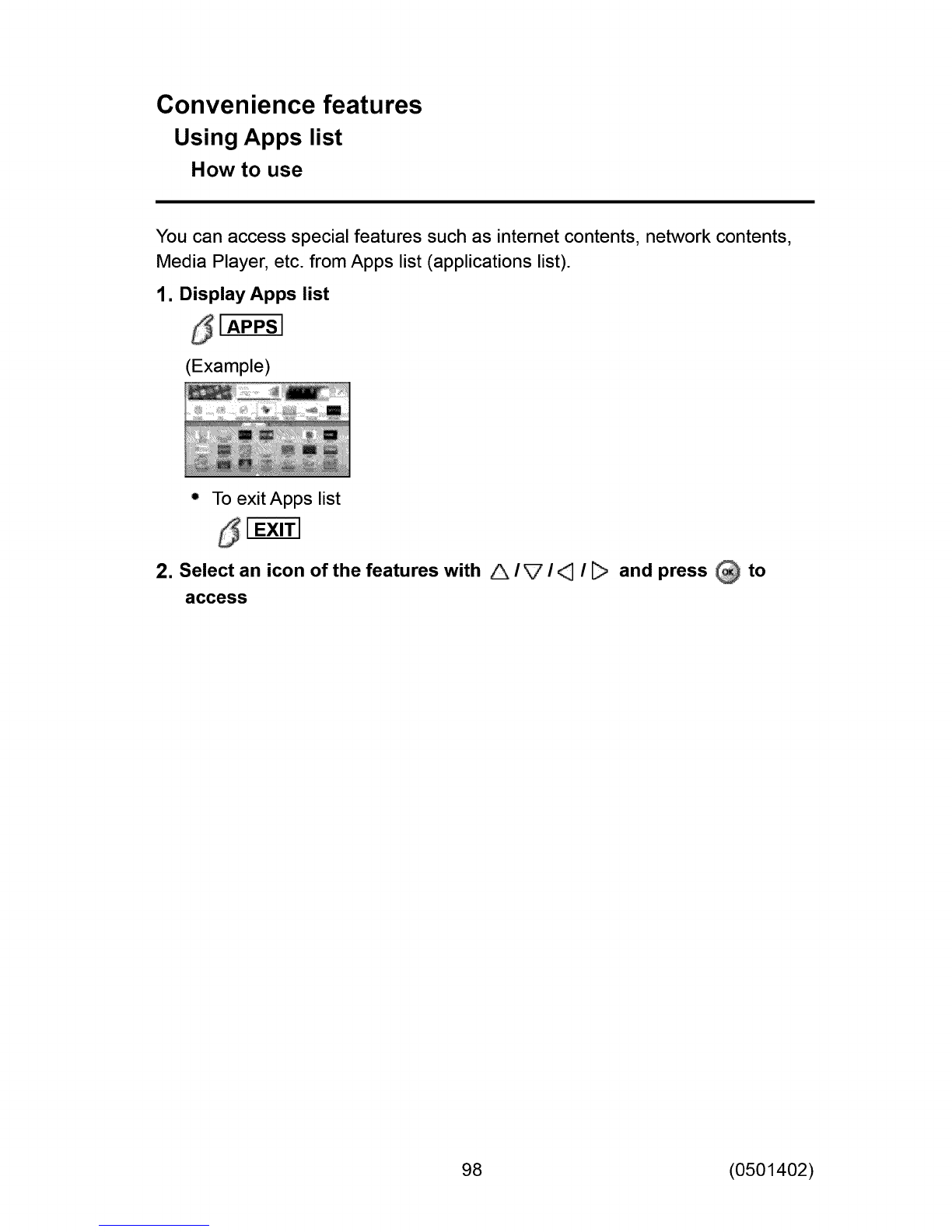

How to use
You can access special features such as internet contents, network contents,
Media Player, etc. from Apps list (applications list).
1. Display Apps list
_IAPPSI
(Example)
° To exit Apps list
2. Select an icon of the features with A/V !_!_and press @ to
access
98 (0501402)

Convenience features
Using Apps list

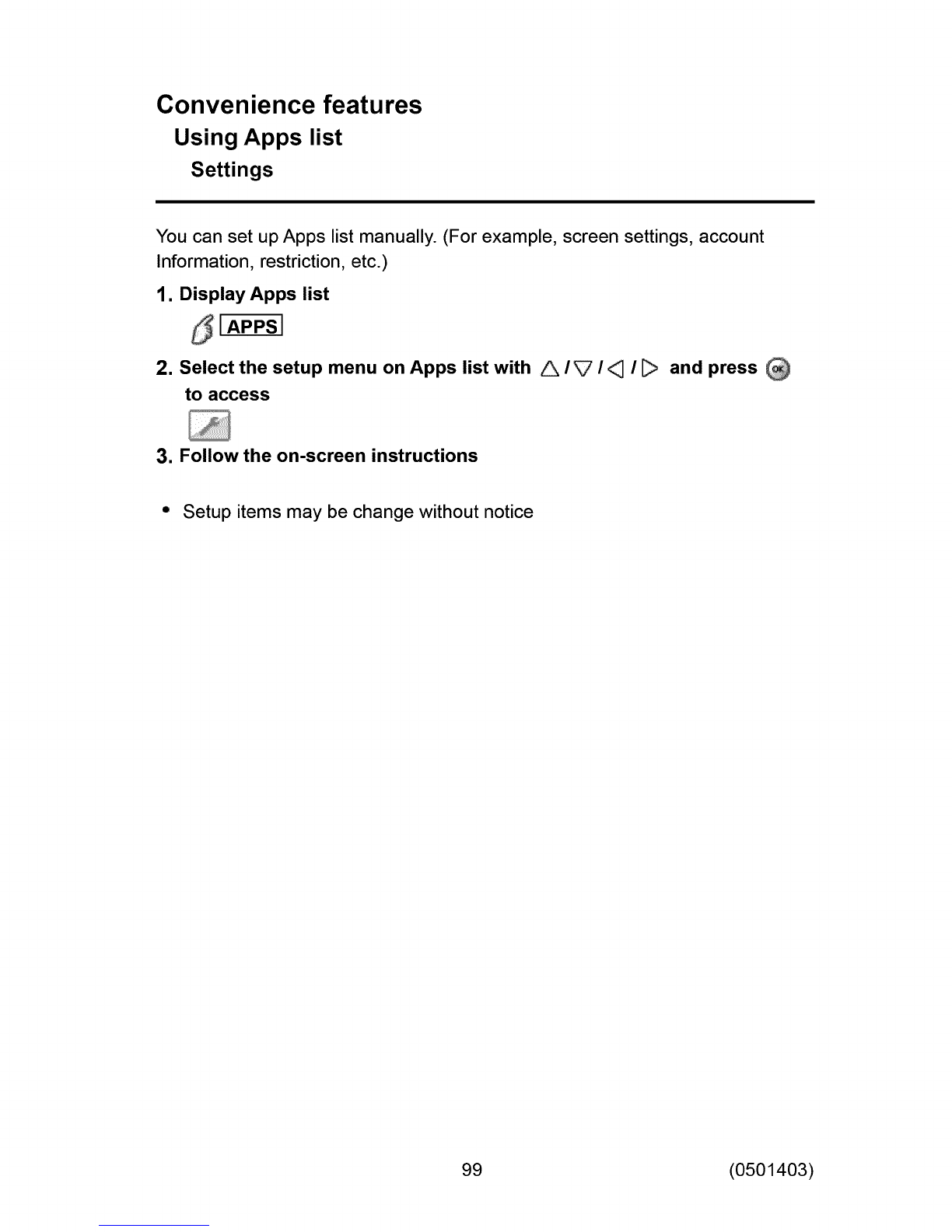

Settings
You can set up Apps list manually. (For example, screen settings, account
Information, restriction, etc.)
1. Display Apps list
2. Select the setup menu on Apps list with _/V/<_ /
to access and press
3. Follow the on-screen instructions
° Setup items may be change without notice
99 (0501403)

Convenience features
Timer
Setting menu
The TV can automatically turn On/Off at a designated date and time.
1. Display the menu
[MENU] ÷
2. Select from menu bar
Select desired menu using A /_ from menu bar and press
3. Select the item and adjust
Select desired item using A /_ and adjust with A /
100 (0500201)

Convenience features
Timer
Timer (On/Off timer)
Timer set
(Off/On)
Enables or disables the Timer.
Inputs
Sets which input will be selected when the TV turns on.
Channel
Sets the channel to select when the TV turns on.
Day
Sets the day when the TV turns on.
[SUN/MON/TUE/WED/THU/FRI/SAT (displays the nearest future date) MON-
FRI/SAT-SU N/DAILY/Every SU N/Every MON/Every TU E/Every WED/Every
THU/Every FRI/Every SAT]
On time
Sets the time that the TV will turn on at. The TV will turn off after 90 minutes or
as specified.
Off time
Sets the time that the TV will turn off at within 24 hours.
101 (0600505)

Convenience features
Timer
Sleep (Off timer)
Sleep (minutes)
(Off/15 minutes/30 minutes/60 minutes/90 minutes)
Selects how long the TV stays on before it automatically turns off.
102 (0600503)

Convenience features

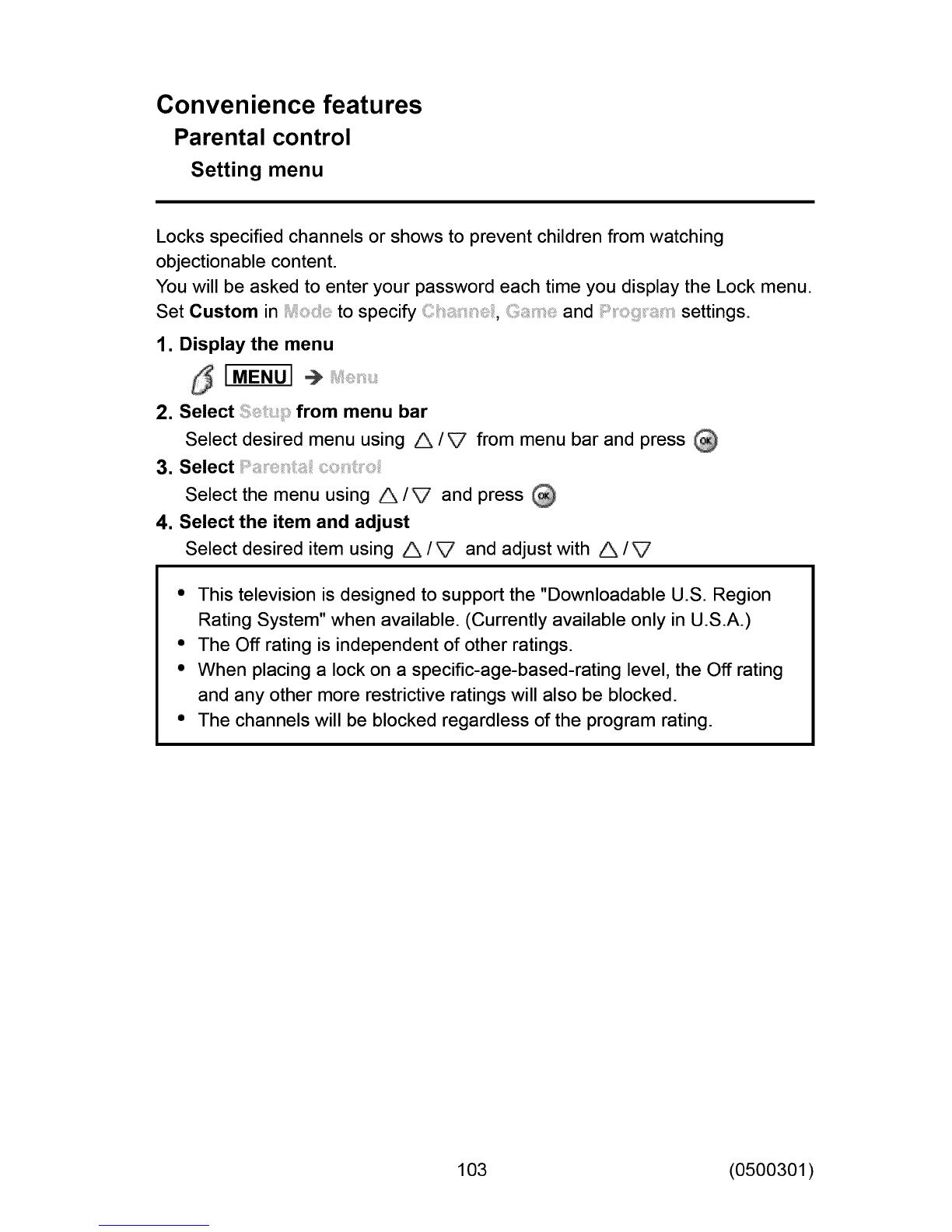

Parental control
Setting menu
Locks specified channels or shows to prevent children from watching
objectionable content.
You will be asked to enter your password each time you display the Lock menu.
Set Custom in to specify _ii _ _ , and settings.
1. Display the menu
[MENU] ÷
2. Select from menu bar
Select desired menu using A /_ from menu bar and press
3. Select
Select the menu using A/V and press
4. Select the item and adjust
Select desired item using A /V and adjust with A /V
• This television is designed to support the "Downloadable U.S. Region
Rating System" when available. (Currently available only in U.S.A.)
° The Off rating is independent of other ratings.
° When placing a lock on a specific-age-based-rating level, the Off rating
and any other more restrictive ratings will also be blocked.
° The channels will be blocked regardless of the program rating.
103 (0500301)

Convenience features
Parental control

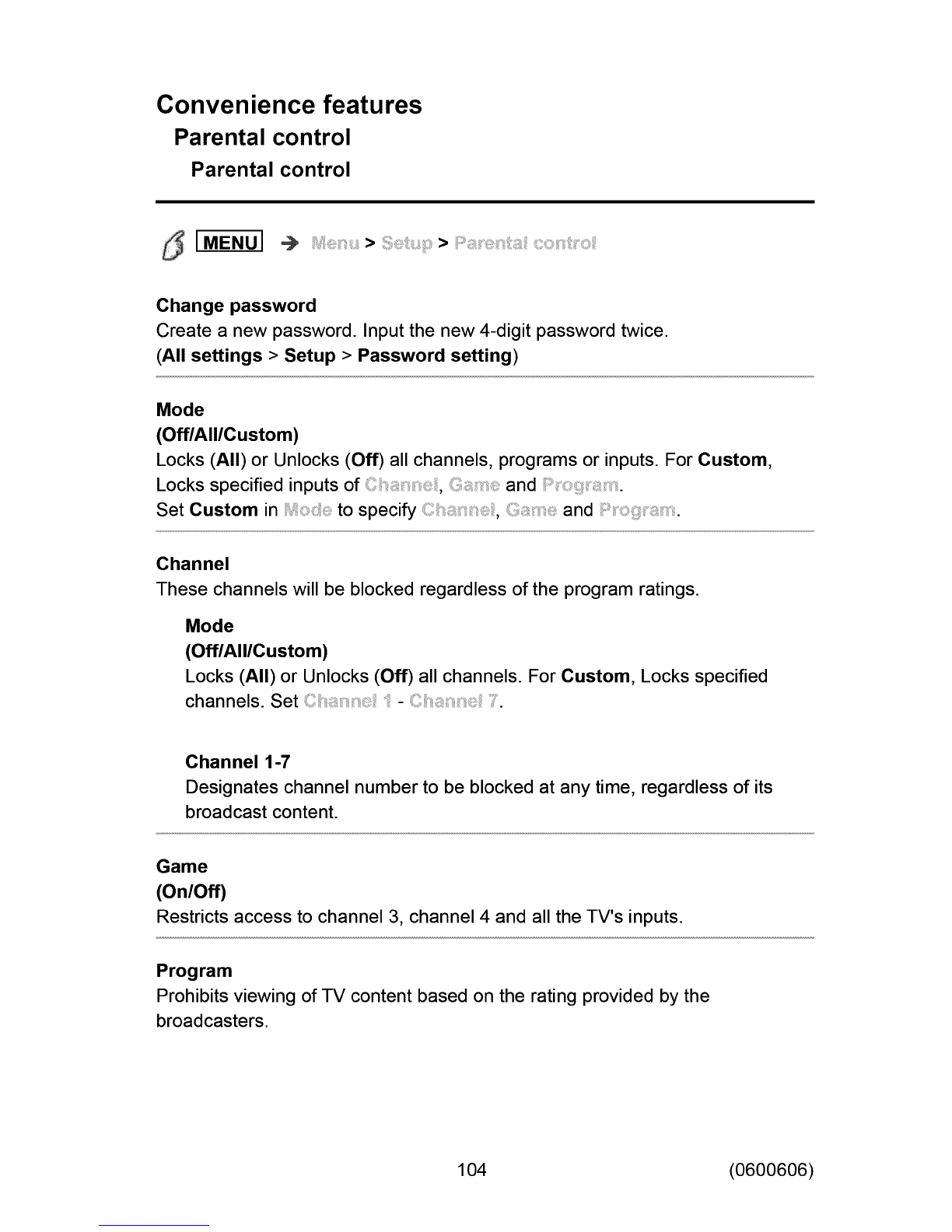

Parental control
5IMENU] > >
Change password
Create a new password. Input the new 4-digit password twice.
(All settings > Setup > Password setting)
Mode
(Off/All/Custom)
Locks (All) or Unlocks (Off) all channels, programs or inputs. For Custom,
Locks specified inputs of and
Set Custom in to specify _ _ _ , and
Channel
These channels will be blocked regardless of the program ratings.
Mode
(Off/All/Custom)
Locks (All) or Unlocks (Off) all channels. For Custom, Locks specified
channels. Set-
Channel 1-7
Designates channel number to be blocked at any time, regardless of its
broadcast content.
Game
(On/Off)
Restricts access to channel 3, channel 4 and all the TV's inputs.
Program
Prohibits viewing of TV content based on the rating provided by the
broadcasters.
104 (0600606)

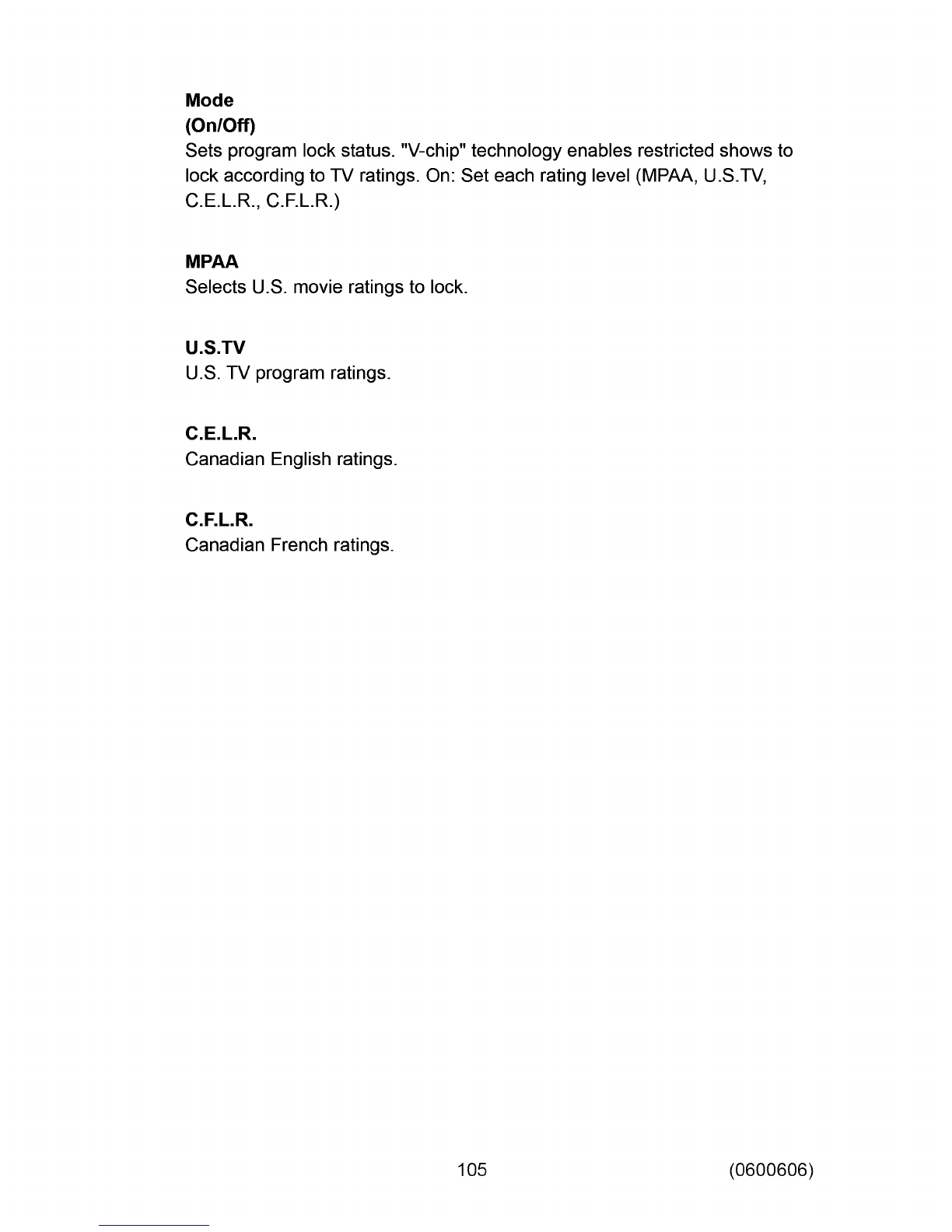

Mode
(On/Off)
Sets program lock status. "V-chip" technology enables restricted shows to
lock according to -IV ratings. On: Set each rating level (MPAA, U.S.-I-V,
C.E.L.R., C.F.L.R.)
MPAA
Selects U.S. movie ratings to lock.
U.S.TV
U.S. TV program ratings.
C.E.L.R.
Canadian English ratings.
C.F.L.R.
Canadian French ratings.
105 (0600606)

Convenience features
Parental control
Password setting
You need to enter the password when you access locked channels or inputs.
_ _ (Input your 4-digit password)
*If it is your first time entering the password, enter the password twice in
order to register it.
*Make a note of your password. Do not forget it. (If you have forgotten
your password, consult your local dealer.)
*When you select a locked channel, a message will be displayed that
allows you to view the channel after you input your password.
106 (0600607)

Convenience features
Parental control

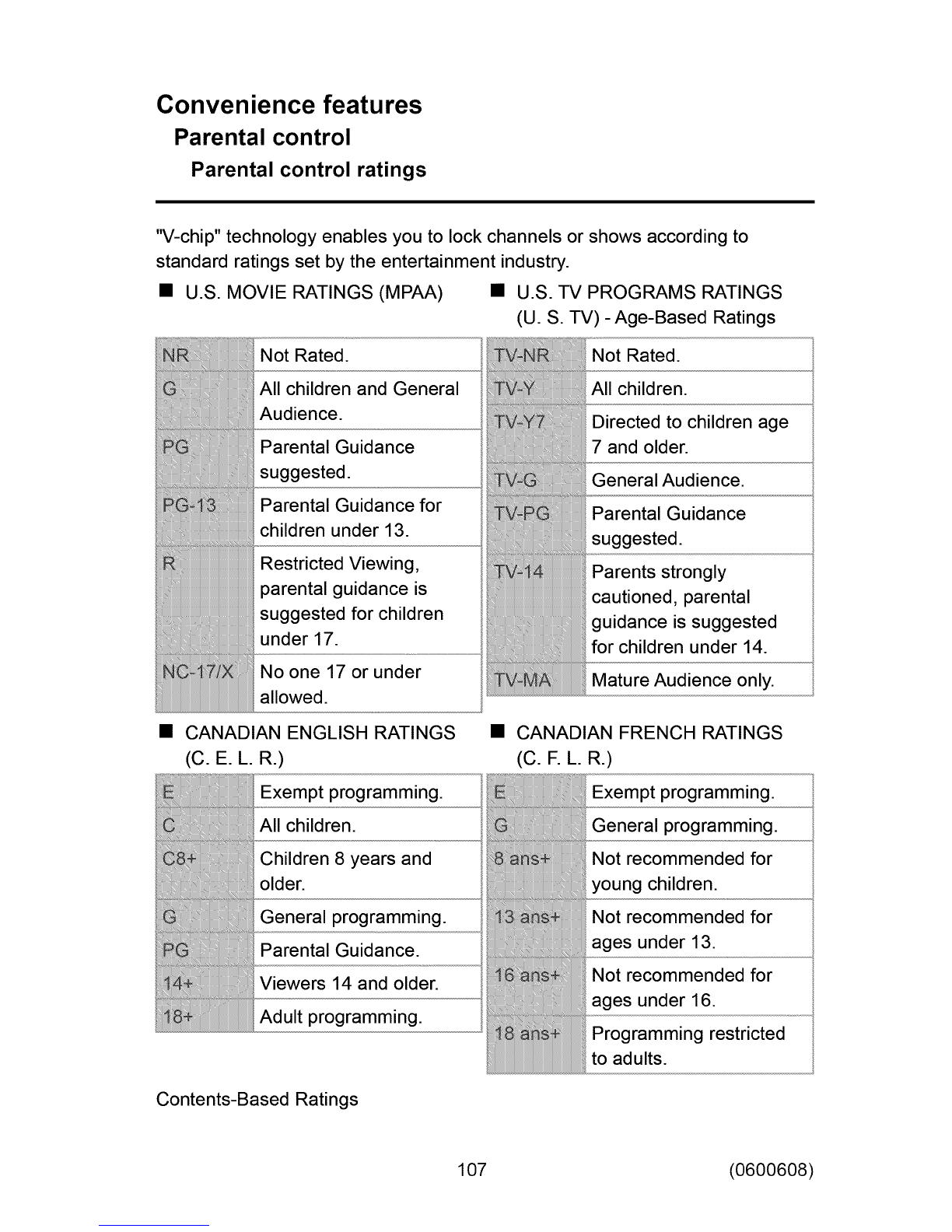

Parental control ratings
"V-chip" technology enables you to lock channels or shows according to
standard ratings set by the entertainment industry.
• U.S. MOVIE RATINGS (MPAA) • U.S. TV PROGRAMS RATINGS
(U. S. TV) -Age-Based Ratings
Not Rated.
All children and General
Audience.
Parental Guidance
suggested.
Parental Guidance for
children under 13.
Restricted Viewing,
parental guidance is
suggested for children
under 17.
No one 17 or under
allowed.
Not Rated.
All children.
Directed to children age
7 and older.
General Audience.
Parental Guidance
suggested.
Parents strongly
cautioned, parental
guidance is suggested
for children under 14.
Mature Audience only.
CANADIAN ENGLISH RATINGS
(C. E. L. R.)
Exempt programming.
All children.
Children 8 years and
older.
General programming.
Parental Guidance.
Viewers 14 and older.
Adult programming.
CANADIAN FRENCH RATINGS
(C. F. L. R.)
Exempt programming.
General programming.
Not recommended for
young children.
Not recommended for
ages under 13.
Not recommended for
ages under 16.
Programming restricted
to adults.
Contents-Based Ratings
107 (0600608)

FantasyViolence.
Suggestive Dialogue.
Strong Language.
Sexual situations.
Violence.
Caution
The V-Chipsystem used in this set is capable of blocking "NR" programs (non
rated, not applicable and none) as per FCC RulesSection15.120(e)(2). Ifthe
option of blocking "NR" programs is chosen "unexpected and possibly
confusing results mayoccur, and you may not receive emergency bulletinsor
any of the following types of programming:"
• Emergency Bulletins (Such as EAS messages, weather warnings and
others)
° Locally originated programming ° News ° Political ° Public Service
Announcements ° Religious ° Sports ° Weather
108 (0600608)

Convenience features

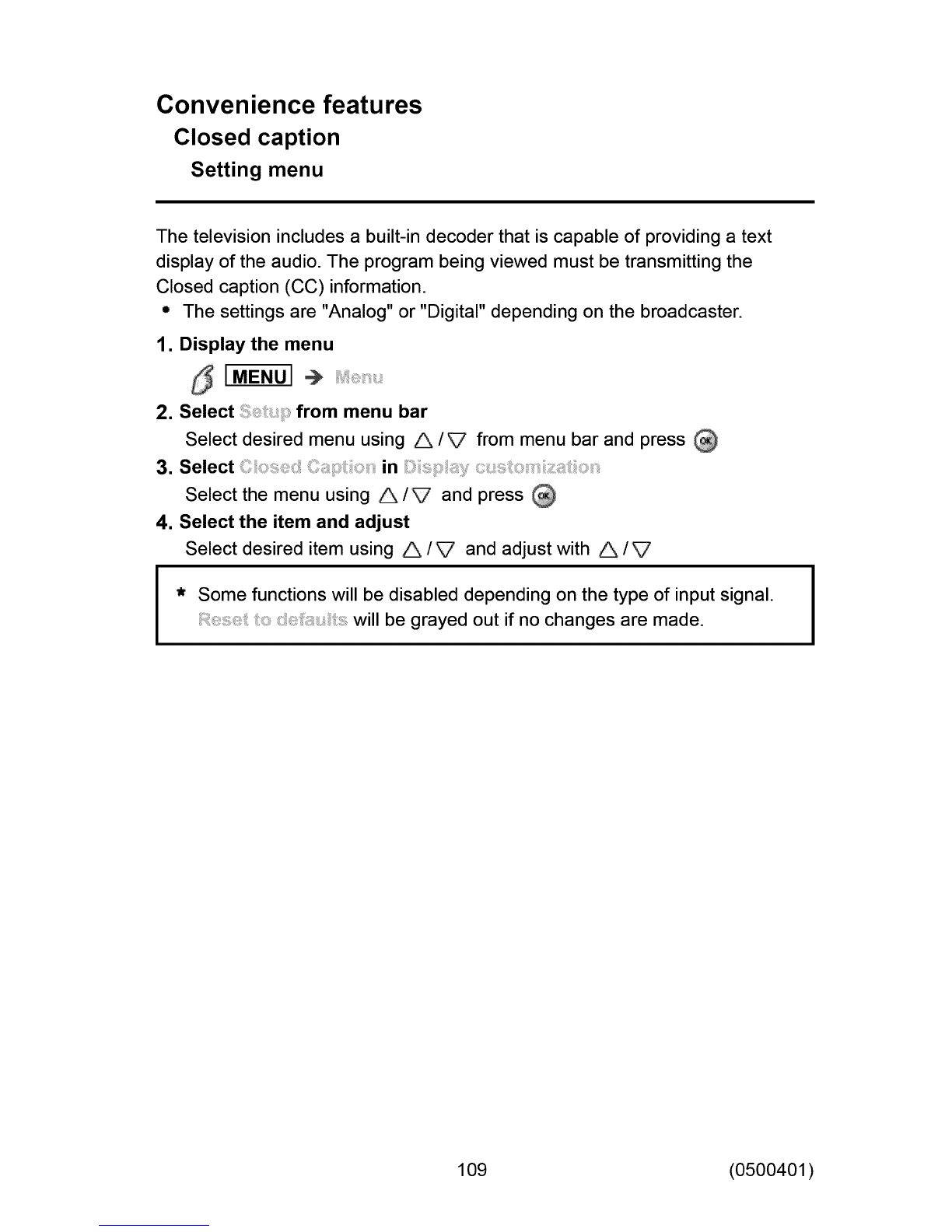

Closed caption
Setting menu
The television includes a built-in decoder that is capable of providing a text
display of the audio. The program being viewed must be transmitting the
Closed caption (CC)information.
• The settings are "Analog" or "Digital" depending on the broadcaster.
1. Display the menu
5[ME.ul
2. Select from menu bar
Select desired menu using A/V from menu bar and press
3. Select in
Select the menu using A/V and press
4. Select the item and adjust
Select desired item using A/V and adjust with A/V
*Some functions will be disabled depending on the type of input signal.
will be grayed out if no changes are made.
109 (0500401)

Convenience features
Closed caption
Closed caption
5IME.u]
Mode
(Off/On/CC on mute)
On: To display Closed captions.
CC on mute: To display Closed captions when the audio is muted. (When not
using, select Off).
Analog
(CC 1-4/T1-4)
Choose the Closed caption service of Analog broadcasting.
CC1-4: Information related to pictures (Appears at the bottom of the screen)
T1-4: Textual information (Appears over the entire screen)
Digital
(Primary/Second./Service 3141516)
The Digital Closed caption menu lets you configure the way you choose to
view the digital captioning.
Digital setting
Set display settings in digital programs.
110 (0600612)

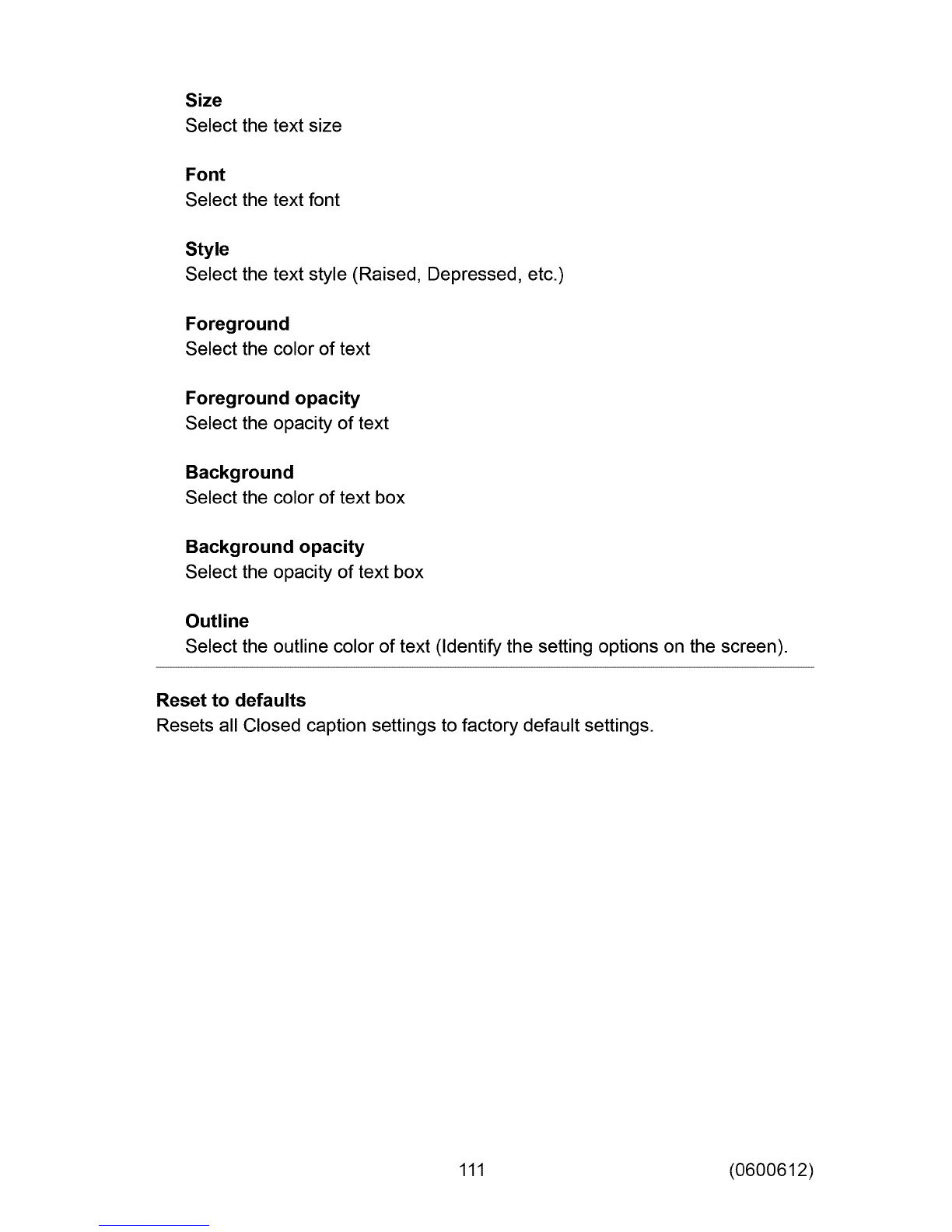

Size
Select the text size
Font
Select the text font
Style
Select the text style (Raised, Depressed, etc.)
Foreground
Select the color of text
Foreground opacity
Select the opacity of text
Background
Select the color of text box
Background opacity
Select the opacity of text box
Outline
Select the outline color of text (Identify the setting options on the screen).
Reset to defaults
Resets all Closed caption settings to factory default settings.
111 (0600612)

Convenience features
Closed caption

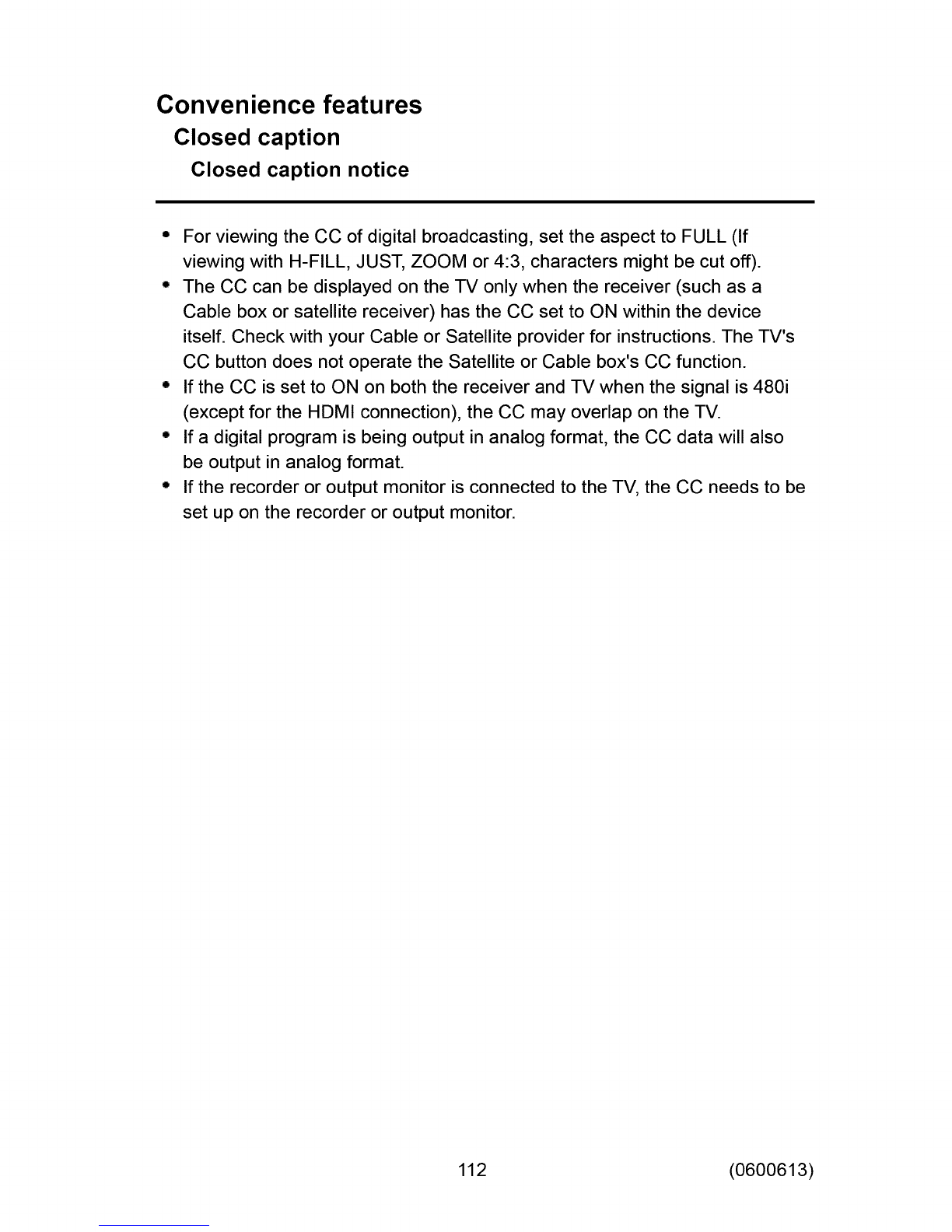

Closed caption notice
• For viewing the CC of digital broadcasting, set the aspect to FULL (If
viewing with H-FILL, JUST, ZOOM or 4:3, characters might be cut off).
° The CC can be displayed on the TV only when the receiver (such as a
Cable box or satellite receiver) has the CC set to ON within the device
itself. Check with your Cable or Satellite provider for instructions. The TV's
CC button does not operate the Satellite or Cable box's CC function.
° If the CC is set to ON on both the receiver and TV when the signal is 480i
(except for the HDMI connection), the CC may overlap on the TV.
° If a digital program is being output in analog format, the CC data will also
be output in analog format.
° If the recorder or output monitor is connected to the TV, the CC needs to be
set up on the recorder or output monitor.
112 (0600613)
