- 2 -
Using my Home Screen
my Home Screen
•Features 9
•How to use 10
•Settings 11
Using Apps list
•Features 13
•How to use 14
•Settings 15
Watching TV
Cable / Satellite / Fiber Optic box
•Initial setting 16
Antenna / Cable service without a box
•Initial setting 17
•Select channels 18
•Favorite channels 19
•Closed Caption 20
•SAP 21
•Other 22
4K compatible equipment
•Connecting and viewing 23
•About 4K format 25
•Input signal (AV) 26
•Input signal (PC) 27
Blu-ray, DVD, Game Console, etc.
•Connecting and viewing 28
•Example of AV connections 29
•HDMI connection notice 31
•HDMI connection caution 32
•Input signal 33
For best picture
•Picture mode 34
•Auto brightness (ECO) 36
•Aspect setting 37

- 3 -
•Screen mode 38
•Screen mode for 4K format 40
•Zoom adjustments 41
•Lock settings 42
•Copy adjustments 43
For best audio
•Sound mode 44
•DIGITAL AUDIO OUT terminal 45
Viewing 3D images
•Notice 46
•About 3D Eyewear 47
•Registering 3D Eyewear 49
•Replacing the battery 50
•Viewing 3D 51
•Change 3D↔2D 52
•Adjust 3D images 53
Network services
Connect to network
•Network connections 54
•Network connection types 55
Network settings
•Setting the menu 57
•Network connection/Network status 58
•my Home Cloud settings 59
•VIERA network name 60
•TV remote App settings 61
•Network link 62
•File sharing settings 63
•Software update 65
•New software notice 66
How to use
•Operate 67
Home network “DLNA”

- 4 -
Get started
•Information 68
Photos
•Viewing Photos 69
•Photo view 70
•Options menu 71
•Using slideshow 72
•Slideshow settings 73
Videos
•Viewing Videos 74
•Video view 75
•Options menu 76
Music
•Playing Music 77
•Music view 78
•Options menu 79
Media player
Get started
•Information 80
•Media warning messages 81
•SD card handling cautions 82
•File sharing 83
•Notice 84
Photos
•Viewing Photos 85
•Photo View 86
•Sort the photos 87
•Options menu 88
•Multi shot 3D 89
•Thumbnails size 90
•Using slideshow 91
•Slideshow settings 92
•Soundtrack settings 93
Videos

- 5 -
•Viewing Videos 94
•Video view 95
•Options menu 96
Music
•Playing Music 97
•Music view 98
•Options menu 99
Convenience features
Eco navigation
•Eco navigation 100
Timer
•Setting the menu 101
Parental control
•Setting the menu 102
•Password setting 103
•Parental control ratings 104
Closed Caption
•Setting the menu 106
•Closed Caption notice 107
VIERA Link ™ “HDAVI Control ™”
•Basic feature 108
•Connecting note 109
•VIERA Link connections 111
•VIERA Link settings 113
•VIERA Link settings feature 114
•VIERA Link 116
•VIERA Link menu 117
User profile
•Setting the menu 119
•my Stream 120
Info Bar
•Features 121
•Setting the menu 123

- 6 -
Using Voice guidance
•Voice guidance 124
Using Voice control
•Voice control 125
•How to use the voice control 126
Using Built-in camera
•Built-in camera 127
Using Touch Pad Controller
•Features 128
•My button 129
•Setting the menu 130
Using Bluetooth devices
•Settings 131
Control by Smartphone, etc.
•Smartphone remote 132
•Turn on the TV via IP 133
Using USB Keyboard
•Keyboard 134
All settings
How to use
•Setting the menu 135
•Basic settings 136
•Pro settings 139
•Advanced picture 143
•Screen settings 146
•3D settings 148
•Other settings 150
Sound
•Basic settings 151
•Advanced settings 153
•Voice guidance settings 156
Network
•Network settings 157

- 7 -
Timer
•Sleep (Off timer) 160
•Timer (On/Off timer) 161
•Clock settings 162
•Auto turn off settings 163
Setup
•Eco navigation 164
•Voice control settings 165
•User settings 166
•Info Bar settings 167
•USB device setup 168
•VIERA Touch Pad settings 169
•Bluetooth settings 170
•Parental control 171
•ANTENNA/Cable setup 173
•Language settings 175
•Display customization 176
•Closed Caption 177
•DisplayPort settings 179
•VIERA Link settings 180
•System settings 181
•Other settings 182
•Useful settings 183
Support / FAQ
Help menu
•Using Help menu 184
FAQ
•Picture - Viewing 185
•Picture - Snowy / none 186
•Picture - Distortion 187
•Picture - Continue 188
•Sound - None 189
•Sound - Unusual 190
•Networking 191

- 8 -
•Software update 192
•3D - Viewing 193
•3D - Format 194
•Voice guidance 195
•Voice control 196
•Built-in camera 197
•Touch Pad Controller 198
•Eco navigation 199
•Other 200
•Menu - Gray-out or missing items 201
•Reset to factory default 202
Information
•Data information 203
Care and Cleaning
•Display panel 205
•Cabinet 206
•Pedestal / Power cord 207
•3D Eyewear 208
Press the Remote control button
INFO Letters in box : Remote control button
Menu Letters in Cyan : Menus on screen display
References in this eHELP

- 9 -
Using my Home Screen
my Home Screen
Features
my Home Screen is a gateway to the TV, applications, and more. It provides
easy access to special features such as the Media Player, videos, games,
communication tools, etc.
■Home Screen
(Example)
HOME
OK
OK HOME
Home Screen (Full Screen TV, Various Home Screen, etc.)
Selected content screen (TV, application, etc.)
Home Screen Selection
– Choose your preferred Home Screen layout.

- 10 -
How to use
The Home Screen provides access to special features such as the Media
Player, TV, Internet content, data services, communication tools, etc.
1. Display Home Screen
HOME
●The last viewed Home Screen is displayed each time the TV is turned
on.
●Press HOME again to return to Home Screen Selection.
●You can change the default Home Screen when the TV is turned on.
Using my Home Screen > my Home Screen > Settings
2. Select a Home Screen icon using / / / and press to
access the feature.
●To watch full-screen TV
1) Select the TV window with / / /
2) Press to watch
●Also refer to Tutorial from the tool guide.

- 11 -

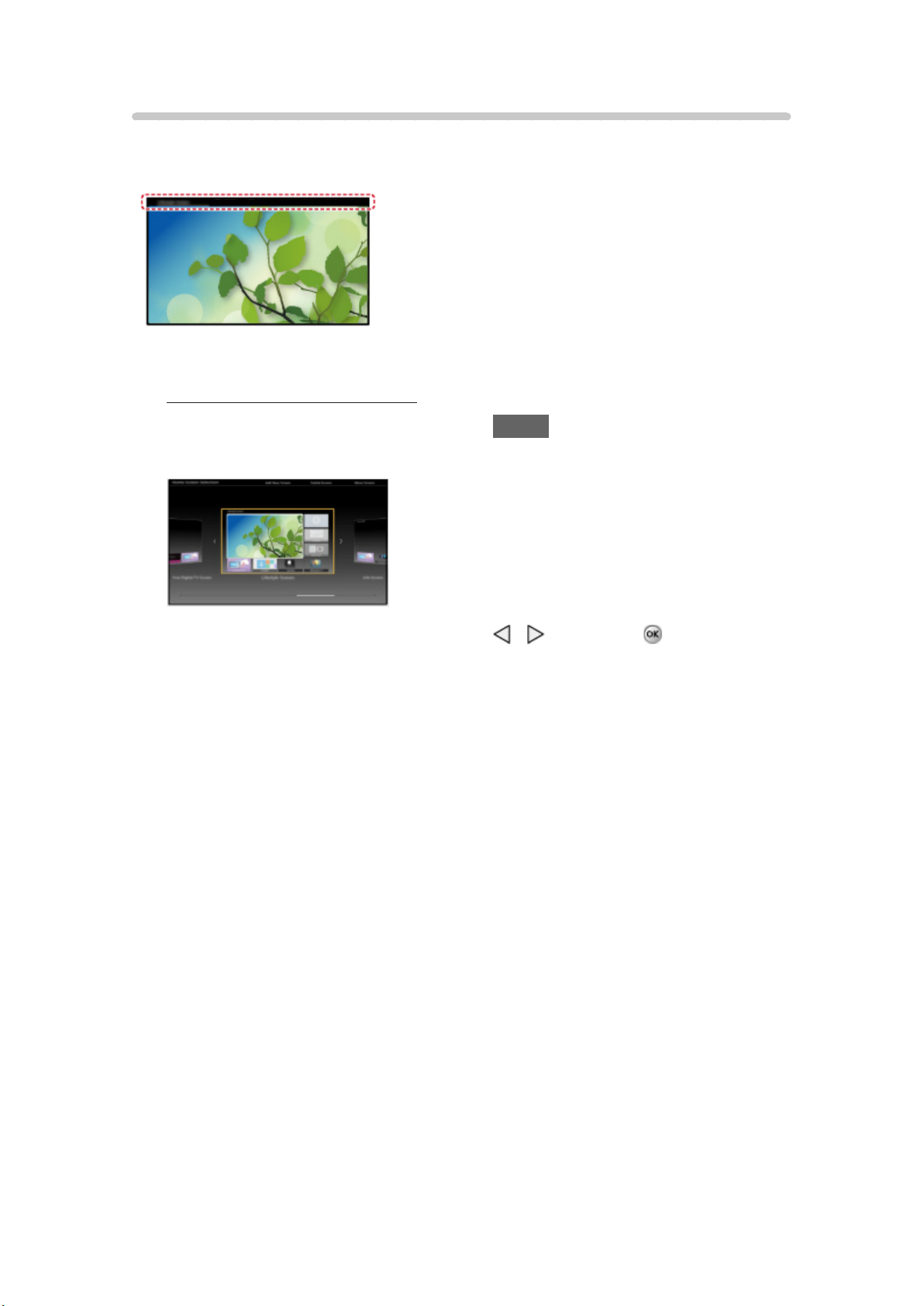

Settings
Select the setup menu from the tool guide on the top of the screen.
(Example)
■Home Screen Selection
1. Display Home Screen Selection with HOME
(Example)
2. Select the type of Home Screen with / and press to set.
●Full Screen TV
Exits the Home Screen and displays the TV picture in full-screen.
– To Keep Full Screen TV
While watching the TV on this full-screen, select Settings from tool
guide. Then, set the Power ON Option.
●Various Home Screens
You can change the layout of the Home Screen according to your
lifestyle and personal preferences.

- 12 -
■Face recognition/Voice Print Recognition
By using the built-in camera and voice control function, this TV recognizes
your face/voice and displays the registered Home Screen.
●Say “my Home Screen” into the microphone of the Touch Pad Controller to
use this function.
●To use this function, you need to set up a user profile and register face/
voice data, preferred Home Screen, etc.
All settings > Setup > User settings
●For details of voice control function
Convenience features > Using Voice control
●For details of the built-in camera
Convenience features > Using Built-in camera > Built-in
camera
■Settings
You can customize Home Screen. For example, you can change the
wallpaper, rename the screen, add / delete or set your preferred Home
screen, edit applications, etc.
1. Select Settings from the tool guide
2. Follow the on-screen instructions
■Search function
You can search the content of various Home screen features.
1. Select Search from the tool guide
2. Follow the on-screen instructions
●To use this function fully, you need a broadband network environment.
Ensure the network connections and network settings are completed.
●Be sure to update the software when a software update notice is
displayed on the TV screen. If the software is not updated, you will not
be able to use my Home Screen. You can update the software later
manually.
●To change the color type of on-screen displays.
All settings > Setup > Display customization

- 13 -
Using Apps list
Features
Special features (Internet contents, network contents, Media Player, etc.) can
be accessed easily from Apps (applications) list.
■APPS list
●Apps list is subject to change without notice.

- 14 -
How to use
You can access special features such as Internet contents, network contents,
Media Player, etc. from Apps list (applications list).
1. Display Apps list
APPS
(Example)
●To exit Apps list
EXIT
2. Select an icon of the features with / / / and press to
access

- 15 -
Settings
You can set up Apps list manually. (For example, Screen Settings, Account
Information, restriction, etc.)
1. Display Apps list
APPS
2. Select the setup menu on Apps list with / / / and press
to access
3. Follow the on-screen instructions
●Setup items may be changed without notice

- 16 -
Watching TV
Cable / Satellite / Fiber Optic box
Initial setting
1. Connecting
Select the wiring method connecting your box to the TV, AV IN or
Antenna/Cable in.
Note:
●HDMI will provide the best HD picture
2. Change INPUT
INPUT
Press the INPUT button to select the proper connection. Wait for 2
seconds.
●The menu choices vary depending on which input is selected.
3. Power on your Cable, Satellite or Fiber Optic box
Use the box’s remote control to change channels.
●If the box is connected to the TV using a COAX cable (Antenna/Cable
in), then set the TV channel to CH3 or CH4. Note that the picture will not
be in HD.
●CC/SAP is not available when watching TV with a Cable or Satellite box
connected via HDMI.
●If you have a High Definition box, ensure that it is outputting 720p or
1080i signal.
Tip: press the TV’s INFO button to verify.
●Check your box’s “aspect” or “format” settings. It should be set to 16:9,
Widescreen or Full.
●If the audio volume is too low, check the box’s audio settings.
●Contact your Cable or Satellite provider for instructions on any box
settings.

- 17 -
Antenna / Cable service without a box
Initial setting

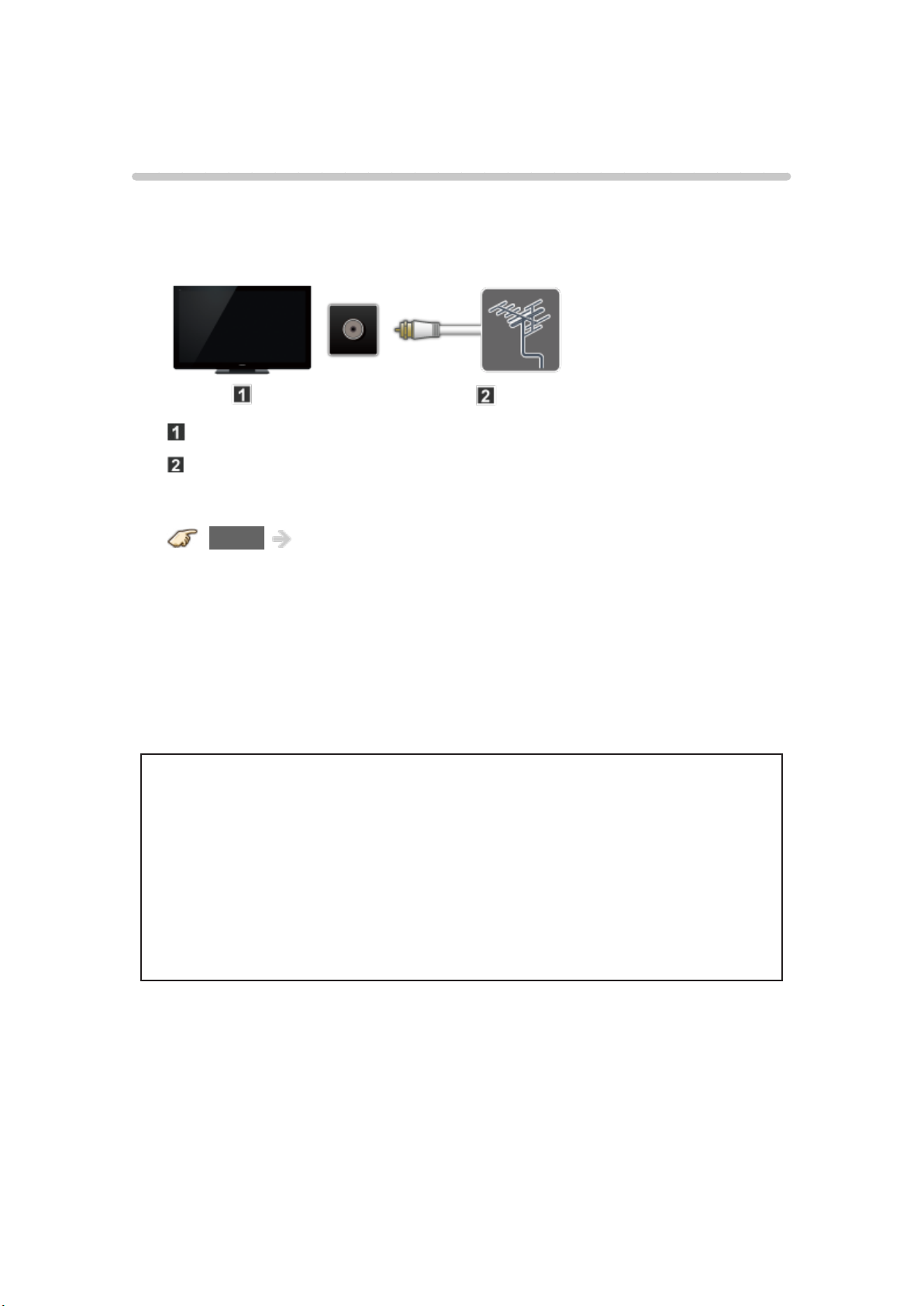

1. Connect coax
Connect a COAX wire from either an antenna or Basic Cable service to
the TV’s “ANTENNA/CABLE IN” screw terminal.
TV (ANTENNA/CABLE IN)
Antenna
2. Scan the channel
MENU Menu > Setup > ANTENNA/Cable setup > ANTENNA/
Cable signal, Auto program
1) Select either Cable or Antenna programming source in ANTENNA/
Cable signal.
2) Select Auto program and then the appropriate scan mode:
(All channels / Analog only / Digital only)
3) Start scanning.
●The tuner setup menu (auto scan, etc.) is only available when INPUT is
set to TV.
●If no channels are found by the end of the scan, then check the
following:
– Antenna’s position - or availability of Cable service.
– Cable, Satellite or Fiber Optic services with a box are typically
connected to the TV’s A/V inputs, preferably HDMI, for best HD
picture. In such a case, the channel scanning is not needed.

- 18 -

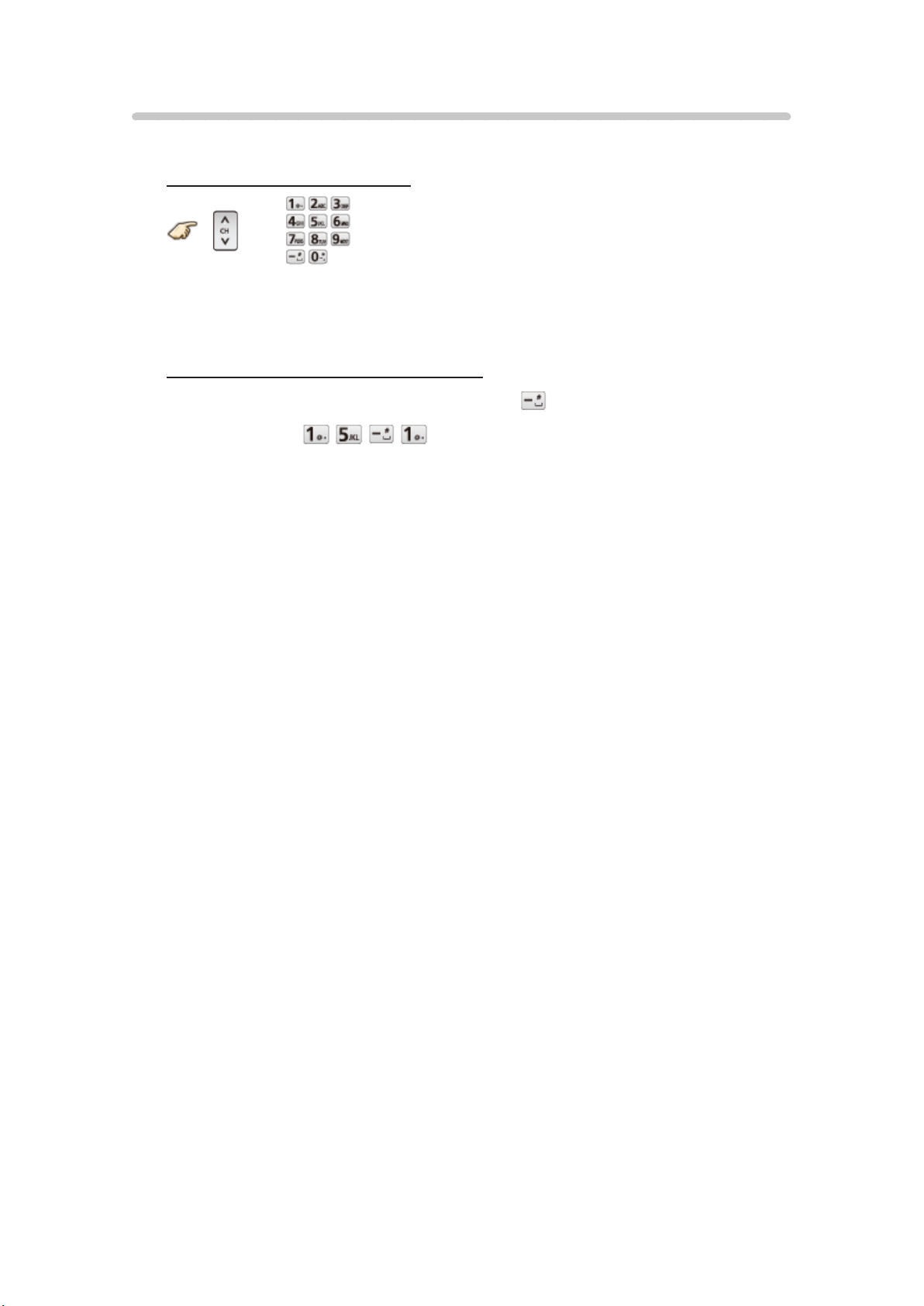

Select channels
■Select desired channel
or
●CH buttons are also available on the TV.
■Select desired digital channel
To directly enter a digital channel number use button to enter the dash.
(e.g.CH15-1→ )

- 19 -
Favorite channels
Channel numbers registered in Favorite are displayed on the favorite tune
screen. Select the desired broadcast station with the cursor or use the
number buttons.
●Favorite channels cannot be set when using Cable or Satellite box
■Set the Favorite channel
OPTION Options menu > Set favorite
Select the list number using / and or - / directly to
save the displayed channel.
■Delete a Favorite channel
OPTION Options menu > Set favorite
Select the list number using / and to delete.
●To change the page in Set favorite
FAVORITE or / repeatedly
■Display a Favorite channel
FAVORITE Favorite channels
Select the list number using / and or - / directly to
save the displayed channel.
●To change the page in Favorite channels
FAVORITE or / repeatedly

- 20 -
Closed Caption
■Viewing with Closed Caption
CC
Switches the Closed Caption mode.
(Off / On / On mute)
●CC is not available when watching TV with a Cable or Satellite box
connected via HDMI.
●Contact your Cable or Satellite operator for instructions on enabling CC
with their box.
●The TV’s CC button does not operate the Satellite or Cable box’s CC
function.
●For viewing the CC of digital broadcasting, set the aspect to Full (If
viewing with H-FILL, JUST, ZOOM or 4:3; characters might be cut off).
●If the CC is set to On on both the receiver and TV when the signal is
480i (except for the HDMI connection), the CC may overlap on the TV.
●If a digital program is being output in analog format, the CC data will
also be output in analog format.
●If the recorder or output monitor is connected to the TV, the CC needs to
be set up on the recorder or output monitor.
