Panasonic QuickDraw MC-V7325 User manual

Operating
netrucione

CONSUMER INFORMATION
Please read IMPORTANT SAFETY INSTRUCTIONS on page 4 before
use. Read and understand all instructions.
TO OUR VALUED CUSTOMER
We are very pleased to welcome you to the Panasonic family of products. Thank you for
purchasing this product. Our intent is that you become one of our many satisfied customers.
Proper assembly and safe use of your vacuum cleaner are your responsibilities.
Your cleaner is Intended only for household use. The cleaner should be stored In a dry,
indoor area. Read the Operating Instructions carefully for important use and safety infor-
mation.
PLEASE PAY CLOSE ATTENTION TO THE
WARNING AND CAUTION STATEMENTS THAT
ARE FOUND THROUGHOUT THIS MANUAL.
WARNING statements are designed to alert you
to the possibility of personal injury, loss of human
life, and/or damage to the vacuum cleaner and/or
personal property if the instructions given are not
followed.
CAUTION statements are designed to alert you
to the possibility of damage to the vacuum clean-
er and/or personal property if the instructions
given are not followed.
IN WARNING
TO AVOID ELECTRICAL SHOCK
Naver vacuum damp or wet surfaces or liquids.
DO NOT store machine outdoors.
Replace worn or frayed power cord immediately.
TO AVOID ACCIDENTS
Except for hand-held cleaners, keep machine on floor - not chairs, tables, steps, stairs, etc.
Store machine promptly after each use to prevent accidents such as tripping over power cord or machine.
Use machina and accessories only in a manner intended by the manufacturer.
The use of an extension cord is not recommended,
01997 Matsushita Electric Industrial Co., Ltd. All rights reserved.
- 2.

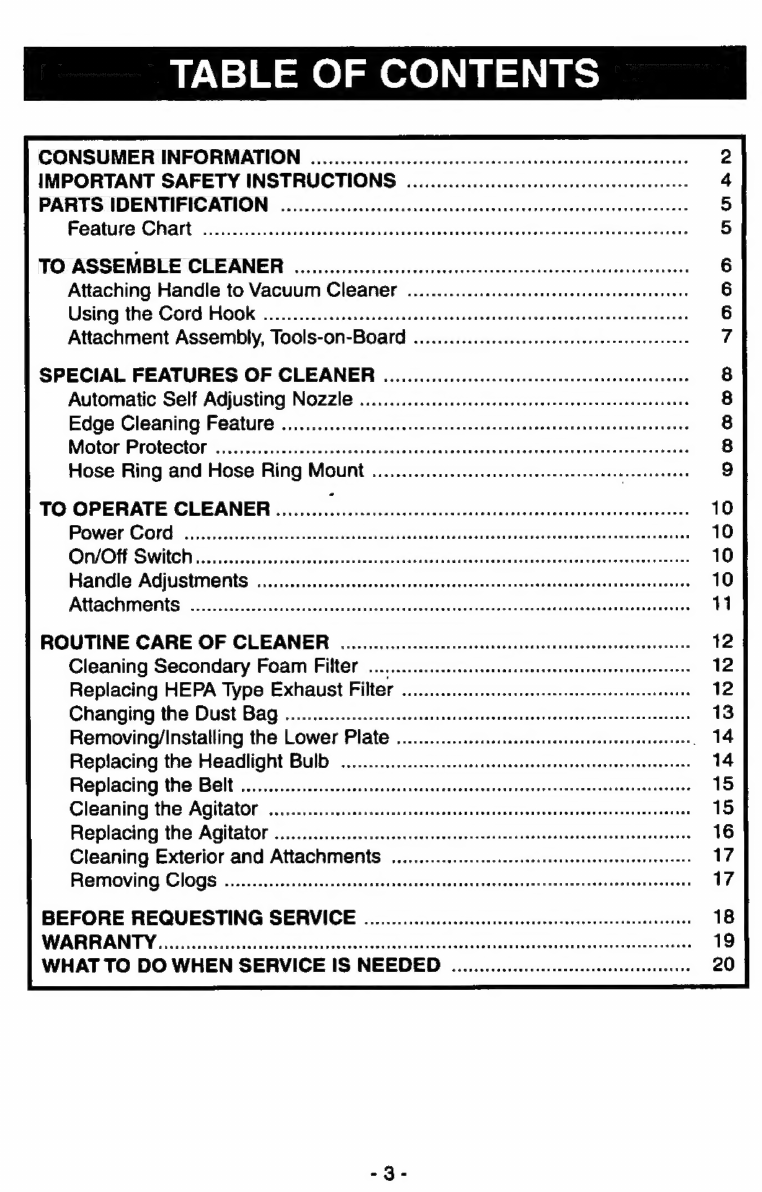

TABLE OF CONTENTS
CONSUMER INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
PARTS IDENTIFICATION
Feature Chart
TO ASSEMBLE CLEANER
Attaching Handle to Vacuum Cleaner
Using the Cord Hook
Attachment Assembly, Tools-on-Board
SPECIAL FEATURES OF CLEANER
Automatic Self Adjusting Nozzle
Edge Cleaning Feature
Motor Protector
Hose Ring and Hose Ring Mount
TO OPERATE CLEANER
Power Cord
Handle Adjustments
Attachments

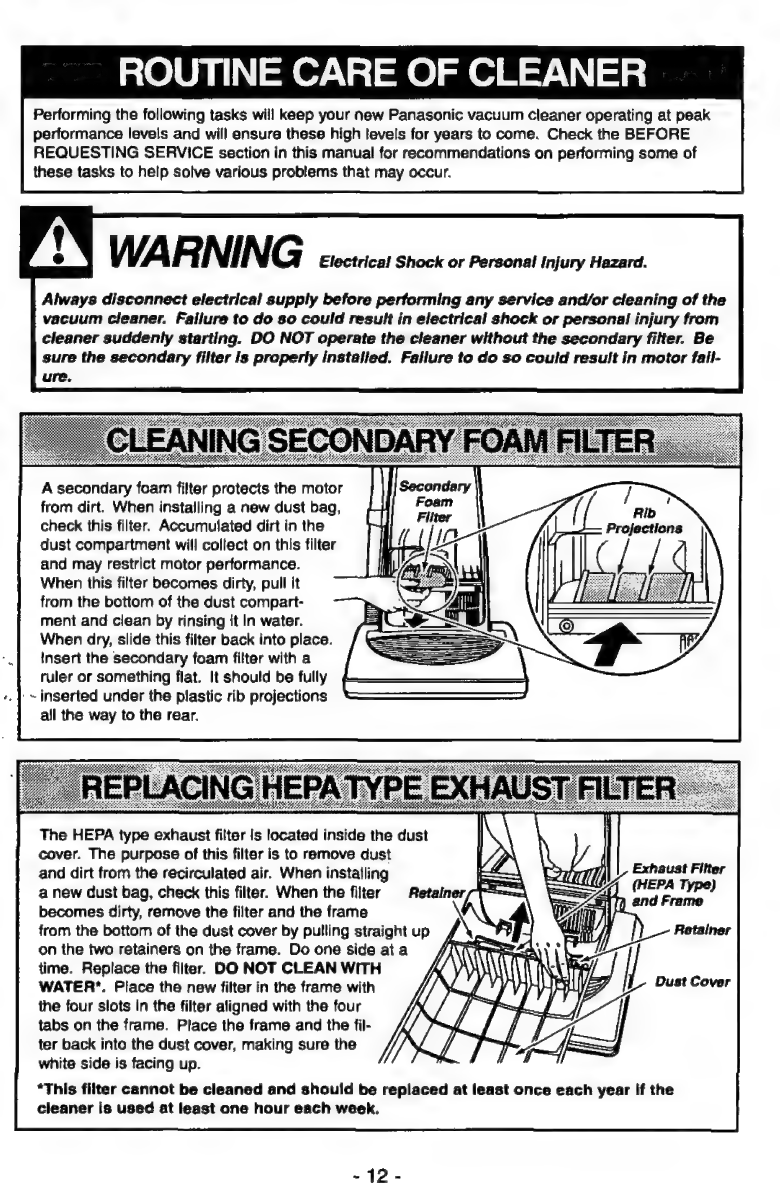

ROUTINE CARE OF CLEANER
Cleaning Secondary Foam Filter ....
Replacing HEPA Type Exhaust Filter
Changing the Dust Bag
Removing/Installing the Lower Plate
Replacing the Headlight Bulb

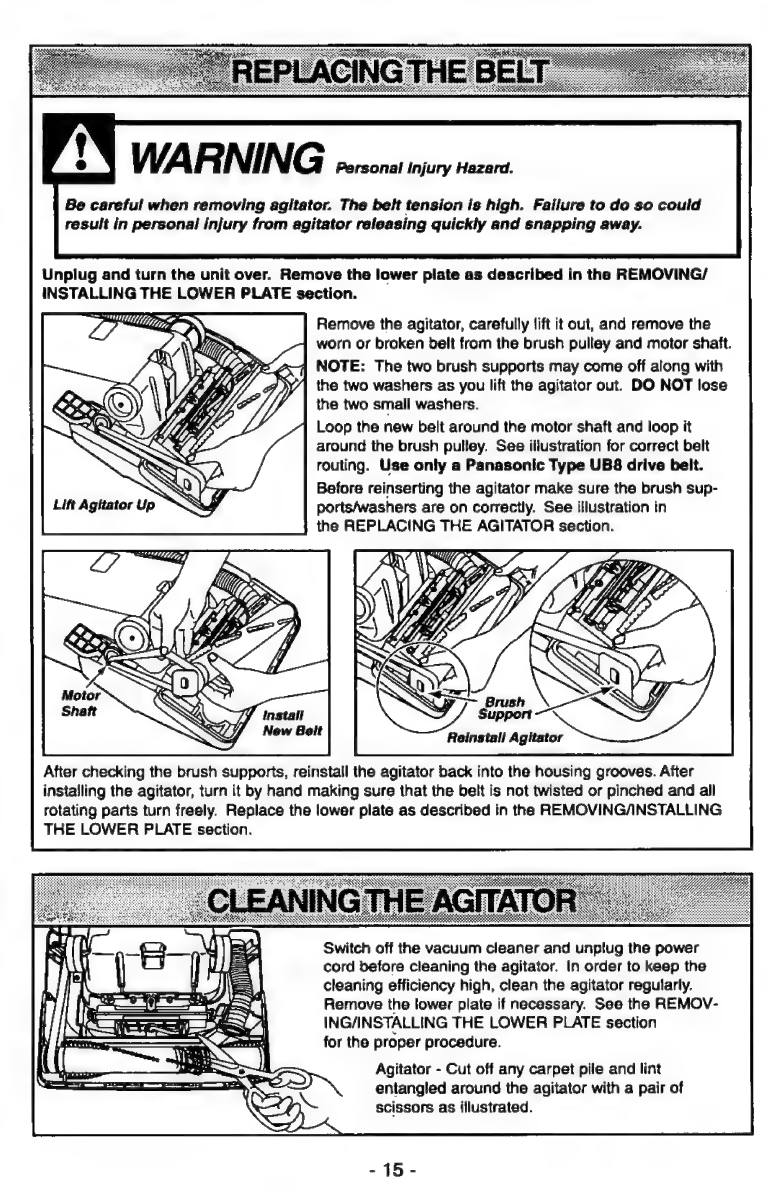

Replacing the Belt
Cleaning the Agitator
Replacing the Agitator

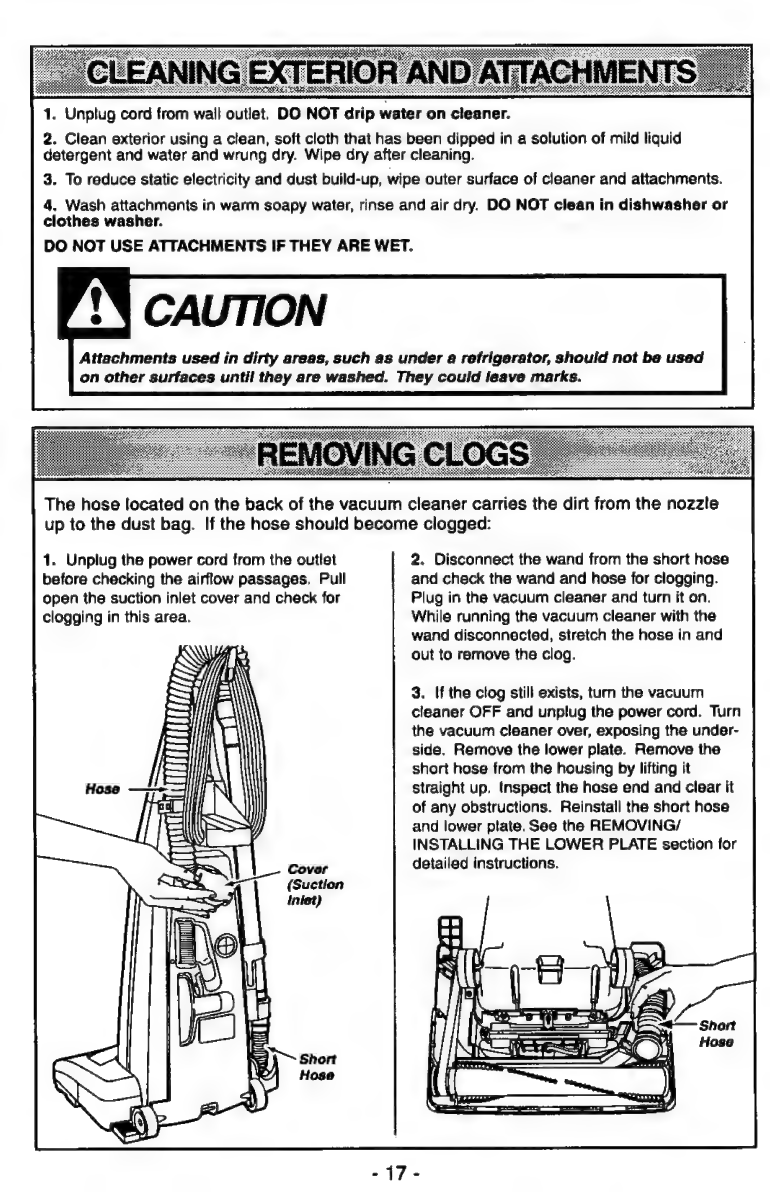

Cleaning Exterior and Attachments
Removing Clogs

IMPORTANT SAFETY INSTRUCTIONS
be followed, including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER
WARNING
To reduce the risk of fire, electrical shock, injury:
1. DO NOT leave vacuum cleaner when plugged in. Unplug from outlet when
not in use and before servicing.
2. To reduce the risk of fire, electric shock - DO NOT use outdoors or on wet
surfaces.
3. DO NOT allow to be used as a toy. Close attention is necessary when
used by or near children.
4. Use only as described in this manual. Use only manufacturer's recom-
mended attachments.
5. DO NOT use with damaged cord or plug. If vacuum cleaner is not working
as it should, has been dropped, damaged, left outdoors, or dropped into water,
return it to an authorized Panasonic Servicenter.
6. DO NOT pull or carry by cord, use cord as a handle, close door on cord, or
pull cord around sharp edges or corners. DO NOT run vacuum cleaner over
cord. Keep cord away from heated surfaces.
7. DO NOT unpiug by pulling on cord. To unplug, grasp the plug, not the
cord.
8. DO NOT handle plug or vacuum cleaner with wet hands.
9. DO NOT put any objects into openings. DO NOT use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings
and moving parts.
11. DO NOT pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
12. DO NOT use without dust bag and/or filters in place.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. DO NOT use cleaner to pick up flammable or combustible liquids such as
gasoline or use in areas where they may be present.
SAVE THESE INSTRUCTIONS
THIS VACUUM CLEANER IS INTENDED
FOR HOUSEHOLD USE ONLY
Note: Before you plug in your Panasonic vacuum cleaner, make sure that the voltage
indicated on the rating plate located at the back of the vacuum cleaner is the same as
your local supply.

PARTS IDENTIFICATION
=
O
a
| Handie
Screw
=f Cord
Retainer
Д
ШЙ
ic
wa
-
E
è
A
sr
@
Sg | (Suction
Secondary Dusting
Filter (inside Brush
Dust Compartment) TE ant pda
Upholstery
Exhaust “~u ~« Hose
Fitter (inside Ring Mount
..s Dust Cover)
x 4
Headlight ш
A 4
=
SA
|
EN
Short
=== A
t
“—
Handle
Furniture
Guard
Rolease
Pedal
FEATURE CHART
(PANASONIC UPRIGHT VACUUM CLEANER)
DIRT BARE
SENSOR FLOOR
Model OPTION

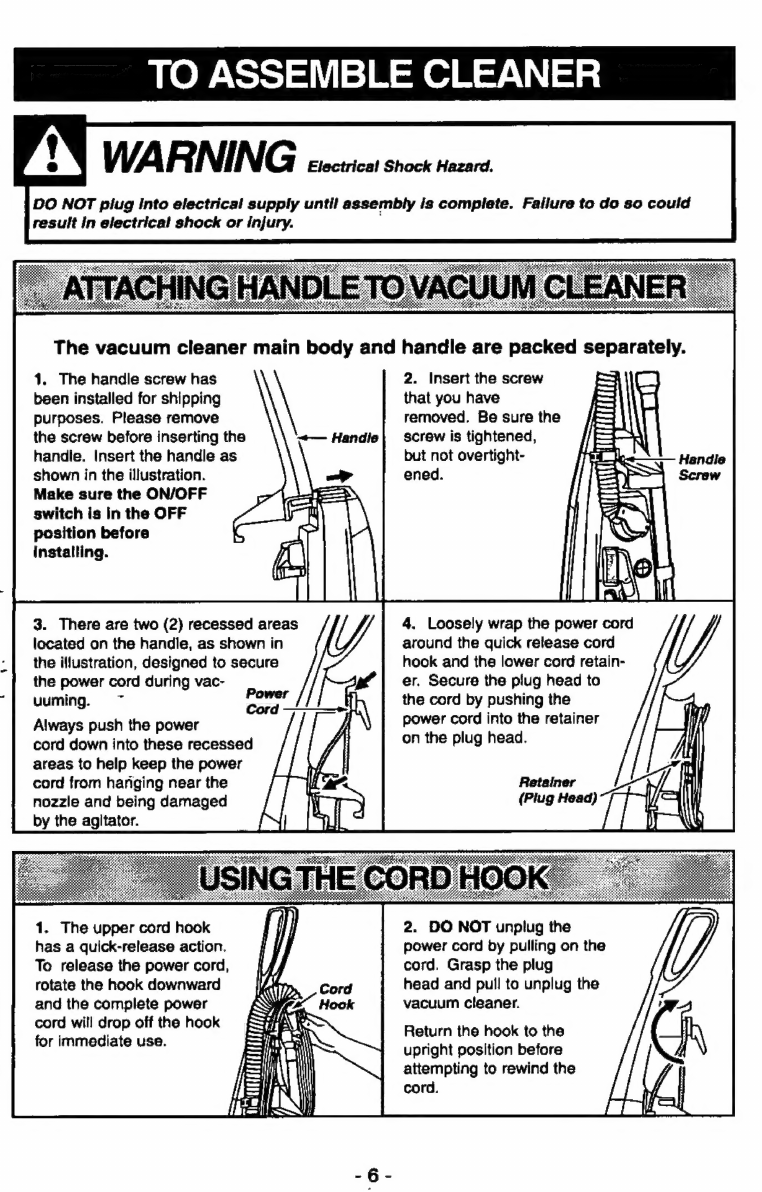

TO ASSEMBLE CLEANER
TIN WARNING octies snoce naana
DO NOT plug Into electrical supply until assembly is complete. Failure to do so could
result in electrical shock or injury.
1. The handle screw has
been installed for shipping
purposes. Please remove
the screw before inserting the
handle. Insert the handle as
shown in the illustration.
2. Insert the screw
that you have
removed. Be sure the
screw is tightened,
but not overtight-
ened.
Make sure the ON/OFF
switch is in the OFF
position before
installing.
4. Loosely wrap the power cord
around the quick release cord
hook and the lower cord retain-
er. Secure the plug head to
the cord by pushing the
power cord into the retainer
on the plug head.
3. There are two (2) recessed areas
located on the handle, as shown in
the illustration, designed to secure
the power cord during vac-
uuming. ~ Power
Cord
Always push the power
cord down into these recessed
areas to help keep the power
cord from hariging near the Retainer i
nozzle and being damaged С (Plug Head) (A
by
the
agitator.
j
2. DO NOT unplug the
power cord by pulling on the
cord. Grasp the plug
head and pull to unplug the
vacuum cleaner.
Return the hook to the
upright position before
attempting to rewind the
cord.
1. The upper cord hook
has a quick-release action.
To release the power cord,
rotate the hook downward
and the complete power
cord will drop off the hook
for immediate use.
ШИ) E
Somm

DO NOT get the power cord caught under the nozzle when using the vacuum or
attachments as it can be damaged by the agitator as it revoives.
ATTACHMENTS
Сре
Dusting
The attachments should be conveniently positioned on the back and
side of the cleaner for easy access. Some of the attachments
may already be assembled. Assemble the hose and attach-
ments to the cleaner as follows:
Place the hose in back of the handle on the hose holder.
Attach the wand to the hose by aligning the two (2) raised tabs on
the wand with the “J” slots in the hose. After guiding the tabs along
the grooves, twist to lock in place.
Place the wand in the rear slot of the tool holder, twisting and
pushing down over the short hose to assure a good con-
* Нове
nection.
Store the dusting brush, and the upholstery tool in the rear of the
dust compartment in their proper locations. Place the crevice
tool into the front slot of the tool holder. Refer to the
illustration in the PARTS IDENTIFICATION section for Dusting
correct
attachment
storage.
Brush
дез
ШШ?
LP
Б
è
ALY
(СОЛ
Agitator (Underneath)

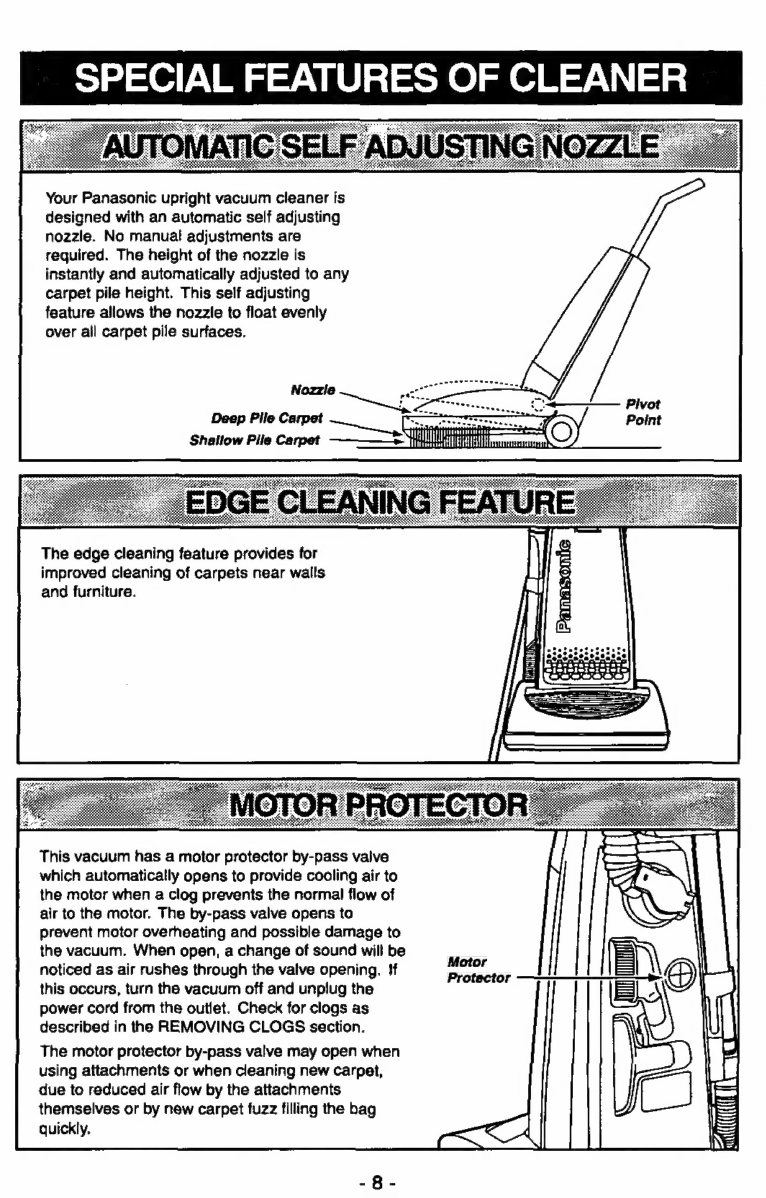

SPECIAL FEATURES OF CLEANER
Your Panasonic upright vacuum cleaner is
designed with an automatic self adjusting
nozzle. No manual adjustments are
required. The height of the nozzle is
instantly and automatically adjusted to any
carpet pile height. This self adjusting
feature allows the nozzle to float evenly
over all carpet pile surfaces.
мар phe Сири р)
NIT a
Shallow Pile Carpet —————ъ`ЙЙ И hnr
The edge cleaning feature provides for
improved cleaning of carpets near walls
and furniture.
This vacuum has a motor protector by-pass vaive
which automatically opens to provide cooling air to
the motor when a clog prevents the normal flow of
air to the motor. The by-pass valve opens to
prevent motor overheating and possible damage to
the vacuum. When open, a change of sound will be
noticed as air rushes through the valve opening. Sf
this occurs, turn the vacuum off and unplug the
power cord from the outlet. Check for clogs as
described in the REMOVING CLOGS section.
The motor protector by-pass valve may open when
using attachments or when cleaning new carpet,
due to reduced air flow by the attachments
themselves or by new carpet fuzz filling the bag
quickly.
Motor
Protector

The hose ring is a feature designed to prevent tipping of the vacuum
while performing certain tasks that
involve the use of the attachments. To
use this anti-tip feature, place the hose #056 pose
ring in the hose ring mount as shown
in the illustration. Rotate this ring
Ring Knob Ring Mount
on the hose so that the hose ring
knob will align with the stot in
the hose ring mount and slide
the ring down firmly until it
stops. For recommendations
on when to use the hose ring
and the exact location of the
hose ring mount see the
ATTACHMENTS section.

TO OPERATE CLEANER
DO NOT use outlets above counters. Damage to items in the surrounding areas could
occur. Be sure the switch is in the off position while plugging the cord in.
NOTE: To reduce the risk of electrical shock, this vacuum has a polarized plug, one blade is wider
than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper
outlet. DO NOT CHANGE THE PLUG IN ANY WAY.
1. Plug the power cord into a 120V outlet.
2. To start the vacuum cleaner, push the
switch to the ON position.
3. To stop the vacuum cleaner, push the
switch to the OFF position.
The handle may be lowered 1. Upright position
to any position required.
Just step on the handle The handle locks in this posi-
release pedal as indi- tion for storage. The
cated by the illustra- handle should always
tion and lower the be in an upright posi-
handle as desired. tion when the attach-
ments are used.
2. Middle position 3. Low position
This position is for norma! $ This position
cleaning. is used for
| cleaning under
furniture.
-10-
