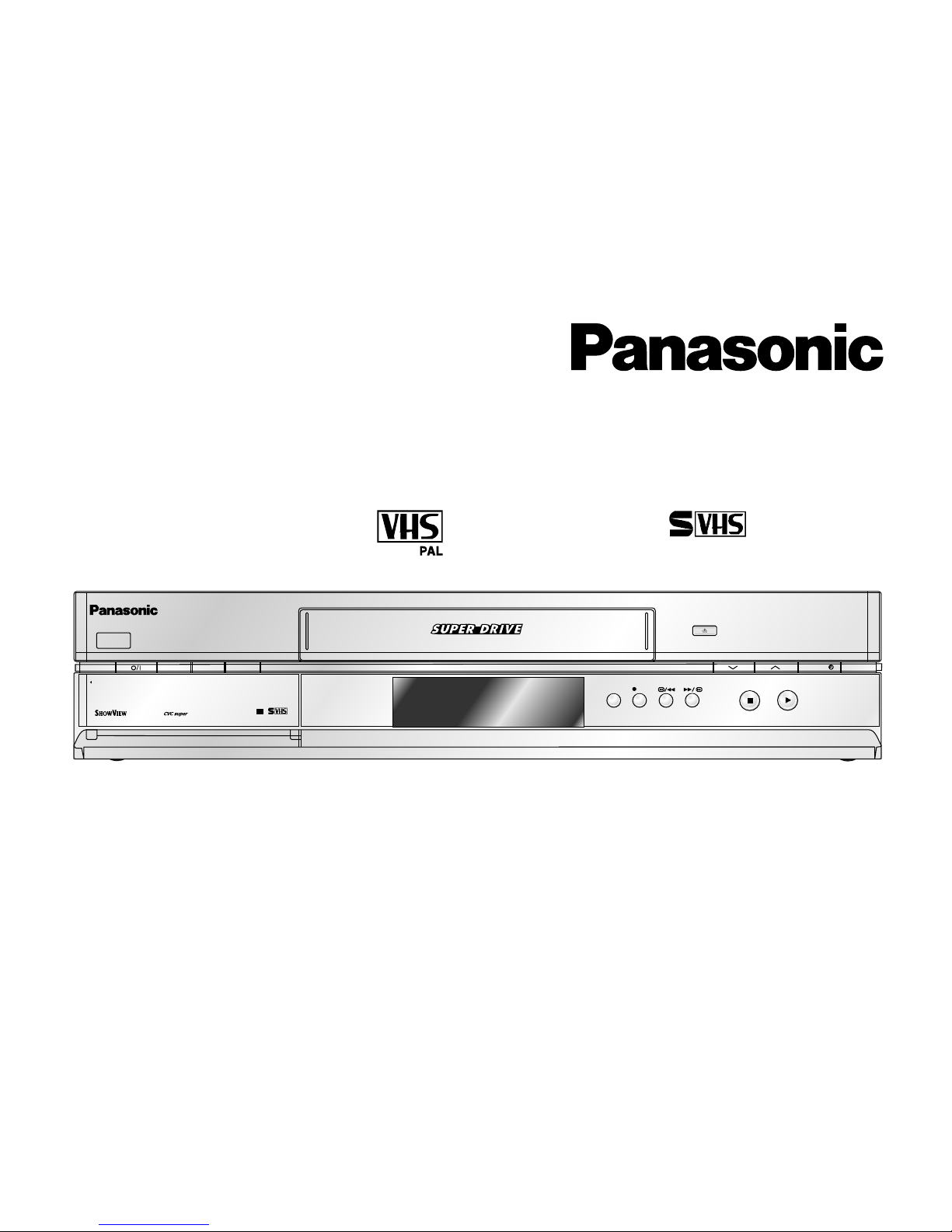

Panasonic NV-HV50 Series User manual

Video Cassette Recorder
Operating Instructions
NV-HV60 Series (Hi-Fi) / NV-HV65 Series (Hi-Fi)
NV-HV55 Series (Hi-Fi) / NV-HV50 Series (Hi-Fi)
NV-MV20 Series (Mono) / NV-MV15 Series (Mono)
NV-SV120 Series (S-VHS, Hi-Fi)
PAL
VHS
625
NV-SV120
CH
EJECT
PULL-OPEN
VPS / PDC
VHS
PAL
625
3D DNR
PROG PLAY INTELLIGENT TIMER
TIMER REC
TIMER CHECK REC
S-VHSET
.
Hi-Fi STEREO SUPER LP
Super VHS

Remote Control Batteries
AA, UM3 or R6
Operating Instructions
Guarantee Card
QA 0 3
N2 HB0 00 1
N2QA B 00043K 0
2
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully. Please keep this manual for future reference.
Precautions
Voltage: Only use power sources complying with the specifications (220-240 VAC, 50/60 Hz).
You may otherwise overload the unit and cause fire. Do not use DC power sources. Check
the source carefully when setting up the unit on a ship or other place where DC is used.
AC mains lead protection: Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or electric shock.
Service: Do not attempt to repair this unit by yourself. If the sound fails, the display is off,
smoke escapes from the unit or any other problem occurs that is not described in these
operating instructions, disconnect the power supply and contact your dealer or an authorised
aftersales service centre.

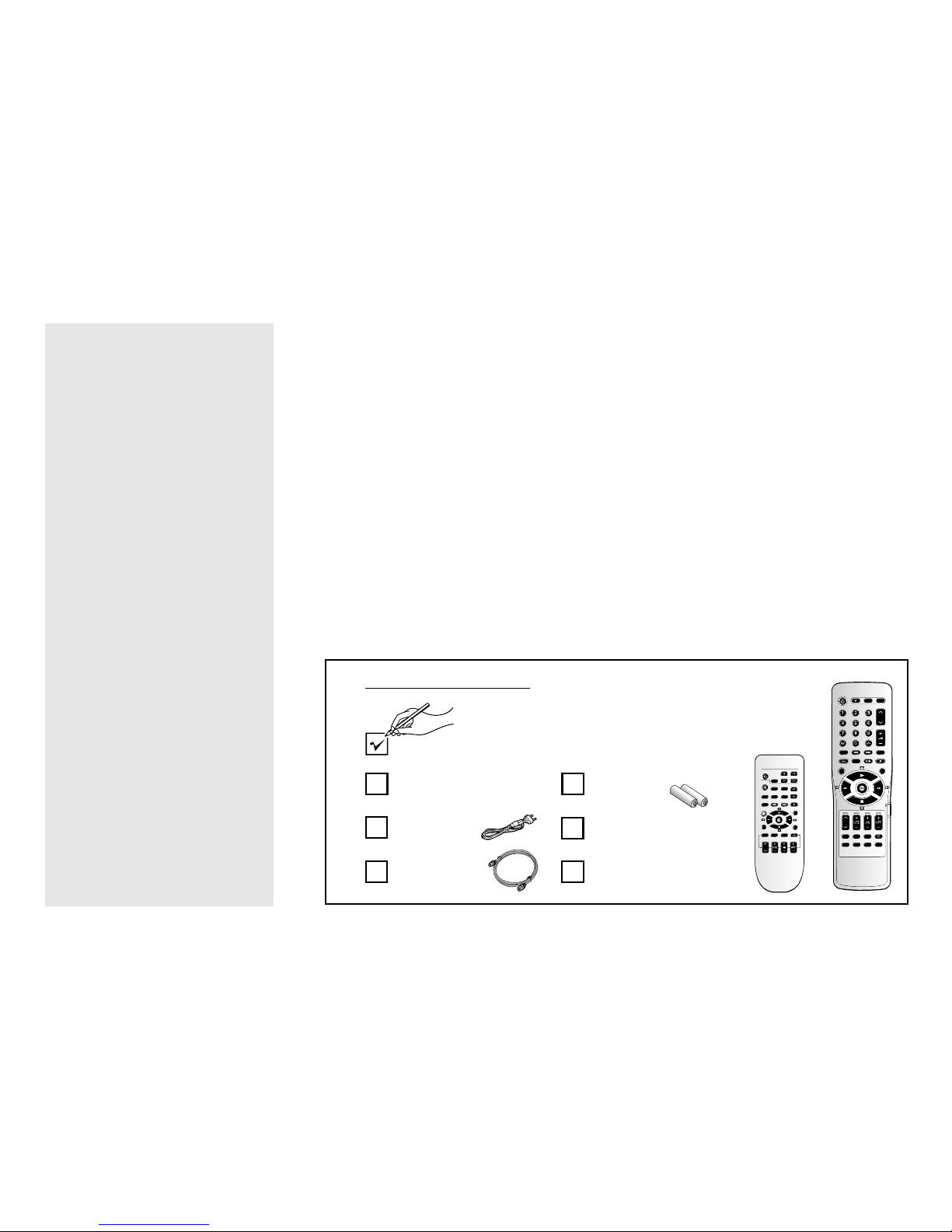

Accessories Included (Remote control unit depends on the model)
Remote Control
N2QAKB000043/ N2QAHB000031
AC Mains Lead
RJA0043-1C
RF Coaxial Cable
Contents page
Precautions 2
Warning 3
Remote control functions 4 - 5
Front Panel 6
Rear Panel 7
Connections / Settings 8
Auto Setup 9
Recording 10
Timer recording
Automatic SP/LP selection 11
VPS/PDC function 11
Timer recording 12-13
ShowView 14
INTELLIGENT TIMER 15
General functions 16 -17
Menu Overview 18
Manual Setup
Setting a new Channel 19
Changing the name of TV stations 20
Changing the order of TV stations 20
Creating a new station table 21
Shipping condition, factory defaults 21
Menu Others 22-23
Decoder 24
External recording control 25
Amplifier, NICAM sound system 26
NTSC playback 26
Batteries, Cassette erasure protection 27
Before requesting service 28 -29
Specifications 30 -31
Index 32

3
Warning
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
CAUTION!
!DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT
IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR
FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS
AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION
VENTS.
!DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH
NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
!DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED
CANDLES, ON THE UNIT.
!DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY
MANNER.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
This product may receive radio interference caused by mobile telephones
during use.If such interference is apparent, please increase separation
between the product and the mobile telephone.
DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE
KLIMAFORHOLD.
ADVARSEL:
FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT ELLER
SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE UTSETTES
FOR REGN, FUKTIGHET, VANNDRÅPER ELLER VANNSPRUT. DET
MÅ HELLER IKKE PLASSERES GJENSTANDER FYLT MED VANN,
SLIK SOM BLOMSTERVASER, OPPÅ APPARATET.
ADVARSEL!
!APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET INNEBYGGET
KABINETT ELLER ET ANNET LUKKET STED HVOR VENTILASJONS-
FORHOLDENE ER UTILSTREKKELIGE. SØRG FOR AT GARDINER
ELLER LIGNENDE IKKE FORVERRER VENTILASJONSFORHOLDENE,
SÅ RISIKO FOR ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET
AV OVERHETING UNNGÅS.
!APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES TIL MED
AVISER, BORDDUKER, GARDINER OG LIGNENDE.
!PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ
APPARATET.
!BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET.
NORSK
Dette apparatet kan under bruk fange opp høyfrekvente forstyrrelser
forårsaket av en mobiltelefon som benyttes i nærheten. Hvis slik
forstyrrende påvirkning konstateres, bør mobiltelefonen benyttes på
større avstand fra dette apparatet.

4

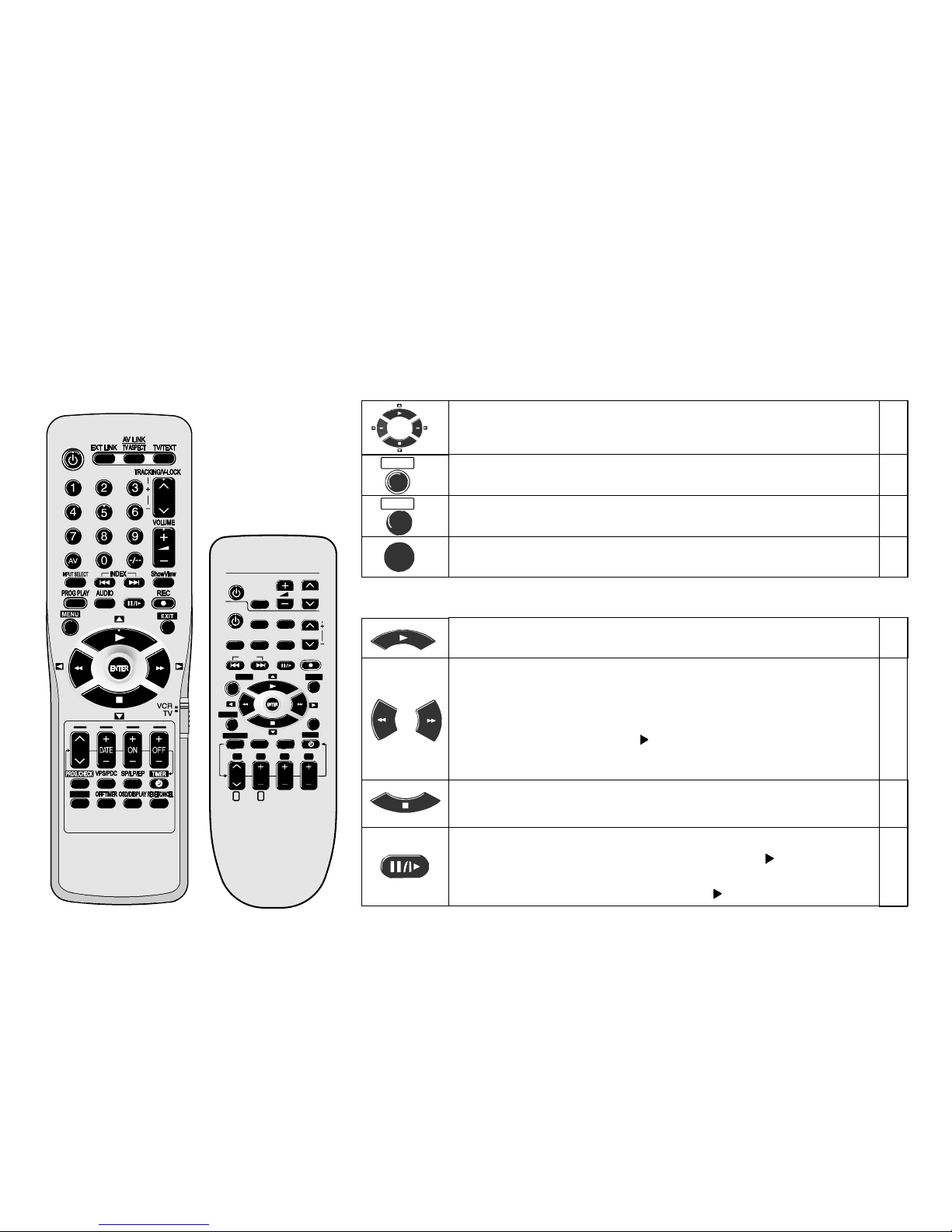

Remote control functions
VOLUME
CH
AV
TV
VCR
OSD/DISPLAY RESET/CANCEL
TRACKING/V-LOCK
CH
PROG PLAY AV LINK AUDIO
INDEX
REC
CH DATE ON
OFF
AB
1 2 3 4
PROG/CHECK
MENU
I-TIMER
OFF TIMER
EXT LINK
SP/LP/EP
TIMER
EXIT
Selects or saves a setting.
Playback functions
Control menu
OSD menu selection buttons.
Displays the menu.
Quits a menu.
MENU
Playback
Fast winding / Forward and backward search
!Goes from Stop into Fast Forward or Fast Rewind mode.
!Starts the search for a frame during playback. Press button
twice to increase the speed of search (JET SEARCH).
Press the Playback button to quit the Search mode.
!The unit keeps searching while the button is pressed.
Press Stop to stop recording, playing back or winding.
To eject a cassette: Press button for more than 3 seconds.
Still Playback:
Slow Playback:
In Playback mode.
Press button again or press the Playback button to quit.
Press for more than 2 seconds while in Playback
mode. Press the Playback button to quit .
Some Panasonic TV sets accept control signals from the video recorder's
remote control unit. In the table, the TV buttons are marked with 'TV', the
video recorder buttons with 'VCR'.
ENTER
P. 17
VCR
VCR
VCR
VCR
VCR
VCR
P. 17
VCR
VCR
EXIT
CH
CH
I-TIMER

Stand-by/on switch /I
Press to switch the unit from on to stand-by mode or vice
versa. In stand-by mode, the unit is still consuming a small
amount of power.
5
EXT LINK
Volume control.
RESET/CANCEL
OSD/DISPLAY
OFF TIMER
VPS/PDC
SP/LP/EP
Channel selector
Displays the Timer menu.
Sets the tape speed.
Activates the recording timer.
Press the button repeatedly to display the time,
tape counter or remaining tape.
AV LINK
TV/TEXT
AUDIO
PROG PLAY
VCR / TV switch
Selects the TV set's AV port.
Changes the screen format.
Selects a programme memory location and inputs
the ShowView number. Example: 18=
RESET : Resets the counter to 0:00.00.
CANCEL: Clears an entry you made.
Finds the start of a programme.
Displays the ShowView menu.
Controls the beginning and end of a recording
session by a special signal.
Record
Activates the recording timer for externally
controlled recording.
Toggles between TV reception and video playback
channel.
INPUT SELECT
I-TIMER
REC
PROG/CHECK
Audio mode
Toggles between AV inputs A1, A2 and A3.
ShowView
Plays back programmed recordings.
TV :
VCR:
Selects the AV input and navigates in
the teletext menu.
Menu entries.
TRACKING/V-LOCK
TV ASPECT
CH
CH
TIMER
CH
TV
TV
TV
TV
Toggles between TV reception and video text
reception. TV
VCR
TV
TV
VCR
P. 25
VCR
TV
P. 14
VCR
VCR
VCR
VCR
VCR
VCR
VCR
VCR
VCR
VCR
VCR
VCR
VCR
VCR
P. 13
P. 10
P. 17
P. 15
P. 12
P. 10
P. 11
P. 12
P. 10
P. 16
VCR
VCR
P. 16
VCR
TV
VCR
Tracking control of disturbed VCR image.
Switches the unit into stand-by mode after the set
time of recording, playback or in Stop mode.
Defines programmes transmitted to the same
program memory location at the same time.

6
CVC Super
The CVC function provides
a picture of perfect quality.
The picture is automatically
rendered as clear and sharp
as possible.

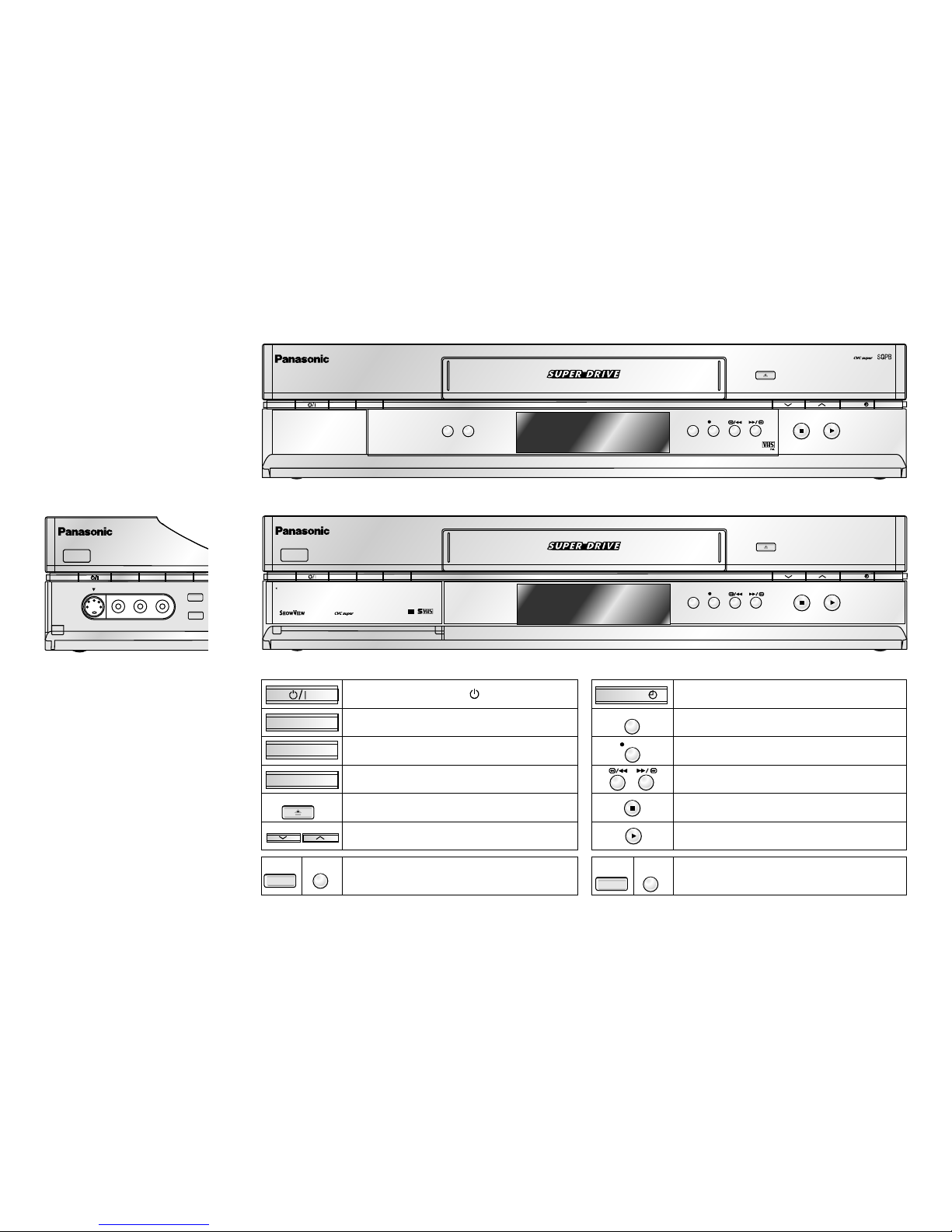

Front Panel
Stand-by/on switch /I
3-Dimensional Digital Noise Reduction
(S-VHS only )
INTELLIGENT TIMER
TIMER CHECK
REC
EJECT
CH
PROG PLAY
3D DNR
TIMER REC
Defines timer programmes.
Plays back programmed recordings.
Activates the recording timer for
externally controlled recording.
Activates the recording timer.
Displays the timer programme for verification.
Record button
Fast winding / jet search
Playback button
Stop button
Erases a cassette.
Selects a channel.
Ejects the cassette.
3D DNR
To ensure high playback
picture quality with less noise.
NV-SV120
NV-HV60, NV-HV65, NV-HV55, NV-HV50, NV-MV20, NV-MV15
EXT LINK EXT LINK
QUICK
ERASE
QUICK
ERASE
NV-SV120
3D DNR
PROG PLAY INTELLIGENT TIMER
EXT LINK
QUICK
ERASE
AV3 IN
S-VIDEO VIDEO L-MONO-AUDIO-R
NV-SV120
CH
EJECT
PULL-OPEN
VPS / PDC
VHS
PAL
625
3D DNR
PROG PLAY INTELLIGENT TIMER
TIMER REC
TIMER CHECK REC
S-VHSET
.
Hi-Fi STEREO SUPER LP
Super VHS
CH
EJECT
PROG PLAY INTELLIGENT TIMER
TIMER REC
TIMER CHECK REC
QUICK
ERASE EXT LINK

NV-SV120
NV-HV60, NV-HV65, NV-HV55
NV-HV50EC
7
L/G
AV2 (
CONTROLE 8mm
IN/
ENT
OUT/
SORTIE
AC IN~
SECTEUR~
AV2 (DECODER/DECODEUR/EXT)
AV1 (TV) RF/
ANT
L/G
R/D
AUDIO
OUT/SORTIE
IN/
ENT
OUT/
SORTIE
AC IN~
SECTEUR~
AV2 (DECODER/DECODEUR/EXT)
AV1 (TV) RF/
ANT
AV OUT/SORTIE
L/G
R/D
AUDIO
VIDEO
S-VIDEO
OUT/SORTIE
IN/
ENT
OUT/
SORTIE
AC IN~
SECTEUR~
AV2 (DECODER/DECODEUR/EXT)
AV1 (TV) RF/
ANT
IN/
ENT
OUT/
SORTIE
AC IN~
SECTEUR~
AV1 (TV) RF/
ANT

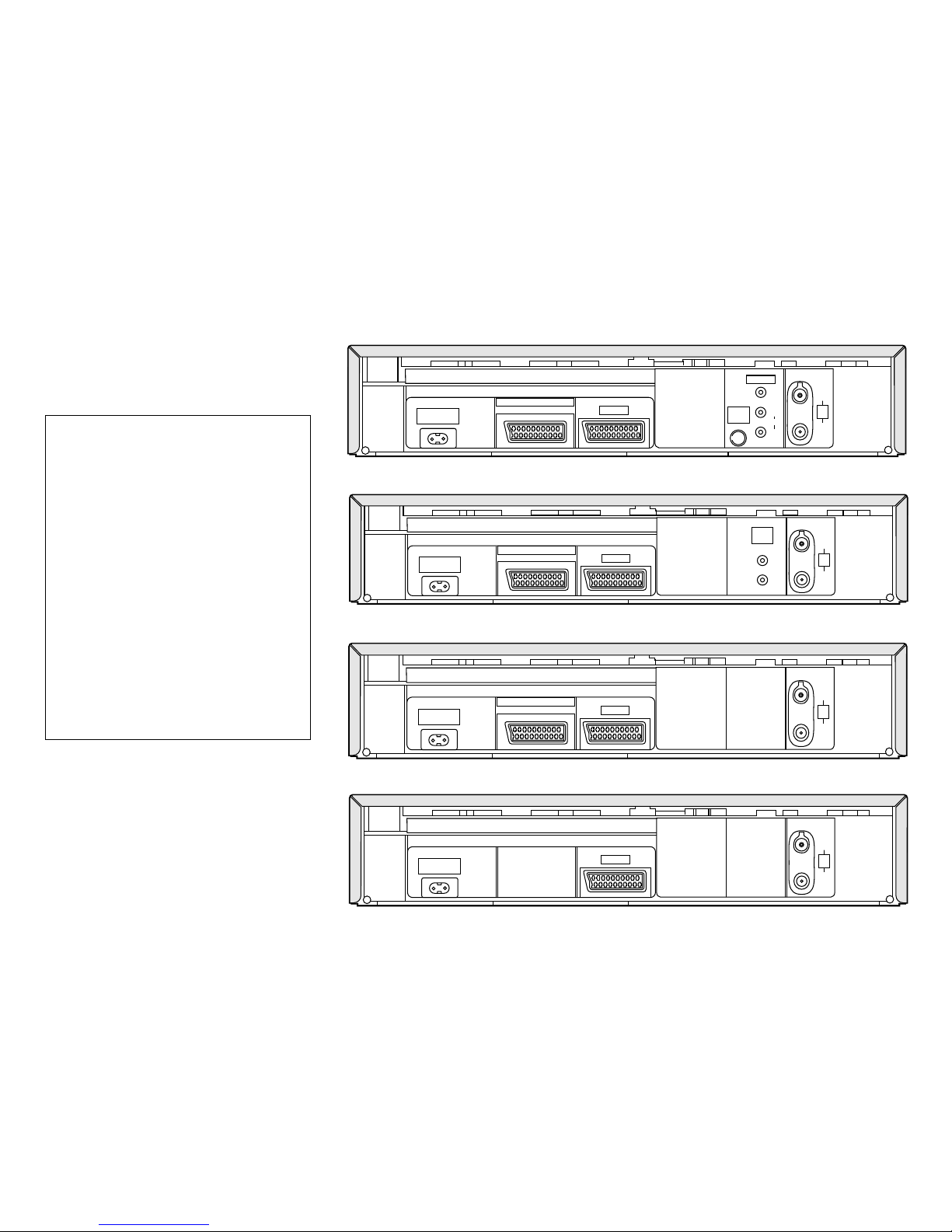

Rear Panel
AC IN~ = Power supply
SECTEUR~
AV2 (DECODER/DECODEUR/EXT)
AV1 (TV)
S-VIDEO = S-VIDEO output
OUT/SORTIE
VIDEO = VIDEO output
L/G = AUDIO output left channel
R/D = AUDIO output right channel
IN/ = Antenna input
ENT
OUT/ = Antenna output
SORTIE
NV-MV20, NV-MV15, NV-HV50EG

Connections / Settings
8
TV
Aerial
RF-Coaxial Cable
21-pin Scart Cable

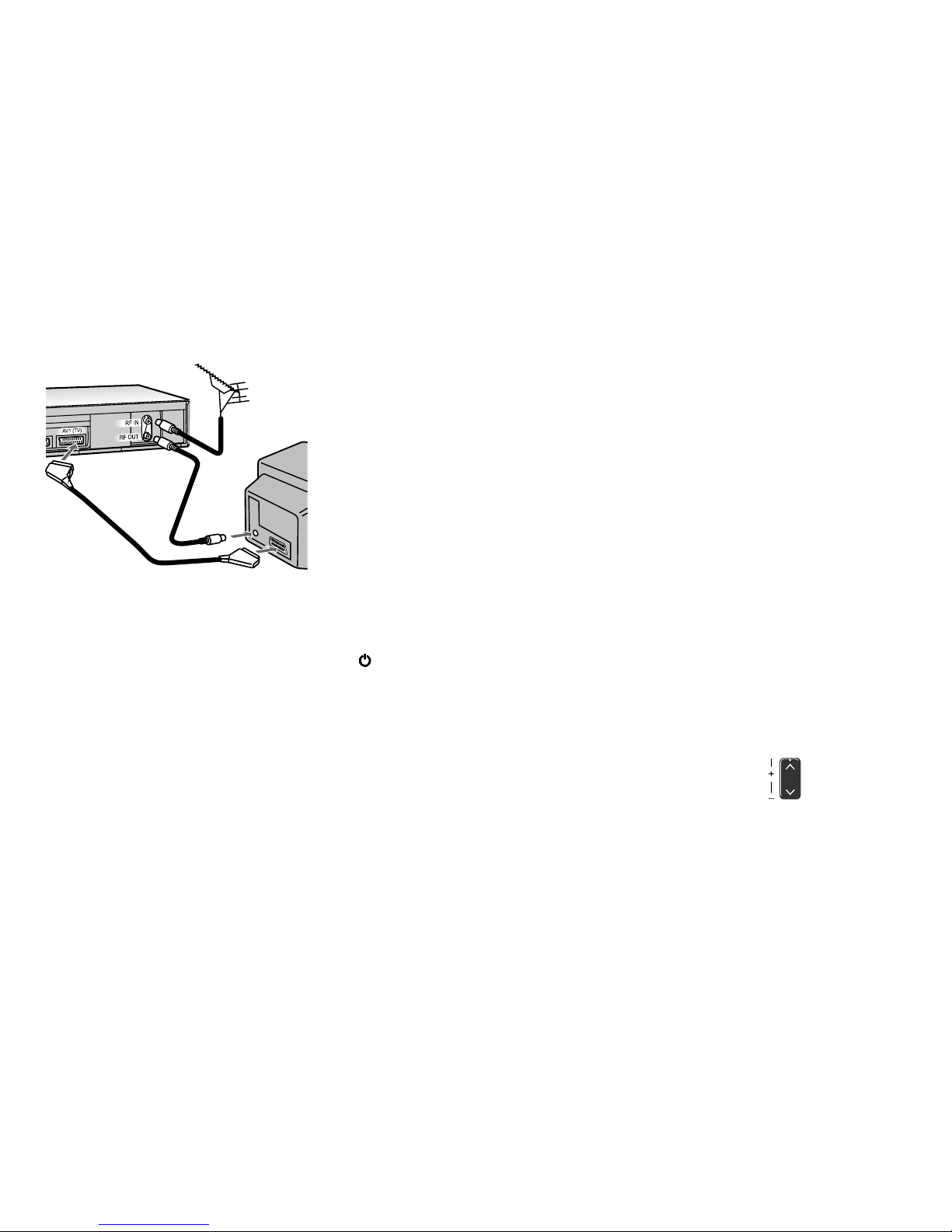

VCR Connect all the cables as shown in the illustration, then connect the AC Mains
lead (part of the package) to an AC wall outlet.
To be able to receive TV programmes it is mandatory to connect the RF-Coaxial
Cable even if the video recorder is connected by a 21-pin scart cable.
If you decide to just use the RF-Coaxial Cable to connect the TV set you must
adjust the video output channel with the TV set's input channel.
!Switch on the video recorder
!Press the MENU button for approx. 7 seconds. The preset channel appears
on the display.
!Tune the TV set until the test pattern appears.
If there is any interference select another channel for the TV set and
video recorder.
!Press the CH button to change the channel (e.g. to 39).
!Tune the TV set until the test pattern appears.
!Press ENTER to confirm.
CH

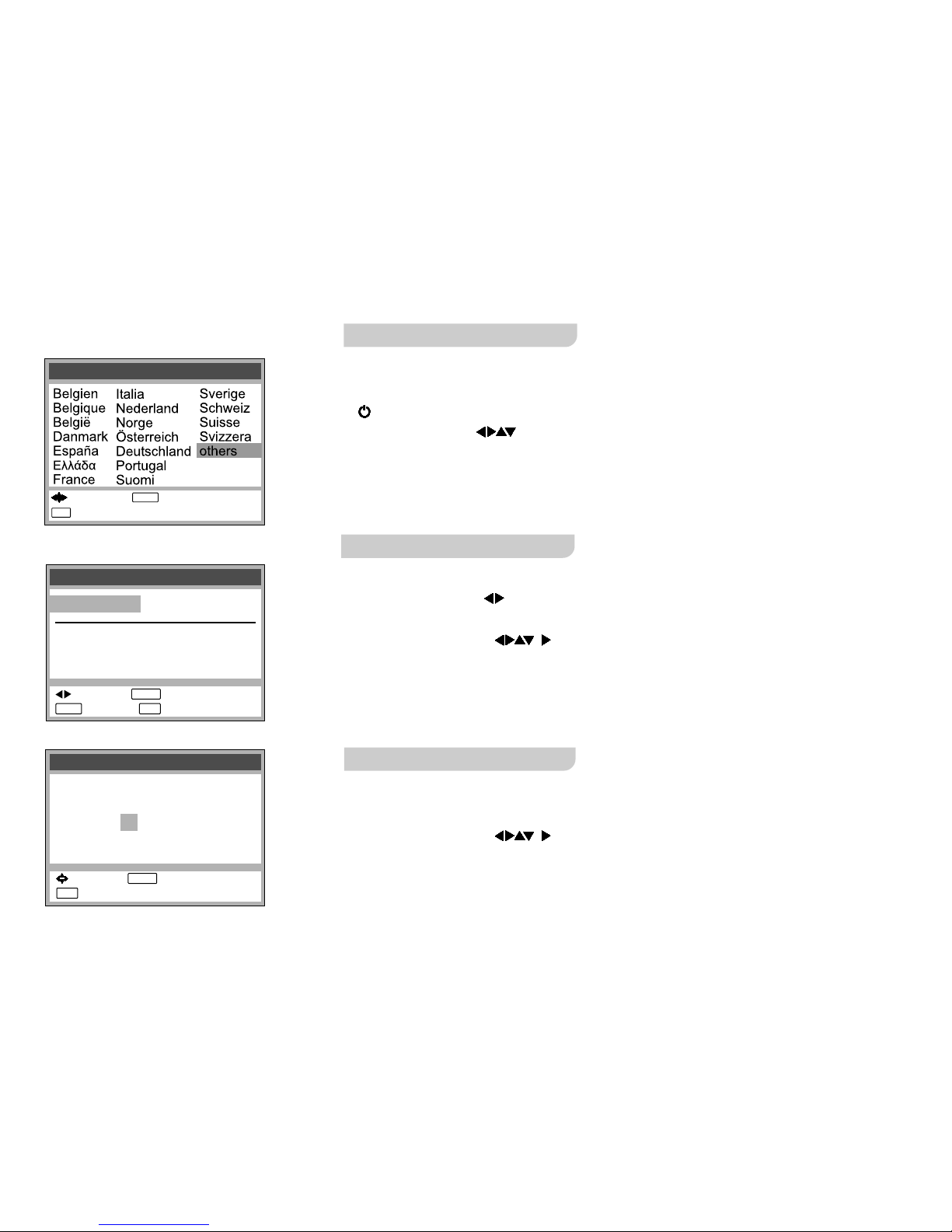

Auto Setup
Country
: select : access
: exit
ENTER
EXIT
Datum / Zeit
:wählen : anwählen
: zurück : abbrechen
ENTER
MENU EXIT
AUTO : AUS
Zeit : 12 : 00 : 00
Datum : 11. 6. 02
Datum / Zeit
:wählen : speichern
: zurück : abbrechen
ENTER
MENU EXIT
Zeit : 12 : 00 : 00
Datum : 11. 6. 02
Clock set
:select : access
: return : exit
ENTER
MENU EXIT
AUTO
Time : 12 : 00 : 00
Date : 11. 6. 03
Clock set
Time : 12 : 00 : 00
Date : 11. 6. 03
:select : store
: exit
ENTER
EXIT
!
!
!ENTER
Switch on the video recorder.
Select a country.
The Country menu will be displayed.
The VCR starts the automatic tuning.
(The search will take approx. 5 minutes to be completed.)
!
!
!Set Time and Date
Press to return to the Menu screen.
AUTO - MANUAL
ENTER
!ENTER
!
,
MENU
SV120 HV60 HV65 HV55 HV50 MV20 MV15
SV120 HV60 HV65 HV55 MV20HV50 MV15
If the enu does not appear after switching on you can restart
Automatic Tuning (page 21). You can afterwards set date and time either
automatically or manually.
Country m
Manually setting Time / Date
!Set Time and Date ,
!ENTER
DMind that a wrong date or time will influence the programmed recording of TV
programmes (don't forget to change summer- and wintertime).
After running the automatic tuning, you must manually set the date and time.
SV120 HV60 HV65 HV55 MV20HV50 MV15
9

Recording
REC
OSD/DISPLAY
SP/LP/EP
Set the TV set to the video channel and insert a cassette into the video recorder;
make sure that the cassette's protection tab is still in.
!Select a channel to record from.
Select the AV channel if you are recording via the 21-pin scart cable.
!Press to start recording.
!Press the Stop button to stop recording.
!To pause recording:
The function will switch itself off after approx. 5 minutes to protect the video heads.
!To resume recording:
REC
SP : normal recording time - optimal picture quality
LP : double recording time - simple picture quality
EP : triple recording time - reduced picture quality
The display of the video recorder shows: time - counter - tape remain.
The start of a cassette is indicated as -----.
Press until ' is displayed.
!OSD/DISPLAY RE'
D
When you play back LP or EP recordings, some cassettes (e.g. type)
may produce interference. This is not indicative of a malfunction.
E-300
Tape Remain counter/indicator
SV120 HV60 HV65 HV55 HV50 MV20 MV15
SV120 HV60 HV65 HV55 HV50 MV20 MV15
SV120 HV60 HV65 HV55 HV50 MV20 MV15
!Prior to starting the recording session, press to set the tape speed.SP/LP/EP
VCR
SP
VCR
SP
DRecordings in the S-VHS or S-VHS ET REC mode are supported by the PAL
TV system only. (Only SV120, page 23)
10

VPS/PDC
Timer recording
ON : The station transmits VPS/PDC signals. You must set the timer to the
time specified in the TV magazines. Use the special VPS time the TV
magazine may indicate.
- - - : The station does not transmit VPS/PDC signals. Try to set the start and
stop times such that the entire film can be recorded even if a programme
begins or ends earlier or later than planned.
Automatic selectionSP/LP
If, at the beginning of a timer programme, there is not enough tape remain
to complete it, the SP/LP function will automatically run the tape at LP speed.
This ensures that the entire programme will be recorded. If the LP mode is
not enough to 'stretch' the remaining tape to fit you will not be able to record
all of the TV programmes.
DIt is not possible to automatically activate the EP mode.
A:
This setting defines how a special signal controls the beginning and end of
a recording session. If a TV programme begins or ends earlier or later than
planned, this function synchronises the beginning and end of the recording
session with the actual beginning and end of the TV programme.
SV120 HV60 HV65 HV55 HV50 MV20 MV15
SV120 HV60 HV65 HV55 MV20HV50 MV15
VPS/PDC function
11

!PROG/CHECK
!ENTER
Use the cursor keys or
to make the next entries.
!Select a station , or press CH
!Set the date, week or day of week , or press DATE
!Enter the start time: , or press ON
!Enter the stop time: , or press OFF
Keep the buttons pressed to change the time in 30-minute steps.
!Set the tape speed: A(Automatic), SP, LP, EP ,
(does not apply to MV20, MV15)
!Press or the VPS/PDC button to change the VPS/PDC setting
(does not apply to HV50, MV15).
!Press ENTER to save the timer programme.
!Repeat these steps for further recordings you may wish to programme.
!Press TIMER to activate the recorder's timer mode.
Ensure that the video recorder symbol is displayed.
Do not forget to verify that there is enough tape remain. The length of the
D
recording must not exceed the time remain on the video cassette.
Timer recording
Timer recording 1 / 3
Pos Date Start Stop VPS
PDC
1 ARD 31/12 10:30 11:30 SP ON
1 ARD 31/12 11:30 12:30 SP ON
2 ZDF 31/12 12:30 13:30 SP ON
4 RTL 31/12 13:30 14:30 SP ON
6 VOX 31/12 14:30 15:30 SP ON
-- - - - - - -/ - - - -:- - - -:- - SP - - -
:select : store
: delete : exit
ENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTER
CANCEL EXITEXITEXITEXITEXITEXITEXITEXITEXITEXITEXITEXITEXITEXITEXITEXITEXIT
The Timer recording allows you to programme the recording time of TV programmes
up to 1 month in advance. Use the on-screen menu to programme a maximum
of 16 recordings.
CH
SV120 HV60 HV65 HV55 HV50 MV20 MV15
TIMER
PROG/CHECK
12

Timer recording
PROG/CHECK
PROG PLAY
TIMER
TIMER CHECK
Quitting the timer mode
!
program you entered previously.
Press TIMER, the video recorder symbol turns off.
You can now play back a cassette or make a manual recording.
Press TIMER again to reactivate the timer
Changing or cancelling a timer programme
!Press PROG/CHECK to display the Timer Recording menu.
!
Press to select the entry you wish to edit.
!ENTER
!To change the entries:
!ENTER
!Press RESET/CANCEL to cancel the timer programme.
Checking the timer programme
!Press PROG/CHECK, the Timer Recording menu will appear.
!Press PROG/CHECK again or EXIT to quit the menu.
Playing back programmed recordings
The unit will rewind to the beginning of the programmed recording and
automatically start playing it back.
DYou can also play back programmed recordings manually.
SV120 HV60 HV65 HV55 HV50 MV20 MV15
Displays the timer programmes for verifications (button on the unit only)
Repeatedly press the button to view the details of the timer programmes on the
video recorder's display panel.
13

ShowView
:enter : access
0 - 9
: correct : exit
ENTER
EXIT
8 3 5 4 2 - - - -
Timer recording 1/3
Pos Date Start Stop VPS
PDC
:select : access
:delete : exit
ENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTER
CANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCEL
EXIT
1 ARD 31/12 10:30 11:30 SP ON
1 ARD 31/12 11:30 12:30 SP ON
2 ZDF 31/12 12:30 13:30 SP OFF
- - - - - - - -/ - - - -: - - - -: - - - - - -
- - - - - - - -/ - - - -: - - - -: - - - - - -
- - - - - - - -/ - - - -: - - - -: - - - - - -
!Press the ShowView button.
!Enter the ShowView number (press to correct any mistakes)
!ENTER
SV120 HV60 HV65 HV55 MV20HV50 MV15
If the unit fails to automatically detect the station press or enter it
manually. The video recorder will store the information so that you will not
have to enter it again later.
CH to
DShowView
ShowView
is a trademark of Gemstar Development Corporation.
The system is manufactured under licence from Gemstar Development
Corporation.
TIMER
E rditing the Timer ecording data
!ENTER
!Select a station , or press CH
!Set the date, week or day of week , or press DATE
!Enter the start time: , or press ON
!Enter the stop time: , or press OFF
!Set the tape speed: A(Automatic), SP, LP, EP ,
(does not apply to MV20)
!ENTER
!Press TIMER to activate the timer mode.
The Timer recording screen is displayed.
!Press TIMER to activate the timer mode.
Ensure that the video recorder symbol is displayed.
TIMER
ShowView
ShowView
14

INTELLIGENT TIMER
: edit : unlock : lock
: delete : exit
ENTER
CANCEL EXIT
: select : store
I-TIMER TIMER
Pos Date Start Stop VPS
PDC
1 ARD 25/10 10:30 11:30 SP ON
1 ARD 25/10 18:3019:30 SP OFF
2 ZDF 25/10 12:3013:30 A ON
INTELLIGENT TIMER 25/10/03
Timer recording 1 / 3
Pos Date Start Stop VPS
PDC
:select : store
: delete : exit
ENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTERENTER
CANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCELCANCEL
EXIT
I-TIMER
1 ARD 26/10 10:30 11:30 SP ON
1 ARD 26/10 18:30 19:30 SP OFF
-- ---- -- / -- --:-- --:-- - ---
-- ---- -- / -- --:-- --:-- - ---
-- ---- -- / -- --:-- --:-- - ---
-- ---- -- / -- --:-- --:-- - ---
!
!
.
Press I-TIMER.
!Press or I-TIMER to select a programme.
!Press TIMER to activate the timer mode.
The oldest programmes will be cancelled automatically.
!Press RESET/CANCEL to cancel a programme.
!To protect the data press , the symbol is displayed.
To unprotect the data press
Editing a programme
!Press I-TIMER.
!Press or I-TIMER to select a programme.
!Press ENTER to display the Timer recording screen.
!To change any of the data press .
!Press ENTER to store a change.
!Press TIMER to activate the timer mode.
SV120 HV60 HV65 HV55 HV50 MV20 MV15
This function makes it easier for you to time the recording of programmes
transmitted by the same station at the same time but on different days. You
can fully modify the programmes once they have been transferred to the Timer
recording menu. The INTELLIGENT TIMER menu lists the information of the
last 5 timer programmes.
To use the INTELLIGENT TIMER function you must first programme at least
one normal timer programme.
15

General functions
AUDIO
Repeat playback
The video recorder repeats playback from beginning to the end of the recording.
!In Stop or Playback mode, press the Playback button for longer than 5 seconds.
The video recorder displays an 'R'.
!Press Stop to stop playing back.
At each press of the AUDIO button, the selected sound output is indicated with
L (Left) and R(Right).
Stereo : Display: LR
Left channel : Display: L -
Right channel : Display: - R
Mono : Display: - -
AUDIO settings
SV120 HV60 HV65 HV55 HV50 MV20 MV15
SV120 HV60 HV65 HV55 HV50 MV20 MV15
SV120 HV60 HV65 HV55 HV50 MV20 MV15
VCR
SP
R
Finding the start of a recording
Quickly finds the start of a recording during playback or in Stop mode.
!Fast forward / Rewind
Every time you press the button (max. 20 times) the video recorder will find
the start of the next recording. Playback will start automatically.
!Press Stop to exit the Search function.
16

OFF TIMER
General functions
Forward/backward search, JET SEARCH, still playback, slow playback
To protect the video heads, the unit automatically quits the Forward/Backward
search, JET SEARCH, Still Playback, Slow Playback functions after 5-10 minutes.
Interference and motor noise are not indicative of a malfunction.
Press the QUICK ERASE button on the unit to remove all recordings from a
cassette. It takes approx. 30 minutes to erase an E-180 cassette. Erasing
avoids problems that may occur at the beginning and end of a recording taken
straight over an existing one.
SV120 HV60 HV65 HV55 HV50 MV20 MV15
SV120 HV60 HV65 HV55 HV50 MV20 MV15
Switches the unit into stand-by mode after the set time of recording, playback
or in Stop mode.
Press the button repeatedly to extend the switch-off time from 30 to 60, 120,
180 or 240 minutes. The timer setting appears on the display of the video
recorder.
Limiting the recording and playback time
SV120 HV60 HV65 HV55 HV50 MV20 MV15
3D DNR, 3-Dimensional Digital Noise Reduction
SV120 HV60 HV65 HV55 HV50 MV20 MV15
Erasing a cassette
VCR
SP
Press the 3D DNR button on the unit to activate the function.
The setting of this function is displayed on the TV screen.
17

Menu Overview
Menu
Timer recording
Tuning
Clock set
Others
Language : English
:select : access
: exit
ENTER
EXIT
Tuning
Manual
Auto Setup
Shipping condition
: select : access
: return : exit
ENTER
MENU EXIT
The cursor keys of the remote control unit allow you to move between
menus and to change settings.
!Press MENU to display the Menu screen.
!Select an entry by pressing .
!ENTER
!
uit the menu.
Select the item you wish to edit .
!ENTER
!Make the changes as appropriate. Follow the on-screen instructions.
!Press MENU to return to the previous menu.
!Press EXIT to q
The selected menu is displayed.
18

Manual Setup
Tuning
: access
select
: return : exit
ENTER
MENU EXIT
Pos Name Ch Pos Name Ch
: delete : move
A B
6 VOX 8
7 PRO7 95
8 RTL2 85
9 KABE 97
10 S-RT 98
1 ARD 7
2 ZDF 4
3 N3 2
4 RTL 12
5 SAT1 13
Pos
Name
Channel
Fine tuning
Decoder
Video system
: 7
: - - - -
:
: AUTO
: OFF
: AUTO
- - - -
: select
: return : exit
MENU EXIT
Setting a new Channel
!Tuning
!ENTER
!Manual
!ENTER
!Select a free line down the list
!ENTER
!Press or the numeric keys to enter the channel number.
Channel tuning will start. Wait until the desired station has been set.
'Fine tuning' may help to minimise any interference.
!Press MENU to return to the Tuning screen.
Pos
Name
Channel
Fine tuning
Decoder
Video System
Mono
AUTO / MAN.
ON / OFF
AUTO / PAL / MESECAM
ON / OFF
If a decoder is attached.
Station position setting.
Station name setting.
Channel setting.
Fine-tuning of disturbed picture.
Stereo-to-mono toggle.
TV system set-up.
Options available for fine-tuning the channels
(Not every model supports all of the functions.)
19

Tuning
: access
select
: return : exit
ENTER
MENU EXIT
Pos Name Ch Pos Name Ch
: delete : move
A B
6 VOX 8
7 PRO7 95
8 RTL2 85
9 KABE 97
10 S-RT 98
1 ARD 7
2 ZDF 4
3 N3 2
4 RTL 12
5 SAT1 13
Tuning
: store
move
: return : exit
ENTER
MENU EXIT
Pos Name Ch Pos Name Ch
: delete : move
A B
6 VOX 8
7 PRO7 95
8 RTL2 85
9 KABE 97
10 S-RT 98
1 ARD 7
2 ZDF 4
3 N3 2
4 RTL 12
5 SAT1 13
Pos
Name
Channel
Fine tuning
Decoder
Video system
: 1
:
: 7
: AUTO
: OFF
: AUTO
ARD
: select
: return : exit
MENU EXIT
Changing the name of TV stations
!Tuning
!ENTER
!Manual
!ENTER
!Select a TV station
!ENTER
Changing the order of TV stations or deleting a station
!Tuning
!ENTER
!Manual
!ENTER
!/Green, an arrow at the left edge indicates which field has been selected.
!You can now move the station to any other location .
!ENTER
BBBBBBBBBBBBBBBBBBB
!Select .
.
!
!,
!MENU
the Name entry
The cursor will mark the first letter
Change that letter
Next letter
The new name will be stored in the station table.
ARD
ADR
!
/Red to delete the station.
A
Manual Setup
20
