Panasonic NA-F50GD User manual

Order No.HUD0310342C3
Washing Machine
NA-F50GD
Product Color :White,Grey
2003 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. SPECIFICATIONS
1

Powersource AC220V , 230V
50Hz Spinr/min. (Clothes load) 760 r/min.
Dimension (Width)562mm (Depth)570mm
(Height)1006mm Machine weight 33kg
Waterlevel
selector
(standaedized
wateramount)
Wateronly Clothes load Power
consumption
(Motor)
Input
49L-56L 49L- 5.0kg AC220V 310W
44L-50L 44L- 3.8kg AC230V 320W
39L-43L 39L- 2.3kg Heater 600W
32L-34L 32L- 1.2kg Safetyswitch Lidand
unbalance
20L - 20L 20L- 0.3kg Buzzer Cycle-end buzzer,
Give
alarm
Standerdized
water
consumption
(Normal)
118L Thermal
protector Motor
Softener
dispenser Providing
Operating Water
pressure 0.03 to1MPa (4.3p.s.i to142p.s.i) Bleachinlet Providing
Lint filter Providing
Autopoweroff Providing
Pulsatorr/min.
(Clothes load) 104 r/min. Accessories Pressure hose (Inlet
hose)
Feedvalve joint A
Service hose B unit
(
2. SCHEMATIC DIAGRAM
3. PRODUCT INFORMATION
2

3.1. Timer type drying function
It’s possible todrysmall amount (Below1.5kg) of laundryjust afterspinning orfinishdrying
underopen-airdrying.
The heater, fanmotorand fancase are providing inside of the panel, and drying function shall
be operatedbytimercontrol.
Exhaust airincluding humidairshall be come out fromupperportion of the tub through the
exhaust filter.
<Approximate drying time>
Drying capacity Necessaryhours
1. 1.5kg Approx. 3-4 hours
2. 1.0kg Approx. 2-3 hours
3. 0.5kg Approx. 1-2 hours
*Dryedup conditions shall be changedagainst atmospheric temperature, humidityand
installations.
3

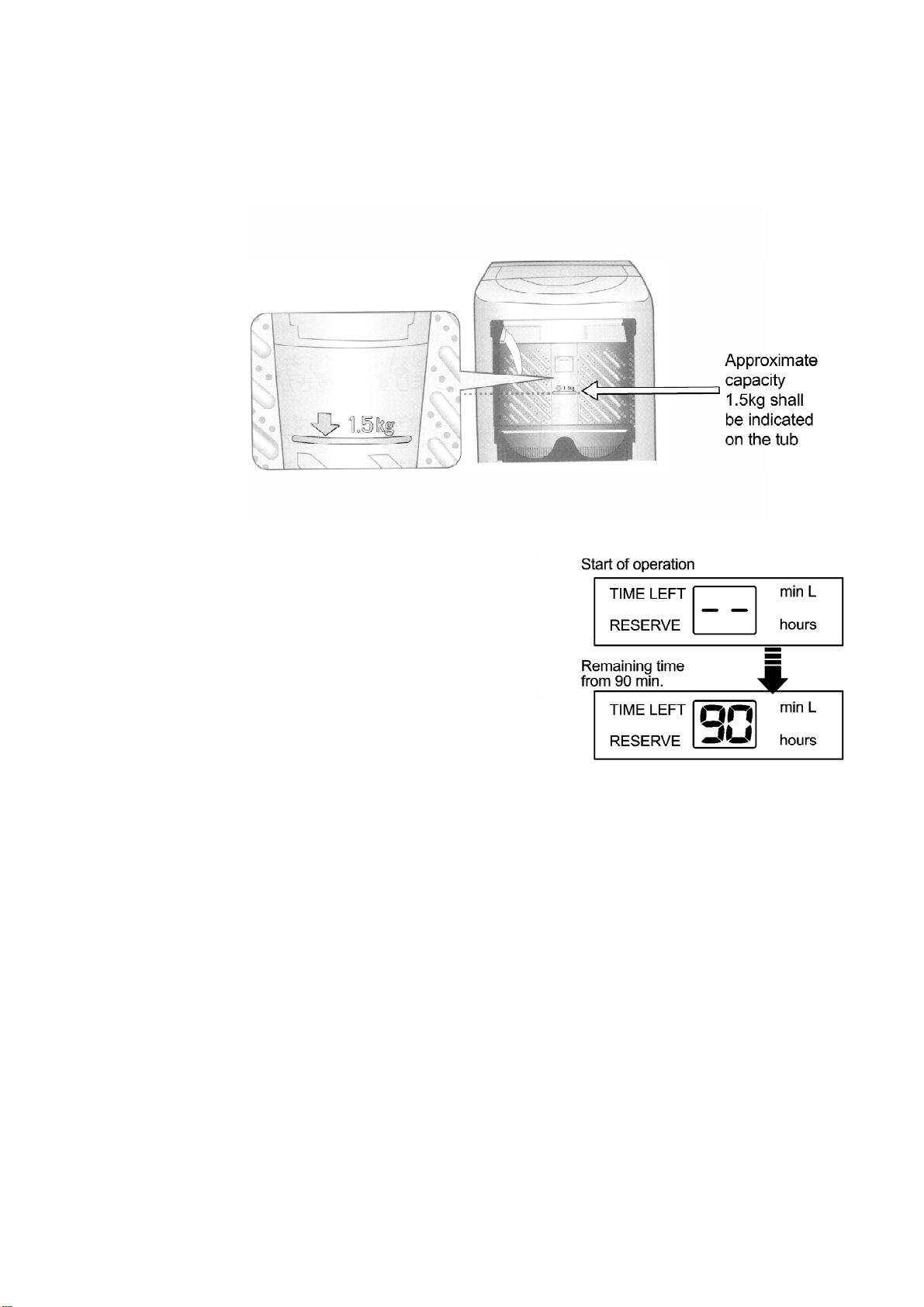

Laundrycapacity1.5kg
Putting intoo manygarments will lessenthe dryer’s effect and cause wrinkles.
Remaining time indication fordrying
It is not possible toindicate remaining time more
than100 min. due totwodigit. therefore, evenselect
more than2 hours (2, 3 and 4 hours), “--”mark shall
be indicatedat start of drying and indicate proper
remaining time from90 min.
Remaining time shall be decreasedon everyone
minute.
3.2. Use the “TUB DRY”function to prevent black mold
4

Activating “Tub Dry” afterthe washis complete
eliminates the humidityinthe tub that is one cause
of black mold. (Activate once a week)
1. Turn on thepower supply/ Press DRYto select “Tub Dry”.
2. Close theinner cover and thelid and press START
Thewashing machinewill rotate thetub quicklyand blowin hotair for
roughly30 minutes.
The operation is finishedwhenthe buzzer
sounds. [NOTE] -Theoccurrence ofblack mold in thetub
depends
usageenvironment.
-Once black mold has formed, activating “Tub
Dry”
removeit.

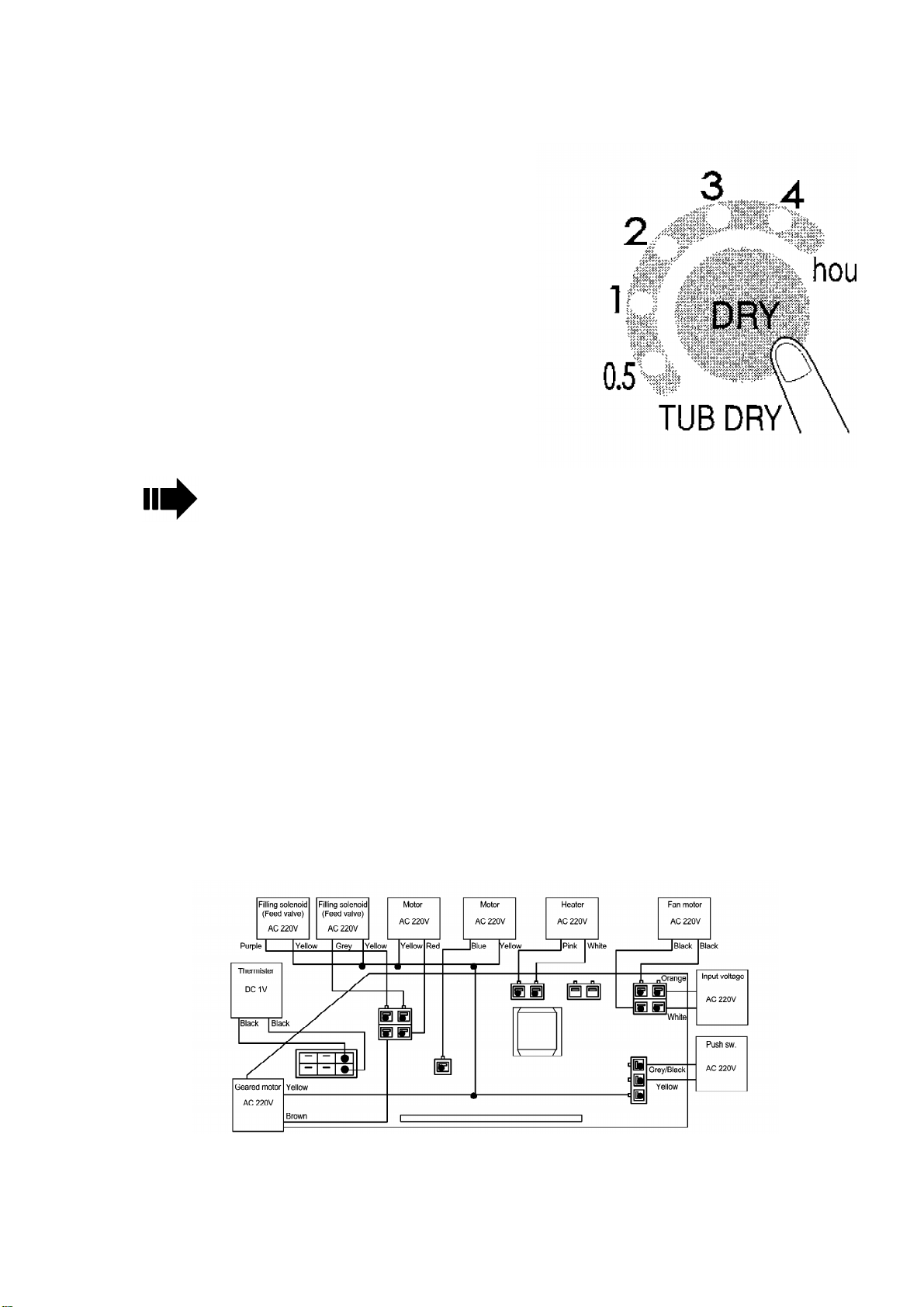

4. CHECK INPUT AND OUTPUT VOLTAGE OF THE /
PC.BOARD
1. Before replace PC.Board, check input and output voltage of the
PC.Board.
2. Check range of the test meter.
3. When check output voltage of the PC.Board, set aprogram of the
Washing Machine on the working mode.
4. Measure each resistance after removed connectors from
PC.Board w/ components.
5

5. OPERATIONS

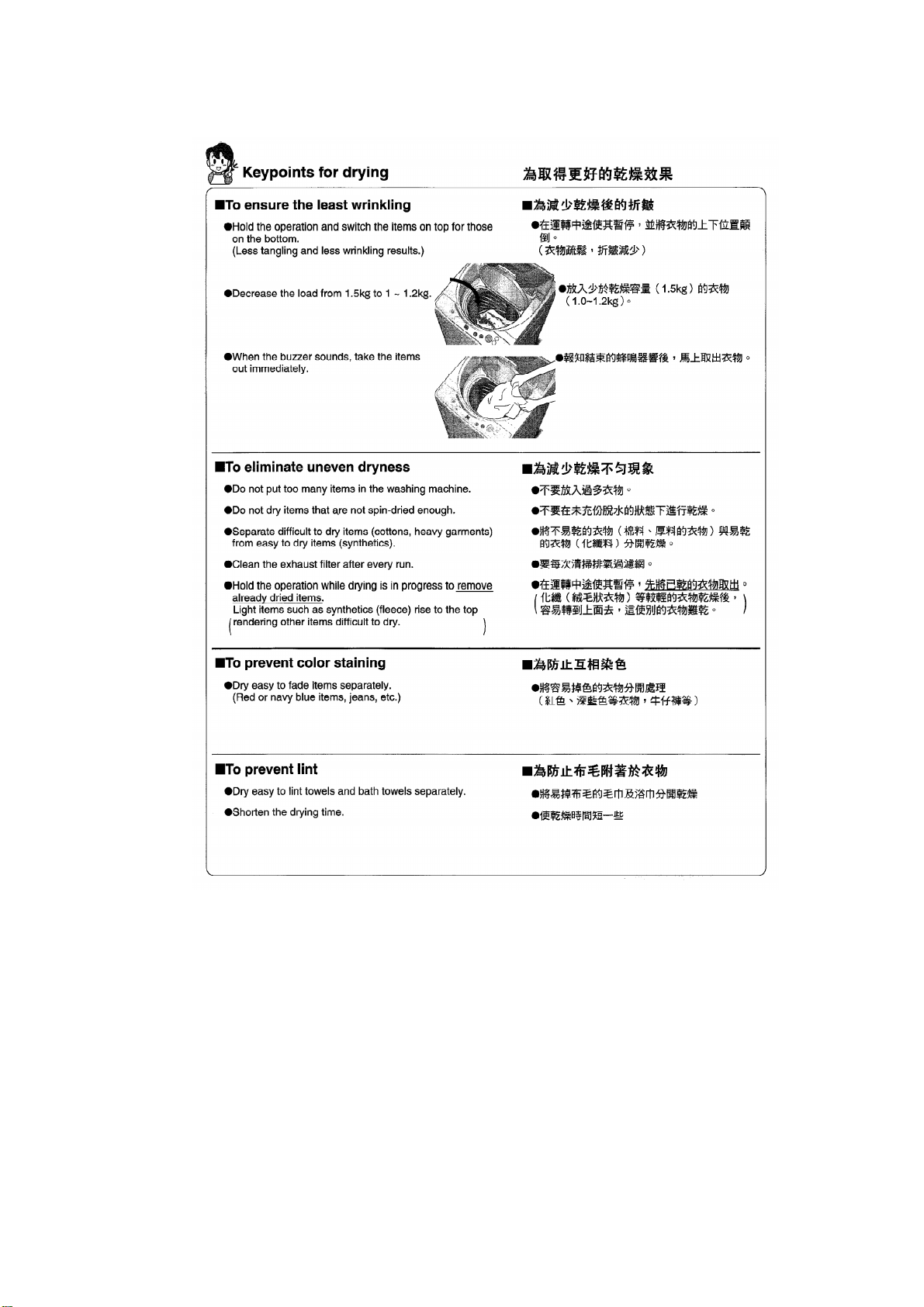

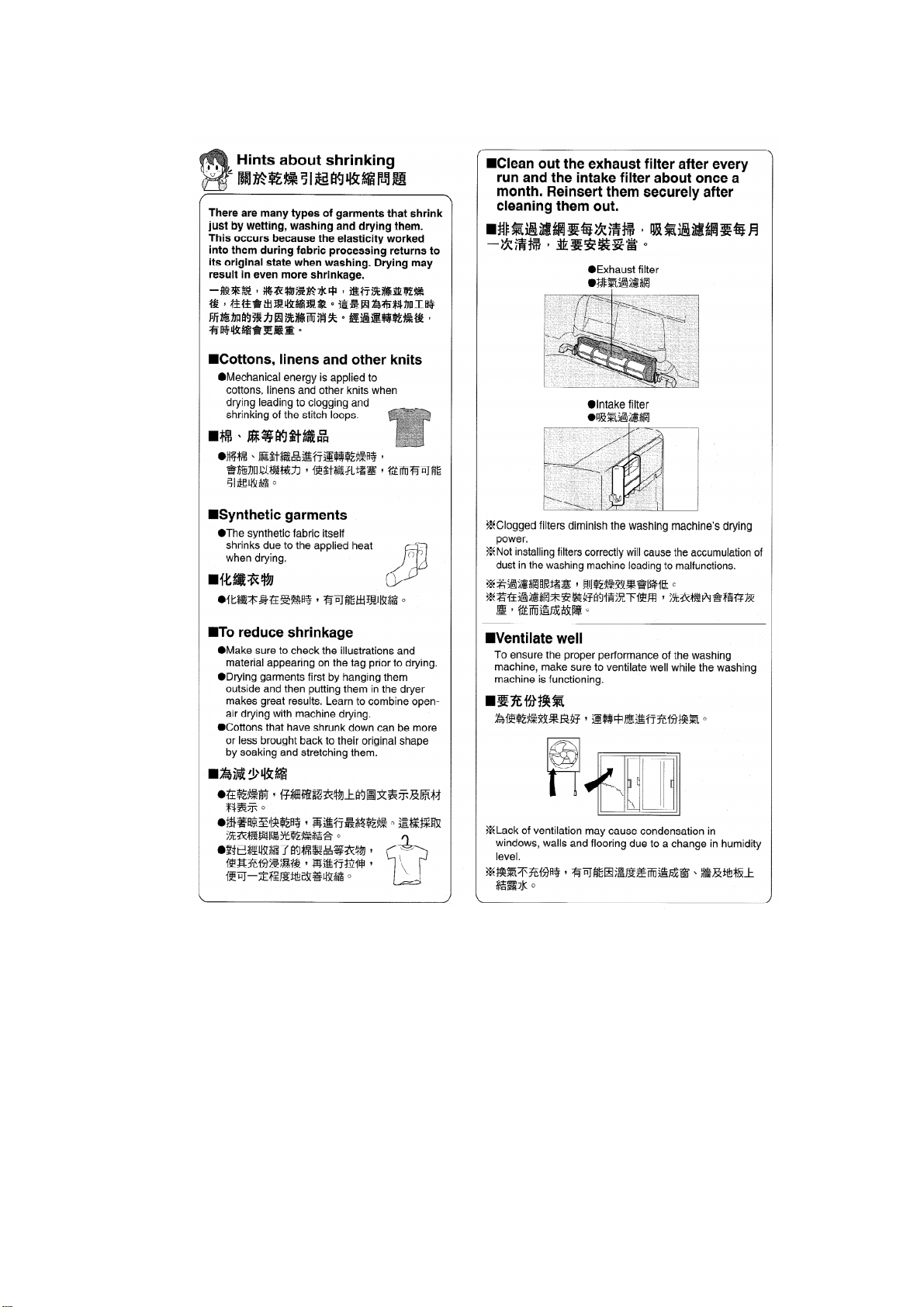

6. DRYING TIPS
6

7. CHECK PRIOR TO START UP
7

8. DISASSEMBLY INSTRUCTIONS AND
ADJUSTMENTS
8

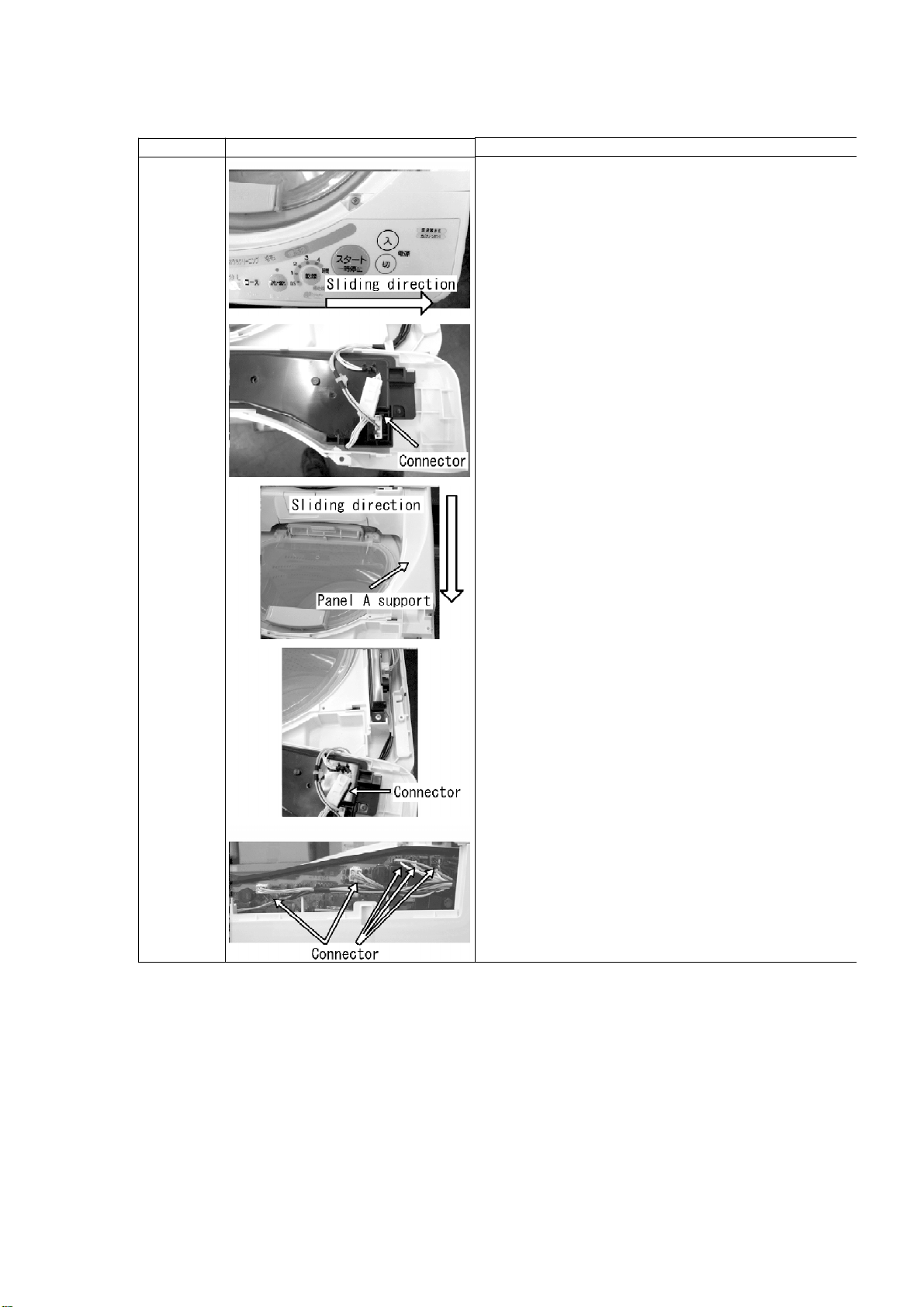

P.C.Board 1Openthe lid, and remove the panel A packing,
and
remove a screwmounting the panel face.
2Slide the panel face toright toremove.
3Turnthe panel face front side back.
Incase toreplace the P.C.Boardforoperation
side.
4Remove bothconnectors of the pushswitch
and
intermediaryleadwire.
5Remove the P.C.Boardfrompawls.
6Remove the leadwire holder.
Incase toreplace the P.C.Boardforpowerside.
4Slide the panel A support tofrontwardto
remove.
5Remove the connectorof the intermediarylead
wire.
6Remove screws mounting the P.C.Board.
5Remove 5 connectors fromthe P.C.Board.
9

Water
level
detector,
Filling
solenoid
(Feed
valve),
safety
switch
1Slide the lidhinge shaft toright toremove, and
remove
the lid.
2Remove the panel A.
3Remove 2 screws mounting the filling solenoid(
feed
valve).
4Remove the filling solenoid(feedvalve) from
the
detergent case A.
Replace the waterlevel detector
5Remove the pawl holding the waterlevel
detector.
6Remove the
connector.
7Remove the airhose.
Replace the filling solenoid(feedvalve)
5Remove 2
connectors.
6Remove the packing fromthe filling solenoid(
feed
[NOTE]
Set the packing tothe detergent case A, and
then
the filling solenoid(feedvalve) tothe detergent
case
Replace the safetyswitch
1Slide the lidhinge shaft toright toremove, and
remove
the lid.
2Remove the panel A.
3Remove 2 screws mounting the safetyswitch.
4Remove the
connector.
10

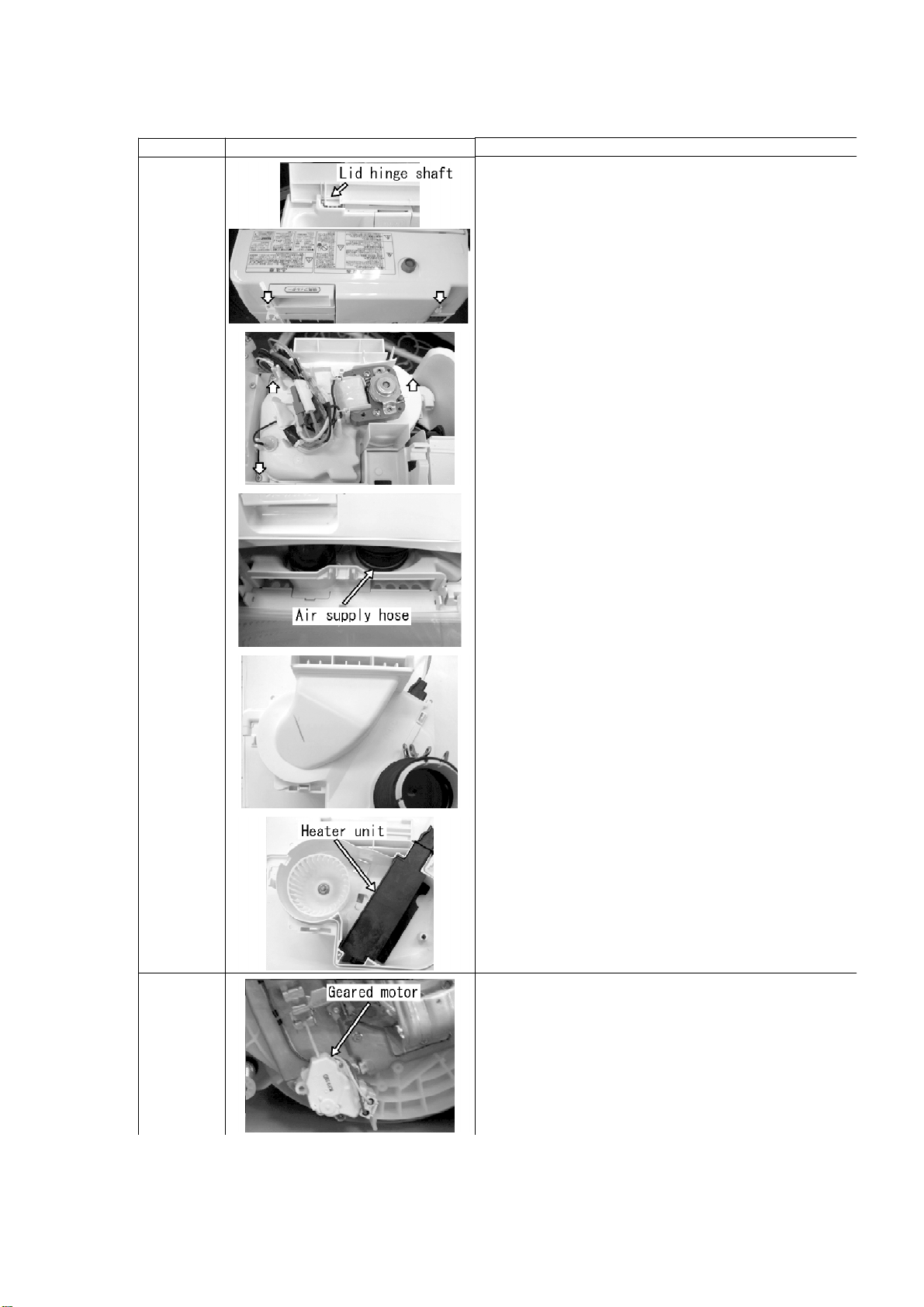

Heater,
Fancase A 1Slide the lidhinge shaft toleft toremove, and
remove
the lid.
2Remove the panel
base.
3Remove eachconnectors of the heater, detector
and
motor.
4Remove 3 screws mounting the fancase unit.
5Loosenthe hose clamp, and remove the air
supply
6Remove 4 pawls of the fun case A, and remove
the
case C (Made of steel) frominside.
7 Remove the heaterunit, and replace the heater
inside
the fancase orheaterunit.
Geared
motor 1Laydownthe machine on it nothing drainhose
side.
2Release the leadwire holder, and remove the
connector.
3Remove screws mounting the gearedmotor.
11

4 Slide portion of the gearedmotorshall be
removed
the coupler.
Mechanism
case 1Remove 2 screws mounting the bodyB.
2Holdthe bodyB, and pull the rearportion
upward
slightly.
And slide the bodyB frontwardas shownin
figure.
(Holding pawls at front portion)
3Remove the feedhose and Airsupplyhose from
the
outertub cover.
4Set the bodyB against a wall.
5Remove 4 screws mounting the outertub cover
to
remove it.
6Remove the pulsator.
12

6Remove the spinner
shaft flange nut and
the spinnershaft
washerB.
7Pull upwardthe tub
toremove.
8Laydownthe machine on it nothing drainhose
side.
[NOTE]
Please spreadclothtoprevent scratchon the
body.
9Remove 2 screws mounting the mounting plate
B.
10 Remove 4 screws mounting the mechanism
case.
9. TEST RUNNING WITHOUT WATER
9.1. METHODTO TEST RUNNING WITHOUTWATER
1. Set the power switch to “OFF”.
2. Press and holdboth the “Water level”and “Process” buttons with
one hand.
3. Set the power switch to “ON”.
4. Release the your fingers from the buttons and power switch
which you pressed insteps (2) and (3) above.(Check Acan be
carried out inthisstate with your fingers released.)
5. Withinthree seconds, press the “Water level”button to set to the
desired check procedure.(Carryout check B,C,D,E,M,G and H.)
13

Numberof
times the ”
Waterlevel”
button is
pressed
Check
/
Mode
Check contents Lamp
illumination
condition
Operation condition
0 A -End signal
-Timeindication
-Auto power off
-When theend buzzer soundsthree times,”88” will
simultaneouslyflash on and off in theremaining
time
thepower will automaticallybeswitched off
immediately
operation isfinished.
Ifother numbersor charactersthan “88” appear in
the
timedisplay, operate service check B-mode.
1 B -Wash operation
-Feed valve/ (To rinse
case) operation
-Even ifthereisno water in thetub, thewashing
operation
continuefor sixminutes.
-Press “Wash” button to changewater flow.
-During keep pressing “Rinse” button to check
conducting
condition ofrinse case’sfeed valve.
-“H05” isdisplayed in case ofP.C.Board fault.
2 C -Spin operation
-Lid switch operation
-Thespinning operation will continuefor five
minutes.
-Itispossibleto check conditionsoflid switches.
-Incase contact pointofthelid switch areOFF
position,
indication lightup.
3 D -Drying
-Fun
-Heater
-Drying process shall beoperated 4minutes.
-Rotate thetub approx. 700 rpm, and operate the
fun
4 E -Set water level 1rank
higher than laundry
amountdetector
-Changewater flowto
gentle
-Press thewash button to changeL0to L1and
press
button to confirm.
-Press thecourse button to changewater flowto
gentle.
5 M -Initial set for / V-belt
tension -Press Start/Hold button to set initial setting for V-
belt
-Itshall beneeded after adjust V-belttension.
6 G -Indicated Abnormal
alarm oflast 2times -“E” shall beindicated initially, Press “Wash”
button
last timeto thetimebeforelast and return to Eas
initial
-Ifthereweresomeabnormal alarm in thepast, ”U
or
somenumber shall beindicated mutually.
Ifithad no abnormal alarm,”00” markhas displayed.
7 H -Indicated operation
times -“C” shall beindicated initially, Press “Wash”
button
“Indication ofdigitofoperation times.
Press once:Digit“Thousand-Hundred” for washing
Press twice:Digit“Ten-One” for washing
Press 3times:Digit”Thousand-Hundred” for drying
Press 4times:Digit”Ten-One” for drying
Press 5times to return to “C” digit.
9.1.1. Errorindication descriptions
If there is anoperation error, orif there is a problemwithwashing machine, operation shall be
14

stoppedand warning buzzerwill sound (All of U and H21), and anerrorindication will be display
-edAlphabet and Numberalternately.
Indication Contents Check point Method to
clear
Malfunction of
drain -Issomething wrong with thedrain hose?
-Islintclogging it?
-Isitkinked and takes morethan 5min. to reset point?
-Check ifcondition ofthewater level detector.
Opening and
closing
lid.
The lidis open -Isthelid open? Close it.
-Check ifmagnet on thelid.
-Check ifcondition ofcontact pointofthelid switch on the
PC.Board.
Close the lid.
Unbalancedload -Has theclothes accumulate into oneside?
-Has theunitbeen leveled? Openthe lid
and
redistribute the
load.
Malfunction of
Watersupply -It’stakes over 30min. to reach selected water level.
-Check ifcondition ofwater faucet.
-Check ifcondition ofthefeed valveand PC.Board.
Opening and
closing
lidtoreturnto
initial
stage of water
supply.
Waterremainat
drying process -Drain water from thetub byspin process. Remove the
power
Unbalanced
loadat drying -Has theclothes accumulate into oneside?
-Has theunitbeen leveled? Openthe lid
and
redistribute the
load.
Childlock
movement -Check ifdetect ofwater in thetub.
1. Giving an alarm (10sec).
2. After 10 sec., operate drain action and indicate “U99”.
Remove the
power
Waterlevel
detector -Check ifcondition oftheconnectors.
-Replace water level detector.
-Replace PC.Board (Power side).
Press Power(
Push)
switchtoOFF
position.
Malfunction of
motorTRIAC -Replace PC.Board (Power side). Remove the
power
Short circuit of
powerrelayon
the PC.Board
-Check ifcondition ofthePower (Push)switch (itshall be
keeped condition).
-Replace PC.Board (Power side).
-Check ifno leaking between bodyand lead wires.
Remove the
power
Data shall not
be memorized -Replace PC.Board (Power side).
-Effected service mode(Check-B)only. Press Power(
Push)
switchtoOFF
position.
Opencircuit of
PC.Board’s
communication
line
-Check iflead wirecondition ofPC.Board between power and
operation side, and replace oneofPC.Board’s. Remove the
power
Malfunction of
thermistor -Check ifcondition ofconnector.
-Replace thefan case B (thermistor)
-Open-circuit206k and Short-circuit94k
Press Power(
Push)
switchtoOFF
position.
Watershall be
leakedfrom
filling solenoid
(feedvalve)
-Clean thediaphragm insideofthefilling solenoid (feed
valve) or replace thefilling solenoid (feed valve).
-Check ifoutputvoltageofthePC.Board (Power side).
-Operate Geared motor and drain water.
Press Power(
Push)
switchtoOFF
position
15

Indication Contents Check point Method to
clear
Malfunction of
fanmotor -Check ifcondition ofthefan motor and thePC.Board (Power
side). Press Power(
Push)
switchtoOFF
position
Malfunction of
heatercircuit -Check ifcondition ofconnector and lead wires.
-Check ifcondition oftheheater and PC.Board (Power side).
-Iftheheater isshort-circuit, itwill Auto-off.
Press Power(
Push)
switchtoOFF
position
10. LOCATION

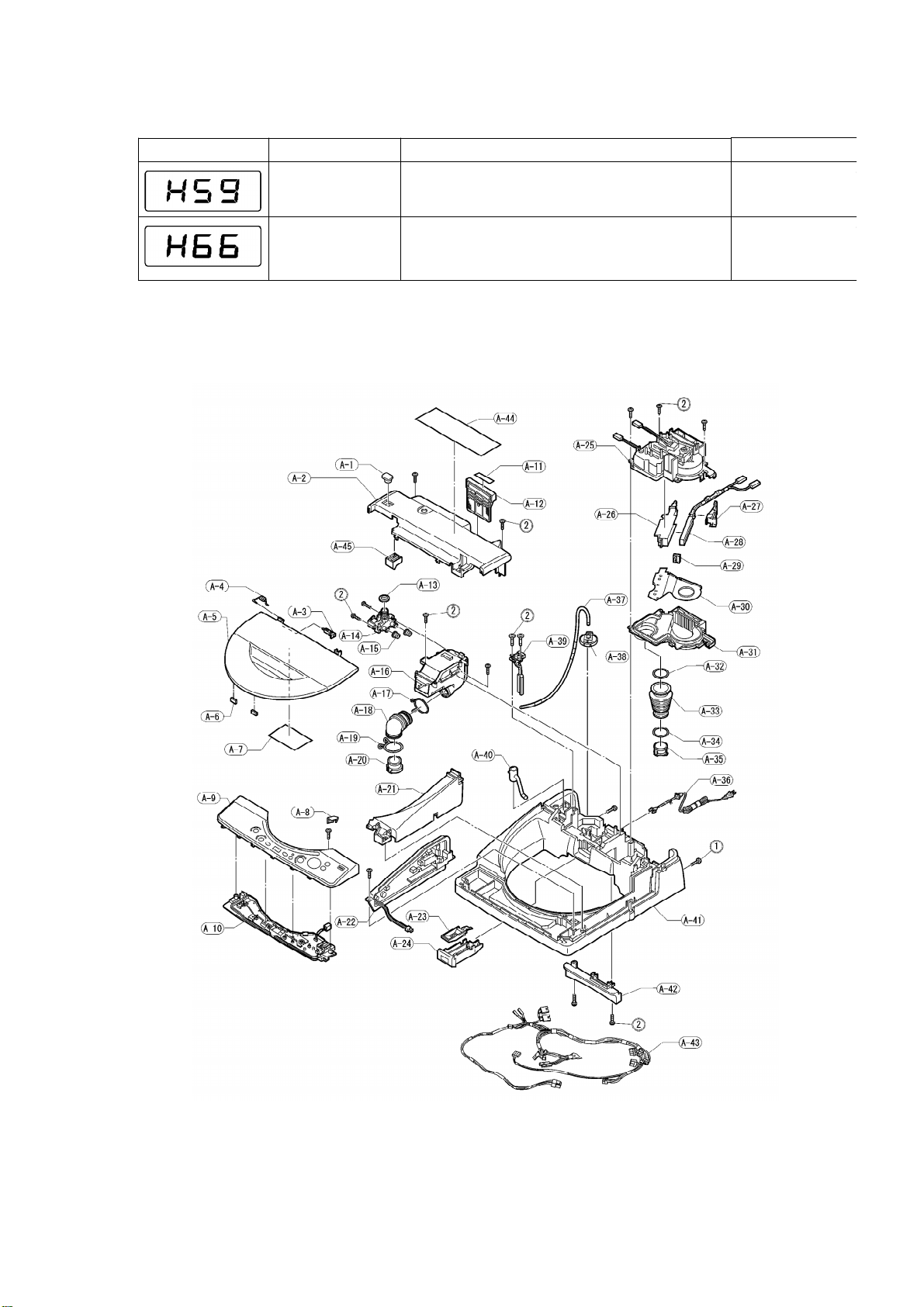

10.1. LOCATIONOFPARTS-A
10.2. REPLACEMENTPARTS LIST-A
16

Ref. No. Description PartNo. Q’ty Remarks
A- 1 Cap A AXW514X6DK0 1 White
A-1 Cap A AXW514J6DK00 1 Grey
A- 2 Panel A AXW1CD6LX0 1 White
A-2 Panel A AXW1CJ6LX0 1 Grey
A- 3 Lid hingeshaft AXW193W5U80 1
A- 4 lid hingespring AXW1116-6JU0 1
A- 5 Lid AXW1GD6PF00 1 White, Includes A-6,7
A-5 Lid AXW1GJ6PF00 1 Grey, Includes A-6,7
A- 6 Lid packing AXW164X6EU0 1
A- 7 Caution label AXW9908Z6PF0 1
A- 8 Panel Apacking AXW137D6LX0 1 White
A-8 Panel Apacking AXW137J6LX0 1 Grey
A- 9 Panel face A AXW145D6PF00 1 White
A-9 Panel face A AXW145J6PF00 1 Grey
A-10 PC.Board w/ components AXW24S-6LX0 1 Operation
A-11 Panel Label AXW1163Z6PD0 1 English, Cantonese
A-12 Back filter A AXW2258D6LX0 1 White
A-12 Back filter A AXW2258J6LX0 1 Grey
A-13 Packing, rubber AXW267-5RU0 1
A-14 Filling solenoid (Feed valve) AXW29A-19606 1 FVS-96-V1/W
A-15 Packing, plastic AXW2164-6JU0 2
A-16 Detergentcase A AXW2150-6LX0 1
A-17 Hose clamp AXW245-5VP5 1
A-18 Feed hose A AXW1250-6DT0 1
A-19 Hose clamp AXW245-6DTA 1
A-20 Duct B AXW2298-6LX0 1
A-21 Panel Asupport AXW132D6LX0 1 White
A-21 Panel Asupport AXW132J6LX0 1 Grey
A-22 PC.Board w/ components AXW24C-6PF05 1 220-230V, Power side
A-23 Case cap AXW2192D6JU0 1 White
A-23 Case cap AXW2192J6JU0 1 Grey
A-24 Detergentcase B AXW2151D6JU0 1 White
A-24 Detergentcase B AXW2151J6JU0 1 Grey
A-25 Fan case A AXW851D6PF00 1 White, Inc. motor & detector
A-25 Fan case A AXW851J6PF00 1 Grey, Inc. motor & detector
A-26 Heater cover A AXW1316-6JV0 1 White
A-27 Heater holder B AXW1308-6JV0 1 Grey
A-28 Heater unit AXW13I-6PF00 1
A-29 Heater holder A ANH1307-4030 1
A-30 Fan case C AXW872-6LX0 1
A-31 Fan case B AXW852D6PF00 1 White, Inc. hose clamp
A-31 Fan case B AXW852J6PF00 1 Grey, Inc. hose clamp
A-32 Hose clamp AXW428-6PF00 1
A-33 Air supplyhose AXW314-6PF00 1 Inc. hose clamp (2PCs.)
A-34 Hose clamp AXW428-6PF00 1
A-35 Duct A AXW2297Z6PF0 1 Inc. hose clamp
A-36 Power cord Obtain locally 1
A-37 Air hose AXW239-8340 1
A-38 Water level detector AXW24T-280 1
A-39 Safetyswitch AXW1661-6JU0 1
A-40 Drain pipe AXW205-6JV0 1
A-41 BodyB AXW1BD6LX0 1 White
A-41 BodyB AXW1BJ6LX0 1 Grey
A-42 Cover AXW162D6LX0 1 White
17

Ref. No. Description PartNo. Q’ty Remarks
A-42 Cover AXW162J6LX0 1 Grey
A-43 Lead wireunit AXW14A-6PF00 1
A-44 Switch instructions AXW657-6PF00 1 Cantonese
A-44 Switch instructions AXW657-6PFA0 1 English
A-45 Holder B AXW2498Z6PF0 1
1Screw XTWAXW461 2
2Screw XTB4+15BFE 15
10.3. LOCATIONOFPARTS-B
10.4. REPLACEMENTPARTS LIST-B
18

Ref. No. Description PartNo. Q’ty Remarks
B- 1 BodyA AXW1AD6PF00 1 White
B-1 BodyA AXW1AJ6PF00 1 Grey
B- 2 Hanger AXW110D6JU0 1 White
B-2 Hanger AXW110J6JU0 1 Grey
B- 3 Base A AXW301-6KC10 1 Inc. B-4,5
B- 4 Leg covering AXW339-6LX0 3
B- 5 Adjustableleg plate AXW337-56R0 1
B- 6 Adjustableknob AXW343-5YW0 1
B- 7 Adjustableleg AXW3D-6LX0 1
B- 8 Snap pin AXW334-5U90 1
B- 9 Back panel AXW156-5210 1
B-10 Capacitor cover AXW407-6JW0 1
B-11 Capacitor AXW403-7L507 1 230V, 50Hz
B-11 Capacitor AXW403-7L607 1 220V, 50Hz
B-14 Outlet hose B AXW2EU5YR0 1
B-15 Filling jointA AXW12H-9025 1 (Feed valvejointA)
B-16 Pressurehose AXW1251-9065 1
B-17 Hose jointsleeve AXW243-5X60 1
B-18 Hose clamp AXW245-5R70 1
B-19 Laundryplate AXW2W-6KC0 1
B-20 Bottom plate AXW2158Z6PF0 1
B-21 Snap pin AXW334-6PF00 4
1Screw XTT4+14B 4
3Screw XTBAXW420 5
4Screw XTN4+8H 1
5Screw XTWAXW425 1
6Screw XTWAXW461 4
10.5. LOCATIONOFPARTS-C
19

10.6. REPLACEMENTPARTS LIST-C
20
