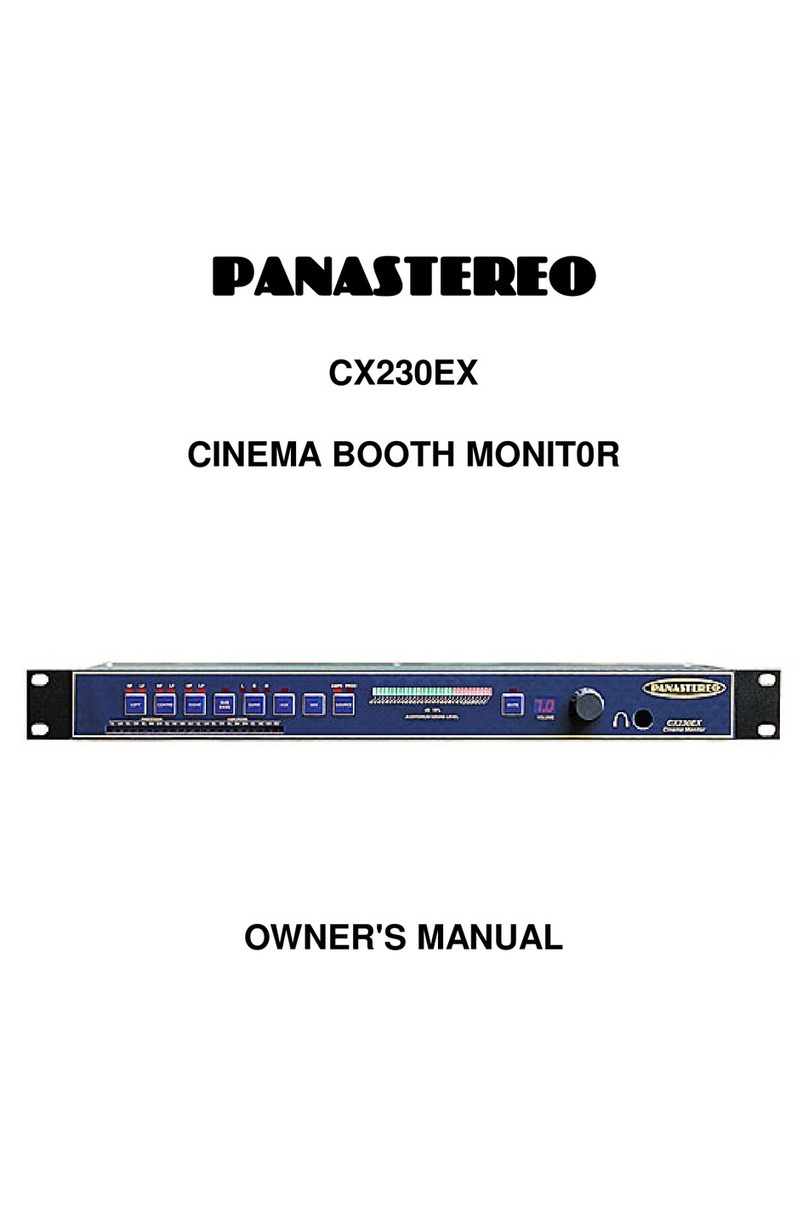

PANASTEREO
PANASTEREOPANASTEREO
PANASTEREO
CX230
CINEMA BOOTH MONIT0R
OWNER'S MANUAL

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA BOOTH MONITOR
OVERVIEW
The CX230 Monitor is the world’s first computer controlled booth monitor. It is simple to use,
provides advanced features not previously found in booth monitor equipment and has been
designed for easy interface to computer automation systems via a standard RS232 interface
connector.
SYSTEM FEATURES
•Single-chip microprocessor control system with power supervision and watchdog circuits provides high
immunity to interference for reliable latch-up-free operation.
•Monitoring of both sound processor outputs and amplifier outputs.
•Full monitoring of biamp systems.
•Built-in analogue to digital converter with digital bargraph meter for auditorium volume indication.
•Fast Mute function.
•Two-digit LED digital volume indicator.
•Built-in compressor for easier monitoring of highly dynamic (SR or digital) soundtracks.
•Built-in stereo 25watt monitor amplifier.
•All inputs are balanced and isolated for low noise, high quality monitoring and zero interaction with the
cinema sound system.
•All functions (including volume control) accessible via RS232 serial interface.
•Digitised auditorium sound level available via RS232 serial interface for remote indication of volume level
with computer automation systems.
•All monitor connections via removable Phoenix connectors so the monitor chassis can be easily removed
for service.
SYSTEM SPECIFICATIONS
Sound processor Inputs: Nominal 500mV input sensitivity, 10k ohm balanced
Amplifier Inputs: Nominal 5V input sensitivity, 100k ohm balanced
Amplifier Output Power: 2 x 25W RMS into 8 ohms.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
CX230 OPERATION
MONITORING AN INDIVIDUAL CHANNEL
Select a channel to be monitored by pressing the pushbutton for the appropriate channel once.
An LED indicator will illuminate above the selected input button. Adjust the volume control for a
comfortable listening level. The volume is indicated by the 2-digit display to the left of the control.
Biamp installations only:
It is possible to monitor each of the front channel high and low frequency outputs separately.
Press the left, centre or right pushbutton once to monitor a mix of the high and low frequency
outputs for each channel.
Press the same button a second time to monitor the high frequency output only. Press the same
button a third time to monitor just the low frequency output.
Repeatedly pressing the same button will cycle through the above three options.
MONITORING A MIX
When the MIX button is pressed, the monitor output will be a blend of the front three channels
(left, centre and right).
The surround channel is not included in the mix. This is because the delay that is normally
introduced in the cinema processor for the surround channel may cause confusing echo effects.
The surround and sub bass channels must be monitored individually.
MONITORING THE PROCESSOR OUTPUTS OR THE AMPLIFIER OUTPUTS
Press the SOURCE pushbutton to select either the outputs from the sound processor or the
outputs from the amplifiers.
Repeatedly pressing the SOURCE button will toggle back and forth between the processor and
the amplifier outputs.
MUTING THE MONITOR OUTPUTS
Press the MUTE button to silence the monitor without changing the volume setting. Press the
MUTE button a second time to restore the monitor output to normal.
(Turning the volume down to zero can also mute the monitor, but in this case the volume must be
turned up again to restore the previous listening level).

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
CX230 INSTALLATION
CONNECTING THE SOUND PROCESSOR OUTPUTS.
NOTE: For non-biamped installations, the left channel should be connected to the LL input, the
centre channel to the CL input and right channel to the RL input.
1. SOUND PROCESSOR WITH UNBALANCED OUTPUTS (DOLBY, SMART, ULTRA STEREO)
Use two-core shielded audio cable to connect the outputs from the sound processor to the monitor
“from processor” inputs.
Connect the “+” terminal from each sound processor output to the “+” terminal of each
corresponding monitor “From Processor” input.
Connect the ground terminal of each processor output to the “-“ terminal of each corresponding
monitor “From Processor” input.
Connect the cable shield to the “E” terminal of each monitor “from processor” input only. Do not
connect the shields at the sound processor.
2. SOUND PROCESSOR WITH BALANCED OUTPUTS (PANASTEREO)
Use two-core shielded audio cable to connect the outputs from the sound processor to the monitor
“From Processor” inputs.
Connect the “+” terminal from each sound processor output to the “+” terminal of each
corresponding monitor “From Processor” input.
Connect the “-“ terminal of each processor output to the “-“ terminal of each corresponding
monitor “from processor” input.
Connect the cable shield to the “E” terminal of each monitor “from processor” input only. Do not
connect the shields at the sound processor.
CONNECTING THE AMPLIFIER OUTPUTS.
NOTE: For non-biamped installations, the left channel should be connected to the LL input , the
centre channel to the CL input and right channel to the RL input.
Use light gauge unshielded cable for this purpose.
Connect the “+” (Red) terminal of each amplifier output to the “+” terminal of each corresponding
monitor “From Amplifier” input.
Connect the “-“ (Black) terminal of each amplifier to the “-“ terminal of each corresponding monitor
“From Amplifier” input.
NOTE: DO NOT USE A SINGLE GROUND CONNECTION BETWEEN THE AMPLIFIERS AND THE
MONITOR OR CONNECT THE “-“ (BLACK) TERMINALS OF THE AMPLIFIERS TOGETHER. SUCH
CONNECTIONS MAY CAUSE CROSSTALK, UNPREDICTABLE AMPLIFIER BEHAVIOUR OR DAMAGE
TO WIRING.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
CX230 INSTALLATION continued
CONNECTING THE MONITOR SPEAKER OUTPUTS
Use medium gauge (minimum 0.75mm2) twin polarised wire (figure 8) between each of the monitor
speaker outputs and the monitor speakers. The monitor speakers can be 8 or 4 ohms.
If you are using only one speaker, connect it to the left channel output and set the
“MONO/STEREO” switch at the back of the monitor unit to the “MONO” position (IN). Otherwise
ensure that the “MONO/STEREO” switch is in the “STEREO” position (OUT).
CONNECTING THE SERIAL INTERFACE TO A COMPUTER AUTOMATION SYSTEM.
Use 4-core shielded computer or audio cable. The CX230 is configured as a DCE device (Data
Circuit Terminating Equipment), i.e. pin 2 = transmit data out and pin 3 = receive data in. Connect
one conductor to pin 2, one to pin 3 and one conductor to pin 5 (ground). The fourth conductor
can be left unused or also connected to pin 5 (ground). Solder the cable shield to the body of the
D-connector plug.
If the connection is to a DTE device (Data Terminal Equipment) such as a PC or the Panalogic
RC140 automation unit, the cable should be wired pin-for-pin (i.e. pin 2 to pin 2, pin 3 to pin 3, and
pin 5 to pin 5). If the connection is to another DCE device, pins 2 and 3 must be crossed over
(reversed) at one end.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
SYSTEM ALIGNMENT
After installation it is necessary to adjust each of the input levels of the monitor to ensure correct
balance between each input and to calibrate the auditorium sound level meter. Alignment is best
performed at the same time as the sound processor B-Chain alignment to avoid duplication.
Equipment required: Pink Noise Card, Real Time Analyser (RTA)
ALIGNMENT OF NON-BIAMPED SYSTEMS
1. Insert a pink noise card into the appropriate slot in the sound processor.
2. Set the sound processor to Optical Stereo and set the volume to level “7” for a pink noise level
of 85db in the auditorium.
3. Select the pink noise generator to CENTRE.
4. Turn off the Sub Bass amplifier.
5. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
6. Select the “SOURCE” switch to “AMPS”, and select “CENTRE”.
7. Adjust the “AMPLIFIERS - CL” trimpot so that the CX230 sound level meter reads 85db.
8. Select the “SOURCE” switch to “PROC”.
9. Adjust the “Processor - CL” trimpot so that the CX230 sound level meter reads 85db.
10. Turn off the Centre channel amplifier and turn on the Sub Bass amplifier.
11. Note the SPL reading on the RTA.
12. Select the “SOURCE” switch to “AMPS”, and select “SUB BASS”.
13. Adjust the “AMPLIFIERS - SW” trimpot so that the CX230 sound level meter reads the same
as the SPL reading on the RTA.
14. Select the “SOURCE” switch to “PROC”.
15. Adjust the “Processor - SW” trimpot so that the CX230 sound level meter reads the same as
the SPL reading on the RTA.
16. Turn on the Centre Channel amplifier.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
17. Select the pink noise generator to LEFT.
18. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
19. Select the “SOURCE” switch to “AMPS”, and select “LEFT”.
20. Adjust the “AMPLIFIERS - LL” trimpot so that the CX230 sound level meter reads 85db.
21. Select the “SOURCE” switch to “PROC”.
22. Adjust the “Processor - LL” trimpot on the monitor so that the CX230 sound level meter reads
85db.
23. Select the pink noise generator to RIGHT.
24. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
25. Select the “SOURCE” switch to “AMPS”, and select “RIGHT”.
26. Adjust the “AMPLIFIERS - RL” trimpot so that the CX230 sound level meter reads 85db.
27. Select the “SOURCE” switch to “PROC”.
28. Adjust the “Processor - RL” trimpot so that the CX230 sound level meter reads 85db.
29. Select the pink noise generator to LEFT SURROUND.
30. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
31. Select the “SOURCE” switch to “AMPS”, and select “LEFT SURROUND”.
32. Adjust the “AMPLIFIERS - LS” trimpot so that the CX230 sound level meter reads 85db.
33. Select the “SOURCE” switch to “PROC”.
34. Adjust the “Processor - LS” trimpot so that the CX230 sound level meter reads 85db.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
35. Select the pink noise generator to RIGHT SURROUND.
36. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
37. Select the “SOURCE” switch to “AMPS”, and select “RIGHT SURROUND”.
38. Adjust the “AMPLIFIERS - RS” trimpot so that the CX230 sound level meter reads 85db.
39. Select the “SOURCE” switch to “PROC”.
40. Adjust the “Processor - RS” trimpot so that the CX230 sound level meter reads 85db.
The CX230 alignment is now complete.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
ALIGNMENT OF BIAMPED SYSTEMS
1. Insert a pink noise card into the appropriate slot in the sound processor.
2. Set the sound processor volume to level “7” for a pink noise level of 85db in the auditorium.
3. Select the pink noise generator to CENTRE.
4. Turn off the Sub Bass amplifier.
5. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
6. Turn off the Centre channel low frequency amplifier and note the SPL reading on the RTA.
7. Select the “SOURCE” switch to “AMPS”, and select “CENTRE HF” by pressing the “CENTRE”
pushbutton twice. Only the “HF” LED above the CENTRE pushbutton should be illuminated.
8. Adjust the “AMPLIFIERS - CH” trimpot so that the Cx230 sound level meter reads the same as
the SPL reading on the RTA.
9. Select the “SOURCE” switch to “PROC”.
10. Adjust the ”PROCESSOR - CH” trimpot so that the CX230 sound level meter reads the same
as the SPL reading on the RTA.
11. Turn off the Centre channel high frequency amplifier and turn on the Centre channel low
frequency amplifier. Note the SPL reading on the RTA.
12. Select the “SOURCE” switch to “AMPS”, and select “CENTRE LF” by pressing the “CENTRE”
pushbutton once. Only the “LF” LED above the CENTRE pushbutton should be illuminated.
13. Adjust the “AMPLIFIERS - CL” trimpot so that the CX230 sound level meter reads the same as
the SPL reading on the RTA.
14. Select the “SOURCE” switch to “PROC”.
15. Adjust the ”PROCESSOR - CL” trimpot so that the CX230 sound level meter reads the same
as the SPL reading on the RTA.
16. Switch on the Centre channel high frequency amplifier and check the reading on the CX230
sound level meter. It should be 85dB.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
17. Turn off both the Centre HF and LF amplifiers and turn on the Sub Bass amplifier.
18. Note the SPL reading on the RTA.
19. Select the “SOURCE” switch to “AMPS”, and select “SUB BASS”.
20. Adjust the “AMPLIFIERS - SW” trimpot so that the CX230 sound level meter reads the same
as the SPL reading on the RTA.
21. Select the “SOURCE” switch to “PROC”.
22. Adjust the “Processor - SW” trimpot so that the CX230 sound level meter reads the same as
the SPL reading on the RTA.
23. Turn on the Centre HF and LF amplifiers.
24. Select the pink noise card to LEFT.
25. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
26. Turn off the Left channel low frequency amplifier and note the SPL reading on the RTA.
27. Select the “SOURCE” switch to “AMPS”, and select “LEFT HF” by pressing the “LEFT”
pushbutton twice. Only the “HF” LED above the LEFT pushbutton should be illuminated.
28. Adjust the “AMPLIFIERS - LH” trimpot so that the CX230 sound level meter reads the same as
the SPL reading on the RTA.
29. Select the “SOURCE” switch to “PROC”.
30. Adjust the ”PROCESSOR - LH” trimpot so that the CX230 sound level meter reads the same
as the SPL reading on the RTA.
31. Turn off the Left channel high frequency amplifier and turn on the Left channel low frequency
amplifier. Note the SPL reading on the RTA.
32. Select the “SOURCE” switch to “AMPS”, and select “LEFT LF” by pressing the “LEFT”
pushbutton once. Only the “LF” LED above the LEFT pushbutton should be illuminated.
33. Adjust the “AMPLIFIERS - LL” trimpot so that the CX230 sound level meter reads the same as
the SPL reading on the RTA.
34. Select the “SOURCE” switch to “PROC”.
35. Adjust the ”PROCESSOR - LL” trimpot so that the CX230 sound level meter reads the same
as the SPL reading on the RTA.
36. Switch on the Left channel high frequency amplifier and check the reading on the CX230
sound level meter. It should be 85dB.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
37. Select the pink noise card to RIGHT.
38. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
39. Turn off the Right channel low frequency amplifier and note the SPL reading on the RTA.
40. Select the “SOURCE” switch to “AMPS”, and select “RIGHT HF” by pressing the “RIGHT”
pushbutton twice. Only the “HF” LED above the RIGHT pushbutton should be illuminated.
41. Adjust the “AMPLIFIERS - RH” trimpot so that the CX230 sound level meter reads the same as
the SPL reading on the RTA.
42. Select the “SOURCE” switch to “PROC”.
43. Adjust the ”PROCESSOR - RH” trimpot so that the CX230 sound level meter reads the same
as the SPL reading on the RTA.
44. Turn off the Right channel high frequency amplifier and turn on the Right channel low
frequency amplifier. Note the SPL reading on the RTA.
45. Select the “SOURCE” switch to “AMPS”, and select “RIGHT LF” by pressing the “RIGHT”
pushbutton once. Only the “LF” LED above the RIGHT pushbutton should be illuminated.
46. Adjust the “AMPLIFIERS - RL” trimpot so that the CX230 sound level meter reads the same as
the SPL reading on the RTA.
47. Select the “SOURCE” switch to “PROC”.
48. Adjust the ”PROCESSOR - RL” trimpot so that the CX230 sound level meter reads the same
as the SPL reading on the RTA.
49. Switch on the Right channel high frequency amplifier and check the reading on the CX230
sound level meter. It should be 85dB.
41. Select the pink noise generator to LEFT SURROUND.
42. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
43. Select the “SOURCE” switch to “AMPS”, and select “LEFT SURROUND”.
44. Adjust the “AMPLIFIERS - LS” trimpot so that the CX230 sound level meter reads 85db.
45. Select the “SOURCE” switch to “PROC”.
46. Adjust the “Processor - LS” trimpot so that the CX230 sound level meter reads 85db.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
47. Select the pink noise generator to RIGHT SURROUND.
48. Check the SPL reading on the RTA. It should be 85dB. If not, check the B-Chain alignment of
the sound processor.
49. Select the “SOURCE” switch to “AMPS”, and select “RIGHT SURROUND”.
50. Adjust the “AMPLIFIERS - RS” trimpot so that the CX230 sound level meter reads 85db.
51. Select the “SOURCE” switch to “PROC”.
52. Adjust the “Processor - RS” trimpot so that the CX230 sound level meter reads 85db.
The CX230 alignment is now complete.

PANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITORPANASTEREO CX230 CINEMA MONITOR
PANASTEREO CX230 CINEMA MONITOR
REFERENCE DATA
Serial Interface Protocol Description
The CX230 is equipped with a standard RS232 serial communications port using a 9 pin D-sub
connector. The data format is fixed and is in the following format:
One start bit, eight data bits, one stop bit, no parity, 9600-baud.
Command String Format
“Input select” and “volume set” commands are constructed using a seven-character ASCII string.
Commands start with a colon followed by a four-character command terminated with a carriage
return, and a line feed character which are also valid if they occur in reverse order. (This is to
allow compatibility with languages that do not provide easy control of the order of these
characters). The “request to send A-D level” command is a single character “ampersand” (&).
When a “Request to send A-D level” command is received the CX230 will respond with a two
character ASCII string starting with a colon followed by an eight bit value.
When the CX230 detects a command start character (a colon), a timer is started and if the rest of
the command including the end characters (CR/LF) is not received within 200mS then the serial
port is ignored until another valid start character is seen. If the command is unknown, then it is
ignored.
The seven characters in the command string each serve the following functions:
The first character is a colon and is the start character
The second to fifth characters represent the function command, which is a mnemonic style
command derived from the function to be performed.
The sixth and seventh characters are a carriage return and a line feed character.
Input Select Commands:
MLEF Select Left Channel monitor input
MCEN Select Centre Channel monitor input
MRIG Select Right Channel monitor input
MLSU Select Left Surround Channel monitor input
MRSU Select Right Surround Channel monitor input
MSUB Select Sub-Bass Channel monitor input
MMIX Select Mix
MAMP Select Amplifier Inputs
MPRO Select Processor Inputs
MMUT Select Mute
Set Volume Commands:
MVxx Set volume to xx, where xx is a number from “00” to “99”.
