Panmobil smartSCANNDY User manual

smartSCANNDY
Quick Reference Guide
AutoID Made in Germany
LF
HF
UHF
RFID
1D
2D
Barcode

Copyright Information
This Handbook contains copyrighted information from advanced PANMOBIL systems GmbH & Co. KG. You
are only allowed access to the information and utilization as stated by those who are responsible for the
described devices.
This copyrighted information may not be changed for any purposes, duplicated, or shared with others
without written authorization from advanced PANMOBIL systems GmbH & Co. KG.
Bettering Our Products
The continuing efforts to better our products is an underlining corporate principle at advanced PANMOBIL
systems GmbH & Co. KG. Advanced PANMOBIL systems GmbH & Co. KG reserves the right to change any
or all of the technical data and labels without any advanced notice.
These devices do generate and use high frequency energy and can disturb radio trafc and other radiations
when they are not installed or operated according to instructions. The appearance of disturbance in parti-
cular installations is not excluded. In the case that these devices should disturb your surroundings by their
powering on and off, please inform us immediately.
“The user is warned, that all changes and modications not authorized by advanced PANMOBIL systems
GmbH & Co. KG render the user’s permission to utilize the device null and void.”
Consumer Electronics
These devices have been coded and are appropriate according to the limitations for Class B digital devices
from the CE EMC directive.
For more information, please contact us at:
advanced PANMOBIL systems GmbH & Co. KG
Hansestrasse 91
51149 Cologne
Germany
Tel.: [phone]
Fax.: [phone]
Web: www.PANMOBIL.com
Email: [email protected]om
smartSCANNDY USER GUIDE
- 2 -

No. Description Function
1Left LED (green)
Left LED (red)
Lights up green when smartSCANNDY is powered ON.
Is ashing green (2 sec.) if battery is low (other function can be dened by API)
Lights up red if connect to ext. power (USB or power adapter)
2Right LED (yellow)
Right LED (blue)
Lights up yellow if a barcode or RFID Tags was read successfully
Is ashing yellow (500ms) when connected to USB
(Other function can be dened by API)
Lights up blue if Bluetooth connection is established
(Other function can be dened by API)
3Key 1 (Trigger Barcode or
RFID reader) Triggers the barcode and/or the RFID reader
(Other function can be dened by the Smart Congurator or the API)
4Key 2 (Delete function) Triggers the barcode and/or RFID reader
The captured data will be deleted from the memory
(Other function can be dened by the Smart Congurator or the API)
5Power ON/OFF Power key to power the unit ON and OFF
Pressing this key for 3 sec. powers the unit OFF
6USB interface protect cap
and stylus cap Protects the USB interface for damage
The USB cap contains a stylus for touch panels.
7Battery cover Turn the button 90° to open and access the battery
8Build in stylus Stylus for touch panel
7
8
smartSCANNDY USER GUIDE
- 3 -

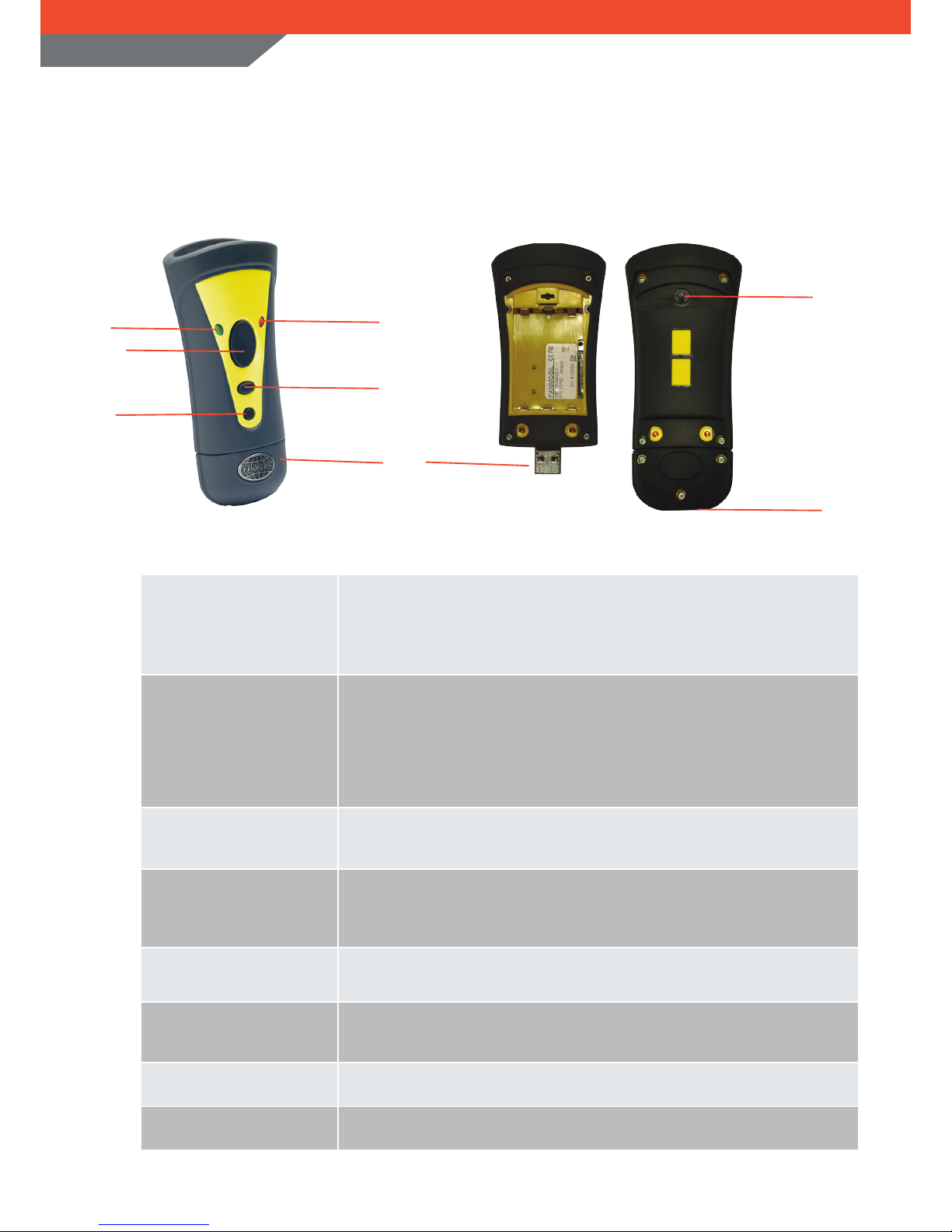

PRODUCT DESCRIPTION
smartSCANNDY
Front view Back view
2
4
6
1
3
5

smartSCANNDY USER GUIDE
- 4 -
No. Description Function
1USB (device) interface USB interface for communication and battery charging
2USB Cap lock Locks the USB cap when mounted
12
No. Description Function
1RFID Antenna RFID Reader/Writer Antenna
2Protection glass for RFID reader Keep this glass free of dirt and scratch to have the best reader
performance
1
2
USB
RFID

smartSCANNDY can be operated by either 3xAAA batteries (1.5 Volts each) or by a rechargeable Li-Ion
battery (PANMOBIL).
No. Description Function
1Contacts for charging the Li-Ion battery Battery contacts for charging the Li-Ion battery
2Contacts AAA batteries Battery contacts for standard AAA batteries
3Clip Shirt clip
4Clip holder (accessory) Holder for xing the shirt clip, belt clip or neck belt (accessory)
1
3
2
smartSCANNDY USER GUIDE
- 5 -
BATTERY
4
BARCODE
1
2
No. Description Function
1Barcode reader 1D/2D Imager and 1D Laser
2Protection glass for Barcode reader Keep this glass free of dirt and scratch to have the best reader
performance

smartSCANNDY USER GUIDE
- 6 -

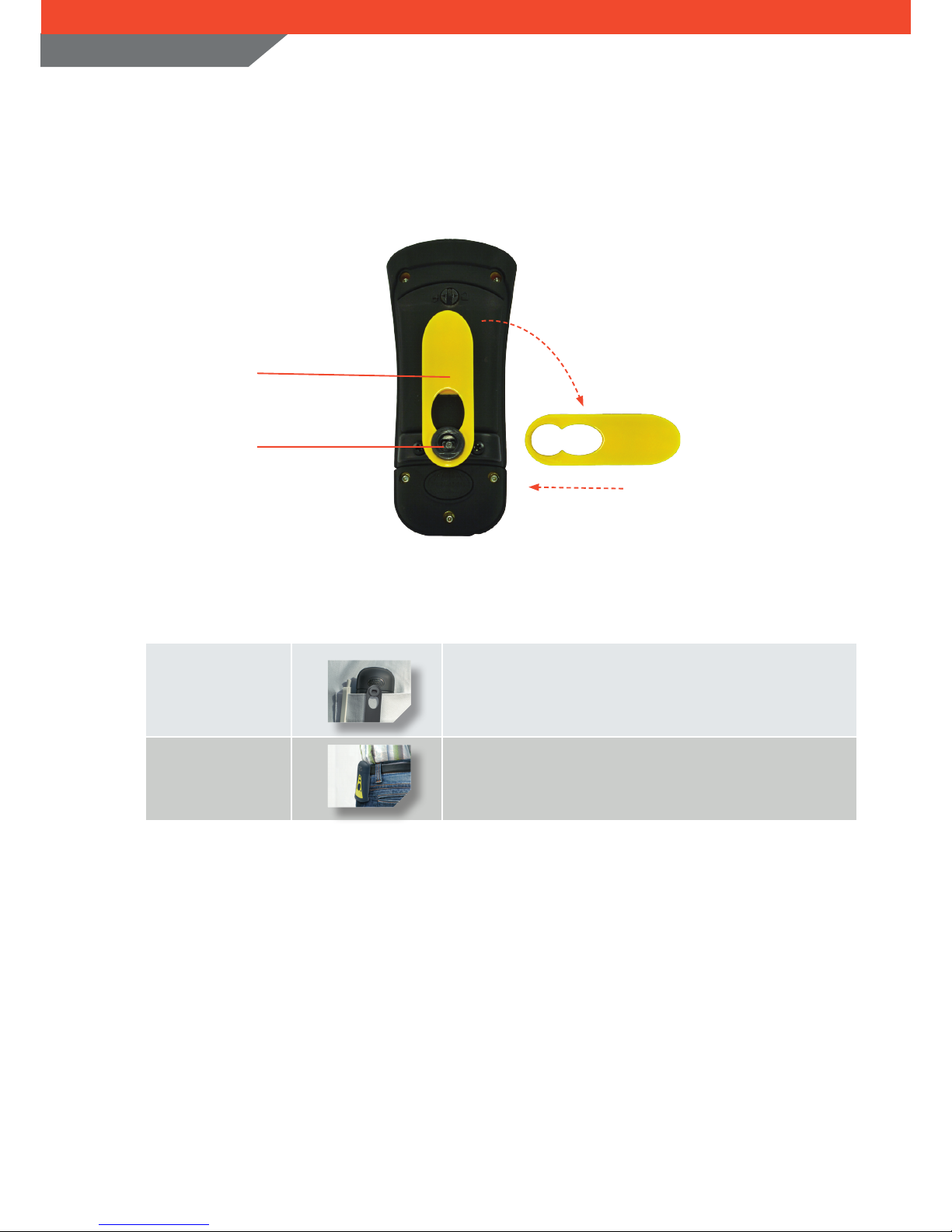

No. Description Function
1Shirt clip Used to carry the smartSCANNDY fastened at a shirt pocket
2Belt clip Used to x the smartSCANNDY at a belt
1
2
ACCESSORIES
smartSCANNDY
turn
push

smartSCANNDY USER GUIDE
- 7 -
Docking station/
USB cradle To be used for data transfer to the computer and for
recharging the battery from the PC USB port power
USB car charging
adapter The car charging adaptor allows recharging of the
smartSCANNDY Li-Ion batteries via your cigarette lighter in
your car.
Spare Li-Ion battery Li-Ion rechargeable battery with 1050mAh, which can be
recharged via the USB interface of the PC or with an external
power adapter for quick recharge.
Power adapter The convenient power adapter can be used for quick
recharging the battery of your smartSCANNDY without being
connected to a computer.
Easy Direct Pointer smartSCANNDY equipped with the Easy Direct Pointer, the
scanning of miniature 2D codes is very easy and fast
Barcodes printed in catalogs or barcodes printed tightly next
to each other can be pointed and captured very easy and fast.
Safety Lanyard A comfortable lanyard with one nger click lock
With a snap of your ngers, the lock can be released to enable
immediate operation
The safety unlock system opens the lanyard automatically if it
gets stuck
USB cap with cable
and Table stand USB cap with cable for smartSCANNDY stationary (USB
connector)
The smartSCANNDY xed in the table stand can read
Barcodes and/or RFID Tags as soon as they are placed in the
reader eld. Data can be either stored in the device memory
or directly send to the PC trough the direct connect cable.
ACCESSORIES
smartSCANNDY

smartSCANNDY USER GUIDE
- 8 -
SPECIFICATION
smartSCANNDY
CPU ARM9
Memory 64 MB RAM/ 1 GB
Proof of Data Non volatile memory
Date/ Time Realtime clock
Interface RS232 / USB mass storage / USB HID / USB Ethernet / USB Serial
Programming SDK / C++ / Java
Configuration Smart Congurator
Wireless Bluetooth Class 1/2, WiFi 802.11b/g
Audio Speaker
Display No Display
LED Red/Green/Yellow/Blue
Keyboard 3 Keys
Barcode 1D Imager
EAN-8, EAN-13, UPC-A, UPC-E, Code128, Code39, Interleaved 2of5
2D Imager
DataMatrix , QR Code, Optional PDF417, MicroPDF, MicroQR
1D Laser
EAN-8, EAN-13, UPC-A, UPC-E, Code128, Code39, Code93, Interleaved 2of5,
Chinese 2of5, Codabar, Codablock_F
RFID 125 KHz (Unique, Q5, Hitag1, Hitag2, HitagS, EM4100, EM4102)
13,56 MHz (Mifare 1K, Mifare 4K, Mifare UltraLight, ISO14443A)
13,56 MHz (I-Code II, I-Code-SLI, TagIt HF1, MyD, ISO15693 mandatory)
UHF 860-960 MHz, EPC GEN 2 ISO 18000-6C
Size 116x50x31 mm
Weight 80 g
Battery 1050 mAh Li-lon
3x AAA Battery
Housing Inside: double wall ABS
Outside: stressable rubber
Protection Class IP 54
Temperature Range -10 °C to +50 °C operating temperature
-20 °C to +70 °C storage temperature

smartSCANNDY USER GUIDE
- 9 -
advanced PANMOBIL systems
GmbH & Co. KG
Hansestr. 91
51149 Cologne
Germany
Tel : [phone]
Fax: [phone]
[email protected]om
www.PANMOBIL.com
FUNCTION CONFIGURATION
For information about how to congure the device functions, please refer to the document
SmartUniversalConfigurator_en.
This document describes how you can congure the function for buttons, buzzer, Data record, ect. Using
the smartCongurator, you can dene the device function according to the application.
DEVICE SOFTWARE CONFIGURATION
For information about how to congure the device software, please refer to the document
Config_ini .
This document describes how to congure device options like Bluetooth, RFID, Interface proles, Barcode
symbologies, ect.
