Pantheon PD1 User manual

Read all instructions carefully before use
Operating Manual
Dust Extractor PD1/PD2/PD3
www.PantheonSurfacePrep.com

page- 2
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
Dear Valued Customer,
Thank you for your trust to Pantheon and for your choosing the single phase, 2 stage
HEPA dust extractor!
We hope the machine will be to your satisfaction and meet your expectations.
This manual provides all the information and instructions needed to use and to service
the machine. Please keep this manual with care and make sure that users read it
prior to operating the vacuum. In case of loss of or damage to the manual, please
do not hesitate to contact us for a new copy.
We would be glad to receive any notice or suggestion to improve our products and
service. For any question, please contact us.
Notice!
 These instructions are for single phase, 2-stage HEPA dust Extractors
PD1/PD2/PD3 only.
 The machines are designed to clean construction area and can be connected
to powered hand tools, small/medium size grinders, etc.
 Please pay attention to the safety regulations.
 Read the complete operating manual prior to using the machines.
 All repairs must be performed by a qualified service person. Use only the
replacement parts supplied or specified by Pantheon.
 Pantheon shall, under no circumstances, be deemed liable for any accidents or
damage caused if the machine is used for other applications or been used in a
way other than those required in the operating manual.
2022. 06
Pantheon Sales and Rental

page- 3
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
1 Unpacking
When unpacking the machine, make sure that the following accessories are
included:
 A hose with end fittings
 Metal wands
 Floor tools and its spare parts
If any of the above-mentioned parts are missing, please contact your local
distributor or our sales representative.
Please dispose of packaging materials and used machine components in
accordance with the local environmental disposal law or regulations. Always
remember to recycle.
2 Intended use
The machine is designed for vacuuming and separating dry, non-combustible
dust with an explosion limit value of 0.1mg/m3.
Notice!
 Do not use the machine outdoors or on wet surface, this machine is
designed for indoor and dry use only.
 Do not expose machine to rain or moisture, store indoors only.
 Do not use to pick up any type of liquids.
 Do not use to pick up any flammable or combustible substances, or the
substances which could cause explosions (fuels, solvents, etc.), don’t use in
an area where they may be present.
 Do not use to pick up any substances that is burning or smoking substances,
such as cigarettes and matches, or hot ashes.
 Pantheon shall, under no circumstances, be deemed liable for any
accidents or damage caused if the machine is used for other applications.

page- 4
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0

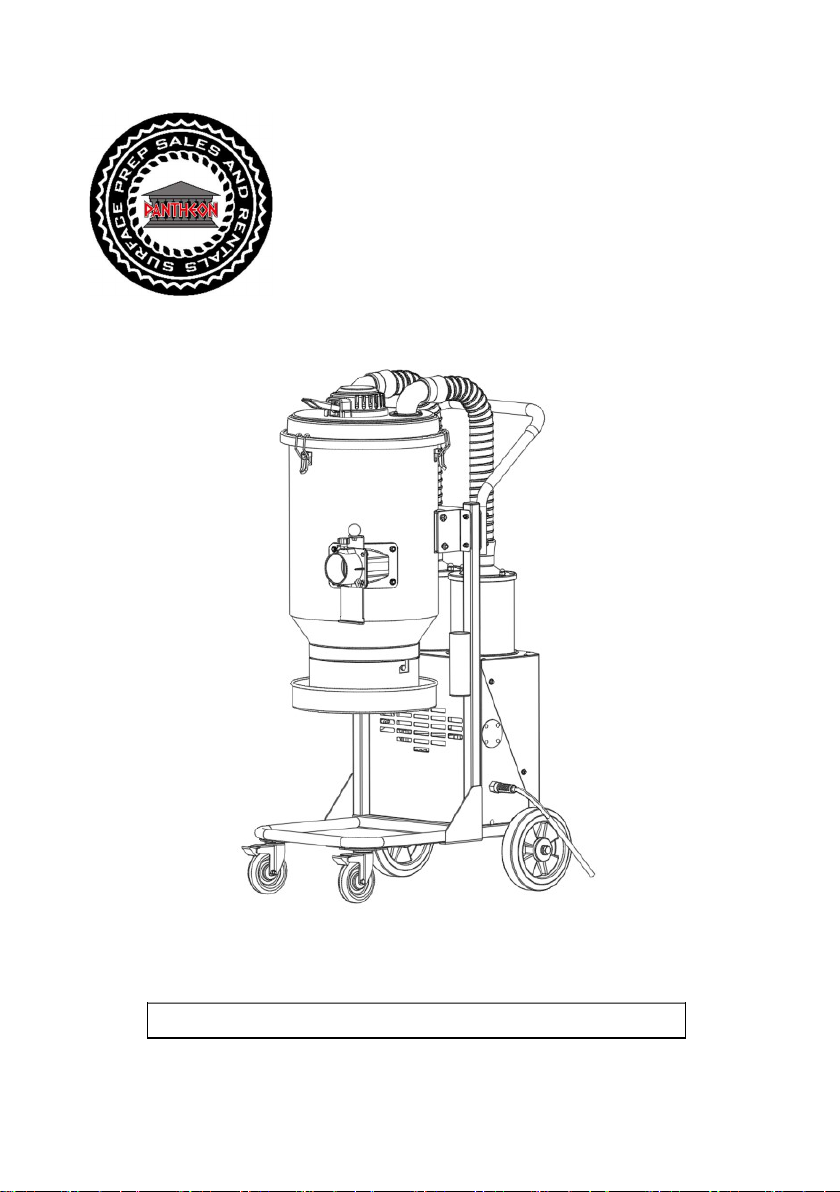

3 Identification of main parts
1 filter purge handle 7 power switch
2 inlet open/close plate 8 hour meter
3 die-casting inlet unit 9 vacuum meter
4 continuous fold bag assy.. 10 HEPA chamber
5 4” front swivel casters, lockable 11 main filter chamber
6 8” wheels 12 ergonomic handle

page- 5
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
4 Technical data
data unit PD1 PD2 PD3
voltage v 120 230 120 230 120 230
max. power
kw 1.2 1.2 2.4 2.4 2.4 3.6
hp 1.6 1.6 3.2 3.2 3.2 4.8
current A 8 4 16 8 16 12
max. air flow
m3/h 200 200 400 400 485 600
cfm 118 118 236 236 285 354
max.
vacuum
mbar 240 220 240 220 200 220
inch 100 90 100 90 81 90
noise level dB(a) 70 70 70 70 70 70
dimensions
with carton
cm 65x42x107 65x57.5x126 78x59x146
inch 25.6x16.5x42 25.6x22.6x49.6 30.7x23.2x57.5
weight
kg 40.5 50.0 61.5
lbs 89 110 136
5 Safety precautions
 The employer must inform and train the user according to the provisions of
applicable laws. Use of the machine by untrained and unauthorized persons
is strictly forbidden.
 Read the complete instruction manual before operating your dust extractor.
Pay particular attention to the safety regulations. Failure to observe the
safety regulations could cause serious accidents and injuries.
 This machine is not intended for use by children or the persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge.
 Make sure the assembly area is firm, so the machine does not tip over. Risk
of personal and material injury.
 Pay extra attention when cleaning on slopes, ramps, or stairs.
 Make sure the parked machine remains stable by operating the braked
wheel.
 Risk of pinching when handling the toggle fasteners.
 Keep children and unauthorized persons away from machine when in use.
Close attention is necessary when operated closed to children.

page- 6
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
 Keep hair, loose clothing, fingers, and all parts of body away from openings
and moving parts (accept during a filter cleaning procedure).
 Make sure all the guards and protection devices are in place and that all
the safety devices are in place and working properly.
 Do not open the vacuum container with the machine running.
 Do not wear loose or hanging clothing such as ties, scarves or torn garments
that could become trapped and be sucked up by the cleaner.
 Do not use without dust bag and/or filters in place. Replace collection
system and/or filters as described in manual.
 Do not modify machine from its original design.
 All repairs must be performed by a qualified service person. Use only
manufacturer supplied or specified replacement parts.
6 Electric safety
 Improper connection of the equipment-grounding conductor can result in a
risk of electrical shock. Check with a qualified electrician or service person if
you are in doubt as to whether the outlet is properly grounded.
 Do not modify the plug provided with the machine. If it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
 Before using the machine, make sure that the power & voltage corresponds
with the voltage shown on the machines rating plate.
 Do not leave machine when plugged in. Unplug cord from outlet when not
in use and before cleaning or servicing machine.
 Cables damaged through crushing or splitting can be dangerous if used
and should be replaced immediately. Risk of personal injury.
 Do not use with damaged cord or plug. If the machine is not working as it
should, has been dropped, damaged, left outdoors or dropped in water.
Make sure it is repaired by a qualified person.
 Do not pull or carry by cord, use cord as handle, close a door on cord, or
pull cord around sharp edges or corners. Do not run the machine over cord.
Keep cord away from heated surfaces.
 Do not unplug by pulling on cord. To unplug, grasp the plug. Not the cord.
 Do not handle plug or machine with wet hands.
 Regularly inspect cord and plug for damage. If cord is damaged, it must be
replaced by a qualified person to avoid hazard.
 Turn off all controls before unplugging.

page- 7
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
 If using an extension cord, make sure the cord rating is suitable for this
machine.
 Connect to a properly grounded outlet only. See grounding instructions.
7 Thermal protection
The dust extractor is equipped with a safety thermal protector to prevent motor
from overheating. Should thermal protector activate, turn off machine, unplug
power cord and check for full dust bag, vacuum hose clog or filter blockage. It
may take up to 45 minutes for the thermal protector to reset.
8 Grounding instructions
The dust extractor must be grounded. If a dust extractor malfunctions or
breakdowns, grounding provides a path of least resistance for electric current
to reduce the risk of electric shock. The dust extractor is equipped with a cord
having an equipment-grounding conductor and grounding plug. The plug must
be inserted into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
9 Service
 When cleaning and servicing the machine, you must switch off the machine
and remove the plug from the outlet.
 Don’t clean the machine with a high-pressure cleaner. If necessary, do not
direct at the openings on the machine, especially the opening for cooling
air.
 Before moving the machine from the work area, the machine must be
cleaned.
 Proper personnel protective equipment must be used while replacing the
main filter or the HEPA filter. If possible, use a special suitable room.
 All parts which are contaminated after service must be properly disposed of
in plastic bags according to all regulations.
 If the machine must be used for other purposes, it is extremely important that
the machine is cleaned, to avoid the spread of hazardous dust.
 Do not puncture the HEPA filter. Risk of dust dispersion.

page- 8
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
10 Operating Instructions
1) Vacuuming process
Before starting a vacuuming process,
 make sure the machine is properly connected to a grinder or a floor
tool via the provided hose and fittings.
 check the power cable and the plugs are in a good condition.
 make sure the power voltage corresponds to that on the rating plate
and correctly connect the power plug to a power socket
Turn on the power switch to start a vacuuming process.
During the vacuuming process, dust-laden air is sucked through the flexible
hose and inlet at a high speed. The air is then slowed down by the cyclone,
and coarse dust particles are separated out partly by centrifugal force and
partly by gravity. Air and finer particles pass through the main filter at the first
and the HEPA filter at the final stage where separation is made.
2) Filter cleaning process
The machine is designed for filter cleaning by reverse air “jet-pulse”.
The filter must be cleaned from time to time. This must be done before
changing the bag collection system and should also be done when work is
completed or whenever there is a poor suction.
Filter cleaning procedure:
 Cover the inlet by lifting the inlet open/close plate and let the machine
build up vacuum for 4 to 5 seconds,
 Quickly push down the filter cleaning handle and release it. Repeat the
procedure five times. It is important to let the machine rebuild the
vacuum in between every repetition,
 Open the inlet again by pushing down the inlet open/close plate.
If suction remains poor, the conical main filter needs to be replaced. If

page- 9
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
suction remains poor afterwards, the HEPA filters needs to be replaced. See
instructions in chapter 13 Filter change.
3) Dust storage and release
The separated dust accumulates in the conic bottom during the vacuuming
process, and it drops through the bottom flap into the plastic bag when the
machine is switched off. In some extreme cases the adhesive ability of the
dust must be broken manually. This can be done by hitting the dust through
the bag or tapping the tank using i.e. a rubber hammer.
4) Dust collecting and bagging
The machine is equipped with a continuous fold bag system for an effective
dust collecting and bagging. The supplied fold bag is a 22 m long plastic
tube that will be divided into individual bags using the zip ties attached with
the machine.
To assemble a new fold bag:
 Release the belt holding the last bag and take off the bag holder.
 Put in a new fold bag & pull out the inner end upwards.
 Assemble the holder onto the machine and strap the opening facing
upwards with the belt.
 Pull down the outside end and close it by using a zip tie.
Before changing a fold bag or a regular bag, make sure the filter cleaning
cycle has been completed.

page- 10
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
11 Filter change
Unhealthy dust can be spread during filter change. Accordingly, the user should
wear protective glasses, protective gloves, and a breathing mask conforming
to protection class FFP3.
WARNING! Remember to switch off the machine and pull the plug out of the
outlet before servicing.
1) Change of main filter
 Loosen the 3 hooks and remove the top cover. Take out a new filter
from its bag. Lift out the used filter from its chamber and place it gently
into the filter bag. This bag must be closed and disposed properly.
 Insert a new filter.
 Put back the top head and close the 3 hooks properly.
IMPORTANT! If you are removing the main filter to clean it. Hitting the filter
with force or use of compressed air will destroy the filter. It can handle
water, but high-pressure water cleaning will destroy it.
2) Change of HEPA filter
 Loosen the 2 nuts on each filter cover. Take out a new filter from its bag.
Lift out the used HEPA filter from its chamber and place it gently into the
filter bag. This bag must be closed and disposed properly.
 Insert a new filter to the filter chamber.
 Put back the filter cover and close the 2 nuts properly.
IMPORTANT! HEPA filters can’t be cleaned, trying this might destroy it. When
installing the replacement filter, make sure not touch the inside of the filter.
Any kind of force/damage on the inside of filter media will destroy the new
filter.

page- 11
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
12 Problem solving
The machine is designed and manufactured for a specific severe environments
and tasks. Its filter, seals, attachments, and fittings are customized or selected
specifically for the applications. Please note that the machine must be
protected from knocks and blows. The operator and service personnel must
treat the machine with care for it to work correctly for an expected life span.
problem cause solution
Motor fails to start No power
Check power supply.
Make sure power cable and
plugs are in a good condition
and properly connected,
Check the power switch is in a
good condition and properly
connected.
Motor stops shortly
after start
Wrong fuse Connect to a correct fuse
Shortcut in
cable/machine Order service
Motor runs but with
no suction
Hose not connected Connect hose
Hose clogged or
blocked Clean hose
No dust collection
bag Fit dust collection system
Motor runs but with
a poor suction
Hole in hose Replace hose
Filter clogged Clean filter or replace filter
Loose top cover Make an adjustment of hooks or
top cover
Defective seals or
gaskets
Replace defective seals or
gaskets
Dust leaks out
Hole in hose Replace the defective hose
Damaged filter Replace the damaged filter
Poor assembled filters Make an adjustment of the
poorly assembled filters
Machine works
noisy or abnormal various causes Consult the technical support agent or order a service

page- 12
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
13 Exploded view and part list PD1

page- 13
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
Part list PD1
POS. Part Number Description Qty
1 01-00050 Cover kit 1
2 01-00049 Purge handle kit 1
3 63-00004 Bend connector seal 1
4 31-00027 D50 bend connector 1
5 69-00005 D50x360 hose with fittings 1
6 31-00018 Top cover 1
7 61-00001 Conical filter PD1 1
8 01-00009 Hook 95 kit 3
9 31-00004 Main filter chamber 1
10 01-00008 D70 inlet assy. 1
11 01-00062 Hand holder kit 1
12 51-E0020 Key M6 2
13 51-B0032 Anti-skid nut M6 2
14 01-00010 Flap assy. 1
15 59-00006 Packing belt 1
16 63-00007 Anti-skit ring 1
17 64-00002 Drop-down fold bag 1
18 31-00019 Fold bag holder 1
19 21-00003 PD1 wagon frame assy.** 1
20 01-00005 Motor chamber cover kit 1
21 01-00023 PD1 motor complete assy.** 1
22 69-00054 Power cord 16AWGx8m NEMA 5-15P 1
23 52-00008 Cable fix (PG11) 1
24 01-00285 Electronic components kit** 1
25 61-00004 HEPA filter 1
26 31-00017 HEPA cover 1
27 51-B0007 Semi-dome nut M8 2
28 51-C0005 Seal washer M8 2
29 51-C0017 Flat washer M8x16 2
** refer to the followings for a breakdown of part list

page- 14
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
1) 21-00003 PD1 wagon frame assy.
Part list 21-00003 PD1 wagon frame assy.
POS. Part Number Description Qty
1 31-00001 Wagon frame 1
2 01-00012 Front wheel kit 2
3 01-00011 Real wheel kit 2
4 21-00013 Handle PD1 1
5 51-A0001 Hex bolt M6x65 4
6 51-B0032 Anti-skid nut M6 4
7 51-C0004 Flat washer M6 8
8 59-00025 Plastic insert 25x25 2
9 31-00015 Tank holder 2

page- 15
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0

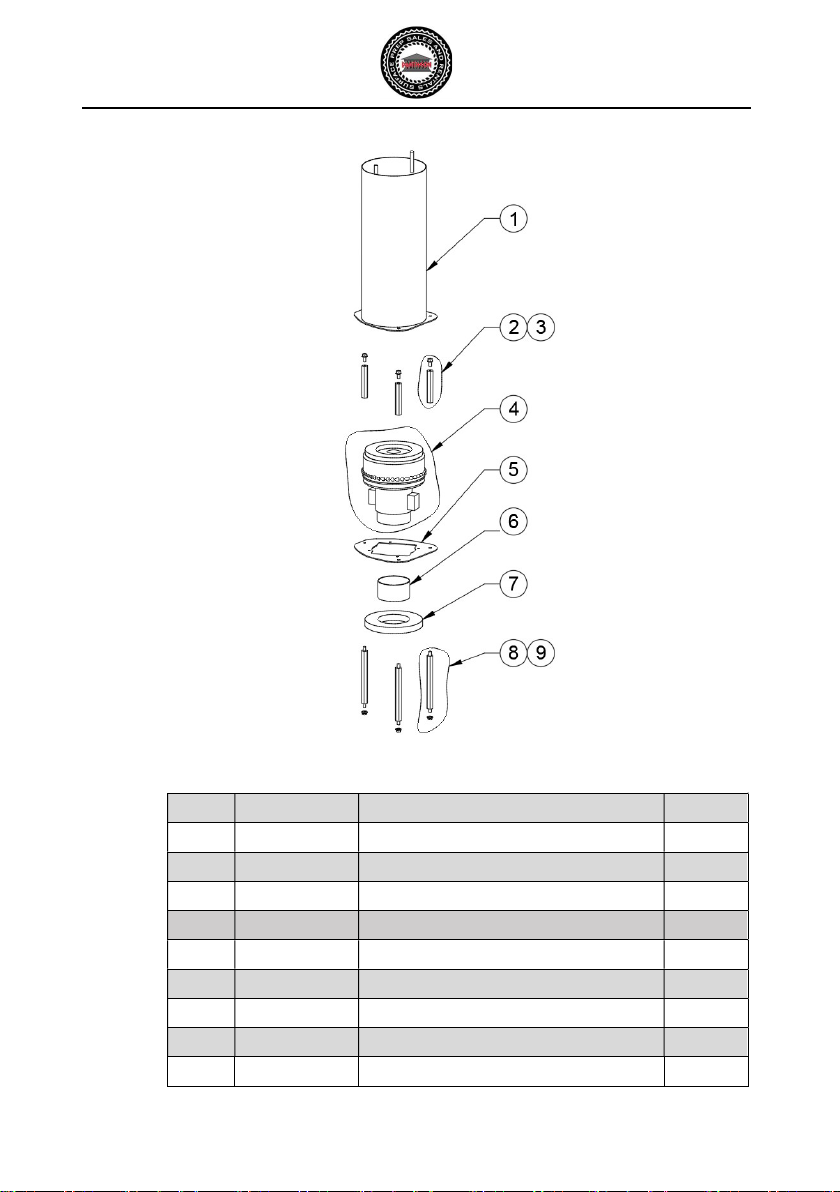

2) 01-00023 PD1 motor complete assy.
Part list 01-00023 PD1 motor complete assy.
POS. Part Number Description Qty
1 31-00002 HEPA chamber 1
2 51-A0008 Bolt M6x12 3
3 62-00007 Female spacer L76.5 3
4 21-00288 Motor kit 120v 1.2kw 1
5 31-00003 Motor support 1
6 64-00005 Acrylic tube 1
7 63-00011 Foam disc adhesive 1
8 62-00008 Male spacer L128.5 3
9 51-B0002 Nut M6 3

page- 16
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
3) 01-00004 Electronic components kit
Part list 01-00004 Electronic components kit
POS. Part Number Description Qty
1 01-00041 Cover plate kit 1
2 01-00019 Terminal block TB1503 kit 1
3 n/a Wiring cable kit 1
4 52-00003 Power switch 1
5 52-00004 Hour meter 1
6 01-00022 Vacuum meter kit 1
7 44-00017 Air pipe PVC D6x130 1

page- 17
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
14 Exploded view and part list PD2

page- 18
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
Part list PD2
POS. Part Number Description Qty
1 01-00050 Cover kit 1
2 01-00049 Purge handle kit 1
3 63-00004 Bend connector seal 2
4 31-00027 D50 bend connector 2
5 69-00006 D50x550 hose with fittings 2
6 31-00053 Top cover 1
7 61-00002 Conical filter PD2 1
8 01-00009 Hook 95 kit 3
9 31-00041 Main filter chamber 1
10 01-00008 D70 inlet assy. 1
11 51-E0020 Key M6 2
12 51-B0032 Anti-skid nut M6 2
13 01-00010 Flap assy. 1
14 59-00006 Packing belt 1
15 63-00007 Anti-skit ring 1
16 64-00002 Drop-down fold bag 1
17 31-00019 Fold bag holder 1
18 01-00069 Motor chamber cover kit 1
19 21-00031 PD2 wagon frame assy.** 1
20 69-00073 Power cord 14AWGx8m NEMA 5-20P 1
21 52-00009 Cable fix PG13.5 (G28 only) 1
22 01-00060 Electronic components kit** 1
23 01-00064 PD2 motor complete assy.** 1
24 61-00004 HEPA filter 2
25 31-00017 HEPA cover 2
26 51-B0007 Semi-dome nut M8 4
27 51-C0005 Seal washer M8 4
28 51-C0017 Flat washer M8x16 4
** refer to the followings for a breakdown of part list

page- 19
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
1) 21-00031 PD2 wagon frame assy.
Part list 21-00031 PD2 wagon frame assy.
POS. Part Number Description Qty
1 31-00040 Wagon frame 1
2 01-00012 Front wheel kit 2
3 01-00011 Real wheel kit 2
4 21-00018 Handle PD2 1
5 51-A0001 Hex Bolts M6X65 4
6 51-B0032 Anti-skid nut M6 4
7 51-C0004 Flat washer M6 8
8 59-00001 Plastic insert 30x30 2
9 31-00052 Tank holder 2

page- 20
Operating Manual
PD1/PD2/PD3
2022 rev. 6.0
2) 01-00064 PD2 motor complete assy.
Part list 01-00064 PD2 motor complete assy.
POS. Part Number Description Qty
1 31-00002 HEPA chamber 2
2 21-00288 Motor kit 120v 1.2kw 2
3 51-A0008 Bolt M6x12 6
4 62-00007 Female spacer L76.5 6
5 31-00051 Motor support 1
6 64-00005 Acrylic tube 2
7 63-00011 Foam disc adhesive 2
8 62-00008 Male spacer L128.5 6
9 51-B0002 Nut M6 6
