Paramount Fitness 7.55T User manual

PARAMOUNT FITNESS
7.55T/7.85T
Treadmill Owner’s Manual

Safety Warnings.................................................................................................. 4
Introduction......................................................................................................... 7
Overview........................................................................................................... 7
Power Requirements........................................................................................ 8
Service and Support Information...................................................................... 9
Initial Setup........................................................................................................ 10
Warnings......................................................................................................... 10
Overview......................................................................................................... 11
Identify Parts................................................................................................... 12
Assemble the Treadmill.................................................................................. 13
Install the Uprights...................................................................................... 14
Install the Display Console......................................................................... 16
Connect Wiring........................................................................................... 17
Position and Level the Treadmill..................................................................... 18
Check and Adjust the Level of the Treadmill.............................................. 18
Check and Adjust Belt Tracking...................................................................... 20
Check and Adjust Belt Tracking ................................................................. 20
Inspect the Treadmill.................................................................................. 22
Perform a Visual Inspection ....................................................................... 22
Manager Mode and Statistics........................................................................... 23
Overview......................................................................................................... 23
Manager Mode................................................................................................ 24
Access Manager Mode............................................................................... 24
Navigate Manager Mode............................................................................ 25
Set Language............................................................................................. 25
Set Maximum Workout Time...................................................................... 26
Set Goal Count Down or Goal Count Up.................................................... 26
Set Maximum User Speed ......................................................................... 27
Set LED Display Intensity........................................................................... 27
Set English or Metric Units......................................................................... 28
Set Pause Time.......................................................................................... 28
Set Cool Down Time .................................................................................. 29
Set Lift Calibration ..................................................................................... 30
Set New Calibration Distance..................................................................... 31
Input Custom Program ............................................................................... 32
Set Heart Rate Selection............................................................................ 33
Diagnostics Statistics...................................................................................... 34
Access Diagnostic Statistics....................................................................... 34
Basic Operation................................................................................................. 35
Overview......................................................................................................... 35
Display Console Panel ............................................................................... 35
Easy Start....................................................................................................... 36
Use Easy Start ........................................................................................... 36
Programs........................................................................................................ 38
Select a Manual Program........................................................................... 39
Select a Heart Rate Program ..................................................................... 41
Select a Hill Program.................................................................................. 43

Select a Fit Test Program........................................................................... 44
Select a Course Program........................................................................... 45
Select a Custom Program .......................................................................... 47
Stop and Pause Operation ............................................................................. 48
Using Emergency Stop............................................................................... 49
Using Standard Stop .................................................................................. 50
Using Pause Mode..................................................................................... 50
Basic Maintenance............................................................................................ 51
Warnings......................................................................................................... 51
Overview......................................................................................................... 52
Proper Maintenance ....................................................................................... 53
Maintenance Schedule................................................................................... 54
Weekly........................................................................................................ 54
Monthly....................................................................................................... 54
Update Software............................................................................................. 55
Update treadmill software........................................................................... 55
Walking Belt Tracking..................................................................................... 57
Check and Adjust Belt Tracking ................................................................. 57
Walking Belt and Deck Replacement ............................................................. 58
Remove Covers.......................................................................................... 59
Remove Deck............................................................................................. 61
Replace Walking Belt ................................................................................. 63
Install Deck................................................................................................. 66
Tension Walking Belt.................................................................................. 67
Check and Adjust Belt Tracking ................................................................. 68
Install Covers.............................................................................................. 69
Serviceable Parts List..................................................................................... 70
Electrical Wiring Schematic........................................................................ 71
Wiring Key.................................................................................................. 72
Additional Information................................................................................. 72

Paramount 755T/785T Owner’s Manual 4
Safety Warnings
All precautions should be taken to minimize the risk of injury and to prevent damage to
the equipment. Read the entire Owner’s Manual before using the treadmill and always
observe the following safety precautions.
SERIOUS INJURY CAN OCCUR ON THIS MACHINE IF PRECAU-
TIONS ARE NOT OBSERVED. READ ALL INSTRUCTIONS
BEFORE USING THIS TREADMILL.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
ALWAYS DO THE FOLLOWING:
1. Before performing any maintenance, turn off the power switch
and unplug the treadmill. If the treadmill will not be used for an
extended period of time, turn off the power switch and unplug the
unit from the wall.
2. The electrical settings for this treadmill are factory set. Verify that
your facilities meet these requirements before connecting the tread-
mill to the electrical outlet. Do not use an adapter to connect the
treadmill to the electrical outlet. Do not modify the power cord
shipped with the treadmill. If the plug will not fit the outlet on the wall,
contact a qualified electrician to make the appropriate changes to
the circuit and the wall outlet.
1. Keep children away from this machine. Supervise use by teenag-
ers.
2. Stop exercising immediately if you feel pain, become dizzy, faint
or short of breath.
3. Obtain a medical exam before beginning an exercise program.
4. Heart rate monitoring systems may be innaccurate. Over exertion
may result in serious injury or death.

Paramount 755T/785T Owner’s Manual 5
5. To avoid falls or injury, use extreme caution when stepping onto or
off of a moving belt. DO NOT turn around on a moving belt.
6. Keep all body parts, hair, clothes, towels and headphone cables
clear of moving parts. Bystanders must stay clear of the front sides
of the treadmill as it is inclining and declining.
7. DO NOT use if the machine appears damaged or inoperable.
Report problems to staff.
8. Only use the treadmill for its intended use as described in this
manual. Do not perform any modifications to the treadmill.
9. Obtain instruction and/or refer to the manual before using. Read
all warnings before using. Be certain the STOP operation is under-
stood.
10. The treadmill must be in position to cycle and operate smoothly
and allow appropriate entry and exit from the machine. Make sure
that there is at least 0.5 meters (20 inches) of clearance on both
sides of the treadmill and at least 2 meters (79 inches) of clearance
behind the treadmill.
11. Max. user weight: 400lbs/182kg
12. Make sure that the treadmill is in a dry location before operating
or connecting to power. Do not use the treadmill outdoors.
13. Make sure that the power cord is clear of the wheel track for the
lift mechanism so that it does not get run over. Also, make sure that
the power cord is not on top of the lift frame where it could get
pinched. Never use the treadmill if the power cord is crimped, cut or
damaged in any way. Keep the power cord away from heated sur-
faces.
14. Be certain that the front motor cover is clear of obstructions to
allow proper air flow into the unit.
15. Warning of possible radio frequency interference (RFI)
This treadmill has been designed and tested to comply with FCC
rules, Part 15, Class A digital devices. The limits in these rules are
designed to provide reasonable protection against harmful radio fre-
quency interference when the unit is installed and operated in a
commercial establishment. This equipment generates, uses, and
can radiate radio frequency interference which may cause harmful
interference to radio frequency communications if not installed and
used in accordance with the owner’s manual instructions. If interfer-
ence does occur in an installation it is the owner’s responsibility to
correct the interference at their expense. Any changes or modifi-
cations to this equipment could void the product warranty and
cause the unit to exceed the FCC limits.

Paramount 755T/785T Owner’s Manual 6
1. Do not attempt any maintenance procedure unless you are quali-
fied and properly equipped to perform the procedure properly and
safely. Otherwise, contact a service technician to service your tread-
mill.
2. Be careful not to pinch your fingers when removing the deck.
3. Make sure that the walking belt is kept clean and dry.

Paramount 755T/785T Owner’s Manual 7
Introduction
Overview
This section contains information about:
•Power Requirements
•Service and Support Information
Thank you for purchasing the Paramount 7.55T/7.85T. This manual will show you
how to assemble, operate, and maintain your treadmill.
The manual is intended as a reference only. All warnings and cautions should be
heeded when assembling, maintaining, or operating the treadmill. Contact a qual-
ified service technician for any procedure that you cannot perform correctly, com-
pletely, and safely.
Follow all instructions carefully.
The 7.55T/7.85T treadmill is a commercial treadmill intended for use in health
clubs, gyms, and physical therapy facilities. This manual will help you discover
and use the treadmill’s features.
VISIT OUR WEB SITE REGULARLY: WWW.PARAMOUNTFITNESS.COM
FOR UPDATES TO THIS MANUAL, IMPORTANT SAFETY NOTICES, MANDA-
TORY SERVICE BULLETINS AND PRODUCT DESIGN ENHANCEMENTS.
RETAIN THIS MANUAL FOR FUTURE REFERNCE.

Paramount 755T/785T Owner’s Manual 8
Power Requirements
This treadmill has specific requirements for electrical power. It is critical that you
verify that your facilities meet these requirements before connecting the treadmill
to an electrical source. Adherence to these requirements is necessary to ensure
the user’s safety and to prevent damage to your treadmill.
Electrical Specifications and Precautions
This treadmill requires a grounded 20-amp/120-volt NEMA 5-20 receptacle [North
America] or 15-amp/ 230-volt NEMA 6-15 receptacle [Europe] dedicated circuit for
each machine. The treadmill ships with the appropriate cord and plug to permit
connection to the proper electric circuit. The treadmill must be plugged into an
outlet designated to accept the appropriate plug and voltage configuration. Do
not, under any circumstances, use an adaptor to make this connection. Do not
modify the plug provided with the treadmill. If it will not fit the outlet, contact an
electrician to have the circuit and outlet changed to accept the plug. The voltage
rating for the treadmill is included in the serial tag that is affixed to the rear cross
member of the treadmill.
Circuits with a Ground Fault Interrupter (GFI) are not recommended for use with-
the Paramount 7.55T/7.85T.
Grounding Instructions
This product must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric
shock. This productis equipped with a cord having an equipment-grounding con-
ductor and a grounded plug. The plug must must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes
and ordinances.

Paramount 755T/785T Owner’s Manual 9
Service and Support Information
This treadmill has specific requirements for maintenance and care. Contact Para-
mount Customer Service at 1-800-721-2121 or 1-323-721-2121 if you have an
issue regarding maintenance, repair, or operation of the treadmill. Also, if you
need to replace components on the treadmill, call Paramount to order a replace-
ment component.
The Paramount Customer Service line is available from 7:30 a.m. to 4:30 p.m.
PST Monday through Friday to answer your questions regarding the 7.55T/
7.85TT/785T. If you need assistance or service for the treadmill, a customer ser-
vice representative can help you find a qualified repair technician in your area.

Paramount 755T/785T Owner’s Manual 10
Initial Setup
Warnings
1. Do not attempt any procedure unless you are qualified and
properly equipped to perform the procedure properly and
safely. Otherwise, contact an authorized service technician to
service your treadmill.
2. Make sure that the power cord is clear of the wheel track
for the lift mechanism so that it does not get run over. Also,
make sure that the power cord is not on top of the lift frame
where it could get pinched.
3. The treadmill must be in position to cycle and operate
smoothly and safely. Make sure that there is at least 0.5
meters of clearance on both sides of the treadmill and at least
2 meters of clearance behind the treadmill.
4. The electrical settings for this treadmill are factory set. Ver-
ify that your facilities meet these requirements before con-
necting the treadmill to the electrical outlet. Do not use an
adapter to connect the treadmill to the electrical outlet.

Paramount 755T/785T Owner’s Manual 11
Overview
Initial setup of the treadmill is a a five-part process. This section will show you how
to perform the following procedures:
•Identify Parts
•Assemble the Treadmill
•Level the Treadmill
•Check and Adjust Belt Tracking
•Perform a Visual Inspection
Tools Needed
The following tools are included:
The following tools are needed but are not included:
•Carpenter’s level
•Socket wrench and allen sockets [optional]
•Open end 22mm and 26mm wrenches.
5mm 6mm
ALLEN WRENCH
SOCKET
WRENCH AND
ALLEN WRENCH
8mm
WRENCHES
22 MM
26MM
ALLEN SOCKETS
[Optional]

Paramount 755T/785T Owner’s Manual 12
Identify Parts
This section will show you how to locate and identify the following parts:
•Display Console
•Uprights
•Upright Covers
•Hardware: 4 ea-8mm x 30mm BHCS, 6 ea-8mm x 30mm SHCS, 6 ea-8mm
lockwashers, 6 ea-8mm flatwashers.
BHCS - BUTTON HEAD CAP SCREW
SHCS - SOCKET HEAD CAP SCREW
25 50 75 100mm
DISPLAY CONSOLE
LEFT UPRIGHT
RIGHT UPRIGHT
UPRIGHT COVERS
POWER CORD LIFT FRAME
LEVELING FOOT
WALKING BELT
FOOT RAILS

Paramount 755T/785T Owner’s Manual 13
Assemble the Treadmill
This section will show you how to install components to the treadmill:
•Install the Uprights
•Install the Display Console
•Connect Wiring

Paramount 755T/785T Owner’s Manual 14
Install the Uprights
1. Identify the right upright. Each upright has a notch,
when installed the notches should face each other.
The right upright will have a notch as displayed here.
2. Position the right upright on the right side. As an
assembly convenience, a small tab is provided at the
lower forward end of the upright. Carefully insert this
tab into the slot at the front of the base frame by tilting
the upright forward as you install it. Align the bolt holes
on the upright with the treadmill.
3. Outfit two rear upright bolts. Install a lock washer
then a flat washer onto two of the 8mm x 30mm socket
head cap screws.
4. Install the rear upright bolt. Insert and hand-tighten
the rear upright bolt. Some movement of the upright
will be required for alignment.
Rear Bolt Hole

Paramount 755T/785T Owner’s Manual 15
5. Outfit four front upright bolts. Install a lock washer
then a flat washer onto the remaining 8mm x 30mm
socket head cap screws.
6. Install the front bolts.Insert and hand-tighten the two
front bolts.
7. Install the left upright. Repeat steps 2-6 to install the
left upright.

Paramount 755T/785T Owner’s Manual 16
Install the Display Console
NOTE
Stop here and refer to the entertainment option installation instructions if that
option is to be installed on to the treadmill.

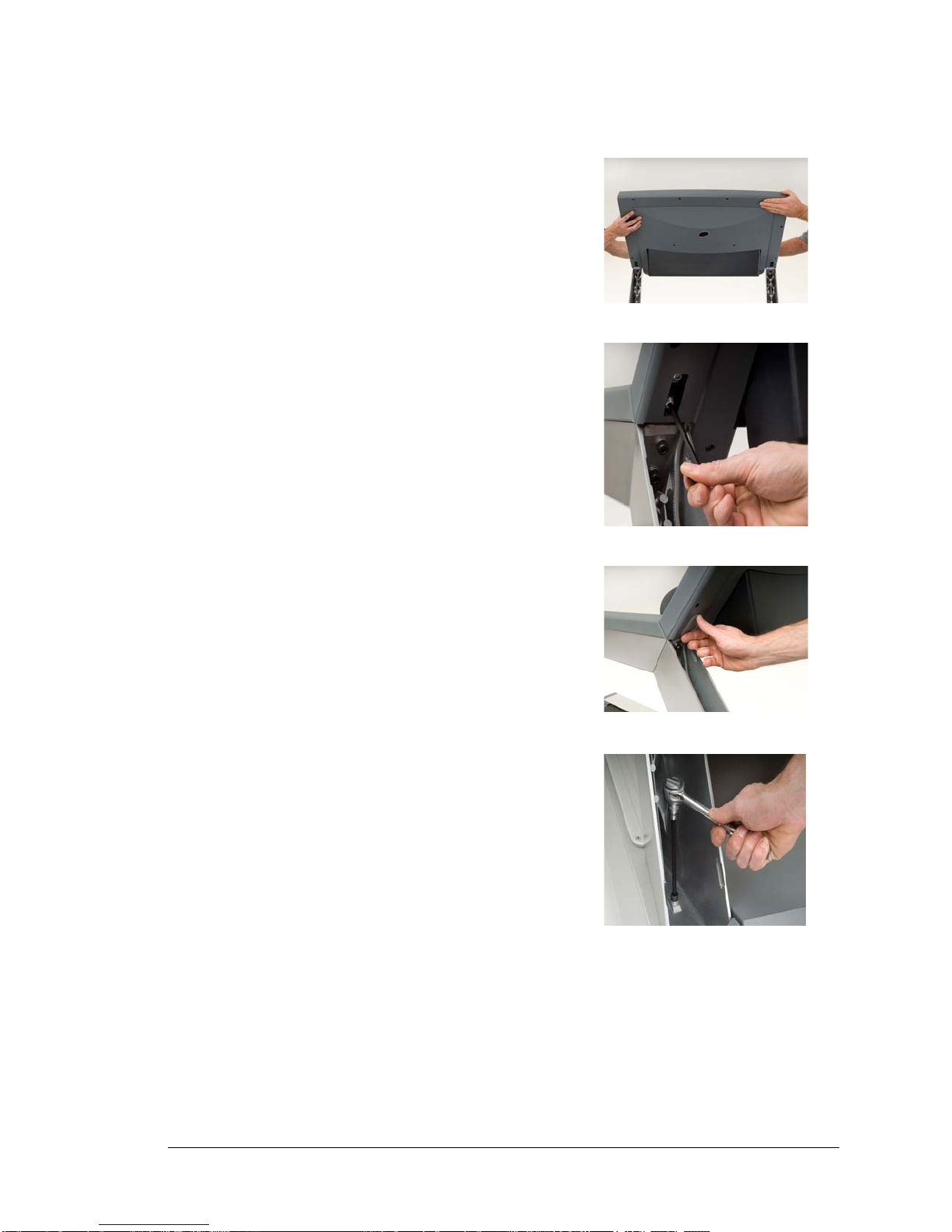

1. Position the display console on the support posts.
Slide the display console onto the console support
posts that extend from the uprights.
2. Install bolts to secure the console. On both sides,
insert and tighten the two 8mm x 30mm [1 1/4’’] button
head bolts that secure the display console to the sup-
port post.
3. Install bolt plugs. Insert and secure the bolt plugs on
both sides.
4. Tighten the bolts that secure the uprights. Use an
Allen wrench (6mm) to tightenthe bolts that secure the
left and right uprights.

Paramount 755T/785T Owner’s Manual 17
Connect Wiring

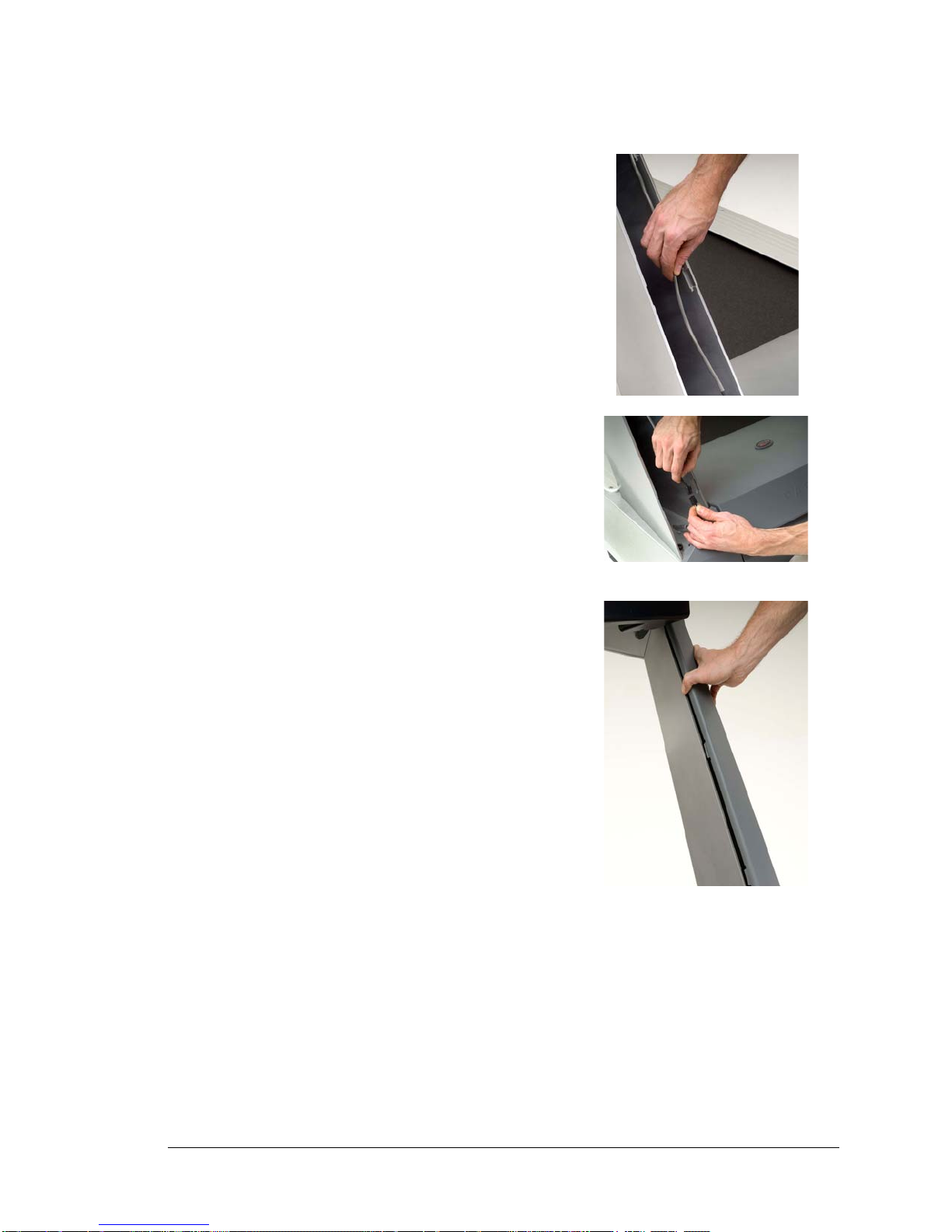

1. Route wiring through the right upright.
2. Connect board connector to the display console
connector.
3. Install the left and right upright covers. Place the
bottom tab on the upright cover in the designated slot.
Bend the upright cover so that it bows slightly in the
middle, align the top edge, then push the upright cover
into place. Make sure that the wires clear the upper
edge of the cover.

Paramount 755T/785T Owner’s Manual 18
Position and Level the Treadmill
This section will show you how to adjust the treadmill so that it is level.
Check and Adjust the Level of the Treadmill

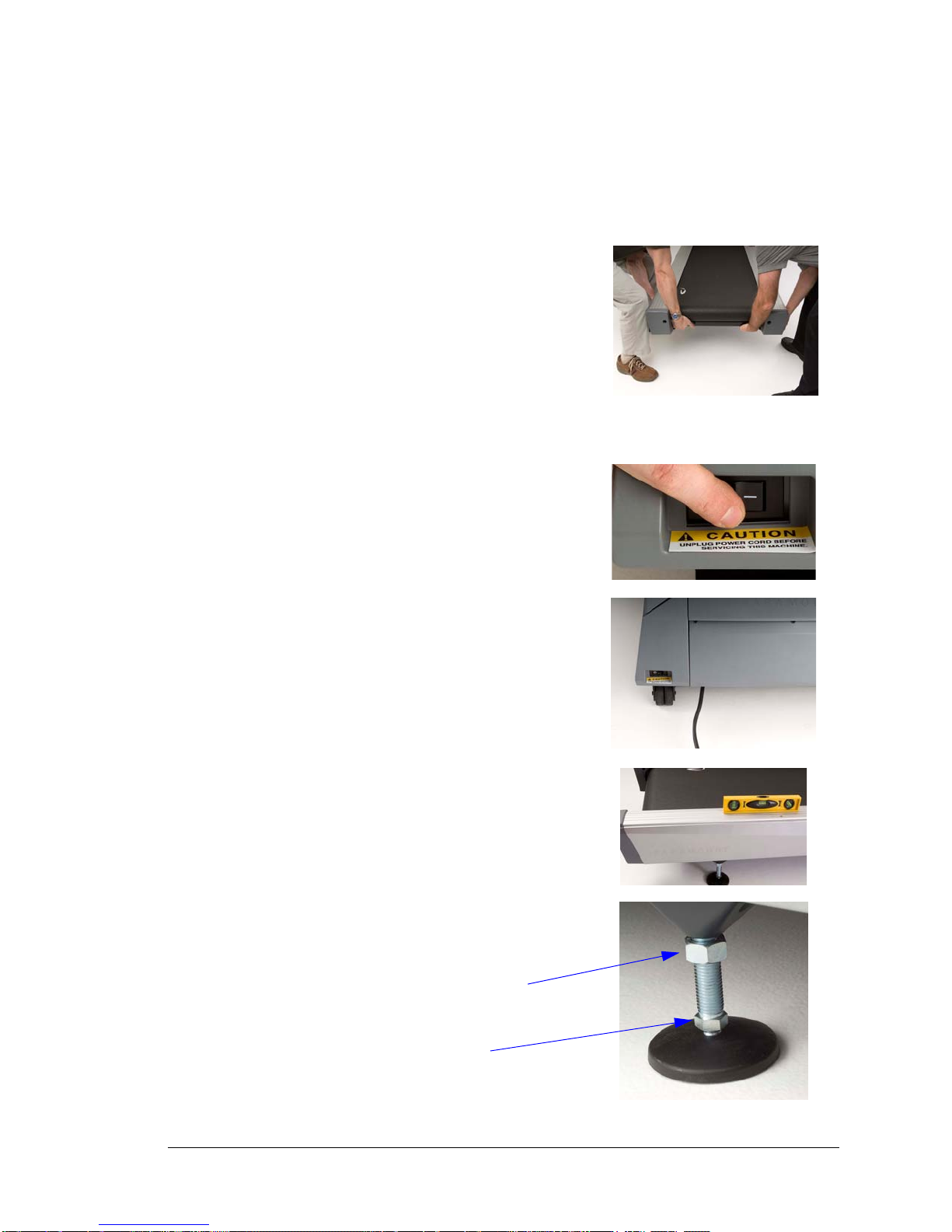

1. Lift the treadmill from the rear. Locate the handle
below the rear roller. Grab the bar with both hands and
lift. It is recommended that two people lift the treadmill
together.
2. Move treadmill into position in the facility. Make
sure that the floor is flat and level, with no bumps or
level changes, where the treadmill is.
3. Power up the treadmill. Plug the treadmill in and turn
on treadmill using the power switch, which is located
near the front right corner of the treadmill. Be certain
that the power cord is routed to the front of the tread-
mill and that it is clear of the liftframe. The treadmill will
automatically adjust to its ‘home’ position.

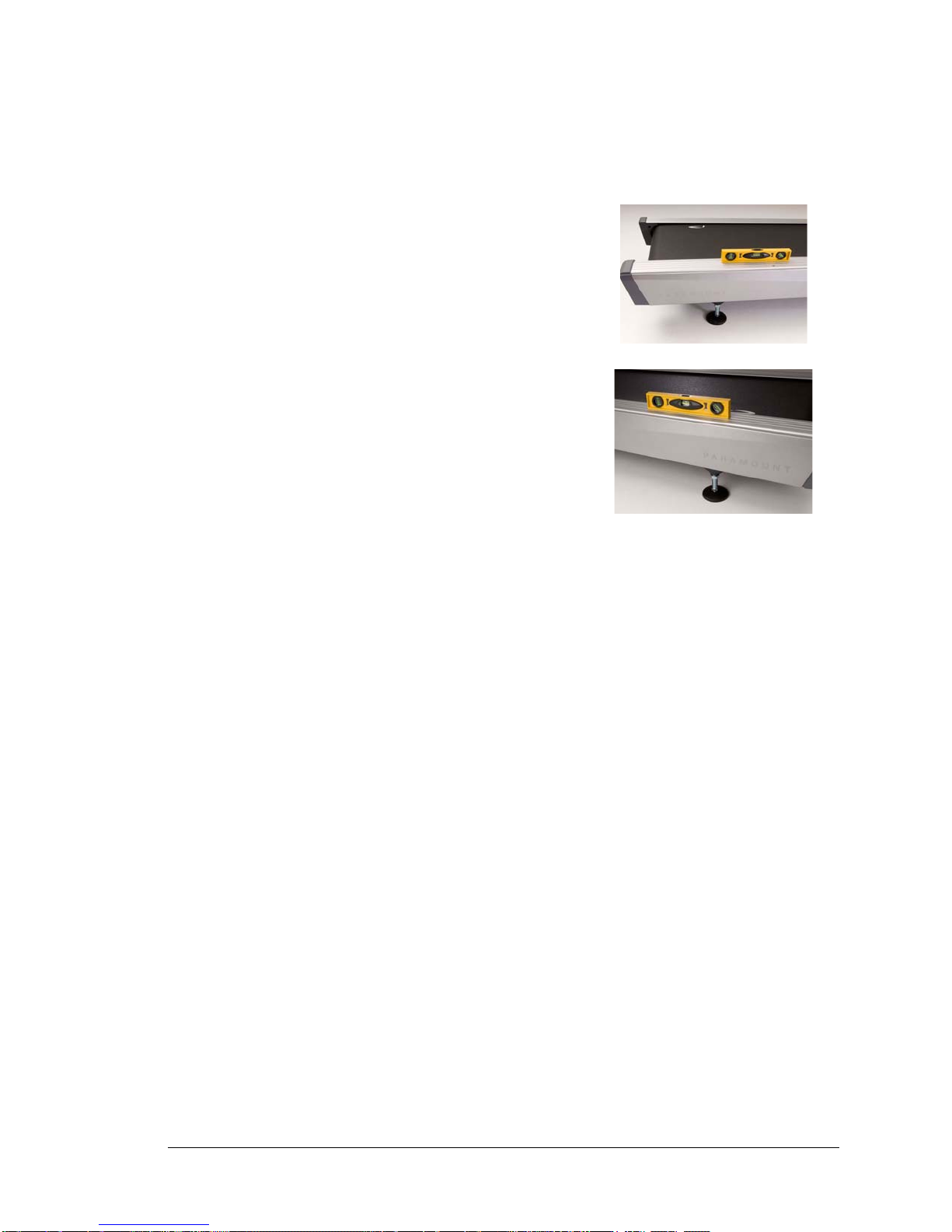

4. Check level on the right side. Place a carpenter’s
level on the right side rail to determine if the right side
is level.
5. Locate the right side leg. The top nut on the leg is
the level-locking nut (26mm), the bottom nut is the
level-adjusting nut (22mm).
Level-adjusting nut
Level-locking nut
NOTE: The units are adjusted to be “nominally” level
at the factory and any further adjustments should be
minimal.

Paramount 755T/785T Owner’s Manual 19
6. If necessary, adjust the right side leg to make the
right side level. First, loosen, the level-locking nut.
Next, adjust the level-adjusting nut until the right side
seems to be level.
7. Recheck level on right side. Adjust until the right
side is level, then tighten the level-locking nut.
8. Level the left side. Repeat steps 4-6 on the left side
to make it level.
9. Recheck level on both sides. Adjust until both sides
are level.
10. Check to make sure that all four corners are in
contact with the floor.

Paramount 755T/785T Owner’s Manual 20
Check and Adjust Belt Tracking
This section will show you how to adjust the treadmill so that the walking belt
tracks properly.
Check and Adjust Belt Tracking

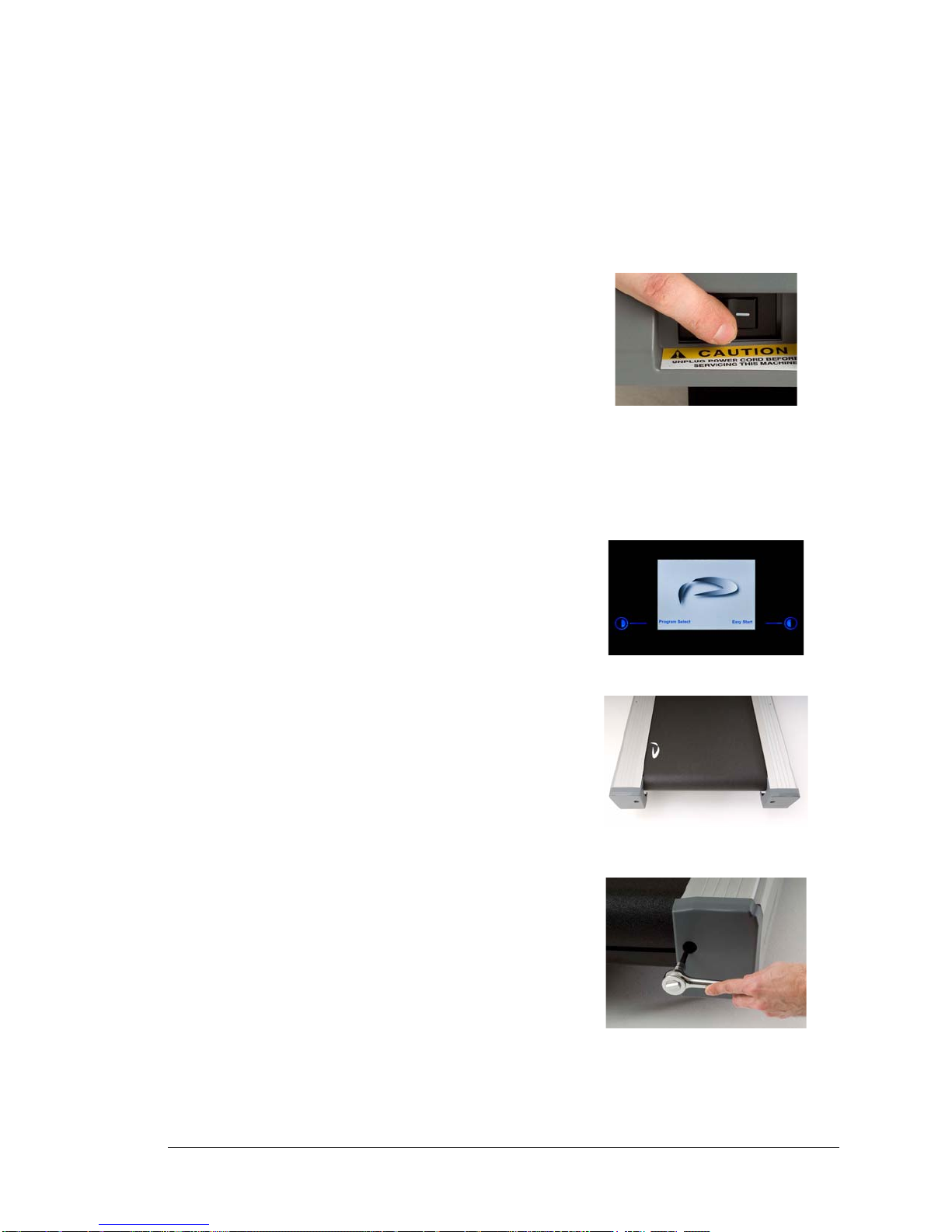

1. Power up the treadmill. Plug the treadmill in and turn
on treadmill using the power switch, which is located
near the front right corner of the treadmill. Be certain
that the power cord is routed to the front of the tread-
mill and that it is clear of the liftframe. The treadmill will
automatically adjust to its ‘home’ position.
2. Set the treadmill to slow speed. Press Easy Start
and adjust the speed to 4 mi/h (6.5 km/h).
3. Observe the walking belt in motion. Stand directly
behind the treadmill, looking down at the rear roller.
The walking belt should be centered on the rear roller.
If the rear roller is visible one either side of the walking
belt, the belt tracking needs to be adjusted.
4. If necessary, adjust the belt tracking. To shift the
walking belt to the right, loosen the right retention bolt
(8mm) one eighth-turn, and then tighten the left reten-
tion bolt one eighth-turn. To shift the walking belt to the
left, loosen the left retention bolt one eighth-turn, and
then tighten the right retention bolt one eighth-turn.
Adjust the belt tracking until the belt is centered on the
rear roller.
