Parasound AVC-2500 User manual

O W N E R ' S M A N U A L
AVC-2500 AudioVideo Controller

2
Table of Contents
Important Safety Instructions ----------------------------------------------------------------4
Introduction---------------------------------------------------------------------------------------9
About this Manual ------------------------------------------------------------------------------9
Unpacking and Inspection--------------------------------------------------------------------9
Placement ofYour AVC-2500----------------------------------------------------------------9
Optional Rack Mounting Kit------------------------------------------------------------------9

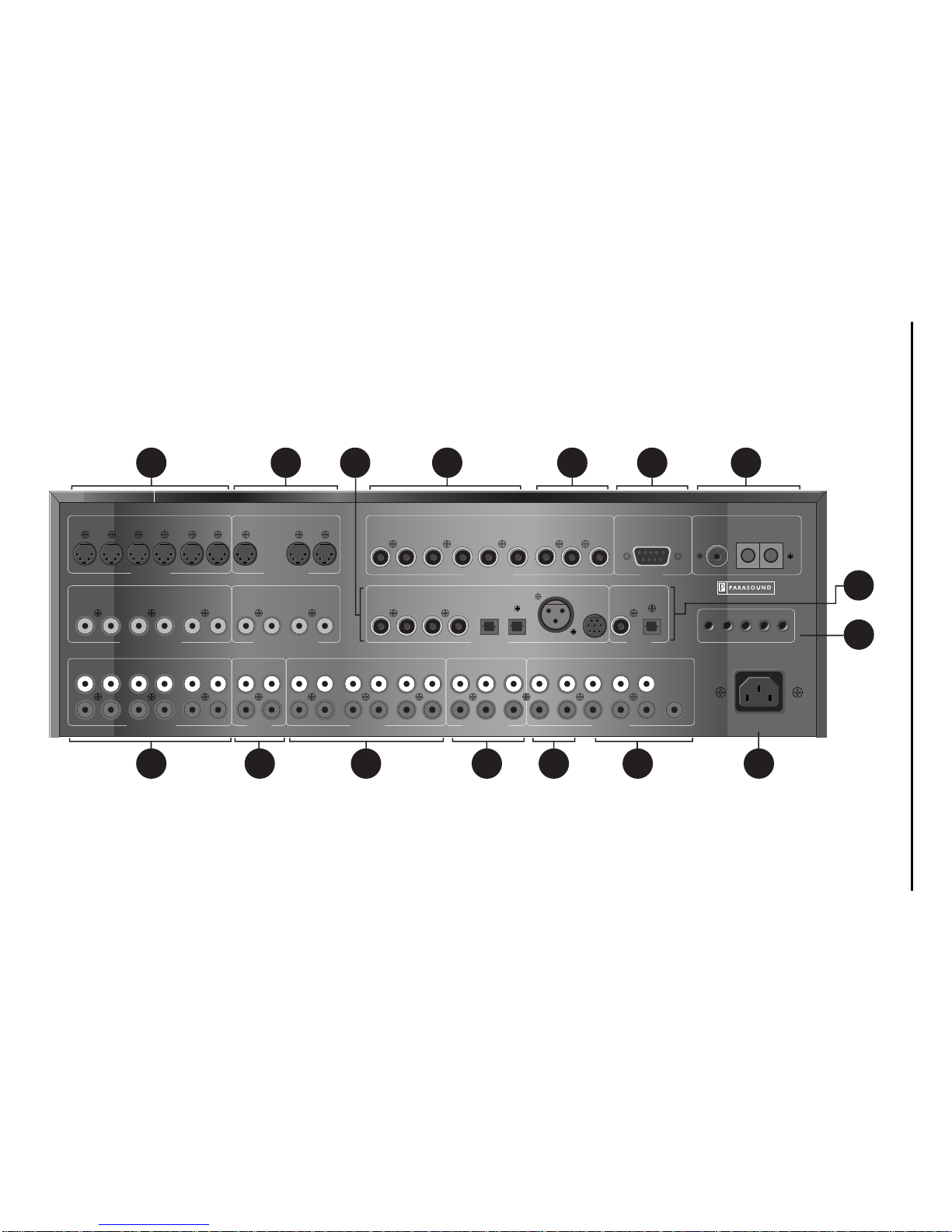

Rear Panel Drawing----------------------------------------------------------------------------10
Front Panel Drawing ---------------------------------------------------------------------------12
Remote Control Drawing ---------------------------------------------------------------------14
Rear Panel Connections----------------------------------------------------------------------16

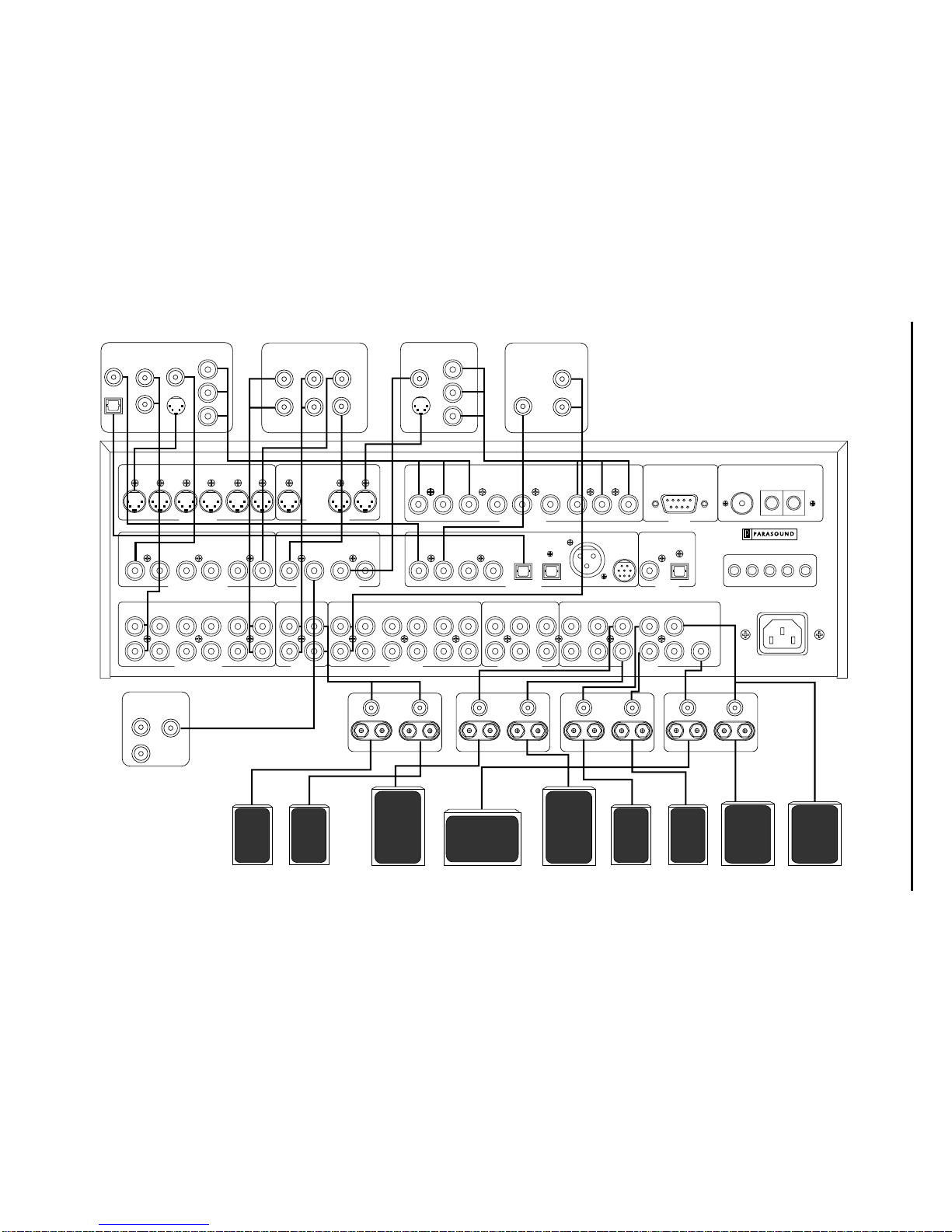

Making Connections toYour AVC-2500---------------------------------------------------17
AVC-2500 Front Panel Controls and Auto Cal Mic Connection---------------------22
AVC 2500 Remote Control Buttons--------------------------------------------------------25
AVC-2500 Front Panel and Video on-screen Displays --------------------------------27
Autoformat Surround Processing Modes (ASP) ----------------------------------------29
Autoformat Surround Processing (ASP) Decoding Chart ----------------------------32
Placement ofYour Home Theater Speakers---------------------------------------------33
AVC-2500 Default Settings-------------------------------------------------------------------37
Setting up your AVC 2500--------------------------------------------------------------------38
Programming the Learning Remote Control---------------------------------------------47
Remote Control Shift + Commands--------------------------------------------------------49
OperatingYour AVC-2500 --------------------------------------------------------------------50
Using the Tuner ---------------------------------------------------------------------------------51
Operating the Remote Zone -----------------------------------------------------------------52
Temporary Level Adjustment Using the Trim Function --------------------------------53
Activating the Sleep Timer -------------------------------------------------------------------54
Maintaining Your AVC-2500 ------------------------------------------------------------------54
In Case of Trouble ------------------------------------------------------------------------------54
Button Assignment Worksheets for the Learning Remote Control-----------------56
AVC-2500 Installation Worksheet ----------------------------------------------------------59
AVC-2500 Specifications ---------------------------------------------------------------------61
Record the following information for future reference:
Serial #_______________________ Date of Purchase__________________
Parasound Dealer__________________________________________________
Parasound Dealer's Phone Number____________________________________

3
AVC-2500 AudioVideo Controller Features
•Full 24 bit Processing Using Three Motorola 56009 DSPs
•DTS, Dolby Digital, and Dolby Pro Logic Decoding
•THX Ultra Processing of DTS, Dolby Digital, and Dolby Pro Logic
•Reference Quality FM/AM Stereo Tuner with 20 Presets
•Automatic Calibration System of Level and Delay for All Channels
•Calibration Mic Included
•Automatic Audio/Video Input Selection
•Automatic A/D Overload Attenuation to Prevent Distortion
•Digital Inputs and Surround Modes are Assignable to Sources
•Two Component Video Inputs
•Six Audio/Video Inputs with Composite and S-Video Connectors
•Input Connection for Optional External RF Demodulator
•Discrete Line Output Stages
•State of the Art Military Spec. Four Layer Circuit Boards
•Ramp Up of Volume After Turn On / Ramp Down for Sleep Mode
•Advanced On-screen and Front Panel Displays
•User Selectable Name for Each Source & Digital Input
•Illuminated, Eight Source Learning Remote Control
•Dual Zone Audio and Video Controller With Separate 12 Volt DC Triggers
•RS-232 Control Port for Computer Controlled Integration Systems
Licensing Acknowledgements
Manufactured under license from Dolby Laboratories Licensing
Corporation. “Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories Licensing Corporation. Copyright
1992 Dolby Laboratories, Inc. All Rights Reserved
` Manufactured under license from Digital Theater Systems,
Inc. US Pat. No. 5,451,942 and other worldwide patents issued
and pending. “DTS”, “DTS Digital Surround”, are trademarks of
Digital Theater Systems, Inc. Copyright 1996 Digital Theater
Systems, Inc. All Rights Reserved.
Manufactured under license from Lucasfilm Ltd. Lucasfilm and THX
are registered Trademarks of Lucasfilm Ltd.

4
Important Safety Instructions
Save these instructions for future use
This triangle alerts you to the dangerous voltages inside that may be a shock hazard.
This triangle alerts you to important operating and maintenance instructions in this manual.
üFollow all instructions and warnings marked on the unit.
üAlways use with the correct line voltage. Refer to the manufacturer’s operating instructions for power
requirements. Be advised that different operating voltages may require the use of a different line cord and/
or attachment plug.
üDo not install the unit in an unventilated rack, or directly above heat producing equipment such as power
amplifiers. Observe the maximum ambient operating temperature listed in the product specification.
üSlots and opening on the case are provided for ventilation; to ensure reliable operation and prevent it from
overheating, these openings must not be blocked or covered. Never push objects of any kind through the
ventilation slots. Never spill a liquid of any kind on the unit.
üNever attach audio power amplifier outputs directly to any of the unit’s connectors.
üTo prevent shock or fire hazard, do not expose the unit to rain or moisture, or operate it where it will be
exposed to water.
üDo not attempt to operate the unit if it has been dropped, damaged, exposed to liquids, or if it exhibits a
distinct change in performance indicating the need for service.
üThis unit should only be opened by qualified service personnel. Removing covers will expose you to
hazardous voltages.
üAdhere to all warnings on the unit and in the operating instructions.
üTake precautions not to defeat the grounding or polarization of the units power cord.
üDo not overload wall outlet, extension cords or integral convenience receptacles, as this can result in a risk
of fire or electrical shock.
üRoute power supply cords so that they are not likely to be walked on or pinched by items placed on or
against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which
they exit from the unit.
üThe unit should be cleaned only as recommended.
Communications Notice
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception.
It has been type tested and found to comply with the limits for a Class B computing device in accordance with
the specifications in Subpart J of Part 15 of FCC Rules, which are designated to provide reasonable protection
against such interference in a residential installation. However, there is no guarantee that interference will not
occur in a particular installation. It this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the
interference by one or more of the following measures:
üReorient the television receiving antenna
üRelocate the AVC-2500 away from the television
üPlug theAVC-2500 into a different AC outlet so that theAVC-2500 and television are on different branch
circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions. The user may find the following booklet prepared by the Federal Communications Commission
helpful: “How to identify and Resolve Radio/TV Interference Problems.” This booklet is available from the
U.S. Government printing office, Washington, DC 20402, Stock No.004-000-00345-4.
Le présent appareil numénque n’ émet pan de bruits radioélectriques dépassant len limites applicables aux
appareils numériques de la class B prescrites dans le Réglement sur le brouillage radloélectrique édicté par le
ministère des Communications du Canada.

5
Español
Instrucciones Importantes de Seguridad
Guarde esta instrucciones para uso posterior. Utilice siempre el voltaje correcto. Dirijase a las instrucciones de
operación del fabricante para obtener las especificaciones de potencia. Esté al tanto de que voltajes de operación
distintos requleren el uso de cables y/o enchufes distintos.
No instale esta unidad en un estante sin ventilación, ni tampoco directamente encima de equipos que generen calor
tales como amplificadores de potencia. Fijese en las temperaturas ambientales máximas de operacidn que se
mencionan en las especificaciones del producto.
Las aperturas y ranuras del chasis sirven para proveer a ventilacion necesaria para operar Ia unidad con seguridad
y para prevenir sobrecalentamiento, y por lo tanto no pueden ser obstruidas o cubiertas. No introduzca objetos de
ningún tipo a través de las ranuras de ventilacón. y nunca deje caer ningún liquido sobre la unidad.
Nunca conecte ningún tipo de salida de amplificadores de sonido directamente a los conectores de la unidad.
Para prevenir descargas eléctricas o incendios, mantenga la unidad alejada de la lluvia,humedad o cualquier lugar
en el que pueda entrar en contacto con agua.
No trate de hacer funcionar la unidad si se ha caído, esta dañada, ha entrado en contacto con liquidos, o si nota
cualquier cambio brusco en su funcionamiento que indique la necesidad de hacerle un servicio de mantenimiento.
Estaunidad deberáser abierta por personal calificado.Siusted quita las coberturas seexpondráa voltajespeligrosos.
Este triángulo que aparece en su componente le advierte soDre aexistenc;a dentro del
chasis de voltajes peligrosos sin aislantes …voltajes que son lo suficientemente grandes
como para causar electrocución.
Este triángulo que aparece en su componente lo alerta sobre las instrucciones de operación y
mantenimiento importantes que estan en los materiales de lectura que se incluyen.
Français
Instructions de Sûretè Importantes
Gardez ces instructions pour réference future.
Observez toutes les instructions et tous les avertisserments marqués sur l’appareil.
Branchez uniquements sur un réseau de tension indiquée. Consultez le manuel d’instruction du fabriquant pour les
spécifications de courant. N’oubliez pas que différentes tensions peuvent nécessiter l’utilisation de cables et/ou de
fiches de connexion différents.
N’installez pas l’appareil en un compartiment non-aéré ou directement audessus d’équipements générateurs de
chaleur, tels qu’amplificateurs de courants, etc. Ne dépassez pas Ia température ambiante maximale de
fonctionnement indiquée dans les spécifications du produit.
Des fentes et ouvertures sont prévues dans le boîtier pour l’aération; Pour assurer le bon fonctionnement et pour
prévenir l’échauffement, ces ouvertures ne doivent pas être couvertes ou bloquées. N’insérez pas d’objets dans les
fentes d’aération. Empêchez tout liquide de se répandre sur l’appareil.
Ne connectez jamais d’amplificateurs audio directement aux connecteurs de l’appareil.
Pour empêcher les chocs électriques et le danger d’incendie, évitez d’exposer l’appareil à Ia plule ou à l’humidité,
et ne le mettez pas en marche en un endroit où iI serait exposé aux éclaboussures d’eau.
N’essayez pas de faire fonctionner l’appareil s’il est tombé à terre, a été endommangé, exposé à un liquide, ou si
vous observez des différences nettes dans son fonctionnement, indiquant Ia nécessité de réparations.
Cet appareil ne dolt être ouvert que par un personnel de service qualifié. En enlevant les couvercles vous vous
exposez à des tensions électriques dangereuses.
Ce triangle. sur votre appareil vous avertit de a présence de tension dangereuse, non-isolée à
l’inténeur du boîtier.. une tension suffisante pour représenter un danger d’électrocution.
Ce triangle sur sur votre appareil vous invite de suivre d’importantes instructions d’utiiisation et
d’entretien dans Ia documentation Iivrée avec le produit.

6
Deutsch
Wichtige Sicherheitsanweisungen
Heben Sie sich diese Sicherheitsanweisungen auch für später auf.
Befolgen Sie alle auf der Vorrichtung stehenden Anweisungen und Warnungen. Immer nur mit der richtigen
Spannung verwenden! Die Gebrauchsanweisungen des Herstellers informieren Sie über die elektrischen
Anforderungen Vergessen Sie nicht daß bei verschiedenen Betriebsspannungen ggf. auch verschiedene
Leitungskabel und/oder Verbindungsstecker zu verwenden sind.
Stellen Sie die Vorrichtung nicht in ein unbelüftetes Gestell oder unmittelbar uber wärmeerzeugende Geräte
wie z.B. Tonverstärker. Halten Sie die In den Produktspezifikationen angegebene maximale
Umgebungstemperatur bei Betrieb ein.
Schlitze und Öffnungen im Gehause dienen der Belüfung; um verläßlichen Betrieb sicherzusteilen und
Überheizen zu vermeiden dürfen diese Öffnungen nich verstopft oder abgedeckt werden. Stecken Sie nie
irgend einen Gegenstand durch die Belüftungsschlitze. Vergießen Sle keine Flüssigkeiten auf den Apparat.
Schließen Sie nie Tonverstärker unmittelbar an einen Anschluß des Apparates an.
Um elektrischen Schlag oder Feuer zu vermeiden, setzen Sie denApparat weder Regen noch Feuchtigkeit aus
und betreiben Sie ihn nicht dort wo Wasser eindringen könnte.
Versuchen Sie nicht denApparat zu betreiben falls er fallen gelassen,beschädigt, oder Flüssigkeiten ausgesetzt
wurde, oder falls sich seine
Arbeitsweise derartändert daß daraus ein Bedarf nach Raparatur zu schließen ist.
Dieser Apparat sollte nur von qualifizierten Fachleuten geöffnet werden. Das Abnehmen von Abdeckungen
setzt Sie gefährlichen Spannungen aus.
Dieses Dreieck auf IhremApparat warnt Sie vor nicht-isolierter, gefahrlicher Spannung im Gehäuse
stark genug um eine Benührungsgefahr darzusteilen.
Dieses Dreieck auf IhremApparat bedeutet daß wichtige Betriebsund Wartungsanweisungen in der
mitgelieferten Dokumentation zu finden sind.
Italiano
Importanti norme di sicurezza
Conservare le presenti norme per l’utilizzo futuro.
Osservare tutte le istruzioni e le avvertenze apposte sull’unità.
UtilizzareesclusivamenteconIa tensionedi retecorrerta. Consuitare leistruzioni operativefornitedal fabbricante
per i dati riguardanti Ia tensione e l’assorbimento di corrente. Potrebbe essere necessario l’uso di cavi di rete
e/o di spine diverse a seconda della tensione utilizzata.
Non installare l’unita in uno scaffale privo di ventilazione oppure direttamente sopra una fonte di calore,
come, ad esempio, un amplificatore. Non superare Ia temperatura ambientale massima di funzionamento
riportata nei dati tecnici del prodotto.
Le fessure e le altre aperture nella scatola servono alla ventilazione. Per un funzionamento affidabile, e per
evitare un eventuale surriscaldamento. queste aperture non vanno ostruite o coperte in nessun modo. Evitare
in tutti i casi di inserire oggetti di qualsiasi genere attraverso le fessure di ventilazione. Non versare mai del
liquido di nessun tipo sull’unltà.
Evitare sempre di collegare le uscite dell’amplificatore audio direrttamente ai connettori dell’unità.
PerprevenireiI pericolodi folgorazione edi incendionon esporre l’unità alla pioggiao adun’umidità eccessiva;
evitare di adoperare l’unità dove potrebbe entrare in contatto con acqua.
Evitare di adoperare l’unità se Ia stessa è stata urtata violentemente, se ha subito un danno, se è stata esposta
ad un liquido o in caso di un evidente cambiamento delle prestazioni che indichi Ia necessità di un intervento
di assistenza tecnica.
Ogni intervento sulI’unità va eseguito esclusivamente da personale qualificato. La rimozione della copertura
comporta l’esposizione al pericolo di folgorazione
II presente triangolo impresso sul componente avverte della presenza di tensioni pericolose
non isolate all’interno della copertura... tali tensioni rappresentano un pericolo di folgorazione
II presente triangolo impresso sul componente avverte l’utente della presenza nella allegata di
importanti istruzioni relative al funzionamento ed alla manutenzione.

7
Dansk
Vigtig information om sikkerhed
Gem denne Vejledning til senere brug.
Folg alle anvisninger og advarsler pá apparatet.
Apparatetskal altidtilsluttes den korrektespænding. Derhenvises tilbrugsanvisningen,der indeholderspecifikationer
for strømforsyning. Der gøres opmærksom pá, at ved varierende driftsspændinger kan det blive nødvendigt at
bruge andre lednings- og/eller stiktyper.
Apparatet má ikke monteres i et kabinet uden ventilation eller lige over andet udstyr der udvikler varme, f.eks.
forstærkere. Den maksimale omgivelsestemperatur ved drift, der stár opført i specifikationerne, skal overholdes.
Der er ventilationsábninger i kabinettet. For at sikre apparatets drift og hindre overophedning má disse ábninger
ikke blokeres eller tiIdækkes. Stik aldrig noget ind igennem ventilationsábningerne, og pas pá aldrig at spilde
nogen form for væske pá apparatet.
Udgangsstik fra audioforstærkere má aldrig sættes direkte i apparatet.
Apparatet má ikke udsættes for regn eller fugt og má ikke bruges i nærheden af vand for at undgá risiko for
elektrisk stød og brand.
Apparatet má aldrig bruges, hvis det er blevet stødt, beskadiget eller vádt, eller hvis ændringer i ydelsen tyder pá,
at det trænger til eftersyn.
Dette apparat má kun ábnes af fagfolk. Hvis dækslet tages af, udsættes man for livsfarlig højspænding.
Denne mærkat pá komponenten advarer om uisoleret, fartig spænding i aparatet... høj nok til at give
elektrisk stod.
Denne mærkat pá komponenten advarer om vigtig drifts- og vedligeholdsinfornation I den tuhorende
titteratur.
Svenska
Viktiga säkerhetsföreskrifter
Spara dessa föreskrifter för framtida bruk.
Följ alla anvisningar och Varningar som anges pá enheten.
Använd alltid rätt nätspänning. Se tiliverkarens bruksanvisningar för information om effektkrav. Märkväl, art
andra matningsspänningar eventuellt kräver att en annan typs nätsladd och/eiler kontakt används.
Installerainte enheteni ettoventileratstativ,eller direkt ovanförutrustningarsom avgervärme, t exeffekfförstärkare.
Se till att omgivningens temperatur vid drift Inte överskrider det angivna värdet i produktspecifikationen.
Behallaren ar försedd med hál och bppningar för ventilering. För att garantera tillförlitlig funktion och förhindra
överhettning får dessa öppningar inte blockeras ellertackas. Inga förernal får skuffas in genom ventilationshalen.
Inga vatskor får spilfas pa enheten.
Anslut aidrig audioeffekfförstarkarutgangar direkt till nagon av enhetens kontakter.
För art undvika elstot eller brandfara får enheten inte utsattas för regn eller fukt, eller användas pá ställen dar den
blir vät.
Använd inte enheten om den har fallit i golvet, skadats, blivit vät. eller om dess prestanda förändrats märkbart.
vilket kräver service.
Enheten får öppnas endast av behörig servicepersonal. Farliga spänningar blir tiligangliga när locken tas bort.
Denna triangel, som visas pá din komponent. varnar dig am en aisolerad fartig spänning inne i
enheten. Den na spänning ar eventuetit sá hög att fara för eistöt föreligger.
Denna triangel, som visas pá din komponent, anger att viktiga bruksanvisningar och
serviceanvisningar ingár I dokumentationen frága.

8
Norsk
Viktig Informasjon om sikkerhet
Ta vare pá denne veiledningen for senere bruk.
Folg alle anvisningene og advarslene som er angitt pá apparatet. Apparatet skal alltid anvendes med korrekt
spenning. Produktbeskrivelsen inneholder spesifikasjoner for stromkrav.Vær oppmerksom pá at det ved ulike
driftsspenninger kan være nodvendig a bruke en annen ledning- og/ eller stopseltype.
Apparatet skal ikke monteres i skap uten ventilasjon, eller direkte over varmeproduserende utstyr, som for
eksempel kraftforsterkere. Den maksimale romtemperaturen som står oppgitt i produktbeskrivelsen, skal
overholdes.
Apparatet er utstyrt med ventilasjonsápninger. For at apparatet skal være pálitelig I bruk og ikke overopphetes.
má disse ápningene ikke blokkeres eller tildekkes. Stikk aldri noe inn I ventilasjonsápningene, og pass pá at
det aldri søles noen form for væske apparatet.
Utgangsplugger fra audioforsterkere skal aldri koples direkte til apparatet.
Unnga brannfare og elektrisk stat ved å sørge for at apparatet ikke utsettes for regn eller fuktighet og ikke
anvendes i nærheten av vann. Apparatet skal ikke brukes hvis det har bliff utsatt for støt, er skadet eller bIitt
vått, eller hvis endringer i ytelsen tyder pá at det trenger service. Dette apparatet skal kun åpnes av fagfolk.
Hvis dekselet fjernes, utsettes man for livsfarlig høyspenning.
Komponenten er merket med denne trekanten, som er en advarsei om at det finnes uisolert, farlig
spenning inne i kabinettet… hoy nok til á utgjore en fare for elektrisk støt.
Komponenten er merket med denne trekanten, som betyr at den tilhørende litteraturen inneholder
viktige opplysninger om drift og vedlikehold.
Suomi
Tärkeitä turvallisuusohjeita
Säilytä nämä ohjeet tulevaa käyttöä varten.
Seuraa kaikkia yksikköön merkittyjä ohjeita ja varoituksia.
Käytä aina oikeaa verkkojännitettä. Tehovaatimukset selviävät valmistajan käyttöohjeista. Huomaa, että en
käyttöjännitteet saattavat vaatia toisenialsen verkkojohdon ja/tai -pistokkeen käytön.
Älä asenna yksikköä telineeseen jossa ei ole tuuletusta. tai välittömästi lämpöä tuottavien laitteiden, esim,
tehovahvistimien, yläpuolelle. Ympäristön lämpötila käytössä ei saa yiittää tuotespesifikaation
maksimilämpötilaa.
Kotelo on varustettu tuufetusreiillä ja -aukoilla. Luotettavan toiminnan vaimistamiseksi ja ylilämpenemisen
valttämiseksi näitä aukkoja ei saa sulkea tai peittää. Mitään esineitä el saa työntää tuuletusaukkoihin. Mitään
nesteitä ei saa kaataa yksikköön.
Älä kytke audiotehovahvistimen lähtöjä suoraan mihinkään yksikön liittimeen.
Sähköiskun ja palovaaran välttämiseksi yksikkö ei saa olla sateessa tai kosteassa, eikä sitä saa käyttää märässä
ympäristössä.
Älä käytä yksikköä jos se on pudonnut, vaurioitunut, kostunut, tai jos sen suorituskyky on huomattavasti
muuttunut, mikä vaatii huoltoa.
Yksikönsaa avatavain laitteeseenperehtynythuoitohenkilö. Kansienpoisto altistaa sinutvaarallisillejännitteille.
Tämäkolmio, joka esiintyykomponentissasi. varoittaa sinuaeristämattömänvaaraliisenjännitteen
esiintymisestä yksikön sisällä. Tämä jännite saattaa olla riittävän korkea aiheuttamaan
sähköiskuvaaran.
Tämä kolmio, joka esiintyy komponentissasi, kertoo sinulle, että tässä tuotedokumentoinnissa
esiintyy tärkeitä käyttö- ja ylläpitoohjeita.

9
Introduction
Congratulations on your purchase of this precision component and thank you for selecting
Parasound.Your newAVC-2500AudioVideo Controller is designed to be the heart of the finest
imaginable home theater system and to provide you with years of listening and viewing
enjoyment. Intuitive front panel and remote control operation makes yourAVC-2500 one of the
easiest to use high performance audio/video products ever developed.
Autoformat Surround Processing (ASP) modes include Dolby Digital, DTS, Stereo, a dual-
stereo “party” mode, an enhanced music mode and mono.You can easily set up the AVC-2500
to detect the type of signal present at each input and automatically decode it based on how the
source software was originally encoded.Your AVC-2500 also has discrete 5.1 channel analog
inputs to accommodate the latest processing technology and the possibility of future formats.
The AVC-2500 has unique features you have never seen before on any audio equipment.
Therefore, we strongly advise you take the time to read these instructions thoroughly; you will
need them to fully understand and appreciate its extensive and unprecedented capabilities.
About this Manual
The names of connectors and controls are italicized to help you find what you are looking for
within a particular section. On-screen and front panel display indications are in small caps and
the variable settings or adjustments shown in the displays are bracketed. The drawings on the
following pages are intended as a quick reference guide to explain controls and connectors.
Unpacking and Inspection
Carefully unpack yourAVC-2500 Audio Video Controller and locate the enclosed accessories:
•Universal remote control with 4 AAA batteries
•Detachable AC cord
•Omnidirectional calibration microphone with cord and AA battery
•FM Folded Dipole 300 ΩAntenna
•FM 300 ohm to 75 Ω"balun" matching transformer
•Threaded DIN to F type 75 Ωcoax FM antenna adapter
•AM loop antenna
•(2) 3.5 mm mini plugs for 12V triggers
Be sure to carefully inspect the AVC-2500 for any signs of shipping damage. If you believe you
notice any, contact your Parasound Dealer immediately. Be sure to save both cartons and the packing
inserts for future transport and always pack the carton into a larger protective outer carton before
shipment. Placement of Your AVC-2500
Install your AVC-2500 near your source equipment so you can use the shortest possible
interconnect cables. Keep yourAVC-2500 out of direct sunlight because it could interfere with
the remote control sensor.You should also keep the unit away from heat sources such as hot air
ducts, radiators and moisture sources such as open windows.
Optional Rack Mounting Kit
If you want to rack mount your AVC-2500, you will need to obtain the optional RMK-3 rack
mount kit. When you install the RMK-3 onto the AVC-2500 and remove its four feet, it will
occupy three rack spaces (5 1/4 inches high) in a standard 19” wide equipment rack. Refer to
the RMK-3 instructions for installation procedures. Make certain to use the eight insulated
shoulderwashersincludedwith the RMK-3topreventmetal-to-metal contact betweenitsbrackets
and your equipment rack.

10
Audio 6 Record
Video 2
Record Front Surround
Video 3
Center
L
R
Subs
IRIR DC TriggersTrigger
2Zone 1
MainAudio
Video 4 Video 5 Monitor
OSD
S Video Inputs
Outputs
Digital Inputs
Video 1
75ΩAM Ground
Video 6 Video 6
Record YCbCr
Input 1
YCbCr
Input 2
YCbCr
Monitor
Monitor
No OSD
Video 2 Video 3 Video 4 Video 5
Video 1 Video 6 Coax 1 Coax 2 Coax 3 Coax 4
AES/EBU Parasound
External RF
Demodulator
Optical 1 Optical 2
Outputs
Monitor
With OSD
Zone 2
Video
Video 6
Record
Video 2 Video 3 Video 4 Video 5
Video 1 Audio 2 Audio 3 Audio 4 Audio 5
Audio 1
Video 6 Video 6
Record Zone
Monitor
No OSD
S Video Outputs
Composite Video Outputs
Composite Video Inputs
Audio/Video Inputs Audio Inputs Main Outputs5.1 Analog Inputs
AVC-2500
Parasound Products, Inc.
San Francisco, CA USA
Made in Finland
Component Video RS 232
Antenna
Digital Record
External Control
Front Surround Center
Sub
Coax Optical
AC 120V 60Hz 60 W
123 4 756
16 15 1314 12 11 10
8
9

11
1. Audio/Video 1-6 Analog Inputs
Allsix audio/videoanaloginputs arecom-
patible with typical analog line level
sources. Connect the left and right ana-
log audio output of your audio/video
source components to these inputs.
2. Video 6 Record
Use the Video 6 input and output for the
VCR you intend to use for recording.
Connect the left and right Video 6 Record
output jacks to the Record/Input jacks of
your VCR. Next, connect the Video 6
Record output to the video input of your
VCR.
Zone Outputs
The Zone audio and video output connec-
tions provide independent remote zone
operation. Connect the left and right Zone
audio output to your remote zone ampli-
fier and connect the video output to your
remote zone monitor.
3. Audio-Only 1-6 Analog Inputs
All six analog audio-only inputs are com-
patible with typical analog line level
sources. Connect the left and right ana-
log audio output of your audio source
componentstoanyof these sixaudio-only
inputs.
4. 5.1 Analog Inputs
The 5.1 Analog Input connections accept
six channels of processed analog output
of a DVD player or processor with dis-
crete outputs. Connect the six discrete
outputs of your source component to the
corresponding 5.1 Analog inputs of the
AVC-2500.
5. Record Outputs
Connect the left and right Record output
jacks of the AVC-2500 to the Record/In-
put jack of your analog recording com-
ponent.
6. Main Outputs
The AVC-2500 provides a stereo output
pair for the Left and Right front and Sur-
round speakers, two monaural outputs for
theSubwoofer,and asinglemonaural out-
put for the center speaker. Connect these
outputs to the inputs of your power am-
plifiers.
7. AC Line Cord Receptacle
The rear panel mounted IEC standardAC
receptacle accepts the supplied AC cord.
Plug the female end into the rear mounted
AC receptacle and connect the male end
to an uninterrupted AC power line.
8. Control Connections
Infrared Inputs
The Main and Zone external infrared in-
puts provide infrared remote control op-
eration in the main and remote zones.
Connect the output of a compatible in-
frared repeater system to these inputs.
DCTriggers
These DC Trigger outputs provide +12
Volt DCtrigger toactivateequipmentsuch
as power amplifiers or relays. Connect
these outputs to the DC input of the com-
ponent you want to activate.
AudioTrigger
This connector provides an audio trigger
to activate equipment such as power am-
plifiers or relays. Connect this output to
the audio sensing input of the component
you want to activate.
9. Digital Outputs
Connect the 75 ΩCoaxialorOptical digi-
tal record outputs to the digital input of
your digital recording component.
10. Antenna Input Connections
Connect your antennas to these inputs.
Antennas are provided, but you can use
other antennas for improved reception.
11. RS-232 Control Port
The RS-232 External control port pro-
vides a control and feedback interface for
software based control systems.
12. ComponentVideo Outputs
Component Video outputs have three
separate connections. Y is for luminance
and Cb and Cr are for the color differ-
ence signals. Connect the three compo-
nent Monitor output connectors of your
AVC-2500 to the input connector of your
monitor or projector.
13. ComponentVideo Inputs
Each of the two component video inputs
have three separate connections. Connect
the component video outputs of your
DVD player,VCR, etc. to the Component
Video inputs of the AVC-2500.
14. Digital Inputs
YourAVC-2500 has seven digital inputs:
four 75 Ω digital coaxial inputs, two fi-
ber-optic Toslink inputs, one balanced
AES/EBU, and a connector for an op-
tional RF demodulator. Connect the digi-
tal outputs of your source equipment to
these inputs.
15. Video Monitor Outputs
Both composite and S-video have output
connections with and without on-screen
display. Connect the Composite and S-
Video Monitor output connectors to the
input connector of your monitor or pro-
jector.
16. Composite and S-Video Inputs
Each of the six Audio/Video Inputs has
both composite and S-video connectors
with separate video circuits and amplifi-
ers. The AVC-2500 can only convert
video signals from S-video to composite
video, but not vice versa. For example,
when you connect a video signal to one
of the six RCA composite RCA input
jacks, the video signal will only be avail-
able through the RCA composite Moni-
tor and Record output jacks.
Rear Panel Connections

12
AVC-2500 Audio Video Controller
VIDEO 1 CINEMA
COAXIAL 1 -15dB
On-Off Preset Source Cal Mic
DigitalSurround
THXZone Memory FM/AMMute Tuning
Pro Logic
DTS Dolby Digital Overload
1234 5 6 78
10
1112131415
16
17
9

13
1. Power Switch
Press the On-Off button to turn theAVC-
2500 on and off. When you first turn on
the AVC-2500, the on-screen and front
panel displays show the last selected
source input, digital input, surround
mode, and master volume level. If the
tuner is active, the frequency and preset
number are displayed.
2. Infrared Receiver
Infrared signals from the remote control
are received through the IR receiving eye.
3. Surround Selector
The Surround button on the front panel
oftheAVC-2500 temporarily converts the
Rotary Knob into the surround mode se-
lector so you can choose between any of
the five Automatic Surround Processing
(ASP) modes.
4. Digital Selector
The Digital button on the front panel of
the AVC-2500 temporarily converts the
Rotary Knob into the digital input selec-
tor.
5. Surround Mode Indicators
These blue indicators let you know the
type of bitstream the AVC-2500 has de-
tected and how the signal is being pro-
cessed.
DTS indicator
This indicator illuminates when theAVC-
2500 has detected a DTS bitstream.
Dolby Digital
The blue Dolby Digital indicator illumi-
nates when the AVC-2500 has automati-
cally detected a Dolby Digital bitstream.
Pro Logic Indicator
This indicator illuminates when theAVC-
2500 has automatically detected an ana-
log, PCM, or 2/0 Dolby digital signal.
6. Analog Overload Indicator
This red indicator will illuminate when
any of the internal analog to digital con-
verters are overloaded. This only occurs
when an analog source is selected.
7. Preset Selector
The Preset button on the front panel of
the AVC-2500 temporarily converts the
Rotary Knob into the tuner preset selec-
tor so you can choose between any of the
twenty preset radio stations.
8. Source Selector
The Source button on the front panel of
the AVC-2500 temporarily converts the
Rotary Knob into an input source selec-
tor so you can choose between any of the
six audio/video inputs or six audio-only
inputs.
9. Autocal Microphone Input
This front panel microphone connector
accepts theACM-2500 calibration micro-
phone for automatic calibration of indi-
vidual channel levels and delays. Connect
the providedACM-2500Automatic Cali-
bration Microphone to this input during
the setup process.
10.Volume Control/Rotary Knob
Normally, this is the master volume con-
trol.You can adjust the master volume up
and down in 1 dB steps by turning this
control. This control also serves as the
Rotary Knob for Surround Modes, Digi-
tal Inputs, Tuner Presets, and Input
Sources. When you press any of these se-
lector buttons, its corresponding blue
LED will light and the rotary selector lets
you choose between the surround modes,
digital inputs, tuner Presets, or input
sources.
11. Tuning Button
Pressing the Tuning button activates the
tuner section of the AVC-2500 in the au-
tomatic tuning mode. Pressing this but-
ton a second time changes the tuning
mode from automatic to manual.
12. FM/AM Button
Press the FM/AM button to toggle be-
tweenAM andFMfrequency bandswhile
the tuner is active.
13. Mute Button
Press the Mute button to interrupt the au-
dio signal from the output of the AVC-
2500. Pressing the Mute button again or
adjustingthevolumewilltake theunit out
of mute.
14. Front Panel Display
The fluorescent front panel display pro-
vides operational status of both zones of
your AVC-2500 including selected Input
Source,Autoformat Surround Processing
mode, Digital Input, and Volume level.
15. Memory
The Memory button allows you to assign
digital inputs,Autoformat Surround Pro-
cessing (ASP) modes, and THX process-
ing to individual sources.This button also
lets you store the twenty available radio
station presets into memory.
16. THX
Press the THX button to apply THX pro-
cessing to any of the cinema surround
modes including Dolby Digital, Dolby
Pro Logic, DTS, stereo, and mono.When
this button is pressed,THX appears in the
front panel and on-screen display
17. Zone
Press the Zone button to control the re-
mote zone from the front panel. When
Zone is selected, the On-Off switch, Ro-
tary Knob and Surround, Digital, Preset,
and Source buttons operate in the same
way as in the main zone. While you are
controlling the remote zone “ZONE” ap-
pears in the front panel display. Five sec-
ondsaftermaking youradjustments tothe
remote Zone, theAVC-2500 reverts back
to Main Zone operation.
Front Panel Controls

14
AVC DVD CD AUX
SAT
On-Off Digital Surround
Digital
Setup
Trim Volume
Mem
Enter
Auto
Audio
TuneTune
Auto
Video
Volume
Mute
Status
Disc
Tuning
FM/AM A. Cal SleepDim
Aud 1 Aud 4 Vid 1 Vid 4
Aud 2 Aud 5 Vid 2 Vid 5
Aud 3 Aud 6 Vid 3
LightShift Zone
MAC 1 MAC 2 MAC 3 MAC 4
12345
678910
Vid 6
Surround
TV
THX Dyn
VCR CBL 22
3
7
12
5
8
11
9
14
2
15
16
17
4
18 19
20
1
21
13
10
6
Press the AVC button to
control the AVC-2500

15
1. On-Off Button
This button turns theAVC-2500 On and Off.
2. Digital Selection Buttons
The Digital gg
gg
g and hh
hh
h buttons allow you to scroll up or down
through all six digital inputs and the analog input.
3. Surround Selection Buttons
The Surround gg
gg
g and hh
hh
h buttons allow you to scroll through
all five Autoformating Surround Processing (ASP) modes:
Cinema, Stereo, Music, Party, and Mono.
4. THX/Dynamic Range Control Buttons
THX Button
Press the THX button to add THX processing toASP modes
including Dolby Digital, Dolby Pro Logic, DTS, and Mono.
Dynamic Range Control Button
The Dyn button engages Dynamic Range Compression that
may be encoded into a digital bitstream. This feature is often
called the nighttime listening mode.
5. Setup/Trim Button
Press this button to enter the setup operation of the AVC-
2500. This button is also used to temporarily trim channel
levels while watching a film or listening to a recording.
6. Volume Buttons
The Volume gg
gg
g and hh
hh
h buttons adjust the master volume up
and down in 1 dB steps.These buttons are also used for setup
and trim operation.
7. Mute Button
Pressthe Mutebuttonto interruptthe audiosignal from reach-
ing the output of the AVC-2500. The Mute button does not
affect the record output jacks
8. Tune ff
ff
f /Auto Audio Button
When the tuner is activated, pressing this button normally
advances to the next preset. If you change the tuning mode,
the Tune ff
ff
f button selects a lower radio frequency.
When you hold this button down for three seconds, theAVC-
2500 scans for any active digital or analog audio signal and
automatically switches to that input source.
9. Memory Enter Button
The Mem/Enter button is used to store Digital Inputs, THX,
and Dynamic Range Control into Input Sources. This button
is also used during the setup process.
10. Tune ee
ee
e /AutoVideo Button
When the tuner is activated, pressing this button normally
advances to the next preset. If you change the tuning mode,
the Tune ee
ee
e button selects a higher broadcast frequency.
When you hold this button down for three seconds, theAVC-
2500 scans for any active video signal and automatically
switches to that input source.
11. Tuning Button
Pressing the Tuning button activates the AVC-2500 tuner. It
also changes the tuning mode from manual to automatic. In
the manual mode, frequencies are changed at 50 kHz steps
with the Tune ff
ff
f and ee
ee
e buttons. In the auto mode, the next
or previous broacast frequency is selected.
12. Status Button
The Status activates the on-screen display to provide opera-
tional status of theAVC-2500. Press this button again to turn
off the status display.
13. FM/AM/ A. Cal Buttons
FM/AM Button
The FM/AM button toggles betweenAM and FM frequency
bands.
Auto Calibration Button (A.Cal)
This button engages the Automatic Calibration feature of
the AVC-2500 when the ACM-2500 microphone is con-
nected.
14. Dimmer/Sleep Buttons
Dimmer Button
This button dims the front panel display and indicators by
50%.
SleepTimer Button
The Sleep button sets the AVC 2500 to automatically turn
off. Each press of the sleep button increases the sleep timer
by 15 minutes for a maximum of 90 minutes.
15. Source Buttons
These buttons provide direct access to all twelve inputs of
theAVC-2500. The Source buttons are labeled Audio (Aud)
1-6 and Video (Vid) 1-6.
16. Numerical Preset Buttons 1-10
Pressing any of these activates the tuner (if not already on)
and selects the radio station programmed to that number.
17. Macro Buttons
These 4 macro buttons allow you to program a series of com-
mandsfor onetouch operationof multipleremote commands.
18. Shift Button
The Shift button accesses several “secondary” codes such as
separate on and off commands.
19. Zone Button
Press the Zone button before a command to issue a Zone
command. For example, Pressing Zone + On-Off turns the
remote Zone On or Off.
20. Light Button
The Light button illuminates the remote control.
21. Programming Status LED
This three-color LED flashes when programming infrared
codes into the learning remote control.
22. Device Buttons
The device buttons allow you to choose different "pages" to
control up to eight components including the AVC-2500.
Note: Press the AVC button to control the AVC-2500.
The Learning Remote Control

16
Play/Out
L
R
DVD Player
Rec/In
Video Cassette Recorder TV Monitor
Left Speaker Center Speaker Right Speaker Left Surround Right SurroundZone Left Zone Right Subwoofer
Audio OutDigital Out
Coaxial
Toslink
L
R
S-Video Out
Component
Video Out
Composite
Video Out
S-Video In
Component
Video In
Composite
Video In
L
R
Zone TV Monitor
Audio Out Composite
Video In
Audio Video
In
Out
Audio
Output
L
R
CD Player/Transport
Coaxial Digital
Output
Audio
Powered Subwoofer
Powered
Subwoofer
Connection
Parasound AVC-2500 Input and Output Connections
Audio 6 Record
Video 2
Record Front Surround
Video 3
Center
L
L R L R LS RS Center Sub
R
Subs
IRIR DC TriggersTrigger
2Zone 1
MainAudio
Video 4 Video 5 Monitor
OSD
S Video Inputs
Outputs
Digital Inputs
Video 1
75 Ohm AM Ground
Video 6 Video 6
Record YCbCr
Y
Cb
Cr
Y
Cb
Cr
Input 1
YCbCr
Input 2
YCbCr
Monitor
Monitor
No OSD
Video 2 Video 3 Video 4 Video 5
Video 1 Video 6 Coax 1 Coax 2 Coax 3 Coax 4
AES/EBU Parasound
External RF
Demodulator
Optical 1 Optical 2
Outputs
Monitor
With OSD
Zone 2
Video
Video 6
Record
Video 2 Video 3 Video 4 Video 5
Video 1 Audio 2 Audio 3 Audio 4 Audio 5 Audio 1
Video 6 Video 6
Record Zone
Monitor
No OSD
S Video Outputs
Composite Video Outputs
Composite Video Inputs
Audio/Video Inputs Audio Inputs
Zone Amplifier Amplifier Amplifier Amplifier
Main Outputs5.1 Analog Inputs
AVC-2500
Parasound Products, Inc.
San Francisco, CA USA
Made in Finland
Component Video RS 232
Antenna
Digital Record
External Control
Front Surround Center
Sub
Coax Optical
AC 120V 60Hz 60 W

17
Making Connections toYour AVC-2500
Precautions
Before making any connections to your AVC-2500, be sure to turn off the power to your
amplifiers.When connecting cables to theAVC-2500, make sure there is no strain or tension
on any connections that could cause them to pull loose later.
Rear Panel Connections
There are ninety-three connectors and terminals on the rear panel! To make installation and
the instructions easier to follow, discussion about connections are organized in a clockwise
direction from the left side to the right side of the rear panel and also by functional groups
for analog audio, video, digital audio, antenna, special control interface, and AC cord.
References to specific connectors on the AVC-2500 are usually italicized.
Analog Audio/Video 1-6 Input Connections
All six Audio/Video analog inputs are compatible with typical line level sources such as
DVD players, videocassette recorders, satellite receivers, tabletop cable converter boxes,
etc.Eachof the sixAudio/Videoinputs alsoswitchesanaccompanyingNTSC/PAL composite
video or S-video input.You can also assign either of the two Component Video inputs and
any of the eight Digital audio inputs to accompany these six Audio/Video inputs.You may
also connect the left and right analog audio outputs of your audio/video source components
to these input.
Video 6 Input and Record (Record and Playback) Connections
Use the Video 6 inputs and outputs for the VCR you intend to use to record the picture and
sound. The signal present at the Video 6 Record output sends analog audio from whichever
of the other fiveAudio/Video or six Audio-only inputs you select.
1. Connect the left and right audio output connectors from theVCR you’ll use for recording
to the Video 6 Input connectors of the AVC-2500.
2. Connect the left and right Video 6 Record Output connectors of theAVC-2500 to the left
and right audio input connectors of the VCR.
3. Connect the composite video output connector of your VCR to the Video 6 input of the
AVC-2500 and connect the Video 6 Composite Record Output connectors of the AVC-
2500 composite video input connectors of the VCR.
Zone Audio andVideo Output Connections
The AVC-2500 has stereo audio and NTSC/Pal composite video output connections for
independent remote zone operation. This feature allows you to route any of the sources
connected to theAVC-2500 to both the main zone (Main) and a separate remote zone (Zone).
You can view or listen to different or same sources in the main and remote zones
simultaneously. Connect the left and right Zone Audio Outputs to your remote zone power
amplifier and connect theZone Composite Video output to your remote zone video monitor.
Note:The remote zone cannot access digital signals.Therefore, you must connect the analog
outputs of your components to the analog inputs inputs in order to access them from the
remote zone.
Analog Audio 1-6 Input Connections
The six audio-only analog inputs are compatible with typical analog line level sources such
as CD players, MiniDisc players, cassette decks, etc. Connect the left and right analog audio
outputs of your audio/video source components to these inputs.You can also “assign” any
of the eight Digital audio inputs to accompany any of the six Audio analog inputs.

18
5.1 Analog Inputs
The 5.1 Analog Input jacks are designed to accept up to six channels of processed analog
output from a DVD player or other component with discrete outputs. Connect the six discrete
outputs of your source component to the corresponding 5.1 Analog Input jacks of theAVC-
2500. Note:You will need an optional module to control volume from the 5.1 analog inputs.
Othewise, you should use the volume control on your DVD player if so equipped.
Audio Only Record Output Connections
The audio signal from the source you selected for the main zone is routed to both pairs of
Record Output connectors. Connect the left and right play/output of your tape deck to the
left and right of any of theAVC-2500’s Audio 1-Audio 6input connectors. Next, connect the
left and right audio record/input connectors of your tape deck to either pair of Left and Right
channel Record Output connectors of your AVC-2500.
Front Left and Right Channel Outputs
Connect the Left and Right Front channel outputs of your AVC-2500 to either the inputs of
atwochannelamplifierorto two channels ofamulti-channel amplifier thatarethen connected
to your main front left and right (L, R) speakers.
Center Channel Output
Connect the Center channel output of yourAVC-2500 to the input of a mono amplifier or to
the channel of the multi-channel amplifier that is connected to your center (C) speaker.
Left and Right Surround Channel Outputs
Connect the Left and Right Surround output jacks of yourAVC-2500 to the inputs of the two
channel amplifier or to two channels of a multi-channel amplifier that are connected to your
left and right surround (LS, RS) speakers.
Subwoofer Output Connections
Two Subwoofer output jacks are provided for your convenience if you have two subwoofers.
For passive subwoofers without built-in amplifiers, connect the Left and/or Right Sub outputs
of your AVC-2500 to the input(s) of the amplifier channel(s) that are connected to your
passive subwoofer(s). For powered subwoofers with built-in amplifiers, connect the Left
and Right Sub outputs of yourAVC-2500 to the left and right line inputs of your subwoofer.
If your subwoofer has only one input jack, you can use either the Left or Right outputs of the
AVC-2500 since both send the same monaural information.We recommend that you switch
off the crossover on your subwoofer amp and use the 24 dB per octave low pass filter of the
AVC-2500. If your sub doesn’t have a bypass switch for its crossover, adjust it to the highest
frequency setting.
AC Line Cord Connection
The rear panel mounted IEC standardAC receptacle accepts theAC cord supplied with your
AVC-2500. We recommend the use of an AC line filter to protect the AVC-2500 against
potentially damaging line surges and voltage fluctuations. Plug the female end of the AC
cord firmly into the rear mounted AC receptacle and make sure that it is properly seated,
then connect the male end to an uninterruptedAC power line.
Main External Remote Control
The Main External IR allows for remote control operation via a wired infrared repeater
system or system controller when infrared commands cannot directly reach the front panel
infrared receiver. The input connector accepts a standard 1/8-inch (3.5 mm) two conductor
mini plug. The tip is positive and the sleeve is negative.Your Authorized Parasound Dealer
or Custom Installer can recommend a compatible infrared repeater system for the AVC-
2500. Connect the output of an infrared repeater system to the Main IR input.

19
Zone External Remote Control
The Zone External IR allows for control of the AVC-2500 from a remote zone. The input
connector accepts a standard 1/8-inch (3.5 mm) two conductor mini plug. (The tip is positive
and the sleeve is negative). Your Authorized Parasound Dealer or Custom Installer can
recommend a compatible infrared repeater system for theAVC-2500. Connect the output of
an infrared repeater system to the Zone IR input.
Main DCTrigger (Labeled DCTrigger 1 on some units)
This jack provides a +12Volt DC trigger voltage to activate equipment that can be triggered
with DC voltage such as power amplifiers, relays, motorized projection screen, fans, lights,
or other components. Connect the Main (or 1) DC Trigger output of the AVC-2500 to the
DC input of the component you want to activate. The DC trigger delivers up to 350 mA of
current. The Main (or 1) DC Trigger accepts a standard 1/8 inch (3.5 mm) two conductor
mini plug. The tip is positive and the sleeve is negative.You can program the AVC-2500 to
activate the Main DC Trigger in response to turning on the AVC-2500 or to a button stroke
on its remote control. Refer to the Setup section for details on programming theMain (or 1)
DC Trigger.
Zone DCTrigger (Labeled DCTrigger 2 on some units)
This jack provides a +12Volt DC trigger voltage to activate equipment that can be triggered
with DC voltage such as power amplifiers, relays, motorized projection screen, fans, lights,
or other components. Connect the Zone (or 2) DC Trigger output of the AVC-2500 to the
DC input of the component you want to activate. The DC trigger delivers up to 350 mA of
current. The Zone (or 2) DC Trigger accepts a standard 1/8 inch (3.5 mm) two conductor
mini plug. The tip is positive and the sleeve is negative.You can program the AVC-2500 to
activate the Zone DC Trigger in response to turning on the AVC-2500 from a remote zone,
or to a button stroke on its remote control. Refer to the Setup section for details on
programming the Zone (or 2) DC Trigger.
Important Note
The two DC Trigger jacks and the two External Remote jacks are the same size, despite their
different functions.The DC Trigger jacks have small rubber plugs inserted into them to help
you avoid accidentally damaging your infrared repeater system by plugging it into a live
12V DC jack. Don’t remove a rubber plug until you are ready to plug in a DC trigger
connection.
AudioTrigger
This connector provides a fixed level L + R monaural audio signal to activate equipment
such as power amplifiers, audio sensing power strips, or other components that can be
triggered with an audio signal. The Audio Trigger accepts a standard 1/8-inch (3.5 mm) two
conductor mini plug. The tip carries the signal and the sleeve is ground. Connect the Audio
Trigger output of the AVC-2500 to the audio sensing input of the component you want to
activate.
Digital Recording Output Connections
To record through either of these digital output connectors, select the digital source you
want to record on the front panel or remote control. The AVC-2500 simultaneously routes
the digital bitstream to both the Coax and Optical Toslink output connectors. Connect either
the Optical or the 75 ΩCoax Digital Record Output connectors of the AVC-2500 to the
digital record input of your digital recorder.You may also wish to refer to the owner’s manual
of your digital recorder.

20
Antenna Connections
You will not be able to receive any radio stations unless you connect FM andAM antennas
to the AVC-2500. The following are options to connect FM and AM antennas:
FM Dipole Antenna
A standard FM “folded dipole” 300 Ω wire antenna is included with your AVC-2500. This
dipole antenna is adequate for most urban and suburban locations. Connect the spade lugs
of the dipole antenna to the two screw terminals on the included small “balun” matching
transformer. Press the balun over the female 75 Ω
connector of the rear panel of your AVC-
2500. Next, spread out the antenna and hang it on the wall or the back of the equipment
cabinet. Experiment with the direction and placement of the dipole antenna to obtain the
best reception.
75
ΩΩ
ΩΩ
Ω Coaxial Antenna
TheAVC-2500 has a standard DIN-type 75 Ωconnector with a push-on coaxial FM antenna
plug. An adapter is included to accommodate the threaded F-type connectors that are used
in NorthAmerica.
Outdoor Roof Antenna
For best reception and maximum noise rejection, we recommend the use of a high-quality
outdoor FM antenna.The additional stations you can receive and the superior sound quality
will make the extra effort worthwhile. Connect the outdoor antenna with a 75 Ω coaxial
cable directly to the 75 Ω FM Antenna Input of the AVC-2500. If you use 300 Ω twin lead,
connect the two bare wire leads to the included “balun” adapter and press it onto the female
75 Ω coaxial FM antenna input connector.
Cable T V and Community Antenna
In many situations, you may be able to use the FM antenna output of a cable TV or a
community antenna jack. These connect in the same way as an outdoor antenna.
AM Antenna
A molded plastic loop antenna is supplied with your AVC-2500. Connect the two wires of
the AM loop antenna to the posts labeled AM and GND. Position the loop antenna for best
AM reception. If you are trying to pick up very distant stations, you may connect a single
long wire to the AM terminal and a good earth ground to the GND terminal.
RS 232 Control
The RS-232 External Control port is the interface for connecting one of the many software
based system controllers such as AMX, Phast, or Creston. This 9-pin serial port provides
two-way communication for control and status feedback from theAVC-2500. Contact your
Parasound Dealer or Custom Installer for more information regarding interfacing an external
control system to your AVC-2500.
ComponentVideo Connections
EachComponentVideo Input and the ComponentVideo Output includes three separate jacks.
Separating the video signal components of luminance (Y) and the color difference (Cb and
Cr) delivers the very highest quality video reproduction. Not every source or monitor labels
its component videoY, Cb, Cr. Equivalent labeling for component video connections may
be Y, B-Y R-Y or Y, PB, PR. Refer to the owner’s manual of your video component for
details.
