Parker RK 11861 User manual

Heater Relay Kits
For 12 and 24 Volt DC Applications
Contact Information
Parker Hannin Corporation
Racor Division
P.O. Box 3208
3400 Finch Road
Modesto, CA 95353
phone 800 344 3286
209 521 7860
fax 209 529 3278
racor@parker.com
www.parker.com/racor
Overview
A relay kit may be necessary when
installing a Racor heater due to
power demand. Standard OE fuses,
wiring and alternator may be unable
to carry the load without overheating
or potential shorting, creating a
serious condition.
Racor relay kit’s provide higher
amperage power to the Racor heater
using the relay as an independent
‘switch’. The relay coil is energized
either from a manual toggle switch
or by means of activation, such as a
thermostat.
Note: Ensure the electrical supply
system can support the power
demands of the fuel heater
(and other accessories) prior to
installation.
Instruction Part Number 11-2012 Rev A
VOLT AMPS WATT Part Number
12 25 300 RK 11861
24 12.5 360 RK 11862
12 60 720 RK 19490-12
24 60 1440 RK 19490-24
Note: RK 11861/RK 11862 include fuse and holder, RK 19490 kits have them built in.
Special Notes: Do not use on gasoline applications.

Wiring Diagrams
Battery
+ -
Fuse
12 vdc = 25 amp
24 vdc = 15 amp
Ignition
Switch
Relay
Optional
Toggle
Switch
Racor
Fuel
Heater
Racor 2-wire Heater
Connection Diagram
Racor ‘2-wire’ fuel heaters
have no polarity!
Either wire may be used for hot (+)
or ground (-).
30
86
87
85
Black 14
Red 18 White 18
Schematic A - For Light Duty Power Relay Kits: RK 11861 and RK 11862
Refer to applicable diagrams
Installation Instructions for all Kits
1. Before beginning, familiarize
yourself with the steps to be
taken and ensure all hardware,
wiring, necessary terminals
and tools are on hand.
2. Disconnect vehicle battery
ground cable before splicing
or connecting the relay unit to
avoid electrical shock or re.
3. e power relay unit should be
mounted in a location which
oers protection from harsh
environments or contact with
moving parts. An engine or
cab compartment is suitable.
4. Solder all electrical terminals
to reduce electrical resistance
and ensure a durable
connection.
5. Ensure all wires are routed
in a manner to oer the best
protection from contact with
other moving parts which can
lead to chang and shorting
out of components.
6. Use provided wire ‘zip-ties’ to
secure wires to avoid vibration
and movement - obtain more
if needed.
7. Where additional wire lengths
may be needed, ensure the
same gauge (AWG) and color
(if possible) is used. Solder all
connections and use shrink
tubing to protect exposed
wires.
8. Never operate power relay
unit when there is no fuel in
heated Racor product. is can
permanently damage heater
and related products and
potentially start a re.
9. Follow Installation and Use
Instructions provided with
Racor products.
10.In event of a failed fuse,
determine reason for failure
before replacing.
11.Always disconnect power from
the relay unit when servicing it
or heated Racor products.
Green 14
+
+ +
_
Fuse Box
1A Min.

Battery
+ -
Fuse
12 vdc = 25 amp
24 vdc = 15 amp
Ignition
Switch
Racor
Fuel
Heater
Racor 3-wire Heater
Connection Diagram
Racor ‘3-wire’ fuel heaters have polarity!
Red wire is for hot (+)
Black wire is for ground (-) and
White activates the power relay.
30
86
87
85
black 14
Green 14
red 14
white 18
Optional
Toggle
Switch
Schematic B - For Light Duty Power Relay Kits: RK 11861 and RK 11862
Battery
+ -
Ground
Ignition
Switch
Fuse Box
Rocker
Switch*
Detachable
Connector
Racor 2-wire Heater
Connection Diagram

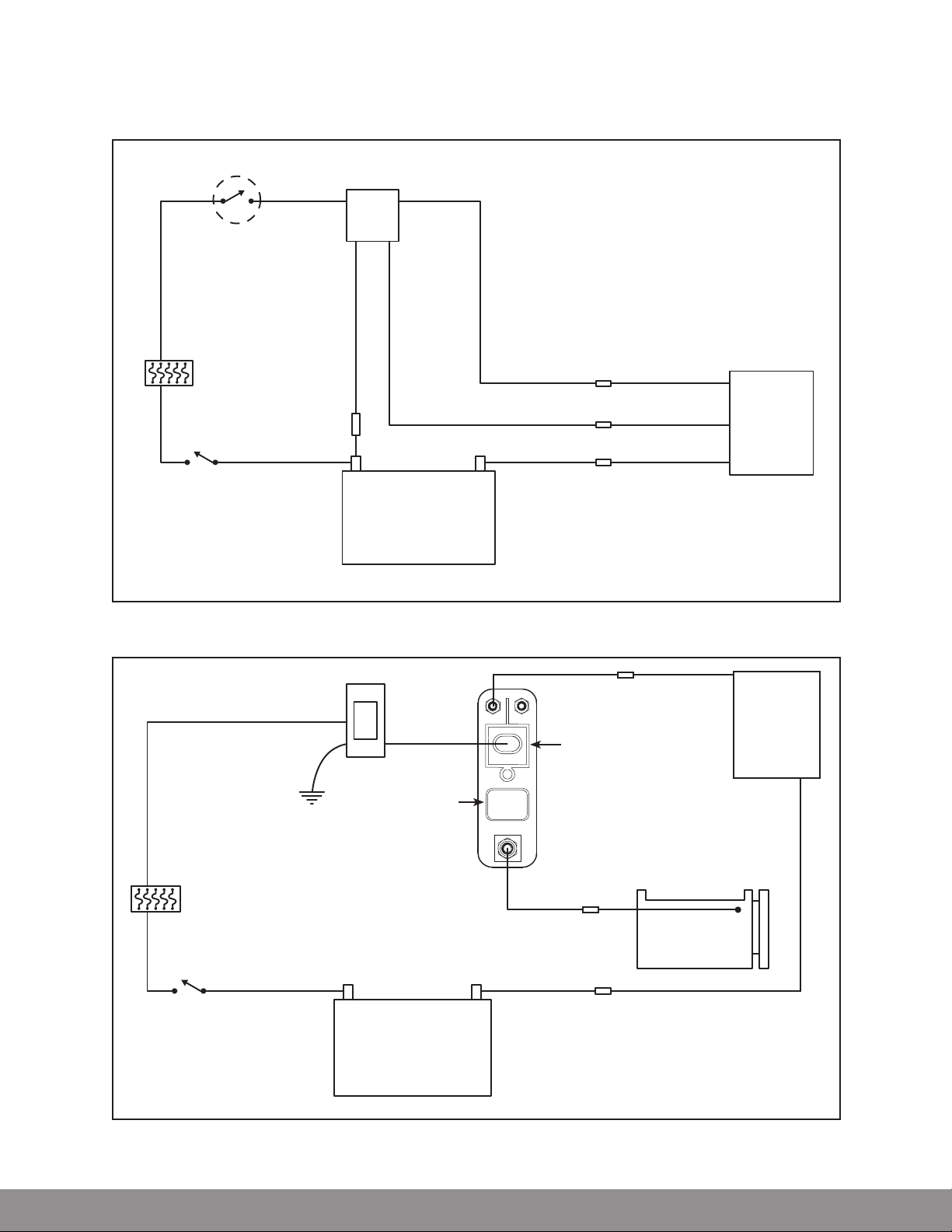

Schematic C - For Heavy Duty Power Relay Kits: RK 19490-12 and RK 19490-24
Red 18
YLW 18 (2)
Fuse Location
60 amp
Red 10
Black 18
1A Min.
Red 18
Black 14
+
+ +
-
White 18
Fuse Box
1A Min.
Alternator:
Positive (+)
Output Terminal
Racor
Fuel
Heater
Red 10
Black 10
