Parklander Pro Professional Series User manual

BP
PRO-40SUM
O
Professional Series
Original Instructions
CAUTION:
-Read all precautions and
instructions in this manual before
using this product. Keep this
manual for future reference.
-Product may vary slightly from
picture.
www.parklandspowerproducts.com.au

CONTENTS
FIGURE........................................................................................1
INTRODUCION…………………...................................................5
MEANINGS OF SYMBOLS..........................................................6
WARNINGS ＆SAFETY INSTRUCTIONS...................................7
DESCRIPTION.............................................................................9
ASSEMBLY..................................................................................10
OPERATING PROCEDURES......................................................11
MAINTENANCE...........................................................................13

1

V
NM
NN
NO
NP
NQ
NR
NS
NS
PNONNN
RNQN
= = = = =
TNSN
= = = = =
2

3

4

INTRODUCION
Thank you for your purchasing the brush cutter of our Company.The present manual explains how to
handle the brush cutter well.Before using it,please read this operator's manual carefully,operate the
details of your machine may not agree with this manual.Please understand accordingly.
The machine is only intended to be used to cut frutex, or soft vegetation.
Engine
Displacement (cm )
Spark plug
Idling speed (min )
Speed of output shaft (min )
Max. engine output (kW)
engine output (g/kWh)(ISO 14865)
3
-1
-1
39,8
NGK BPMR6A or equivalent
2750
9900
1.2
604
Fuel tank capacity (cm )
3
Dry weight (kg)
Cutting attachment Type / Dia. (mm)
Sound pressure (ISO14865)
level LpA Equivalent
(dB (A)) Uncertainty
Measured sound (ISO14865)
power level LwA Equivalent
(dB (A)) Uncertainty
Measured sound (2000/14/EC)
power level LwA (dB (A)) Racing
Guaranteed sound (2000/14/EC)
power level LwA (dB (A)) Racing
Vibration level (m/s ) (ISO7916)
Idling
2
1000
Metal blade / 255
91
3
103
3
104
112
NOTE
Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration
levels under various working conditions with the following time distribution: 1/2 Idle, 1/2 racing.
* All data is subject to change without notice.
5
PRO-40SUM
Model
Backpack power unit
Unit
6.7
10.7
Racing
Rear handle
Front handle
Rear handle
Front handle
4.0
6.7
0.3
0.6

MEANINGS OF SYMBOLS
NOTE: Some units do not carry them.

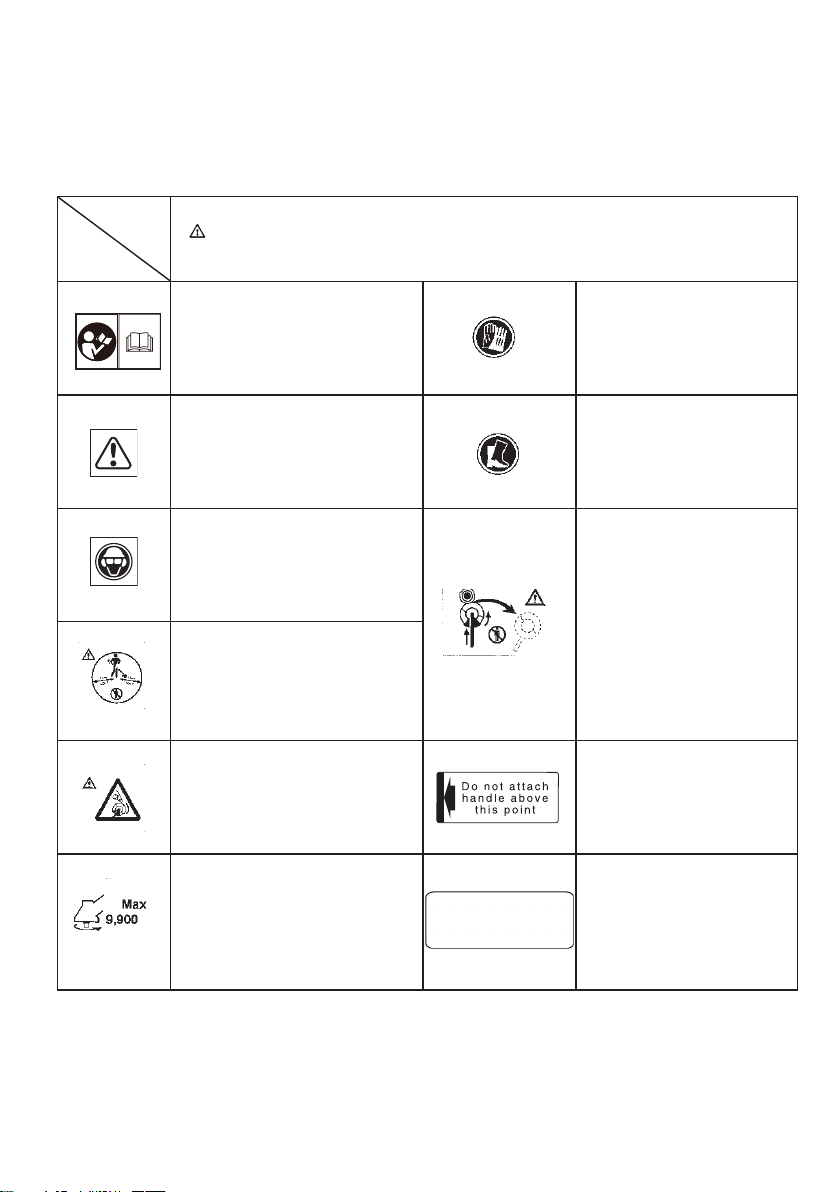

Symbols
WARNING
The following show symbols used for the machine. Be sure that you understand their meaning
before use.
It is important that you read, fully
understand and observe the following
safety precautions and warnings.
Careless or improper use of the unit
may cause serious or fatal injury.
Read, understand and follow all
warnings and instructions in this
manual and on the unit.
Always wear eye, head and ear
protectors when using this unit.
Keep all children, bystanders and
helpers 15 m away from the unit.
If anyone approaches you, stop
the engine and cutting attachment
immediately.
Be careful of thrown objects.
min-1
Shows maximum shaft speed. Do
not use the cutting attachment
whose max rpm is below the shaft
rpm.
Gloves should be worn
when necessary,e.g., when
assembling cutting equipment.
Use anti-slip and sturdy footwear.
Blade thrust may occur when
the spinning blade contacts a
solid object in the critical area. A
dangerous reaction may occur
causing the entire unit and
operator to be thrust violently.
This reaction is called blade
thrust. As a result, the operator
may lose control of the unit
which may cause serious or
fatal injury. Blade thrust is more
likely to occur in areas where it
is difcult to see the material to
be cut.
Indicate handle location. Do not
attach handle above this point.
6
Pull out exible shaft from cover and
grease every 15-20 hours of use.
Insufcient lubrication will cause exible
shaft damage.
C A U T I O N CAUTION
Pull out exible shaft from cover
and grease every 15-20 hours
of use.Insuffi cient lubrication
will cause exible shaft damage.

Replace parts that are cracked, chipped or
damaged in any way before using the unit/
machine.
Make sure the safety guard is properly attached.
Keep others away when making carburetor
adjustments.
Use only accessories as recommended for this
unit/machine by the manufacturer.
Never modify the unit/machine in any way. Do not
use your unit/machine for any job except that for
which it is intended
Mix and pour fuel outdoors and where there are
no sparks or ames.
Use a container approved for fuel.
Do not smoke or allow smoking near fuel or the
unit/machine or while using the unit/machine.
Wipe up all fuel spills before starting engine.
Move at least 3m away from fueling site before
starting engine.
Stop engine before removing fuel cap.
Empty the fuel tank before storing the unit/
machine. It is recommended that the fuel be
emptied after each use. If fuel is left in the tank,
store so fuel will not leak.
Store unit/machine and fuel in area where fuel
vapors cannot reach sparks or open flames
from water heaters, electric motors or switches,
furnaces, etc.
Fuel is easy to ignite or get explosion or inhale
fumes, so that pay special attention when handling
or lling fuel.
Always wear a safety face shield or goggles.
Always wear heavy, long pants, boots and
gloves. Do not wear loose clothing, jewelry,
short pants, sandals or go barefoot.Secure hair
so it is above shoulder length.
Do not operate this tool when you are tired,
ill or under the in uence of alcohol, drugs or
medication.
Never let a child or inexperienced person
operate the machine.
Wear hearing protection. Pay attention to your
surroundings.Be aware of any bystanders who
may be signaling a problem.Remove safety
equipment immediately upon shutting off
engine.
Wear head protection.
Never start or run the engine inside a closed
room or building.Breathing exhaust fumes can
kill.
Keep handles free of oil and fuel.
Keep hands away from cutting equipment.
Do not grab or hold the unit by the cutting
equipment.
When the unit is turned off , make sure the
cutting attachment has stopped before the unit
is set down.
When operation is prolonged, take a break from
time to time so that you may avoid possible
Hand-Arm Vibration Syndrome (HAVS) which
is caused by vibration.
○
○
○
○
○
○
○
○
○
○
○
○
7
○
○
○
○
○
○
○
○
○
○
○
○
○
○
WARNINGS ＆SAFETY INSTRUCTIONS
Operator safety
WARNING
Antivibration systems do not guarantee that you
will not sustain Hand-Arm Vibration Syndrome
or carpal tunnel syndrome.Therefore, continual
and regular users should monitor closely the
condition of their hands and fi ngers. If any
symptoms of the above appear, seek medical
advice immediately.
If you are using any medical electric/electronic
devices such as a pacemaker, consult your
physician as well as the device manufacturer
prior to operating any power equipment.
○
○
Unit/machine safety
Inspect the entire unit/machine before each
use. Replace damaged parts. Check for fuel
leaks and make sure all fasteners are in place
and securely tightened.
○
WARNING
Fuel safety
WARNING
Cutting safety
Do not cut any material other than grass and
brush.
Do not perform any operations which may
influence an enormous shock on the cutting
attachment.Otherwise, the flexible shaft may
risk to be damaged.
Inspect the area to be cut before each use.
Remove objects which can be thrown or
become entangled.
For respiratory protection, wear an aerosol
○

8
protection mask when cutting the grass after
insecticide is scattered.
Keep others including children, animals,
bystanders and helpers outside the 15m
hazard zone. Stop the engine immediately if
you are approached.
Always keep the drive shaft tube on the right
side of your body.
Hold the unit/machine rmly with both hands.
Keep firm footing and balance. Do not over-
reach.
Keep all parts of your body away from the muf
er and cutting attachment when the engine is
running.
Keep cutting attachment below waist level.
When relocating to a new work area, be sure to
shut off the machine and ensure that all cutting
attachments are stopped.
Never place the machine on the ground when
running.
Always ensure that the engine is shut off and
any cutting attachments have completely
stopped before clearing debris or removing
grass from the cutting attachment.
Always carry a  rst-aid kit when operating any
power equipment.
Never start or run the engine inside a closed
room or building and/or near infl ammable
liquids. Breathing exhaust fumes can kill.
○
Clean and maintain the unit carefully and store it
in a dry place.
Make sure engine switch is off when transporting
or storing.
When transporting in a vehicle, cover blade with
blade cover.
Indicates a strong possibility of severe personal
injury or loss of life, if instructions are not
followed.
Indicates a possibility of personal injury or
equipment damage,if instructions are not
followed.
Helpful information for correct function and use.
Do not disassemble the recoil starter. You may
get a possibility of personal injury with recoil
spring.
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Maintenance safety
Maintain the unit/machine according to
recommended procedures.
Disconnect the spark plug before performing
maintenance except for carburetor adjustments.
Keep others away when making carburetor
adjustments.
Use only genuine Hitachi replacement parts as
recommended by the manufacturer.
○
Transport and storage
Carry the unit/machine by hand with the engine
stopped and the mufer away from your body.
Allow the engine to cool, empty the fuel tank,
and secure the unit/machine before storing or
transporting in a vehicle.
Empty the fuel tank before storing the unit/
machine. It is recommended that the fuel be
emptied after each use. If fuel is left in the tank,
store so fuel will not leak.
Store unit/machine out of the reach of children.
○
○
○
○
If situations occur which are not covered in this
manual, take care and use common sense.
Contact your dealer if you need assistance.Pay
special attention to statements preceded by the
following words:
WARNING
CAUTION
NOTE
CAUTION

DESCRIPTION
Since this manual covers several models, there may be some difference between pictures
and your unit. Use the instructions that apply to your unit.
9
1. Fuel cap
2. Throttle lever
3. Starter handle
4. Blade guard
5. Cutting attachment
6. Drive shaft tube
7. Handle
8. Ignition switch
9. Harness
10. Clutch case
11. Choke lever
12. Engine
13. Angle transmission
14. Combi box spanner
15. Handling instructions

10
ASSEMBLY
Drive shaft to engine (Fig. 1)
Remove tube locking bolt (1).
Insert unholed end of fexible shaft (2) into joint
pipe of drive shaft (3) to the end and tighten the
tube locking bolt by engaging the bolt to the slot
of  exible shaft.
NOTE
Make sure to align square end of exible
inner shaft with square hole of drive shaft
by slightly rotating drive shaft so that they are
connected rmly.
Flexible shaft to engine (Fig. 2)
Pull up lock-pin (4).
Insert holed end of exible shaft into clutch case
to the end by rotating slightly.
Release lock-pin to lock in the location hole (22).
Installation of handle
WARNING
When you use steel/rigid blades on brush
cutters, always use a barrier bar (5) and
shoulder harness with the loop handle.(Fig. 3)
Attach the handle to the drive shaft tube with the
angle towards the engine.
Adjust the location to the most comfortable
position before operation.
Throttle wire / stop cord
Remove air cleaner cover. (Fig. 4)
Connect stop cords. (Fig. 5)
Insert the stay (6) under the nut (7) screwed onto
the outer end of the throttle wire (8) and connect
the end of the throttle wire (9) to the carburetor
(10). Then tighten the nut (7) to secure the throttle
wire to the stay (6). (Fig. 6)
NOTE
Check that the carburetor throttle returns to
the idle position and also that it can be
opened wide by operating the throttle lever.
Cover throttle wire and stop cords together with
protective tube provided up to air cleaner cover.
(Fig. 7)
Some models may come with the throttle wire
and stop cords already installed.
Installation of gear case cover (Fig. 8)
Attach the gear case cover (11) with the three
screws, making sure to align the notch (12) in
the gear case with the hole (13) in the gear case
cover.
Installation of blade guard (Fig. 9)
The guard bracket already mounted to the drive
shaft tube.Install the blade guard on drive shaft
tube against angle transmission (14). Tighten the
guard bracket  rmly so that the blade guard does
not swing or move down during operation.
CAUTION
The blade guard must be in place during
operation. If the blade guard is not in place,
there is a possibility of serious injury.
Blade guards are equipped with sharp line limiter.
Be careful with handling it.

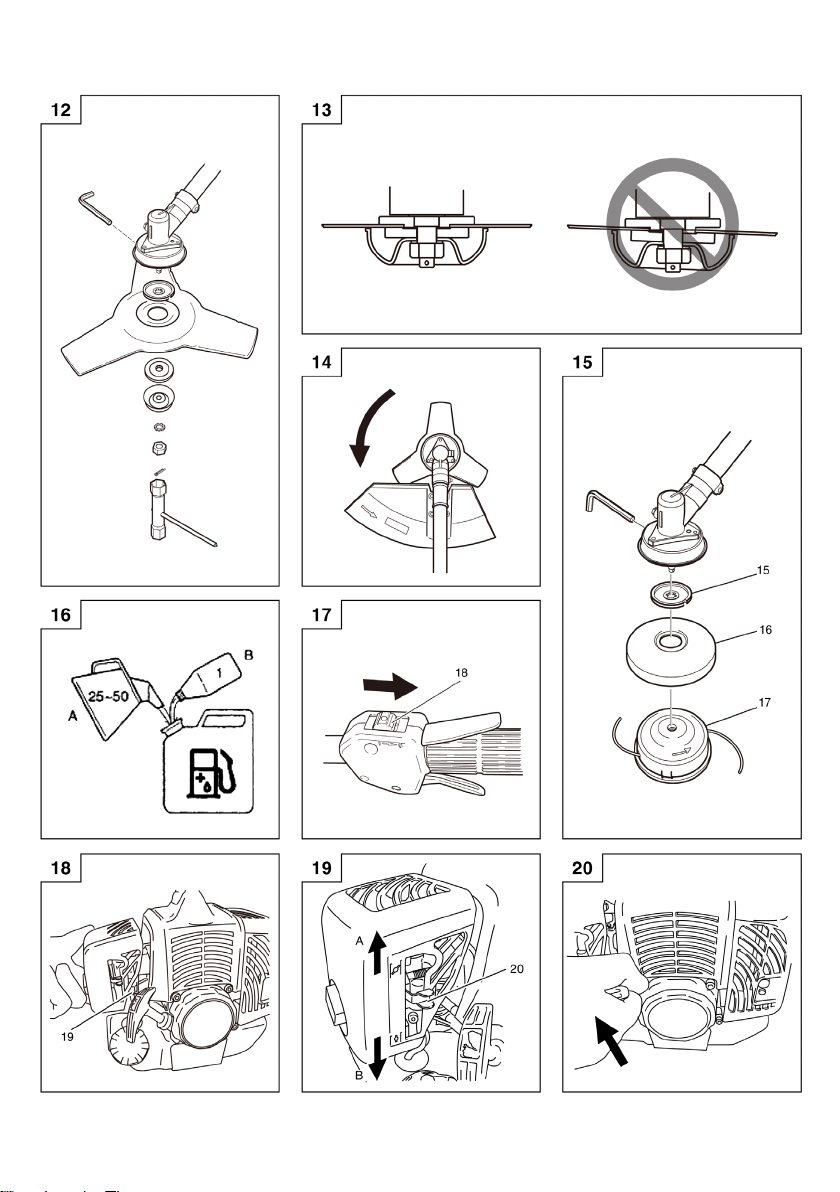

Installation of cutting blade (Fig. 12)
When installing a cutting blade, make sure that
there are no cracks or any damage in it and that
the cutting edges are facing the correct direction.
Align the notch hole of the cutter holder with
the hole on the gear case cover and insert the
Allen wrench to stop turning. Turn the xing nut
clockwise and remove the  xing nut, protection
cover,cutter holder cap, and toothed lock
washers.The installation of the cutting blade is
as follows: insert the Allen wrench into the notch
hole of the cutter holder and the hole on the gear
case. Then, install the cutting blade (check the
installing direction, as referring to Fig. 14), the
cutter holder cap, protection cover and toothed
lock washers onto the cutter holder in this order.
Finally, tighten the xing nut securely by turning
counterclockwise with the Combi box spanner.
(Fig. 12)
CAUTION
○When installing the cutting blade, set its center
hole to the convex part of the cutter holder and
hold it with the concave surface of the cutter
holder cap. Then, tighten the xing nut to prevent
the cutting blade from being eccentric. (Fig. 12)
After installing the cutting blade, be sure to
remove the Allen wrench and Combi box spanner.

11
○Before operation, make sure the blade has
been properly installed. (Fig. 13)
○Before operation, check the cutter holder cap
under the cutting blade for wear or cracks. If any
damage or wear is found,replace it, as it is an
article of consumption.
NOTE
The blade must be retained with a new cotter
pin each time installed. (Fig. 12)
Installation of nylon head (Fig. 15)
If your unit has nylon head, follow the installation.
Attach cutter holder (15) to the gear case. Insert
an Allen wrench into the hole in the gear case to
attach winding protector (16) and attach nylon
head (17) by turning it clockwise.
NOTE
○Since cutter holder cap is not used here, keep
it for next metal blade use.
○To attach the guard extension, refer to the
drawings. Wear gloves as the extension has a
sharp line limiter, then push the guard extension
to blade guard when make sure put on two tabs.
After attach the screw. (Fig. 10, 11)
OPERATING PROCEDURES
Fuel (Fig. 16)
WARNING
The backpack brush cutter is equipped with a
two-stroke engine. Always run the engine on
fuel, which is mixed with oil.
Provide good ventilation, when fueling or
handling fuel.
Fuel is highly flammable and toxic and can
result in serious injury if it is inhaled or comes
into contact with your skin. Always handle fuel
with care. Always have good ventilation when
handling fuel inside building.
○
○
Fuel
Always use branded 89 octane unleaded
gasoline.
Use genuine two-cycle oil or use a mix
between 25:1 to 50:1,please consult the oil
bottle for the ratio or Hitachi dealer.
If genuine oil is not available, use an anti-
oxidant added quality oil expressly labeled
for air-cooled 2-cycle engine use (JASO FC
GRADE OIL or ISO EGC GRADE). Do not use
BIA or TCW(2-stroke water-cooling type) mixed
oil.
Never use multi-grade oil (10 W/30) or waste
oil.
Always mix fuel and oil in a separate clean
container.
○
○
○
○
○
Always start by filing half the amount of fuel,
which is to be used. Then add the whole amount
of oil. Mix (shake) the fuel mixture. Add the
remaining amount of fuel.
Mix (shake) the fuel-mix thoroughly before lling
the fuel tank.
Fueling
WARNING
Always shut off the engine before refueling.
Slowly open the fuel tank, when filling up
with fuel, so that possible over-pressure
disappears.
Tighten the fuel cap carefully, after fueling.
Always move the brush cutter at least 3 m from
the fueling area before starting.
Always wash any spilled fuel from clothing
immediately with soap.
○
○
○
○
○
Be sure to check for any fuel leakage after
refueling.
○
Before fueling, clean the tank cap area carefully,
to ensure that no dirt falls into the tank. Make
sure that the fuel is well mixed by shaking the
container, before fueling.
Starting
CAUTION
Before starting, make sure the cutting attachment
does not touch anything.

12
1. Slide ignition switch (18) to RUN position. (Fig.
17)
* Push priming bulb (19) several times so that
fuel  ows through return pipe. (Fig. 18)
2. Set choke lever (20) to START position (A).
(Fig. 19)
3. Pull recoil starter briskly, taking care to keep
the handle in your grasp and not allowing it to
snap back. (Fig. 20)
4. When you hear the engine want to start, return
choke lever to RUN position (B). Then pull recoil
starter briskly again.
NOTE
If engine does not start, repeat procedures from 2
to 4.
5. After starting engine, allow the engine about
2–3 minutes to warm up before subjecting it to
any load.
7. Check that the cutting attachment does not
rotate when the engine is idling.

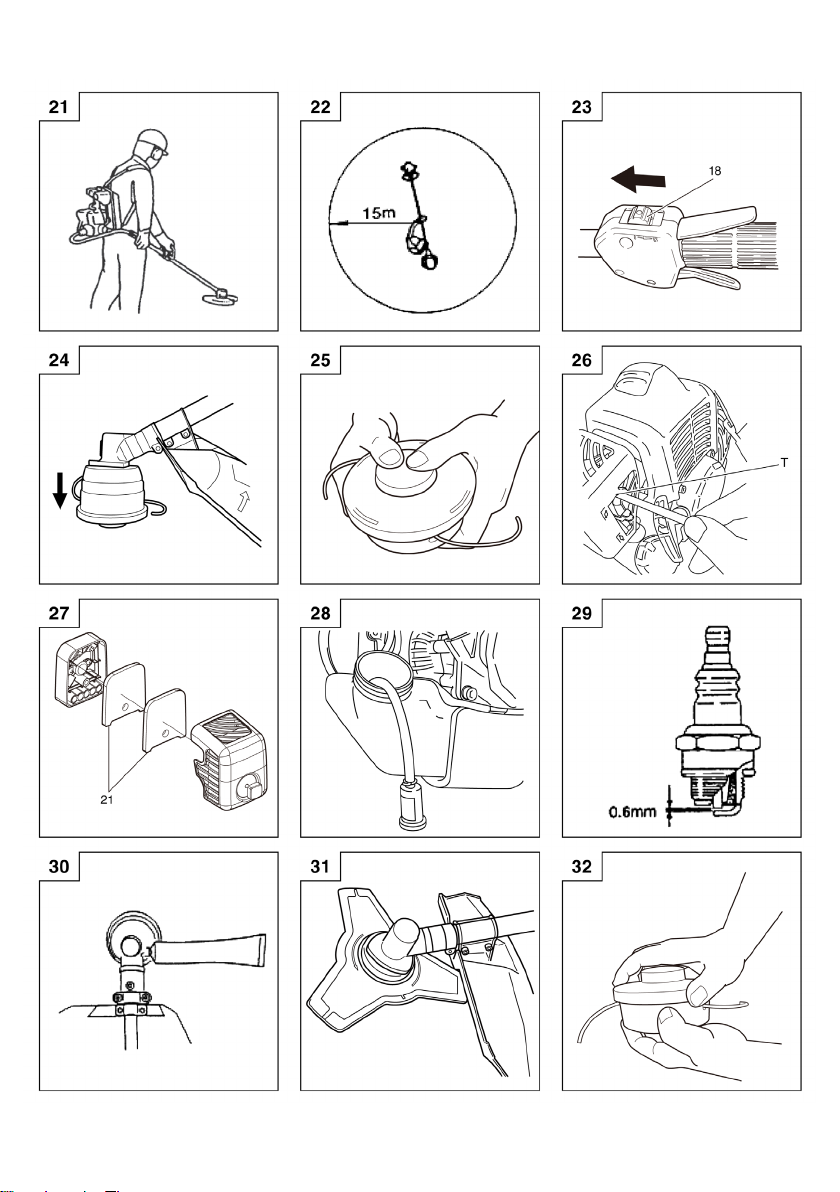

Cutting (Fig. 21,22)
When cutting, operate engine at over 6500
min-1. Extended time of use at low rpm may
wear out the clutch prematurely.
Cut grass from right to left.
When working on a slope, the blade should
allow the contour from top to bottom, with the
operator looking down to the left.
Blade thrust may occur when the spinning
blade contacts a solid object in the critical
area.
A dangerous reaction may occur causing the
entire unit and operator to be thrust violently.
○
○
○
○
This reaction is called blade thrust. As a result,
the operator may lose control of the unit which
may cause serious or fatal injury. Blade thrust
is more likely to occur in areas where it is dif
cult to see the material to be cut.
The blade turns counter-clockwise, therefore,
be advised to operate the unit from right to
left for ef cient cutting. Keep onlookers out of
working area at least 15 m.
○
parts are undamaged. When grass or vines wrap
around attachment, stop engine and attachment
and remove them.
WARNING
Stopping (Fig. 23)
Decrease engine speed and run at an idle for a
few minutes, then turn off ignition switch (18).
WARNING
A cutting attachment can injure while it
continues to spin after the engine is stopped
or power control is released. When the unit is
turned off , make sure the cutting attachment
has stopped before the unit is set down.
How to use nylon head
When cutting, operate engine at over 6500 min-1.
Extended use at low rpm may wear out the clutch
prematurely.
This product is designed so that it will stop cutting
when the nylon line becomes 16 cm or longer.
A cutting attachment can injure while it
continues to spin after the engine is stopped
or power control is released. When the unit is
turned off , make sure the cutting attachment
has stopped before the unit is set down.
Set the engine speed as low as possible and
tap the Head on the ground. (Fig. 24) Also,
you can extend nylon line with hands but the
engine must be completely stopped. (Fig. 25)
Adjust nylon line to proper length 11-14 cm
before each operation.
If cutting attachment should strike against
stones or other debris, stop the engine and
make sure that the attachment and related
WARNING

13
MAINTENANCE
MAINTENANCE, REPLACEMENT OR REPAIR
OF THE EMISSION CONTROL DEVICES AND
SYSTEMS MAY BE PERFORMED BY ANY NON-
ROAD ENGINE REPAIR ESTABLISHMENT OR
INDIVIDUAL.
Carburetor adjustment (Fig. 26)
WARNING
The cutting attachment may be spinning during
carburetor adjustments.
Never start the engine without the complete
clutch cover and tube assembled! Otherwise
the clutch can come loose and cause personal
injuries.
○
○
In the carburetor, fuel is mixed with air. When the
engine is test run at the factory, the carburetor is
basically adjusted. A further adjustment may be
required, according to climate and altitude. The
carburetor has one adjustment possibility:
T = Idle speed adjustment screw.
Idle speed adjustment (T)
Check that the air  lter is clean. When the idle
speed is correct, the cutting attachment will not
rotate. If adjustment is required, close (clockwise)
the T-screw, with the engine running, until the
cutting attachment starts to rotate. Open (counter-
clockwise) the screw until the cutting attachment
stops. You have reached the correct idle speed
when the engine runs smoothly in all positions
well below the rpm when the cutting attachment
starts to rotate.
If the cutting attachment still rotates after idle
speed adjustment, contact Hitachi Authorized
Service Centers.
NOTE
Standard Idle rpm is 2500–3000 min-1.
WARNING
When the engine is idling the cutting
attachment must under no circumstances
rotate.
Air  lter (Fig. 27)
The air  lter must be cleaned from dust and dirt
in order to avoid:
○ Carburetor malfunctions
○ Starting problems
○ Engine power reduction
○ Unnecessary wear on the engine parts
○ Abnormal fuel consumption
Clean the air lter daily or more often if working in
exceptionally dusty areas.
Cleaning the air  lter
Remove the air filter cover and the filter (21).
Rinse it in warm soap suds. Check that the fi
lter is dry before reassembly. An air fi lter that
has been used for some time cannot be cleaned
completely. Therefore, it must regularly be
replaced with a new one. A damaged lter must
always be replaced.
Fuel lter (Fig. 28)
Drain all fuel from fuel tank and pull fuel filter
line from tank. Pull filter element out of holder
assembly and rinse element in warm water with
detergent.
Rinse thoroughly until all traces of detergent are
eliminated. Squeeze, do not wring, away excess
water and allow element to air dry.
NOTE
If element is hard due to excessive dirt
buildup, replace it.
Spark plug (Fig. 29)
The spark plug condition is inuenced by:
○An incorrect carburetor setting
○Wrong fuel mixture (too much oil in the
gasoline)
○A dirty air lter
○Hard running conditions (such as cold weather)
These factors cause deposits on the spark plug
electrodes, which may result in malfunction and
starting difculties. If the engine is low on power,
difficult to start or runs poorly at idling speed,
always check the spark plug rst. If the spark plug
is dirty, clean it and check the electrode gap. Re-
adjust if necessary. The correct gap is 0.6 mm.
The spark plug should be replaced after about
100 operation hours or earlier if the electrodes
are badly eroded.
Angle transmission (Fig. 30)
Check angle transmission or angle gear for

14
grease level about every 50 hours of operation
by removing the grease ller plug on the side of
angle transmission.
If no grease can be seen on the flanks of the
gears, fill the transmission with quality lithium
based multipurpose grease up to 3/4. Do not
completely ll the transmission.
Nylon head
Nylon line replacement

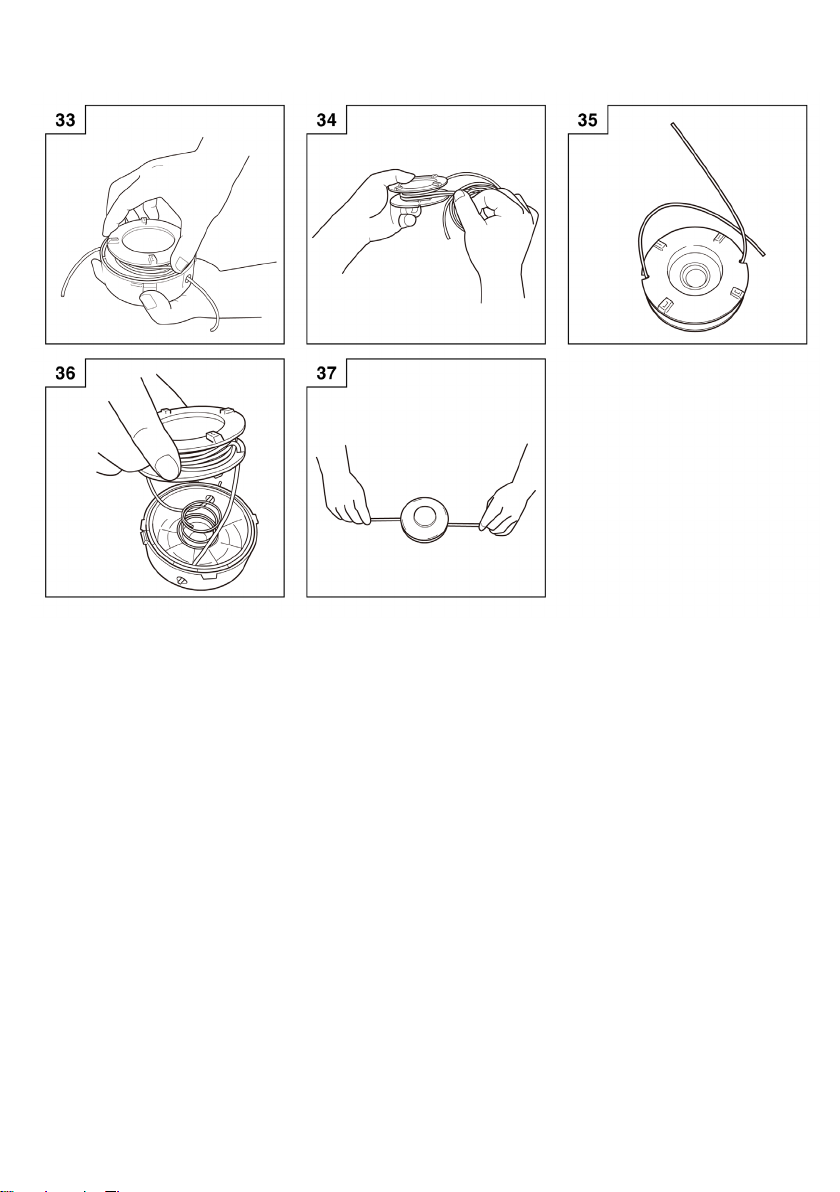

Remove the cutting body cap by pushing inward
the locking tabs on the side of the nylon head (Fig.
32). Take out the spool(Fig. 33), hook the new
nylon line into the hole of the spool, then wind it
around the spool (Fig. 34).
When the nylon line has been wound around the
spool,temporarily fasten it in the opening of the
spool at about 10 cm from the end. (Fig. 35) Then
thread the nylon line through the hole on the side
of the nylon head and place the cutting body cap
in reverse order of the cap removal (Fig. 36). Pull
the right and left nylon lines until they are secured
about 15 - 16 cm from the end. (Fig. 37)
NOTE
○The nylon head is designed for nylon lines
with an outer diameter of 2.5 mm. Do not
use nylon lines with a diff erent outer
diameter.
○ Make sure that the right and left nylon lines
are of equal length since vibrations will
otherwise increase.
Blade
WARNING
Wear protective gloves when handling or
performing maintenance on the blade.(Fig.
31)
Flexible shaft
Lubricate exible shaft from clutch housing side
by removing it every 20 hours of use.
Use a sharp blade. A dull blade is more likely
to snag and thrust. Replace the fastening nut
if it is damaged and hard to tighten.
When replacing blade, purchase one
recommended by Hitachi,with a 25.4 mm (one
inch)  tting hole.
When installing a saw blade, always face the
stamped side up. In the case of a 3 tooth
○
○
○
blade, it can be used on either side.
Use the correct blade for the type of work.
When replacing blades, use appropriate tools.
When cutting edges become dull, re-sharpen
or fi le as shown in the illustration. Incorrect
sharpening may cause excessive vibration.
Discard blades that are bent, warped, cracked,
broken or damaged in any way.
○
○
○
○
NOTE
When sharpening blade it is important to
maintain an originalshape of radius at the base
of the tooth to avoid cracking.
Maintenance schedule
Below you will find some general maintenance
instructions. For further information please
contact your dealer.
Daily maintenance
Clean the exterior of the unit.
Check that the harness is undamaged.
Check the blade guard for damage or cracks.
Change the guard in case of impacts or
cracks.
Check that the cutting attachment is properly
centred, sharp, and without cracks. An off
-centre cutting attachment induces heavy
vibrations that may damage the unit.
Check that the cutting attachment nut is
sufciently tightened.
○
○
○
○
○
○
○
○
○
Check the starter, especially the cord and
return spring.
Clean the exterior of the spark plug.
Remove it and check the electrode gap. Adjust
it to 0.6 mm, or change the spark plug.
Check that the angle gear is lled with grease
up to 3/4.
Clean the air lter.
Weekly maintenance
○
○
○
Rinse the fuel tank with gasoline.
Clean the exterior of the carburetor and the
space around it.
Clean the fan and the space around it.
Monthly maintenance
○
Make sure that the blade transport guard is
undamaged and that it can be securely tted.
Check that nuts and screws are sufficiently
tightened.
Check that the unit is undamaged and free of
defects.
○
○
○

For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and
the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose.
If the machine needs to be repaired in the guarantee period, please return the machine to the shop. You need to provide
the certificate of purchase in order to repair or get the substitute.
Before Packing, the machine should be cleaned, then use closed packaging, packaging should be firm. Store the machine
in dry place.
For transportation safety. The machine should comply with ISTA.
Meaning of crossed - out wheeled dustbin:
Do not dispose of electrical machines as unsorted municipal waste, use separate collection facilities.
If electrical machines are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get
into the food chain, damaging your health and well-being.
When replacing old machines with new ones, the retailer is legally obligated to take back your old machine for disposals
at least free of charge.
INSPECTION & MAINTENANCE

www.parklandspowerproducts.com.au
PRO-22EAB
O
WƌŽĨĞƐƐŝŽŶĂů^ĞƌŝĞƐ
Parklands Power Products PTY LTD
106 Belmore Road North
Riverwood NSW 2210
inf[email protected]
1300 284 377
Power Products
BETTER Products, BETTER Service, BEST Price
