Parkside Performance PDSSAP 20-Li A1 User manual

CORDLESS IMPACT DRIVER
Translation of the original instructions
AKKU-DREHSCHLAGSCHRAUBER
Originalbetriebsanleitung
VISSEUSE À CHOCS SANS FIL
Traduction des instructions d’origine
ACCU-DRAAISLAGSCHROEFMACHINE
Vertaling van de originele gebruiksaanwijzing
CORDLESS IMPACT DRIVER PDSSAP 20-Li A1
IAN 329780_2001
CV_329780_PDSSAP20-LiA1_LB6.indd 1-3 28.08.20 13:01

GB/IE/NI Translation of the original instructions Page 1
FR/BE Traduction des instructions d’origine Page 15
NL/BE Vertaling van de originele gebruiksaanwijzing Pagina 29
DE/AT/CH Originalbetriebsanleitung Seite 43
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device.
Avant de lire le mode d'emploi, ouvrez la page contenant les illustrations et familiarisez-vous ensuite avec
toutes les fonctions de l'appareil.
Vouw vóór het lezen de pagina met de afbeeldingen open en maak u vertrouwd met alle functies van het
apparaat.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.
CV_329780_PDSSAP20-LiA1_LB6.indd 1-3 28.08.20 13:01

A
1a
CV_329780_PDSSAP20-LiA1_LB6.indd 4-6 28.08.20 13:01

All Parkside tools and the chargers PLG 20 A1/PLG 20 A2/PLG 20 A3/PDSLG 20 A1 of the
X20V Team series are compatible with the PAP 20 A1/PAP 20 A2/PAP 20 A3 battery pack.
Charging times
Charging currents
2 Ah
Battery pack
PAP 20 A1
3 Ah
Battery pack
PAP 20 A2
4 Ah
Battery pack
PAP 20 A3
max. 2.4 A
Charger PLG 20 A1
60 min
2,4 A
90 min
2,4 A
120 min
2,4 A
max. 3.5 A
Charger PLG 20 A2
45 min
3,5 A
60 min
3,5 A
80 min
3,5 A
max. 4.5 A
Charger PLG 20 A3
35 min
3,8 A
45 min
4,5 A
60 min
4,5 A
max. 4.5 A
Charger PDSLG 20 A1
35 min
3,8 A
45 min
4,5 A
60 min
4,5 A
20V max.
18V
CV_329780_PDSSAP20-LiA1_LB6.indd 4-6 28.08.20 13:01

PDSSAP 20-Li A1 GB│IE│NI │1 ■
Contents
Introduction............................................................ 2
Intended use........................................................................2
Features ...........................................................................2
Package contents ....................................................................2
Technical specifications ...............................................................2
General power toolsafety warnings .......................................3
1. Work area safety..................................................................4
2. Electrical safety ...................................................................4
3. Personal safety....................................................................4
4. Power tool use and care ............................................................5
5. Use and handling of the cordless electrical power tool.....................................5
6. Service ..........................................................................6
Appliance-specific safety instructions for impact wrenches ....................................6
Original accessories/attachments .......................................................6
Before use .............................................................7
Charging the battery pack (see fig. A)....................................................7
Inserting/removing the battery pack .....................................................8
Checking the battery charge level .......................................................8
Switching on/off.....................................................................8
Setting/preselecting the rotation speed/tightening torque.....................................8
Changing the direction of rotation .......................................................8
Inserting/replacing tools ..............................................................8
Maintenance and cleaning................................................9
Disposal...............................................................9
Kompernass Handels GmbH warranty ....................................10
Service ...............................................................11
Importer .............................................................11
Original declaration of conformity ........................................12
Ordering a replacement battery..........................................13
Telephone ordering .................................................................13
IB_329780_PDSSAP20-LiA1_LB6.indb 1 07.08.20 13:58

PDSSAP 20-Li A1
■ 2 │ GB│IE│NI
CORDLESS IMPACT DRIVER
PDSSAP 20-LI A1
Introduction
Congratulations on the purchase of your new tool.
You have chosen a high-quality product. The oper-
ating instructions are part of this product. They
contain important information about safety, usage
and disposal. Before using the product, please
familiarise yourself with all operating and safety
instructions. Use the product only as described and
for the range of applications specified. Please also
pass all associated documents on to any future
owner(s).
Intended use
This appliance is intended for screwing in and
unscrewing screws as well as for tightening and
loosening nuts. The appliance has clockwise/anti-
clockwise rotation, a 1/4" hexagon socket bit
holder and an LED working light. The light on this
appliance is intended to illuminate the immediate
work area of the appliance. The rotary impact
function of the appliance enables the power of the
motor to be converted into uniform rotary impacts.
The impact mechanism comes into effect during
tightening and loosening.
The appliance is designed for use by adults. Young
people under 16 years of age may only use the
appliance under supervision. The manufacturer
accepts no liability for damages caused by
improper use or incorrect operation of the appli-
ance.
Use this appliance only as described and for the
application areas specified. The appliance is not
intended for commercial use. Any other usage or
modification of the appliance is deemed to be
improper and carries a significant risk of accidents.
The manufacturer accepts no responsibility for
damage attributable to misuse.
Features
Tool holder
1a Locking collar
Rotation direction switch/lock
Belt clip
LED work light
Torque display
Torque preselection
ON/OFF switch/speed control
Battery pack*
Release button for the battery pack
High-speed charger*
-Battery display LED
3Battery charge level button
!Red charge control LED
.Green charge control LED
Package contents
1 cordless impact driver
1 belt clip
1 carrying case
1 set of operating instructions
Technical specifications
Cordless Impact Driver PDSSAP 20-Li A1
Rated voltage 20 V (DC)
Gears 3-speed gearbox
Rated idle speed 1st gear n00–1900 rpm
2nd gear n00–2800 rpm
3rd gear n00–3600 rpm
Impact frequency 1st gear 0–2200/min
2nd gear 0–3400/min
3rd gear 0–4300/min
Torque levels 1st level 120 Nm
2nd level 180 Nm
3rd level 226 Nm
Max. screw capacity M16
Tool holder 1/4" hexagon socket
IB_329780_PDSSAP20-LiA1_LB6.indb 2 07.08.20 13:58

PDSSAP 20-Li A1 GB│IE│NI │3 ■
PAP 20 A3* battery
Type LITHIUM ION
Rated voltage 20 V (DC)
Capacity 4 Ah
Cells 10 (80 Wh)
High-speed battery charger PLG 20 A3*
INPUT
Rated voltage 230–240 V ∼ 50 Hz
(AC)
Rated power
consumption 120 W
Fuse (internal) 3.15 A T3.15A
OUTPUT
Rated voltage 21.5 V (DC)
Rated current 4.5 A
Charging time approx. 60min
Protection class II/ (double insulation)
* BATTERY AND CHARGER ARE NOT SUPPLIED
Noise emission value
Noise measurement value determined in accor-
dance with EN 62841. The A-rated noise level of
the power tool is typically as follows:
Sound pressure level LPA = 80 dB (A)
Uncertainty KPA = 3 dB
Sound power level: LWA = 91 dB (A)
Uncertainty KWA = 3 dB
Vibration emission value
Total vibration values (vector total of three direc-
tions) determined in accordance with EN 62841:
Tightening screws and nuts of maximum permissible
size ah= 2.7 m/s2
Uncertainty K = 1.5 m/s2
Wear ear muffs!
NOTE
► The vibration emission values and the noise
emission values given in these instructions have
been measured in accordance with a stan-
dardised test procedure and can be used for
comparison of the power tool with another tool.
► The specified total vibration values and the
noise emission values can also be used to
make a provisional load estimate.
WARNING!
► Depending on the manner in which the
power tool is being used, and in particular
the kind of workpiece being worked, the
vibration and noise emission values can
deviate from the values given in these instruc-
tions during actual use of the power tool.
► Try to keep the vibration load as low as
possible. Measures to reduce the vibration
load are, e.g. wearing gloves and limiting the
working time. Wherein all states of operation
must be included (e.g. times when the power
tool is switched off and times where the power
tool is switched on but running without load).
General power
toolsafety warnings
WARNING!
►Read all safety warnings, instructions, illus-
trations and specifications provided with
this power tool. Failure to follow all instruc-
tions listed below may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
IB_329780_PDSSAP20-LiA1_LB6.indb 3 07.08.20 13:58

PDSSAP 20-Li A1
■ 4 │ GB│IE│NI
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks,
which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts.Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medi-
cation. A moment of inattention while operating
power tools may result in serious personal injury.
b) Use
personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate condi-
tions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
power tool is switched off before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising
power tools that have the switch on invites acci-
dents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use
of dust collection can reduce dust-related
hazards.
h) Do not allow yourself to get lulled into a false
sense of security and do not ignore the safety
rules for power tools, even if you are familiar
with the power tool after repeated use. A care-
less action can cause severe injury within a frac-
tion of a second.
IB_329780_PDSSAP20-LiA1_LB6.indb 4 07.08.20 13:58

PDSSAP 20-Li A1 GB│IE│NI │5 ■
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or remove the battery pack, if detach-
able, from the power tool before making any
adjustments, changing accessories, or storing
power tools. Such preventive safety measures
reduce the risk of starting the power tool acci-
dentally.
d) Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and acces-
sory tools etc. in accordance with these
instructions, taking into account the working
conditions and the work to be performed.
Using power tools for operations different from
those intended can result in hazardous situa-
tions.
h) Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unex-
pected situations.
5. Use and handling of the cordless
electrical power tool
a) Charge a rechargeable battery using only
the charger recommended by the manufac-
turer. Chargers are often designed for a partic-
ular type of rechargeable battery unit. There is
a risk of fire if other types of rechargeable
battery units are used.
b) Only the rechargeable battery units supplied
are to be used with an electrical power tool.
The use of other rechargeable battery units may
lead to the danger of injury or fire.
c) When they are not being used, store
rechargeable battery units away from paper-
clips, coins, keys, nails, screws or other small
metal objects that could cause the contacts to
be bridged. Short-circuiting the contacts of a
rechargeable battery unit may result in heat
damage or fire.
d) Fluids may leak out of rechargeable battery
units if they are misused. If this happens,
avoid contact with the fluid. If contact occurs,
flush the affected area with water. Seek addi-
tional medical help if any of the fluid gets into
your eyes. Escaping battery fluid may cause
skin irritation or burns.
e) Do not use a damaged or modified battery.
Damaged or modified batteries may behave
unexpectedly and cause fires, explosions or
pose a risk of injury.
f) Do not expose a battery to fire or excessively
high temperatures. Fire or temperatures in
excess of 130°C (265°F) can cause an explo-
sion.
g) Follow all instructions regarding charging
and never charge the battery or the cordless
tool outside of the temperature range given in
the operating instructions. Incorrect charging
or charging outside of the permissible tempera-
ture range can destroy the battery and increase
the risk of fire.
IB_329780_PDSSAP20-LiA1_LB6.indb 5 07.08.20 13:58

PDSSAP 20-Li A1
■ 6 │ GB│IE│NI
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable
batteries.
Protect the recharge-
able battery from heat (for example, from
continuous exposure to sunlight), fire, water
and moisture. There is a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified
repair person using only identical replace-
ment parts. This will ensure that the safety of
the power tool is maintained.
b) Never try to repair damaged batteries. Main-
tenance of batteries should only be carried out
by the manufacturer or an approved customer
service centre.
Appliance-specific safety instructions
for impact wrenches
■Wear ear muffs when using the impact
wrench. Exposure to loud noise can lead to
hearing loss.
■Secure the workpiece. A workpiece securely
held by a clamping device or vice is much safer
than one held in your hand.
■Hold the power tool firmly. High torques can
occur for brief periods while tightening and
loosening screws.
■Wait until the power tool has come to a stand-
still before putting it down. The accessory tool
can jam, leading to loss of control of the power
tool.
■Hold the power tool by the insulated gripping
surfaces when performing an operation
where a screw may contact hidden wiring.If a
screw comes into contact with a live wire, this
may make exposed metal parts of the power
tool live and could give the operator an electric
shock.
Original accessories/attachments
■ Use only the accessories and additional equip-
ment that are specified in the operating instruc-
tions and are compatible with the appliance.
WARNING!
■ Do not use any accessories that are not
recommended by PARKSIDE. Doing so could
lead to an electric shock and/or fire.
ATTENTION! Hot surface.
There is a risk of burns.
IB_329780_PDSSAP20-LiA1_LB6.indb 6 07.08.20 13:58

PDSSAP 20-Li A1 GB│IE│NI │7 ■
Safety guidelines for battery chargers
■ This appliance may be used by chil-
dren aged 8 years and above and
by persons with limited physical,
sensory or mental capabilities or
lack of experience and knowledge,
provided that they are under super-
vision or have been told how to use
the appliance safely and are aware
of the potential risks. Do not allow
children to play with the appliance.
Do not allow children to carry out
cleaning and user maintenance
tasks unless they are supervised.
■ To avoid potential risks, damaged
mains cables should be replaced
by the manufacturer, their customer
service department or a similarly
qualified person.
The charger is suitable for indoor use only.
WARNING!
■ To avoid potential risks, damaged mains
cables should be replaced by the manufac-
turer, their customer service department or a
similarly qualified person.
ATTENTION!
♦ This charger can only charge the following
batteries: PAP 20 A1/PAP 20 A2/PAP20 A3.
♦ A current list of battery compatibility can be
found at www.Lidl.de/Akku.
Before use
Charging the battery pack (see fig. A)
CAUTION!
► Always unplug the appliance before you
remove the battery pack from or connect the
battery pack to the charger.
NOTE
► Never charge the battery pack if the ambient
temperature is below 10°C or above 40°C.
If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level
is between 50% and 80%. The storage climate
should be cool and dry, and the ambient
temperature should be between 0°C and
50°C.
♦ Insert the battery packinto the high-speed
charger(see fig. A).
♦ Insert the power plug into the socket. The
control LED!lights up red.
♦ The green control LED.indicates that
charging is complete and the battery pack
is ready for use.
ATTENTION!
♦ If the red control LED!flashes, this means
that the battery packhas overheated and
cannot be charged.
♦ If the red and green control LEDs!. both
flash, this means that the battery packis
defective.
♦ Push the battery packinto the tool.
♦ Switch off the charger for at least 15 minutes
between successive charging sessions. Also
disconnect the power plug from the mains power
socket.
IB_329780_PDSSAP20-LiA1_LB6.indb 7 07.08.20 13:58

PDSSAP 20-Li A1
■ 8 │ GB│IE│NI
Inserting/removing the battery pack
Inserting the battery pack
♦ Set the rotation direction switchto the middle
position (lock). Snap the battery packinto
the handle.
Removing the battery pack
♦ Press the release buttonand remove the
battery pack.
Checking the battery charge level
♦ Press the battery charge level button 3to
check the charge level of the battery (see also
main diagram).
The status/remaining charge will be shown on
the battery display LED -as follows:
RED/ORANGE/GREEN = maximum charge
RED/ORANGE = medium charge
RED = low charge – charge the battery
Switching on/off
Switching on
♦ Press and hold the ON/OFF switch to start
the tool.
The LED work light lights up when the ON/
OFF switchis pressed lightly or fully.
This provides illumination of the work area in
poor lighting conditions.
Switching off
♦ Release the ON/OFF switch to switch off the
appliance.
Setting/preselecting the rotation
speed/tightening torque
♦ Press the torque preselection buttonto select
the required torque incrementally. The selected
torque is shown on the torque display.
♦ Pressing the ON/OFF switchlightly yields a
low speed. Increasing the pressure increases
the speed/tightening torque.
♦ The tightening torque depends on the selected
speed/torque preselection and impact duration.
NOTE
► When tightening wheel nuts, however, the
smallest torque setting must be selected to
avoid over-tightening.
► The integrated motor brake ensures rapid
stoppage.
ATTENTION!
♦ The tightening torque actually attained must
always be checked with a torque wrench!
Changing the direction of rotation
♦ Change the direction of rotation by pushing the
rotation direction switchto the right or left.
Inserting/replacing tools
♦ Pull the locking collar 1a backwards. Insert a
suitable tool into the tool holder.
♦ Pull the locking collar 1a backwards again to
remove the tool.
IB_329780_PDSSAP20-LiA1_LB6.indb 8 07.08.20 13:58

PDSSAP 20-Li A1 GB│IE│NI │9 ■
Maintenance and cleaning
WARNING! RISK OF INJURY! Always
switch the appliance off and remove
the battery before carrying out any
work on the appliance.
The appliance is maintenance-free.
■ The appliance must always be kept clean, dry
and free from oil or grease.
■ Never allow liquids to get into the tool.
■ Use a dry cloth to clean the housing. Never use
petrol, solvents or cleansers which can damage
plastic.
■ If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The optimum storage
environment is cool and dry.
NOTE
► Spare parts which are not listed (e.g. carbon
brushes, switches) can be ordered via our
Service Hotline.
Disposal
The packaging for this product is made
from environmentally friendly material
and can be disposed of at your local
recycling plant.
Do not dispose of power tools
in your normal domestic waste!
European Directive 2012/19/EU
requires that worn-out power tools be
collected separately and recycled in an environ-
mentally compatible manner.
Do not dispose of batteries in
your normal household waste
Defective or worn-out batteries must be
recycled according to Directive
2006/66/EC. Take the battery pack and/or
appliance to a nearby collection facility.
Please contact your local authority or town council
for information about disposal options for used
power tools/battery packs.
Dispose of the packaging in an environ-
mentally friendly manner. Note the
labelling on the packaging and sepa-
rate the packaging material compo-
nents for disposal if necessary. The packaging
material is labelled with abbreviations (a) and
numbers (b) with the following meanings:
1–7: plastics, 20–22: paper and cardboard,
80–98: composites.
Your local community or municipal
authorities can provide information on
how to dispose of the worn-out product.
IB_329780_PDSSAP20-LiA1_LB6.indb 9 07.08.20 13:58

PDSSAP 20-Li A1
■ 10 │ GB│IE│NI
Kompernass Handels GmbH
warranty
Dear Customer,
This appliance has a 5-year warranty valid from the
date of purchase. If this product has any faults, you,
the buyer, have certain statutory rights. Your statu-
tory rights are not restricted in any way by the
warranty described below.
Warranty conditions
The warranty period starts on the date of purchase.
Please keep your receipt in a safe place. This will
be required as proof of purchase.
If any material or manufacturing fault occurs within
5 years of the date of purchase of the product, we
will either repair or replace the product for you or
refund the purchase price (at our discretion). This
warranty service requires that you present the
defective appliance and the proof of purchase
(receipt) within the 5-year warranty period, along
with a brief written description of the fault and of
when it occurred.
If the defect is covered by the warranty, your
product will either be repaired or replaced by us.
The repair or replacement of a product does not
signify the beginning of a new warranty period.
The X20V Team Series battery packs are guaran-
teed for 3 years from the date of purchase.
Warranty period and statutory claims for
defects
The warranty period is not prolonged by repairs
effected under the warranty. This also applies to
replaced and repaired components. Any damage
and defects present at the time of purchase must be
reported immediately after unpacking. Repairs
carried out after expiry of the warranty period shall
be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accord-
ance with strict quality guidelines and inspected
meticulously prior to delivery.
The warranty covers material faults or production
faults. The warranty does not extend to product
parts subject to normal wear and tear or to fragile
parts which could be considered as consumable
parts such as switches or parts made of glass.
The warranty does not apply if the product has
been damaged, improperly used or improperly
maintained. The directions in the operating instruc-
tions for the product regarding proper use of the
product are to be strictly followed. Uses and
actions that are discouraged in the operating
instructions or which are warned against must be
avoided.
This product is intended solely for private use and
not for commercial purposes. The warranty shall be
deemed void in cases of misuse or improper
handling, use of force and modifications/repairs
which have not been carried out by one of our
authorised Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity
overtime
■ Commercial use of the product
■ Damage to or alteration of the product by the
customer
■ Non-compliance with safety and maintenance
instructions, operating errors
■ Damage caused by natural hazards
IB_329780_PDSSAP20-LiA1_LB6.indb 10 07.08.20 13:58

PDSSAP 20-Li A1 GB│IE│NI │11 ■
Warranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
■ Please have the till receipt and the item number
(e.g.IAN12345) available as proof of purchase.
■ You will find the item number on the type plate
on the product, an engraving on the product,
on the front page of the operating instructions
(below left) or on the sticker on the rear or
bottom of the product.
■ If functional or other defects occur, please
contact the service department listed either by
telephone or by e-mail.
■ You can return a defective product to us free of
charge to the service address that will be
provided to you. Ensure that you enclose the
proof of purchase (till receipt) and information
about what the defect is and when it occurred.
You can download these instructions
along with many other manuals,
product videos and installation soft-
ware at www.lidl-service.com.
This QR code will take you directly to the Lidl
service page (www.lidl-service.com) where you
can open your operating instructions by entering
the item number (IAN) 329780_2001.
WARNING!
►Have your appliances repaired by the
Service Centre or a trained electrician, and
use only original spare parts.This will ensure
that the safety of the appliance is maintained.
►Ensure that the power plug or the mains
cable is replaced only by the manufacturer
of the appliance or by an approved
customer service provider.This will ensure
that the safety of the appliance is maintained.
Service
Service Great Britain
Tel.: [phone]
E-Mail: [email protected]
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [email protected]
IAN 329780_2001
Importer
Please note that the following address is not the
service address. Please use the service address
provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
IB_329780_PDSSAP20-LiA1_LB6.indb 11 07.08.20 13:58

PDSSAP 20-Li A1
■ 12 │ GB│IE│NI
Original declaration of conformity
We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21,
44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards,
normative documents and EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declara-
tion described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and
Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Related harmonised standards
EN 62841-1:2015
EN 62841-2-2:2014
EN 55014-1:2017
EN 55014-1:2006/A2:2011
EN 55014-2:2015
EN 55014-2:1997/A2:2008
EN 60335-2-29:2004/A11:2018
EN 60335-1:2012/A2:2019
EN 62233:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 50581:2012
Type/tool designation: Cordless Impact Driver PDSSAP 20-Li A1
Year of manufacture: 07–2020
Serial number: IAN 329780_2001
Bochum, 20/05/2020
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
IB_329780_PDSSAP20-LiA1_LB6.indb 12 07.08.20 13:58

PDSSAP 20-Li A1 GB│IE│NI │13 ■
Ordering a replacement battery
If you want to order a replacement battery for your appliance, you can do so easily via the Internet on
www.kompernass.com or by telephone.
Due to limited stocks, this item may sell out in a relatively short time.
NOTE
► Online ordering of replacement parts is not possible in all countries.
In this case, please contact the Service hotline.
Telephone ordering
Service Great Britain Tel.: [phone]
Service Ireland Tel.: [phone] (0,08 EUR/Min., · peak | 0,06 EUR/Min., · off peak)
To ensure fast processing of your order, have the article number of your appliance to hand (e.g. IAN329780)
in case of questions. The article number can be found on the type plate or the title page of these instructions.
IB_329780_PDSSAP20-LiA1_LB6.indb 13 07.08.20 13:58

PDSSAP 20-Li A1
■ 14 │ GB│IE│NI
IB_329780_PDSSAP20-LiA1_LB6.indb 14 07.08.20 13:58

PDSSAP 20-Li A1 FR│BE │ 15 ■
Table des matières
Introduction...........................................................16
Utilisation conforme à l'usage prévu ....................................................16
Équipement........................................................................16
Matériel livré ......................................................................16
Caractéristiques techniques ...........................................................16
Avertissements de sécurité généraux pour l'outil électrique ...................17
1. Sécurité de la zone de travail .......................................................18
2. Sécurité électrique ................................................................18
3. Sécurité des personnes ............................................................18
4. Utilisation et entretien de l'outil électrique ..............................................19
5. Utilisation et manipulation d'un outil à accu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
6. Service après-vente ...............................................................20
Consignes de sécurité spécifiques aux visseuses à chocs ....................................20
Accessoires/équipements supplémentaires d'origine........................................20
Avertissements de sécurité relatifs aux chargeurs...........................................21
Avant la mise en service ................................................21
Recharger le bloc-batterie (voir fig. A) ...................................................21
Mettre/retirer le bloc-batterie dans l'appareil .............................................22
Contrôler l'état de la batterie ..........................................................22
Allumer/éteindre ...................................................................22
Réglage/sélection de la vitesse de rotation/du couple de serrage.............................22
Inverser le sens de rotation............................................................22
Mettre en place/remplacer les outils ....................................................22
Maintenance et nettoyage...............................................23
Recyclage ............................................................23
Garantie de Kompernass Handels GmbH ..................................24
Service après-vente ....................................................25
Importateur...........................................................25
Déclaration de conformité d'origine .......................................26
Commande des batteries de rechange.....................................27
Commande téléphonique.............................................................27
IB_329780_PDSSAP20-LiA1_LB6.indb 15 07.08.20 13:58

PDSSAP 20-Li A1
■ 16 │ FR│BE

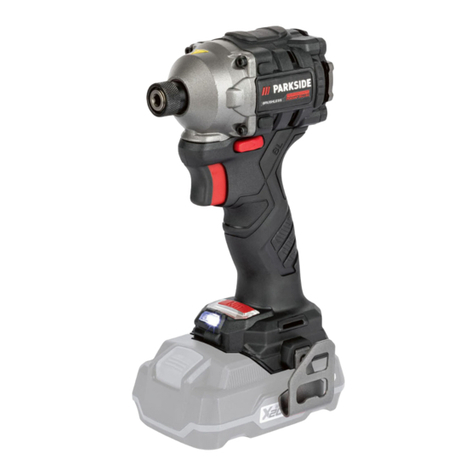

VISSEUSE À CHOCS SANS FIL
PDSSAP 20-LI A1
Introduction
Nous vous félicitons pour l'achat de votre nouvel
appareil. Vous venez ainsi d'opter pour un produit
de grande qualité. Le mode d'emploi fait partie de
ce produit. Il contient des remarques importantes
concernant la sécurité, l'utilisation et le recyclage.
Avant d'utiliser le produit, veuillez vous familiariser
avec toutes les consignes d'utilisation et avertisse-
ments de sécurité. N'utilisez le produit que confor-
mément aux descriptions et pour les domaines
d'utilisation prévus. Si vous cédez le produit à un
tiers, remettez-lui également tous les documents.
Utilisation conforme à l'usage prévu
Cet appareil est destiné au vissage et dévissage de
vis ainsi qu'au serrage et desserrage d'écrous.
L'appareil présente une marche à droite/à gauche,
un porte-embout six pans creux 1/4“ et une lampe
de travail LED. La lumière de cet appareil sert à
éclairer la zone de travail immédiate de l'appareil.
La fonction de vissage à chocs de l'appareil permet
de transformer la force du moteur en percussions
rotatives régulières. Le mécanisme de percussion
est engagé lors du vissage et du dévissage.
L'appareil est conçu pour être utilisé par des
adultes. Les jeunes de plus de 16 ans ne doivent
utiliser l'appareil que sous surveillance. Le fabricant
décline toute responsabilité pour tous dommages
résultant de l'utilisation non conforme à sa destina-
tion ou incorrecte de l'appareil.
N'utilisez l'appareil que conformément aux
consignes et pour les domaines d'utilisation prévus.
L'appareil n'est pas conçu pour un usage profes-
sionnel. Toute utilisation autre ou modification de
l'appareil est considérée comme non conforme et
s'accompagne de risques d'accident non négli-
geables. Le fabricant n'assume aucune responsabi-
lité pour les dommages résultant d'une utilisation
non conforme à l'usage prévu.
Équipement
Porte-outil
1a Manchon de verrouillage
Commutateur de sens de rotation/verrouillage
Clip de ceinture
Lampe de travail LED
Indicateur de couple
Sélection du couple
Interrupteur MARCHE/ARRÊT/réglage de la
vitesse
Bloc-batterie*
Touche de déverrouillage du bloc-batterie
Chargeur rapide*
-LED d'affichage de la batterie
3Touche d'état de la batterie
!LED rouge de contrôle de charge
.LED verte de contrôle de charge
Matériel livré
1 visseuse à chocs sans fil
1 clip de ceinture
1 mallette de transport
1 mode d'emploi
Caractéristiques techniques
Visseuse à chocs sans fil PDSSAP 20-Li A1
Tension nominale 20 V (courant continu)
Transmission Transmission à 3 vitesses
Vitesse nominale
à vide 1er niveau n00–1900 min-1
2e niveau n00–2800 min-1
3e niveau n00–3600 min-1
Fréquence de
percussion 1er niveau 0–2200/min
2e niveau 0–3400/min
3e niveau 0–4300/min
Niveaux de couple 1er niveau 120 Nm
2e niveau 180 Nm
3e niveau 226 Nm
Capacité de vissage
max. M16
Porte-outil 1/4“ hexagonal
IB_329780_PDSSAP20-LiA1_LB6.indb 16 07.08.20 13:58
