Using the Operator’s manual
The operating manual is an important part of your generator and should
be read thoroughly before initial use, and referred to often to make sure
adequate safety and service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal injury
or damage to your machine. By knowing how best to operate this
machine you will be better positioned to show others who may also
operate the unit.
This manual was written to take you from the safety requirements to the
operating functions of your machine. You can refer back to the manual at
any time to help troubleshoot any specific operating functions, so store it
with the machine at all times.
If you need to contact an Authorized Dealer or Customer Service line for
information on servicing or warranty claims, always provide the product
model and identification numbers.
You will need to locate the model and serial number for the machine and
record the information in the spaces provided below.
Attention: Read through the complete manual
prior to the initial use of your generator.
INTRODUCTION
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identification Numbers
Model Number:
Serial Number:

5
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial and/or a safety message to alert
you to hazards.
DANGER Indicates a hazard which, if not avoided, will result in death or
serious injury.
WARNING Indicates a hazard which, if not avoided, could result in death or
serious injury.
CAUTION Indicates a hazard which, if not avoided, might result in minor or
moderate injury.
NOTICE Indicates a situation that could result in equipment damage.
Follow safety messages to avoid or reduce the risk of injury or
death.
Save these Instructions
Safety Warnings
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey
all safety messages that follow this symbol to
avoid possible injury or death.
Hazard Symbols and Meanings
explosion
kickback read manual
fire electric shock
toxic fumes
SAFETY

6
1. SAFETY INFORMATION
Read and understand this owner’s manual before operating your
generator. It will help you avoid accidents if you are familiar with your
generator’s safe operation procedures.
WARNING
Generator exhaust contains carbon monoxide, a
poisonous gas that can kill you.
You CANNOT smell or see this gas.
• Use the generator outdoors, away from open windows, vents, or
doors that could allow the carbon monoxide gas to come indoors.
Keep the generator at least 1 meter (3 feet) away from any structure
or building during use.
• NEVER use a generator indoors, including in homes, garages,
basements, crawl spaces, and other enclosed or partially-enclosed
areas, even with ventilation. Opening doors and windows or using
fans will not prevent carbon monoxide build-up in the home.
• NEVER use a generator in enclosed or partially-enclosed spaces.
Generators can produce high levels of carbon monoxide very quickly.
When you use a portable generator, remember that you cannot smell
or see carbon monoxide. Even if you can’t smell exhaust fumes, you
may still be exposed to carbon monoxide.
• NEVER operate the generator in an explosive atmosphere, near
combustible materials or where ventilation is not sufficient to carry
away exhaust fumes. Exhaust fumes can cause serious injury or death.
• If you start to feel sick, dizzy, or weak while using a generator, get
to fresh air RIGHT AWAY. DO NOT DELAY. The carbon monoxide
from generators can rapidly lead to full incapacitation and death.
• If you experience serious symptoms, get medical attention
immediately. Inform medical staff that carbon monoxide poisoning
is suspected. If you experienced symptoms while indoors, have
someone call the fire department to determine when it is safe to
re-enter the building.
SAFETY

7
WARNING
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or death.
When Adding or Draining Fuel
• Observe all safety regulations for the safe handling of fuel. Handle
fuel in safety containers. If the container does not have a spout, use
a funnel.
• Do not overfill the fuel tank, leave room for the fuel to expand.
• Do not refill fuel tank while the engine is running. Before refueling the
generator, turn it off and let it cool down. Gasoline spilled on hot
engine parts could ignite.
• Fill the tank only on an area of bare ground. While fueling the tank,
keep heat, sparks and open flame away. Carefully clean up any spilled
fuel before starting engine.
• Always fill fuel tank in an area with plenty of ventilation to avoid
inhaling dangerous fumes.
• NEVER store fuel for your generator in the home. Gasoline, propane,
kerosene, and other flammable liquids should be stored outside of
living areas in properly-labeled, non-glass safety containers. Do not
store them near a fuel-burning appliance, such as a natural gas water
heater in a garage. If the fuel is spilled or the container is not sealed
properly, invisible vapors from the fuel can travel along the ground and
can be ignited by the appliance’s pilot light or by arcing from electric
switches in the appliance.
SAFETY

8
WARNING
• The GFCI may not function unless the generator is properly
grounded. Follow the correct procedure specified in the section
labeled GROUNDING INSTRUCTIONS.
Ground Fault Circuit Interrupter Protection
These generators are equipped with a GFCI (Ground Fault Circuit
Interrupters) 120V duplex receptacles for protection against the hazards
of electrical shock from defective attachments such as, tools, cords,
and cables.
A GFCI is a device that interrupts electricity from either the utility or
generator by means of a special type of circuit breaker that determines if
a current flow to the ground occurs.
A GFCI can be used only with generators that have the neutral wire
internally bonded to the frame, and the frame properly grounded to the
earth. A GFCI will not work on generators that do not have the neutral
wire bonded to the frame, or on generators which have not been properly
grounded.
SAFETY

9
DANGER
Improper grounding can result in a risk of electrocution.
Check with a qualified electrician for your local
requirements if you are in doubt as to whether the unit
is properly grounded.
• This generator is equipped with a grounding terminal for added
protection. Using the ground path from the generator to an external
ground source as instructed in the section labeled “Grounding
Instructions” in the Preparation section of this manual can be
necessary. Please consult a qualified electrician for local regulations.
• The generator is a potential source of electrical shock if not kept dry.
Keep the generator dry and do not use in rain or wet conditions. To
protect from moisture, operate it on a dry surface under an open,
canopy-like structure. Dry your hands if wet before touching the
generator.
• Plug appliances directly into the generator. Or, use a heavy duty,
outdoor-rated extension cord that is rated (in watts or amps) at least
equal to the sum of the connected appliance loads. Check that the
entire cord is free of cuts or tears and that the plug has all three
prongs,especially a grounding pin.
• NEVER try to power the house wiring by plugging the generator into
a wall outlet, a practice known as “back feeding”. This is an extremely
dangerous practice that presents an electrocution risk to utility
workers and neighbors served by the same utility transformer. It also
bypasses some of the built-in household circuit protection devices.
• If you must connect the generator to the house wiring to power
appliances, have a qualified electrician install the appropriate
equipment in accordance with local electrical codes.
This product has been designed with internal grounding or floating
bonded neutral. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk
of electric shock.
SAFETY

10
DESCRIPTION
2100
1. Carrying Handle
2. Fuel Tank Cap Air Vent Knob
3. Fuel Tank Cap
4. Control Panel
5. Recoil Starter
6. Oil Filler Cap
7. Louver
8. Muffler
9. Spark Plug Maintenance Cover

11
DESCRIPTION
2100
1. Oil Warning Light
2. Overloading Indicator Light
3. AC Pilot Light
4. ESC (Engine Smart Control)
5. 3 in 1 Switch Knob (Inlcuding
start/stop switch, fuel valve, and
choke)
6. AC Receptacle
7. DC Receptacle
8. Ground (Earth) Terminal
9. DC Protector
10. Parallel Operation Outlets
11. V.F.T Meter

12
4. CONTROL FUNCTION
4.1 3 in 1 switch knob
(1) Engine switch\fuel valve “OFF”;
Ignition circuit is switched off. Fuel is switched off.
The engine will not run if switch is in this position.
(2) Engine switch\fuel valve\choke “ON”;
Ignition circuit is switched on. Fuel is switched on. Choke is switched
on. The engine can be running.
(3) Engine switch\fuel valve\choke “CHOKE”;
Ignition circuit is switched on. Fuel is switched on. Choke is switched
off. The engine can be started.
TIP: The choke “ ” is not required to start a warm engine.
4.2 Oil warning light (red)
When the oil level falls below the lower level, the oil warning light (1)
comes on and then the engine stops automatically. Unless you refill with
oil, the engine will not start again.
TIP: If the engine stalls or does not start, turn the engine switch to “ON”
and then pull the recoil starter. If the oil warning light flickers for a few
seconds, the engine oil is insufficient. Add oil and restart.
CONTROL FUNCTION

13
4.3 Overload indicator light (red)
The overload indicator light (1) comes on when an overload of a
connected electrical device is detected, the inverter control unit
overheats, or the AC output voltage rises. Then, the AC protector will
trip, stopping power generation in order to protect the generator and any
connected electric devices. The AC pilot light (Green) will go off and the
overload indicator light (Red) will stay on, but the engine will not stop
running.
When the overload indicator light comes on and power generation stops,
proceed as follows:
1. Turn off any connected electric devices and stop the engine.
2. Reduce the total wattage of connected electric devices within the
rated output.
3. Check for blockages in the cooling air inlet and around the control
unit. If any blockages are found, remove.
4. After checking, restart the engine.
TIP: The overload indicator light may come on for a few seconds at first
when using electric devices that require a large starting current, such as
a compressor or a submergible pump. However, this is not a malfunction.
4.4 AC pilot light (green)
The AC pilot light (1) comes on when the engine starts and produces
power.
CONTROL FUNCTION

14

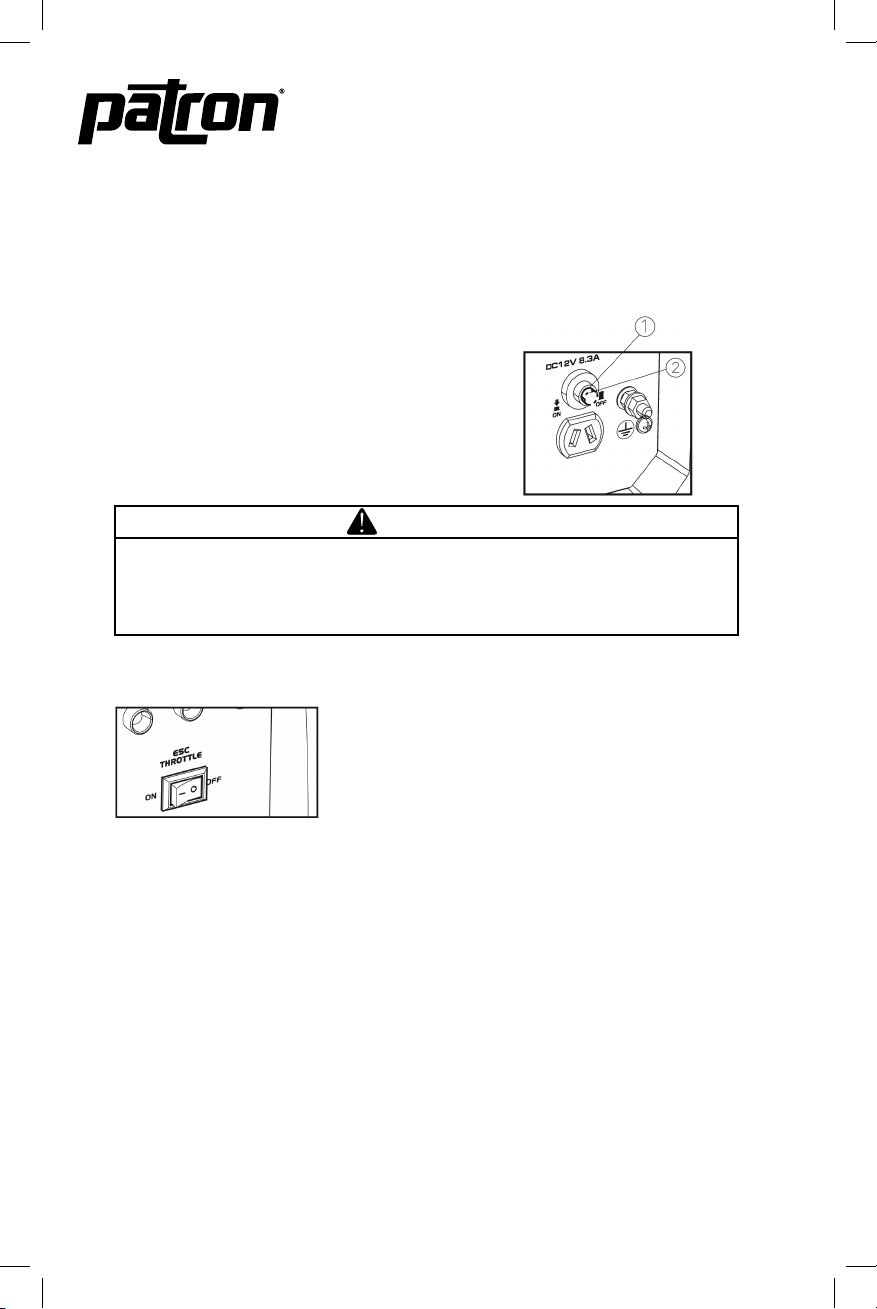

4.5 DC protector
The DC protector turns to “OFF” (2) automatically when electric device
being connected to the generator is operating and current above the
rated flows. To use this equipment again, turn on DC protector by
pressing its button to “ON” (1)
(1) “ON”
Direct current is output.
(2) “OFF”
Direct current is not output.
CAUTION
• Reduce the load of the connected electric device below the specified
rated output of the generator if the DC protector turns off. If the DC
protector turns off again, stop using the device immediately and
consult our company authorized dealer.
4.6 Engine smart control (ESC)
①
(1) “ON”
When the ESC switch is turned to “ON”, the economy control unit
controls the engine speed according to the connected load. This results in
greatly reduced noise.
(2) “OFF”
When the ESC switch is turned to“OFF”, the engine runs at the rated
r/min(4500r/min) regard-less of whether is a load connected or not.
TIP: The ESC must be turned to“OFF”when using electric devices that
require a large starting current, such as a compressor of a submergible
pump.
CONTROL FUNCTION

15
4.7 Fuel tank cap
Remove the fuel tank cap by turning it counterclockwise.
4.8 Fuel tank cap air vent knob
The fuel tank cap (2) is provided with an air vent knob to (1) stop fuel
flow. The air vent knob must be turned to “ON”. This will allow fuel to flow
to the carburetor and the engine to run. When the engine is not in use,
turn the air vent knob to “OFF” to stop fuel flow.
4.9 Ground (Earth) terminal
Ground (Earth) terminal (1) connects the earth line for prevention of
electric shock. When the electric device is grounded, always the ground
the generator.
CONTROL FUNCTION
THE GENERATOR (STATOR WINDING) IS ISOLATED FROM THE FRAME AND
FROM THE AC RECEPTACLE GROUND PIN.
ELECTRICAL DEVICES THAT REQUIRE A GROUNDED RECEPTACLE PIN
CONNECTION WILL NOT FUNCTION IF THE RECEPTACLE GROUND PIN IS NOT
FUNCTIONAL.

16
5. PREPARATION
5.1 Fuel
DANGER
• Fuel is highly flammable and poisonous. Check
“SAFETY INFORMATION” carefully before filling.
• Do not overfill the fuel tank, otherwise it may
overflow when the fuel warms up and expands.
• After filling, make sure the fuel tank cap is
tightened securely.
NOTICE
• Immediately wipe off spilled fuel with a clean, dry, soft cloth, since fuel
may deteriorate painted surfaces or plastic parts.
• Use only unleaded gasoline. The use of leaded gasoline will cause
severe damage to internal engine parts.
Remove the fuel tank cap and fill the fuel into the tank up to the red level.
(1) Red line (2) Fuel level
Recommended fuel:
Unleaded gasoline
Fuel tank capacity:
Total: 4.2L (2100)
NOTICE
• The generator has been shipped without engine oil. Do not start the
engine without filling with the sufficient engine oil.
5.2 Engine oil
1. Place the generator on a level surface.
2. Remove the screws (1), and then remove the cover (2).
3. Remove the oil filler cap (3).
4. Fill the specified amount of the recommended engine oil, and then install
and tighten the oil filler cap.
PREPARATION

17
5. Install the cover and tighten the screws.
Recommended engine oil: SAE 10W30
Recommended engine oil grade: API Service SE type or higher
Engine oil quantity: 0.35L (2100L)
5.3 Pre-Operation check
WARNING
• If any item in the Pre-operation check is not working properly, have it
inspected and repaired before operating the generator.
• The condition of a generator is the owner’s responsibility. Vital
components can start to deteriorate quickly and unexpectedly, even if
the generator unused.
TIP: Pre-operation checks should be made each time the generator is
used.
Pre-operation check
Fuel (See page 16)
• Check fuel level in fuel tank.
• Refuel if necessary.
Engine oil (See page 17)
• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check generator for oil leakage.
PREPARATION
1200I
2100I
1200I 2100I

18
6. OPERATION
WARNING
• Never operate the engine in a closed area or it may cause
unconsciousness and death within a short time. Operate the engine
in a well ventilated area.
• Before starting the engine, do not connect any electric devices.
NOTICE
• The generator has been shipped without engine oil. Do not start the
engine till fill with the sufficient engine oil.
• Do not tilt the generator when adding engine oil. This could result in
overfilling and damage to the engine.
TIP: The generator can be used with the rated output load at standard
atmospheric conditions.
“Standard atmospheric conditions”
Ambient temperature 25
Barometric pressure 100kPa
Relative humidity 30%
The output of the generator varies due to change temperature, altitude
(lower air pressure at higher altitude) and humidity.
The output of the generator is reduced when the temperature, the
humidity and the altitude are higher than standard atmospheric
conditions.
Additionally, the load must be reduced when using in a confined area, as
generator cooling is affected.
PREPARATION

19
6.1 Starting the engine
1. Turn the ESC switch to “OFF” (1).
2. Turn the air vent knob to “ON” (2).
3. Turn the 3 in 1 switch to “CHOKE” (3),
a. Ignition circuit is switched on.
b. Fuel is switched on.
c. Choke is switched off
TIP: The choke is not required to start a warm engine. Push the choke
knob in to the position “ON”.
4. Pull slowly on the recoil starter until
it is engaged, then pull it briskly.
TIP: Grasp the carrying handle firmly to prevent the generator from falling
over when pulling the recoil starter.
5. After the engine starts, warm up the
engine until the engine does not stop
when the choke knob is returned to the
“ON” position (4).
TIP: When starting the engine, with the ESC “ON”, and there is no load
on the generator:
• In ambient temperature below 0°C (32°F), the engine will run at the
rated r/min (4500r/min) for 5 minutes to warm up the engine.
• In ambient temperature below 5°C (41°F), the engine will run at the
rated r/min (4500r/min) for 3 minutes to warm up the engine.
• The ESC unit operates normally after the above time period, while the
ESC is “ON”.
OPERATION

20
6.2 Stopping the engine
TIP: Turn off any electric devices.
1. Turn the ESC to “OFF” (1).
2. Disconnect any electric devices.
3. Turn the 3 in 1 switch to “OFF” (2),
a. Ignition circuit is switched off.
b. Fuel is switched off.
4. Turn the fuel tank cap air vent knob to
“OFF” (3) after the engine has
completely cooled down.
OPERATION
