Paugge ENT-SP20B4HBT User manual

Paugge
ENT-SP20B4HBT
18Gbps HDMI 1×4
HDBaseT Splitter
VER 1.1

Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction......................................................................................... 1
2. Features............................................................................................... 1
3. Package Contents.............................................................................. 1
4. Specifications. .................................................................................... 2
5. Operation Controls and Functions. ................................................... 3
5.1 Transmitter. .................................................................................... 3
5.2 HDBaseT Receiver......................................................................... 5
5.3 IR Pin Definition.............................................................................. 6
6. EDID Mode. ......................................................................................... 7
7. ASCII Commands. .............................................................................. 8

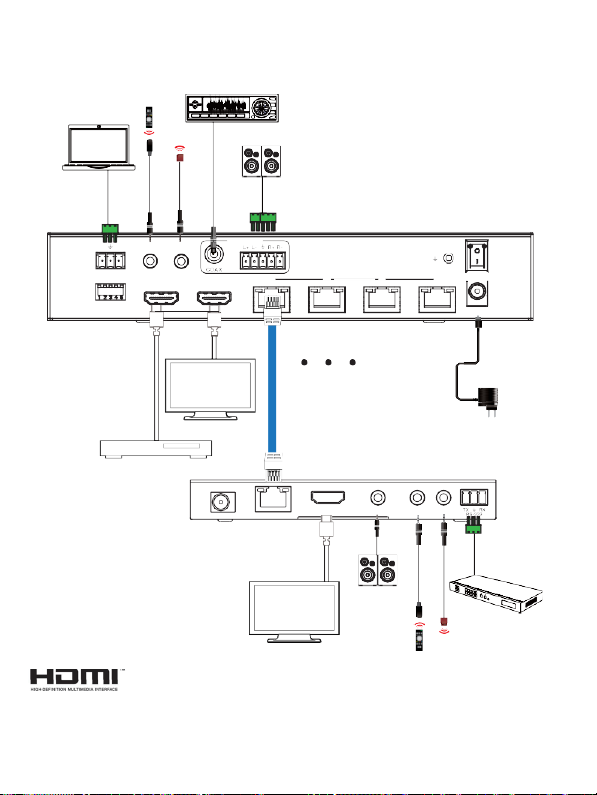

8. Application Example.......................................................................... 12

-1-
1. Introduction
Paugge 18Gbps HDMI 1x4 HDBaseT Splitter can distribute 1 source
signal to any 4 display devices. Support video resolution up to
4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 4 HDBaseT
outputs. The HDMI signal transmission distance can be extended up to
120 meters at the resolution of 4K2K@60Hz, or 150 meters at
1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and
RS-232 signal pass-through, audio extract function and advanced EDID
management.
2. Features
☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@60Hz 4:4:4
☆ Support HDR, HDR10+, HLG and Dolby vision
☆ Support up to 7.1CH HD audio pass-through
☆ Support digital and analog audio de-embedded output
☆ Extend the signal transmission distance up to 120 meters at the resolution
of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
☆ Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs.
☆ IR, RS-232 routed to HDBaseT output
☆ Advanced EDID management
☆ Support one-way POC function (only from transmitter to receiver)
☆ Compact design for easy and flexible installation
3. Package Contents
① 1 × 18Gbps HDMI 1×4 HDBaseT Splitter
② 4 × HDBaseT Receiver
③ 5 × IR Blaster Cable (1.5 meters)
④ 5 × 20K~60KHz IR Receiver Cable (1.5 meters)
⑤ 5 × 3-pin Phoenix Connector
⑥ 1 × 5-pin Phoenix Connector
⑦ 10 × Mounting Ear
⑧ 1 × 24V/2.7A DC Locking Power Adapter
⑨ 1 × User Manual

-2-
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance HDCP 2.2/1.x
Video Bandwidth
594MHz/18Gbps
Video Resolution
Up to 4k2k@60Hz 4:4:4
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space
RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR
Support HDR, HDR10+, HLG, Dolby vision
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master,
DTS HD-HRA, DTS-X
Coaxial Audio Formats
PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Audio Formats
PCM 2.0CH
ESD Protection
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connection
Input
1×HDMI Type A (19-pin female)
Output
1×HDMI Type A (19-pin female）
4x HDBaseT OUT [RJ45]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [5-pin phoenix connector]
Control
1×RS-232 (3-pin phoenix connector）
1x EDID DIP switch [5-pin]
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]

-3-
1/
18Gbps HDMI 1x4 HDBaseT Splitter
IN LOOP
1 2 3
4
1 2 3 4 OUT
Mechanical
Housing
Metal Enclosure
Silkscreen Color
Black
Dimensions
Transmitter: 220mm (W) × 130mm (D) × 40mm (H)
Receiver: 140mm (W) × 65mm (D) × 18mm (H)
Weight Transmitter: 853g
Receiver: 246g
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 24V/2.7A
(US/EU standards, CE/FCC/UL certified)
Power Consumption 35W
Operation
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
5. Operation Controls and Functions
5.1 Transmitter

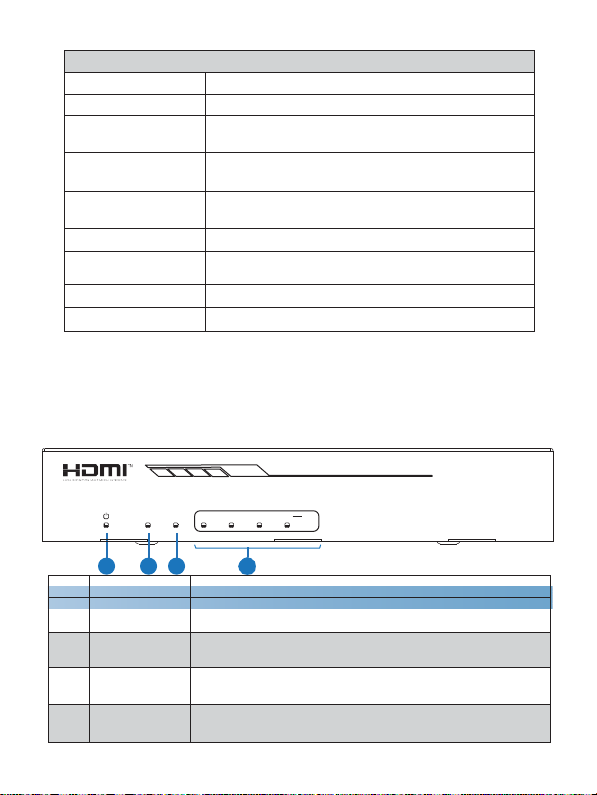

Front Panel
No. Name Function Description
1POWER LED
When the device is powered on, the red power LED will
be on.
2IN LED
When the HDMI IN port connects an active source device,
the green LED will be on.
3LOOP LED
When the HDMI LOOP OUT port connects an active
display device, the green LED will be on.
4OUT(1~4) LED
When the HDBT OUTPUT port connects an HDBaseT
Receiver, the corresponding green OUT LED will be on.

-4-
1
2 3
4
5
AUDIO OU T
TX RX
IN OUT
ON
RS-232
IR
IN
1
2 HDBT OUTP UT 3
4
OFF
1
0
LOOP OUT
EDID
HDMI
DC 24V
6
7
8
9 10 11

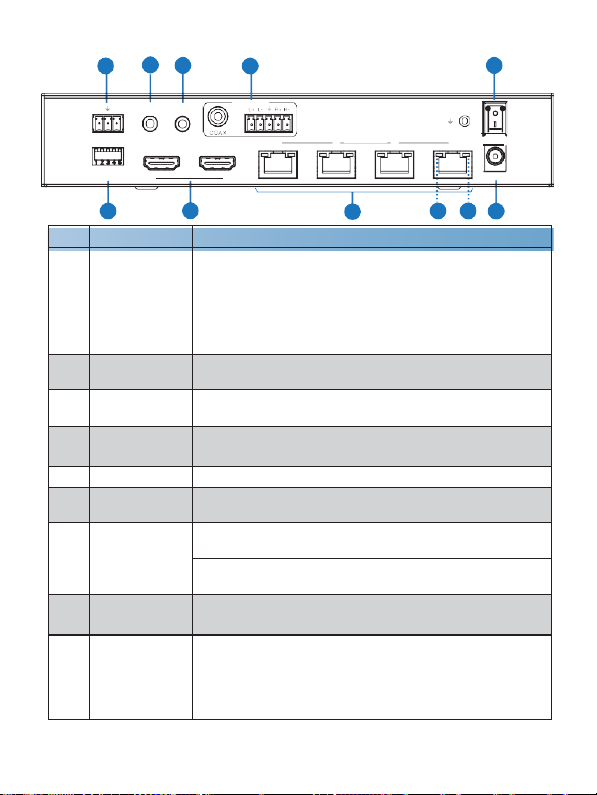

Rear Panel
No.
Name
Function Description
1 RS-232
Connect to a PC or control system via a 3-pin phoenix
connector cable for three functions:
1, Firmware update;
2, Control the Splitter via RS-232 commands;
3, RS-232 signal pass-through (from transmitter to
receiver or from receiver to transmitter).
2IR IN
Connect to IR receiver cable, the IR receive signal will
emit to “IR OUT” port of the HDBaseT Receiver.
3IR OUT
Connect to IR blaster cable, the IR emit signal is from “IR
IN” port of the HDBaseT Receiver.
4
AUDIO OUT
(COAX, L/R)
Coaxial/balanced audio output port, connect to amplifer or
speaker.
5
POWER switch
Press this switch to power on/off the device.
6EDID DIP
switch
Used to set EDID mode. Please refer to Section “6. EDID
Mode” for details.
7
HDMI port
IN: HDMI input port, connect to HDMI source device such
as DVD or set-top box with an HDMI cable.
LOOP OUT: HDMI loop output port, connect to the HDMI
display device such as TV or Monitor with an HDMI cable.
8
HDBT OUTPUT
port (1~4)
Connect to the HDBT IN port of the HDBaseT receiver
with a CAT cable.
9
Connection
Signal Indicator
lamp (Green)
▪Illuminating: Transmitter and Receiver are in good
connection status.
▪
Flashing: Transmitter and Receiver are in poor
connection status.
▪Dark: Transmitter and Receiver are not connected.

-5-
HDMI OUT
AUDIO OUT
IR IN IR OUT
3
5 6
4
7
8
9
10
11
SERVICE
1
2
10
Data Signal
Indicator lamp
(Orange)
▪Illuminating: HDMI signal with HDCP.
▪Flashing: HDMI signal without HDCP.
▪Dark: No HDMI signal.
11
DC 24V
Plug the DC 24V power supply into the unit and connect
the adaptor to an AC outlet. (Note: The transmitter can
power the receiver via a CAT cable.)

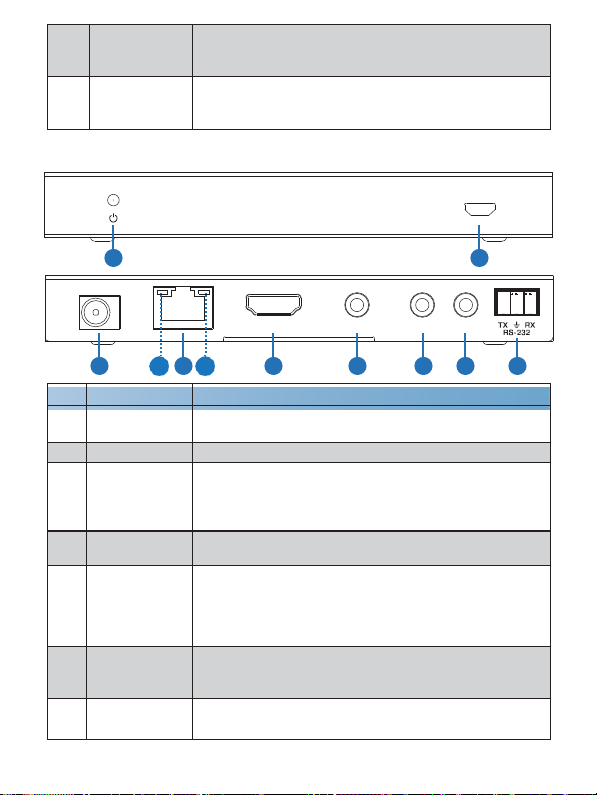

5.2 HDBaseT Receiver
No. Name Function Description
1Power Indicator
When the receiver is powered on, the power indicator will
be on.
2
SERVICE port
Used for firmware update.
3
DC 24V
Plug DC 24V/1A power supply into the unit and connect
the adapter to an AC outlet.
(Note: The HDBaseT receiver also can be powered by the
transmitter via a CAT cable.)
4HDBT IN
Connect to the HDBT OUTPUT port on the transmitter
with a CAT cable.
5
Connection
Signal Indicator
lamp (Green)
▪Illuminating: Transmitter and Receiver are in good
connection status.
▪Flashing: Transmitter and Receiver are in poor
connection status.
▪Dark: Transmitter and Receiver are not connected.
6
Data Signal
Indicator lamp
(Orange)
▪Illuminating: HDMI signal with HDCP.
▪Flashing: HDMI signal without HDCP.
▪Dark: No HDMI signal.
7HDMI OUT HDMI output port, connect to HDMI display device such
as TV or Projector with an HDMI cable.
DC 24V
HDBT IN

-6-
.
5.3 IR Pin Definition
IR Receiver IR Blaster
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
Note: When the angle between the IR receiver and the remote control is ± 45 °, the
transmission distance is 0-5 meters; when the angle between the IR receiver and the
remote control is ± 90 °, the transmission distance is 0-8 meters.
IR Blaster
IR Receiver
8
AUDIO OUT
Audio output port, connect to amplifer or speaker.
9IR IN
Connect to the IR Receiver cable. The IR signal will send
to the IR OUT port of the transmitter.
10 IR OUT
Connect to the IR blaster cable, the IR signal is from IR
IN port of the transmitter.
11 RS-232
3-pin Phoenix connector for RS-232 command
transmission. The RS-232 command will pass-through
from transmitter to receiver or from receiver to transmitter

-7-
6. EDID Mode
The defined EDID setting list of the product is shown as below:
EDID Mode
EDID Description
11111
1080P, Stereo Audio 2.0
11110
1080P, Dolby/DTS 5.1
11101
1080P, HD Audio 7.1
11100
1080I, Stereo Audio 2.0
11011
1080I, Dolby/DTS 5.1
11010
1080I, HD Audio 7.1
11001
1080P 3D, Stereo Audio 2.0
11000
1080P 3D, Dolby/DTS 5.1
10111
1080P 3D, HD Audio 7.1
10110
4K2K30Hz_444, Stereo Audio 2.0
10101
4K2K30Hz_444, Dolby/DTS 5.1
10100
4K2K30Hz_444, HD Audio 7.1
10011
4K2K60Hz_420, Stereo Audio 2.0
10010
4K2K60Hz_420, Dolby/DTS 5.1
10001
4K2K60Hz_420, HD Audio 7.1
10000
4K2K60Hz_444, Stereo Audio 2.0
01111
4K2K60Hz_444, Dolby/DTS 5.1
01110
4K2K60Hz_444, HD Audio 7.1
01101
4K2K60Hz_444, Stereo Audio 2.0 HDR
01100
4K2K60Hz_444, Dolby/DTS 5.1 HDR
01011
4K2K60Hz_444, HD Audio 7.1HDR
01010
COPY_FROM_LOOP OUT
01001
COPY_FROM_HDBT OUT1
01000
COPY_FROM_HDBT OUT2
00111
COPY_FROM_HDBT OUT3
00110
COPY_FROM_HDBT OUT4
00101
1080P, Stereo Audio 2.0
00100
1080P, Stereo Audio 2.0
00011
1080P, Stereo Audio 2.0
00010
1080P, Stereo Audio 2.0
00001
1080P, Stereo Audio 2.0
00000
PC control mode

-8-
7. ASCII Commands
The product also supports ASCII command control. Connect the RS-232 port
of the product to a PC with a 3-pin phoenix connector cable. Then, open a
Serial Command tool on PC to send ASCII commands to control the product.
The ASCII command list about the product is shown as below.
ASCII Commands
Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0
x - Parameter 1
y - Parameter 2
! - Delimiter
Command Code
Function Description Example Feedback Default Setting
Power
s power z!
Power on/off the
device,z=0~1
(z=0 power off, z=1 power on)
s power 1!
Power on
System Initializing...
Initialization Finished!
FW version x.xx.xx
power on
r power!
Get current power state
r power!
power on/power off
s reboot! Reboot the device
s reboot!
Reboot…
System Initializing...
Initialization Finished!
FW version x.xx.xx
System Setup
help!
List all commands
help!
r type!
Get device model
r type!
ENT-SP20B4HBT
r status! Get device current status r status!
Get the unit all status:
power,
in/out connection,
edid mode
r fw version! Get Firmware version r fw version!
MCU BOOT: Vx.xx.xx
MCU APP: Vx.xx.xx
r link in!
Get the connection status of
the input port r link in! HDMI IN: connect
r link out y!
Get the connection status of
the y output port,y=0~5(0=all,
1~4=HDBT 1~4, 5 = loop out)
r link out 1!
hdmi loop out:
connect
hdbt output 1:
connect
s reset! Reset to factory defaults s reset!
Reset to factory
defaults
System Initializing...
Initialization Finished!
FW version x.xx.xx

-9-
Command Code Function Description Example Feedback Default Setting
Output Setting
s hdmi stream z!
Set hdmi loop output stream
on/off
z=0~1(0:disable,1:enable)
s hdmi stream 1 !
Enable hdmi loop out
stream
Disable hdmi loop out
stream
enable
s hdmi hdcp z!
Set hdmi loop output hdcp on/
off
z=0~1(0:disable,1:enable)
s hdmi hdcp 1!
Enable hdmi loop out
hdcp
Disable hdmi loop
out
hdcp
enable
s hdbt y hdcp z!
Set hdbt output y hdcp on/off,
y=0~4(0=all) z=0~1(0:disable,
1:enable)
s hdbt 1 hdcp 1 !
s hdbt 0 hdcp 1 !
Enable hdbt output 1
hdcp
Disable hdbt output
1
hdcp
Enable hdbt all
outputs hdcp
Disable hdbt all
outputs hdcp
enable
s hdbt y stream z!
Set hdbt output y stream on/
off, y=0~4(0=all) z=0~1
(0:disable,1:enable)
s hdbt 1 stream
1 !
s hdbt 0 stream
1 !
Enable hdbt output 1
stream
Disable hdbt output
1
stream
Enable hdbt all
outputs stream
Disable hdbt all
outputs stream
enable
r hdmi stream!
Get hdmi loop out stream
status r hdmi stream!
Enable hdmi output
stream
r hdmi hdcp! Get hdmi loop out hdcp status r hdmi hdcp!
Enable hdmi output
hdcp
r hdbt y hdcp!
Get hdbt output y hdcp status,
y=0~4(0=all) r hdbt 1 hdcp!
Enable hdbt output 1
hdcp
r hdbt stream!
Get hdbt output y stream
status, y=0~4(0=all)
r hdbt 1 stream!
Enable hdbt output 1
stream

-10-
Command Code
Function Description
Example
Feedback
Default Setting
EDID Setting
Set input EDID from default
EDID z, z=1~27
1, 1080p,Stereo Audio 2.0
2, 1080p,Dolby/DTS 5.1
3, 1080p,HD Audio 7.1
4, 1080i,Stereo Audio 2.0
5, 1080i,Dolby/DTS 5.1
6, 1080i,HD Audio 7.1
7, 3D,Stereo Audio 2.0
8, 3D,Dolby/DTS 5.1
9, 3D,HD Audio 7.1
10, 4K2K30_444,
Stereo Audio 2.0
11, 4K2K30_444,Dolby/DTS5.1
12, 4K2K30_444,HD Audio 7.1
input EDID:1080p,
13, 4K2K60_420,
Stereo Audio 2.0
s edid in from z!
Stereo Audio 2.0
14, 4K2K60_420,
Dolby/DTS 5.1
s edid in from 1!
1080p,Stereo
Audio 2.0
15, 4K2K60_420,HD Audio 7.1
16, 4K2K60_444,
Please toggle EDID
Stereo Audio 2.0
dip switch to 00000!
17, 4K2K60_444,
Dolby/DTS 5.1
18, 4K2K60_444,HD Audio 7.1
19, 4K2K60_444,
Stereo Audio 2.0 HDR
20, 4K2K60_444,
Dolby/DTS 5.1 HDR
21, 4K2K60_444,
HD Audio 7.1 HDR
22, copy from hdmi loop out
23, copy from hdbt output 1
24, copy from hdbt output 2
25, copy from hdbt output 3
26, copy from hdbt output 4
27, use user1 EDID
s edid user1 00
FF FF FF FF …! Set user1 EDID data
s edid user1 00
ff ff ff ff …. !
user1 EDID data: 00
FF FF ….
r edid user1! Get user1 EDID data
r edid user1!
user1 EDID data : 00
FF FF FF FF FF FF
00 ………
r edid in! Get EDID status of the input r edid in!
input EDID: 4K2K60_
444,Stereo Audio 2.0
r edid in data!
Get the EDID data of the hdmi
input
r edid in data!
EDID data : 00 FF FF
FF FF FF FF 00 ……

-11-
Command Code
Function Description
Example
Feedback
Default Setting
RS-232 BYPASS Setting
s rs232 bypass
hdbt y!
Set RS-232 port connect to
HDBT out1 Receiver RS-232
port, y=0~5( 0=all,
1~4= hdbt out 1~4 5=NC)
s rs232 bypass
hdbt 1!
RS-232 connect to
HDBT OUT1
RS-232 not connect
to HDBT OUT
y=0
r rs232 bypass!
Get RS-232 port connect to
HDBT out receiver RS-232
port
r rs232 bypass!
RS-232 connect to
HDBT OUT1
RS-
232 connect to all
HDBT OUT
RS-232 not connect
to HDBT OUT
s device baud
w size x stop y
parity z!
Set receiver control device
COM port setting, w=2400,
4800,9600,19200,38400,
57600,115200, x=7,8
y=1,2, z=none, even,odd
s device baud
57600 size 8
stop 1 parity
none!
receiver device COM
port setting
baudrate: 57600
data size :8, stop:1
parity: none
s rs232 time x!
set send RS232 command
wait time
x=200~5000ms
s rs232 time
200!
send RS-232
command wait time
200ms
200ms

-12-
8. Application Example
Amplifier
IR Receiver
IR Blaster
PC
2.0 Speakers
Transmitter
TX RX
IN OUT
AUDIO OUT ON
RS-232
1
0
EDID
IR
IN LOOP OUT
HDMI
1
LAN
OFF
2 HDBT OUTP UT 3 4
DC 24V
UHDTV
DVD or Blu-ray Player
Cat 6/6a/7
Receiver
Power Supply
HDMI OUT AUDIO OUT IR IN IR OUT
UHDTV
2.0 Speakers
IR Receiver
HDMI Matrix with
RS-232 function
IR Blaster
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.
DC 24V
HDBT IN
