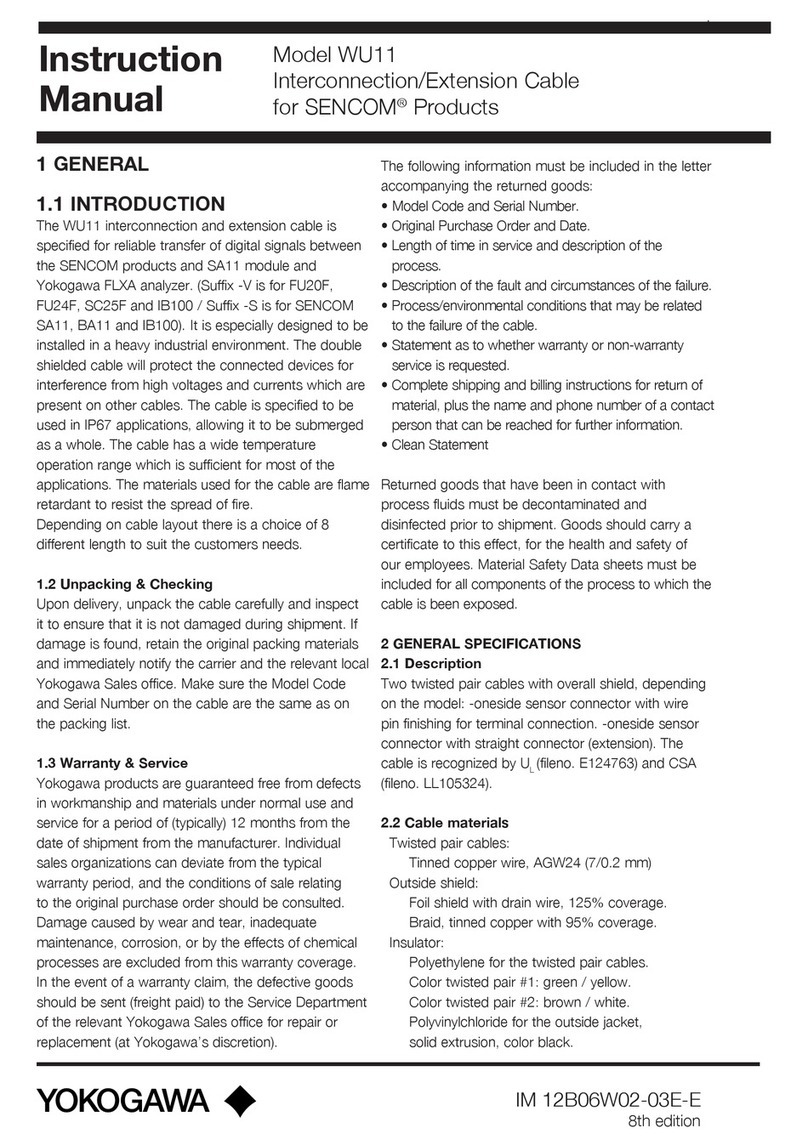

YOKOGAWA MICROWATT WU11 User manual

Instruction
Manual
IM 12B06W02-03E-E
4th Edition
Model WU11
Interconnection/Extension Cable for SENCOM®Sensor

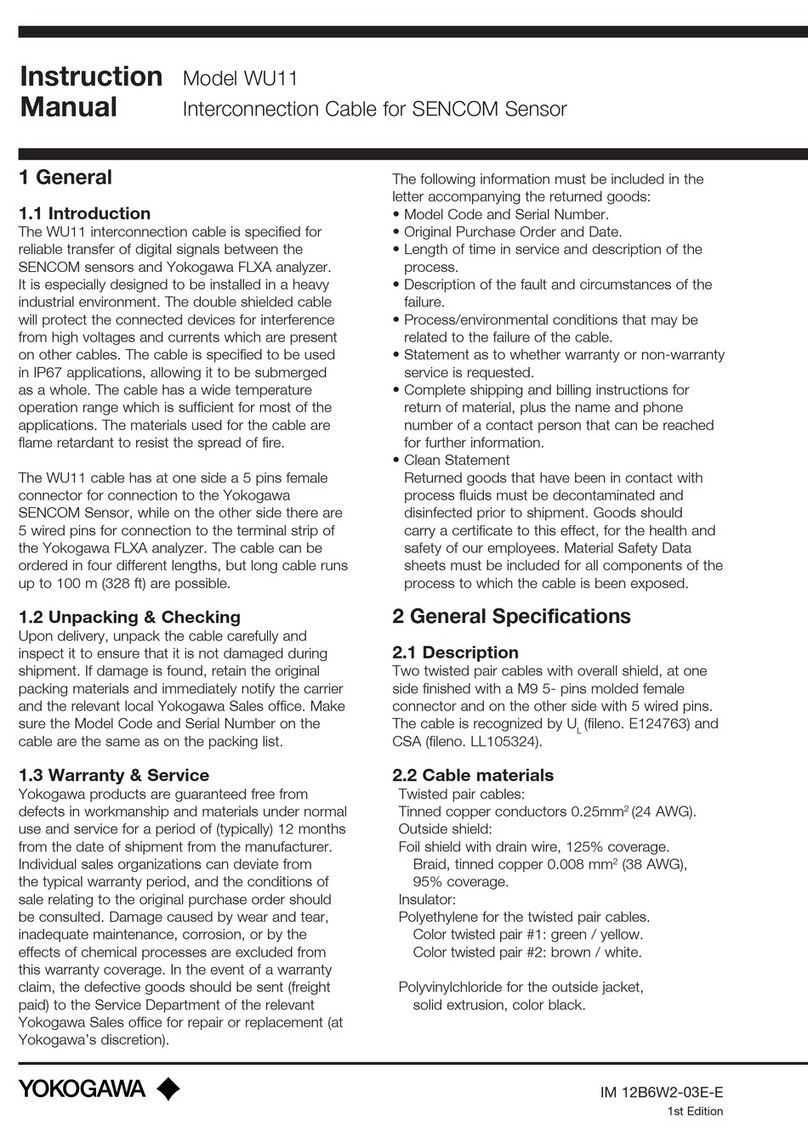

1 General
1.1 Introduction
The WU11 interconnection and extension cable is
specified for reliable transfer of digital signals between
the SENCOM sensors and Yokogawa FLXA analyzer. It
is especially designed to be installed in a heavy industrial
environment. The double shielded cable will protect the
connected devices for interference from high voltages
and currents which are present on other cables. The
cable is specified to be used in IP67 applications, allowing
it to be submerged as a whole. The cable has a wide
temperature operation range which is sufficient for most
of the applications. The materials used for the cable are
flame retardant to resist the spread of fire.
On one side of the interconnection WU11 cable you
will find a 5 pin-female connector for connection to the
Yokogawa SENCOM Sensor is. The other side has 5
wired pins for connection to the terminal strip of the
Yokogawa FLXA analyzer. The cable can be ordered in
four different lengths. To extend the distance between the
sensor and the connection box or the Flexa terminal, the
WU11 is also available as an extension cable. This cable
has on opposite ends a male and a female connector
fitted to extend the communication distance between
sensor and transmitter.
1.2 Unpacking & Checking
Upon delivery, unpack the cable carefully and inspect
it to ensure that it is not damaged during shipment. If
damage is found, retain the original packing materials
and immediately notify the carrier and the relevant local
Yokogawa Sales office. Make sure the Model Code
and Serial Number on the cable are the same as on the
packing list.
1.3 Warranty & Service
Yokogawa products are guaranteed free from defects
in workmanship and materials under normal use and
service for a period of (typically) 12 months from the
date of shipment from the manufacturer. Individual sales
organizations can deviate from the typical warranty
period, and the conditions of sale relating to the original
purchase order should be consulted. Damage caused
by wear and tear, inadequate maintenance, corrosion, or
by the effects of chemical processes are excluded from
this warranty coverage. In the event of a warranty claim,
the defective goods should be sent (freight paid) to the
Service Department of the relevant Yokogawa Sales office
for repair or replacement (at Yokogawa’s discretion).
The following information must be included in the letter
accompanying the returned goods:
• Model Code and Serial Number.
• Original Purchase Order and Date.
• Length of time in service and description of the process.
• Description of the fault and circumstances of the failure.
• Process/environmental conditions that may be related
to the failure of the cable.
• Statement as to whether warranty or non-warranty
service is requested.
• Complete shipping and billing instructions for return of
material, plus the name and phone number of a contact
person that can be reached for further information.
• Clean Statement
Returned goods that have been in contact with process
fluids must be decontaminated and disinfected prior to
shipment. Goods should carry a certificate to this effect,
for the health and safety of our employees. Material Safety
Data sheets must be included for all components of the
process to which the cable is been exposed.
2 General Specifications
2.1 Description
Two twisted pair cables with overall shield, depending
on the model: -oneside sensor connector with wire
pin finishing for terminal connection. -oneside sensor
connector with straight connector (extension). The cable
is recognized by UL (fileno. E124763) and CSA (fileno.
LL105324).
2.2 Cable materials
Twisted pair cables:
Tinned copper conductors 0.25mm2 (24 AWG).
Outside shield:
Foil shield with drain wire, 125% coverage.
Braid, tinned copper 0.008 mm2(38 AWG),
95% coverage.
Insulator:
Polyethylene for the twisted pair cables.
Color twisted pair #1: green / yellow.
Color twisted pair #2: brown / white.
Polyvinylchloride for the outside jacket,
solid extrusion, color black.

2 1
5
4
3
IM 12B06W02-03E-E
Subject to change without notice Printed in The Netherlands, 04-1506
Copyright©
IM 12X0X0-E-E
Subject to change without notice Printed in The Netherlands, 00-000 (A) I
Copyright ©
Yokogawa has an extensive sales and
distribution network.
Please refer to the European website
(www.yokogawa.com/eu) to contact your
nearest representative.
YPA EUROPE BV
Euroweg 2
3825 HD AMERSFOORT
The Netherlands
www.yokogawa.com/eu
YOKOGAWA ELECTRIC CORPORATION
World Headquarters
9-32, Nakacho 2-chome, Musashino-shi
Tokyo 180-8750
Japan
www.yokogawa.com
YOKOGAWA CORPORATION OF AMERICA
2 Dart Road
Newnan GA 30265
USA
www.yokogawa.com/us
YOKOGAWA ELECTRIC ASIA Pte. LTD.
5 Bedok South Road
Singapore 469270
Singapore
www.yokogawa.com/sg
YOKOGAWA CHINA CO. LTD.
3F Tower D Cartelo Crocodile Building
No.568 West Tianshan Road Changing District
Shanghai, China
www.yokogawa.com/cn
YOKOGAWA MIDDLE EAST B.S.C.(c)
P.O. Box 10070, Manama
Building 577, Road 2516, Busaiteen 225
Muharraq, Bahrain
www.yokogawa.com/bh
2.3 Connector materials
Housing : Polybutylene terephthalate
UL94V-0, color: black.
O-ring : Nitrilbutadieenrubber,
color: black.
Nut : Brass.
Contact finishing : Gold plated.
2.4 Electrical specifications
Twisted pair cables : Capacity < 50 pF/m
Resistance < 100 Ω/km
Characteristic Impedance 120 Ω
Connector : Maximum rated current 5 A
Maximum voltage 125 V
2.5 Operational specifications
Temperature : -40 ~ +85 °C (-40 ~ +185 ºF)
Water Proof : IP67 (conform IEC60529)
2.6 Dimensional drawing
Figure 1. Cable dimensions.
Length (L) : 2, 3, 5, 10, 20 and 30m
(6.6, 9.8, 16.4, 32.8, 65.6, 98.4 ft)
Dia. connector (D) : 10.6 ± 0.2 mm
(0.417 ± 0.008 inch)
Dia. cable (d) : 5.8 ± 0.1 mm
(0.228 ± 0.004 inch)
Wire pins : 8 x 1.3 mm
(0.31 x 0.05 inch)
2.7 Cable installation
Procuring a smooth bend radius allows the cable to
absorb the impact of bending and thereby increasing its
life cycle. Minimum bend radius is approx. 5 cm (2”).
When using cable ties, do not pinch or deform the cable.
When connected cable is subjected to any motion
between two points, stress on the cable can be prevented
by an adequate cable length or using a cable loop.
3 Wiring
Figure 2. Front view female connector
3.1 Definition connector pin to cable
Pin # Twisted Wire Wire
pair # color number
1 1 yellow 83
2 1 green 84
3 2 brown 87
4 drain black 82
5 2 white 86
3.2 Connection cable to FLXA analyzer
Signal Wire Wire FLXA
Description color number terminal
Supply + brown 87 87
Supply Gnd white 86 86
Data + green 84 84
Data - yellow 83 83
Shield black 82 82
4 Model and Suffix Codes
Model Suffix Description
WU11 SENCOM cable
Conn. type -M9 M9 female connector for sensor conn.
Cable length -02 2 meter only available with CN finishing
-03 3 meter only with WP
-05 5 meter only with WP
-10 10 meter only with WP
-20 20 meter only with WP
-30 30 meter only available with CN finishing
Finishing -WP Wire pin for terminal connection
-CN Straight plug for M9 female connector
Jacket material -V PVC
D
D
d
d
MODEL CODE
Serial#
MODEL CODE
Serial#
WP
CN
L
L
