HARDWARE CONFIGURATION
Key Features :
Chipset
• VIA K8T800/K8M800+VT8237 chipset.
Processor
• Support for AMDTM K8/ClawHammerTM Processor.
• Supports AMD AthlonTM 64 processor.
• Processor interface via HypertransportTM bus.
VRM 9.0(Voltage Regulator Modules) On board
• Flexible motherboard design with on board VRM 9.0, easy to upgrade
with future processors.
System Memory
•A total of two 184-pin DDR SDRAM sockets.
• Supports DDR400/DDR333/DDR266/DDR200 SDRAM.
• DRAM devices that are 4,8 and 16 bits wide.
•DIMM sizes from 64 Mbytes to 2Gbyte.
• 2.5V DRAM interface for DDR SDRAM.
System BIOS
• PnP,APM, ATAPIand Windows®98/2000/XP.
• Full support of ACPI & DMI.
• Auto detects and supports LBA harddisks with capacities over 8.4GB.
• Easy to upgrade BIOS by end-user.
On-board VGA (optional)
• 8/16/32/64 MB frame buffers using system memory.
• Internal AGP 8x equivalent performance.
• Graphics engine clock up to 200 MHz decoupled from memory clock.
• High quality DVD video playback.
• 128-bit 2D graphics engine.
• 128-bit 3D graphics engine.

5
On-board I/O
•On board two PCI fast IDE ports supporting up to 4 ATA, ATA2 , Ultra
ATA33/66/100/133 IDE HDDs, CD-ROMs, ZIP drives and LS-120
drives as boot drive.
•One ECP/EPP parallel port.
•Two 16550 Compatible UART serial ports.(One port via a header)
•One floppy port supports two FDD of 360KB, 720KB, 1.2MB , 1.44MB
and 2.88MB capacity.
•Eight USB2.0 ports.
•PS/2 keyboard connector.
•PS/2 mouse is supported.
•One Front Panel Sound Connector.
•Infrared (IrDA) is supported via a header.
Expanded USB Support
• Includes 4 UHCI host controllers,increasing the number of external
ports to eight.
• Includes 1 EHCI USB2.0 Host Controller that supports eight ports
(Bandwidth shared between eight ports).
Full Featured Accelerated Graphics Port (AGP)
• Supports AGP3.0 including 4X/8X AGP card.
• AGP 1.5V connector support only.
• High priority access support.
Plug-and-Play
• Supports Plug and Play specification 1.1.
• Plug and Play for Windows® 98, Windows® 2000 as well
as Windows® XP.
• Fully steerable PCI interrupts.
On-board AC97 Sound(optional)
•Integrated AC97 controller with standard AC97 Codec.
• Direct Sound and Sound Blaster compatible.
•Full-Duplex 16-bit record and play back.
•PnP and APM 1.2 support.
•Windows® 98/2000/XP drivers ready.
•Line-in, Line-out, Mic-in and MIDI/Game port.
• Supports ALC650 AC97 Code for six sound channel
output (optional).
Hardware Configuration

6
Technical Reference Booklet
Integrated serial ATA/RAID Controller.(optional)
• Independent DMA operation on two ports.
• Data transfer rate 150Mb/s.
• SATA devices can be configured in multiple RAID configurations-
supports RAID Level0,RAID Level1 and JBOD.
On-board VT6103 LAN (optional)
•High performance PCI master interface with scatter / gather and
bursting capability.
•Standard MII interface to external PHYceiver.
•10/100MHz full and half duplex operation.
Power Management
• SupportsSMM, APMand ACPI.
• Break switch for instant suspend/resume on system operations.
• Energy star “Green PC” compliant.
• Hardware monitoring circuit is supported, provide voltage,
temperature, fan speed, etc. monitoring (optional).
• WOL (Wake-On-Lan) header support.
• Supports suspend-to-RAM(STR)(optional).
On-board IEEE1394(optional)
•Compliant with 1394 open HCI specifications v1.0 and v1.1.
• Integrated 400Mbit 2 port PHY.
Expansion Slots
• 1 AGP slot (support AGP 3.0-8X).
•5 PCI bus master slots - ver. 2.1 compliant.
Static electricity can harm delicate components of the motherboard.
To prevent damage caused by static electricity, discharge the static
electricity from your body before you touch any of the computers
electronic components.

7
Motherboard Layout (35-AA14-X0-XX)
The following diagrams show the relative positions of the jumpers, connectors, major
components and memory banks on the motherboard.
NOTE
1) Be sure to check the cable orientation in order to match the colored strip to the pin
1 end of the connector.
2) When you start up the system, please wait for 5 seconds after you power on AC.
3) It is not recommended to add a metal spacer plate on the back of the Socket754.
Otherwise, some components will be short and damaged.
# The LAN ,Video Out and IEEE1394 Connectors are optional.
# The ALC650 embeds an internal analog switch (by driver software) to share
LINE input with Surround output, and share MIC input with CENTER/LFE
output.
Motherboard layout

8
Technical Reference Booklet
Rear Panel
The back panel provides the following connectors:
Mouse Connector
The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse.You can plug a PS/2® mouse directly into this
connector.
Keyboard Connector
The mainboard provides a standard PS/2® keyboard mini DIN connector
for attaching a PS/2® keyboard.You can plug a PS/2® keyboard directly into
this connector.
USB 2.0 Connector
The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices.You can plug the USB device directly into
the connector.
PIN SIGNAL DESCRIPTION
1 VCC +5V/5VSB (optional)
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V/5VSB (optional)
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
USB 2.0 Connector DescriptionUSB 2.0 Connector

9
Serial Port Connectors: COM1
The Port is 16550A high speed communication ports that send/receive
16bytes FIFOs. You can attach a serial mouse or other serial devices directly
to the connectors.
Video Out Connector (Optional)
The mainboard provides a Video out port to connect a 15-pin analog
videomonitor.
LAN Jack (Optional)
The mainboard provides one standard RJ-45 jack for connection to Local
Area Network(LAN).You can connect a network cable to the LAN jack.
Parallel Port Connector:LPT1
The mainboard provides a 25-pin female centronic connector as LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.
MIDI/Game Port (optional)
The mainboard provides the game port to connect a joystick or a MIDI
device.
Audio Port Connector
SPK_Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape player, or other audio devices. Mic In is a connector
for microphones. The ALC650 embeds an internal analog switch (by driver
software) to share LINE input with Surround output, and share MIC input with
CENTER/LFE output.
RearPanel

10
Technical Reference Booklet
Jumper Settings
This chapter explains how to configure the motherboard’s hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this
chapter whenever in doubt.
CPU Speed Selection
In this motherboard, jumperless feature is implemented such that no jumper is required to
be set for different type of CPU installed.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen
even if the frequency multiplier setting in CMOS setup is changed.

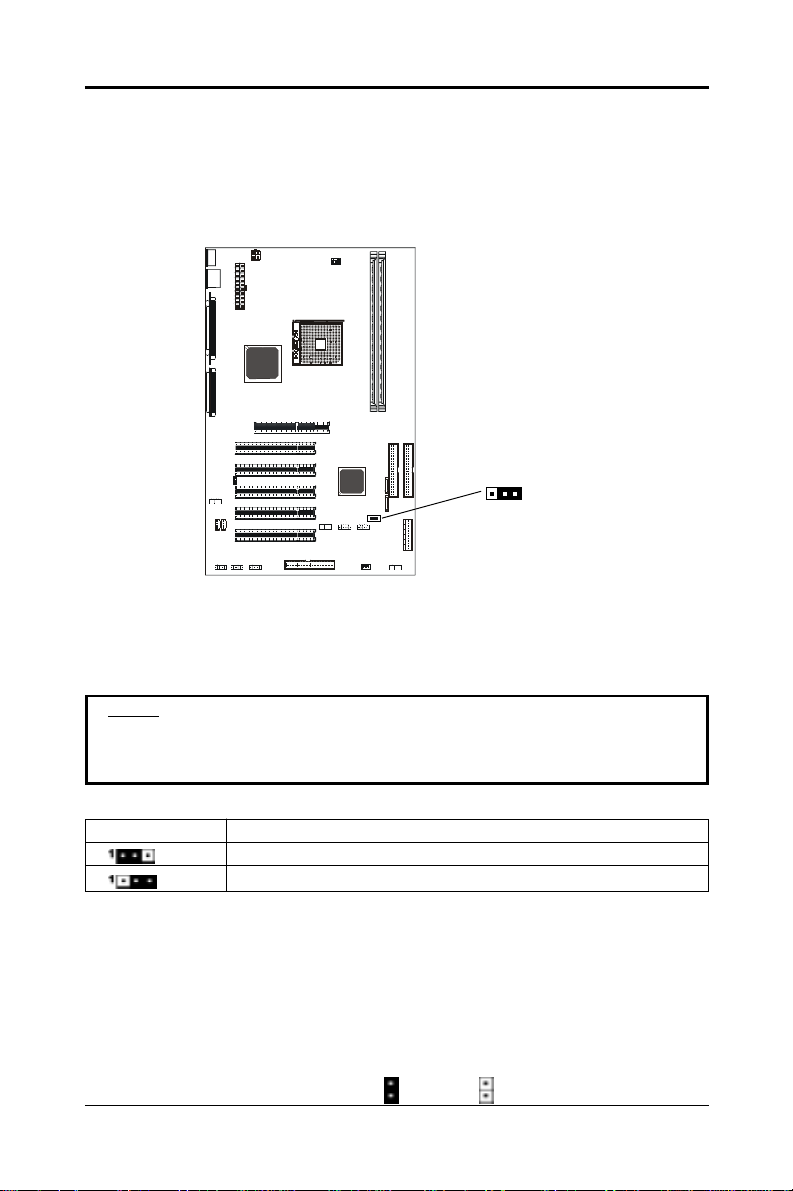

JBAT1 - CMOS Clear
JBAT1 Selection
1-2* Normal*
2-3 CMOSClear
1
JBAT1
Close Open * = Default setting.

11
Connectors
The mainboard provides connectors to connect to FDD, IDE HDD,
Serial ATA Hard Disk,USB devices, CPU/PWRFAN/WOL ,etc.

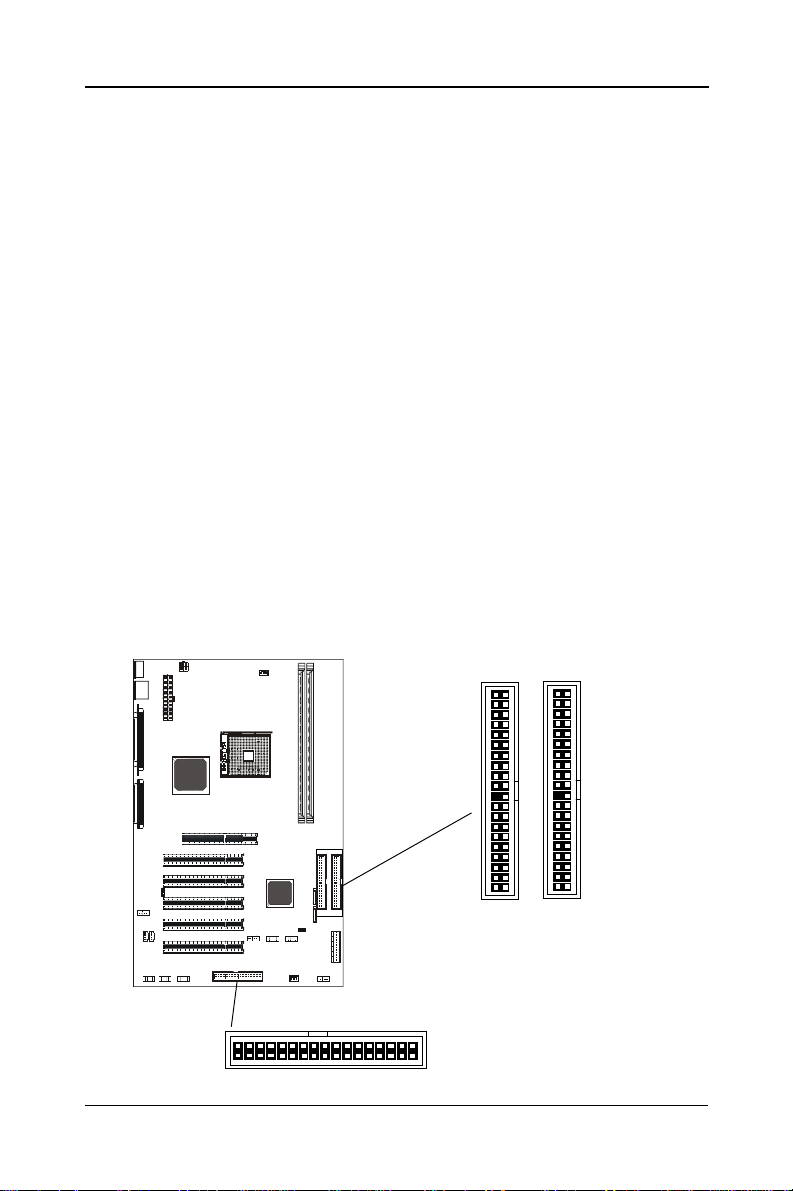

Floppy Disk Drive Connector:CN3
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Hard Disk Connectors:CN1&CN2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/
133controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/
100/133function. You can connect up to four hard disk drives, CD-ROM, 120MB
Floppy (reserved for future BIOS) and other devices.
CN1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1.IDE1 can connect
a Master and a Slave drive.You must configure second hard drive to Slave
mode by setting the jumper accordingly.
CN2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.
CN2
CN3
CN1
1
1
1
Connectors

12
Technical Reference Booklet

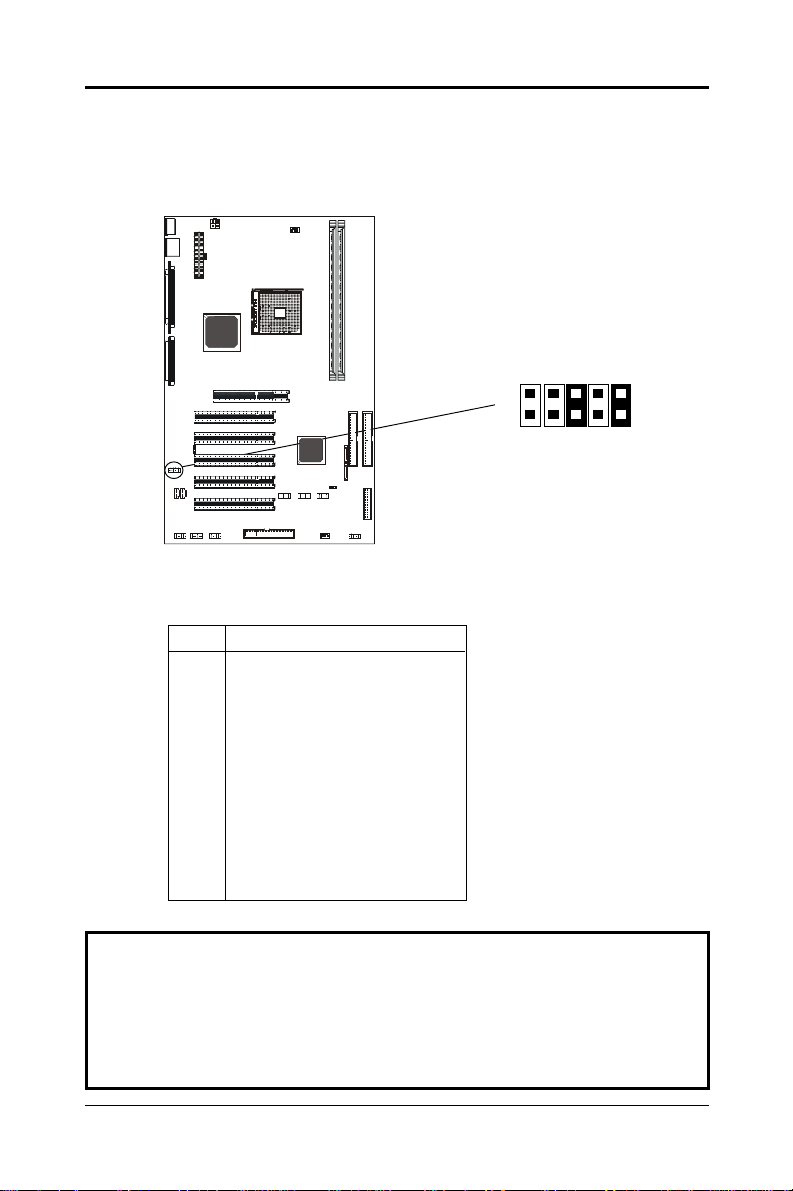

Serial ATA Hard Disk Connectors: SATA1&SATA2
(Optional)
The mainboard has 2 SATA connectors. The mainboard provides optional
dual high-speed Serial ATA interface ports, SATA1,SATA2 Each supports 1st
generationserial ATAdatarates of150 MB/s.Both connectorsarefully compliant
with Serial ATA 1.0 specifications. Each Serial ATA connector can connect to 1
hard disk device. Please refer to Serial ATA Raid manual for detail software
installation procedure.
PIN SIGNAL
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA1&SATA2
SATA1 SATA2

13
1
2
9
10
1
2
9
10
USB1 USB2
PIN Assignment
1 VCC
2 VCC
3 USBP0-
4 USBP1-
5 USBP0+
6 USBP1+
7 GND
8 GND
9 KEY
10 OC#
USB Connector

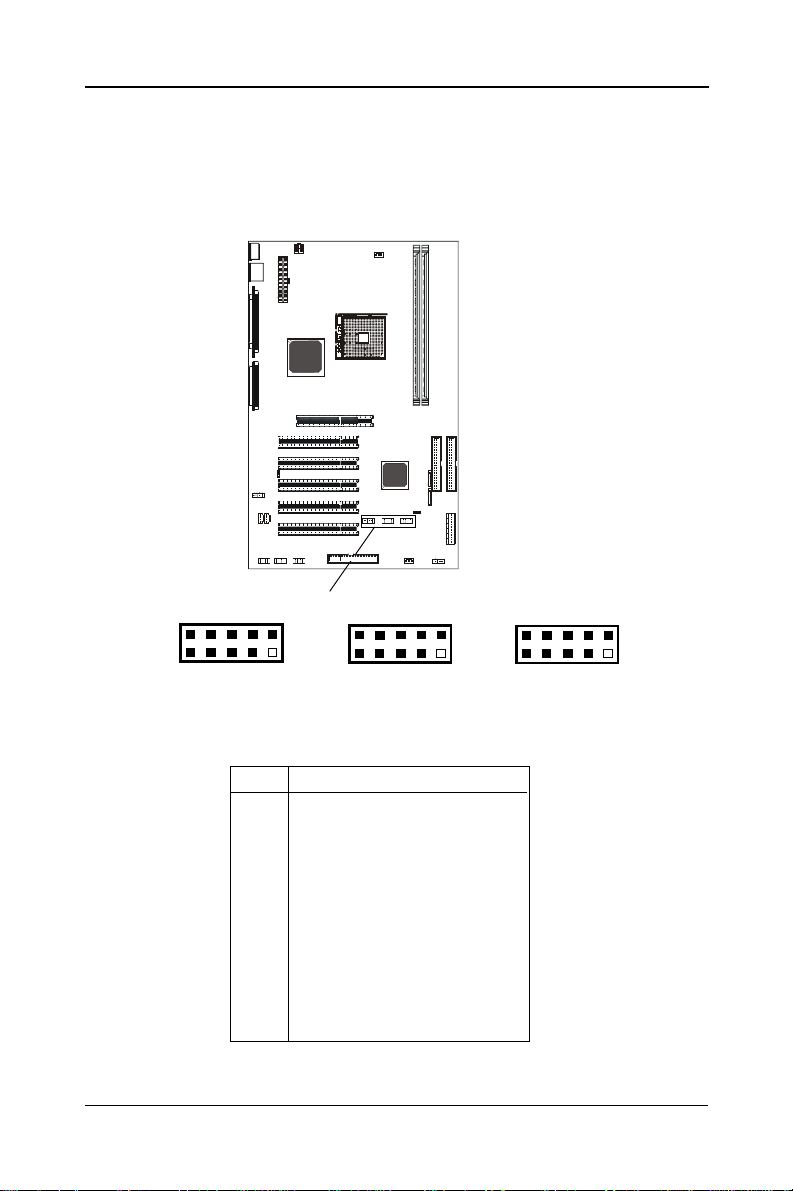

USB Connectors: USB1/USB2/USB3
This mainboard has USB ports. Some computer cases have a special
module that mounts USB ports at the front of the case. If you have this kind
of case, use auxiliary USB connector USB1/USB2/USB3 to connect the
front mounted ports to the mainboard.
1
2
9
10
USB3
Connectors

14
Technical Reference Booklet
Fan Power Connectors:FAN1&FAN2
The FAN1 (processor fan), FAN2 (system fan) support system cool-ing
fan with +12V.It supports three-pin head connector. When connecting the
wire to the connectors, always take note that the red wire is the positive and
should be connected to the +12V, the black wire is Ground and should be
connected to GND. If the mainboard has a System Hardware Monitor chipset
on-board, you must use a specially designed fan with speed sensor to take
advantage of the CPU fan control.
FAN2
FAN1
1
1
1
WOL
WOL: Wake On LAN
If you have installed a LAN card, use the cable provied with the card to plug
into the mainboard WOL connector. This enables ables the Wake On LAN
(WOL) feature. When your system is in a power-saving mode, any LAN signal
automatically resumes the system.You must enable this item using the Power
Mannagement page of the Setup Utility.

15
AUX1 CDS1
1 1
PIN Assignment
1 CD-L
2 GND
3 GND
4 CD-R
CDS1 : CDS1
AUX1 : AUX1
PIN Assignment
1 AUX-L
2 GND
3 GND
4 AUX-R

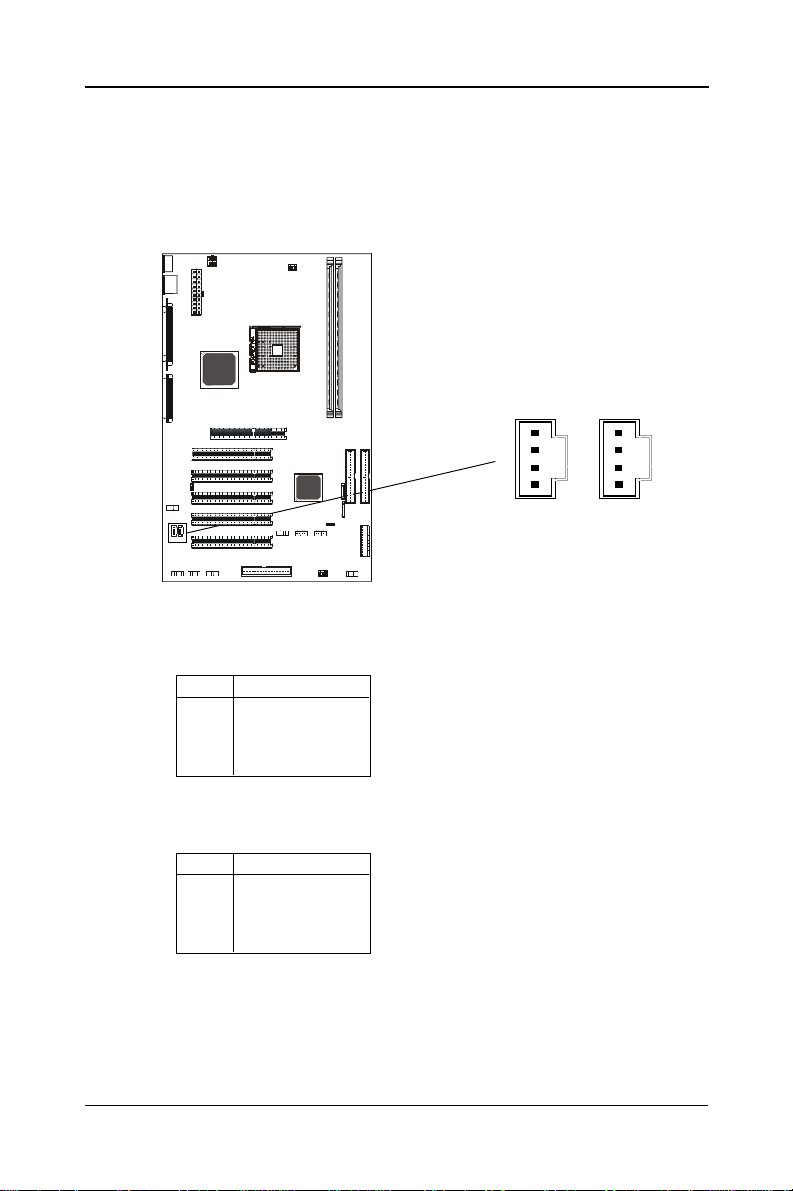

AUX-IN Connector:AUX1
The connector is for Audio Device.
CD-IN Connector:CDS1
The connector is for CD-ROM Drive.
Connectors

16
Technical Reference Booklet
S-Bracket(SPDIF)/CEN/LFE/Surround Output Connector:
CN9 (optional)
The connector allows you to connect a S-Bracket for a Digital Interface
(SPDIF). The S-Bracket offers 1 SPDIF jacks for digital audio transmission
and 2 analog Line-Out jacks for other 4-channel audio output. So you can use
Line in, Mic in and 6 channel audio output features at the same time.
CN9
2
1
10
9

17
Connectors
PIN SIGNAL DESCRIPTION
1 SOUT-L Audio left surrounding output
2 SOUT-R Audio right surrounding output
3 GND Ground
4 GND Ground
5 CET-OUT Audio center output
6 LFE-OUT Audio bass output
7 GND Ground
8 SPDIF S/PDIFinput
9 (NoPin) Key
10 SPDFO S/PDIFoutput
CN9-S-Bracket
S-Bracket Cable (optional)
Connect to CN9
SPDIF jack (coaxial)
Analog Line-Out jack

18
Technical Reference Booklet
Front Panel Audio Header: CN21
This mainboard supports front panel microphone and speaker out ports.
If your computer case has these ports,connect them to CN21.
PIN Assignment
1 MIC
2 GND
3 REF
4 POWER
5 Front Audio(R)
6 Rear Audio(R)
7 Reserved
8 Key(No pin)
9 Front Audio(L)
10 Rear Audio(L)
CN21
Note:
If you want to use “Front Audio” connector, you must move 5,6,9,10 jumper.
In order to utilize the front audio header, your chassis must have front
audio connector. Also please make sure the pin assignment on the cable
is the same as the pin assignment on the MB header. To find out if the
chassis you are buying support front audio connector, please contract
your dealer.
CN21
10
9
2
1

19
IEEE 1394 Connectors: IEEE1&IEEE2 (optional)
The mainboard provides two 1394 pin headers that allow you to connect
IEEE 1394 ports.
1
2
9
10
IEEE1 IEEE2
1
2
9
10
Connectors

20
Technical Reference Booklet
PIN SIGNAL
1TPA+
2TPA-
3 Ground
4 Ground
5 TPB+
6 TPB-
7 Cable power
8 Cable power
9 Key (no pin)
10 Ground
IEEE1&IEEE2 Pin Definition
IEEE 1394 Cable (optional)
