PC Partner BSB871S User manual

1
Electronic Emission Notices
Federal Communications Commission (FCC) Statement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device,pursuanttoPart15ofFCCRules.Theselimitsaredesignedtoprovidereasonable
protection against harmful interference in a residential installation. This equipment
generates,usesand can radiate radiofrequencyenergyand,ifnot installed and usedin
accordancewithinstructionscontainedinthismanual,maycauseharmfulinterference
toradio andtelevisioncommunications. However,there isnoguarantee thatinterference
willnotoccurin a particular installation.
Ifthisequipment does cause harmful interference toradioortelevisionreception,which
canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto
correctthe interference byone or moreof the followingmeasures:
- REORIENTORRELOCATETHERECEIVINGANTENNA
- INCREASETHESEPARATIONBETWEENTHEEQUIPMENTANDTHERECEIVER
- CONNECTTHEEQUIPMENTINTOANOUTLETONACIRCUITDIFFERENTFROM
THATOFTHERECEIVER
- CONSULTTHEDEALERORANEXPERIENCEDAUDIO/TELEVISION
TECHNICIAN
NOTE: Connecting this device to peripheral devices that do not comply with Class B
requirements, or using an unshielded peripheral data cable, could also result
in harmful interference to radio or television reception.
Theuser is cautionedthatanychangesor modifications notexpresslyapproved
by the party responsible for compliance could void the user’s authority to
operate this equipment.
To ensure that the use of this product does not contribute to interference, it is
necessarytouseshieldedI/O cables.
Copyright
This manual is copyrighted with all rights reserved. No portion of this manual may be copied or
reproduced by any means.
While every precaution has been taken in the preparation of this manual, no responsibility for errors
or omissions is assumed. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
Trademarks
All brand names, logos and registered trademarks mentioned are property of their respective owners.

2
Technical Reference Booklet
Table of Contents
HARDWARE CONFIGURATION .............................................................. 3
Key Features ............................................................................................... 3
Motherboard Layout (Model Code No. - 35887100XX) ............................... 5
Jumper Settings .......................................................................................... 6
CPU Speed Selection............................................................................ 6
JP1 - Host Bus Speed Select ................................................................ 6
JP4 - CMOS Clear.................................................................................. 6
JP15 - Firm Ware Hub Top Block Memory Protect ................................ 7
JP16 - Infrared Connector Power Select ............................................... 7
JP17 - Speaker Out Select..................................................................... 7
JP29 - KB Voltage Select ....................................................................... 7
JP34 - PCI Sound Enable...................................................................... 7
JP36 - AC97 Codec Select .................................................................... 7
Memory Configuration ................................................................................. 8
To install DIMMs .......................................................................................... 8
Installing the Processor .............................................................................. 9
BIOS SETUP ............................................................................................... 1 0
Starting Setup .............................................................................................. 10
Main Menu ................................................................................................... 10
Standard CMOS Features ........................................................................... 12
Advanced BIOS Features ............................................................................ 14
Advanced Chipset Features........................................................................ 14
Integrated Peripherals ................................................................................ 14
Power Management Setup.......................................................................... 14
PNP/PCI Configurations ............................................................................. 14
Set Supervisor/User Password .................................................................. 14
Flash Update Procedure ............................................................................. 16

3
HARDWARE CONFIGURATION
This motherboard is based on the Intel® 810 chipset that is the first generation
IntegratedGraphics chipset designedfor the Intel® Celeron®PPGA Processor.
The graphics accelerator architecture consists of dedicated multi-media
engines executing in parallel to deliver high performance 2D, 3D, and motion
compensation video capabilities. In additional of AC’97 allows to use software
configurable AC’97 audio and modem coder/decoders via AMR slot instead of
the traditional ISA devices. Features on-board include LPC, Ultra DMA33/66,
PCI bus master IDE, PCI Ver 2.2 compliance, USB, VRM 8.2 compliance, PCI
sound system(optional).
Key Features
Processor
• Full support for the Intel® Celeron® PPGA processors using PGA370
Socket.
• Supports66MHzand100MHzbusspeedIntel® Celeron® PPGAprocessor
and future PPGA processor
CPU Speed Jumperless
• No jumper is needed to set for various speed of CPU.
VRM (Voltage Regulator Modules) on Board
• Flexible motherboard design with on-board VRM 8.2, easy to upgrade
with Intel’s® Future Overdrive® processors.
Cache
• Processor built-in L2 128K cache.
System Memory
• Up to 256MB or 512MB using 128M bit technology.
• 100MHz Bus speed.
PC97/98
• PC97/98 ready.
Expansion Slots
• 1 Audio Modem Riser (AMR).
•4 PCI bus master slots (ver. 2.2 compliant).
On-Board I/O
• Two PCI fast IDE ports supporting up to 4 ATA2, Ultra DMA 33 or Ultra
DMA66(82801AA only) IDE HDDs, CD-Roms, ZIP devices and LS-120
drives as boot drive.
• Supports bus master IDE, PIO mode 4 (up to 16M bytes/sec) and Ultra
DMA 33/66 (up to 66M bytes/sec) transfer.
• One ECP/EPP parallel port (via a header).
• Two 16550-compatible UART serial ports.
• One floppy port supporting two FDDs of 360KB, 720KB, 1.2MB, 1.44MB
or 2.88MB formated capacity.
Hardware Setup

4
Technical Reference Booklet
• Two USB ports (via a header).
• Keyboard port (factory option for PS/2 type).
• PS/2 mouse port (via a header).
• Infrared (IrDA) support (via a header).
• One Line / Speaker out, one Mic in, one Line in and MIDI / Gameport (via
a header).
• One VGA connector (via a header).
System BIOS
• 4M Intel Firm Ware Hub with security feature.
• Supporting PnP, APM, ATAPI and Windows® 95/98.
• Auto detects and supports LBA hard disks with formatted capacities
over8.4GB.
• Easily upgradable by end-user.
Plug-and-Play
• Supports plug-and-play specification 1.1.
• Plug-and-play for DOS, Windows® 3.X, Windows® 95 as well as
Windows® 98.
• Fully steerable PCI interrupts.
Power Management
• SupportsSMM, APM and ACPI.
• Break switch for instant suspend/resume on system operation.
• Energy star “Green PC” compliant .
• Supports WAKE-ON-LAN (WOL).
• Supports Wake on Ring for External Modem.
On board Sound Sub-system (optional)
•Integrated AC97 controller with standard AC97 CODEC.
Crystal PCI AC97 sound controller (optional)
• Crystal CS4280/81 AC97 Audio controller.
• Direct sound and sound Blaster Compatible.
• Full Duplex, Crystal 3D Enhancement, Software wavetable.
Integrated Graphics Controller
•3D Hyper Pipelined Architecture.
•Full 2D H/W Acceleration.
•Motion Video Acceleration.
•Integrated 24bit 230MHz RAMDAC.
•Up to 1600x1200 in 8bit Color at 85Hz Refresh.
•H/W Motion Compensation Assistance for S/W MPEG2 Decode.
•Software DVD at 30fps.
Display Cache Interface (82810-DC100 only)
•32bit data interface.
•100MHzSDRAM interface.

5
Hardware Setup

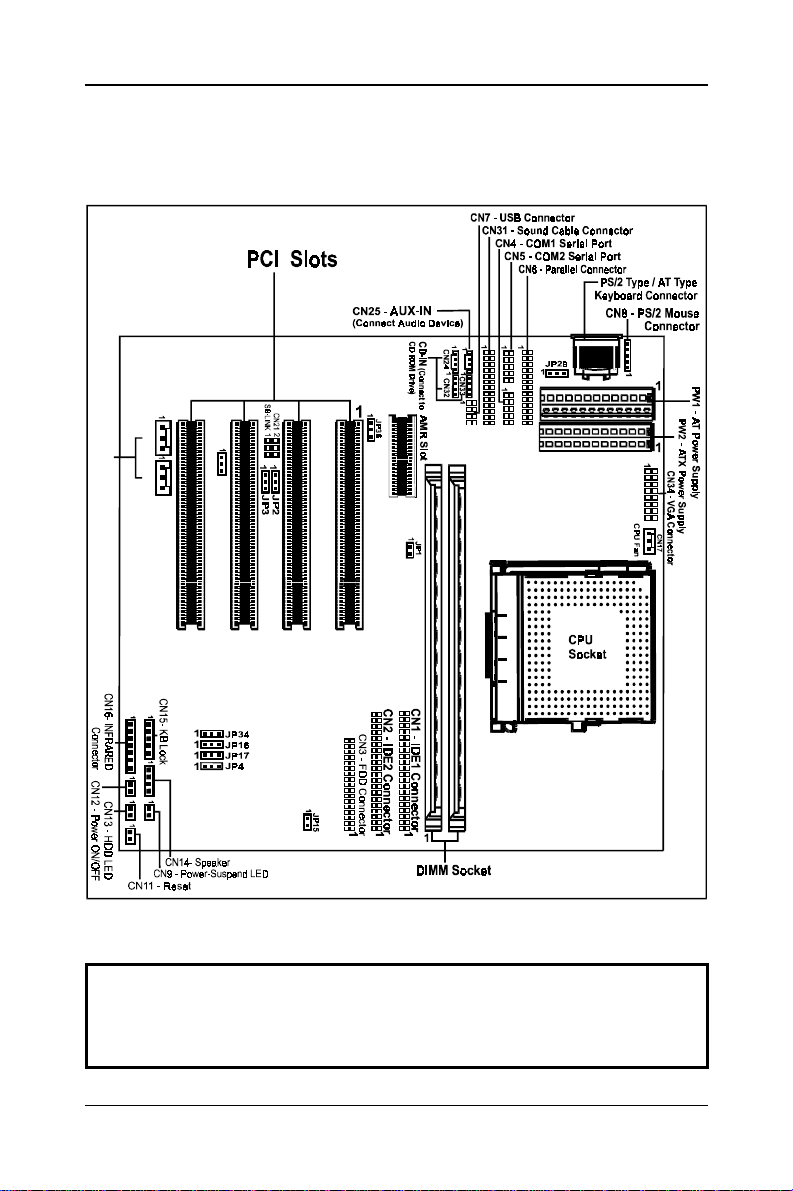

Motherboard Layout (Model Code No. - 35887100XX)
The following diagrams show the relative positions of the jumpers, connectors,
major components and memory banks on the motherboard.
Warning:
All connectors on board are labeled Pin “1” at one conner. Ribbon
cables should always be connected with the red stripe on the Pin
“1” side of the connector.
CN26 - WOL
CN30 CN29
Chassis Fan

6
Technical Reference Booklet

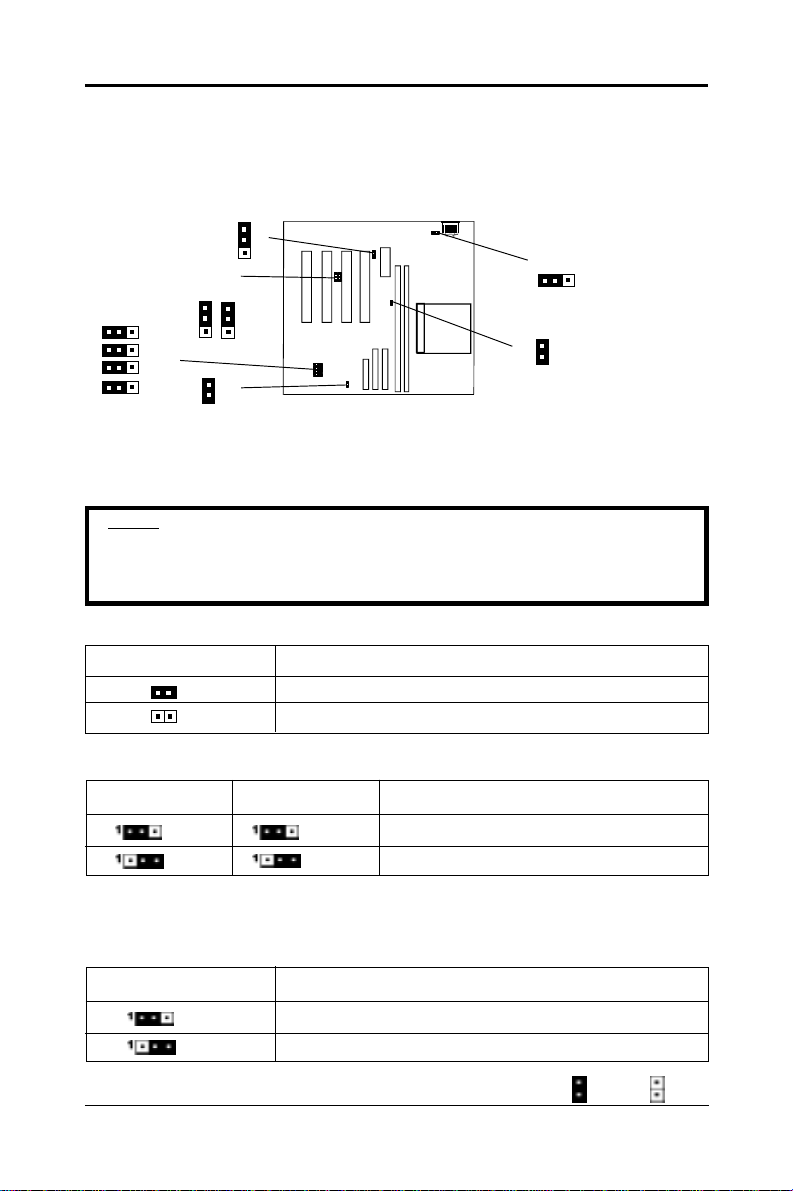

Jumper Settings
This chapter explains how to configure the motherboard’s hardware. Before
using your computer, make sure all jumpers and DRAM modules are set
correctly. Refer to this chapter whenever in doubt.
CPU Speed Selection
In this motherboard, jumperless feature is implemented such that no jumper is required to
be set for different type of CPU installed.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. Celeron PGA370 CPU is frequency multiplier locked, no CPU speed change will
be seen even if the frequency multiplier setting in CMOS setup is changed.
JP1 - Host Bus Speed Select
JP1 HCLK
(Close)* Auto*
(Open) 100MHz
JP2, JP3 - PCI3 Master Assign
JP2 JP3 Assign
(1-2)* (1-2)* for PCI Slot4*
(2-3) (2-3) for On Board PCI Sound Chip
Warning:If you use On Board PCI Sound, Bus master Card can not use
on PCI Slot4.
JP4 - CMOS Clear
JP4 Selection
(1-2)* Normal*
(2-3) CMOS Clear
Close Open
JP34
JP16
JP17
JP4
* = Default setting.
1
1
JP1
1
JP29
1
JP2 JP3 1
1
JP15
1
1
1
1
1
JP36
1

7
Close Open
* =Default setting
Hardware Setup

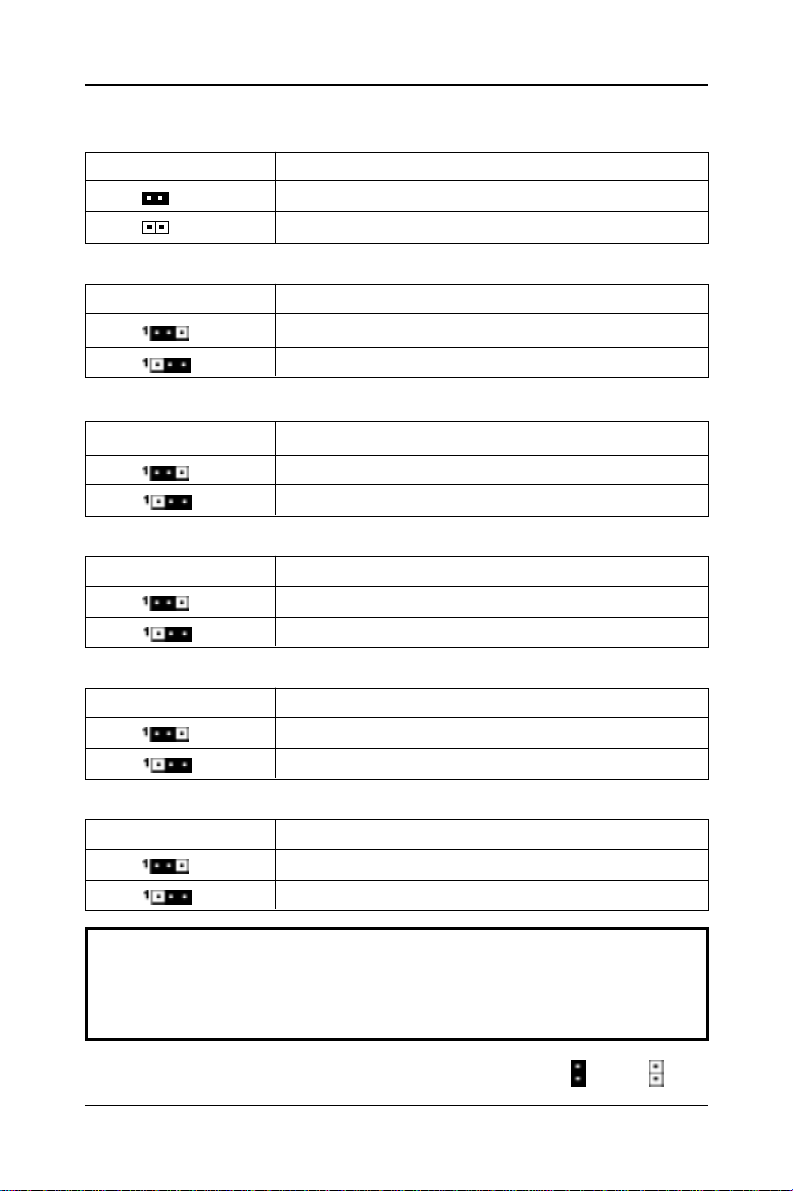

JP29 - KB Voltage Select
JP29 Select
(1-2)* Baby AT Power(VCC)*
(2-3) ATXPower(5VSB)
Warning:
Before handling the motherboard from its original package, please
ensure that there is no static electricity on your body. Otherwise it
may cause damage to the integrated circuits on the motherboard.
1
1
JP17 - Speaker Out Select
JP17 Select
(1-2) To Outside Speaker
(2-3)* Normal*
JP16 - Infrared Connector Power Select
JP16 Select
(1-2) Powered by +5V
(2-3)* Powered by +5V Stand by*
JP15 - Firm Ware Hub Top Block Memory Protect
JP15 Selection
(Open)* Locked*
(Close) Unlocked
JP34 - PCI Sound Enable
JP34 Select
(1-2)* Enable*
(2-3) Disable
JP36 - AC97 Codec Select
JP36 Select
(1-2)* Enable*
(2-3) Disable

8
Technical Reference Booklet
Memory Configuration
You can install DIMM memory in the motherboard DIMM sockets. The board
has DIMM sockets arranged as banks 1, and 2. You can install DIMMs in any of
the two banks, and use different size DIMMs in different banks. The BIOS
detects the size and type of installed memory.

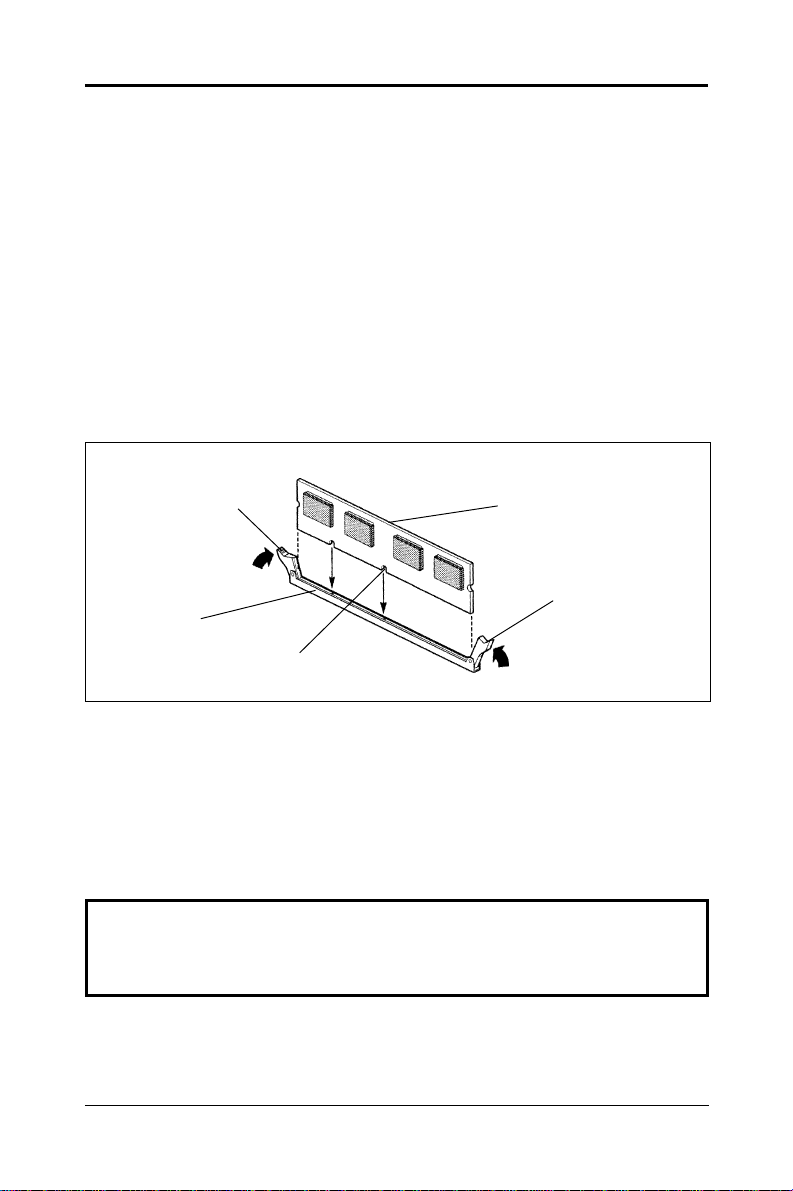

To install DIMMs
1. Turn off all peripheral devices connected to the computer. Turn off the
computer.
2. Remove the computer cover and locate the DIMM sockets.
3. Holding the DIMM by the edges, remove it from its antistatic package.
4. Make sure the clips at either end of the socket are pushed away from the
socket.
5. Position the DIMM above the socket. Align the two small notches in the
bottom edge of the DIMM with the keys in the socket.
6. Insert the bottom edge of the DIMM into the socket.
7. When the DIMM is seated, push down on the top edge of the DIMM until the
retaining clips at the ends of the socket snap into place. Make sure the
clips are firmly in place.
8. Replace the computer cover.
Clip
Clip DIMM
DIMM Socket
Notch
Warning:
Turn system power off before installing and removing any device,
otherwise you’ll cause the system damage.

9
Hardware Setup
Installing the Processor
For easy installation of the CPU, it is recommended that you remove all
Cards in PCI slots first.
• Unpack the CPU and identify the pin 1 corner of the CPU.
• Match pin 1 of the CPU with pin 1 of the CPU socket. The pin 1 corner of
the CPU socket is designated by a small triangle printed on the
motherboard.
• Carefully insert the CPU into the CPU socket and move the metal arm
downward to replace it in its original position. Change any jumper settings
as detailed in the manual.
The small circle marked on the top of the CPU designates the pin 1 corner.
If a heat sink is attached and covers the top of the CPU, identify the pin 1
corner by turningthe CPU over. Locate the small gold finger that extends
from one corner of the large central square portion of the CPU. The gold
finger points towards pin 1, which is also uniquely identified by a square pad.
Positioning the CPU incorrectly in the socket can permanently damage
the CPU and the computer when you turn on the system.
Warning:
There is a fan attached the CPU to prevent the overheating, please
ensure that the fan can operate. Otherwise the CPU can overheat
and cause damage to both CPU and motherboard.
Caution
Please check your computer
chassis if it is carrying any metal
mounting post at this location.
Remove the mounting post or
add insulation to the post before
putting in the motherboard.

10
Technical Reference Booklet
BIOSSETUP
This chapter discusses Award’s Setup Program built into the ROM BIOS. The
Setup Program allows users to modify the basic system configuration. This
special information is then stored in battery-backed RAM, which retains the
setup information when the power is turned off.
Starting Setup
The Award BIOS is immediately activated when you turn on the computer. The
BIOS reads the system information contained in the CMOS and begins the
process of checking out the system and configuring it. When it finishes, the
BIOS will seek an operating system on one of the disks and then launch and
turn control over to the operating system .
While the BIOS is in control, the Setup Program can be activated:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears briefly at
the bottom of the screen during the POST (Power On Self Test )
Press DEL to enter SETUP
If the message disappears before you can respond and you still wish to enter
Setup, restart the system to try again by turning it OFF then ON or pressing the
“RESET” button on the system case. You may also restart by simultaneously
pressing the <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at
the correct time and the system does not reset, an error message will be
displayed and you will again be asked to ...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to
use and the possible selections for the highlighted item. To exit the Help
Window press <Esc> or the F1 key again.
In Case of Problems
If, after making and saving system changes with the Setup Program, you
discover that your computer does not reset, use the Award BIOS defaults to
override the CMOS settings.
Main Menu
Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear
on the screen. The Main Menu allows you to select from various setup functions
and two exit choices. Use the arrow keys to select among the items and press
<Enter> to accept and enter the sub-menu.

11
CMOS Setup Utility - Copyright (C) 1984-1999 Award Software
8Standard CMOS Features Load Fail-Safe Defaults
8Advanced BIOS Features Load Optimized Defaults
8Advanced Chipset Features Set Supervisor Password
8Integrated Peripherals Set User Password
8Power Management Setup Save & Exit Setup
8PnP/PCI Configurations Exit Without Saving
8CPU Speed Setting
Esc : Quit éêèç : Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type ... ...
(Note : The figures of BIOS Setup Menu included here only show a typical
case, and may not be exactly the same as the one on your unit.)
Note that a brief description of each highlighted item will appear at the bottom
of the screen.
Standard This setup page includes all the items of Award™ special
CMOS Setup standard features.
AdvancedBIOS This setup page includes all the items of Award™ special
Features enhanced features.
Advanced Chipset This setup page includes all the items of chipset special
Features features.
Integrated This section page includes all the items of IDE hard drive
Peripherals and Programmed Input / Output features.
Power This entry only appears if your system supports Power
Management Management “Green PC” standards.
Setup
PNP/PCI This entry appears if your system supports PNP/PCI.
Configuration
CPU Speed CPU speed setting are settings of CPU speed. You should
Setting refer to your CPU marking.
Load Fail-Safe The BIOS defaults have been set by the manufacturer and
Defaults represent settings which provide the minimum requirements
for your system to operate.
Load Optimized The chipset defaults are settings which provide for maximum
Defaults system performance. While Award has designed the custom
BIOS to maximize performance, the manufacturer has the
right to change these defaults to meet its needs.
BIOSSetup

12
Technical Reference Booklet
Set Supervisor/ Changes, sets, or disables password. It allows you to limit
User Password access to the system and the Setup Program.
Save & Exit Saves value changes to CMOS and exits setup.
Setup
Exit Without Abandons all CMOS value changes and exits setup.
Save
Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into 10 categories. Each
category includes one or more setup items. Use the arrow keys to highlight the
item and then use the <PgUp> or <PgDn> key to select the desired value in
each item.
CMOS Setup Utility - Copyright (C) 1984-1999 Award Software
StandardCMOSFeatures
Date (mm :dd:yy) Tue, May 11 1999 ItemHelp
Time (hh :mm:ss) 11 : 1 : 35 Menu Level 8
8IDE Primary Master Press Enter 4303 MB
8IDE Primary Slave Press EnterNone Change the day, month,
8IDESecondary Master PressEnterNone year and century
8IDE Secondary Slave PressEnterNone
Drive A 1.44M, 3.5 in.
Drive B None
Video EGA/VGA
Halton AllErrors
Base Memory 640K
Extended Memory 30720K
Total Memory 31744K
éêèçMove Enter:Select +/-/PU/PD : Value F10 : Save ESC : Exit F1 :General Help
F5 : Previous Values F6:Fail-SafeDefaults F7 : OptimizedDefaults
(Note : The figures of BIOS Setup Menu included here only show a typical
case, and may not be exactly the same as the one on your unit.)
Date Thedate formatis <day-of-the-week>.<day> <month><year>.
Press <F3> to display the calendar.
Time The time format is <hour> <Minute> <second> displayed in
24-hour military-time clock. For example, 1 p. m. is displayed
as 13:00:00.

13
Primary These categories identify the types of the two channels that
Master/Primary have been installed in the computer. There are 45 predefined
Slave/Secondary typesandoneuserdefinabletypesinBIOS.Type1toType45are
Master/Secondary predefined. Type “user” is user-definable.
Slave Press PgUp or PgDn to select a numbered hard disk type
or type the number and press <Enter>. Note that the
specifications of your drive must match with those of the
drive table. The hard disk will not work properly if you enter
improper information for this category. If your hard disk drive
type is not matched or listed, you can select Type “User” to
define your own drive type manually.
IfyouselectType“User”,youwill need toknowthe information
listedbelow. Enterthe information directly from the keyboard
and press <Enter>. This information should be included in
the documentation from your hard disk vendor or the system
manufacturer.
If the controller of the HDD interface is ESDI, the selection
shall be “Type1”.
If the controller of the HDD interface is SCSI, the selection
shall be “None” .
If you select Type “Auto”, the BIOS will auto-detect the HDD
and CD-ROM drive at the POST stage and show the IDE for
the HDD and CD-ROM drive.
TYPE -Drivetype
CYLS -Number of cylinders
HEADS -Number of heads
PRECOMP -Write precom
LANDZONE -Landing zone
SECTORS -Number of sectors
MODE -Mode type
If a hard disk has not been installed, select NONE and
press <Enter> .
Drive A Type / This category identifies the types of floppy disk drive A or
DriveB Type drive B that has been installed in the computer.
Video This category selects the type of video adapter used for the
primary system monitor. Although secondary monitors are
supported, you do not have to select them in Setup.
BIOSSetup

14
Technical Reference Booklet
Advanced BIOS Features
This section allows you to configure your system for basic operation. You have
the opportunity to select the system’s default speed, boot-up sequence,
keyboard operation, shadowing and security.
Advanced Chipset Features
The Chipset Features Setup option is used to change the values of the chipset
registers. These registers control most of the system options in the computer.
This section allows you to configure the system based on the specific features
of the installed chipset. This chipset manages bus speeds and access to
system memory resources, such as DRAM and the external cache. It must be
stated that these items should not be altered. The default settings have been
chosen because they provide the best operating conditions for your system.
Integrated Peripherals
The Integrated Peripherals Setup allows the user to configure the onboard
IDE controller, floppy disk controller, the printer port and the serial ports.
Power Management Setup
The Power Management Setup Menu allows you to configure your system to
most save energy while operating in a manner consistent with your own style
of computer use .
PNP/PCI Configurations
This section describes how to configure the PCI bus system. This section
covers some very technical items and it is recommended that only experienced
users should make any changes to the default settings.
Set Supervisor/User Password
You can set either supervisor or user password, or both of them. The difference
between them are:
SupervisorPassword : YoucanentertheSetupProgramandchange
the options of the setup menus.
User Password : Youcan enter theSetup Program but cannot
change the options of the setup menus.
When you select this function, the following message will appear at the center
of the screen to assist you in creating a password.

15
BIOSSetup
ENTER PASSWORD:
Type the password, up to eight characters in length, and press<Enter>. The new
password will clear the previously entered password from the CMOS memory.
You will be asked to confirm the password. Type the password again and
press <Enter>. You may also press <Esc> to abort the selection and operate
without a password.
To disable a password, just press <Enter> when you are prompted to enter the
password. A message will be displayed to confirm that the password is
disabled.
PASSWORD DISABLED.
Once the password is disabled, the system will reset and you can enter the
Setup Program freely.
When a password is enabled, you will be prompted to enter it every time you
try to enter setup. This prevents an unauthorized person from changing any
setting of your system configuration.
In addition, when a password is enabled, you can require the BIOS to request
a password every time your system is rebooted. This would further prevent
unauthorized use of your computer.
The password requirement is defined by the Security Option of the BIOS
Features Setup Menu. If the Security Option is set to “System”, the password
will be required both at resetting and at entering setup. If the option is set to
“Setup”, the prompt only appears when you try to enter setup.

16
Technical Reference Booklet
Flash Update Procedure
A program AWDFLASH.EXE is included in the utility diskette or CD. The user is
recommended to follow the procedure below to update the flash BIOS.
1. Create a DOS-bootable floppy diskette. Copy the new BIOS file (just
obtained or downloaded) and the utility program AWDFLASH.EXE to the
diskette.
2. Allow the PC system to boot from the DOS diskette.
3. At the DOS prompt, key in
AWDFLASH
and hit <ENTER>
4. Enter the file name of the new BIOS.
5. The question: “Do you want to save file?” is displayed.
Key in “N” if there is no need to save the existing BIOS content..
Key in “Y” if a backup copy of the existing BIOS is needed.
(A file name has to be assigned to the existing BIOS binary file.)
6. The question : “Are you sure to program?” is displayed.
Key in “Y”
7. Wait until the flash-update is completed.
8. Power down the PC system.
9. Restart the PC.
91-8871-00
Warning:
1. If the flash memory writer utility was not able to successfully
update a complete BIOS file, the system may not boot up.
2. Make sure that the BIOS file is available for this motherboard.
3. If you encounter problem while updating the new BIOS, DO NOT
turn off your PC since this might prevent the system from booting
up. Repeat the process, if the problem still persist, use the original
BIOS file you saved to disk above to update. If it failed, you need
service.
