PCB Piezotronics 65A User manual

Model 65A
Spark plug adaptor (Specify type of plug), short tube (for Series 112)
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

Manual 21354 Rev E
ECN 50523
Repair and Maintenance
PCB guarantees Total Customer Satisfaction through its
“Lifetime Warranty Plus” on all Platinum Stock Products
sold by PCB and through its limited warranties on all other
PCB Stock, Standard and Special products. Due to the
sophisticated nature of our sensors and associated
instrumentation, field servicing and repair is not
recommended and, if attempted, will void the factory
warranty.
Beyond routine calibration and battery replacements
where applicable, our products require no user
maintenance. Clean electrical connectors, housings, and
mounting surfaces with solutions and techniques that will
not harm the material of construction. Observe caution
when using liquids near devices that are not hermetically
sealed. Such devices should only be wiped with a
dampened cloth—never saturated or submerged.
In the event that equipment becomes damaged or ceases
to operate, our Application Engineers are here to support
your troubleshooting efforts 24 hours a day, 7 days a
week. Call or email with model and serial number as well
as a brief description of the problem.
Calibration
Routine calibration of sensors and associated
instrumentation is necessary to maintain measurement
accuracy. We recommend calibrating on an annual basis,
after exposure to any extreme environmental influence,
or prior to any critical test.
PCB Piezotronics is an ISO-9001 certified company whose
calibration services are accredited by A2LA to ISO/IEC
17025, with full traceability to SI through N.I.S.T. In
addition to our standard calibration services, we also offer
specialized tests, including: sensitivity at elevated or
cryogenic temperatures, phase response, extended high
or low frequency response, extended range, leak testing,
hydrostatic pressure testing, and others. For more
information, contact your local PCB Piezotronics
distributor, sales representative, or factory customer
service representative.
Returning Equipment
If factory repair is required, our representatives will
provide you with a Return Material Authorization (RMA)
number, which we use to reference any information you
have already provided and expedite the repair process.
This number should be clearly marked on the outside of
all returned package(s) and on any packing list(s)
accompanying the shipment.
Contact Information
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLine: [phone]
General inquiries: in[email protected]
Repair inquiries: [e-mail]
For a complete list of distributors, global offices and sales
representatives, visit our website, www.pcb.com.
Safety Considerations
This product is intended for use by qualified personnel
who recognize shock hazards and are familiar with the
precautions required to avoid injury. While our equipment
is designed with user safety in mind, the protection
provided by the equipment may be impaired if equipment
is used in a manner not specified by this manual.
Discontinue use and contact our 24-Hour Sensorline if:
Assistance is needed to safely operate equipment
Damage is visible or suspected
Equipment fails or malfunctions
For complete equipment ratings, refer to the enclosed
specification sheet for your product.
Definition of Terms and Symbols
The following symbols may be used in this manual:
DANGER
Indicates an immediate hazardous
situation, which, if not avoided, may
result in death or serious injury.

Manual 21354 Rev E
ECN 50523
CAUTION
Refers to hazards that could damage
the instrument.
NOTE
Indicates tips, recommendations and
important information. The notes
simplify processes and contain
additional information on particular
operating steps.
The following symbols may be found on the equipment
described in this manual:
This symbol on the unit indicates that
high voltage may be present. Use
standard safety precautions to avoid
personal contact with this voltage.
This symbol on the unit indicates that
the user should refer to the operating
instructions located in the manual.
This symbol indicates safety, earth
ground.

Manual 21354 Rev E
ECN 50523
PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

Manual 21354 Rev E
ECN 50523
Component Name
Hazardous Substances
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical Connectors
O
O
O
O
O
O
Piezoelectric Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit
requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

Drawing Number: 21485
Revision: NR
1
OPERATION MANUAL FOR
SPARK PLUG ADAPTOR
MODEL 65
Model #65 Spark Plug Adaptor provides convenient mounting of miniature quartz
transducers in spark ignition engines for measuring combustion pressures. Most standard
spark plugs (with exception of a few very long reach or experimental plugs) can be

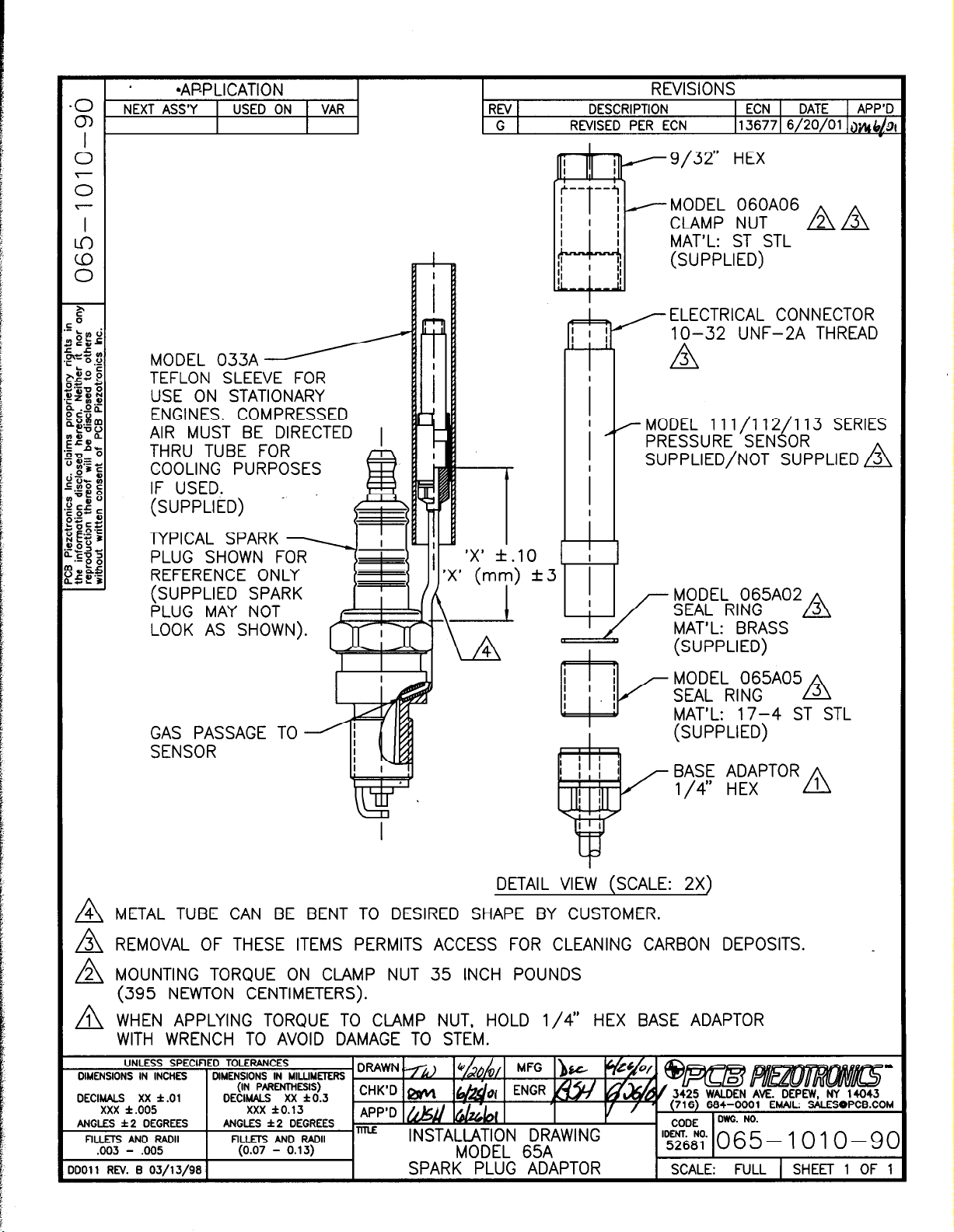

modified. Drawing 065-1010-90 shows details of the miniature transducer mounted in the
spark plug adaptor.
When ordered together the transducer is mounted in the spark plug, pressure tested and
ready to operate. The clamp which holds the transducer in place is locked with a small
amount of epoxy at the base of the threads. If necessary to install or remove the
transducer hold the hex at the adaptor base with one wrench while turning the clamp with
another. This prevents torque being applied to the small diameter tube connecting the
adaptor body to the spark plug. Mounting torque on the clamp should be around 25 inch
pounds. Excessive torque may cause the seal sleeve to collapse and the transducer
diaphragm to bottom against the adaptor base which will cause a completely erratic trace.
The seal sleeve should maintain a clearance between the transducer diaphragm and base
of about .003”to .007”.
It is advisable to pressure test the adaptor after installing or removing the transducer to
assure it does not leak. Even a very small leakage of high temperature gas causes high
heat transfer rate and may damage the crystal.
When the spark plug transducer is operated on a stationary engine it is necessary to air
cool the adaptor housing the transducer. This is usually accomplished by placing the
Teflon tube over the transducer housing and direct a jet of compressed air thru it. On
operating engines which have the cooling fan to create air flow around the transducer the
Teflon tube may be used around the ignition wire to insulate between the transducer
housing and spark plug. DO NOT USE THE TEFLON TUBE OVER THE
TRANSDUCER HOUSING UNLESS COMPRESSED AIR IS BEING BLOWN THRU
IT.
ICB Transducer systems are not nearly susceptible to ignition interference as the charge
systems. Equipping the engine with high resistance ignition cable will minimize ignition
interference with either system.
MAINTENANCE
After prolonged use carbon deposits may build up at the transducer diaphragm and in
small diameter passage. At the first sign of signal distortion disassemble transducer from
spark plug and clean carbon from adaptor base. Run a piece of piano wire through the gas
passage to clean it. When reinstalling the transducer use a new seal if necessary and make
sure adaptor base is clean so it will seal. The seal has a taper on one end which should
mount against the adaptor base. Use a small dab of epoxy , Loctite , or other binding
compound on the adaptor base threads to prevent vibrations from loosening it.

Drawing Number: 21485
Revision: NR
2
OPERATION MANUAL FOR
SPARK PLUG ADAPTOR
MODEL 65
POINTS TO REMEMBER
Spark Plug Transducer assemblies supplied from the factory are sealed and
pressure tested for leaks. If disassembled be sure to pressure test for leaks before
reuse.
On stationary engines (especially those with cooling fans removed) direct a jet of
cooling air thru the Teflon tube placed around transducer housing. When road
testing engines remove the Teflon tube from around the transducer housing so the
engines cooling fan will provide adequate air cooling.
