PCB Piezotronics 176A02 User manual

Model 176A02
Charge Output Pressure Sensor
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

Manual 21354 Rev E
ECN 50523
Repair and Maintenance
PCB guarantees Total Customer Satisfaction through its
“Lifetime Warranty Plus” on all Platinum Stock Products
sold by PCB and through its limited warranties on all other
PCB Stock, Standard and Special products. Due to the
sophisticated nature of our sensors and associated
instrumentation, field servicing and repair is not
recommended and, if attempted, will void the factory
warranty.
Beyond routine calibration and battery replacements
where applicable, our products require no user
maintenance. Clean electrical connectors, housings, and
mounting surfaces with solutions and techniques that will
not harm the material of construction. Observe caution
when using liquids near devices that are not hermetically
sealed. Such devices should only be wiped with a
dampened cloth—never saturated or submerged.
In the event that equipment becomes damaged or ceases
to operate, our Application Engineers are here to support
your troubleshooting efforts 24 hours a day, 7 days a
week. Call or email with model and serial number as well
as a brief description of the problem.
Calibration
Routine calibration of sensors and associated
instrumentation is necessary to maintain measurement
accuracy. We recommend calibrating on an annual basis,
after exposure to any extreme environmental influence,
or prior to any critical test.
PCB Piezotronics is an ISO-9001 certified company whose
calibration services are accredited by A2LA to ISO/IEC
17025, with full traceability to SI through N.I.S.T. In
addition to our standard calibration services, we also offer
specialized tests, including: sensitivity at elevated or
cryogenic temperatures, phase response, extended high
or low frequency response, extended range, leak testing,
hydrostatic pressure testing, and others. For more
information, contact your local PCB Piezotronics
distributor, sales representative, or factory customer
service representative.
Returning Equipment
If factory repair is required, our representatives will
provide you with a Return Material Authorization (RMA)
number, which we use to reference any information you
have already provided and expedite the repair process.
This number should be clearly marked on the outside of
all returned package(s) and on any packing list(s)
accompanying the shipment.
Contact Information
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLine: [phone]
General inquiries: in[email protected]
Repair inquiries: [e-mail]
For a complete list of distributors, global offices and sales
representatives, visit our website, www.pcb.com.
Safety Considerations
This product is intended for use by qualified personnel
who recognize shock hazards and are familiar with the
precautions required to avoid injury. While our equipment
is designed with user safety in mind, the protection
provided by the equipment may be impaired if equipment
is used in a manner not specified by this manual.
Discontinue use and contact our 24-Hour Sensorline if:
Assistance is needed to safely operate equipment
Damage is visible or suspected
Equipment fails or malfunctions
For complete equipment ratings, refer to the enclosed
specification sheet for your product.
Definition of Terms and Symbols
The following symbols may be used in this manual:
DANGER
Indicates an immediate hazardous
situation, which, if not avoided, may
result in death or serious injury.

Manual 21354 Rev E
ECN 50523
CAUTION
Refers to hazards that could damage
the instrument.
NOTE
Indicates tips, recommendations and
important information. The notes
simplify processes and contain
additional information on particular
operating steps.
The following symbols may be found on the equipment
described in this manual:
This symbol on the unit indicates that
high voltage may be present. Use
standard safety precautions to avoid
personal contact with this voltage.
This symbol on the unit indicates that
the user should refer to the operating
instructions located in the manual.
This symbol indicates safety, earth
ground.

Manual 21354 Rev E
ECN 50523
PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

Manual 21354 Rev E
ECN 50523
Component Name
Hazardous Substances
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical Connectors
O
O
O
O
O
O
Piezoelectric Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit
requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

Model Number
176A02 CHARGE OUTPUT PRESSURE SENSOR Revision: E
ECN #: 46623
Performanc
e
ENGLISH S
I
Sensitivity(+/-20 %) 6 pC/psi 87 pC/bar
Measurement Range 725 psi 50 bar
Maximum Pressure(Total) 2 kpsi 137.9 bar
Resonant Frequency ≥100 kHz ≥100 kHz
Transverse Resonance >15 kHz >15 kHz
Frequency Response(± 5.0 %) 20 kHz 20 kHz [2][3]
Non-Linearity ≤1 % FS ≤1 % FS [4]
Environmenta
l
Acceleration Sensitivity ≤0.0036 psi/g ≤.00025 bar/g
Temperature Range(Continuous) -94 to 1200 °F -70 to 650 °C
Temperature Range(Receptacle) -76 to 500 °F -60 to 260 °C
Temperature Response See Graph See Graph [1]
Hazardous Area Approval See Manual See Manual
Radiation Exposure Limit(Integrated Neutron Flux) 1E10 N/cm² 1E10 N/cm²
Radiation Exposure Limit(Integrated Gamma Flux) 1E8 rad 1E8 rad
Electrical
Output Polarity Differential Differential
Capacitance(with cable pin - pin) 150 pF 150 pF [1]
Internal Resistance(room temp) ≥1012 Ohm ≥1012 Ohm
Insulation Resistance(room temp) ≥101
2
Ohm ≥101
2
Ohm
Internal Resistance(1200°F/650°C) ≥50,000 Ohm ≥50,000 Ohm
Insulation Resistance(1200°F/650°C) ≥100,000 Ohm ≥100,000 Ohm
Physical
Sensing Element UHT-12™ UHT-12™
Sensing Geometry Compression Compression
Housing Material Nickel Alloy Nickel Alloy
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 7/16-27 2-Pin 7/16-27 2-Pin
Cable Type Hardline Hardline
Cable Length 10 ft 3 m
Weight(with cable) 4.6 oz 130 gm [1]
[5]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
OPTIONAL VERSIONS
Optional versions have identical specifications and accessories as listed for the standard model
except where noted below. More than one option may be used.
NOTES
:
[1] Typical
.
[2] Low frequency response is determined by external signal conditioning electronics
.
[3] Upper frequency response is calculated from Resonant Frequency.
[4] Zero-based, least-squares line method.
[
5
]
See PCB Declaration of Conformance PS058 for details
.
SUPPLIED ACCESSORIES:
Model 060A59 Mounting Adaptor, 20 mm Hex, M18 x 1.5 Threads (1)
Entered: LK Engineer: GJR Sales: J
C
Approved: BAM Spec Number:
Date: 3/30/2017 Date: 3/30/2017 Date: 3/30/2017 Date: 3/30/2017 57333
3425 Walden Avenue, Depew, NY 14043
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]

1
1
2
2
3
3
4
4
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
DECIMALS X .05
XX .01
XXX .005
ANGLES ± 2 DEGREES
FILLETS AND RADII .003 - .005
HEX DIMENSIONS ARE:
≤.5 + .000 / - .003
> .5 + .000 / - .005
REMOVE ALL BURRS
SHARP = R.000 - R.003
INTERNAL THREAD DEPTH MIN.
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
54210
APPROVAL
INTERCONNECTION
1 OF 2NONE
XXXX .0005
BB 11/18/15 ECB 11/18/15 EDB 11/18/15
+
-
SHIELD
+
-
+
-
54210
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
REVISIONS
REV DESCRIPTION DIN
B UPDATED NOTES 44160
5.) INSTALL PER EN/IEC 60079-14 AND ALL LOCAL ELECTRICAL LAWS.

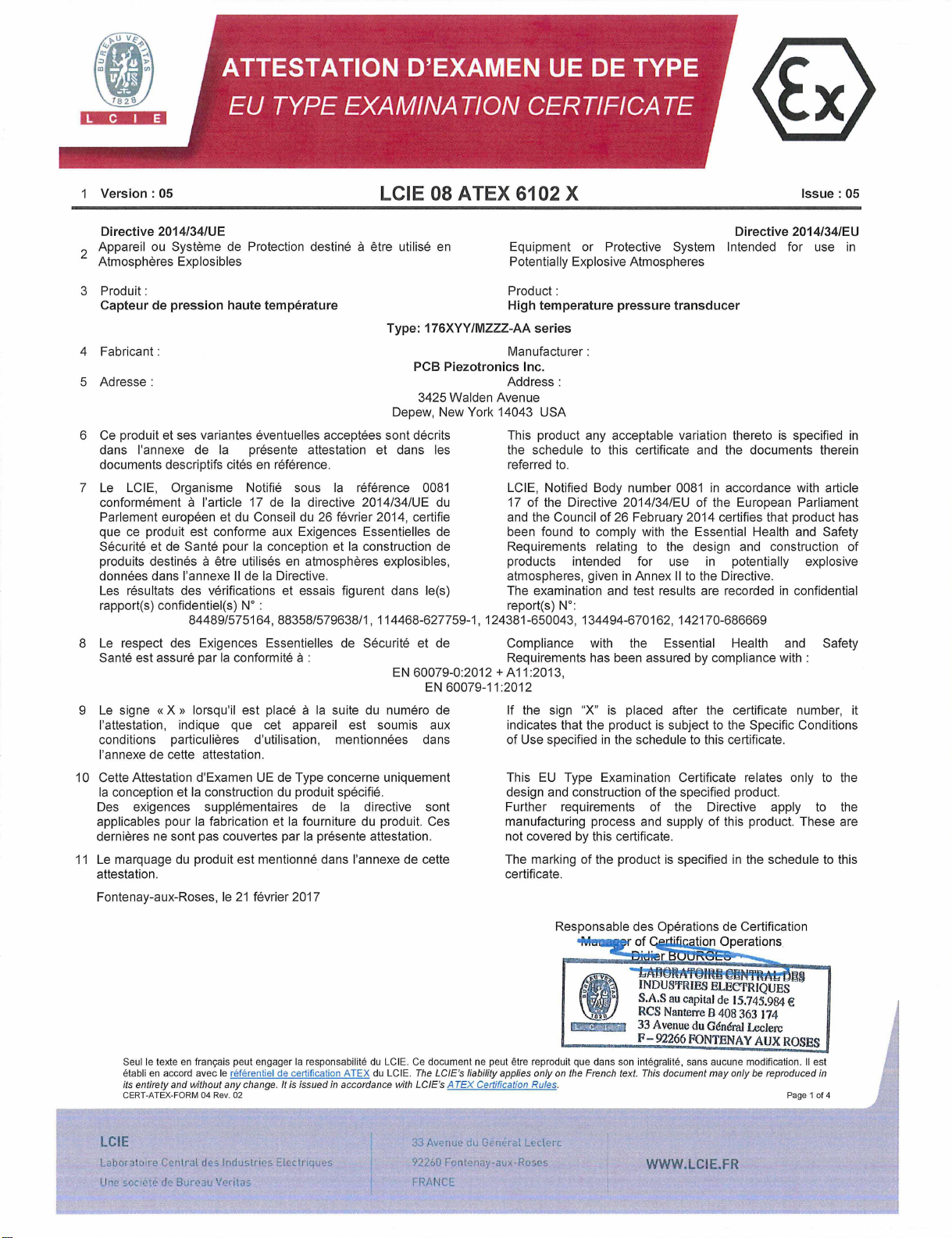

4.) MODEL NUMBER 176XYY/MZZZ-AA CERTIFICATE LCIE 08 ATEX 6102X.
MODEL NUMBER 176XYY/MZZZ-AA CERTIFICATE IECEx LCIE 12.0025X.
3.) SHIELDS TO BE EARTHED AT BARRIER ENDS.
BARRIER WILL BE MOUNTED IN AN ENCLOSURE THE SUITABILITY OF
WHICH WILL BE DETERMINED BY LOCAL AUTHORITIES.
ENTITY APPLICATION
BARRIER I.S. APPARATUS
Voc/Uo ≤VMAX / UI
Isc/Io ≤IMAX/ II
Ca/Co > CI + CCABLE
La/Lo > LI + LCABLE
Po ≤PI (CENELEC ONLY)
BARRIERS WITHIN THE SPECIFIED LIMITATIONS ARE PERMITTED
ENTITY PARAMETERS
OPTION 1
Ui = 30V
li = 300 mA
Pi = 1 W
Ci = 5 nF
Li = 500 H
CERTIFIED BY THE APPROPRIATE APPROVAL AUTHORITY FOR CONNECTION
TO THE FOLLOWING AREAS:
ZONE 0
Ex ia IIC Ga
Ta < 650°C T660°C*
Ta < 520°C T530°C*
Ta < 440°C T1
Ta < 290°C T2
Ta < 195°C T3
Ta < 130°C T4
Ta < 95°C T5
Ta < 80°C T6
*REFERENCE ETCHING ON SENSOR FOR MAXIMUM AMBIENT TEMPERATURE AND ASSOCIATED TEMPERATURE CLASS.
NOTES: Ci IS SPECIFIED AT A MAXIMUM CABLE LENGTH OF 200 FT. [61 METERS] FOR SHORTER CABLE LENGTHS,
Ci IS DECREASED BY 20 pF/FT. [65.6 pF/METER.]
CAUTION
ELECTROSTATIC
DISCHARGE SENSITIVE
2
1
1
2

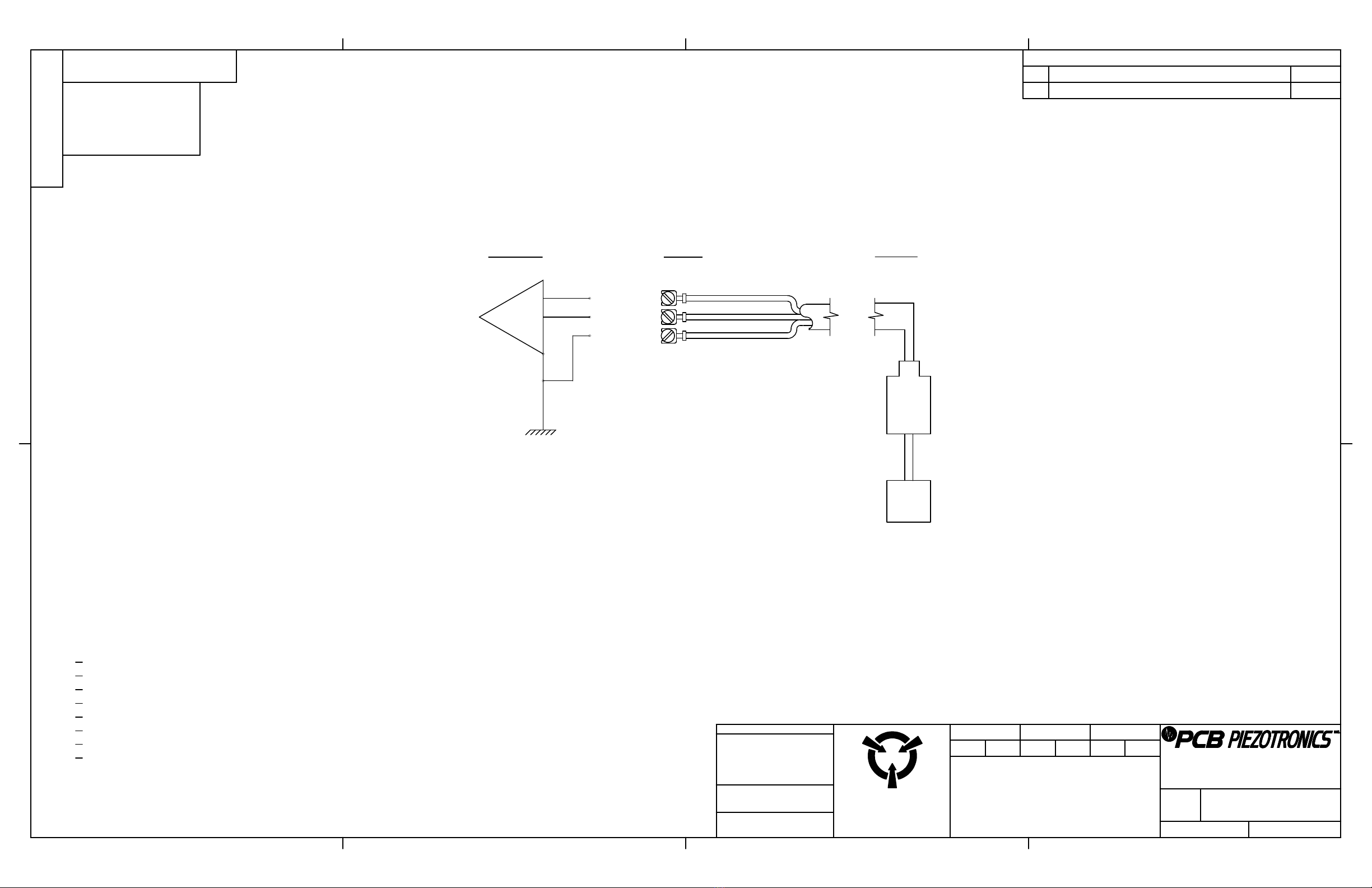

SCHEDULE DRAWING
NO MODIFICATIONS PERMITTED
WITHOUT REFERENCE TO THE
NOTIFIED BODY
AMPLIFIER BARRIER CABLE TRANSDUCER
NON-HAZARDOUS/
SAFE AREA
HAZARDOUS AREA
DIV 1
ZONE 0

1
1
2
2
3
3
4
4
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
DECIMALS X .05
XX .01
XXX .005
ANGLES ± 2 DEGREES
FILLETS AND RADII .003 - .005
HEX DIMENSIONS ARE:
≤.5 + .000 / - .003
> .5 + .000 / - .005
REMOVE ALL BURRS
SHARP = R.000 - R.003
INTERNAL THREAD DEPTH MIN.
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
54210
APPROVAL
INTERCONNECTION
2 OF 2NONE
XXXX .0005
BB 11/18/15 ECB 11/18/15 EDB 11/18/15
+
-
SHIELD
+
-
SHIELD
REVISIONS
REV DESCRIPTION DIN
-SEE SHEET 1-
54210
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
SCHEDULE DRAWING
NO MODIFICATIONS PERMITTED
WITHOUT REFERENCE TO THE
NOTIFIED BODY
CAUTION
ELECTROSTATIC
DISCHARGE SENSITIVE
5.) INSTALL PER EN/IEC 60079-14 AND ALL LOCAL ELECTRICAL LAWS.
4.) MODEL NUMBER 176XYY/MZZZ-AA CERTIFICATE LCIE 06 ATEX 6041X.
MODEL NUMBER 176XYY/MZZZ-AA CERTIFICATE IECEx LCIE 12.0026X.
3.) FOR ZONE 2 INSTALLATION, POWER SUPPLY MUST BE CERTIFIED WITH
ENTITY OUTPUT PARAMETERS (SEE PAGE 1 FOR POWER SUPPLY OUTPUT PARAMETERS.)
2.) MAXIMUM VOLTAGE OF POWER SUPPLY/SIGNAL CONDITIONER NEVER TO EXCEED 250 Vrms.
1.) CERTIFIED BY THE APPROPRIATE APPROVAL AUTHORITY FOR CONNECTION TO THE FOLLOWING AREAS:
ZONE 2
Ex nA IIC Gc
Ta < 650°C T660°C*
Ta < 520°C T530°C*
Ta < 440°C T1
Ta < 290°C T2
Ta < 195°C T3
Ta < 130°C T4
Ta < 95°C T5
Ta < 80°C T6
*REFERENCE ETCHING ON SENSOR FOR MAXIMUM AMBIENT TEMPERATURE AND ASSOCIATED TEMPERATURE CLASS.
DIV 2
CLASS I, GROUPS A,B,C,D
CABLE SENSOR
NON-HAZARDOUS/ SAFE AREA
OR DIV 2/ ZONE 2
AMPLIFIER

1
1
2
2
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
DECIMALS X .05
XX .01
XXX .005
ANGLES ± 2 DEGREES
FILLETS AND RADII .003 - .005
HEX DIMENSIONS ARE:
≤.5 + .000 / - .003
> .5 + .000 / - .005
REMOVE ALL BURRS
SHARP = R.000 - R.003
INTERNAL THREAD DEPTH MIN.
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
57723
SPECIFICATION
CONTROL DRAWING
1 OF 2NONE
XXXX .0005
BB 11/18/15 ECB 11/18/15 EDB 11/18/15
57723
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
5.) FIELD WIRING MUST BE 26 AWG MINIMUM.
4.) HARDLINE CABLE 200 [61 m] FEET MAX.
3.) FOR CANADIAN, DIVISION 2 ZONE 2 INSTALLATION, POWER SUPPLY MUST BE CSA
CERTIFIED WITH ENTITY OUTPUT PARAMETERS.
FOR U.S., DIVISION 2 AND ZONE 2 INSTALLATION, POWER SUPPLY MUST BE APPROVED
BY NRTL WITH ENTITY OUTPUT PARAMETERS.
PHYSICAL CHARACTERISTICS(DIMENSIONS,ETC) MAY NOT BE ACCURATELY REPRESENTED
1.) MAXIMUM VOLTAGE OF POWER SUPPLY/SIGNAL CONDITIONER NEVER TO EXCEED 250 Vrms.
2
REVISIONS
REV DESCRIPTION DIN
A UPDATE T CODES 44160
SCHEDULE DRAWING
NO MODIFICATIONS PERMITTED
WITHOUT REFERENCE TO THE
NOTIFIED BODY
ENTITY PARAMETER
Ui = 30V
Ii = 300 mA
Pi = 1W
C(ELEMENT)=1000pF(MAX)
C(HARDLINE)= 4000pF(MAX)
L(ELEMENT)=0µH
L(HARDLINE)= 500µH(MAX)
Ci = C(ELEMENT)+C(HARDLINE)
Li = L(ELEMENT)+L(HARDLINE)
Ci ≤5000 pF
Li ≤500 µH
HAZARDOUS LOCATION
CI. 1, Div. 2, Gp. A,B,C,D
CI. 1, Zn. 2, AEx nA/Ex nA IIC
T6 to T660°C
T6 to T530°C
T1: Ta<440°C
T2: Ta<290°C
T3: Ta<195°C
T4: Ta<130°C
T5: Ta<95°C
T6: Ta<80°C
T660°C: Ta<650°C
T530°C: Ta<520°C
POWER SUPPLY/
SIGNAL CONDITIONER
2
NON HAZARDOUS LOCATION

1
1
2
2
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
DECIMALS X .05
XX .01
XXX .005
ANGLES ± 2 DEGREES
FILLETS AND RADII .003 - .005
HEX DIMENSIONS ARE:
≤.5 + .000 / - .003
> .5 + .000 / - .005
REMOVE ALL BURRS
SHARP = R.000 - R.003
INTERNAL THREAD DEPTH MIN.
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
57723
SPECIFICATION
CONTROL DRAWING
2 OF 2NONE
XXXX .0005
BB 11/18/15 ECB 11/18/15 EDB 11/18/15
HAZARDOUS LOCATION
CI. 1, Div. 1, Gp. A,B,C,D
CI .1, Zn. 0, AEx/Ex ia IIC
T6 to T660°C
T6 to T530°C
T1: Ta<440°C
T2: Ta<290°C
T3: Ta<195°C
T4: Ta<130°C
T5: Ta<95°C
T6: Ta<80°C
T660°C: Ta<650°C
T530°C: Ta<520°C
ENTITY PARAMETER
Ui = 30V
Ii = 300 mA
Pi = 1W
C(ELEMENT)=1000pF(MAX)
C(HARDLINE)= 4000pF(MAX)
L(ELEMENT)=0µH
L(HARDLINE)= 500µH(MAX)
Ci = C(ELEMENT)+C(HARDLINE)
Li = L(ELEMENT)+L(HARDLINE)
Ci ≤5000 pF
Li ≤500 µH
POWER SUPPLY/
SIGNAL CONDITIONER
57723
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
5.) FIELD WIRING MUST BE 26 AWG MINIMUM.
4.) HARDLINE CABLE 200 [61 m] FEET MAX.
3.) FOR CANADIAN, DIVISION 1 ZONE 0 INSTALLATION, POWER SUPPLY MUST BE CSA
CERTIFIED WITH ENTITY OUTPUT PARAMETERS.
FOR U.S., DIVISION 1 AND ZONE 0 INSTALLATION, POWER SUPPLY MUST BE APPROVED
BY NRTL WITH ENTITY OUTPUT PARAMETERS.
PHYSICAL CHARACTERISTICS(DIMENSIONS,ETC) MAY NOT BE ACCURATELY REPRESENTED
1.) MAXIMUM VOLTAGE OF POWER SUPPLY/SIGNAL CONDITIONER NEVER TO EXCEED 250 Vrms.
NON HAZARDOUS LOCATION
BARRIER
2
SCHEDULE DRAWING
NO MODIFICATIONS PERMITTED
WITHOUT REFERENCE TO THE
NOTIFIED BODY
REVISIONS
REV DESCRIPTION DIN
-SEE SHEET 1-
2

SECTION A-A
1
1
2
2
3
3
4
4
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
ANGLES 2 DEGREES
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
DIMENSIONS IN INCHES
ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
FILLETS AND RADII
0.07 - 0.13
OUTLINE DRAWING
57334
1 OF 12.5X
HIGH TEMPERATURE
PRESSURE SENSOR
DECIMALS XX ±.03
XXX ±.010
DECIMALS X ± 0.8
XX ± 0.25
KSR 10/30/19 KSR 10/30/19 RF 10/30/19
A
A
57334
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
REVISIONS
REV DESCRIPTION DIN
D CALLOUT 060A59 PARTS 50018
1
060A59 CONSISTS OF THESE COMPONENTS
MATING MACHINE SURFACES TO HAVE A SURFACE FINISH OF Ra 0.8
POSITIVE (+)
NEGATIVE (-)
1.50 [38.1]
.44 [11.0]7/16-27 UNS - 2A
120 -0
6+ 3048 -0 152+
[]
1.53 [38.9]
.203 .002 5.14 .05
[]
.353 .020 8.95 .51
[]
.72 [18.3]
.28 [7.1]
013 CABLE
.125 [3.18]

M8x0.75 - 6g
.350 [8.89]
.432 .001 10.96 .03
[]
.374 .001 9.49 .03
[]

(1.562 [39.67])
.079 .002 2.01 .05
[]
.531 .004 13.49 .10
[]
.036 THRU [.91 THRU]2X LOCK WIRE HOLES
INTERNAL SEAL
065A71
.835 .001 21.21 .03
[]

EXTERNAL SEAL
OUTER : .835
INNER : .715
1
.88 [22.4]

CLAMP NUT
M16x2 - 6g
16mm HEX
TORQUE: 20Nm +10
-2
MOUNTING ADAPTOR
M18x1.5 - 6g
20mm HEX
TORQUE: 60Nm +25
-5
SUPPLIED WITH MOUNTING
ADAPTOR 060A59
2
2
2
2
DIAMETER ADAPTOR 2
2
2

PS058 REV. R 07/01/2021
EU Declaration of Conformity PS058
In Accordance with ISO/IEC 17050
Manufacturer: PCB Piezotronics, Inc.
3425 Walden Avenue
Depew, New York 14043 USA
Authorized PCB Piezotronics Europe GmbH
European Porschestrasse 20-30
Representative: 41836 Hückelhoven,Germany
Certifies that type of equipment: Charge Output Sensor(s)
Whose Product Models Include: 176 Series
This declaration is applicable to all Sensor(s) of the above series which have the CE & (EX) ATEX mark on their
data sheets and where those data sheets refer to this declaration of conformity. The data sheets for all model
numbers referenced above, which include the CE & (EX) ATEX mark on such data sheets and refer to this
Declaration of Conformity are hereby incorporated by reference into this Declaration.
Conform to the following EU
Directive(s) when installed per
product documentation:
2014/34/EU
2011/65/EU w/2015/863/EU
ATEX Directive
RoHS Directive
Standards to which Conformity is Declared:
Harmonized Standards
EN 60079-0 :2012+
A11:2013
EN 60079-11:2012
EN 63000:2018
General Explosive Atmosphere
Intrinsic safe, i
Technical documentation for the assessment of electrical and electronic
products with respect to the restriction of hazardous substances
EC Type Examination
ATEX Certifications
LCIE 08 ATEX 6102 X / 04
Ex ia IIC T530⁰C Ga, II 1 G
Ex ia IIC T660⁰C Ga, II 1 G
Ui : 30V, Ii : 300mA, Pi : 1W, Ci : 5nF, Li: 0,5mH
Voluntary Certification
(EN 60079-15:2010)
Voluntary Type
Examination
Certificate
LCIE 06 ATEX 6041 X / 04
Ex nA IIC 530⁰C Gc, II 3 G
Ex nA IIC 660⁰C Gc, II 3 G
Other International
Certifications
(IEC 60079-0, IEC
60079-11, and IEC
60079-15)
IECEx Certifications
IECEx LCIE 12.0025 X
Ex ia IIC T530⁰C Ga
Ex ia IIC T660⁰C Ga
Ui : 30V, Ii : 300mA, Pi : 1W, Ci : 5nF, Li: 0,5mH
IECEx LCIE 12.0026 X
Ex nA IIC 530⁰C Gc
Ex nA IIC 660⁰C Gc
Notified Body Name
Laboratoire Central des Industries Electriques (0081)
Notified Body’s
Address
FONTENAY-AUX-ROSES (Head Office)
33, avenue du Général Leclerc
FR- 92260 Fontenay-aux-Roses
Tel. : + 33 1 40 95 60 60
Fax : + 33 1 40 95 86 56
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) Standard(s)
Place: Depew, NY Date: 07/01/2021
Signature:
Name:
Carrie Termin
Title:
Regulatory Affairs and Product Certification Specialist

PS058 REV. R 07/01/2021
UK Declaration of Conformity PS058UK
In Accordance with ISO/IEC 17050
Manufacturer: PCB Piezotronics, Inc.
3425 Walden Avenue
Depew, New York 14043 USA
Certifies that type of equipment: Charge Output Sensor(s)
Whose Product Models Include: 176 Series
This declaration is applicable to all Sensor(s) of the above series which have the CE & (EX) ATEX mark on their
data sheets and where those data sheets refer to this declaration of conformity. The data sheets for all model
numbers referenced above, which include the CE & (EX) ATEX mark on such data sheets and refer to this
Declaration of Conformity are hereby incorporated by reference into this Declaration.
Standards to which Conformity is Declared:
Harmonized Standards
EN 60079-0 :2012+
A11:2013
EN 60079-11:2012
EN 50581:2012
General Explosive Atmosphere
Intrinsic safe, i
Technical documentation for the assessment of electrical and electronic
products with respect to the restriction of hazardous substances
EC Type Examination
ATEX Certifications
LCIE 08 ATEX 6102 X / 04
Ex ia IIC T530⁰C Ga, II 1 G
Ex ia IIC T660⁰C Ga, II 1 G
Ui : 30V, Ii : 300mA, Pi : 1W, Ci : 5nF, Li: 0,5mH
Voluntary Certification
(EN 60079-15:2010)
Voluntary Type
Examination
Certificate
LCIE 06 ATEX 6041 X / 04
Ex nA IIC 530⁰C Gc, II 3 G
Ex nA IIC 660⁰C Gc, II 3 G
Other International
Certifications
(IEC 60079-0, IEC
60079-11, and IEC
60079-15)
IECEx Certifications
IECEx LCIE 12.0025 X
Ex ia IIC T530⁰C Ga
Ex ia IIC T660⁰C Ga
Ui : 30V, Ii : 300mA, Pi : 1W, Ci : 5nF, Li: 0,5mH
IECEx LCIE 12.0026 X
Ex nA IIC 530⁰C Gc
Ex nA IIC 660⁰C Gc
Notified Body Name
Laboratoire Central des Industries Electriques (0081)
Notified Body’s
Address
FONTENAY-AUX-ROSES (Head Office)
33, avenue du Général Leclerc
FR- 92260 Fontenay-aux-Roses
Tel. : + 33 1 40 95 60 60
Fax : + 33 1 40 95 86 56
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) Standard(s)
Place: Depew, NY Date: 07/01/2021
Conform to the
following UK
Legislation
when installed
per
product
documentation:
Electromagnetic Compatibility Regulations 2016
Electrical Equipment (Safety) Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations 2012
Signature:
Name:
Carrie Termin
Title:
Regulatory Affairs and Product Certification Specialist

ATTESTATION D'EXAMEN UE DE TYPE
L C I E
EU TYPE EXA MINA TION CER TIFIGA TE
17
I
Version :05
LCIE 08 ATEX 6102 X
Issue : 05
Directive 2014/34/UE
2 Appareil ou Système de Protection destine a ètre utilisè en
Atmospheres Explosibles
3 Produit:
Capteur de pression haute tern pérature
Directive 2014/34/EU
Equipment or Protective System Intended for use in
Potentially Explosive Atmospheres
Product:
High temperature pressure transducer
Type: I76XYY/MZZZ-AA series
4 Fabricant: Manufacturer:
PCB Piezotronics Inc.
5 Adresse: Address:
3425 Walden Avenue
Depew, New York 14043 USA
6 Ce produit et ses variantes éventuelles acceptèes sont décrits This product any acceptable variation thereto is specified in
dans I'annexe de la présente attestation et dans les the schedule to this certificate and the documents therein
documents descriptifs cites en référence. referred to.
7
Le
LCIE, Organisme Notifié sous
la
référence 0081
LCIE, Notified Body number 0081 in accordance with article
conformément a l'article 17 de la directive 2014/34/UE du 17 of the Directive 2014/34/EU of the European Parliament
Parlement européen et du Conseil du 26 fèvrier 2014, certifie and the Council of 26 February 2014 certifies that product has
que ce produit est conforme aux Exigences Essentielles de
been found to comply with the Essential Health and Safety
Sécurité et de Sante pour la conception et Ia construction de Requirements
relating to the design and construction of
produits destinès a ètre utilisès en atmospheres explosibles, products intended for
use
in potentially explosive
données dans I'annexe II de la Directive,
atmospheres, given in Annex II to the Directive.
Les résultats des verifications et essais figurent dans le(s) The examination and test results are recorded in confidential
rapport(s) confidentiel(s) N : report(s) N:
84489/575164, 88358/579638/1, 114468-627759-1, 124381-650043, 134494-670162, 142170-686669
8 Le respect des
Exigences Essentielles de Sécurité et de
Compliance with the Essential Health and Safety
Sante est assure par la conformité
a : Requirements has been assured by compliance with
EN 60079-0:2012 +A11:2013,
EN 60079-11:2012
9
Le signe eXe lorsqu'iI est place a la suite du numéro de If the sign "X" is placed after the certificate number, it
l'attestation,
indique
que cet
appareil
est
soumis aux
indicates that the product is subject to the Specific Conditions
conditions particulières d'utilisation, mentionnées dans
of Use specified in the schedule to this certificate.
I'annexe de cette attestation.
10 Cette Attestation d'Examen UE de Type concerne uniquement
la conception et la construction du produit specifie.
Des exigences supplémentaires de Ia directive sont
applicables pour la fabrication et la fourniture du produit. Ces
dernières ne sont pas couvertes par Ia présente attestation.
11 Le marquage du produit est mentionné dans I'annexe de cette
attestation.
Fontenay-aux-Roses, le 21 février 2017
This EU Type Examination Certificate relates only to the
design and construction of the specified product.
Further requirements of the Directive apply to the
manufacturing process and supply of this product. These are
not covered by this certificate.
The marking of the product is specified in the schedule to this
certificate.
Responsable des Operations de Certification
Operations
V
galilJJLUi
INDUSTRIES
EL1CTRIQUS
S.A.S au
capital
de 15.745.984 ,
E
RCS Nanterre B 408
363
174
33 Avenue du
(3tnéraI Leclerc
F—
92266
FONTENAy AUX ROSES
Seul le texte en français peut engager la responsabilité du LCIE. Ce document ne peut Otre reproduit que dens son integralité, sans aucune modification. II est
établi en accord avec le référeriiel
de certification AlEX du LCIE.
The LCIE's liability applies only on the French text. This document may only be reproduced in
its entirety and without any change. It is issued in accordance with LCIE's A TEX Certification Rules.
CERT-ATEX.FORM 04 Rev. 02
Page 1 of 4
LCIE
.... Avenue 0u General Lncferr.
.rtbo afua eantr.G dc; lnduIrioa or: t; 'ot)
Fontctieyaue-Ro;os
WWW,LCIEFR
coceié
do Bureau
tjertta;
-PANIIE
I
