PCI MZK-W04N User manual

Draft IEEE 802.11n Wireless
Broadband Router
MZK-W04N

Foreword
Explanation of the signals
In order to let you set up and use this product correctly, please pay attention when reading or
browsing the manual as you see these signals listed below.
Warning/ Danger
Users should read the explanation carefully and understand it completely, otherwise
users might be in danger or even be injured.
Caution/ Be Careful 
Remind users to be careful when setting up the product and to avoid damaging the
product or its system programs.

Seeking for service or searching for an agent or a distributor
Thank you for purchasing products from Planex Communications Inc. If you have any
operational problems while conÀguring or setting up the product, you may contact with our
Customer Service Department or ask the agent or the distributor from which you bought
the product for help. Moreover, during warranty, if you Ànd any defect or breakdown of the
product, you may bring the product, assembly, and its warranty card to our company or to
where you bought the product to ask for repair.
ŘEvery product has different warranty period and contract; please refer to our
company for further information or consult the agent or the distributor.
Planex Communications Inc.
Support PhoneĈ+65-6338-1704 (Singapore)
[phone] or [phone] (Taiwan)
Customer Service E-MailĈ[email protected]
Contact Us
TelĈ+886-2-2219-1816
FaxĈ+886-2-2219-0655
Agents & DistributorsĈhttp://www.planex.net/where/index.htm

Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. To maintain compliance with FCC RF exposure compliance requirements,
please avoid direct contact to the transmitting antenna during transmitting.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2007 All Rights Reserved.

Contents
Foreword
Chapter1 Introduction to MZK-W04N ...............1
1. Contents of Package ..................
5
2. Product Functions .....................6
3. How to Set Up MZK-W04N ...............8
Chapter2 Setup & Configuration..................11
1. Client’s Computer Setup ...............11
2. Web Configuration....................13
3. Quick Setup .........................16
3.1 Time Zone ........................17
3.2 Broadband Type & IP Address Info . . . .18
4. System..............................23
4.1 Time Zone ........................23
4.2 Password Settings..................24
4.3 Remote Management ..............25
4.4RIP..............................26
4.5 SNMP ............................27
5.WAN ...............................28
5.1 Dynamic IP . . . . . . . . . . . . . . . . . . . . . . .28
5.2 Static IP ..........................29
5.3 PPPoE ...........................30
5.4 PPTP.............................32
MZK-W04N Contents

5.5 L2TP .............................35
5.6 Telstra Big Pond ...................37
5.7 DNS .............................38
5.8 DDNS ............................39
6.LAN................................40
6.1 LAN Settings ......................
40
Chapter3 Advanced Setup & Configuration .........43
1. Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
1.1 Basic Settings .....................
44
1.2 Advance Settings..................45
1.3 Security Settings ...................48
1.3.1 Disabled.....................51
1.3.2 WEP ........................52
1.3.3 WPA pre-shared key ...........53
1.3.4 WPA RADIUS..................54
1.4 Access Control ....................55
1.5WPS.............................56
2. QoS ................................61
3.NAT ................................62
3.1 Port Forwarding ...................
63
3.2 Virtual Server .....................64
3.3 Special Applications ...............67
MZK-W04N Contents

MZK-W04N
6
3.4 UPnP Setting ......................69
3.5 ALG Settings ......................70
4. Firewall .............................71
4.1 Access Control ....................72
4.2 URL Blocking ......................74
4.3 DoS .............................75
4.4DMZ.............................77
5. Status...............................79
5.1 Internet Connection ...............79
5.2 Device Status . . . . . . . . . . . . . . . . . . . . .80
5.3 System Log .......................80
5.4 Security Log ......................81
5.5 Active DHCP Client ................81
5.6 Statistics .........................82
6. Tool ................................82
6.1 Configuration Tool .................83
6.2 Firmware Upgrade .................86
6.3 Restart...........................88
Contents

1
1
Chapter 1 Introduction to MZK-W04N
1Introduction to MZK-W04N
Introduction
Thank you for purchasing Draft IEEE 802.11n Wireless Broadband
Router MZK-W04N. This 802.11n wireless router is a multi-function
device which provides shared broadband Internet access for all LAN
users and 4-Ports switching hub for 10/100 Base-T connections.
MZK-W04N Wireless Router incorporates many advanced features, and
it was designed to provide sophisticated but easy to use functions. MZK-
W04N has a built-in Web server, thus you can access its settings through
Web browsers, such as IE, Netscape, Firefox, and so on. You can set up
and configure the settings easily and completely and enjoy the convenience
instantly.
MZk-W04N has embedded with IEEE802.11b/g and Draft-N wireless
communication standard. All the PCs and network devices, including
PDA, mobile phone, game console and other digital appliances, with
wireless functions can surf online wirelessly through MZK-W04N wireless
broadband router. Cooperate with Draft-N wireless adapter, MZK-W04N
can let data transmission rate up to 300Mbps! With all these features,
MZK-W04N Wireless Router must be the best solution for both beginners
and advanced users. The following chapters will introduce you the
configuration steps and fantastic functions of MZK-W04N.

1
2
MZK-W04N
Special Features
ƖInternet Access Features
œ4-Port Switching Hub:The Wireless Router incorporates a 4-port
10/100BaseT switching hub, making it easy to create or extend your
LAN.
œDHCP Server Support:Dynamic Host Configuration Protocol provides
a dynamic IP address to PCs and other devices upon request. The
Wireless Router can act as a DHCP Server for devices on your local
LAN and WLAN.
œShared Internet Access:All users on the LAN or WLAN can access
the Internet through the Wireless Router, using only a single external
IP Address. The local (invalid) IP Addresses are hidden from external
sources. This process is called NAT (Network Address Translation).
MZK-W04N can let at most 253 users connect online.
œxDSL, Static IP & Cable Modem Support:The Wireless Router has a
10/100BaseT Ethernet port for connecting a DSL or Cable Modem. All
popular DSL and Cable Modems are supported.
œPPPoE Support:The Internet (WAN port) connection supports PPPoE
(PPP over Ethernet).
œDynamic IP Address:On the Internet (WAN port) connection, the
Wireless Router support Dynamic IP Address (IP Address is allocated on
connection).
ƖConfiguration & Management
œEasy Setup:Use your WEB browser from anywhere on the LAN or
WLAN for configuration.
œRemote Management:The Wireless Router can be managed from any
PC on your LAN. And, if the Internet connection exists, it can also
(optionally) be configured via the Internet.

1
3
Chapter 1 Introduction to MZK-W04N
œUPnP Support:UPnP (Universal Plug and Play) allows automatic
discovery and configuration of the Wireless Router. UPnP is by
supported by Windows ME, XP, or later.

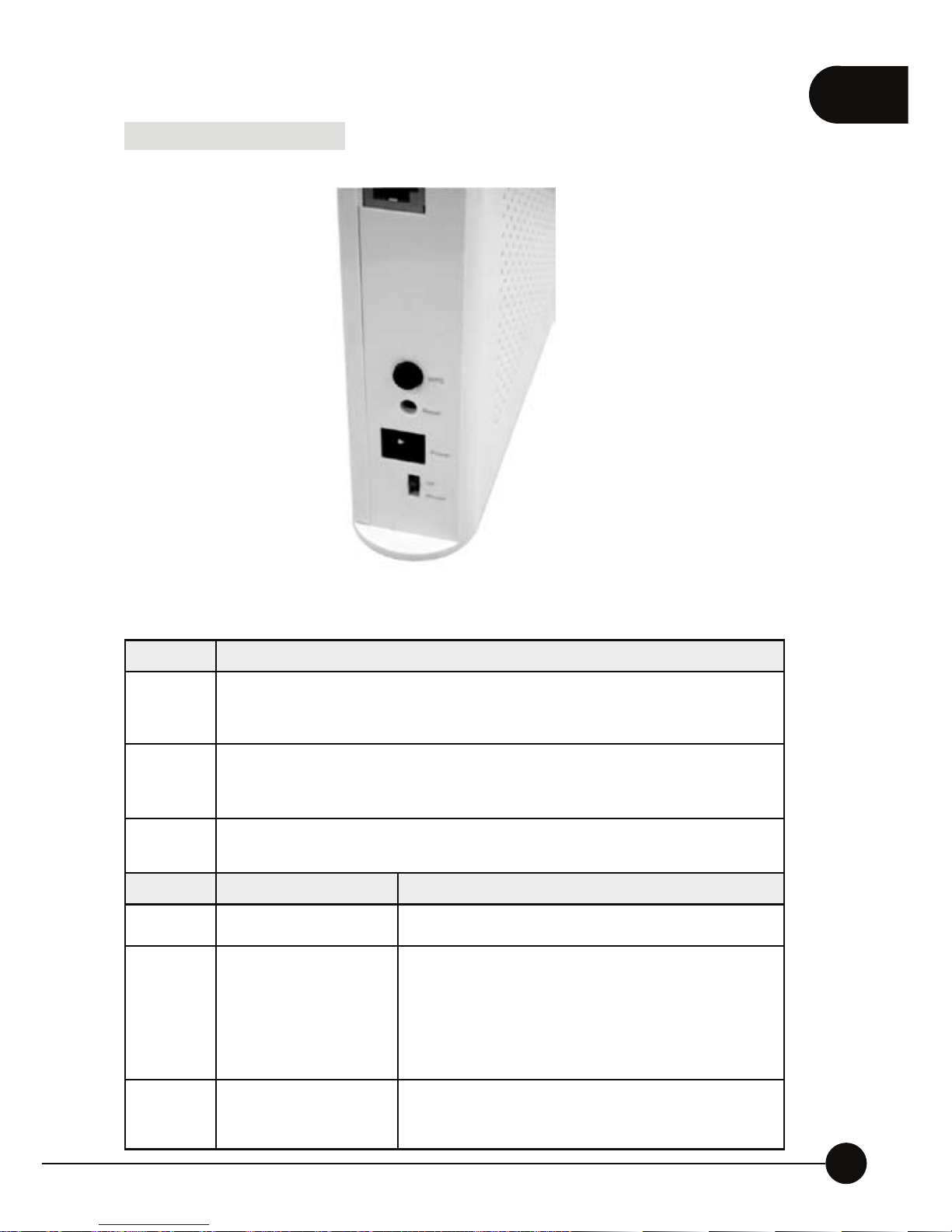

œAP/Router Switch:There is a switch on the back panel of MZK-W04N.
You may use AP/Router switch to choose the function you want to use.
œBuilt-in WPS (Wi-Fi protected setup) Function:All you need to do
is to press a button and then you can easily setup up wireless Internet
and security settings. (Only Windows XP and 2000 OS support WPS
function.)
ƖWireless Features
œStandards Compliance:The Wireless Router complies with the
IEEE802.11b/g and Draft-N (DSSS) specifications for Wireless LANs.
œSupport IEEE 802.11g Wireless Stations:The IEEE 802.11g standard
provides for backward compatibility with the standard 802.11g Wireless
stations.
œ3dBi Antennas:3dBi PR-SMA antennas can make data transmission rate
faster and the radio coverage can be larger and have less dead spots.
œSpeeds to 300Mbps:All speeds up to the 802.11n maximum of
300Mbps (theoretical value) are supported.
œWireless LAN Security:(WEP, WPA, WPA-PSK Support) Supports
for WEP (Wired Equivalent Privacy) and WPA-PSK, as well as Wireless
access control to prevent unknown wireless stations from accessing your
LAN. Key sizes of 64 Bit and 128 Bit are supported.
œWDS support.
œWireless MAC Access Control:The Wireless Access Control feature
can check the the MAC address (hardware address) of Wireless stations
to ensure that only trusted Wireless Stations can access your LAN.

1
4
MZK-W04N
ƖAdvanced Functions
œCommunication Applications:Support for Internet communication
applications, such as interactive Games, Telephony, and Conferencing
applications, which are often difficult to use when behind a Firewall, is
included.
œWMM Support:MZK-W04N can let you have better video/audio data
transmission quality.
œSpecial Internet Applications:Applications which use non-standard
connections or port numbers are normally blocked by the Firewall. The
ability to define and allow such applications is provided, to enable such
applications to be used normally.
œDDNS Support:DDNS (Dynamic DNS) allows Internet users to
connect to Virtual Servers on your LAN using a domain name, even if
your IP address is not fixed.
œDMZ:One PC on your local LAN can be configured to allow
unrestricted 2-way communication with Servers or individual users on
the Internet.
œURL Filter:Use the URL Filter to block access to undesirable Web sites
by LAN users.
œInternet Access Log:See which Internet connections have been made.
œQoS Support.
ƖSecurity Features
œPassword - protected Configuration:Optional password protection
is provided to prevent unauthorized users from modifying the
configuration data and settings.
œNAT Protection:An intrinsic side effect of NAT (Network Address
Translation) technology is that by allowing all LAN users to share a
single IP address, the location and even the existence of each PC is
hidden. From the external viewpoint, there is no network, only a single
device - the Wireless Router.

1
5
Chapter 1 Introduction to MZK-W04N
œProtection against DoS attacks:DoS (Denial of Service) attacks can
flood your Internet connection with invalid packets and connection
requests, using so much bandwidth and so many resources that
Internet access becomes unavailable. The Wireless Router incorporates
protection against DoS attacks.
1.Contents of Package
After purchasing MZK-W04N Wireless Router form a distributor or an
agency, please open the package and check that all the components listed
below are included. If there is any item missing or damaged, please contact
with the distributor or the agency at once.
ƖMZK-W04N Wireless Broadband Router x 1
Ɩ3dBi Antenna x 3
ƖAC Adapter x 1
ƖUTP Cable x 1
ƖShort Cord x 2
ƖUser's Manual x 1
ƖWarranty Card x 1
If plug the AC adapter which includes in the product package into
a socket with different voltage power supply, it will cause damage
and that is not included in warranty.

1
6
MZK-W04N

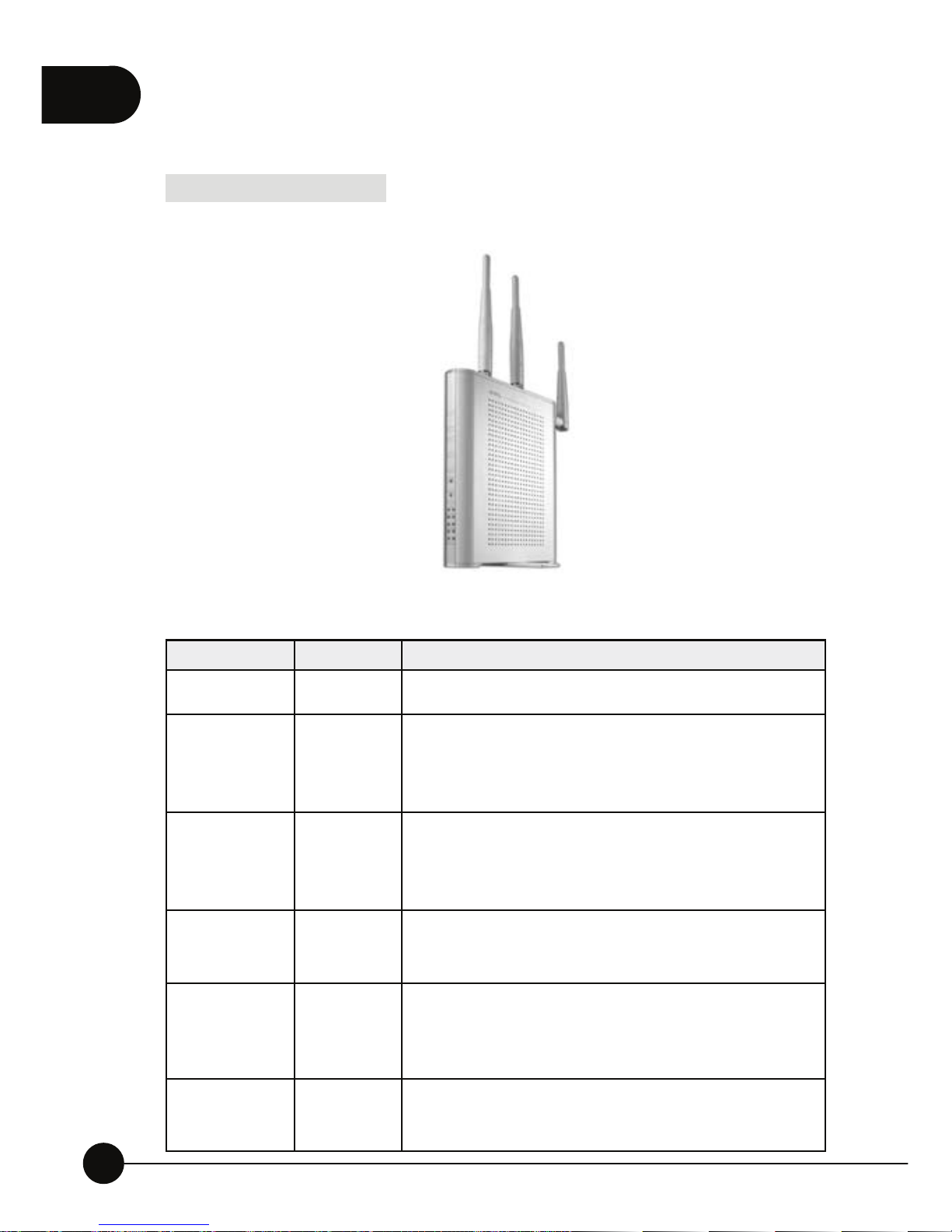

2.Product Functions
Front PanelęLEDs
LEDs Status Meaning
Power On/Off When starting up MZK-W04N, the Power LED will
be on.
WLAN On/Blinking
When MZK-W04N finds any available wireless
connection, the WLAN LED will be on. And the
WLAN LED will be blinking when transmitting or
receiving data via WLAN port.
WAN Link/Act On/Blinking
When the connection is established between MZK-
W04N and a modem, the WAN LED will be on. And
the WAN LED will be blinking when transmitting or
receiving data via WAN port.
WAN 10/100 On/Off
When the data transmission rate reaches 100Mbps, the
WAN LED will be on. If the rate is only 10Mbps, the
LED will be off.
LAN Link/Act On/Blinking
When the connection is established between MZK-
W04N and a modem, the LAN LED will be on. And
the LAN LED will be blinking when transmitting or
receiving data via LAN port.
LAN 10/100 On/Off
When the data transmission rate reaches 100Mbps, the
LAN LED will be on. If the rate is only 10Mbps, the
LED will be off.

1
7
Chapter 1 Introduction to MZK-W04N
Antenna & Ports
Ports Function
WAN
Connect a DSL or Cable Modem to the WAN port and link to the internet.
If your modem came with a cable, use the supplied cable. Otherwise, use
a standard LAN cable.
LAN
Use standard LAN cables (RJ45 connectors) to connect your PCs to these
ports.
Any LAN port can be connected with another hub, if required.
Power Plug the power cord into this port and the other side of the adaptor should
be plugged into the socket.
Button Function Usage
WPS Wi-Fi Protected Setup Please refer to WPS conÀguration chapter.
Reset Reset to Default
Press the button for 3-5 seconds, and then unplug
the power cord, but do not release the Reset
button and wait for 3 seconds before plugging the
power cord back. Release the Reset button and
MZK-W04N will automatically restart and back
to the default settings.
AP/Router AP/Router Switching
Turn up or turn down the switch and then restart
the system to choose the function you want to
use.

1
8
MZK-W04N
3.How to Set Up MZK-W04N
1.Unwrap the package of MZK-W04N Wireless Router and check if the
components are complete and without missing anything.
2.Choose an Installation Site.
Select a suitable place on the network to install MZK-W04N Wireless
Router. And make sure that the wireless router and the DSL/Cable
modem are not powered on yet.
For best Wireless reception and performance, the Wireless
Router should be positioned in a central location with minimum
obstructions between the Wireless Router and the PCs. Also, if
using multiple Access Points, adjacent Access Points should use
different Channels.
3.Connect LAN Cables.
Use standard LAN cables to connect PCs to the switching hub ports on
MZK-W04N. Both 10 Base-T and 100 Base-T connections can be used
simultaneously.
4.Connect WAN Cable.
Connect the DSL or Cable modem to the WAN port on MZK-W04N.
5.Power On.
Power the DSL or Cable modem on. At last, connect the adapter with
MZK-W04N and plug the other side of the power cord into the power
socket. Power MZK-W04N Wireless Router on. While detecting, the
Power LED and WAN LED will be on, and LAN LED and WLAN LED
will be blinking for a while and then the MZK-W04N will be ready in a
short time.

1
9
Chapter 1 Introduction to MZK-W04N
Plug the AC Adapter which comes with MZK-W04N in a different
voltage power supply will cause damage on MZK-W04N, and it is
not included in warranty.
System Requirements
ƖWindows, Macintosh, or Linux-based Operating System with an
installed Ethernet adapter
ƖNetwork cables. Use standard 10/100BaseT network (UTP) cables with
RJ45 connectors.
ƖTCP/IP protocol must be installed on all PCs.
ƖFor Internet Access, an Internet Access account with an ISP, and either
of a DSL or Cable modem (for WAN port usage)
ƖTo use the Wireless Router, all Wireless devices must be compliant with
the IEEE802.11b/g/n specifications.

2
11
Chapter 2 Setup & Configuration
2Setup & Configuration
1.Client's Computer Setup
The computers on your LAN need to be set up to cooperate with MZK-
W04N Wireless Router.
Please make sure that your operating system already enabled your interface
card on the host and connected to one of the LAN ports on MZK-W04N
through Cat.5 cable. Be sure that LEDs on MZK-W04N are already
on and the LED corresponds with the port which you connected. If you
switch on MZK-W04N for the first time, owing to the default status, it will
automatically enable the embedded DHCP server and start to distribute
IP to your host. In addition, the default IP address of MZK-W04N isņ
192.168.1.1.ŇIf your operating system is Windows 98/2000/XP, you may
be able to use command ofņipconfigŇto inquire whether you have the
correct IP address or not. If you are using Linux/Unix-Like system, you
can useņifconfigŇto check your NIC (Network Interface Card) address.
The instructions are as follows:
œWindows98
1.ClickņStartƖProgramsƖMS-DOSŇorņStartƖRunŇand type in
ņcommand.exeŇand then press enter.
2.ņMS-DOSŇwindow will appear.
3.TypeņipconfigŇafter the command ofņc:>Ňand then press enter.
4.MS-DOS will appear your NIC address in the window, please take notice
of the value of ņIP AddressŇand ņDefault Gateway.Ň
5.The value of ņDefault GatewayŇis the IP address of MZK-W04N.

2
12
MZK-W04N
œWindows2000/XP
1.Please make sure that you do have the authority to access as anņ
AdministratorŇor you are already one of theņSystem Administrators.Ň
2.ClickņStartƖProgramsƖAccessoriesƖCommand PromptŇor
ņStartƖRun,Ňand then type inņcmd.exeŇand press enter.
3.It will appear aņMS-DOSŇwindow.
4.TypeņipconfigŇafter the command ofņc:>Ňand then press enter.
5.MS-DOS will appear your NIC address in the window, please take notice
of the value ofņIP AddressŇandņDefault Gateway.Ň
6.The value ofņDefault GatewayŇis the IP address of MZK-W04N.
œLinux / Unix-Like
1.At first please make sure that your NIC are already enabled and works
properly.
2.And be sure you haveņrootŇnumber or your already are one of the
members of aņrootŇgroup.
3.Please typeņifconfigŇofņifconfig -aŇafterņ#Ňand then press enter.
4.It will appear your present NIC address in the window, please take notice
of the value ofņIP AddressŇandņGateway.Ň
5.The value ofņGatewayŇis the IP address of MZK-W04N.
If you can getņIP AddressŇandņGateway,Ňnormally, it means that
you may use web browser to configure MZK-W04N. Type your destination
ęņhttp://192.168.1.1Ň(default IP Address of MZK-W04N) on the
Address Bar in the web browser. If you have changed the default IP
Address of MZK-W04N, please type in the new address on the address bar.

2
13
Chapter 2 Setup & Configuration
2.Web ConÀguration
The MZK-W04N Wireless Router contains an HTTP server. This enables
you to connect the router, and configure it by using your web browser.
Before attempting to configure MZK-W04N Wireless Router, please
ensure that your PC can establish a physical connection to the Wireless
Router. The PC and the MZK-W04N Wireless Router must be directly
connected with each other (using the LAN ports on MZK-W04N) or on the
same LAN segment. Besides, the MZK-W04N Wireless Router must be set
up and powered on.
The MZK-W04N Wireless Router's default IP Address is ņ192.168.1.1.Ň
If the IP address has already used by another device, the other device must
be turned OFF until MZK-W04N is allocated a new IP Address.
Using UPnP
After set up and powered on the MZK-W04N Wireless Router, if your
Windows system supports UPnP, an icon for the Wireless Router will
appear in the system tray, notifying you that a new network device has
been found, and offering to create a new desktop shortcut for the newly-
discovered device. Unless you intend to change the IP Address of the
MZK-W04N Wireless Router, you can accept the desktop shortcut.
Whether you accept the desktop shortcut or not, you can always find
UPnP devices in Network Neighborhood. Double click the icon of the
MZK-W04N Wireless Router (either on the Desktop, or in Network
Neighborhood) to start the configuration.

2
14
MZK-W04N
Using Web Browser
To establish a connection between your PC and the MZK-W04N Wireless
Router:

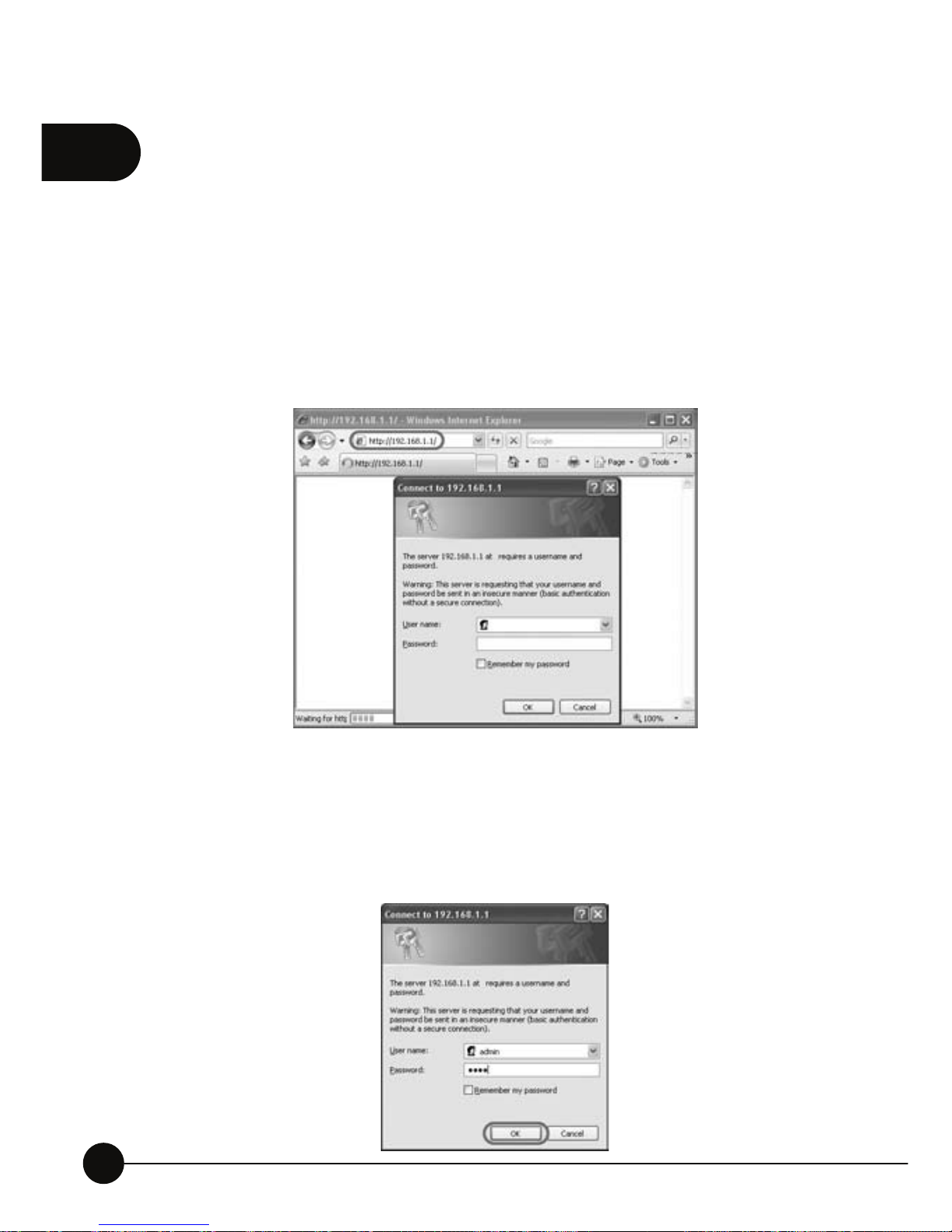

1.Start the WEB browser.
2.In the Address box, enterņhttp://192.168.1.1Ňwhich is the default IP
Address of the MZK-W04N Wireless Router. PressņEnterŇon your
keyboard, and the pop-up will ask you to enter the User Name and
Password to get into the program.
3.Enter the default User NameņAdminŇand Passwordņ0000Ňand
then clickņOKŇto enter the system. You can also put a check in the
ņRemember my passwordŇcheck box, and next time you do not need
to enter password to enter the system.
